A3LSGHI200PCS GSM/EDGE Phone with Bluetooth

Some of the contents in this manual may differ fr om your device depending on the software of the device or your service provider. English. 03/2008. Rev. 1.0 SGH-i200 user manual D r af t 03 20 0 8. 02 . 1 8 S W v e r si o n : i 200B V HA 3 Using this manual This user manual has been specially designed to guide you through the functions and features of your device. To get started quickly, refer to the Quick Start Guide.Instructional iconsBefore you start, familiarise yourself with the icons you will see in this manual: You can also learn how to set up your device by using Getting Started in the start menu. If you set the Home screen theme to Sliding Panel, the Getting Started menu will appear on the Home screen. Warning —situations that could cause injury to yourself or others Caution —situations that could cause damage to your device or other equipmentNote —notes, usage tips, or additional information X Refer to —pages with related information; for example: X p. 12 (represents "see page 12") → Followed by —the order of options or menus you must select to perform a step; for example: Press < Start > → < All Programs > → Camera (represents Start , followed by All Programs , followed by Camera ) [] Square brackets —device keys; for example: [ ] (represents the Power key) Copyrights and trademarksRights to all technologies and products that comprise this device are the property of their respective owners: <> Angled brackets —softkeys that control different functions at each screen; for example: < OK > (represents the OK softkey) • Java™ is a trademark of Sun Microsystems, Inc. • Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide—Bluetooth QD ID: BXXXXXX. • This product includes software licensed from MS, an affiliate of the Microsoft Corporation. Microsoft and software bearing the Microsoft name are registered trademarks of the Microsoft Corporation. Before using this product, refer to MICROSOFT SOFTWARE LICENSE TERMS FOR WINDOWS MOBILE 6 SOFTWARE Agreement at the back of this manual for information about rights and restrictions. 2 ContentsSafety and usage information .......... 41. Communication..................... 11Calls .......................................... 11Messaging .................................. 132. Media.................................... 22Windows Media ........................... 22Camera ...................................... 23Contents Manager ........................ 26Video Player ................................ 27Adobe ® Flash ® Lite™ ................... 28 Voice Notes ................................. 28 3. Personal productivity............ 30Contacts .....................................30Calendar .....................................32Office Mobile ................................33ClearVue PDF ...............................35Tasks ..........................................36File Manager ................................364. Web ...................................... 37Internet Explorer ..........................37Windows Live ...............................38Windows Live Messenger ...............39RSS Reader .................................40Podcast .......................................41 3 Contents 5. Connectivity ......................... 43Use the Bluetooth wireless feature . 43Connect via USB .......................... 45Synchronise your device ............... 46Share internet connection with a PC 49Connect to the intern et or your private network ...................................... 506. Additional programs ............. 52Games ....................................... 52Java ........................................... 52World Clock ................................ 53Alarms ....................................... 53D-Day ........................................ 54Calculator ................................... 55 Smart Converter ..........................55StopWatch ..................................56Smart Search ...............................577. Settings ................................ 588. Troubleshooting.................... 699. MICROSOFT SOFTWARE LICENSE TERMS FOR WINDOWS MOBILE 6 SOFTWARE Agreement ......... 74 Index......................................... 84 4 Safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your device. Safety warnings Keep your device away from small children and petsKeep your device and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed.Protect your hearing Install mobile devices and equipment with caution Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted. Avoid placing your device and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care• Use only Samsung-approved batteries and chargers specifically designed for your device. Incompatible batteries and chargers can cause serious injuries or damage to your device. • Never dispose of batteries in a fire. Follow all local regulations when disposing of used batteries. Listening to a headset at high volumes can damage your hearing. Use only the minimum volume setting necessary to hear your conversation or music. 5 Safety and usage information • Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. Avoid interference with pacemakersMaintain a minimum of 15 cm (6 inches) between mobile devi ces and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your device is interfering with a pacemaker or other medical equipment, turn off the device immediately and contact the manufacturer of th…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: March 17, 2008 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHI200 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

< SGH-i200 BT ant & Main Ant > 9cm Main Ant BT Ant

of 26 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-i200 FCC ID (Requested): A3LSGHI200 Job No: FF-020 Report No: FF-020-S1 Date issued: Mar.10, 2008 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By DK LEE - Test Engineer Authorized By JH NAM - Technical Manager Report Number: FF-020-S1 2 of 26 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 18 7.1 Tissue Verification ................................................................................................................ 18 7.2 Test System Validation ......................................................................................................... 18 8. SAR MEASUREMENT RESULTS ................................................................................................ 19 8.1 Measurement Results(GSM1900 Right Head SAR - Touch) ............................................... 21 8.2 Measurement Results(GSM1900 Right Head SAR - Tilt) .................................................... 22 8.3 Measurement Results(GSM1900 Left Head SAR - Touch).................................................. 23 8.4 Measurement Results(GSM1900 Left Head SAR - Tilt)....................................................... 24 8.5 Measurement Results(GSM1900 Body SAR without Holster) ............................................. 25 9. CONCLUSION .............................................................................................................................. 26 10. REFERENCES ............................................................................................................................ 27 Report Number: FF-020-S1 3 of 26 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM/EDGE Phone with Bluetooth Model Number : SGH-i200 Serial Number : Identical prototype (S/N : # FF-020-G) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : JH KIM Phone : - Fax : +82-54-479-5921 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Mar.03, 2008 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 ~ 1909.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 1930.20 ~ 1989.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Antenna Manufacturer : Galtronics Model No.: - Antenna Dimensions : - GPRS Class 12 Separation distance between GSM and Bluetooth antenna : 9 cm Report Number: FF-020-S1 4 of 26 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell co…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-i200 FCC ID(Requested) : A3LSGHI200 Report No : FF-020-R1 Job No : FF-020 Date issued : March 03, 2008 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By JH WOO - Test Engineer Authorized By WW JANG - Technical Manager © Copyright SAMSUNG Electronics 2005 Report Number : FF-020-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................15 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................16 6.4. Frequency Stability.......................................................................................17 6.4.1. GSM1900 Frequency Stability Table ................................................17 6.4.2. GSM1900 Frequency Stability Graph...............................................18 7. CONCLUSION.........................................................................................................20 8. TEST PLOTS...........................................................................................................21 Report Number : FF-020-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHI200 • Quantity : Quantity production is planned • Emission Designators : 248KGXW(GSM1900), 245KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 1.702 W EIRP GSM1900 (32.31dBm) 0.766 W EIRP GSM1900 EDGE(28.84dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM/EDGE Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : February 28-29, 2008 • Place of Test : SAMSUNG Lab, • Test Report S/N : FF-020-R1 Report Number : FF-020-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FF-020-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FF-020-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2008-10-17 E4440A(3Hz~26.5GHz)MY41000236 2008-04-14 E4440A(3Hz~26.5GHz)MY41000233 2008-07-23 Signal Generator SMR…

Text truncated - open the document above for the full version.

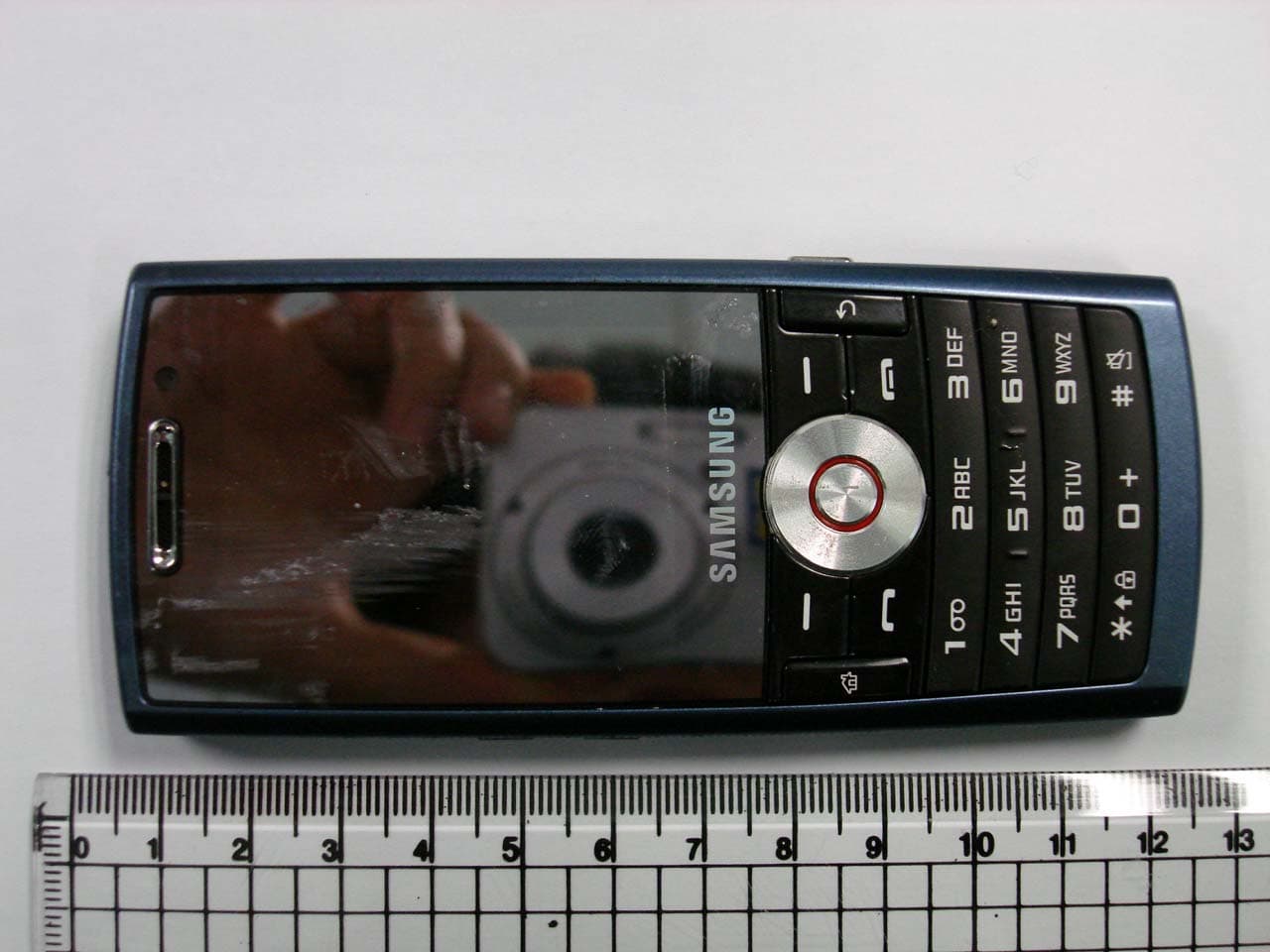

© 2008 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth

© 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHI200 Single-Band PCS GSM/EDGE Phone with Bluetooth
