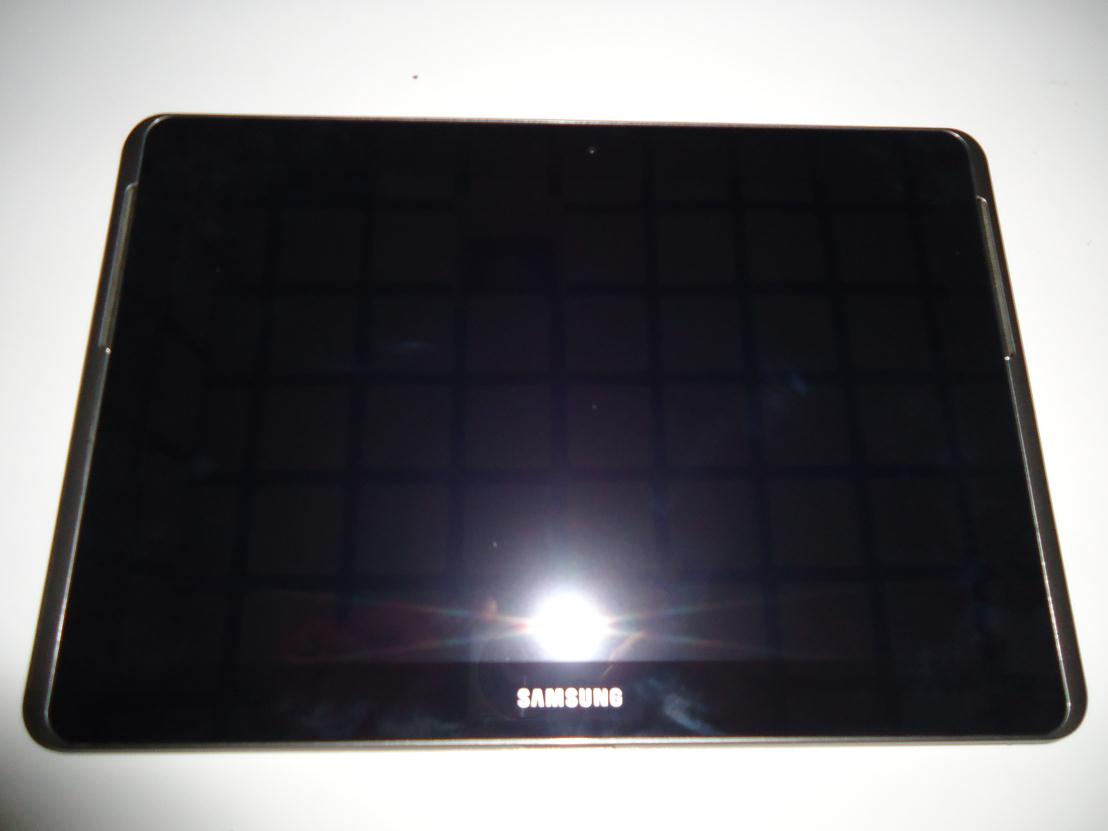

A3LSGHI497Tablet with WLAN,BT(EDR,LE),GSM/WCDMA/LTE

User manual SGH-I497 Draft 6 2011-12-23 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or perm…

Text truncated - open the document above for the full version.

View the electronic version of the user manual For more information, refer to the user manual at www.samsung.com. The manual is available as an Adobe Acrobat file (.pdf ). If you do not have Adobe Reader, you can download the free program at www.adobe.com. SGH-I497 Using this manual 2 Using this manual Congratulations on your purchase of the Samsung mobile device. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the Samsung mobile device gives you access to thousands of useful and entertaining applications to enrich your mobile web experience. With integrated wireless access and a responsive touch screen, you can read books and newspapers on the go; stay up-to-date on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this manual carefully ● before using your device to ensure safe and proper use. The descriptions in this manual are based on the default ● settings of your device. Images and screenshots used in this user manual may differ ● in appearance from the actual product. Content in this user manual may differ from the product, ● or from software provided by service providers or carriers, and is subject to change without prior notice. Refer to www.samsung.com for the latest version of the user manual. Available features and additional services may vary by ● device, software, or service provider. Using this manual 3 Formatting and delivery of this user manual is based ● on Google Android operating systems and may vary depending on the user’s operating system. Applications and their functions may vary by country, ● region, or hardware specifications. Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or ● incompatibilities caused by user editing of registry settings. You may upgrade your mobile device’s software by ● accessing www.samsung.com. Software, sound sources, wallpapers, images, and other ● contents provided in this device are licenced for limited use between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this manual for future reference. ● Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Using this manual 4 ► Refer to—pages with related information; for example: ► p. 12 (represents “see page 12”) → Followed by—the order of options or menus you must select to perform a step; for example: Open the application list and select Settings → Wireless and networks (represents Settings, followed by Wireless and networks) [] Square brackets—device keys; for example: [ ] (represents the Power/Reset/Lock key) Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered ● trademarks of Samsung Electronics. The Android logo, Google Search ● ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Using this manual 5 Bluetooth ● ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/ ● or its affiliates. Other names may be trademarks of their respective owners. Windows Media Player ● ® is a registered trademark of Microsoft Corporation. Wi-Fi ● ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. DivX ● ® , DivX Certified ® , and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. All other trademarks and copyrights are the property of ● their respective owners. Using this manual 6 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. DivX Certified ® to play DivX ® video up to HD 720p, including premium content ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 7 Assembling ............................................................. 11 Unpack .................................................................................... 11 Install the SIM or USIM card ............................................... 12 Charge the battery ............................................................... 12 Insert a memory card (optional) ....................................... 14 Getting started ....................................................... 17 Turn your device on and off ............................................... 17 Get to know your device ..................................................... 18 Use the touch screen ........................................................... 23 Get to know the Home screen…

Text truncated - open the document above for the full version.

Samsung Electronics Co., LTD. 416, Maetan-3dong, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Date: February 6, 2012 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 660-B Dobbin Road Columbia, MD 21045 Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSGHI497 To Whom it May Concern We attest the following regarding FCC ID: A3LSGHI497 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes: Supported channel BWs, modulations, frequency bands: a. LTE Band 4 (Channel BW 5,10 & 15,20 MHz)/QPSK & 16QAM b. LTE Band 17 (Channel BW 5 & 10 MHz)/QPSK & 16QAM 2. MPR is implemented per 3GPP TS 36.101. With the MPR permanently implemented, this device will never operate at 23.5dBm or higher in QPSK and 16QAM. 3. We confirm the specific MPR targets and tolerances shown below 1) The LTE MPR Targets for Band 4 (AWS) are: Band Bandwidth [MHz] ModulationRB Size RB Offset Target MPR [dB] Maximum MPR Allowed per 3GPP [dB] LTE Band 4 5 QPSK 1 0 0 0 5 QPSK 1 24 0 0 5 QPSK 12 6 1 0-1 5 QPSK 25 0 1 0-1 5 16-QAM 1 0 1 0-1 5 16-QAM 1 24 1 0-1 5 16-QAM 12 6 2 0-2 5 16-QAM 25 0 2 0-2 10 QPSK 1 0 0 0 10 QPSK 1 49 0 0 10 QPSK 25 12 1 0-1 10 QPSK 50 0 1 0-1 10 16-QAM 1 0 1 0-1 10 16-QAM 1 49 1 0-1 10 16-QAM 25 12 2 0-2 10 16-QAM 50 0 2 0-2 15 QPSK 1 0 0 0 15 QPSK 1 74 0 0 15 QPSK 36 18 1 0-1 15 QPSK 75 0 1 0-1 15 16-QAM 1 0 1 0-1 15 16-QAM 1 74 1 0-1 15 16-QAM 36 18 2 0-2 15 16-QAM 75 0 2 0-2 20 QPSK 1 0 0 0 20 QPSK 1 99 0 0 20 QPSK 50 25 1 0-1 20 QPSK 100 0 1 0-1 20 16-QAM 1 0 1 0-1 20 16-QAM 1 99 1 0-1 20 16-QAM 50 25 2 0-2 20 16-QAM 100 0 2 0-2 2 ) The LTE MPR Targets for Band 17 are: Band Bandwidth [MHz] ModulationRB Size RB Offset Target MPR [dB] Maximum MPR Allowed per 3GPP [dB] Band 17 5 QPSK 1 0 0 0 5 QPSK 1 24 0 0 5 QPSK 12 6 1 0-1 5 QPSK 25 0 1 0-1 5 16-QAM 1 0 1 0-1 5 16-QAM 1 24 1 0-1 5 16-QAM 12 6 2 0-2 5 16-QAM 25 0 2 0-2 10 QPSK 1 0 0 0 10 QPSK 1 49 0 0 10 QPSK 25 12 1 0-1 10 QPSK 50 0 1 0-1 10 16-QAM 1 0 1 0-1 10 16-QAM 1 49 1 0-1 10 16-QAM 25 12 2 0-2 10 16-QAM 50 0 2 0-2 4. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 5. We attest to the Simultaneous Tx listed on Operational Description to be accurate and furthermore, any other simultaneous Tx combinations not listed on the SAR report are not supported by software/hardware design. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, HYUNWOO KWON Engineer Samsung Electronics CO. LTD TEL: +82-54-479-8184 E-mail: [email protected]

July 12, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSGHI497 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

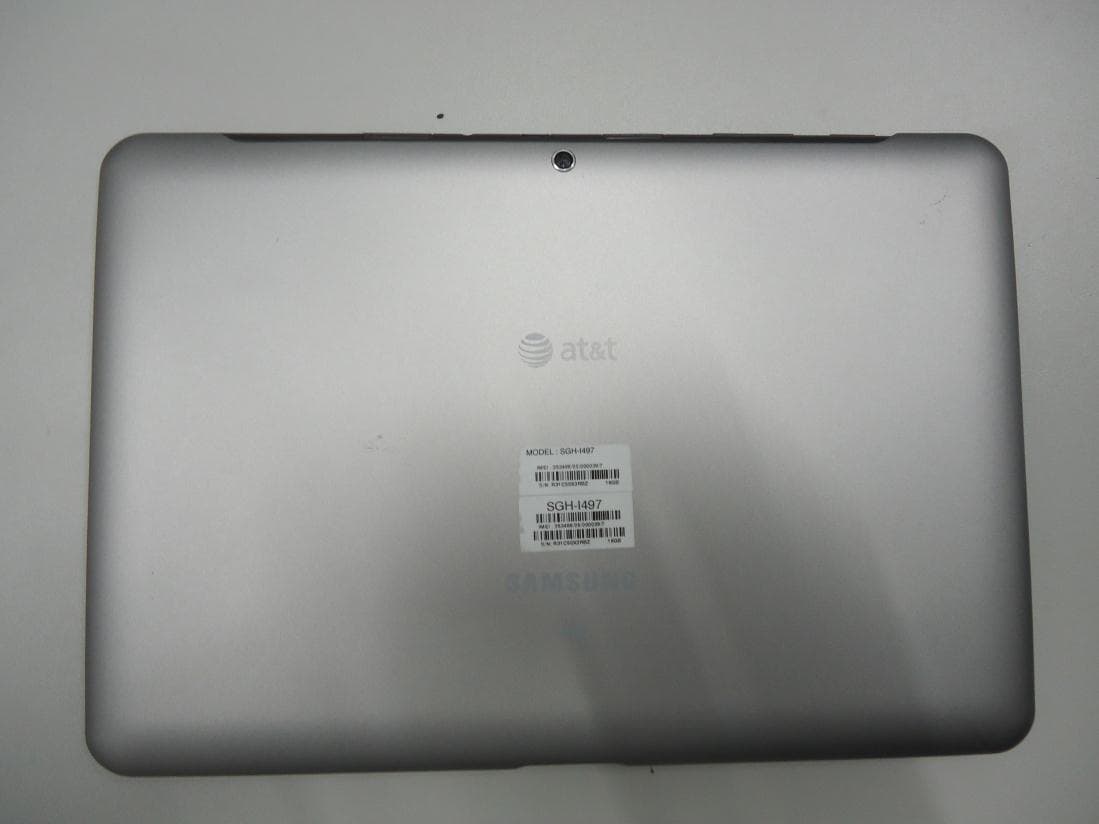

Label and Location Model: SGH-I497 FCC ID: A3LSGHI497 Label: Location: Top Back plate of device Bottom FCC ID is printed on bottom of the device

Test report No. : 32JE0205-HO-H-R1 Page : 1 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 13-EM-F0429 SAR TEST REPORT Test Report No. : 32JE0205-HO-H-R1 Applicant :SAMSUNG ELECTRONICS CO., LTD. Type of Equipment :GPRS850/1900, EDGE850/1900, WCDMA2, WCDMA5, LTE4, LTE17 Tablet with 802.11bgn, BT(EDR, LE) Model No. :SGH-I497 FCC ID :A3LSGHI497 Test regulation :FCC47CFR 2.1093 FCC OET Bulletin 65, Supplement C (Edition 01-01) Test Result :Complied GSM850 Body : 1.02W/kg PCS1900 Body : 0.984W/kg WCDMA band V Body : 0.615W/kg WCDMA band II Body : 1.09W/kg LTE band 4 Body : 0.786W/kg LTE band 17 Body : 0.692W/kg WLAN 11b/g/n(2.4G) Body : 0.857W/kg 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 32JE0205-HO-H. 32JE0205-HO-H is replaced with this report. Date of test: June 4 to 29, 2012 Representative test engineer: Hisayoshi Sato Engineer of WiSE Japan, UL Verification Service Approved by : Takahiro Hatakeda Leader of WiSE Japan UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/m ark1/index.jsp#nvlap Test report No. : 32JE0205-HO-H-R1 Page : 2 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1: Customer information ................................................................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ..................................................................................................................................................... 3 2.1 Identification of E.U.T. ....................................................................................................................................... 3 2.2 Product description ............................................................................................................................................. 4 SECTION 3 : Test standard information ........................................................................................................................................................... 8 3.1 Test Specification ............................................................................................................................................... 8 3.2 Procedure ............................................................................................................................................................ 8 3.3 Exposure limit .................................................................................................................................................... 9 3.4 Test Location ...................................................................................................................................................... 9 SECTION 4 : Test result ....................................................................................................................................................................................... 10 4.1 Stand-alone SAR result....................................................................................................................................... 10 4.2 Simultaneous transmission SAR result ............................................................................................................... 10 SECTION 5 : Description of the operating mode .............................................................................................................................................. 12 5.1 Output power operating modes ........................................................................................................................... 12 5.2 Output power measurement results ..................................................................................................................... 15 5.3 Detail for Power Reduction ................................................................................................................................ 28 5.4 SAR testing operating modes ............................................................................................................................. 28 5.5 Confirmation before SAR testing ....................................................................................................................... 30 5.6 Confirmation after SAR testing .......................................................................................................................... 30 SECTION6 : Description of the Body ................................................................................................................................................................. 31 6.1 Specification of sensor ........................................................................................................................................ 31 6.2 Description of the Body setup .....................................................…

Text truncated - open the document above for the full version.

Test report No. : 32JE0205-HO-H-R1 Page : 132 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2.System Validation Dipole (D1800V2,S/N: 2d04) Test report No. : 32JE0205-HO-H-R1 Page : 133 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 32JE0205-HO-H-R1 Page : 134 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 32JE0205-HO-H-R1 Page : 135 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 32JE0205-HO-H-R1 Page : 136 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 32JE0205-HO-H-R1 Page : 137 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 32JE0205-HO-H-R1 Page : 138 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 32JE0205-HO-H-R1 Page : 139 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 32JE0205-HO-H-R1 Page : 140 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 32JE0205-HO-H-R1 Page : 141 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 D1800V2 Calibration for Impedance and Return-loss 1. Test environment 2. Equipment used Control No. Instrument Manufacturer Model No Serial No Calibration Date * Interval(month) MNA-01 Network Analyzer Agilent/HP E8358A US41080381 2011/08/22 * 12 MNCK-01 Type N Calibration Kit Agilent 85032F MY41495257 2011/08/12 * 12 EST-46 3.5mm Calibration Kit Agilent 85052D MY43252869 2011/06/13 * 12 MDA-06 Dipole Antenna Schmid&Partner Engineering AG D1800V2 2d040 2010/12/09 * 36 MPF-01 Flat Phantom Schmid&Partner Engineering AG 2.0mm Flat Phantom V4.3L 1005 2011/04/01 * 12 MOS-24 Thermo-Hygrometer Custom CTH-201 0005 2011/02/23 * 12 HSL1800 Daily check MSL1800 Daily check SAR room Daily check 3. Test Result Impeadance,Transformed to feed pointHeadDeviationToleranceResult Calibration (SPEAG) 2010/12/0948.8 -1.9j--- Calibration(ULJ)2011/11/2346.56+1.518j 0.38-0.65j+/-5+/-5jComplied Return lossHeadDeviationToleranceResult Calibration (SPEAG) 2010/12/09-33.1dB--- Calibration(ULJ)2011/11/23-28.18dB4.92dB33.1 *+/-20%Complied Impeadance,Transformed to feed poin tBodyDeviationToleranceResult Calibration (SPEAG) 2010/12/0944.4 -2.2j--- Calibration(ULJ)2011/11/2343.22+0.895j -1.18+3.095j +/-5+/-5jComplied Return lossBod yDeviationToleranceResult Calibration (SPEAG) 2010/12/09-24.0dB--- Calibration(ULJ)2011/11/23-22.69dB1.31dB24*+/-20%Complied *Tolerance : According to the KDB450824D02 Date November 23, 2011 Ambient Temperature 24.0 deg.C Relative humidity 45%RH Test report No. : 32JE0205-HO-H-R1 Page : 142 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Measurement Plots <Head Liquid> <Body Liquid> Test report No. : 32JE0205-HO-H-R1 Page : 143 of 196 FCC ID : A3LSGHI497 Issued date : July 9, 2012 Revised date : July 26, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 System validation result for Body 750MHz Simulated Tissue Liquid Parameter confirmation Date Ambient Temp. [deg.c] Relative Humidity [%] Liquid type Liquid Temp. [deg.c] Measured Frequency [MHz] Parameters Target Value*1 Measured Deviation [%] Limit [%] r 55.557.84.0+/-5 [mho/m] 0.960.993.2+/-5 r 55.557.84.0+/-5 [mho/m] 0.961.014.9+/-5 r: Relative Permittivity / : Coductivity *1 The Target value is a parameter defined in FCC OET 65 . 㻌 26-Jun24.055 MSL 750 23.5750 54750 DIELECTRIC PARAMETERS MEASUREMENT RESULTS 13-Jun23.5 MSL 750 24.0 Date Ambient Temp. [deg.c] Relative Humidity [%] Liquid type Liquid Temp. [deg.c] Measured Frequency [MHz] Parameters Target Value*2 Measured Deviation [%] Limit*3 [%] r 55.657.83.9+/-6 [mho/m] 0.960.993.2+/-6 r 55.657.84.0+/-6 [mho/m] 0.961.014.9+/-6 r: Relative Permittivity / : Coductivity *3 The limit is for deviation provided by manufacture. 55 MSL 750 23.5750 *2 The target value is the calibrated dipole Body TSL parameters. (D750V3 SN:1058, Measured Body TSL parameters) 55750 DIELECTRIC PARAMETERS MEASUREMENT RESULTS 13-Jun23.5 MSL 750 24.0 26-Jun24.0 System validation result (for calibration by manufacture) Forward Powe…

Text truncated - open the document above for the full version.

Test report No. : 32JE0205-HO-C Page : 1 of 49 Issued date : July 9, 2012 FCC ID : A3LSGHI497 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 32JE0205-HO-C Applicant : SAMSUNG ELECTRONICS CO., LTD. Type of Equipment : GPRS850/1900, EDGE850/1900, WCDMA2, WCDMA5, LTE4, LTE17 Tablet with 802.11bgn, BT(EDR, LE) Model No. : SGH-I497 Test standard : FCC Part 22 Subpart H: 2006 FCC ID : A3LSGHI497 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: _____________________________ Representative test engineer: _____________________________ Katsunori Okai Engineer of WiSE Japan, UL Verification Service Approved by: _____________________________ Takahiro Hatakeda Leader of WiSE Japan, UL Verification Service May 29 to June 21, 2012 13-EM-F0429 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the…

Text truncated - open the document above for the full version.
