A3LSGHI780PCS GSM/ EDGE Phone with Bluetooth

Pocket PC phone SGH-i780 User’s Guide Draft 01 2007. 08. 03 SW Version: PDA: i780BVGF2 Phone: i780BVGF2 1 Table of contents CHAPTER 1Getting started What’s in the box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Getting to know your phone. . . . . . . . . . . . . . . . . . . . . . 10 Installing the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . 14 Installing the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Charging your phone. . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Switching the phone on or off. . . . . . . . . . . . . . . . . . . . . 18 Conserving battery power . . . . . . . . . . . . . . . . . . . . . . . 19 CHAPTER 2The basics Using the Today screen . . . . . . . . . . . . . . . . . . . . . . . . . 22 Customising your phone . . . . . . . . . . . . . . . . . . . . . . . . 28 Searching for items. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Searching for items. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Using an optional memory card . . . . . . . . . . . . . . . . . . . 37 Adding and removing programs . . . . . . . . . . . . . . . . . . . 40 Resetting your phone . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Managing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Managing certificates . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Using online help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 CHAPTER 3Entering information Entering text using the input panel . . . . . . . . . . . . . . . . . 49 Writing on the screen . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Drawing on the screen . . . . . . . . . . . . . . . . . . . . . . . . . 59 Entering text using the keypad. . . . . . . . . . . . . . . . . . . . 61 Recording a message . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Table of contents 2 CHAPTER 4Synchronising information Installing ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Customising connection settings . . . . . . . . . . . . . . . . . . . 65 Connecting your phone to a computer . . . . . . . . . . . . . . . 65 Synchronising information . . . . . . . . . . . . . . . . . . . . . . . 67 Customising synchronisation settings . . . . . . . . . . . . . . . 67 CHAPTER 5Call functions Entering your PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Checking you are connected . . . . . . . . . . . . . . . . . . . . . 71 Turning the phone functions off or on . . . . . . . . . . . . . . . 72 Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Advanced calling features . . . . . . . . . . . . . . . . . . . . . . . 74 Answering or rejecting a call . . . . . . . . . . . . . . . . . . . . . 77 Adjusting the ringer volume . . . . . . . . . . . . . . . . . . . . . . 77 Options during a call . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Call-related features . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Customising your phone functions . . . . . . . . . . . . . . . . . 86 CHAPTER 6Message and Internet Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 Internet Explorer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 CHAPTER 7Organiser Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124 Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129 Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 Table of contents 3 CHAPTER 8Multimedia Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133 Windows Media Player . . . . . . . . . . . . . . . . . . . . . . . . . 138 Mini player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 Contents Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 Photo Slides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 CHAPTER 9Extra programs Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154 Smart Converter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 Excel Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156 Word Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 PowerPoint Mobile. . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 File Explorer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162 SIM Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162 GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 SIM Application Toolkit . . . . . . . . . . . . . . . . . . . . . . . . 165 CHAPTER 10Getting connected Beaming with Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . 166 Using Internet Sharing . . . . . . . . . . . . . . . . . . . . . . . . 170 Connecting to the Internet or your network . . . . . . . . . . 171 Setting up a network card . . . . . . . . . . . . . . . . . . . . . . 173 CHAPTER 11Troubleshooting General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 Call problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 Power and charging problems . . . . . . . . . . . . . . . . . . . 179 Program problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 181 5 Important safety precautions Read these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal. Drive safely at all times Do not use a hand-held phone while driving; park your vehicle first. Switching off when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switching off in an aircraft Wireless phones can cause interference. Us…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: October 15, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGH I780 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics CONFIDENTIAL 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

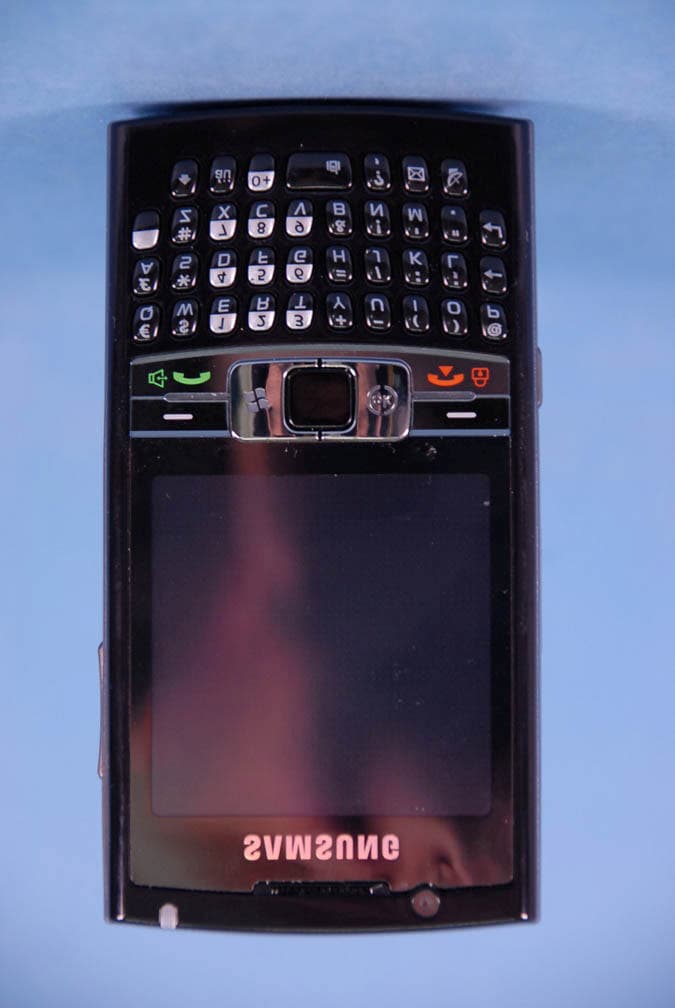

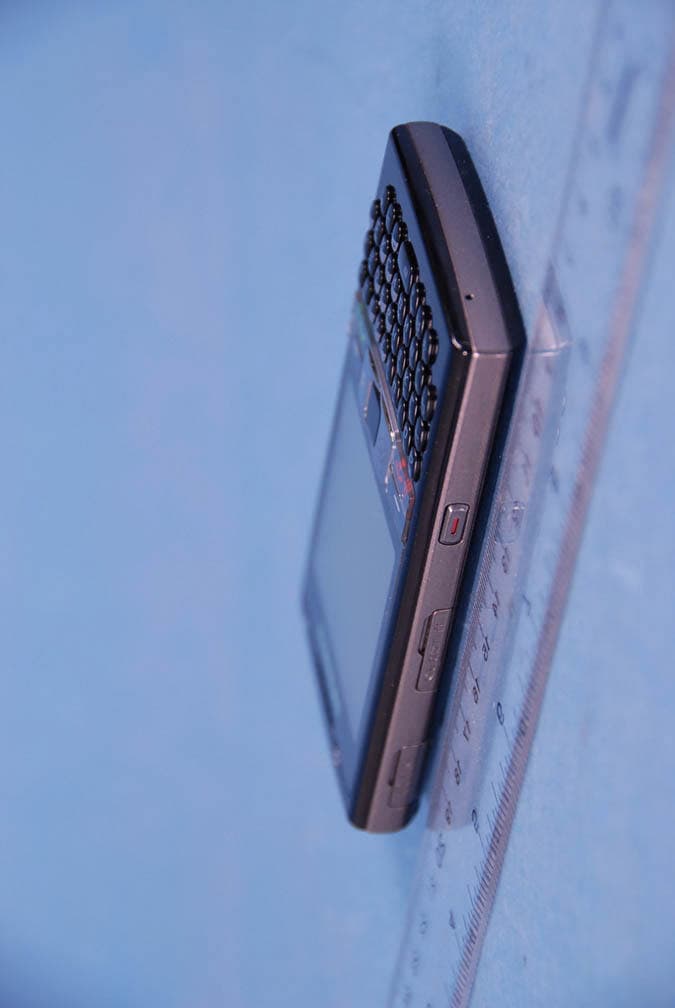

SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780

XWWW znoT^_W A3LSGHI780 T^_Wnzto ptlpa XWWW znoT^_W A3LSGHI780 T^_Wnzto ptlpa

SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780

Reviewed by: FCC ID: A3LSGHI780 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 07009251106 10/10/2007 GSM PCS EDGE Phone with Bluetooth Page 1 of 22 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3G 03/22/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/10/2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 07009251106 FCC ID: A3LSGHI780 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: GSM PCS EDGE Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SGH-i780 Tx Frequency: 1850.20 - 1909.80 MHz (GSM PCS) Conducted Power: 28.8 dBm PCS Max. SAR Measurement: 0.48 W/kg GSM1900 Head SAR / 0.733 W/kg GPRS1900 Body SAR Test Device Serial No.: Pre-Production [S/N: FE-167-I] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSGHI780 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 07009251106 10/10/2007 GSM PCS EDGE Phone with Bluetooth Page 2 of 22 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3G 03/22/07 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS......................................................................... 14 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 15 12 SYSTEM VERIFICATION.............................................................................................................. 16 13 SAR DATA SUMMARY ................................................................................................................. 17 14 EQUIPMENT LIST......................................................................................................................... 19 15 CONCLUSION............................................................................................................................... 20 16 REFERENCES .............................................................................................................................. 21 Reviewed by: FCC ID: A3LSGHI780 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 07009251106 10/10/2007 GSM PCS EDGE Phone with Bluetooth Page 3 of 22 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3G 03/22/07 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 2005 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring the Specific Absorption Rate (SAR) due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the International Committee for Non-Ionizing Radiation Protection (ICNIRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” Report No. Vol 74. SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potent…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSGHI780 FCC Pt. 24 GSM / EDGE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0709251105.A3L September 28, 2007 PCS GSM/EDGE Phone with Bluetooth Page 1 of 23 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.0SBG 08/06/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. September 28, 2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0709251105.A3L FCC ID: A3LSGHI780 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §24(E) EUT Type: PCS GSM/EDGE Phone with Bluetooth Model(s): SGH-i780 Tx Frequency Range: 1850.20 - 1909.80MHz (PCS GSM) Max. RF Output Power: 1.614 W EIRP PCS GSM (32.08 dBm) / 0.908 W EIRP EDGE1900 (29.58 dBm) Emission Designator(s): 256KGXW (PCS GSM) / 245KG7W (EDGE1900) Test Device Serial No.: identical prototype [S/N: FE-167-I] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification Reviewed by: FCC ID: A3LSGHI780 FCC Pt. 24 GSM / EDGE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0709251105.A3L September 28, 2007 PCS GSM/EDGE Phone with Bluetooth Page 2 of 23 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.0SBG 08/06/07 TABLE OF CONTENTS FCC PART 24 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 MEASUREMENT PROCEDURE......................................................................................................... 4 1.2 SCOPE ................................................................................................................................................ 4 1.3 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.2 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.3 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 6 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.5 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 7 3.6 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 7 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................8 5.0 SAMPLE CALCULATIONS ..............................................................................................................9 6.0 TEST RESULTS .............................................................................................................................10 6.1 SUMMARY......................................................................................................................................... 10 6.2 CONDUCTED OUTPUT POWER ...................................................................................................... 11 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 12 6.4 PCS GSM RADIATED MEASUREMENTS ........................................................................................ 13 6.5 PCS GSM FREQUENCY STABILITY MEASUREMENTS ................................................................. 16 7.0 PLOTS OF EMISSIONS.................................................................................................................18 8.0 CONCLUSION................................................................................................................................23 Reviewed by: FCC ID: A3LSGHI780 FCC Pt. 24 GSM / EDGE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0709251105.A3L September 28, 2007 PCS GSM/EDGE Phone with Bluetooth Page 3 of 23 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.0SBG 08/06/07 MEASUREMENT REP…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780 SAMSUNG FCC ID: A3LSGHI780 EUT Photographs © 2007 PCTEST Lab. PCS GSM/EDGE Phone with Bluetooth Model: SGH-I780
