A3LSGHL310PCS GSM/EDGE Phone with Bluetooth

Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider.World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68- 17483 A English (EU). 01/2008 . Rev. 1.0 SGH-L310.book Page 1 Friday, January 11, 2008 4:51 PM SGH- L310 User’s Guide D raf t _ 0 2 2008. 01.11 SGH-L310.book Page 2 Friday, January 11, 2008 4:51 PM Important safety precautions Drive safely at all timesDo not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. InterferenceAll wireless phones may be subject to interference, which could affect their performance. Failure to comply with the following precautions may be dangerous or illegal. Copyright information•Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Bluetooth QD ID: B0xxxxx •Java TM is a trademark or registered trademark of sun Microsystems, Inc. SGH-L310.book Page 3 Friday, January 11, 2008 4:51 PM 1 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry.Sensible useUse only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised ac cessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 38. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. SGH-L310.book Page 1 Friday, January 11, 2008 4:51 PM 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone.In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [ ] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > • Camera and camcorder Use the camera module on your phone to take a photo or record a video. Special features of your phone •Music player Play music files using your phone as a music player. •FM radio Listen to your favourite radio stations anytime, anywhere. SGH-L310.book Page 2 Friday, January 11, 2008 4:51 PM 3 • Image editor Edit or decorate your photos. • Digital data printing Print images, messages, and other personal data directly from your phone. • Offline mode Switch your phone to use its none-wireless functions in an aeroplane. •Bluetooth Transfer media files and personal data and connect to other devices using free, wireless Bluetooth technology. • File viewer Open documents in various formats on the phone without corruption. •Email Send and receive emails with image, video, and audio attachments. •SOS message Send SOS message to your family or friends for help in an emergency. •Lifestyle Use multiple features designedfor women in our modernworld. SGH-L310.book Page 3 Friday, January 11, 2008 4:51 PM 4 Contents Unpack 6 Make sure you have each itemGet started 6 First steps to operating your phoneAssemble and charge the phone ...................... 6Power on or off.............................................. 7Phone layout ................................................. 7Keys and icons .............................................. 8Access menu functions .................................. 11Enter text .................................................... 12Customise your phone ................................... 13Step outside the phone 15 Begin with call functions, camera, music player, web browser, and other special featuresMake or answer calls ..................................... 15 Use the camera............................................ 17Play music................................................... 18Listen to the FM radio ................................... 19Browse the web ........................................... 21Use Phonebook ............................................ 21Send messages ............................................ 22View messages ............................................ 24Use Bluetooth .............................................. 24 Menu functions 27 All menu options listedHealth and safety information 38 5 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 Call log1 Recent contacts2 Missed calls3 Dialled calls4 Received calls5 Delete all6 Call manager2 Phonebook1 Contact list2 FDN contacts 1 3 Create contact4 Group5 Speed dial6 My namecard7 Own number8 Management9 Service number 1 3 Music4 Google Search / Browser ‡ 5 Messages1 Create new message2 My messages3 Templates4 Delete by folder5 Settings6 SOS messages7 Broadcast messages8 Memory status6 My files1 Images2 Videos3 M…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: January 17, 2008 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHL310 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

of 26 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-L310 FCC ID (Requested): A3LSGHL310 Job No: FE-244 Report No: FE-244-S1 Date issued: Jan.15, 2008 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By EH JUNG - Test Engineer Authorized By JH NAM - Technical Manager Report Number: FE-244-S1 2 of 26 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 18 7.1 Tissue Verification ................................................................................................................ 18 7.2 Test System Validation ......................................................................................................... 18 8. SAR MEASUREMENT RESULTS ................................................................................................ 19 8.1 Measurement Results(GSM1900 Right Head SAR - Touch) ............................................... 20 8.2 Measurement Results(GSM1900 Right Head SAR - Tilt) .................................................... 21 8.3 Measurement Results(GSM1900 Left Head SAR - Touch).................................................. 22 8.4 Measurement Results(GSM1900 Left Head SAR - Tilt)....................................................... 23 8.5 Measurement Results(GPRS1900 Body SAR without Holster)........................................... 24 9. CONCLUSION .............................................................................................................................. 25 10. REFERENCES ............................................................................................................................ 26 Report Number: FE-244-S1 3 of 26 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM Phone with Bluetooth Model Number : SGH-L310 Serial Number : Identical prototype (S/N : # FE-244-A) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : IN NAM Phone : +82-31-301-8042 Fax : +82-31-279-6162 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Jan.04, 2008 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 ~ 1909.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 1930.20 ~ 1989.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Antenna Manufacturer : Tyco Model No.: 368662-1 Antenna Dimensions : 39.85mm×12.46mm×5.55mm GPRS Class 10 Report Number: FE-244-S1 4 of 26 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software mani…

Text truncated - open the document above for the full version.

APPENDIX G Probe Calibration APPENDIX H Calibration of The Validation Dipole

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-L310 FCC ID(Requested) : A3LSGHL310 Report No : FE-244-R1 Job No : FE-244 Date issued : January 14, 2008 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By JH WOO – Test Engineer Authorized By WW JANG - Technical Manager Report Number : FE-244-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................15 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................16 6.4. Frequency Stability.......................................................................................17 6.4.1. GSM1900 Frequency Stability Table ................................................17 6.4.2. GSM1900 Frequency Stability Graph...............................................18 7. CONCLUSION.........................................................................................................20 8. TEST PLOTS...........................................................................................................21 Report Number : FE-244-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHL310 • Quantity : Quantity production is planned • Emission Designators : 255KGXW(GSM1900), 241KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 1.718 W EIRP GSM1900 (32.35dBm) 0.783 W EIRP GSM1900 EDGE(28.94dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM/EDGE Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : January 02-03, 2007 • Place of Test : SAMSUNG Lab, • Test Report S/N : FE-244-R1 Report Number : FE-244-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon Cityarea. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FE-244-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FE-244-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2008-10-17 E4440A(3Hz~26.5GHz)MY4100…

Text truncated - open the document above for the full version.

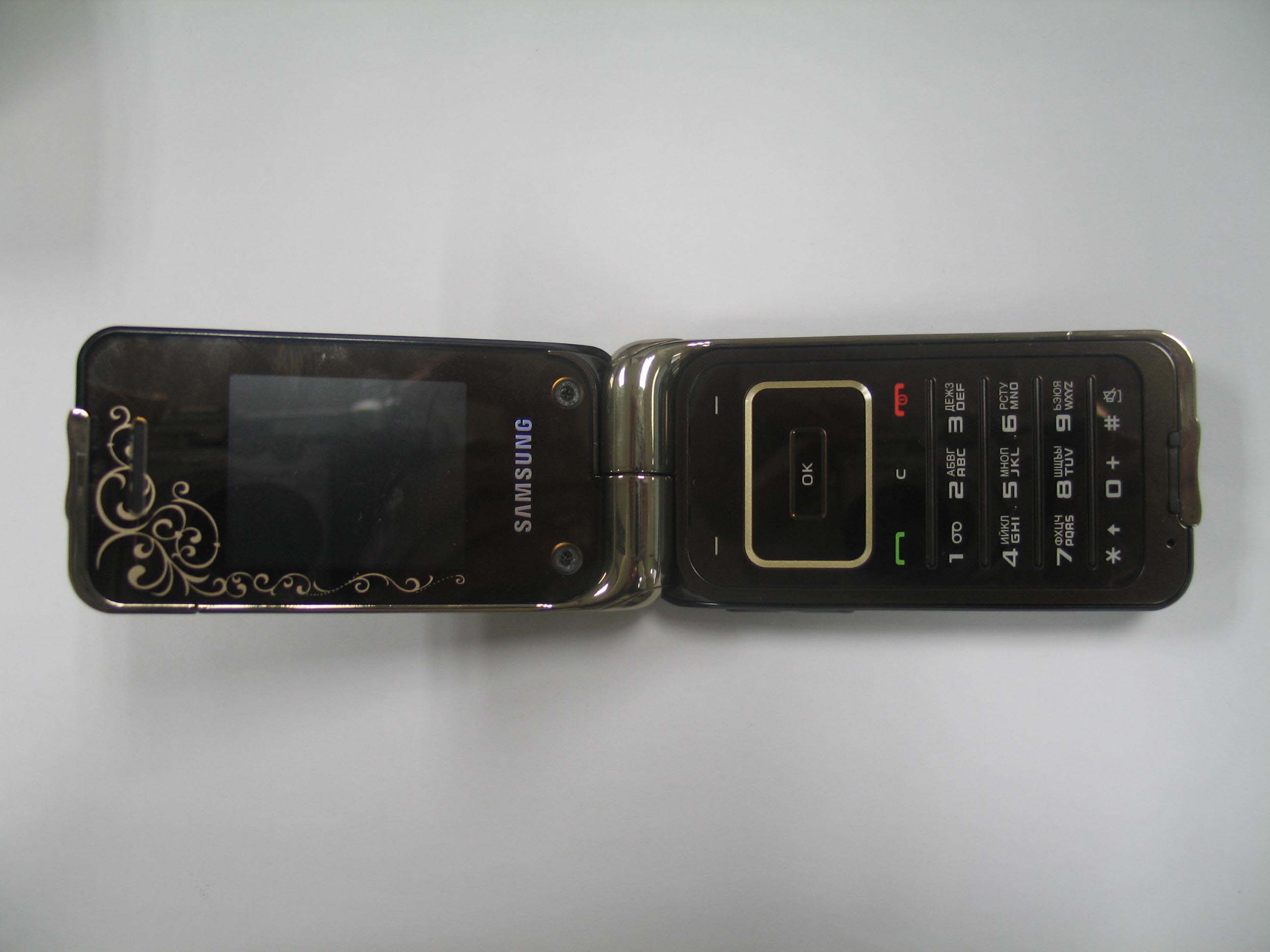

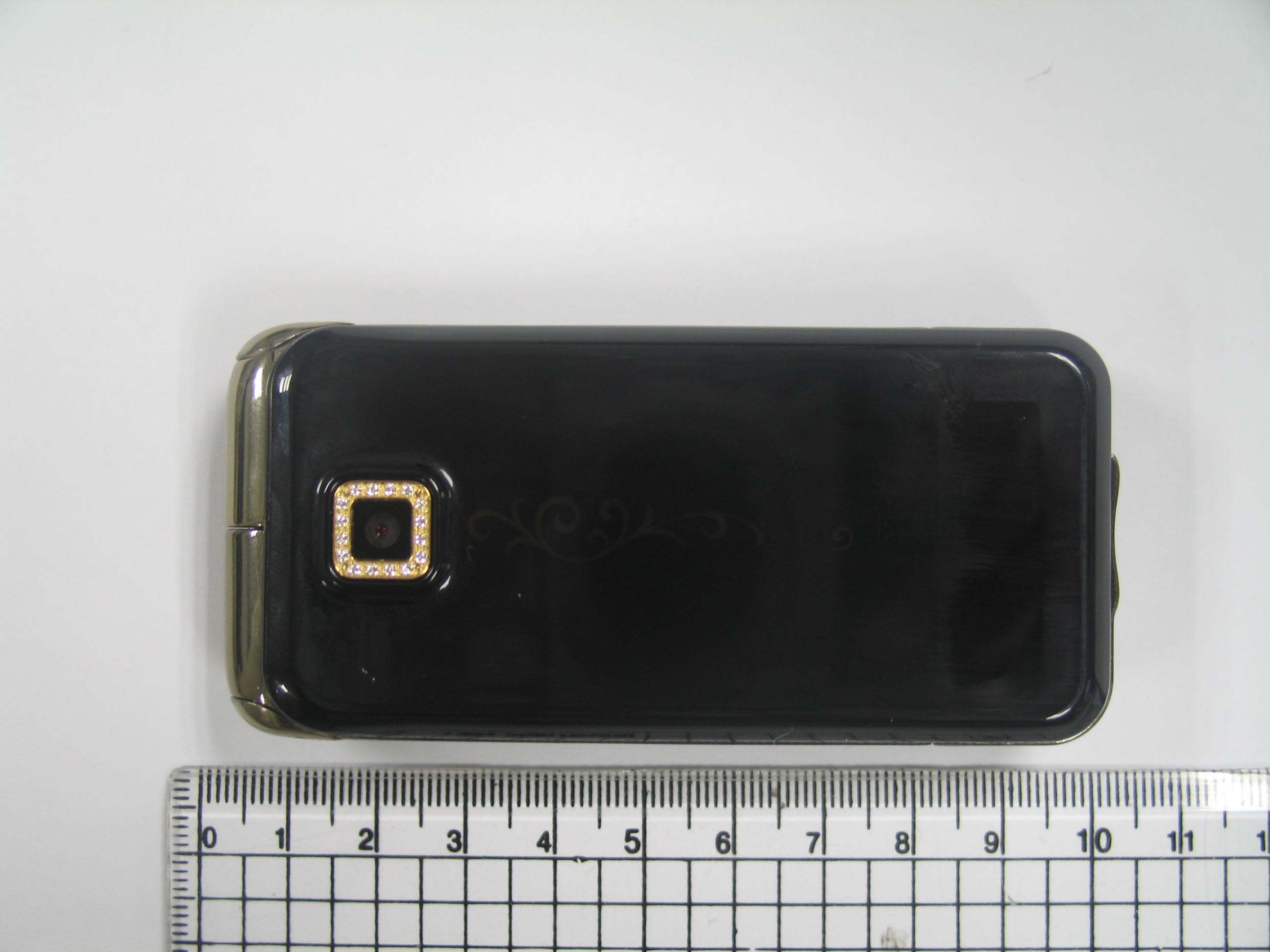

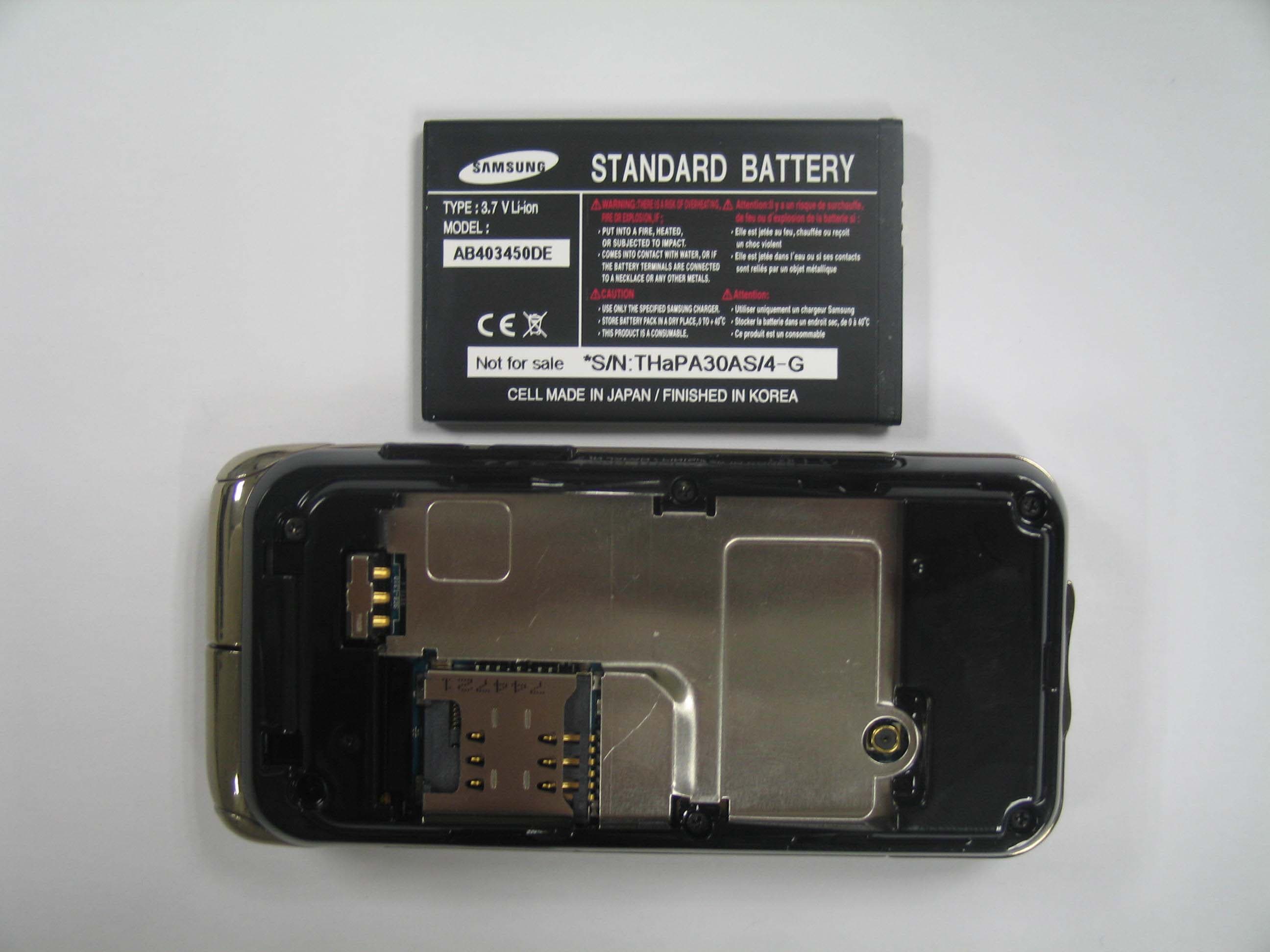

© 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHL310 Single-Band PCS GSM/EDGE Phone with Bluetooth

© 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHL310 Single-Band PCS GSM Phone with Bluetooth
