A3LSGHL770PCS GSM/EDGE Phone with Bluetooth

* Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illustrations in this guide. Printed in Korea Code No.:GH68-xxxxxA English. 02/2008. Rev. 1.0 SGH-L770User's Guide D r a f t _ 0 1 2 0 0 8 . 0 2 . 0 4 S / W : L 7 7 0 B V H A 1 Important safety precautions Drive safely at all timesDo not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. Failure to comply with the following precautions may be dangerous or illegal. Copyright information• Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide.Bluetooth QD ID: B0 13590 •Java TM is a trademark or registered trademark of Sun Microsystems, Inc. • Windows Media Player ® is a registered trademark of Microsoft Corporation. 1 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry.Sensible useUse only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 42. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone.In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [ ] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Select > •3G Your phone is capable of operating in a 3G environment, allowing much greater data transfer speed, video streaming, and video conferencing. Special features of your phone • Camera and camcorder Use the camera module on your phone to take a photo or record a video. 3 •Synchronisation with Windows Media Player Transfer music files to your phone directly from Windows Media Player. •Music player Play music files on your phone. •FM radio Listen to your favourite radio stations anytime, anywhere. •Java Enjoy Java-based games and download new games. • Digital data printing Print images, messages, and personal data directly from your phone. • Bluetooth Transfer media files and personal data, and connect to other devices using wireless Bluetooth technology. •Web browser Access the wireless web to get up-to-the-minute information and a wide variety of media content. 4 Contents Unpack 6 Make sure you have each itemGet started 6 First steps to operating your phoneAssemble and charge the phone ..................... 6Power on or off.............................................. 7Phone layout ................................................. 7Keys and icons .............................................. 8Access menu functions .................................. 12Use homescreen shortcut icons....................... 12Enter text .................................................... 14Customise your phone ................................... 15Step outside the phone 17 Begin with call functions, camera, music player, web browser, and other special featuresMake or answer calls ..................................... 17 Use the camera............................................ 19Play music................................................... 21Listen to the FM radio ................................... 24Browse the web ........................................... 25Use Address book......................................... 26Send messages ............................................ 27View messages ............................................ 28Use Bluetooth .............................................. 29Switch applications ....................................... 31 Menu functions 32 All menu options listedHealth and safety information 42 5 1 Applications 1 FM radio2 Voice recorder3 Converter4 SIM application toolkit 1 2 Address book3 Media album ImagesVideosSoundsGames and moreOther filesMemory status 4 Downloads 1 5 Messaging 1 Create message2 Inbox3 Email inbox4 Drafts5 Outbox6 Sentbox7 My folders8 Templates9 Delete all10 Settings11 Memory status 6 Orange World 1 Go to homepage2 Enter URL3 Bookmarks4 Saved pages5 History6 Advanced7 Browser settings 7 Settings 1 Phone profiles2 Time & date3 Display & light settings4 Phone settings5 Bluetooth6 Call settings7 Security8 Application settings9 N…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: March 11, 2008 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHL770 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

Reviewed by: FCC ID: A3LSGHL770 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0803140326-R1.A3L 03/17/08 - 03/18/08 PCS GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 26 © 2008 PCTEST Engineering Laboratory, Inc. REV 5.0G 03/13/08 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/17/08 - 03/18/08 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0803140326-R1.A3L FCC ID: A3LSGHL770 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: PCS GSM/GPRS/EDGE Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SGH-L770 Tx Frequency: 1850.20 - 1909.80 MHz (GSM PCS) Conducted Power: 29.3 dBm PCS GSM Max. SAR Measurement: 0.554 W/kg PCS Head SAR / 1.21 W/kg PCS GPRS Body SAR Test Device Serial No.: Pre-Production [S/N: FF-026-C, FF-026-B] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Note: This revised Test Report (S/N: 0803140326-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report (S/N: 0803140326.A3L) and dispose of it accordingly. Grant Conditions: Power output listed is EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSGHL770 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0803140326-R1.A3L 03/17/08 - 03/18/08 PCS GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 26 © 2008 PCTEST Engineering Laboratory, Inc. REV 5.0G 03/13/08 TABLE OF CONTENTS 1 INTRODUCTION ........................................................................................................................ 3 2 TEST SITE LOCATION............................................................................................................... 4 3 SAR MEASUREMENT SETUP ................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM............................................................................................... 7 5 PROBE CALIBRATION PROCESS............................................................................................. 8 6 PHANTOM AND EQUIVALENT TISSUES .................................................................................. 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................ 10 8 DEFINITION OF REFERENCE POINTS ................................................................................... 11 9 TEST CONFIGURATION POSITIONS ...................................................................................... 12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS...................................................................... 16 11 MEASUREMENT UNCERTAINTIES......................................................................................... 17 12 SYSTEM VERIFICATION ......................................................................................................... 18 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS....................................................... 19 14 RF CONDUCTED POWER....................................................................................................... 20 15 SAR DATA SUMMARY............................................................................................................. 21 16 EQUIPMENT LIST.................................................................................................................... 23 17 CONCLUSION.......................................................................................................................... 24 18 REFERENCES ......................................................................................................................... 25 Reviewed by: FCC ID: A3LSGHL770 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0803140326-R1.A3L 03/17/08 - 03/18/08 PCS GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 26 © 2008 PCTEST Engineering Laboratory, Inc. REV 5.0G 03/13/08 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-L770 FCC ID(Requested) : A3LSGHL770 Report No : FF-026-R1 Job No : FF-026 Date issued : February 19 , 2008 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By JH WOO – Test Engineer Authorized By WW JANG - Technical Manager Report Number : FF-026-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................3 2.1. General..........................................................................................................3 3. MEASURING INSTRUMENT CALIBRATION ...........................................................3 4. TEST EQUIPMENT LIST...........................................................................................3 5. DESCRIPTION OF TESTS ........................................................................................3 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................3 5.2. Radiated Spurious & Harmonic Emission ......................................................3 5.3. Occupied Bandwidth ......................................................................................3 5.4. Spurious and Harmonic Emission at Antenna Terminal..................................3 5.4.1. Occupied Bandwidth Emission Limits ................................................3 5.4.2. Conducted Spurious Emission ...........................................................3 5.5. Frequency Stability / Temperature Variation ...................................................3 6. TEST DATA ...............................................................................................................3 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ..............................................3 6.2. GSM1900 Radiated Spurious & Harmonic measurement ..............................3 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ........................3 6.4. Frequency Stability.........................................................................................3 6.4.1. GSM1900 Frequency Stability Table ..................................................3 6.4.2. GSM1900 Frequency Stability Graph.................................................3 7. CONCLUSION...........................................................................................................3 8. TEST PLOTS.............................................................................................................3 Report Number : FF-026-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHL770 • Quantity : Quantity production is planned • Emission Designators : 249KGXW(GSM1900), 242KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 0.910 W EIRP GSM1900 (29.59dBm) 0.681 W EIRP GSM1900 EDGE(28.33dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM/EDGE Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : February 15-16, 2008 • Place of Test : SAMSUNG Lab, • Test Report S/N : FF-026-R1 Report Number : FF-026-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FF-026-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FF-026-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2008-10-17 E4440A(…

Text truncated - open the document above for the full version.

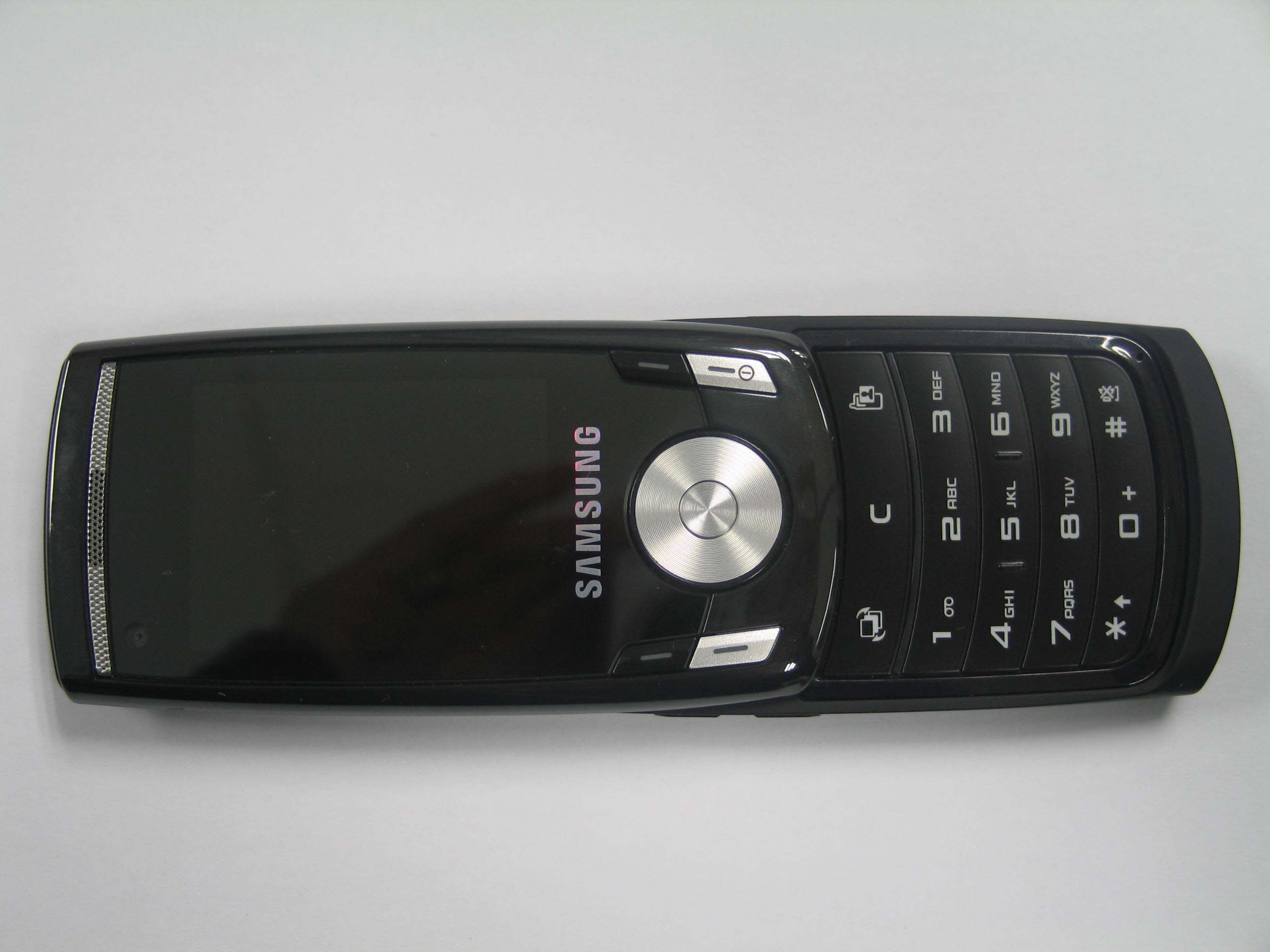

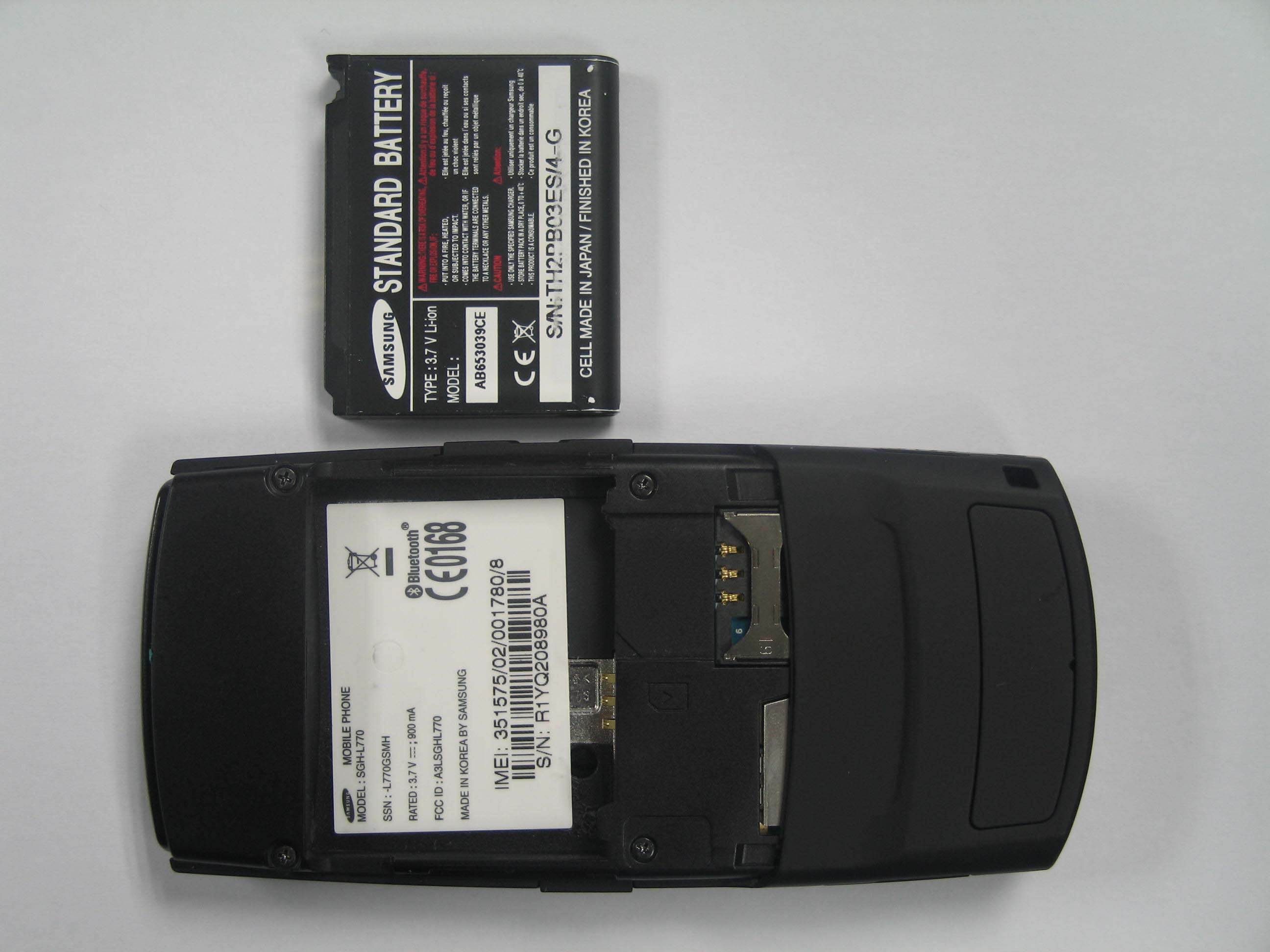

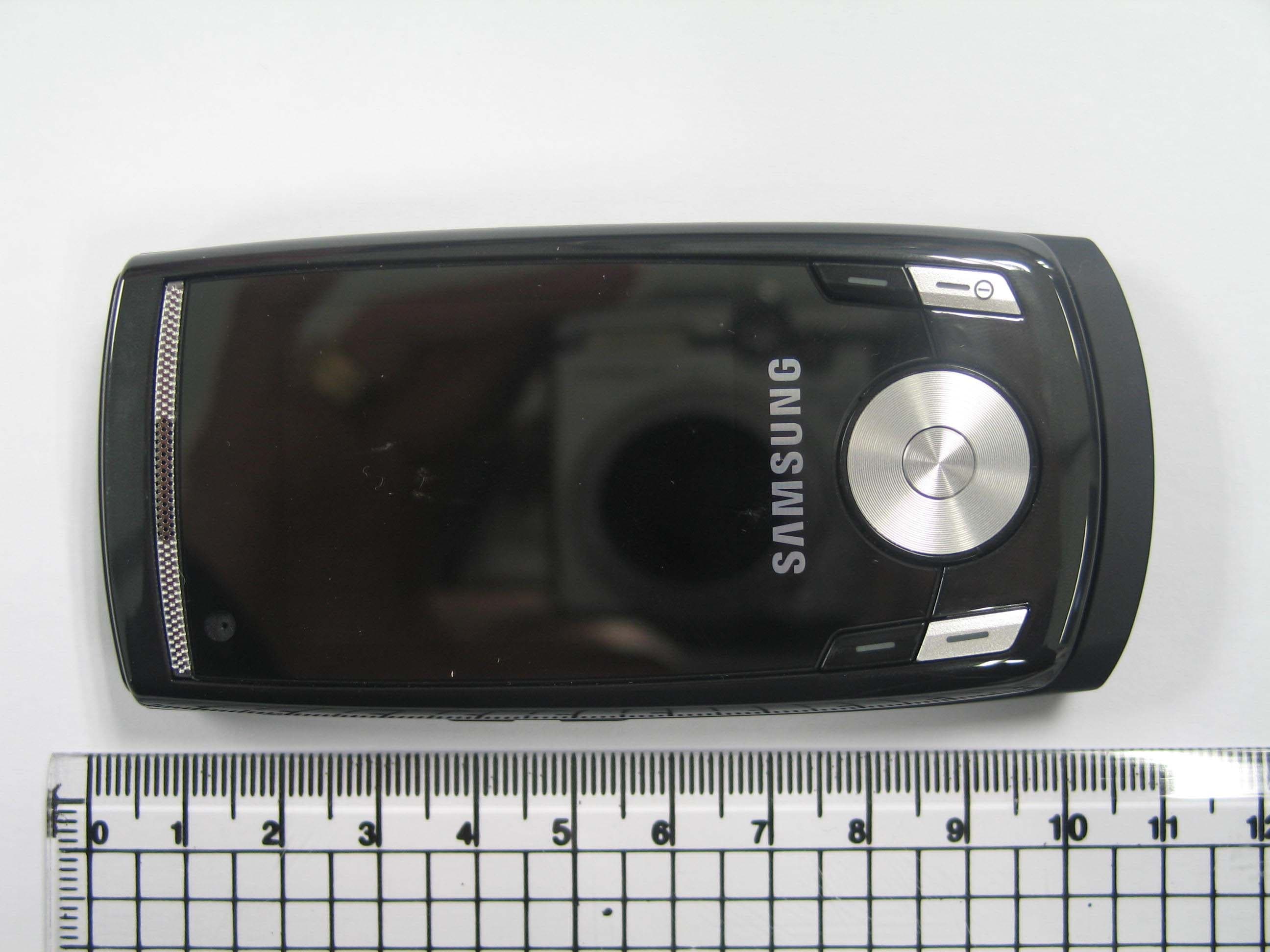

© 2008 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHL770 Singl-Band PCS GSM/EDGE Phone with Bluetooth © 2008 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHL770 Singl-Band PCS GSM/EDGE Phone with Bluetooth

Samsung FCC ID: A3LSGHL770 Model: SGH-L770 SAR Test Setup Photos 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 8 © 2008 PCTEST Lab. REV 2.1 05/24/2007 1. Right Head SAR – Slide In 2. Left Head SAR – Slide In Samsung FCC ID: A3LSGHL770 Model: SGH-L770 SAR Test Setup Photos 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 8 © 2008 PCTEST Lab. REV 2.1 05/24/2007 3. Right Head SAR, Cheek Touch – Slide In 4. Right Head SAR, 15 ̊ Tilt – Slide In Samsung FCC ID: A3LSGHL770 Model: SGH-L770 SAR Test Setup Photos 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 8 © 2008 PCTEST Lab. REV 2.1 05/24/2007 5. Left Head SAR, Cheek Touch – Slide In 6. Left Head SAR, 15 ̊ Tilt – Slide In Samsung FCC ID: A3LSGHL770 Model: SGH-L770 SAR Test Setup Photos 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 4 of 8 © 2008 PCTEST Lab. REV 2.1 05/24/2007 7. Right Head SAR – Slide Out 8. Left Head SAR – Slide Out Samsung FCC ID: A3LSGHL770 Model: SGH-L770 SAR Test Setup Photos 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 5 of 8 © 2008 PCTEST Lab. REV 2.1 05/24/2007 9. Right Head SAR, Cheek Touch – Slide Out 10. Right Head SAR, 15 ̊ Tilt – Slide Out Samsung FCC ID: A3LSGHL770 Model: SGH-L770 SAR Test Setup Photos 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 6 of 8 © 2008 PCTEST Lab. REV 2.1 05/24/2007 11. Left Head SAR, Cheek Touch – Slide Out 12. Left Head SAR, 15 ̊ Tilt – Slide Out Samsung FCC ID: A3LSGHL770 Model: SGH-L770 SAR Test Setup Photos 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 7 of 8 © 2008 PCTEST Lab. REV 2.1 05/24/2007 13. Body SAR – Slide In 14. Body SAR, Front Side with 15mm Space – Slide In Samsung FCC ID: A3LSGHL770 Model: SGH-L770 SAR Test Setup Photos 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 8 of 8 © 2008 PCTEST Lab. REV 2.1 05/24/2007 15. Body SAR, Back Side with 15mm Space – Slide In
