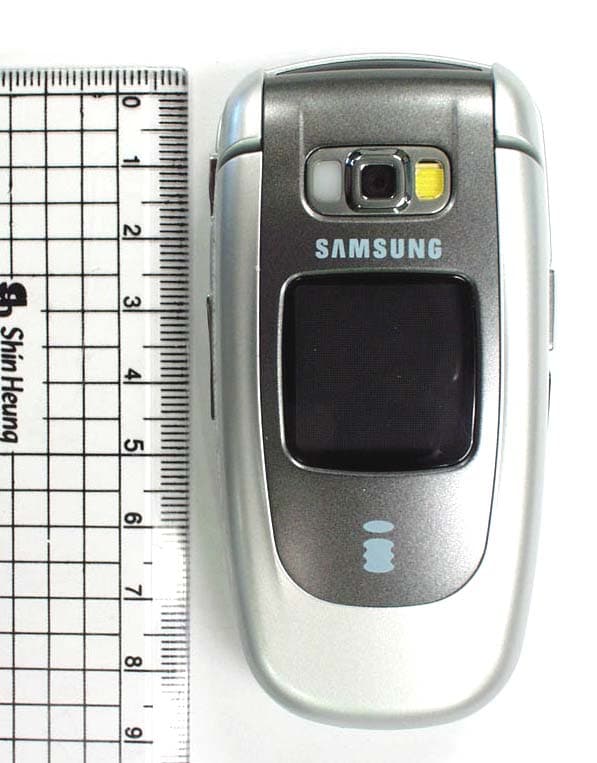

A3LSGHS342ISingle-Mode PCS GSM Phone

* Some of the contents of this manual may differ from your phone, depending on the software installed or your service provider. World Wide Web http://www.sam sungm obile.com Printed in Korea Code No.:G H68-XXXXXA English. 10/2004. Rev 1.0 GPRS TELEPHONE SGH-S342i D r a f t v e r s io n ( 2 0 0 4 . 1 0 . 1 5 ) 3 Contents Important safety precautions ...................... 7 Unpacking .................................................... 9 Your phone ................................................ 10 Phone layout ................................................ 10 Display ........................................................ 13 Camera........................................................ 16 Getting started........................................... 17 Installing the SIM card................................... 17 Charging the battery ..................................... 19 Switching on or off the phone ......................... 21 Call functions ............................................. 22 Making a call ................................................ 22 Adjusting the volume..................................... 27 Answering a call............................................ 28 Viewing missed calls ...................................... 29 Quickly switching to Silent mode ..................... 31 Selecting functions and options ................. 32 Using the soft keys........................................ 32 Selecting options........................................... 33 Entering text .............................................. 34 Changing the text input mode ......................... 35 Using Alphabet mode ..................................... 36 Using Number mode ...................................... 37 Using Symbol mode....................................... 37 Using T9 mode.............................................. 38 Options during a call .................................. 40 Putting a call on hold ..................................... 40 Using the menu functions ............................... 41 Switching off the microphone (Mute)................ 42 Muting or sending key tones ........................... 43 Searching for a number in Phonebook .............. 43 Call waiting .................................................. 44 Contents 4 Using the menus ........................................ 45 Accessing a menu function by scrolling............. 45 Using shortcuts ............................................. 46 List of menu functions.................................... 47 Call records ................................................ 52 Missed calls (Menu 1.1).................................... 52 Received calls (Menu 1.2)................................. 53 Dialled calls (Menu 1.3)................................... 53 Delete all (Menu 1.4)....................................... 54 Call time (Menu 1.5)........................................ 55 Call cost (Menu 1.6)........................................ 56 Phone book ................................................ 57 Search (Menu 2.1).......................................... 57 New entry (Menu 2.2)...................................... 60 Group search (Menu 2.3)................................. 62 Group edit (Menu 2.4)..................................... 63 Speed dial (Menu 2.5).................................... 64 Delete all (Menu 2.6)....................................... 65 Memory status (Menu 2.7)............................... 66 Own number (Menu 2.8).................................. 66 SDN (Service dialling numbers) (Menu 2.9)........ 67 Organiser ................................................... 68 Alarm (Menu 3.1)............................................ 68 Calendar (Menu 3.2)........................................ 70 To do list (Menu 3.3)....................................... 73 Calculator (Menu 3.4)...................................... 75 Voice memo (Menu 3.5)................................... 76 Currency converter (Menu 3.6)......................... 78 Text messages ........................................... 79 SMS (Menu 4.1).............................................. 79 Voice mail (Menu 4.2)...................................... 89 Diffusion SMS (Menu 4.3)................................. 89 Contents 5 i-mode ....................................................... 91 Menu (Menu 5-1)............................................ 92 Mail (Menu 5.2).............................................. 94 Java application (Menu 5.3)........................... 108 SMS (Menu 5.4)........................................... 109 Bookmarks (Menu 5.5).................................. 109 Go to webpage (Menu 5.6)............................. 110 Saved pages (Menu 5.7)................................ 111 Settings (Menu 5.8)...................................... 112 Funbox ..................................................... 113 Applications (Menu 6.1)................................. 113 Sounds (Menu 6.2)........................................ 113 Images (Menu 6.3)........................................ 114 Delete all (Menu 6.4)..................................... 115 Memory status (Menu 6.5)............................. 115 Settings ................................................... 116 Time & date (Menu 7.1)................................. 116 Phone settings (Menu 7.2).............................. 118 Display settings (Menu 7.3)............................ 120 Sound settings (Menu 7.4)............................. 122 Network services (Menu 7.5).......................... 127 Security (Menu 7.6)....................................... 135 Reset settings (Menu 7.7).............................. 138 i-mode setting (Menu 7.8)............................. 139 i-mode lock (Menu 7.9)................................. 140 Camera .................................................... 141 Take photos (Menu 8.1)................................. 141 My photos (Menu 8.2).................................... 1…

Text truncated - open the document above for the full version.

October 12, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSGHS342I Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America October 12, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID: A3LSGHS342I Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone

1 of 25 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST REPORT ON SAR Model Tested: SGH-S342i FCC ID (Requested): A3LSGHS342I Job No: FB-062 Report No: FB-062-S1 Date issued: Oct. 14, 2004 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date KS AN – Test Engineer Checked By Date JH CHOI - Manager Authorized By Date JK CHOI – Senior Manager Report Number : FB-062-S1 2 of 25 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY4 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization.......................................................7 3.5 Device Holder for transmitters....................................................................................8 3.6 Validation Dipole....................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape.............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration..........................................................................14 6. Measurement Uncertainty...................................................................................16 7. System Verification............................................................................................17 7.1 Tissue Verification.................................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(GSM1900 Right Head SAR-Touch)............................................19 8.2 Measurement Results(GSM1900 Right Head SAR-Tilt)................................................20 8.3 Measurement Results(GSM1900 Left Head SAR-Touch)..............................................21 8.4 Measurement Results(GSM1900 Left Head SAR-Tilt)..................................................22 8.5 Measurement Results(GPRS1900 Body SAR w/o Holster)..........................................23 9. Conclusion.......................................................................................................24 10. Reference.......................................................................................................25 Report Number : FB-062-S1 3 of 25 1. GENERAL INFORMATION Test Sample : Single-Band PCS Only Phone Model Number : SGH-S342i Serial Number : Identical prototype (S/N : FB-062-C) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : YK Yoon, Engineer Phone : +82-54-479-7620 Fax : +82-54-479-5921 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Oct. 11, 2004 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.00 – 1910.00 MHz (GSM1900) Rx Freq. Range : 1930.00 – 1990.00 MHz (GSM1900) Max. RF Output Power : 1.762 W EIRP PCS (32.46 dBm) Antenna Manufacturer : PANASONIC Model No.: SGH-S342i Antenna Dimensions : [Intenna] Report Number : FB-062-S1 4 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the measureme…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID : A3LSGHS342I -- 1900 MHz GSM 1900 Head SAR DUT: SGH-S342i; Serial: FB-062-C Program Name: SGH-S342i GSM1900 Right (Job No.: FB-062) Procedure Name: Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.7; Test Date-11/Oct/2004 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.41 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(5, 5, 5); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn486; Calibrated: 2004-08-23 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.04 mW/g Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.2 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.821 mW/g Maximum value of SAR (measured) = 0.860 mW/g 0 dB = 0.860mW/g SAMSUNG FCC ID : A3LSGHS342I -- 1900 MHz GSM 1900 Head SAR DUT: SGH-S342i; Serial: FB-062-C Program Name: SGH-S342i GSM1900 Right (Job No.: FB-062) Procedure Name: Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.7; Test Date-11/Oct/2004 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(5, 5, 5); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn486; Calibrated: 2004-08-23 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.348 mW/g Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.351 W/kg SAR(1 g) = 0.253 mW/g Maximum value of SAR (measured) = 0.266 mW/g 0 dB = 0.266mW/g SAMSUNG FCC ID : A3LSGHS342I -- 1900 MHz GSM 1900 Head SAR DUT: SGH-S342i; Serial: FB-062-C Program Name: SGH-S342i GSM1900 Left (Job No.: FB-062) Procedure Name: Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.7; Test Date-11/Oct/2004 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.41 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(5, 5, 5); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn486; Calibrated: 2004-08-23 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 127 Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.08 mW/g Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.958 mW/g Maximum value of SAR (measured) = 1.02 mW/g 0 dB = 1.02mW/g SAMSUNG FCC ID : A3LSGHS342I -- 1900 MHz GSM 1900 Head SAR DUT: SGH-S342i; Serial: FB-062-C Program Name: SGH-S342i GSM1900 Left (Job No.: FB-062) Procedure Name: Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.7; Test Date-11/Oct/2004 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(5, 5, 5); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn486; Calibrated: 2004-08-23 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.344 mW/g Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 0.382 W/kg SAR(1 g) = 0.262 mW/g Maximum value of SAR (measured) = 0.279 mW/g 0 dB = 0.279mW/g SAMSUNG FCC ID : A3LSGHS342I -- 1900 MHz GSM 1900 Body SAR DUT: SGH-S342i (Body); Serial: FB-062-C Program Name: SGH-S342i GPRS1900 Body (Job No.: FB-062) Procedure Name: Body, Ch.0661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.7; Test Date-11/Oct/2004 [OET Bulletin 65- Supplement C, July 2001] Communication System: Body GPRS ; Frequency: 1880 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 1880 MHz; σ = 1.58 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(4.51, 4.51, 4.51); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn486; Calibrated: 2004-08-23 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 Body, Ch.0661, Ant.Int…

Text truncated - open the document above for the full version.

1900MHz Brain Dipole Validation DUT: Dipole 1900 MHz; Serial: 548 Program Name: 1900 Dipole Validation Procedure Name: 1900MHz @250mW Procedure Notes: Meas.Tissue Temp(celsius)-20.7;Test Date-11/Oct/2004 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1551; ConvF(5, 5, 5); Calibrated: 2004-04-27 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn486; Calibrated: 2004-08-23 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 1900MHz @250mW 2 2/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 16.7 mW/g 1900MHz @250mW 2 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.5 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10.5 mW/g Maximum value of SAR (measured) = 11.9 mW/g 0 dB = 11.9mW/g

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3Dong, Youngtong-Gu, Suwon-city, Gyeonggi-Do, Korea 442-600 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested: SGH-S342i FCC ID (Requested): A3LSGHS342I Report No: FB-062-R1 Job No: FB-062 Date issued: Oct.14,2004 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date WW JANG – Test Engineer Checked By Date JH CHOI - Engineer Authorized By Date JK CHOI – Senior Manager © Copyright SAMSUNG Electronics 2004 2004.10.14 2004.10.15 2004.10.14 Report Number : FB-062-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 9 5.4 Spurious and Harmonic Emissions at Antenna Terminal 9 5.4.1 Occupied Bandwidth Emission Limits 9 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 13 6. TEST DATA 14 6.1 Equivalent Isotropic Radiated Power (E.I.R.P.) 14 6.2 Radiated Spurious & Harmonic Measurement 15 6.3 Radiated Spurious & Harmonic Conversion Table 16 6.4 Frequency Stability 17 6.4.1 Frequency Stability Table 17 6.4.2 Frequency Stability Graph 18 7. CONCLUSION 20 8. TEST PLOTS 21 Report Number : FB-062-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416, Maetan-3Dong, Youngtong-Gu, Suwon City Gyeonggi-Do, KOREA 442-600 Attention: FCC ID: Wallace Oh, Engineering Manager (QA Lab) A3LSGHS342I Quantity: Quantity production is planned Emission Designators: 250KGXW Tx Freq. Range: 1850.2MHz -1909.8MHz Rx Freq. Range: 1930.2MHz – 1989.8MHz Max. Power Rating: 1.762 W EIRP GSM1900 ( 32.46 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Single modulation GSM1900/PCS Phone Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), Dates of Test: 0ct. 07, 12-13, 2004 Place of Test: SAMSUNG Lab, Test Report S/N: FB-062-R1 - End of page - Report Number : FB-062-R1 2. INTRODUCTION General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416,Maetan-3Dong, Youngtong-Gu, Suwon City, Gyeonggi-Do, KOREA 442- 600 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FB-062-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FB-062-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2005-09-20 E4440A(3Hz~26.5GHz) MY41000236 2004-11-07 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2004-11-14 SMIQ03B 83824/021 2005-01-15 Signal Generator SMR20 835197/030 2005-01-15 Power Meter E4419B GB41293846 2005-09-21 8481B 3318A10325 2005-10-06 Power Sensor 8485A 3318A19924 2005-09-20 Amplifier 5S1G4 304866 2004-11-17 Pre-Amplifier 8449B 3008A00691 2005-01-16 8960 GB42230535 2004-11-17 Communication test set 8960 GB42360886 2004-11-10 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2005-07-31 SH-241 92000548 2004-12-04 Environmental Chamber SH-241 92000549 2004-12-04 HF906 360306/011 2005-03-11 Horn Antenna HF906 100134 2005-05-02 3121C-DB4 9007-587 2004-11-21 Dipole Antenna 3121C-DB4 9007-588 2005-05-28 HL040 353255/019 2005-08-13 Receive Antenna HL040 353255/020 2005-06-07 8494A 3308A31997 2005-01-17 Attenuator 8496A 3308A14426 2005-01-17 4278-311-2 B3679637 2005-01-14 Directional Coupler 4278-111-2 B103DC8722 2005-01-14 WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Semi-Anechoic Chamber RF0002 ANT0001 Not Required Report Number : FB-062-R1 5. DESCRIPTION OF TESTS 5.1 Equivalent Isotropic Radiated Power Test Set-up for the EIRP TEST Effective Radiated Power Output and Equivalent Isotropic Radiated Power Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a Non-conducted turntable 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. For GSM signals, an average detector is used, with RBW=VBW=3MHz, SPAN=10MHz. A Horn antenna (for re…

Text truncated - open the document above for the full version.

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHS342I Single-Band PCS Only Phone
