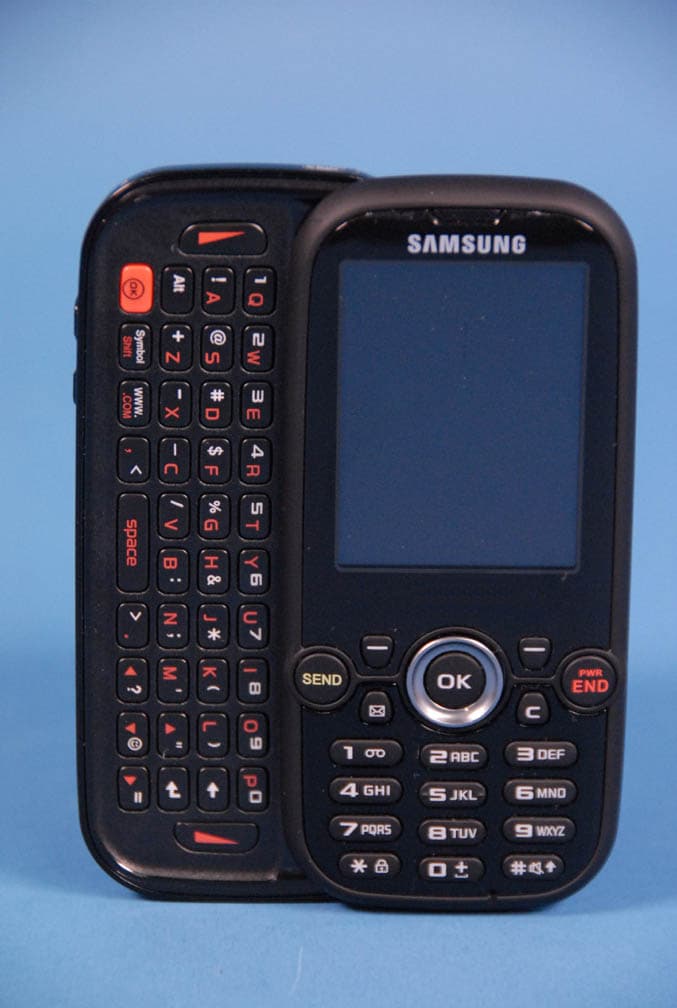

A3LSGHT404GCellular/PCS GSM/EDGE Phone with Bluetooth

User manual SGH-T404G using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “ Xintroducing your mobile phoneX,” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information X Refer to—pages with related information; for example: X p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners: z Bluetooth P ® P is a registered trademark of the Bluetooth SIG, Inc. worldwide z Java™ is a trademark of Sun Microsystems, Inc. z Windows Media Player P ® P is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting HAC Mode safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care z Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone. z Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones. z Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. z Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery d…

Text truncated - open the document above for the full version.

June 09, 2010 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LSGHT404G Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirem ent in the TCB Guidance issued on June 09, 2010. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production s amples. FCC ID: A3LSGHT404G Model(s): SGH-T404G Air Interfaces: GSM850, PCS Radio Services: GSM850, PCS, BLUETOOTH Key Features: BLUETOOTH SMS Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Samsung Electronics, Senior Engineer, Youngjae Kwon _____ ___

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: June 16, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHT404G To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G External Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 5 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G External Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 5 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G External Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 5 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G External Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 4 of 5 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G External Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 5 of 5 © 2010 PCTEST Engineering Laboratory Inc.

GH68-00000A 100416100416100416 LABEL-MAIN SGH-T404G WHITE POLYPROLYLENE 80 Yun Jun SangJo Kyeong HwanKim June Sop Technical Description 1. Use ‘FILM’ provided by ‘SAMSUNG’ for letter and contents 2. Background color is ‘WHITE’, letter color is ‘BLACK’ (reverse for SAMSUNG LOGO) 3. Back side should be attached to release paper once adhesive is applied. 4. No letter should be blur/smeared 5. The production must be proceed after the approval of R&D Group 6. The product must be within approved sample's specification tolerance. 7. The product must be finished in a ROLL 8. Release paper must be unifiedn for material and color(blue) < 1:1 Artwork > Vendor HANSUNG P&I MODEL: SGH-T404G FCC ID: A3LSGHT404G TracFone Wireless, Inc. RATED: 3.7 V ; 700 mA 28 MODEL: SGH-T404G FCC ID: A3LSGHT404G TracFone Wireless, Inc. RATED: 3.7 V ; 700 mA The label is placed inside the battery compartment MODEL: SGH-T404G FCC ID: A3LSGHT404G TracFone Wireless, Inc. RATED: 3.7 V ; 700 mA

Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 14 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 4 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 5 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 6 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 7 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 8 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 9 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 10 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 11 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 12 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 13 of 14 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSGHT404G Model: SGH-T404G Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 14 of 14 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSGHT404G SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006091013.A3L 06/10/10 - 06/11/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/10/10 - 06/11/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1006091013.A3L F C C I D : A3 LS G HT4 0 4 G AP P L I C AN T : S AMS UN G E LE CT RO NI CS , CO . LT D. EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SGH-T404G Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) Conducted Power: 33.18 dBm GSM 850 30.55 dBm GSM 1900 Max. SAR Measurement: 0.33 W/kg GSM 850 Head SAR 0.74 W/kg GSM 850 Body SAR 0.57 W/kg GSM 1900 Head SAR 0.61 W/kg GSM 1900 Body SAR Test Device Serial No.: Pre-Production [S/N: FH-124-B] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LSGHT404G SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006091013.A3L 06/10/10 - 06/11/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 RF EXPOSURE LIMITS .................................................................................................................15 11 MEASUREMENT UNCERTAINTIES .............................................................................................16 12 SYSTEM VERIFICATION...............................................................................................................17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS..........................................................19 14 FCC 3G MEASUREMENT PROCEDURES ...................................................................................20 15 SAR DATA SUMMARY ..................................................................................................................21 16 EQUIPMENT LIST..........................................................................................................................24 17 CONCLUSION................................................................................................................................25 18 REFERENCES ...............................................................................................................................26 19 SAR TEST SETUP PHOTOGRAPHS ............................................................................................28 Reviewed by: FCC ID: A3LSGHT404G SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006091013.A3L 06/10/10 - 06/11/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 1 I N T R O D U C T I O N The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guideli…
