A3LSGHX550Single-Band PCS GSM Phone

World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English. 09/2006. Rev. 1.0 * Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and access ories may appear different from the illustrations in this guide. SGH-X550User’s Guide Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. Important safety precautions 1 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised ac cessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 81. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phone, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can ge t more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > •Camera Use the camera module on your phone to take a photo. Special features of your phone •Web browser Access the wireless web to get up-to-the minute information and a wide variety of media content. • Phonebook Store home, office, or cellular phone numbers for your contacts. Special features of your phone 3 •Multimedia Message Service (MMS) Send and receive MMS messages with a combination of text, images, video, and audio. •Java Enjoy Java™-based embedded games and download new games. •Organiser Keep track of your daily, weekly, and monthly schedule. •Voice recorder Record memos or sounds. •Alarm Use your phone as an alarm clock to wake you up in the morning or notify you of an impending event. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Keys, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone ........................... 7Power on or off.............................................. 9Keys and display............................................ 9Access menu functions .................................. 12Customise your phone ................................... 13Make/Answer calls ........................................ 15Step outside the phone 16 Begin with your camera, the web, and other special featuresUse the camera ............................................ 16 Browse the web ........................................... 16Use Phonebook ............................................ 17Send messages ............................................ 18View messages ............................................ 20Manage your schedule .................................. 21 Enter text 22 ABC, T9, Number, and Symbol modesCall functions 25 Advanced calling featuresMenu functions 30 All menu options listedSolve problems 79 Help and personal needsHealth and safety information 81 Index 107 5 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 Call log p.34 1 Missed calls2 Received calls3 Dialled calls4 Delete all5 Call time6 Call costs 1 p.34p.35p.35p.35p.35p.36 2 Network services p.36 1 Call diverting2 Call barring3 Call waiting4 Network selection5 Caller ID6 Band selection7 Active line 1 p.36p.37p.38p.38p.38p.38p.39 3 Application p.39 1 Voice recorder2 FM radio3 SIM-AT p.39p.40p.42 4 Sound settings p.42 1 Incoming calls2 Messages p.43p.43 4 Sound settings (continued) 3 Power on/off4 Connection tone5 Keypad tone6 Minute minder7 Silent mode8 Alerts on call p.43p.43p.43p.43p.44p.44 5 Messages p.44 1 Short messages2 Multimedia messages 3 Push messages4 Preset messages5 Voice mail6 Broadcast7 Settings8 SOS message9 Memory status p.44p.47p.50p.51p.51p.52p.52p.55p.56 6 Fun box p.56 1 WWW services2 Media box3 JAVA world p.56p.59p.61 7 Organiser p.62 1 New memo2 Calendar3 To do list4 Clock5 Alarm6 Calculator7 Converter8 Timer0 Stopwatch p.62p.62p.64p.64p.65p.66p.67p.67p.68 8 Camera p.68 1 T…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






November 7, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: November 7, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LS GHX550 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 45 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

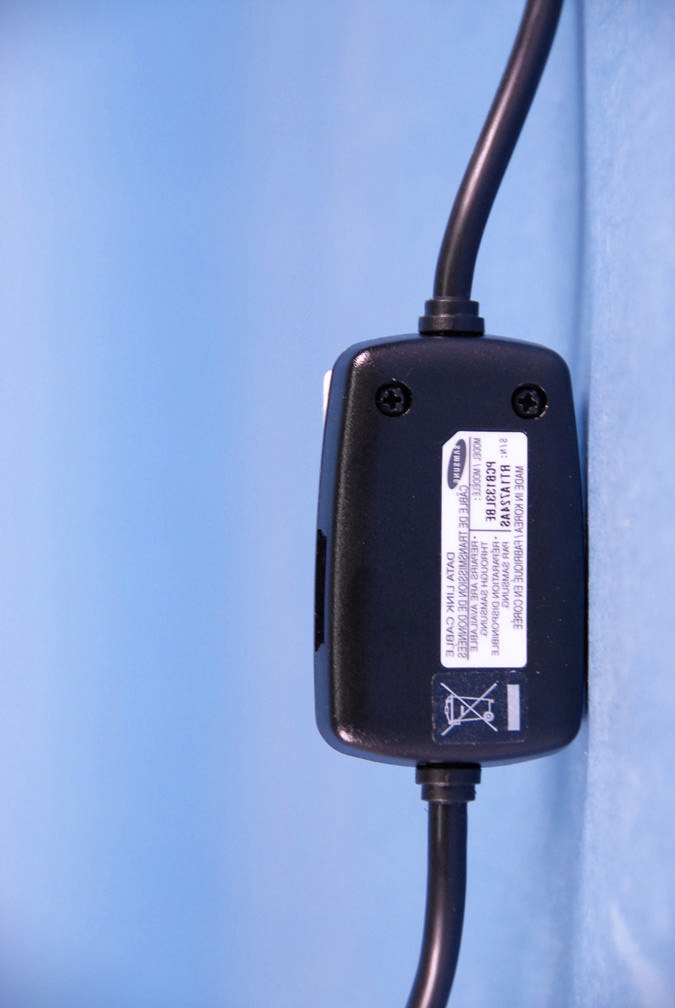

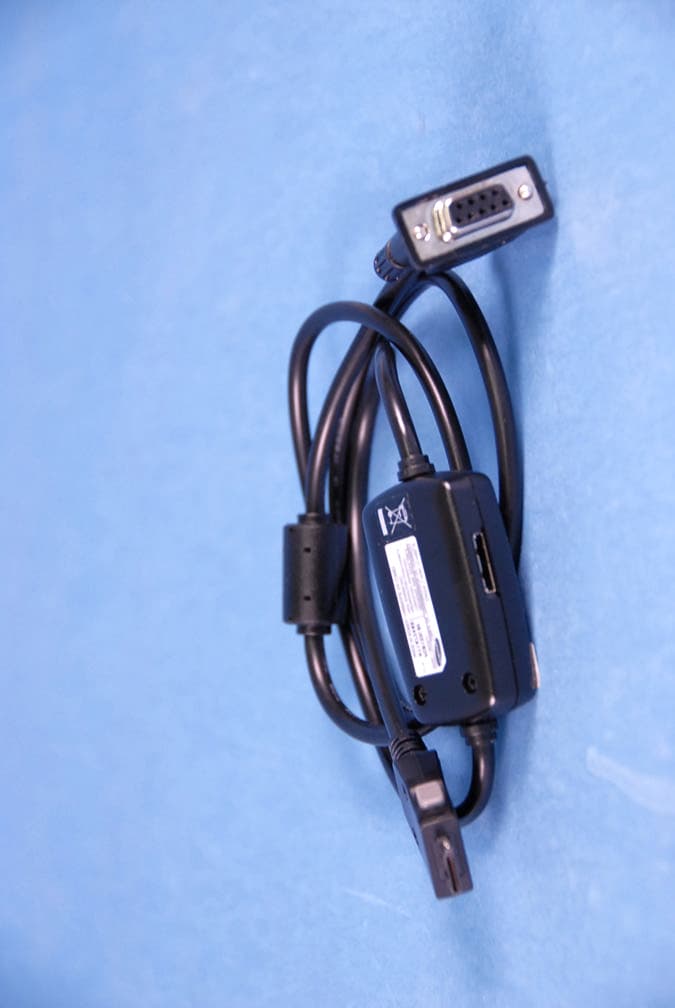

Federal Communications Commission. 7435 Oakland Mills Road Columbia, MD 21046 DATE: October 26, 2006 Re: Data cable for S GH-X550 FCC ID: A3LS GHX550 DOC to FCC ID: A3LSGHX5 50 To Whom It May Concern: This letter is to confirm to all concerned parties that FCC ID: A3LSGHX5 50 has never use any oscillator or active device on the PBA of the Data cable It does not have any oscillator or active device on the PBA of the data cable. There is just passive device. Data cable M/N: PCB 133LBE Should you have any questions or comments concerning the above, Please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group . SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu, Suwon-si,Gyeonggi-do,442-600 Korea

SAMSUNG FCC ID: A3LSGHX550 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM Phone NVLAP Lab Code: 100431-0 SAMSUNG FCC ID: A3LSGHX550 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM Phone NVLAP Lab Code: 100431-0 SAMSUNG FCC ID: A3LSGHX550 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM Phone NVLAP Lab Code: 100431-0

SAMSUNG FCC ID: A3LSGHX550 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM Phone NVLAP Lab Code: 100431-0 SAMSUNG FCC ID: A3LSGHX550 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM Phone NVLAP Lab Code: 100431-0 SAMSUNG FCC ID: A3LSGHX550 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM Phone NVLAP Lab Code: 100431-0

Reviewed by: FCC ID: A3LSGHX550 FCC Pt. 15B CERTIFICATION TEST REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611070985 November 8, 2006 Single-Band PCS GSM Phone Page 1 of 13 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 2.44 Applicant Name: Date of Testing: SAMSUNG ELECTRONICS CO., LTD. November 8, 2006 416 Maetan-3 Dong, Paldal-Ku Test Site/Location: Suwon City, Kyungki-Do 441-742, Korea PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0611070985 FCC ID: A3LSGHX550 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Single-Band PCS GSM Phone FCC Rule Part(s): FCC Part 15 Subpart B FCC Classification: FCC Class B Digital Device (JBP) Test Procedure: ANSI C63.4-2003 / EN55022: 1998 w/ A1 (2000) + A2 (2003) The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 (See Test Report). These measurements were performed with no deviation from the standards. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE Reviewed by: FCC ID: A3LSGHX550 FCC Pt. 15B CERTIFICATION TEST REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611070985 November 8, 2006 Single-Band PCS GSM Phone Page 2 of 13 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 2.44 TABLE OF CONTENTS ATTACHMENT A. ATTESTATION STATEMENT(S) ATTACHMENT B. TEST REPORT FCC Class B MEASUREMENT REPORT....................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 EVALUATION PROCEDURE................................................................................................................ 4 1.2 SCOPE .................................................................................................................................................. 4 1.3 PCTEST TEST LOCATION ................................................................................................................... 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................ 5 2.2 OPERATION MODE.............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ............................................................................. 5 3.0 DESCRIPTION OF TEST.................................................................................................................6 3.1 CONDUCTED EMISSIONS ................................................................................................................... 6 3.2 RADIATED EMISSIONS........................................................................................................................ 7 4.0 SAMPLE CALCULATIONS ..............................................................................................................8 4.1 CONDUCTED EMISSION MEASUREMENT SAMPLE CALCULATION: .............................................. 8 4.2 RADIATED EMISSION MEASUREMENT SAMPLE CALCULATION:................................................... 8 5.0 UNCERTAINTY OF MEASUREMENT .............................................................................................9 5.1 LINE CONDUCTED MEASUREMENT UNCERTAINTY CALCULATIONS: .......................................... 9 5.2 RADIATED EMISSIONS MEASUREMENT UNCERTAINTY CALCULATIONS: ................................. 10 6.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................11 7.0 ENVIRONMENTAL CONDITIONS .................................................................................................12 8.0 CONCLUSION................................................................................................................................13 ATTACHMENT C. SUMMARY OF TEST RESULTS RADIATED TEST DATA LINE-CONDUCTED TEST DATA/PLOT(S) TEST SUPPORT EQUIPMENT ATTACHMENT D. FCC ID LABEL & LOCATION ATTACHMENT E. BLOCK(S)/ SCHEMATIC(S) DIAGRAM ATTACHMENT F. OPERATIONAL DESCRIPTION ATTACHMENT G. TEST SETUP PHOTOGRAPHS ATTACHMENT H. EXTERNAL PHOTOGRAPHS ATTACHMENT I. INTERNAL PHOTOGRAPHS ATTACHMENT J. USER’S MANUAL Reviewed by: FCC ID: A3LSGHX550 FCC Pt. 15B CERTIFICATION TEST REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0611070985 November 8, 2006 Single-Band PCS GSM Phone Page 3 of 13 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 2.44 MEASUREMENT REPORT FCC Part 15B – Unintentional Radiators A. § 2.1033 General Information APPLICANT: SAMSUNG ELECTRONICS CO., LTD. APPLICANT ADDRESS: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do 441-742, Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 6660-B Dobbin Road, Columbia, MD 21045 USA FCC RULE PART(S): FCC Part 15 Subpart B FCC ID: A3LSGHX550 Test Device Serial No.: FD-214-B Production Pre-Production Engineering FCC…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID: A3LSGHX550 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM Phone NVLAP Lab Code: 100431-0 SAMSUNG FCC ID: A3LSGHX550 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM Phone NVLAP Lab Code: 100431-0 SAMSUNG FCC ID: A3LSGHX550 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM Phone NVLAP Lab Code: 100431-0
