A3LSGHX560LPCS GSM Phone

Printed in Korea Code No.: GH68- xxxxx A English (LTN). 03/2007. Draft World Wide Webhttp://www.samsungmobile.com SGH-X56 0 L User’s Guide • Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. • Depending on your country, your phone and accessories may appear different from the illustrations in this guide. . Installing the SIM card and battery 1. Remove the battery cover and insert the SIM card. 2. Install the battery and reattach the cover. Battery cover Battery Charging the battery 1. Plug the supplied travel adapter. 2. When charging is finished, unplug the adapter. Note : Do not remove the battery from the phone without unplugging the adapter first. Otherwise, the phone may be damaged. To AC wall outlet Phone layout and key functions Web access/ Confirm key In Idle mode, accesses the web browser. Selects the highlighted option or confirms input in Menu mode. Voicemail server key X Voicemail server Soft keys Perform functions indicated by the text above the key. 4-way navigation keysIn Menu mode, scroll through menu options.In Idle mode, access the following menus:Up : Camera Down : Find name Left : Create Right : Calendar Power/End keyTurns the phone on or off when held down. Also ends a call.Silent mode keyX Silent mode Alphanumeric keys Dial key Makes and answers a call. In Idle mode, retrieves the most recent calls. Cancel/Clear keyDeletes characters from the display. Returns the display to the previous menu level. Volume keys In Idle mode, adjust the keypad tone volume. Send an SOS message when pressed four times with the phone closed. X SOS mode Display Your phone is in Idle mode when you are not on a call or using a menu. You must be in Idle mode to dial a phone number. Silentmode Press and hold in Idle mode to disable all sounds on the phone. To exit, press and hold this key again. Voicemail server Press and hold 1 in Idle mode to access your voicemail server. SOSmode With the phone closed, press the Volume keys four times to send an SOS message to preset phone numbers. Once the SOS message is sent, the phone will change to SOS mode and will receive calls only from the SOS message recipients until the SOS mode is cancelled. Upon receiving a call from the SO S message recipients, the phone will automatically answer the call, after one vibration, relaying the emergency situation to the caller. Text and graphics Soft key function indicators Menu Phonebook Icons Your phone displays the following status indicators on the top of the screen: Icon Description Received signal strengthCall in progressOut of your service area; you cannot send or receive callsGPRS networkHome Zone, if you have registered for the appropriate serviceOffice Zone, if you have registered for the appropriate serviceAlarm setNew SMS messageNew MMS messageCall diverting feature activeCall ringer type•None: Melody •: Vibration• : Vibration then melody Silent modeBattery power level Switching on or off the phone 1. Press and hold for more than one second to switch on the phone. 2. To switch off the phone, press and hold for more than two seconds. Changing the display language 1. In Idle mode, press the Menu soft key. 2. Select Phone settings → Language → Text language . 3. Select a language. Making a call 1. In Idle mode, enter an area code and phone number, and press . 2. When you want to end the call, press . Answering a call 1. When the phone rings, press the Accept soft key or to answer a call. 2. To end the call, press . Adjusting the volume 1. In Idle mode, press the Menu soft key. 2. Select Sound settings → Incoming calls → Ring volume . 3. Press the Navigation keys to adjust the volume level.4. Press the Save soft key. While a call is in progress, press Up or Down to adjust the earpiece volume. Changing a ringtone for calls 1. In Idle mode, press the Menu soft key. 2. Select Sound settings → Incoming calls → Default ringtones or My sounds . 3. Select a ringtone and press the Yes soft key. Redialing recent numbers 1. In Idle mode, press . 2. Press Up or Down to scroll to the number you want. 3. Press to dial the number. Using the menus In Idle mode, press the Menu soft key to enter the main menu. Use the 4-way navigation keys to scroll up, down, left, or right through the menu system, highlight menu items, change feature settings, and play games. To exit the menu without changing the menu settings, press this key. Labels at the bottom corners of the display show the current soft key functions. Press the left soft key ( ) or right soft key ( ) to perform the function indicated. To return to the previous menu level, press the Back soft key or C . To select or modify a menu or feature:1. In Idle mode, press the Menu soft key. 2. Press the Navigation keys to reach a desired menu and then press the Select soft key or . 3. If the menu contains any submenus, locate the one you want by pressing the Navigation keys. Press the Select soft key or to enter the submenu.If the selected menu contains additi onal submenus, repeat this step. 4. Press the Navigation keys to find the setting of your choice.5. Press the Select soft key or to confirm your chosen setting. Shortcut numbersYou can quickly access the menu you want by using shortcut numbers. The shortcut number displays in front of the menu name in Menu mode. Menu map 1. Call log1.1 Missed calls1.2 Received calls1.3 Dialled calls1.4 Delete all1.5 Call time1.6 Call costs*2. Network services2.1 Call diverting2.2 Call barring2.3 Call waiting2.4 Network selection2.5 Caller ID2.6 Band selection2.7 Active line*3. Applications3.1 Voice recorder3.2 SIM-AT*4. Sound settings4.1 Incoming calls4.2 Messages4.3 Power on/off4.4 Connection tone4.5 Keypad tone4.6 Minute minder4.7 Silent mode4.8 Alerts on call 5. Messages5.1 Text messages5.2 Multimedia messages5.3 Push messages5.4 Preset messages5.5 Voice mail5.6 Broadcast5.7 Settings5.8 SOS messages5.9 Memory status6. Fun box6.1 WWW services…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: April 18, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHX560L To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram CONFIDENTIAL 2 Operational Description 3 External Photos 4 Internal Photos 5 Test-Setup Photos SHORT-TERM CONFIDENTIAL 6 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

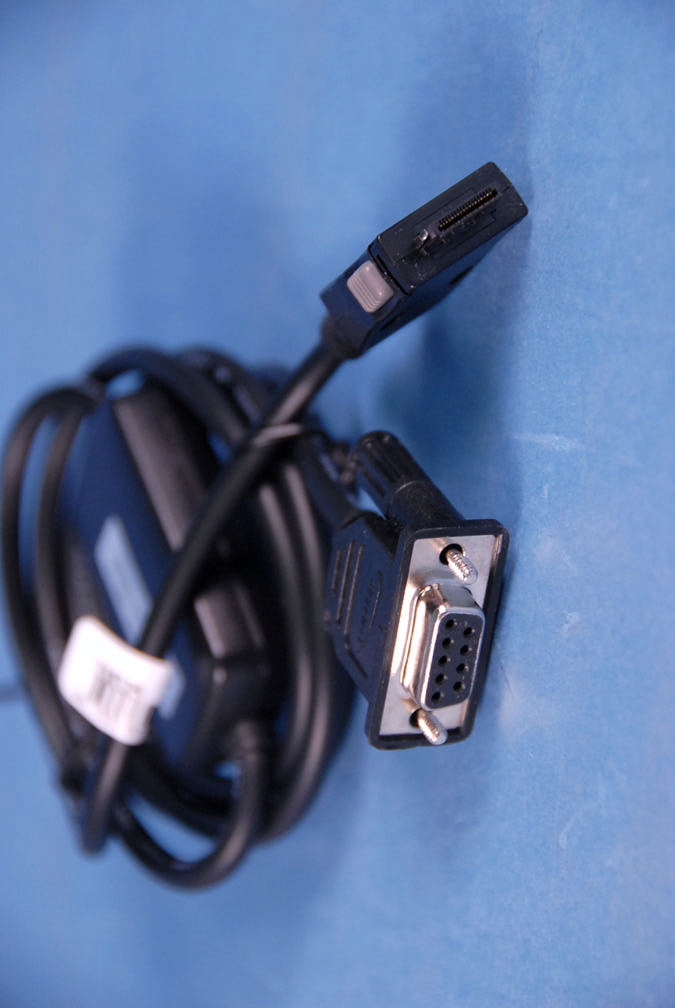

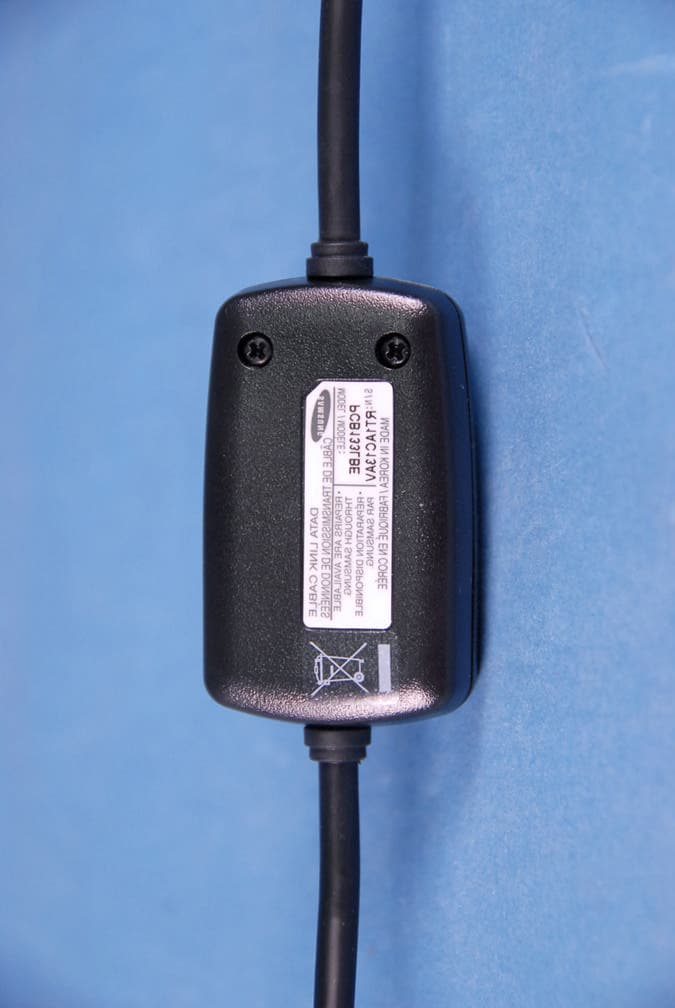

Federal Communications Commission. 7435 Oakland Mills Road Columbia, MD 21046 DATE: April 10, 2007 Re: Data cable for SGH-X560L FCC ID: A3LSGHX560L DOC to FCC ID: A3LSGHX560L To Whom It May Concern: This letter is to confirm to all concerned parties that FCC ID: A3LSGHX560L has never use any oscillator or active device on the PBA of the Data cable It does not have any oscillator or active device on the PBA of the data cable. There is just passive device. Data cable M/N: PCB133LBE Should you have any questions or comments concerning the above, Please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group . SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu, Suwon-si,Gyeonggi-do,442-600 Korea Federal Communications Commission. 7435 Oakland Mills Road Columbia, MD 21046 DATE: June 20, 2006 Re: Data cable for SGH-C406 FCC ID: A3LSGHC406 DOC to FCC ID: A3LSGHC406 To Whom It May Concern: This letter is to confirm to all concerned parties that FCC ID: A3LSGHC406 has never use any oscillator or active device on the PBA of the Data cable It does not have any oscillator or active device on the PBA of the data cable. There is just passive device. Data cable M/N: PCB037DBE Should you have any questions or comments concerning the above, Please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group .

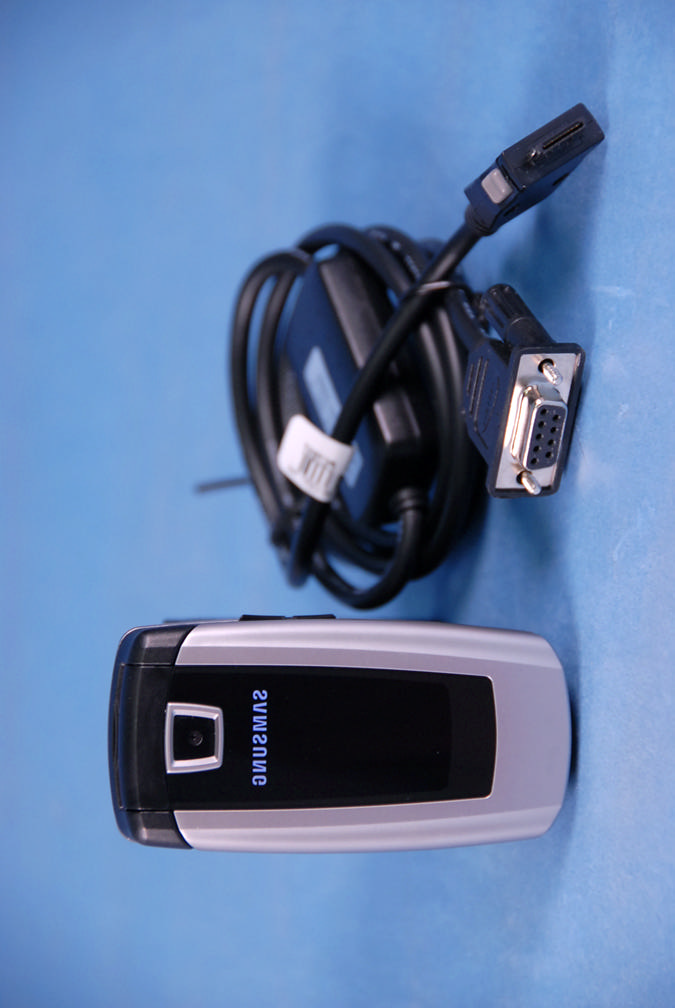

Samsung FCC ID: A3LSGHX560L EUT Photographs © 2007 PCTEST Lab. 1900 GSM Phone NVLAP Lab Code: 100431-0 Samsung FCC ID: A3LSGHX560L EUT Photographs © 2007 PCTEST Lab. 1900 GSM Phone NVLAP Lab Code: 100431-0 Samsung FCC ID: A3LSGHX560L EUT Photographs © 2007 PCTEST Lab. 1900 GSM Phone NVLAP Lab Code: 100431-0

Reviewed by: FCC ID: A3LSGHX560L FCC Pt. 15B MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0704160295.A3L April 17, 2007 1900 GSM Phone Page 1 of 15 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.5CT 04/16/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. April 17, 2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0704160295.A3L FCC ID: A3LSGHX560L APPLICANT: Samsung Electronics, Co. Ltd. EUT Type: 1900 GSM Phone FCC Rule Part(s): FCC Part 15 Subpart B FCC Classification: FCC Class B Digital Device (JBP) Test Procedure: ANSI C63.4-2003 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 (See Test Report). These measurements were performed with no deviation from the standards. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 15B Certification Reviewed by: FCC ID: A3LSGHX560L FCC Pt. 15B MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0704160295.A3L April 17, 2007 1900 GSM Phone Page 2 of 15 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.5CT 04/16/07 TABLE OF CONTENTS FCC Class B MEASUREMENT REPORT.....................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 EVALUATION PROCEDURE................................................................................................................ 4 1.2 SCOPE .................................................................................................................................................. 4 1.3 PCTEST TEST LOCATION ................................................................................................................... 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................ 5 2.2 OPERATION MODE.............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ............................................................................. 5 2.4 LABELING REQUIREMENTS ............................................................................................................... 5 3.0 DESCRIPTION OF TEST.................................................................................................................6 3.1 CONDUCTED EMISSIONS ................................................................................................................... 6 3.2 RADIATED EMISSIONS........................................................................................................................ 7 4.0 SAMPLE CALCULATIONS ..............................................................................................................8 4.1 CONDUCTED EMISSION MEASUREMENT SAMPLE CALCULATION ............................................... 8 4.2 RADIATED EMISSION MEASUREMENT SAMPLE CALCULATION.................................................... 8 5.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 6.0 ENVIRONMENTAL CONDITIONS .................................................................................................10 7.0 TEST DATA ....................................................................................................................................11 7.1 SUMMARY .......................................................................................................................................... 11 7.2 TEST SUPPORT EQUIPMENT ........................................................................................................... 11 7.3 RADIATED MEASUREMENT DATA ................................................................................................... 12 7.4 LINE CONDUCTED MEASUREMENT DATA ..................................................................................... 13 8.0 CONCLUSION................................................................................................................................15 Reviewed by: FCC ID: A3LSGHX560L FCC Pt. 15B MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0704160295.A3L April 17, 2007 1900 GSM Phone Page 3 of 15 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.5CT 04/16/07 MEASUREMENT REPORT FCC Part 15B – Unintentional Radiators § 2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 18600 Broadwick St. Rancho Dominguez, CA 90220 TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 6660-B Dobbin Road, Columbia, MD 21045 USA FCC RULE PART(S): FCC Part 15 Subpart B FCC ID: A3LSGHX560L Test Device S…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LSGHX560L EUT Photographs © 2007 PCTEST Lab. 1900 GSM Phone NVLAP Lab Code: 100431-0 Samsung FCC ID: A3LSGHX560L EUT Photographs © 2007 PCTEST Lab. 1900 GSM Phone NVLAP Lab Code: 100431-0 Samsung FCC ID: A3LSGHX560L EUT Photographs © 2007 PCTEST Lab. 1900 GSM Phone NVLAP Lab Code: 100431-0
