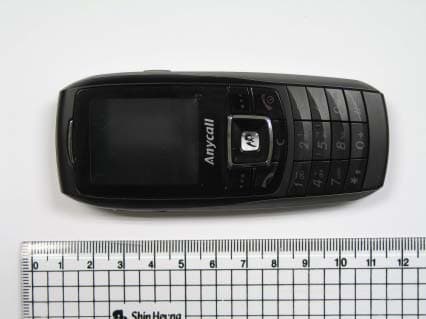

A3LSGHX638Single-Band PCS GSM/ EDGE Phone

World Wide Webhttp://www.samsungmobile.com Printed in Korea English. 3/2006. Rev. 1.0. * Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illustrations in this guide. Version: X638ZMFB1Draft 0.1: 2006. 3. 28 SGH-X638User’s Guide Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. 1 Important safety precautions InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 70. • The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your ph one, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > • Camera and camcorder Use the camera module on your phone to take a photo or record a video. Special features of your phone •IrDA Send and receive Phonebook and calendar data via an infrared port. •Web browser Access the wireless web to get up-to-the-minute information and a wide variety of media content. 3 Special features of your phone • Get personal with photo caller ID See who’s calling you when their very own photo displays. •Name card Create name cards with your number and profile. • Multimedia Message Service (MMS)Send and receive MMS messages with a combination of text, image, video, and audio. •Java Enjoy Java ™ -based embedded games and download new games. •Calendar Keep track of your daily, weekly, and monthly schedule. • Voice recorder Record memos or sounds. •Alarm Use your phone as an alarm clock to wake you up in the morning or notify you of an impending event. • Timer and Stopwatch Count down to a specific event or measure the time it takes to do your exercise or work. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Buttons, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone ..................................... 7Power on or off........................................................ 8Keys and display ..................................................... 9Access menu functions ............................................ 11Customise your phone ............................................. 12Make/Answer calls .................................................. 14Step outside the phone 14 Begin with your camera, web, messaging, and other special featuresUse the camera ...................................................... 14Browse the web...................................................... 15 Use Phonebook ...................................................... 16Send messages ...................................................... 17View messages....................................................... 18 Enter text 19 AB, T9, Number, and Symbol modeCall functions 21 Advanced calling featuresMenu functions 25 All menu options listedSolve problems 68 Help and personal needsHealth and safety information 70 Index 91 5 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 Call log  p. 25 1 Recent contacts2 Missed calls3 Dialled calls4 Received calls5 Delete all6 Call time7 Call cost *  p. 25  p. 26  p. 26  p. 26  p. 26  p. 26  p. 27 2 Phonebook  p. 27 1 Contact list2 Add new contact3 Group4 Speed dial5 My namecard6 Own number7 Management8 Service number *  p. 27  p. 28  p. 29  p. 29  p. 30  p. 30  p. 30  p. 31 3 Applications  p. 31 1 Java world2 Voice recorder3 World clock4 Alarm5 Calculator 6 Converter 7 Timer8 Stopwatch9 SIM AT *  p. 31  p. 32  p. 33  p. 33  p. 34  p. 34  p. 35  p. 35  p. 35 4 Browser  p. 35 1 Home2 Bookmarks3 http://4 WAP profile5 Clear cache  p. 36  p. 37  p. 37  p. 37  p. 37 5 Messaging  p. 37 1 Create message2 My m…

Text truncated - open the document above for the full version.

APPENDIX G Probe Calibration

APPENDIX H Calibration of The Validation Dipole

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-X638 FCC ID(Requested) : A3LSGHX638 Report No : FD-061-R1 Job No : FD-061 Date issued : April 19, 2006 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date JW LEE – Test Engineer Checked By Date WW JANG – Manager Authorized By Date SH PARK – Senior Manager © Copyright SAMSUNG Electronics 2006 Report Number : FD-061-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................15 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................16 6.4. Frequency Stability.......................................................................................17 6.4.1. GSM1900 Frequency Stability Table ................................................17 6.4.2. GSM1900 Frequency Stability Graph...............................................18 7. CONCLUSION.........................................................................................................20 8. TEST PLOTS...........................................................................................................21 Report Number : FD-061-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHX638 • Quantity : Quantity production is planned • Emission Designators : 245KGXW(GSM1900), 240KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 0.826 W EIRP GSM1900 (29.17dBm) 0.532 W EIRP GSM1900 EDGE(27.26dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM/EDGE Phone • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : April 12-13, 2006 • Place of Test : SAMSUNG Lab, • Test Report S/N : FD-061-R1 Report Number : FD-061-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FD-061-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FD-061-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2006-09-26 E4440A(3Hz~26.5GHz)MY41000236 2007-04-14 E4440A(3Hz~26.5GHz)MY41000233 2007-04-…
