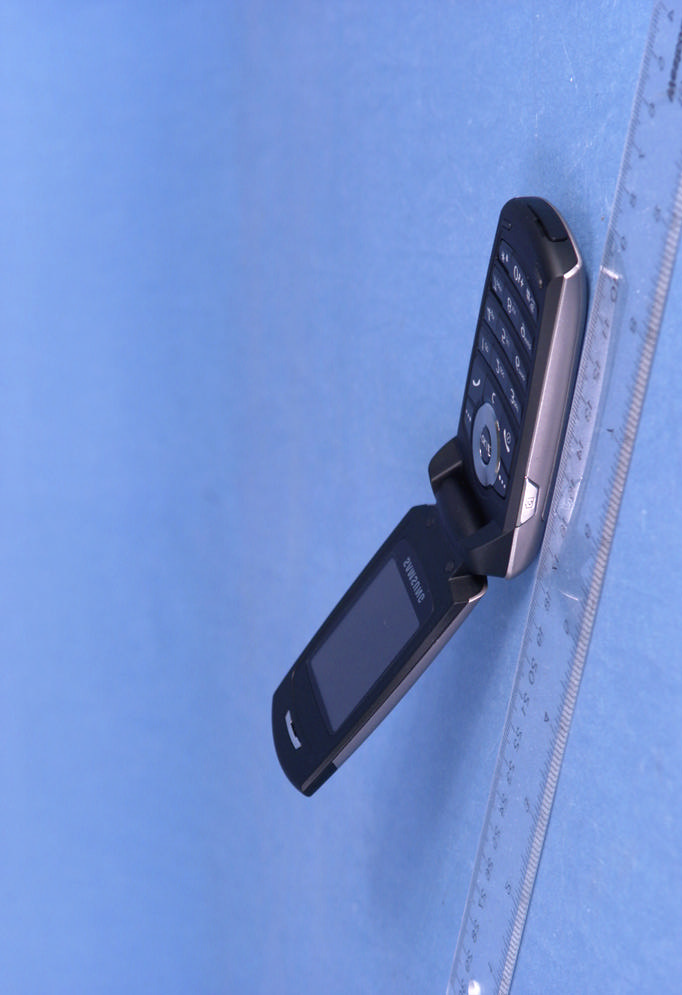

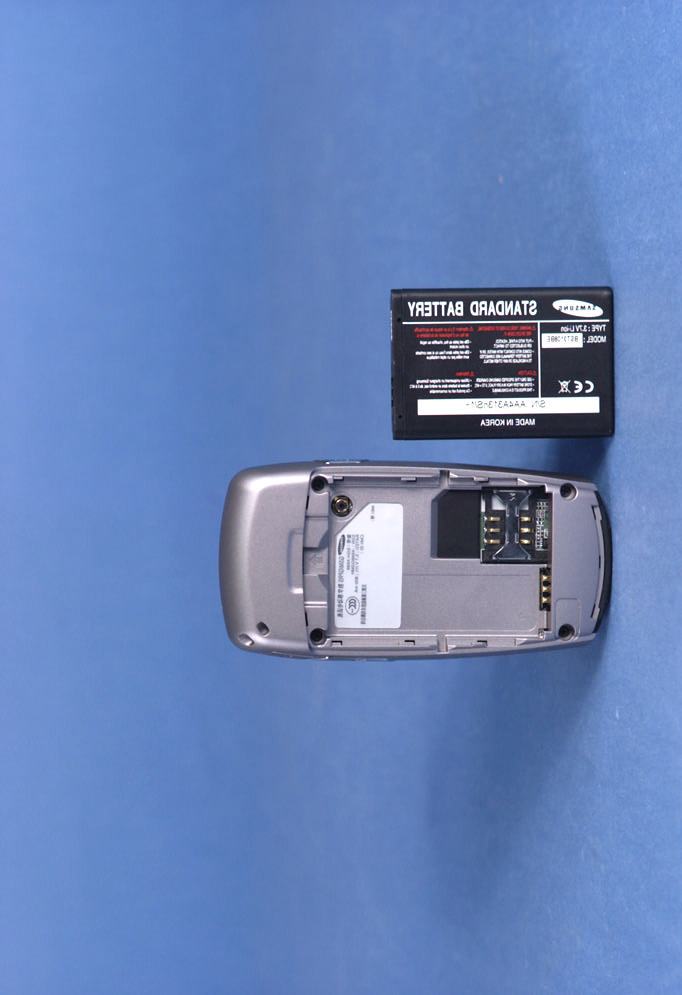

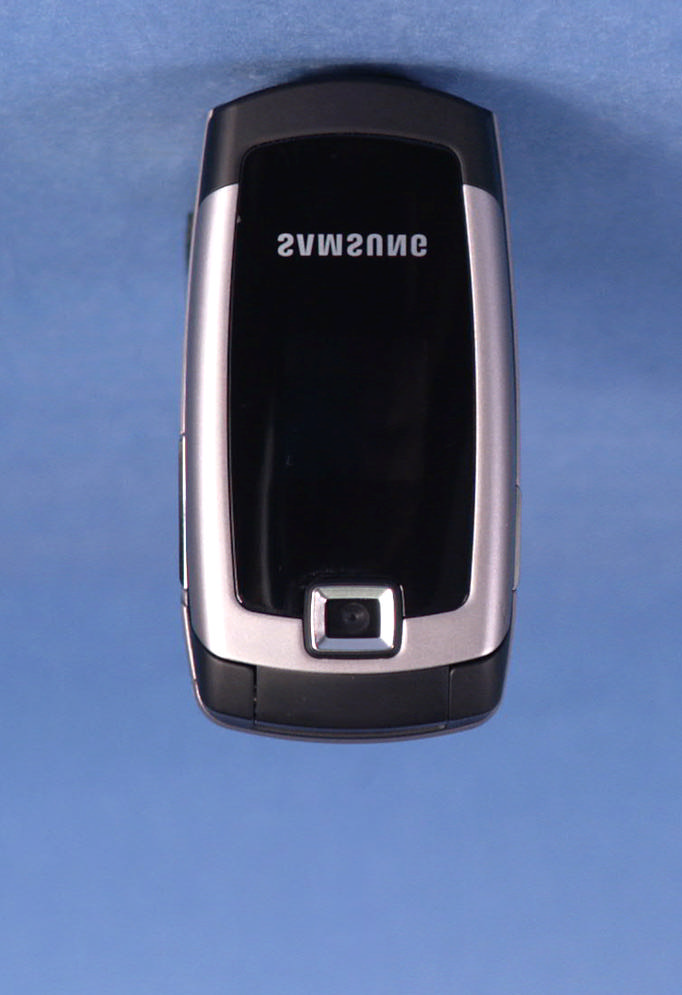

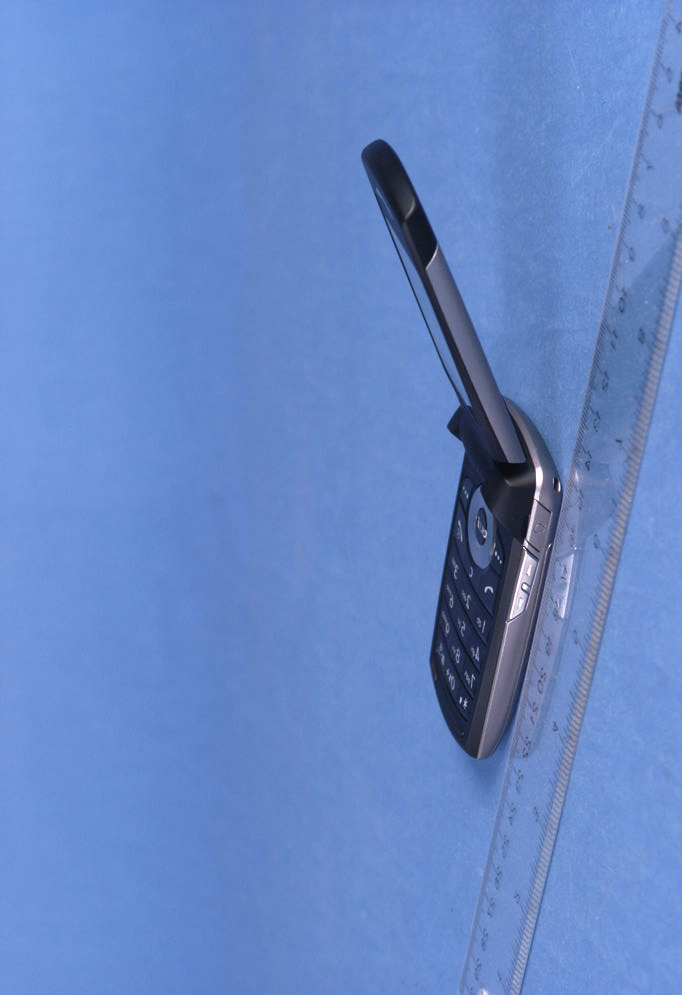

SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688

SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688

Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0604100260 04/24/2006 Single-Band PCS GSM/ EDGE Phone A3LSGHX688 Page 1 of 22 © 2006 PCTEST Engineering Laboratory, Inc. Applicant Name: Date of Testing: Samsung Electronics 04/24/2006 18600 Broadwick Street Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0604100260 FCC ID: A3LSGHX688 APPLICANT: SAMSUNG ELECTRONICS Application Type: Certification FCC Rule Part(s): § 2.1093; FCC/OET Bulletin 65 Supplement C (July 2001) FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: Single-Band PCS GSM/ EDGE Phone Model(s): SGH-X688 Tx Frequency: 1850.20MHz - 1909.8MHz (PCS GSM) RF Output Power: 1.722 W ERP PCS GSM (32.36 dBm)/ 1.114 W EIRP EDGE1900 (30.47 dBm) Max. SAR Measurement: PCS GSM: 0.84 W/kg Head SAR, 0.44 W/kg Body SAR Test Device Serial No.: Pre-Production Sample [S/N: -X688GSMH] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0604100260 04/24/2006 Single-Band PCS GSM/ EDGE Phone A3LSGHX688 Page 2 of 22 © 2006 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION......................................................................................................................3 2. TEST SITE LOCATION................................................................................................................4 3. SAR MEASUREMENT SETUP........................................................................................................5 4. ALIDX-500 E-FIELD PROBE SYSTEM..............................................................................................6 5. PROBE CALIBRATION PROCESS..................................................................................................7 6. PHANTOM AND EQUIVALENT TISSUES.........................................................................................8 7. TEST SYSTEM SPECIFICATIONS....................................................................................................9 8. DOSIMETRIC ASSESSMENT AND PHANTOM SPECS.......................................................................10 9. DEFINITION OF REFERENCE POINTS..........................................................................................11 10. TEST CONFIGURATION POSITION.............................................................................................12 11. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..............................................................................13 12. MEASUREMENT UNCERTAINTIES..............................................................................................14 13. SAR TEST EQUIPMENT.............................................................................................................15 14. CONCLUSION........................................................................................................................16 15. REFERENCES..........................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION........................................................................................................18 EXHIBIT B. SAR SETUP PROCEDURES.....................................................................................................19 EXHIBIT C. SAR DATA SUMMARY......................................................................................................20-22 Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0604100260 04/24/2006 Single-Band PCS GSM/ EDGE Phone A3LSGHX688 Page 3 of 22 © 2006 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93- 62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended P…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-X688 FCC ID(Requested) : A3LSGHX688 Report No : FD-050-R1 Job No : FD-050 Date issued : April 07, 2006 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date WT JANG – Test Engineer Checked By Date WW JANG – Manager Authorized By Date SH PARK – Senior Manager © Copyright SAMSUNG Electronics 2006 Report Number : FD-050-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................15 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................16 6.4. Frequency Stability.......................................................................................17 6.4.1. GSM1900 Frequency Stability Table ................................................17 6.4.2. GSM1900 Frequency Stability Graph...............................................18 7. CONCLUSION.........................................................................................................20 8. TEST PLOTS...........................................................................................................21 Report Number : FD-050-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHX688 • Quantity : Quantity production is planned • Emission Designators : 247KGXW(GSM1900), 242KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 1.722 W EIRP GSM1900 (32.36dBm) 1.114 W EIRP GSM1900 EDGE(30.47dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM/EDGE Phone • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : March 31-April 03, 2006 • Place of Test : SAMSUNG Lab, • Test Report S/N : FD-050-R1 Report Number : FD-050-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FD-050-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FD-050-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2006-09-26 E4440A(3Hz~26.5GHz)MY41000236 2006-10-13 E4440A(3Hz~26.5GHz)MY41000233 2…

Text truncated - open the document above for the full version.

© 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX688 Single-Band PCS GSM/EDGE Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX688 Single-Band PCS GSM/EDGE Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX688 Single-Band PCS GSM/EDGE Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX688 Single-Band PCS GSM/EDGE Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX688 Single-Band PCS GSM/EDGE Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX688 Single-Band PCS GSM/EDGE Phone

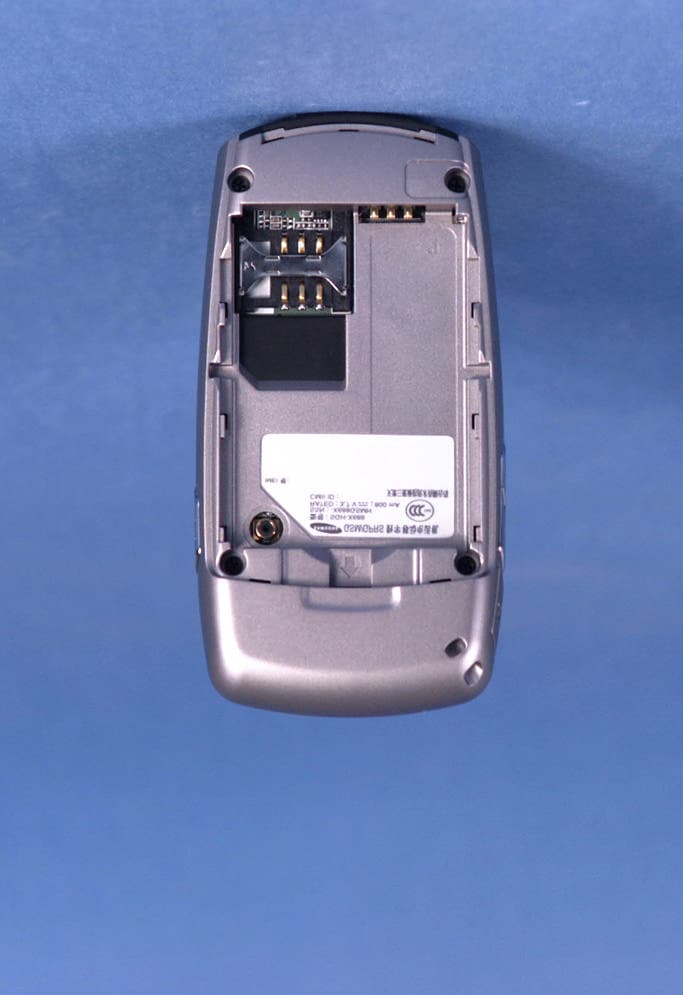

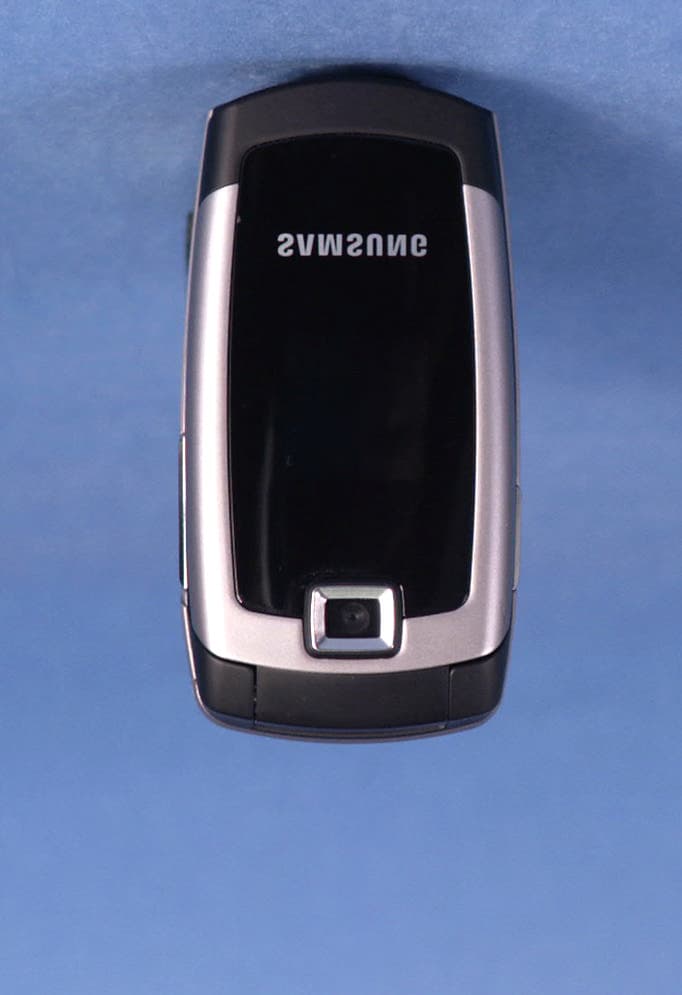

SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688 SAMSUNG FCC ID: A3LSGHX688 EUT Photographs © 2006 PCTEST Lab. Single-Band PCS GSM/ EDGE Phone Model: SGH-X688
