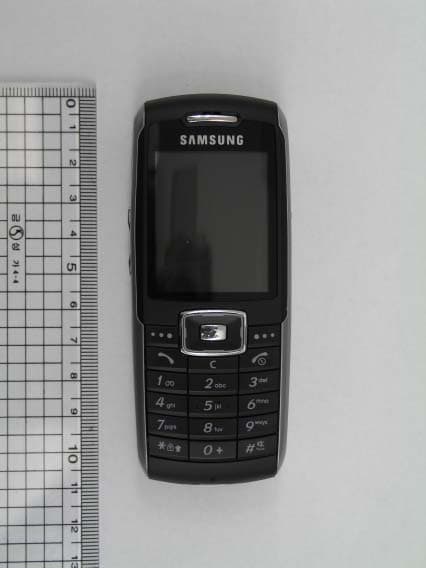

A3LSGHX700Single-Band PCS GSM/ EDGE Phone with Bluetooth

World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXAEnglish. 08/2005. Rev 1.0 * Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illust rations in this guide. SGH-X700User’s Guide D r a f t 2 0 0 5 . 0 8 . 0 3 ( V e r s i o n : X 7 0 0 X A E G 3 ) Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 87. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your ph one, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, []. < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > • Camera and camcorder Use the camera module on your phone to take a photo or record a video. Special features of your phone •Bluetooth Transfer media files and personal data and connect to other devices using free, wireless Bluetooth technology. •MP3 player Play MP3 music files using your phone as an MP3 player. 3 Special features of your phone •FM radio Listen to your favourite radio channels anytime, anywhere. • Get personal with photo caller ID See who’s calling you when their very own photo displays. •Name card Create name cards with your number and profile. Whenever introducing yourself to others, use this convenient electronic name card. • Multimedia Message Service (MMS) Send and receive MMS messages with a combination of text, images, video, and audio. •E-mail Send and receive e-mails with images, video, and audio attachments. •Web browser Access the wireless web to get current information and up-to-the-minute a wide variety of media content. •Java Enjoy Java ™ -based embedded games and download new games. •Calendar Keep track of your daily, weekly, and monthly schedule. • Voice recorder Record memos or sounds. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Buttons, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone ..................................... 7Power on or off........................................................ 8Keys and display ..................................................... 9Access menu functions ............................................ 11Customise your phone ............................................. 12Make/Answer calls .................................................. 14Step outside the phone 14 Begin with your camera, music, web, and other special featuresUse camera............................................................ 14Play MP3s .............................................................. 15 Listen to the FM radio ............................................. 17Browse the web...................................................... 18Use Phonebook ...................................................... 18Send messages ...................................................... 19View messages....................................................... 21Use Bluetooth ........................................................ 22Use a memory card................................................. 23 Enter text 24 ABC, T9, Number, and Symbol modeCall functions 27 Advanced calling featuresMenu functions 31 All menu options listedSolve problems 85 Help and personal needsHealth and safety information 87 Index 94 5 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 Call records  p.31 1 Recent contacts2 Missed calls3 Dialled calls4 Received calls5 Delete all6 Call time7 Call costs *  p.31  p.31  p.31  p.32  p.32  p.32  p.32 2 Phonebook  p.33 1 Contact list2 FDN list3 Add new contact4 Group5 Sp…

Text truncated - open the document above for the full version.















































September 15, 2005        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4




















































September 15, 2005
!
 ""
 ""
#$%"
 &
'
()
*+  !

, !
 "-

)


 .
/01
#
 23!

.
A3LSGHX700 , $
5
 5!

1  " .


 !
6
2)
5
 ,
)(
/01
#
 2
3!
  -
 $

 5!
5

' +
7"

7"

 %
8
3

 !
*%
 %
"
5

-9
%%  2

:
! "

!  !
  "
 !
$%"
! %
 !
  !
 5 "

-

% !
6
/01
#
 2
3!
 !
-  7
% %

 5!
 !

  "
! 7
 !
 6
6  !




7
%- 2




! 7


-
5 "
6
5
  7
% !
6

/01

#
 2
3!
 !


 5 "
6  !
-
5
- 5


 "%
 !


!
5

 5 "


! "
6  !
7
 "%

 5
! 7


"+ 2







;"
<
"
=
3-
/01
#
"
0





















































































September 15, 2005

!
 ""
 ""
 #
 !
$
%
$&'"
 #
(
)*
+,  !

- !
 ".

*



 /
012
$
 %
3!%

/
A3LSGHX700 - &
5
 67 "
 5!


7
8 "


   /


 !
9
%*)
 !
%*
5
 -
*)
012
$
 %
3!%
 &
 6  "
 5!
5


'
'
:
'

'
 !
 ;
"
5

 !

 ' %

7
! "

!  !
  "
 !
&'"
! '
 !
  !
 5 "
.

' !
9
012
$
 %3!

 !

.
' '
 5!
 !

  "
! <
 !
 9
9  !




<
'. %


! <


.
5 "
9
5
  <
' !
9

012
$
 %
3!
5


 5 "
9  !
.
5
. 5


 "'
 !


!
5

 5 "


! "
9  !
<

 "'

 5
! <


", %






="
>
"
?
3.
012
$
"
1%

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth

7. FCC ID Label Location

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone with Bluetooth

1 of 25 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-X700 Additional Model: SGH-X708 FCC ID (Requested): A3LSGHX700 Job No: FC-107 Report No: FC-107-S1 Date issued: Aug. 20, 2005 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date KS AN - Test Engineer Checked By Date SH PARK – Senior Manager Authorized By Date JK CHOI - General Manager 2005.08.22 2005.08.22 2005.08.22 Report Number : FC-107-S1 2 of 25 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY4 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization.......................................................7 3.5 Device Holder for transmitters....................................................................................8 3.6 Validation Dipole....................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape.............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration..........................................................................14 6. Measurement Uncertainty...................................................................................16 7. System Verification............................................................................................17 7.1 Tissue Verification.................................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(GSM1900 Right Head SAR-Touch)............................................19 8.2 Measurement Results(GSM1900 Right Head SAR-Tilt)................................................20 8.3 Measurement Results(GSM1900 Left Head SAR-Touch)..............................................21 8.4 Measurement Results(GSM1900 Left Head SAR-Tilt)..................................................22 8.5 Measurement Results(GPRS1900 Body SAR w/o Holster)............................................23 9. Conclusion.......................................................................................................24 10. Reference.......................................................................................................25 Report Number : FC-107-S1 3 of 25 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM/EDGE Phone with Bluetooth Model Number : SGH-X700 Serial Number : Identical prototype (S/N : FC-107-A) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : BM Lee, Engineer Phone : +82-31-279-0843 Fax : +82-31-279-6162 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Aug. 12, 2005 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 ~ 1909.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 1930.20 ~ 1989.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Max. RF Output Power : 1.754W EIRP GSM1900 (32.44 dBm) Antenna Manufacturer : LK Products [Model No.:H90-0V378-F01P01] Antenna Dimensions : 32mm × 32mm × 5mm Report Number : FC-107-S1 4 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected …

Text truncated - open the document above for the full version.

SAMSUNG FCC ID : A3LSGHX700 1900MHz GSM1900 Head SAR DUT: SGH-X700; Serial: FC-107-A Program Name: SGH-X700 GSM1900 Right (Job No. : FC-107) Procedure Name: Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.6; Test Date-12/Aug/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.38 mho/m; ε r = 39; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.441 mW/g Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.7 V/m; Power Drift = 0.160 dB Peak SAR (extrapolated) = 0.763 W/kg SAR(1 g) = 0.419 mW/g Maximum value of SAR (measured) = 0.448 mW/g 0 dB = 0.448mW/g SAMSUNG FCC ID : A3LSGHX700 1900MHz GSM1900 Head SAR DUT: SGH-X700; Serial: FC-107-A Program Name: SGH-X700 GSM1900 Right (Job No. : FC-107) Procedure Name: Ear/Tilt, Ch.810, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.6; Test Date-12/Aug/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.38 mho/m; ε r = 39; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.810, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.520 mW/g Ear/Tilt, Ch.810, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.5 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 0.932 W/kg SAR(1 g) = 0.499 mW/g Maximum value of SAR (measured) = 0.556 mW/g 0 dB = 0.556mW/g SAMSUNG FCC ID : A3LSGHX700 1900MHz GSM1900 Head SAR DUT: SGH-X700; Serial: FC-107-A Program Name: SGH-X700 GSM1900 Left (Job No. : FC-107) Procedure Name: Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.6; Test Date-12/Aug/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.38 mho/m; ε r = 39; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.336 mW/g Cheek/Touch, Ch.810, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.4 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.483 W/kg SAR(1 g) = 0.312 mW/g Maximum value of SAR (measured) = 0.331 mW/g 0 dB = 0.331mW/g SAMSUNG FCC ID : A3LSGHX700 1900MHz GSM1900 Head SAR DUT: SGH-X700; Serial: FC-107-A Program Name: SGH-X700 GSM1900 Left (Job No. : FC-107) Procedure Name: Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.6; Test Date-12/Aug/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; ε r = 39; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.386 mW/g Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.7 V/m; Power Drift = 0.016 dB Peak SAR (extrapolated) = 0.602 W/kg SAR(1 g) = 0.343 mW/g Maximum value of SAR (measured) = 0.376 mW/g 0 dB = 0.376mW/g SAMSUNG FCC ID : A3LSGHX700 1900MHz GSM1900 Head SAR DUT: SGH-X700; Serial: FC-107-A Program Name: SGH-X700 GSM1900 Right (Job No. : FC-107) Procedure Name: Ear/Tilt, Ch.810, Ant.Intenna, Bat.Standard With BT on Procedure Notes: Meas.Tissue Temp(celsius)-21.6; Test Date-12/Aug/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.38 mho/m; ε r = 39; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.810, Ant.Intenna, Bat.Standard With BT on/Area Scan (…

Text truncated - open the document above for the full version.

APPENDIX I Calibration of The Validation Dipole

DUT: Dipole 1900 MHz; Serial: 5d023 Program Name: 1900 Dipole Validation 2005.08.12 Procedure Name: 1900MHz @250mW Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.38 mho/m; ε r = 39; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 1900MHz @250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 15.6 mW/g 1900MHz @250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 90.7 V/m; Power Drift = -0.027 dB Peak SAR (extrapolated) = 18.4 W/kg SAR(1 g) = 9.96 mW/g Maximum value of SAR (measured) = 11.2 mW/g 0 dB = 11.2mW/g

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested: SGH-X700 Additional Model : SGH-X708 FCC ID (Requested): A3LSGHX700 Report No: FC-107-R1 Job No: FC-107 Date issued: August 18,2005 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date WT JANG– Test Engineer Checked By Date SH PARK – Senior Manager Authorized By Date JK CHOI – General Manager © Copyright SAMSUNG Electronics 2005 Report Number : FC-107-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 9 5.4 Spurious and Harmonic Emissions at Antenna Terminal 9 5.4.1 Occupied Bandwidth Emission Limits 9 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 13 6. TEST DATA 14 6.1 Equivalent Isotropic Radiated Power (E.I.R.P.) 14 6.2 Radiated Spurious & Harmonic Measurement 15 6.3 Radiated Spurious & Harmonic Conversion Table 16 6.4 Frequency Stability 17 6.4.1 Frequency Stability Table 17 6.4.2 Frequency Stability Graph 18 7. CONCLUSION 20 8. TEST PLOTS 21 Report Number : FC-107-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 Attention: SungJoo KIM, Engineering Manager (QA Lab) FCC ID: A3LSGHX700 Additional Model: SGH-X708 Quantity: Quantity production is planned Emission Designators: 300KG7W Tx Freq. Range: 1850.2MHz -1909.8MHz Rx Freq. Range: 1930.2MHz – 1989.8MHz Max. Power Rating: 1.754W EIRP GSM1900 (32.44 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Single-Band PCS GSM/EDGE Phone with Bluetooth Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), Dates of Test: August 10, August 12-17 , 2005 Place of Test: SAMSUNG Lab, Test Report S/N: FC-107-R1 - End of page - Report Number : FC-107-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 442-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FC-107-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FC-107-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2005-09-20 E4440A(3Hz~26.5GHz) MY41000236 2005-10-27 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2005-11-04 SMIQ03B 83824/021 2005-12-27 Signal Generator SMR20 835197/030 2006-01-18 Power Meter E4419B GB41293846 2005-09-21 8481B 3318A10325 2005-10-06 Power Sensor 8485A 3318A19924 2005-09-20 Amplifier 5S1G4 304866 2005-10-19 Pre-Amplifier 8449B 3008A00691 2006-01-11 8960 GB42230535 2005-11-04 Communication test set 8960 GB42360886 2005-10-27 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2006-07-18 SH-241 92000548 2005-11-22 Environmental Chamber SH-241 92000549 2005-11-22 HF906 360306/011 2006-03-17 Horn Antenna HF906 100134 2006-04-25 Dipole Antenna 3121C-DB4 9007-587 2005-12-02 Receive Antenna HL040 353255/020 2006-06-21 8494A 3308A31997 2006-01-03 Attenuator 8496A 3308A14426 2006-01-04 11636B 51941 Not Required 11636B 51942 Not Required Divider 11636B 51946 Not Required WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Fully Anechoic Chamber RF0002 ANT0001 Not Required Report Number : FC-107-R1 5. DESCRIPTION OF TESTS 5.1 Equivalent Isotropic Radiated Power Test Set-up for the EIRP TEST Effective Radiated Power Output and Equivalent Isotropic Radiated Power Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a Non-conducted turntable 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. For GSM signals, an average detector is used, with RBW=VBW=3MHz, SPAN=10MHz. A Horn antenna (for read…

Text truncated - open the document above for the full version.

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX700 Single-Band PCS GSM/EDGE Phone With Bluetooth © 2005 SAMSUNG E…
