A3LSGHX830Single-Band PCS GSM/ EDGE Phone with Bluetooth

World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English (EU). 06/2006. Rev. 1.0 * Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illustrations in this guide. SGH-X830User’s Guide D r a f t _ 1 s t 2 0 0 6 . 0 6 . 1 5 V e r s i o n : X 8 3 0 X X F E 2 Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or ne ar fuels or chemicals. Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. 1 Important safety precautions Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage you and your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 86. • The phone could expl ode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phone, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > • Camera and camcorder Use the camera module on your phone to take a photo or record a video. Special features of your phone • Music player Play music files using your phone as a music player. •Bluetooth Transfer media files and personal data and connect to other devices using free, wireless Bluetooth technology. • File viewer Open documents in various formats on the phone without corruption. 3 Special features of your phone • Web browser Access the wireless web to get up-to-the-minute information and a wide variety of media content. • Offline mode Switch your phone to offline to use its non-wireless functions in an airplane. • Multimedia Message Service (MMS) Send and receive MMS messages with a combination of text, image, video, and audio. •Get personal with photo caller ID See who’s calling you when their very own photo displays. •Name card Create name cards with yournumber and profile. Whenever introducing yourself to others, usethis convenient electronic name card. •Java Enjoy Java ™ -based embedded games and download new games. •Voice recorder Record memos or sounds. •Organiser Keep track of your daily, weekly, and monthly schedule. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Keys, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone ...................... 7Power on or off......................................... 8Keys and display ...................................... 9Access menu functions ............................ 12Customise your phone ............................. 13Make/Answer calls .................................. 15Step outside the phone 16 Begin with your camera, the music player, the web, and other special featuresUse the camera ...................................... 16Play music ............................................. 17Browse the web...................................... 18Use Phonebook....................................... 18 Send messages....................................... 20View messages ....................................... 21Use Bluetooth ......................................... 21 Enter text 23 AB, T9, Number, and Symbol modesCall functions 25 Advanced calling featuresMenu functions 29 All menu options listedSolve problems 84 Help and personal needsHealth and safety information 86 Index 93 5 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 Call log  p. 29 1 Recent contacts2 Missed calls3 Dialled calls4 Received calls5 Delete all6 Call time7 Call costs 1  p. 29  p. 30  p. 30  p. 30  p. 30  p. 30  p. 31 2 Phonebook  p. 31 1 Contact list2 Create contact3 Group4 Speed dial5 My namecard6 Own number7 Management8 Service number p. 5  p. 31  p. 32  p. 33  p. 34  p. 34  p. 35  p. 35  p. 35 3 Applications  p. 35 1 Music player2 Calendar3 Voice recorder4 Java world5 World clock6…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






July 24, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: July 24, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LS GHX830 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 45 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-X830 FCC ID(Requested) : A3LSGHX830 Report No : FD-126-R1 Job No : FD-126 Date issued : July 14, 2006 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date YE PARK – Test Engineer Checked By Date WW JANG – Manager Authorized By Date SH PARK – Senior Manager © Copyright SAMSUNG Electronics 2005 Report Number : FD-126-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................15 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................16 6.4. Frequency Stability.......................................................................................17 6.4.1. GSM1900 Frequency Stability Table ................................................17 6.4.2. GSM1900 Frequency Stability Graph...............................................18 7. CONCLUSION.........................................................................................................20 8. TEST PLOTS...........................................................................................................21 Report Number : FD-126-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHX830 • Quantity : Quantity production is planned • Emission Designators : 246KGXW(GSM1900), 240KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 0.738 W EIRP GSM1900 (28.68dBm) 0.456 W EIRP GSM1900 EDGE(26.59dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM/EDGE Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : July 12-13, 2006 • Place of Test : SAMSUNG Lab, • Test Report S/N : FD-126-R1 Report Number : FD-126-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FD-126-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FD-126-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2006-09-26 E4440A(3Hz~26.5GHz)MY41000236 2007-04-14 E4440A(3Hz~26.5GHz)MY410…

Text truncated - open the document above for the full version.

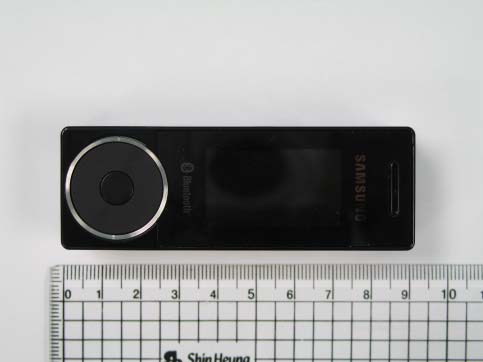

© 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth

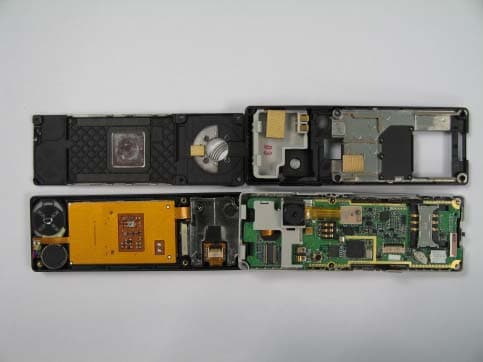

© 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHX830 Single-Band PCS GSM/EDGE Phone with Bluetooth
