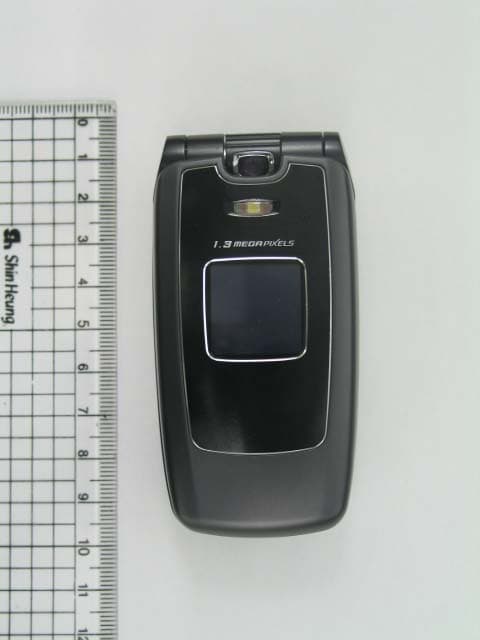

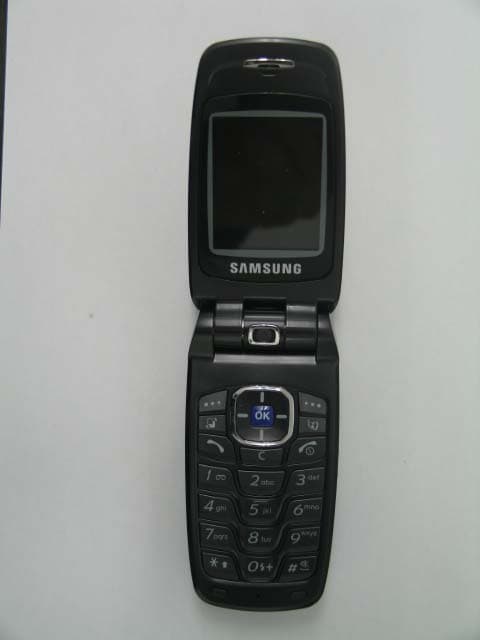

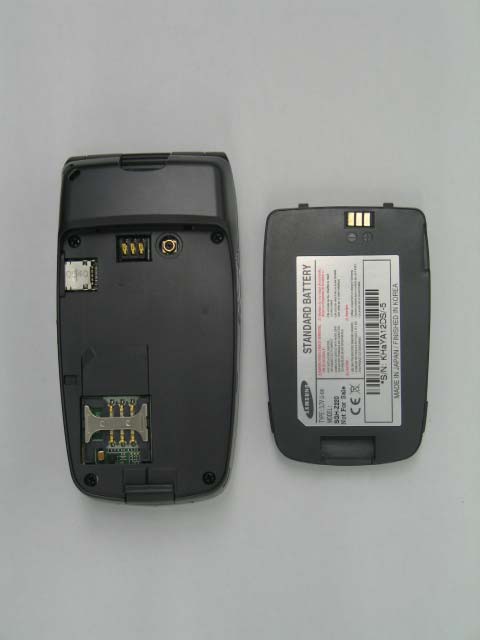

A3LSGHZ220Single-Band PCS GSM/ EDGE Phone with Bluetooth

* Depending on the software installed or your servic e provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone an d accessories may appear different from the illustrations in this guide. World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English. 12/2005. Drf . 1.0. SGH-Z220User’s Guide D r a f t 2 0 0 5 . 1 2 . 2 3 ( V e r s i o n : Z 2 2 0 X A E L 2 ) Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phon e near all medical equipmentHospitals or health ca re facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. InterferenceAll wireless phones may be subject to interference, which could affect their performance. 1 Important safety precautions Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger. Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal po sition (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 77. • The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phone, please refer to “Get started” and “Step outside the phone.”In this guide, the followin g instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Msg . > • 3GYour phone is capable of operating in a 3G environment, allowing much greater data transfer speed, video streaming, and video conferencing. Special features of your phone • Camera and camcorder Use the camera module on your phone to take a photo or record a video. • Media player Play media files on your phone. You can enjoy high quality videos and music. •Web browser Access the wireless web to get up-to-the-minute information and a wide variety of media content. 3 Special features of your phone • Bluetooth Send photos, images, videos, and other personal data, and connect to other devices using free, wireless Bluetooth technology. • Contacts Store home, office, or cellular phone numbers for your contacts. • Get personal with photo caller IDSee who’s calling you with their very own photo displays. • Name cardCreate name cards with your number and profile. Whenever introducing yourself to others, use this convenient electronic name card. • Multimedia Message Service (MMS)Deliver MMS messages with a combination of text, images, and audio. •E-mail Deliver e-mails with image, video, and audio attachments. • JavaEnjoy Java ™ -based embedded games and download new games. • OrganiserKeep track of your daily, weekly, and monthly schedule. • AlarmUse your phone as an alarm clock to wake you up in the morning or notify you of an impending event. • Voice recorderRecord memos or sounds. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Buttons, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone.............................. 7Power on or off ................................................ 8Keys and display .............................................. 9Access menu functions .................................... 11Customise your phone..................................... 12Make/Answer calls .......................................... 14Step outside the phone 15 Begin with your camera, the media player, the web, and other special featuresUse the camera .............................................. 15Play media files .............................................. 16Browse the web.............................................. 17Use Contacts ................................................. 18Send messages .............................................. 19View messages .............................................. 21 Use Bluetooth................................................ 21Switch applications......................................... 22 Enter text 23 ABC, T9, Number, and Symbol modeCall functions 25 Advanced calling featuresMenu functions 29 All menu options listedSolve problems 76 Help and personal needsHealth and safety information 77 Index 93 5 1 Call log  p. 29 1 Missed calls2 Dialled calls3 Received calls4 Current contacts5 Delete all6 Data calls7 Calls cost * 8 Calls time  p. 29  p. 29  p. 29  p. 29  p. 30  p. 30  p. 30  p. 30 2 Contacts  p. …

Text truncated - open the document above for the full version.

of 26 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-Z220 FCC ID (Requested): A3LSGHZ220 Job No: FC-162 Report No: FC-162-S1 Date issued: Dec 05, 2005 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date DK LEE – Test Engineer Checked By Date SH PARK – Senior Manager Authorized By Date JK CHOI – General Manager Report Number: FC-162-S1 2 of 26 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 Probe Specifications ......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 Error Description ............................................................................................................................. 17 7. SYSTEM VERIFICATION ............................................................................................................. 18 7.1 Tissue Verification ................................................................................................................ 18 7.2 Test System Validation ......................................................................................................... 18 8. SAR MEASUREMENT RESULTS ................................................................................................ 19 8.1 Measurement Results(GSM1900 Right Head SAR - Touch) ............................................... 20 8.2 Measurement Results(GSM1900 Right Head SAR - Tilt) .................................................... 21 8.3 Measurement Results(GSM1900 Left Head SAR - Touch).................................................. 22 8.4 Measurement Results(GSM1900 Left Head SAR - Tilt)....................................................... 23 8.5 Measurement Results(GPRS1900 Body SAR without Holster)........................................... 24 9. CONCLUSION .............................................................................................................................. 25 10. REFERENCES ............................................................................................................................ 26 Report Number: FC-162-S1 3 of 26 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM/EDGE Phone with Bluetooth Model Number : SGH-Z220 Serial Number : Identical prototype (S/N : # FC-162-A) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : JH KIM Phone : +82-31-279-8044 Fax : +82-31-279-6162 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Dec.01, 2005 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 ~ 1909.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 1930.20 ~ 1989.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Max. RF Output Power : 1.422W EIRP GSM1900 (31.53 dBm) Antenna Manufacturer : SAMSUNG ELECTRO-MECHANICS Model No.: - Antenna Dimensions : 38.70± 0.5mm Report Number: FC-162-S1 4 of 26 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote con…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-Z220 FCC ID(Requested) : A3LSGHZ220 Report No : FC-162-R1 Job No : FC-162 Date issued : December 07, 2005 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date YE PARK – Test Engineer Checked By Date SH PARK – Senior Manager Authorized By Date JK CHOI – General Manager © Copyright SAMSUNG Electronics 2005 Report Number : FC-162-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................15 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................16 6.4. Frequency Stability.......................................................................................17 6.4.1. GSM1900 Frequency Stability Table ................................................17 6.4.2. GSM1900 Frequency Stability Graph...............................................18 7. CONCLUSION.........................................................................................................20 8. TEST PLOTS...........................................................................................................21 Report Number : FC-162-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHZ220 • Quantity : Quantity production is planned • Emission Designators : 244KGXW(GSM1900), 239KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 1.422 W EIRP GSM1900 (31.53dBm) 0.601 W EIRP GSM1900 EDGE(27.79dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM/EDGE Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : November 30 - December 1, 5, 2005 • Place of Test : SAMSUNG Lab, • Test Report S/N : FC-162-R1 Report Number : FC-162-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FC-162-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FC-162-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2006-09-26 E4440A(3Hz~26.5GHz)MY41000236 2006-1…
