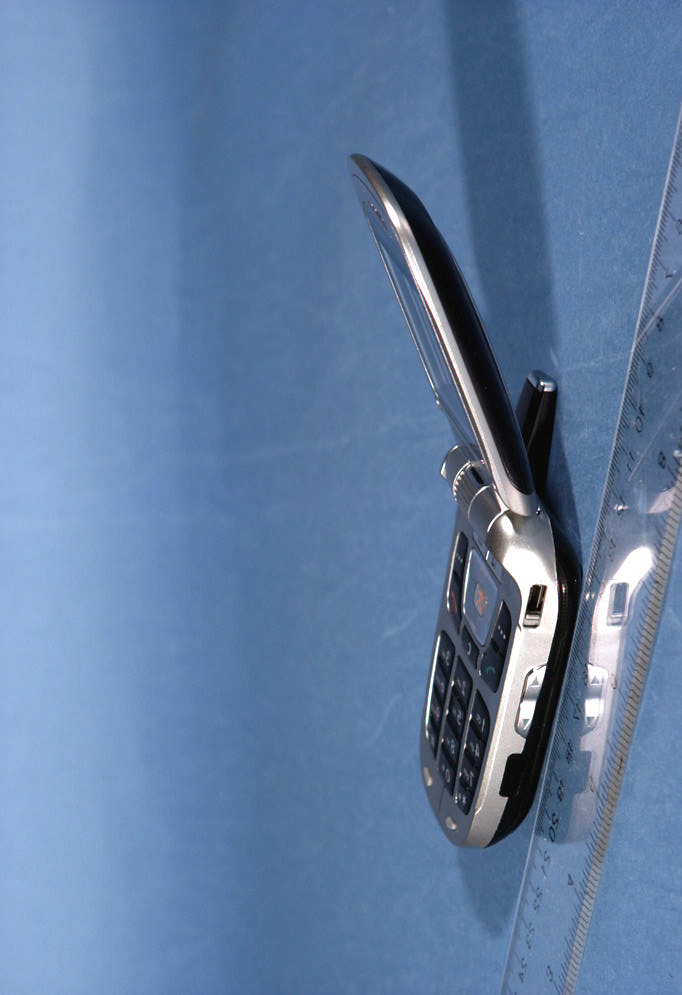

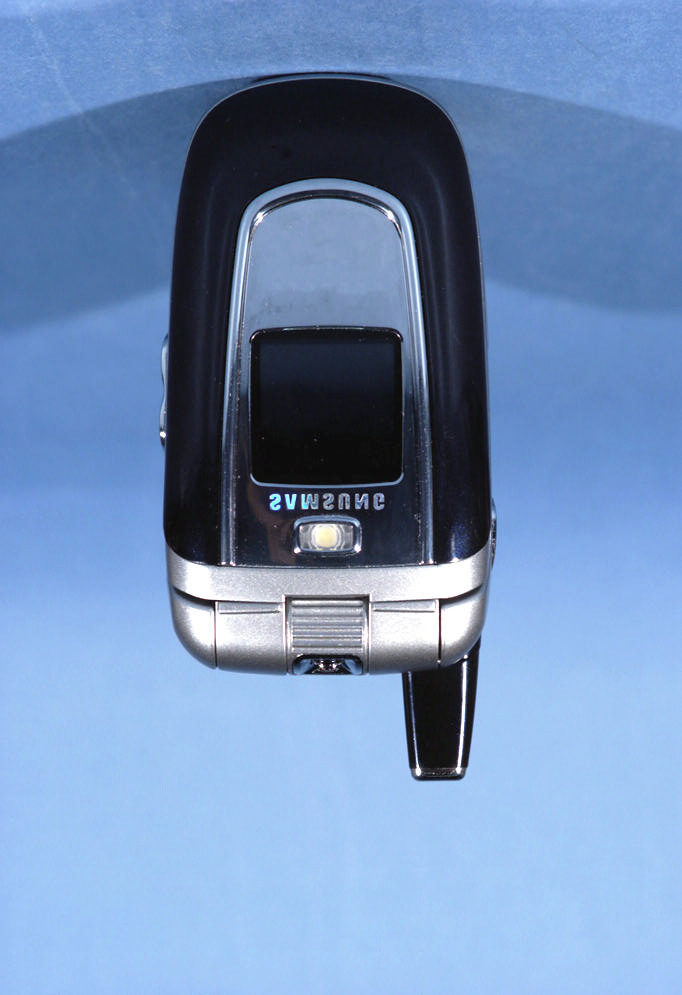

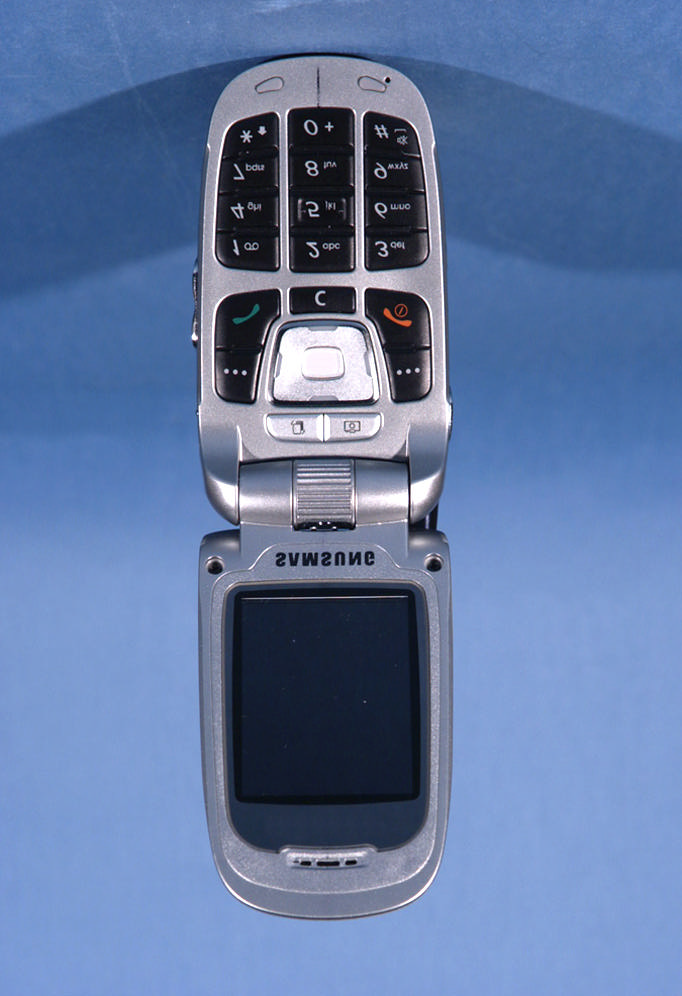

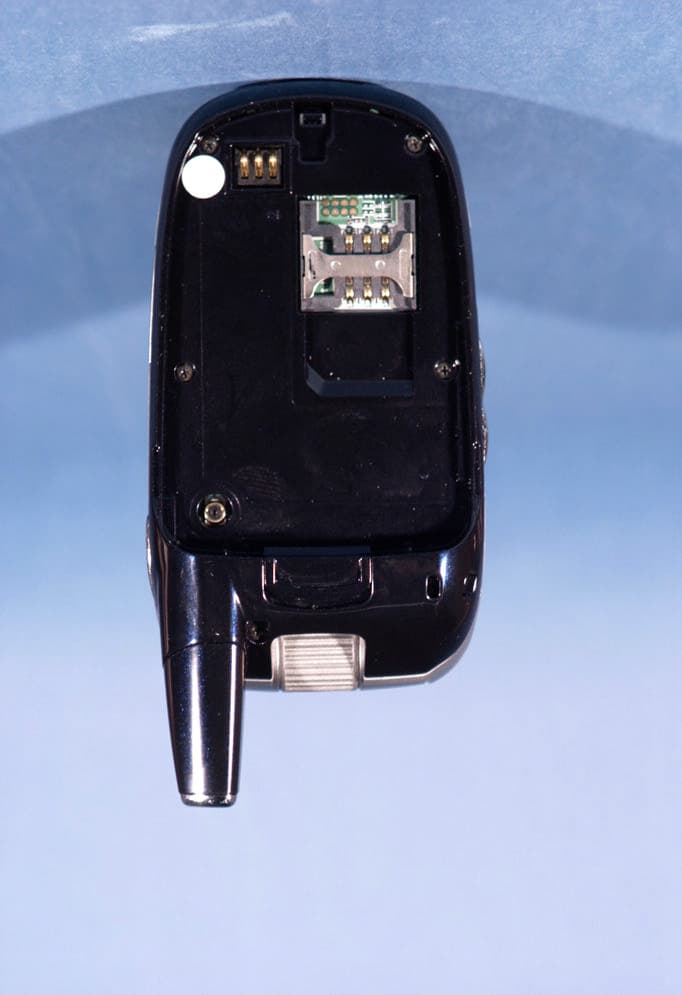

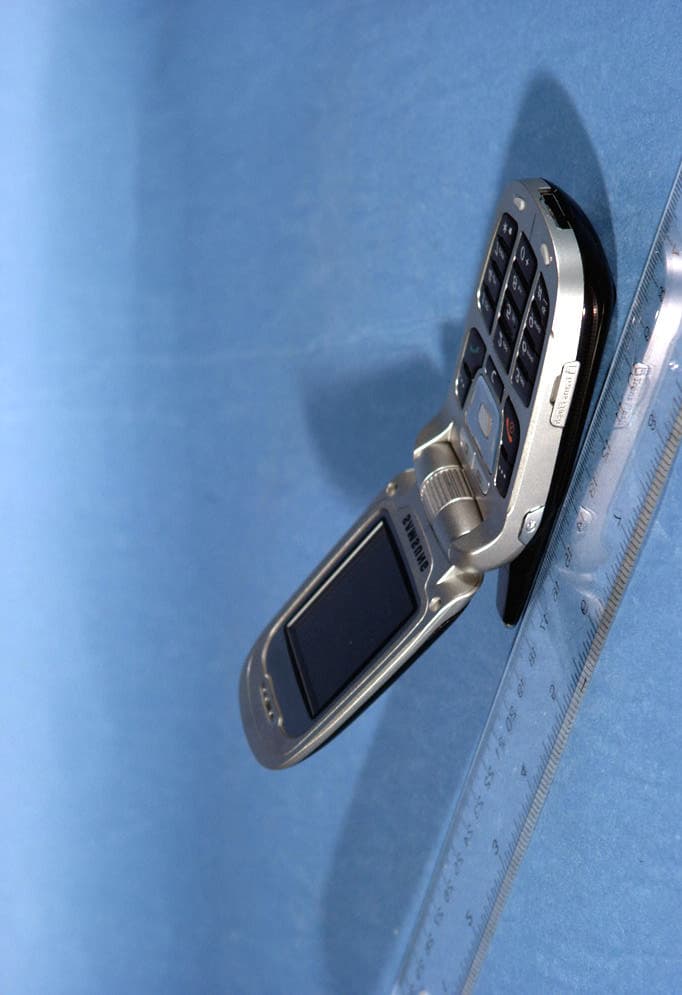

A3LSGHZX10Dual-Band Dual-Mode GSM/ WCDMA Phone

UCEI4A._PMilton_092805_D3 SGH-zx10 Series PORTABLE Quad/Dual- Mode TELEPHONE User Guide Please read this manual before operating your phone, and keep it for future reference. Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc. Headquarters:Customer Care Center: 1301 E. Lookout Drive1000 Klein St. Richardson, TX 75082Plano, TX 75074 Tel: 972.761.7000Toll Free Tel: 1.888.987.HELP (4357) Internet Address: http://www.samsungusa.com © 2005 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities. Printed in Korea GH68-xxxx Openwave® is a registered Trademark of Openwave, Inc. RSA® is a registered Trademark RSA Security, Inc. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Table of Contents5 Table of Contents Table of Contents Section 1: Getting Started ............................... 11 Activating Your Phone .................................................... 12 Setting Up Your Voice Mail ............................................. 17 Understanding this User Manual ..................................... 19 Section 2: Understanding Your Phone ............ 21 Features of Your Phone .................................................. 22 Open View of Your Phone ............................................... 23 Front View of Your Phone ............................................... 27 Display Layout ............................................................... 29 Selecting Functions and Options .................................... 30 Command Keys .............................................................. 32 Section 3: Call Functions ................................. 35 Making a Call ................................................................. 36 Adjusting the Call Volume ............................................... 40 Switching Off the Microphone (Mute) .............................. 40 Answering a Call ............................................................ 40 Missed Calls ................................................................... 43 Call Log .......................................................................... 45 Quiet Mode .................................................................... 49 Section 4: Menu Navigation ............................ 51 Menu Navigation ............................................................ 52 Using Shortcuts .............................................................. 53 In Use Menu Outline ....................................................... 55 Menu Outline ................................................................. 56 Section 5: Entering Text .................................. 63 Changing the Text Entry Mode ........................................ 64 Using T9 Mode ............................................................... 65 Entering Upper and Lower Case Letters .......................... 67 Using Number Mode ....................................................... 68 Ta b l e o f C o nt en t s 6 Using Symbol Mode ........................................................69 Section 6: Understanding Your Address Book 71 Adding a New Address Book Entry ..................................72 Pauses ...........................................................................76 Dialing a Number from the Address Book .......................76 Finding an Address Book Entry .......................................77 Editing an Existing Address Book Entry ...........................80 Deleting an Address Book Entry ......................................80 Groups ...........................................................................82 Speed Dial ......................................................................86 My Name Card ...............................................................88 Copy All ...........................................................…

Text truncated - open the document above for the full version.

Section 8: Changing Your Settings131 Display Settings Section 8 Selecting and Applying Wallpaper to the External LCD Note: To apply the Sub LCD Wallpaper selected in the Wallpaper menu, simply highlight Wallpaper and press the Change soft key. To change Wallpaper perform the following: 1.Highlight Wallpaper and press the key. 2.Press the Change soft key. 3.Use the Up or Down Navigation key to highlight an image and press the key to view the image. Alternatively, press the Options soft key, highlight View and press the Select soft key or the key. Note: Press the Left or Right Navigation key to preview other images. 4.Select an image and press the Select soft key or the key. 5.Press the key to save image. Alternatively press the Options soft key, select Set and press the Select soft key or the key. 6.Make sure Wallpaper is highlighted and press the Change soft key to apply wallpaper. LCD Brightness You can adjust the display brightness for the Main LCD and the Front LCD to see it better in different lighting conditions. Press the Left or Right Navigation key or press the Volume key to adjust the brightness. Section 8 132 Backlight You can select the length of time the backlight is on. The backlight turns on when you press a key, when you open the phone or you receive a call or message, and remains on for the specified length of time. Use the Left or Right Navigation key to select a length time for the Backlight and Dim options. Menu Style This menu allows you to select the menu display style. You can choose either List or Icon menu style. Dialing Display This menu allows you to select numeric font color that appears in the display when making a call. Choose basic or rainbow. Show Caller Information This menu allows you to turn on or off the Caller ID on both the Display and External LCD. Call See "Section 11: Network Services" on page 201. Section 8: Changing Your Settings133 Connectivity Section 8 Connectivity You can customize the profiles containing the settings for connecting your phone to the network. These settings are used for the WAP browser or Instant Messenger, or sending Multimedia messages or Emails. Note: Your phone is suited for connecting to the network by default. If you change the Multimedia settings without first checking with your service provider, the WAP, Multimedia and Email features may not work properly. Infrared This feature allows you to send and receive data, through the IR port located on the left side of your phone. Transmission and reception must be to or from an IR compatible computer. You can send and receive data such as Address Book entries, Calendar memos, business cards, graphics, images, sound clips, and videos clips. Section 8 134 Connecting with a PC To use an infrared connection with your computer, you must: 1.Configure and activate an IrDA-compliant infrared port on the computer. 2.Activate the infrared feature on the phone. 3.Select an entry and press the Options soft key. 4.Use the Up or Down Navigation key to highlight Send and press the Select soft key or the key. 5.Highlight Via Infrared. Ensure that the IR ports of the sending and receiving device are pointing at each other and that there are no obstructions between the devices. 6.Press the Select soft key or the key. The entry is sent to your computer. Connections This feature allows you to select and or edit the profile containing the setting for connecting your phone to the network. These settings are used for the WAP browser or Instant Messenger, or sending MMS messages or emails. Note: Your phone connects to the network by default. If you change the MMS settings without first checking with your service provider, the WAP, MMS and Email features may not work properly. 1.In Idle mode, press the Menu () soft key to access Menu mode. Section 8: Changing Your Settings135 Connectivity Section 8 2.Use the Navigation keys to highlight Settings and press the Select soft key or the key. 3.Use the Up or Down Navigation key to highlight Connectivity and press the Select soft key or the key. 4.Use the Up or Down Navigation key to highlight Connections and press the Select soft key or the key. 5.Use the Up or Down Navigation to highlight the profile you want to change. 6.Press the Options soft key. The following options appear in the display: • Edit: allows you to edit the highlighted profile. • New: allows you to create a new profile. • Rename: allows you to rename the highlighted profile. • Delete: deletes the highlighted profile. • Restore: allows you to restore the default settings for the highlighted profile. 7. Edit is highlighted, press the Select soft key or the key. For each profile, the following options are available: • Set Name: enter a name that you wish to assign to the HTTP or WAP proxy server. • Access Name: enter the access server name. • Auth Type: select a connection type. • User ID: enter the user ID required to connect to the network. • Password: enter the password required to connect to the network. • Protocol: select a web page format. Select HTTP or WAP. Section 8 136 • Home URL: enter the address of your startup homepage. When the default homepage displays, you can delete it by pressing and holding the key. • Gateway Address: enter the WAP Gateway address required to connect to the Internet. • Secure Connection: allows you to turn the secure connection type on or off. • Linger Time (Sec.): enter a time that will disconnect the WAP browser if there is no activity. • Advance Settings: allows you to enable and enter a Static IP address, a Static DNS address or select a Traffic Class. 8.When you have finished, press the Save soft key or the key. Software Updates Software Updates, allows your wireless provider to automatically install high-priority updates on your handset. Application Settings You can customize various options for using the following applications. 1.In Idle mode, press the Menu () soft key to access Menu mode. 2.Use the Navigation keys to highlight Settings and press…

Text truncated - open the document above for the full version.
