A3LSH100BDigital Camera

This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly. Ä Click a topic Common questions Quick reference Contents Basic functions Extended functions Shooting options Playback/Editing Wireless network Settings Appendixes Index User Manual SH100 1 Health and safety information Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera. Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your camera or other equipment Note—notes, usage tips, or additional information Safety warnings Do not use your camera near flammable or explosive gases and liquids Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories. Keep your camera away from small children and pets Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well. Prevent damage to subjects’ eyesight Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. Using the flash too close to your subject’s eyes can cause temporary or permanent damage. Handle and dispose of batteries and chargers with care Use only Samsung-approved batteries and chargers. t
Incompatible batteries and chargers can cause serious injuries or damage to your camera. Never dispose of batteries in a fire. Follow all local regulations t
when disposing of used batteries. Never place batteries or cameras on or in heating devices, t
such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. Do not use a damaged power supply cord, plug, or loose t
outlet when charging batteries. This may cause a fire or electric shock. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between cameras and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your camera is interfering with a pacemaker or other medical device, turn off the camera immediately and contact the manufacturer of the pacemaker or medical device for guidance. 2 Health and safety information Do not swing your camera by the strap. This may cause injury t
to yourself or others. Do not paint your camera, as paint can clog moving parts and t
prevent proper operation. Paint or metal on the outside of the camera may cause t
allergies, itchy skin, eczema, or swelling for people with sensitive skin. If you have experience any of these symptoms, stop using the camera immediately and consult a doctor. Protect batteries, chargers, and memory cards from damage Avoid exposing batteries or memory cards to very cold or very t
hot temperatures (below 0º C/32º F or above 40º C/104º F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction. Prevent batteries from making contact with metal objects, as t
this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage. Also, this may cause a fire or electric shock. Prevent memory cards from making contact with liquids, dirt, or t
foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera. Do not allow liquids, dirt, or foreign substances to come in t
contact with the memory card slot. Doing so may cause the camera to malfunction. Insert a memory card in the correct direction. Inserting a t
memory card in the wrong direction may damage your camera and memory card. Safety precautions Handle and store your camera carefully and sensibly Do not allow your camera to get wet—liquids can cause serious t
damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer’s warranty. Do not expose the camera to direct sunlight or high t
temperatures for an extended period of time. Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components. Avoid using or storing your camera in dusty, dirty, humid, or t
poorly-ventilated areas to prevent damage to moving parts and internal components. Remove the batteries from your camera when storing it for an t
extended period of time. Installed batteries may leak or corrode over time and cause serious damage to your camera. Protect your camera from sand and dirt when using it on t
beaches or in other similar areas. Protect your camera and the display from impact, rough t
handling, and excessive vibration to avoid serious damage. Exercise caution when connecting cables or adapters and t
installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories. Do not insert foreign objects into any of your camera’s t
compartments, slots, or access points. Damage due to improper use may not be covered by your warranty. 3 Health and safety information Use only Samsung-approved accessories Using incompatible accessories may damage your camera, cause injury, or void your warranty. Protect your camera’s lens Do not expose the lens to direct sunlight, as this may discolor t
the image sensor or cause it to malfunction. Protect your lens from fingerprints and scratches. Clean your t
lens with a soft, clean, debris-free lens cloth. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a camera in a certain area. Turn off the camera near medical equipment Your camera can interfere with medical equipment in hospitals or health care facilities. Follow all regulati…

Text truncated - open the document above for the full version.

Connecting to a WLAN and configuring network settings .................................... 92 Connecting to a WLAN automatically ............ 92 Setting network options ........................... 93 Setting IP manually ................................. 93 Network connection tips ........................... 94 Storing your information ........................... 95 Storing email addresses ........................... 95 Setting the file size to share ........................ 96 Setting a password ................................. 96 Changing the password ........................... 96 Checking information .............................. 97 Entering text .......................................... 97 Using photo or video sharing websites ... 98 Accessing a website ................................. 98 Uploading photos or videos ........................ 99 Sending photos via email .................. 100 Viewing photos or videos on the allshare devices ............................................. 101 Viewing photos or videos on a TV screen ... 101 Viewing photos or videos on another device (renderer) .......................................... 102 Sending or receiving photos or videos with a camera .................................... 104 Sending photos or videos to another camera 104 Receiving photos or videos from another camera ............................................. 104 Wireless network Learn to use several functions that use wireless local area networks (WLANs) feature. Wireless network 92 IconDescription Secured AP Ad hoc AP Signal strength Signal is found. No signal is found. If the selected AP is not secured, the camera will connect to t
the WLAN. If the selected AP device requires a password, enter the t
password to connect to the WLAN. Connecting to a WLAN automatically In Shooting or Playback mode, select 1 N “ Network Setting. Select 2 Access Point Setting. The camera will search for and display available AP devices.t
Select an AP device. 3 AP Setting AIA-2 Samsung 1 Samsung 2 Samsung 3 Connecting to a WLAN and configuring network settings Learn to connect via an access point (AP) when you are in a range of a WLAN. You can also configure network settings and learn how to enter text. This camera uses non-harmonized frequencies and is intended for use in all European countries. The WLAN can be operated indoors in the EU without restriction, but cannot be operated outdoors in France. Wireless network 93 Connecting to a WLAN and configuring network settings Setting IP manually In Shooting or Playback mode, select 1 N “ Network Setting. Select 2 Access Point Setting. The camera will search for and display available AP devices.t
Select 3 next to the AP you want to connect. Select 4 IP Setting “ Manual. Select the boxes next to the options you will set. 5 OptionDescription IP Enter the static IP address. Subnet Mask Enter the subnet mask. Gateway Enter the gateway. DNS Server Enter the DNS address. Enter values and select 6 . When you are finished, select 7 . Setting network options In Shooting or Playback mode, select 1 N “ Network Setting. Select 2 Access Point Setting. The camera will search for and display available AP devices.t
Select 3 next to the AP you want to set. Select network options. 4 OptionDescription Authentication Select a network authentication. Data Encryption Select an encryption type. Network Key Select Touch and enter the Network Key. Select 5 . Wireless network 94 Connecting to a WLAN and configuring network settings You can use only free WLANs with your camera. If you use t
free WLANs that require the user agreement and additional information when you connect to a web browser, some features may be limited when connecting to websites or sending email. Available network connections may differ by country. t
The WLAN feature of your camera must comply with radio t
transmission laws in your region. To ensure compliance, use the WLAN feature only in the country where you purchased the camera. For network profiles and a password, contact your network t
administrator or network service provider. The process for adjusting network settings may differ, t
depending on network conditions. Do not access a network that you are unauthorized to use.t
When connecting to networks, ensure your battery is fully t
charged. When a DHCP server is not available you must make an autoip.t
txt file and copy it to the inserted memory card to connect to the network using Auto IP. Network connection tips The quality of the network connection will be determined by t
the AP. The further the distance between your camera and the AP, the t
longer will take to connect to the network. If a nearby device is using the same radio frequency signal as t
your camera, it may interrupt your connection. If your AP name is not in English, the device may not be located t
or the name may appear incorrect. For network settings or a password, contact your network t
administrator or network service provider. If a WLAN requires authentication from the service provider, you t
may not be able to connect it. To connect the WLAN, contact your network service provider. Depending on the encryption type, the number of digits in the t
password may differ. A WLAN connection may not be possible in all surroundings.t
A WLAN-enabled printer may be shown on the AP lists. t
However, you cannot connect to the network via a printer. You cannot connect your camera to a network and a TV t
simultaneously. Also you cannot view photos or videos on a TV while connected to a network. Connecting to a network may incur additional charges. Costs t
will vary based on the conditions of your contract. Wireless network 95 Connecting to a WLAN and configuring network settings Storing email addresses Store up to 10 email addresses in your camera. You can use them when you send your photos via email. In Shooting or Playback mode, select 1 N “ Network Setting. Select 2 Email Address. Email Address Book Samsung IconDescript…

Text truncated - open the document above for the full version.

Date: April 13, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL CCS Certi fication Division 47173 Benicia Street Fremont, CA 94538, USA Dear Sir/Madam We, SAMSUNG ELECTRONICS CO., LTD., located at 416, Maetan-3dong, Yeongtong-gu, Suwon-City, Gyeonggi-do, 443-742, Korea as manufacturer of the product model: SAMSUNG S H100, declare that SAMSUNG SH100 has 11 channels of allowed operating range from 2412 MHz to 2462 MHz in USA. Accordingly, Ad-Hoc mode will not be operated outside the allowed frequency band used in USA. FCC I D: A3LSH100 B Sin cerely, _________________________________ Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSH100 B T o Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: - Confidential List 1. Schematics 2. Operational Description 3. Block Diagram - Short-Term Confidential List 1. External Photos 2. Internal Photos 3. Test-Setup Photos The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

1 Lucy Tsai From: Jo, Jenny (Gunpo) [[email protected]] Sent: Wednesday, April 13, 2011 5:21 PM To: Lucy Tsai; Jeong, Feel (Gunpo) Subject: RE: SAMSUNG ELECTRONICS CO. LTD., //A3LSH100B //AN11T0221 Attachments: Attestation letter for Ad-Hoc_FCC_.pdf Dear Lucy Please see the below answer in blue and find attached document. Best regards, Jenny Jo/ 조 찬 화 GSM Lab / Wireless Division Phone: +82 (0)31 428 5886 Mobile: +82 (0)10 8733 5413 From: Lucy Tsai [mailto:[email protected]] Sent: Thursday, April 14, 2011 12:54 AM To: Jo, Jenny (Gunpo); Jeong, Feel (Gunpo) Cc: Lucy Tsai Subject: SAMSUNG ELECTRONICS CO. LTD., //A3LSH100B //AN11T0221 Hi, Jenny and Feel, Please address following issues. Q#1: According to page 105 of user manual indicates that this camera has supported Ad‐Hoc mode. Please then provide an attestation letter to state that it will not Ad‐Hoc on non‐USA frequency bands. Only 11 channels are available when using in the State. Ans.: Please find attached letter. Q#2: Can it transmit when taking photos at the position of held to face? If it is supported, SAR evaluation may be required. Ans: No, it’s not possible to transmit during taking photo at the position of held to face. Best Regards, Lucy Tsai/UL CCS Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and any attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm

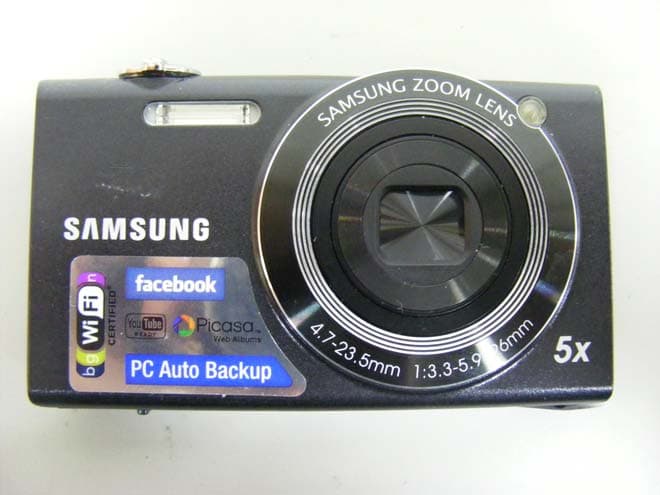

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

FCC/IC Label 1. FCC/IC Label Drawing Samsung Electronics Co., Ltd. Model : SAMSUNG SH100 FCC ID : A3LSH100B IC: 649E-SH100 Made in China 2. FCC/IC Label Location Bottom side of EUT

Internal photos of EUT Internal view of EUT Top view of LCD Bottom view of LCD Top view of Main PCB Bottom view of Main PCB Top view of Wi-Fi module PCB Bottom view of Wi-Fi module PCB Antenna Top view of Button PCB Bottom view of Button PCB Top view of Flash module Bottom view of Flash module

Report Number: F690501/RF-RTL004601 Page: 2 of 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee INDEX Table of contents 1. General information --------------------------------------------------------------------------------------3 2. Transmitter radiated spurious emissions and conducted spurious emission --------------6 3. Receiver Radiated Spurious Emission --------------------------------------------------------------25 4. 6 ㏈ bandwidth ------------------------------------------------------------------------------------------- 27 5. Maximum peak output power --------------------------------------------------------------------------39 6. Power Spectral Density --------------------------------------------------------------------------------- 41 7. Transmitter AC Power Line Conducted Emission-------------------------------------------------48 8. Receiver AC Power Line Conducted Emission --------------------------------------------------- 53 9. Antenna Requirement ----------------------------------------------------------------------------------- 57 10. RF Exposure evaluation -------------------------------------------------------------------------------58 Report Number: F690501/RF-RTL004601 Page: 3 of 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-dong, Korea - 705, Dongcheon-dong Suji-gu, Yongin-si, Gyeonggi-do, Korea www.kr.sgs.com/ee Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : SAMSUNG ELECTRONICS Co., Ltd. Address : 416, Maetan 3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person : Oh, Dong-Chan Phone No. : +82 31 277 7048 1.3. Details of Factory Factory : TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD. Address : No.9 ZhangHeng Street, Micro-Electronic Industrial Park, JinGang Road, Tianjin, China 1.4. Description of EUT Kind of Product DigitalCamera Model Name SAMSUNG SH100 Serial Number N / A Power Supply DC 3.7 V (Li-ion Battery) Frequency Range 2 412 ~ 2 462 ㎒ (802.11b/g/n_HT20_SISO) Modulation Technique DSSS, OFDM Number of Channels 11 Ch Antenna Type Integral Type Antenna Gain 0.81 ㏈i 1.5. Declaration by the manufacturer - N/A Report Number: F690501/RF-RTL004601 Page: 4 of 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.6. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. Signal Generator R & S SMR40 Jul. 18, 2011 Spectrum Analyzer R & S FSP40 Jul. 15, 2011 Preamplifier H.P 8447F Jul. 05, 2011 Preamplifier Agilent 8449B May 31, 2012 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2011 Test Receiver R & S ESU26 Apr. 08, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jul. 22, 2011 Horn Antenna R & S HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170 Mar. 17 2012 Anechoic Chamber SY Corporation L × W × H (9.6 m×6.4 m×6.6 m) N. C. R. Two-Line V-Network R & S ENV216 Jan. 04, 2012 Test Receiver R & S ESHS10 Jul. 13, 2011 Anechoic Chamber SY Corporation L × W × H (6.5 m×3.5 m×3.5 m) N. C. R. Directional Coupler KRYTAR 152661 Jun. 01, 2011 Power Sensor R & S NRP-Z81 Aug. 14. 2011 Attenuator Agilent 8498B Apr. 01, 2012 Report Number: F690501/RF-RTL004601 Page: 5 of 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 subpart B&C, RSS-210, RSS-Gen Standard section Test Item Result 15.205(a) 15.209 15.247(d) A8.5 Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.109(a) RSS-Gen 6 Receiver Radiated Spurious Emission Complied 15.247(a)(2) A8.2(a) 6 dB Bandwidth and 99% BW Complied 15.247(b)(3) A8.4(4) Maximum Peak Output Power Complied 15.247(e) A8.3(2) Power Spectral Density Complied 15.207 RSS-Gen 7.2.4 Transmitter AC Power Line Conducted Emission Complied 15.107 RSS-Gen 7.2.4 Receiver AC Power Line Conducted Emission Complied 1.8. Conclusion of worst-case The field strength of spurious emission was measured in three orthogonal EUT positions (X-axis, Y-axis and Z-axis). Worst case is X -axis. 1 Mbps is the highest output power in the 11b. 6 Mbps is the highest output power in the 11g. In case of 11n, we chose MCS0 mode. 1.9. Test report revision Revision Report number Description 0 F690501/RF-RTL004601 Initial Report Number: F690501/RF-RTL004601 Page: 6 of 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Spurious Emission Test B. Photos of conducted power line test
