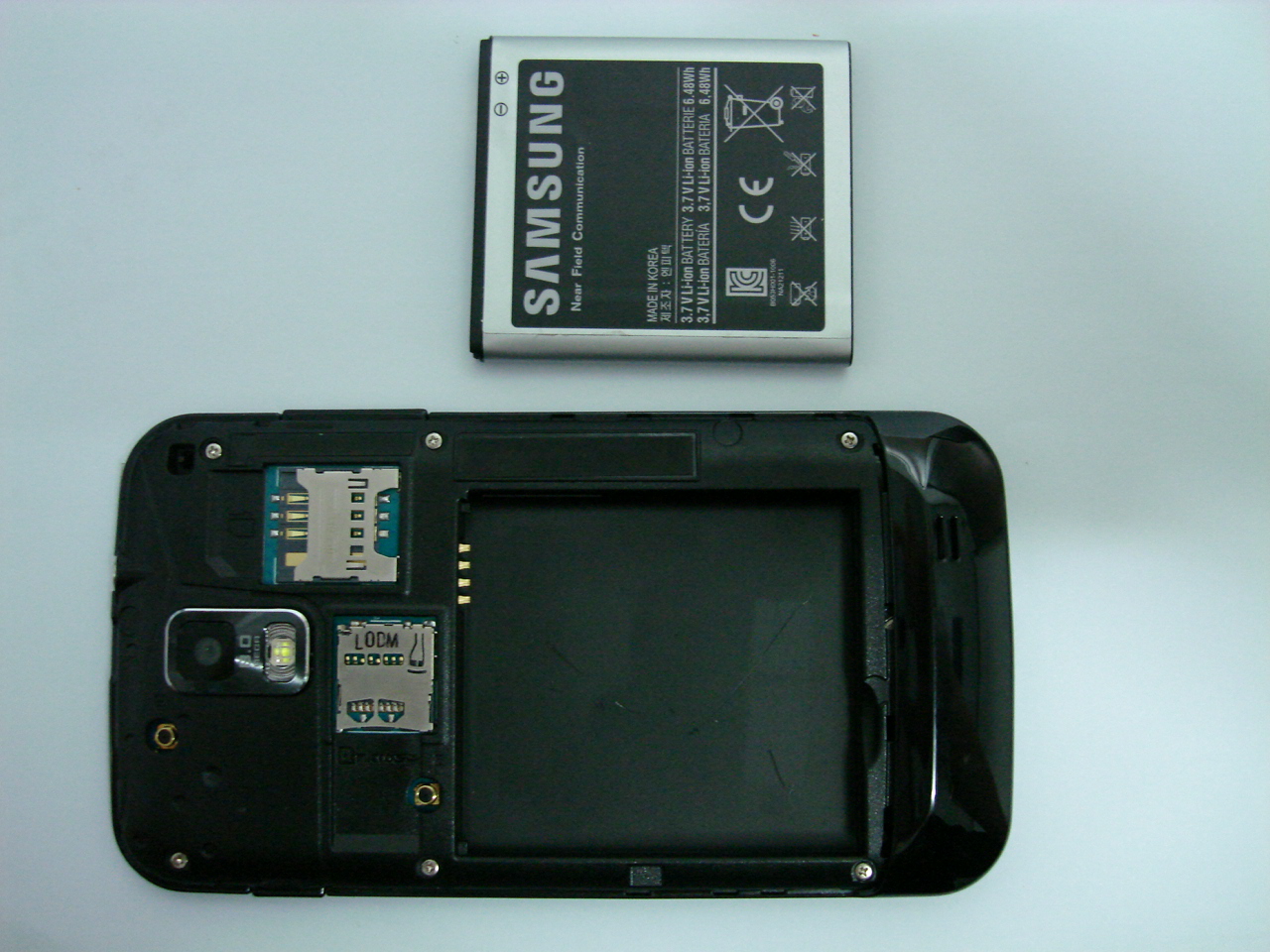

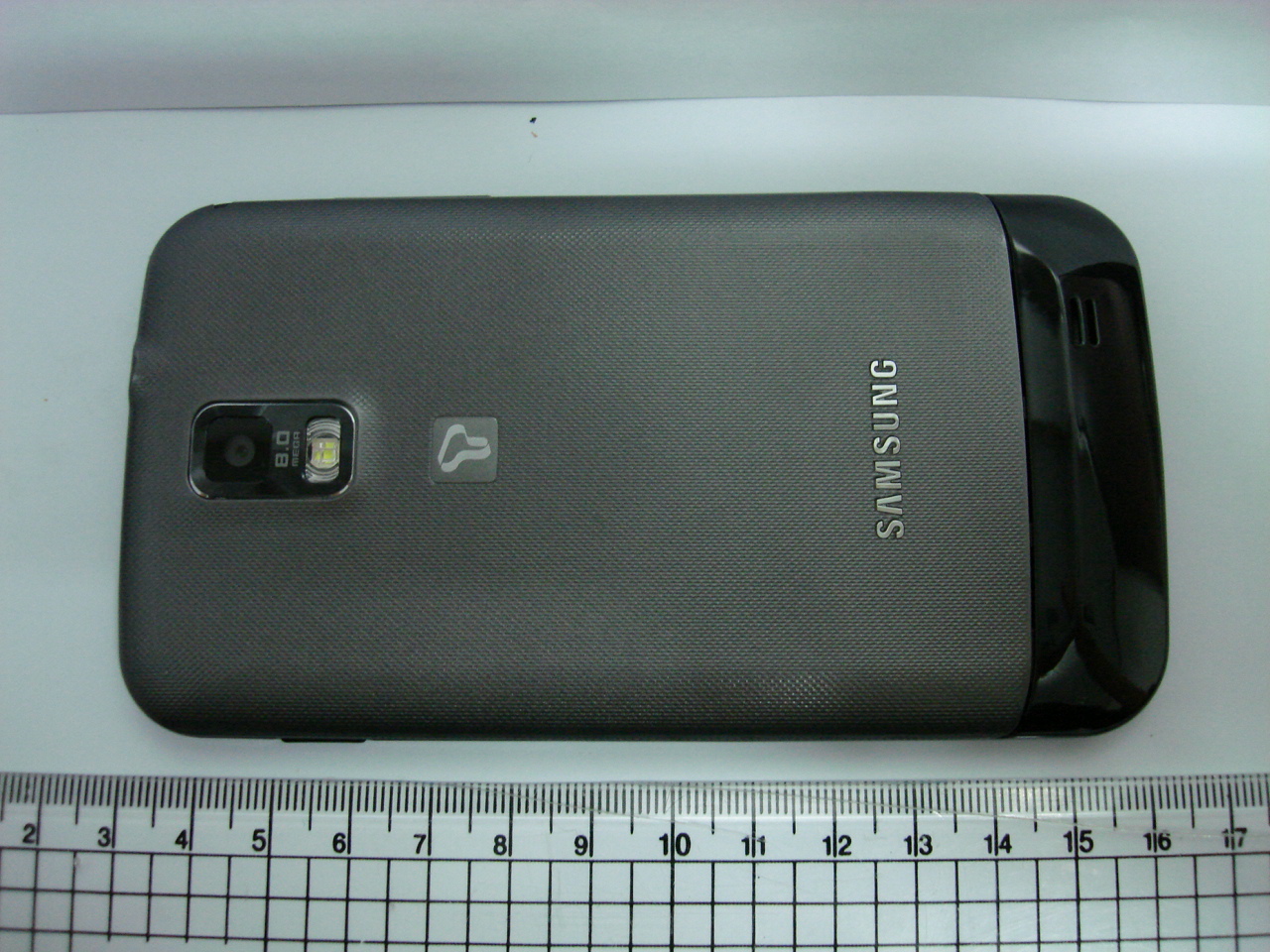

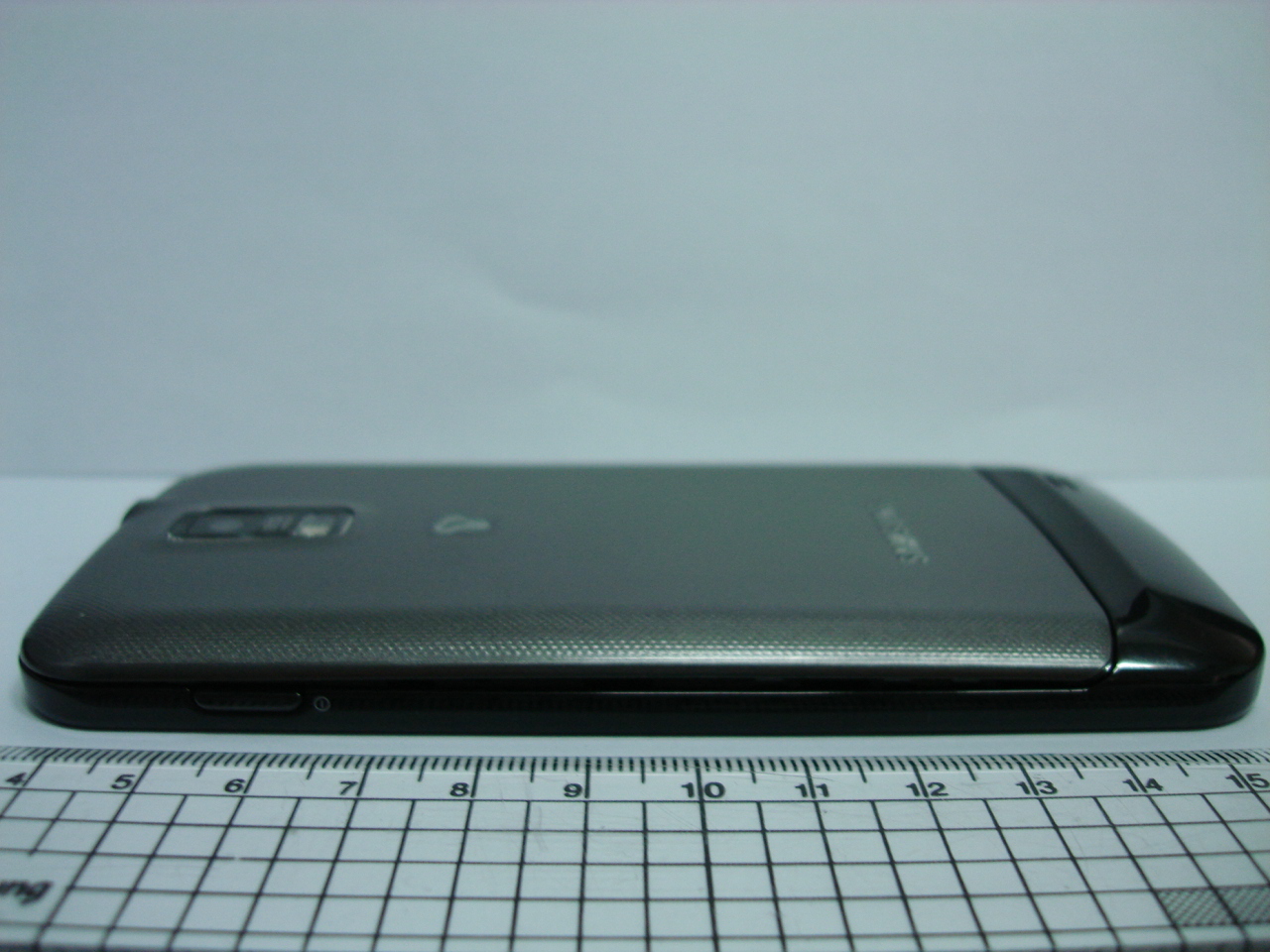

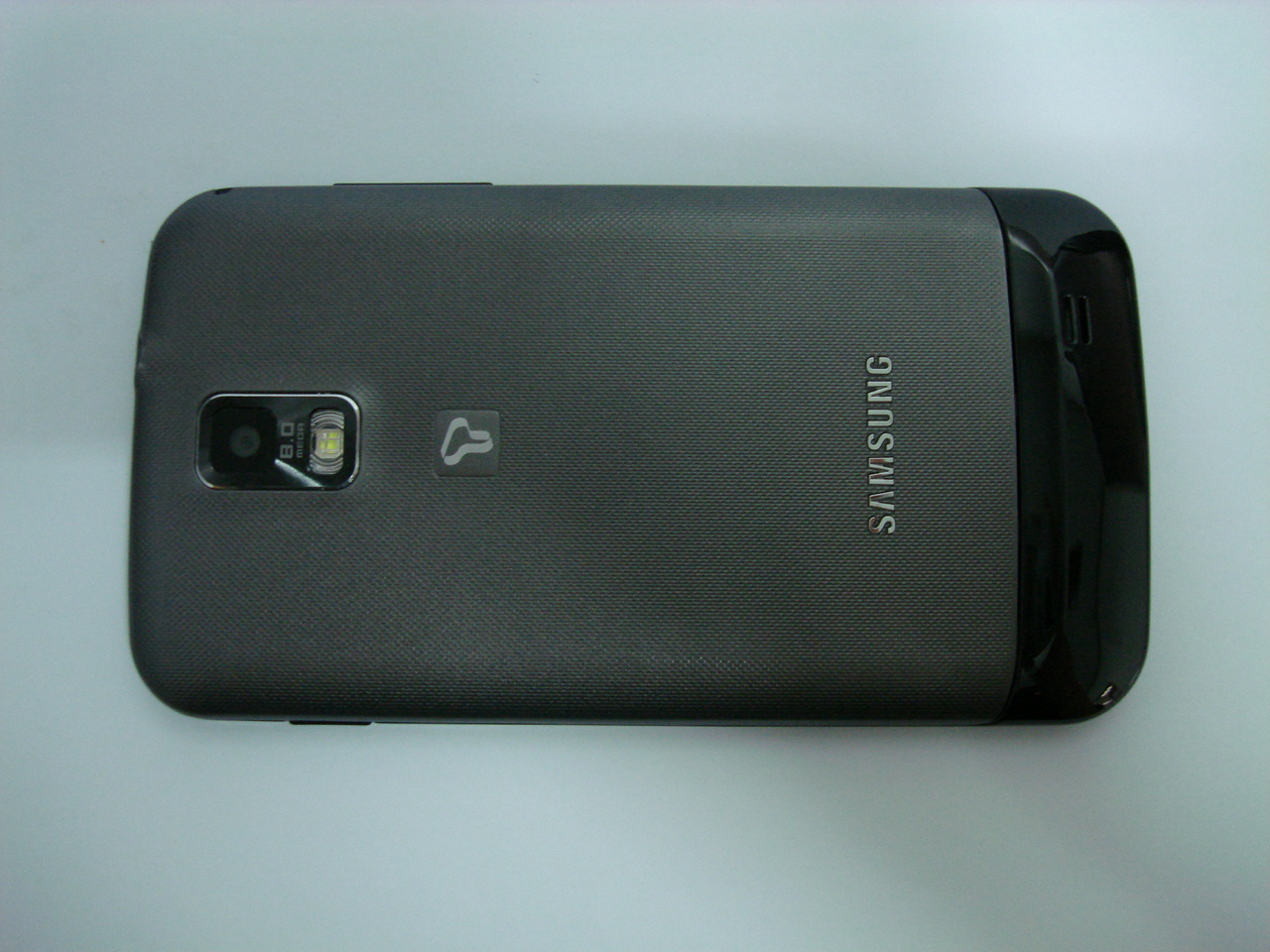

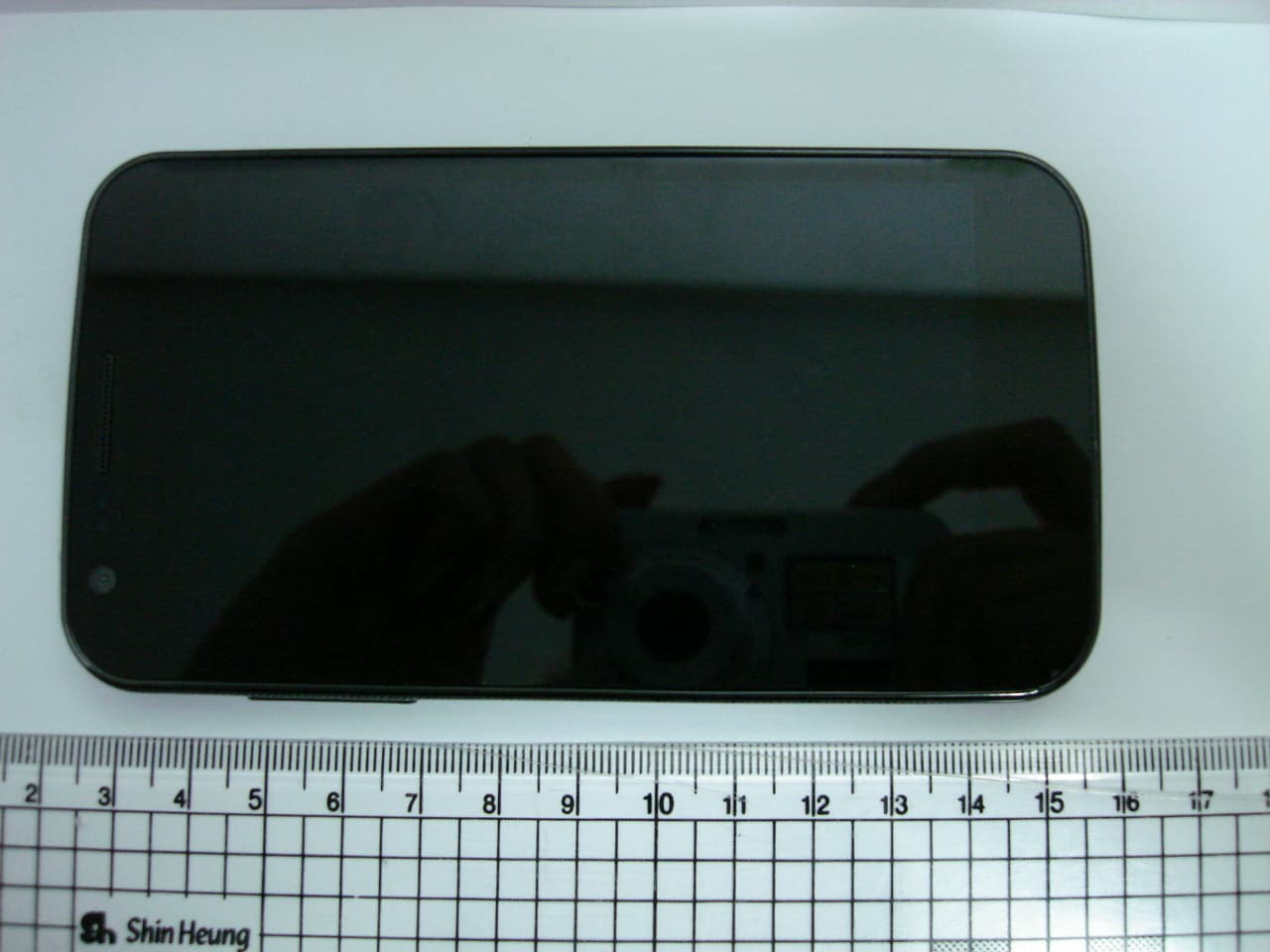

A3LSHVE110SPCS GSM Phone with WLAN, RFID and Bluetooth

9. User's Manual * Some of the contents of this manual may differ from your phone, depending on the software installed or your service provider. World Wide Web http://www.samsungmobile.com Draft S User's Guide  Be aware of special regulations Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your phone is not water-resistant. Keep it dry. Sensible use Use only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the phone is switched on. Emergency calls Key in the emergency number for your present location, then press [ ]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteries Use only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous. Qualified service Only qualified service personnel may repair your phone. For more detailed safety information, see “Health and safety information” on page 20. Drive safely at all times Do not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless phones can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the phone near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless phones may be subject to interference, which could affect their performance. Failure to comply with the following precautions may be dangerous or illegal. Copyright information Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. At very high volumes, prolonged listening to a headset can damage your hearing. Important safety precautions • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions.  Contents Make sure you have each item • Phone • Adapter • Stereo headset • Battery • Battery travel holder • User’s manual Unpack Unpack .............................................................. 3 Make sure you have each item Get started ....................................................... 4 First steps to operate your phone Overview of menu functions .................... 7 To access Menu mode, press [메뉴] in Idle mode. Menu functions .............................................. 8 All menu options listed Solve problems ........................................... 18 Help and personal needs Health and safety information ............... 20  Power on or off Power on Do not turn on the phone when mobile phone use is prohibited. 1 Open the phone. 2 Press and hold [ ] to turn on the phone. 3 If necessary, enter the PIN and press [확인]. Power on 1 Open the phone. 2 Press and hold [ ]. Keys and display Key(s)Description SoftkeysPerform the function indicated on the bottom line of the display. Navigation keysIn Standby mode, access menu options directly. In Menu mode, scroll through the menu options. In Idle mode, enters Menu mode. In Menu mode, selects the highlighted menu option. key Sends or answers a call. In Standby mode, retrieves the last number dialed, missed, or received. Install and charge the phone 1 Install the battery: 2 Plug the adapter into the phone. 3 Plug the adapter into a standard AC wall outlet. 4 When the phone is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet. 5 Remove the adapter from the phone. Low battery indicator When the battery is low: • a warning tone sounds, • the battery low message displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Get started First steps to operate your phone To remove the battery, slide the battery catch toward the top of the phone and hold it. OK key  Get started Key(s)Description Deletes characters from the display. In Menu mode, returns to the previous menu level. key Ends a call. Hold down to switch the phone on and off. In Menu mode, cancels input and returns the phone to Idle mode. Numeric keysEnter numbers, letters, and some special characters. * /# keyEnter special characters. Use for some special functions. Key(s)Description Volume keys (on the left) Adjusts the phone volume. In Standby mode, with the phone open, adjusts the master volume. With the phone closed, hold down to turn on the display. In Menu mode, scrolls through the menu options. Camera keyIn Standby mode, with the phone open, turns on the camera. With the phone closed, hold down to turn on the camera. In Capture mode, takes a photo. 1 T Service 1 Global Roaming 2 M Help Desk 3 T Optional Service 4 NATE 5 W 6 MONETA 2 Sounds 1 Ring Tone Settings 2 Download Melody 3 Alert Tones 4 Key Tones/Others 5 Volume 6 Hourly Chime 3 Display 1 Wall Paper 2 Download Image 2 Main Menu Style 3 Font Type/Size 4 Dial Number Style 5 Lighting 4 Contents box 1 Melodies 2 Images 3 Photos/Movies 4 MMS Attached Files 5 mPlayon 6 june contents box 7 Key Jjang Album 8 Anycall.com Files 9 Memory 5 Exciting Anycall 1 Camera 2 MP3 3 VOD 4 Bluetooth 5 Game 6 Voice Functions 7 Anycall.com 8 Anycall SOS 6 Organizer 1 Wake-up/Alarms 2 Scheduler 3 School Timetable 4 Memo 5 Calculator 6 English Dictionary 7 Subway Show 8 Unit Converter 9 World Clock 0 Stopwatch 7 Messages 1 New Messages 2 Inbox 3 Outbox 4 Emoticons 5 Attached Files 6 Settings 7 Message Log 8 Spam Mess…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: August 3, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSHVE110S To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Federal Communicat ions Commission 7435 Oakland Mills Road Colum bia, MD 21046 SUBJECT : Label Stat ement FCC ID : A3L Gentlemen: We hereby provide the label statement letter for the above-mentioned phone by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the phone will be marketed without the battery installed. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

2. Sample Label GH68-00000A 110412110412110412 LABEL-MAIN SHV-E110S Yun Jun SangJo Kyeong HwanKim June Sop Technical Description 1. Use ‘AI/PDF’ provided by ‘SAMSUNG’ for letter and contents 2. Background color is ‘WHITE’, letter color is ‘BLACK’ (reverse for SAMSUNG LOGO) 3. Back side should be attached to release paper once adhesive is applied. 4. No letter should be blur/smeared 5. The production must be proceed after the approval of R&D Group 6. The product must be within approved sample's specification tolerance. 7. The product must be finished in a ROLL 8. Release paper must be unified for material and color(blue) Vendor HANSUNG P&I < 1:1 Artwork > OPP Laminating 16 Adhesive 8 WHITE POLYESTER 50 Adhesive 25 (0.10T±0.01) 12.0 39.0 1. 기자재의 명칭(모델명) : 이동통신용 무선설비의 기기(SHV-E110S) 2. 식별부호 : KCC-CMM-SEC-SHVE110S 3. 정격 : 3.7 V ; 1500 mA 4. FCC ID : A3LSHVE110S 5. 상호명 : 삼성전자(주) 6. 제조자/제조국가 : 삼성전자(주)/대한민국 7. 해당 무선설비는 운용 중 전파혼신 가능성이 있음 애니콜AS문의/예약 : 1588-7285/www.3366.co.kr 5.0 ※ 제조연월일 : ※ 일련번호 : 1. 기자재의 명칭(모델명) : 이동통신용 무선설비의 기기(SHV-E110S) 2. 식별부호 : KCC-CMM-SEC-SHVE110S 3. 정격 : 3.7 V ; 1500 mA 4. FCC ID : A3LSHVE110S 5. 상호명 : 삼성전자(주) 6. 제조자/제조국가 : 삼성전자(주)/대한민국 7. 해당 무선설비는 운용 중 전파혼신 가능성이 있음 애니콜AS문의/예약 : 1588-7285/www.3366.co.kr ※ 제조연월일 : ※ 일련번호 : 3. Label Location The label is placed inside the battery compartment MODEL: SHV-E110S RATED: 3.7 V ;1500 mA FCC ID: A3LSHVE110S MOBILE PHONE 5.0

FCC ID: A3LSHVE110S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 41 0Y1107191219-R1.A3L 07/25/2011 – 08/02/2011 1900 GSM/GPRS Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 07/25/2011 – 08/02/2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1107191219-R1.A3L FCC ID: A3LSHVE110S APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 1900 GSM/GPRS Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] SHV-E110S Test Device Serial No.: Pre-Production [S/N: FI-162-B, FI-162-F ] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) GSM 19001850.20 - 1909.80 MHz (GSM 1900)29.14 0.110.580.58 2.4 GHz WLAN2412 - 2462 MHz (WLAN)17.21 0.040.050.05 5.2 GHz WLAN5180 - 5240 MHz (WLAN)14.720.18 0.21 5.3 GHz WLAN5260 - 5320 MHz (WLAN)15.450.27 0.39 5.5 GHz WLAN5500 - 5700 MHz (WLAN)15.750.04 0.04 5.8 GHz WLAN5745 - 5825 MHz (WLAN)15.700.02 0.02 SAR Band & ModeTx Frequency Conducted Power [dBm] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. Note: This revised Test Report (S/N: 0Y1107191219-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LSHVE110S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 41 0Y1107191219-R1.A3L 07/25/2011 – 08/02/2011 1900 GSM/GPRS Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 17 13 FCC PERSONAL WIRELESS ROUTER CONFIGURATIONS ..................................................... 20 14 SYSTEM VERIFICATION .............................................................................................................. 22 15 SAR DATA SUMMARY ................................................................................................................. 24 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 33 17 EQUIPMENT LIST ......................................................................................................................... 36 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 37 19 CONCLUSION ............................................................................................................................... 39 20 REFERENCES .............................................................................................................................. 40 FCC ID: A3LSHVE110S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 41 0Y1107191219-R1.A3L 07/25/2011 – 08/02/2011 1900 GSM/GPRS Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.2M 06/28/2011 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSHVE110S FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: OY1107191215.A3L July 27- August 11, 2011 1900 GSM/GPRS Phone with Bluetooth, WLAN, and NFC Page 1 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.1WN 05/24/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. July 27- August 11, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: OY1107191215.A3L FCC ID: A3LSHVE110S APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SHV-E110S EUT Type: 1900 GSM/GPRS Phone with Bluetooth, WLAN, and NFC Max. RF Output Power: 52.6 mW (17.21 dBm) Conducted (b) 28.51 mW (14.55 dBm) Conducted (g) 27.54 mW (14.4 dBm) Conducted (n) - 2.4GHz 38.02 mW (15.8 dBm) Conducted (a) - 5.8GHz 31.41 mW (14.97 dBm) Conducted (n) - 5.8GHz Frequency Range: 2412 - 2462 MHz (DSSS/OFDM), 5745 – 5825 MHz (OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11a/b/g/n Reviewed by: FCC ID: A3LSHVE110S FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: OY1107191215.A3L July 27- August 11, 2011 1900 GSM/GPRS Phone with Bluetooth, WLAN, and NFC Page 2 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.1WN 05/24/2011 T A B L E O F C O N T E N T S FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N........................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G .................................................................................. 20 6.4 OUTPUT POWER MEASUREMENT – 802.11A (5.8GHZ) ...................................................................... 21 6.5 OUTPUT POWER MEASUREMENT – 802.11N (2.4GHZ) ...................................................................... 22 6.6 OUTPUT POWER MEASUREMENT – 802.11N (5.8GHZ) ...................................................................... 23 6.7 POWER SPECTRAL DENSITY (802.11A/B/G/N) .................................................................................... 24 6.8 CONDUCTED EMISSIONS AT THE BAND EDGE .................................................................................. 33 6.9 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 39 6.10 RADIATED SPURIOUS EMISSION MEASUREMENTS .......................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSHVE110S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page i of vii 07/25/2011 – 08/02/2011 1900 GSM/GPRS/EDGE Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSHVE110S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page ii of vii 07/25/2011 – 08/02/2011 1900 GSM/GPRS/EDGE Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 1 – Right Touch SAR Test Setup Photo 2 – Right Tilt FCC ID: A3LSHVE110S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iii of vii 07/25/2011 – 08/02/2011 1900 GSM/GPRS/EDGE Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 3 – Left Touch SAR Test Setup Photo 4 – Left Tilt FCC ID: A3LSHVE110S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iv of vii 07/25/2011 – 08/02/2011 1900 GSM/GPRS/EDGE Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 5 – Body Back at 1.0 cm SAR Test Setup Photo 6 – Body Front at 1.0 cm FCC ID: A3LSHVE110S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page v of vii 07/25/2011 – 08/02/2011 1900 GSM/GPRS/EDGE Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 7 – Body Top at 1.0 cm SAR Test Setup Photo 8 – Body Bottom at 1.0 cm FCC ID: A3LSHVE110S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page vi of vii 07/25/2011 – 08/02/2011 1900 GSM/GPRS/EDGE Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 9 – Body Right at 1.0 cm SAR Test Setup Photo 10 – Body Left at 1.0 cm FCC ID: A3LSHVE110S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page vii of vii 07/25/2011 – 08/02/2011 1900 GSM/GPRS/EDGE Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 SAR Test Setup Photo 11 – Body-Worn Back at 1.0 cm Note: Headset Cable is connected to the device during Body-Worn SAR assessment, as seen above.
