A3LSHVE140SPortable Tablet PC with PCS GSM, WLAN and Bluetooth

Using this guide Congratulations on your purchase of the Samsung SHV-E140S. This powerful, “ go anywhere ” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly ve rsatile platform that fits your active lifestyle. Built on the Google Android operating system, the SHV-E140S gives you access to thousands o f useful and entertaining applications to enrich your mobile we b experience. With integrated wireless access and a responsive touch screen, you can keep in touch with versatile messaging and video callin g applications; read books and newspapers on the go; stay up-to-d ate on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, bus iness locations, and more. Read me first  Please read all safety precautions and this guide carefully bef ore using your device to ensure safe and proper use.  The descriptions in this guide are based on the default setting s of your device.  Images and screenshots used in this guide may differ in appeara nce from the actual product.  Content in this guide may differ from the product, or from soft ware provided by service providers or carriers, and is subject to change without prior notice. Using this guide Using this guide 3 Available features and additional services may vary by device, software, or service provider.‡ Formatting and delivery of this guide is based on Google Android operating systems and may ‡ vary depending on the user’s operating system. Applications and their functions may vary by country, region, or hardware specifications. ‡ Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or incompatibilities caused by user editing of ‡ registry settings. You may upgrade your mobile device’s software by accessing www.samsungmobile.com. ‡ Sound sources, wallpapers, and images provided in this device are licenced for limited use ‡ between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this guide for future reference. ‡ Using this guide 4 Instructional icons Before you start, familiarise yourself with the icons you will see in this guide: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Ź Refer to—pages with related information; for example: Ź p.12 (represents “see page 12”) ĺ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Settings ĺ Wireless and network (represents Settings, followed by Wireless and network) []Square brackets—device keys; for example: [ ] (represents the Power key) Using this guide 5 Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.‡ The Android logo, Google Search‡ ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Bluetooth ‡ ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be ‡ trademarks of their respective owners. Windows Media Player ‡ ® is a registered trademark of Microsoft Corporation. Wi-Fi ‡ ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Using this guide 6 DivX‡ ® , Divx Certified ® , and associated logos are trademarks of DivX, Inc. and are used under license. Covered by one or more of the following U.S. patents: Pat. 7,295,673; 7,460,668; 7,515,710; 7,519,274 All other trademarks and copyrights are the property of their respective owners. ‡ Using this guide 7 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, Inc. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. DivX Certified ® to play DivX ® video up to HD 720p, including premium content May play DivX ® video up to HD 1080p (LCD resolution : 1024x600) ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 8 Assembling ...........................................................................................11 Unpack ............................................................................................................................... 11 Charge the battery .......................................................................................................... 12 Insert the SIM or USIM card ........................................................................................... 13 Insert a memory card (optional) .................................................................................. 15 Getting started .....................................................................................18 Turn your device on and off .......................................................................................... 18 Get to know your device ................................................................................................ 20 Use the…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: November 4, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSHVE140S To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

FCC ID IS PRINTED ON BOTTOM OF THE DEVICE

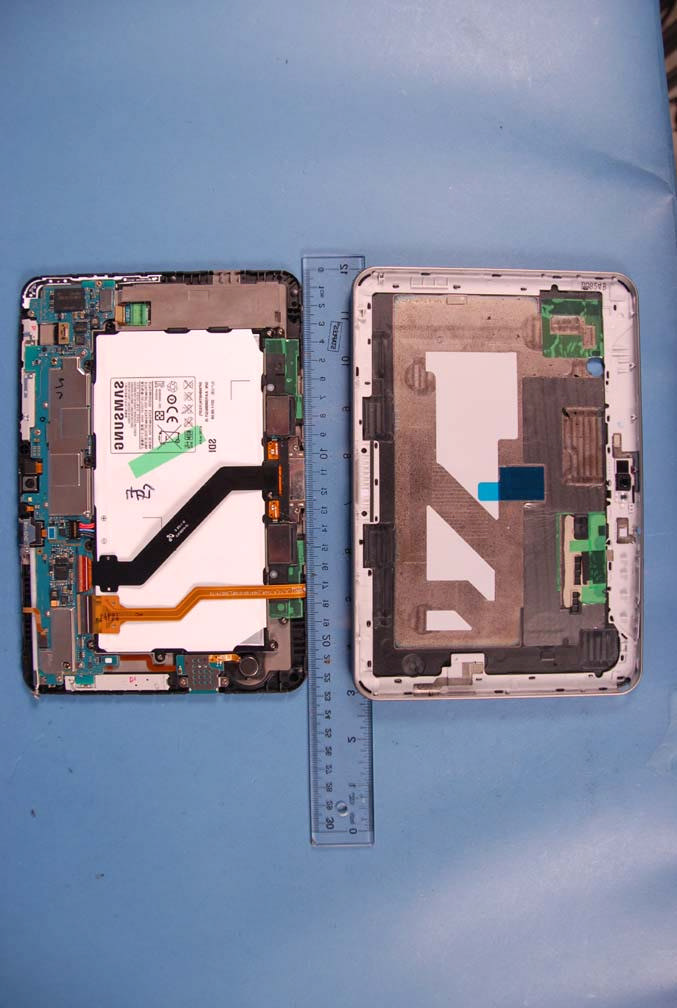

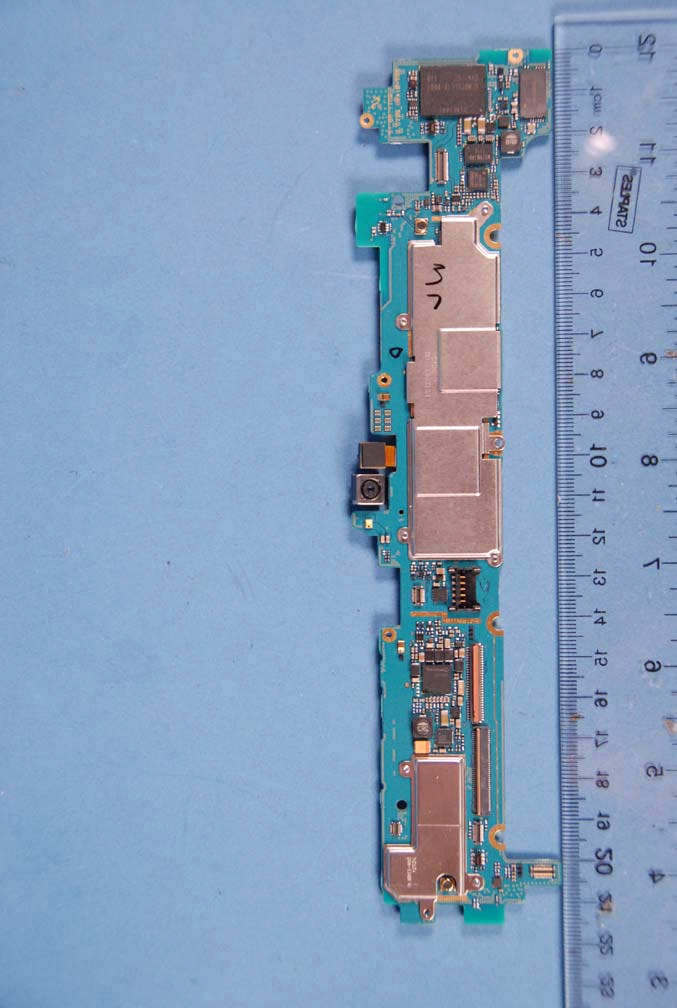

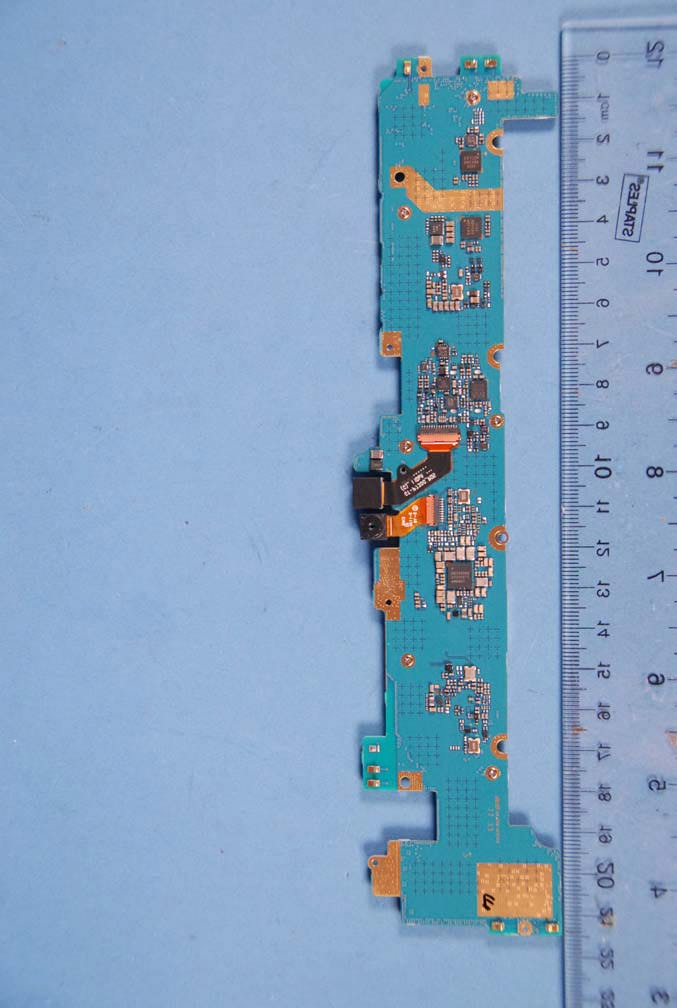

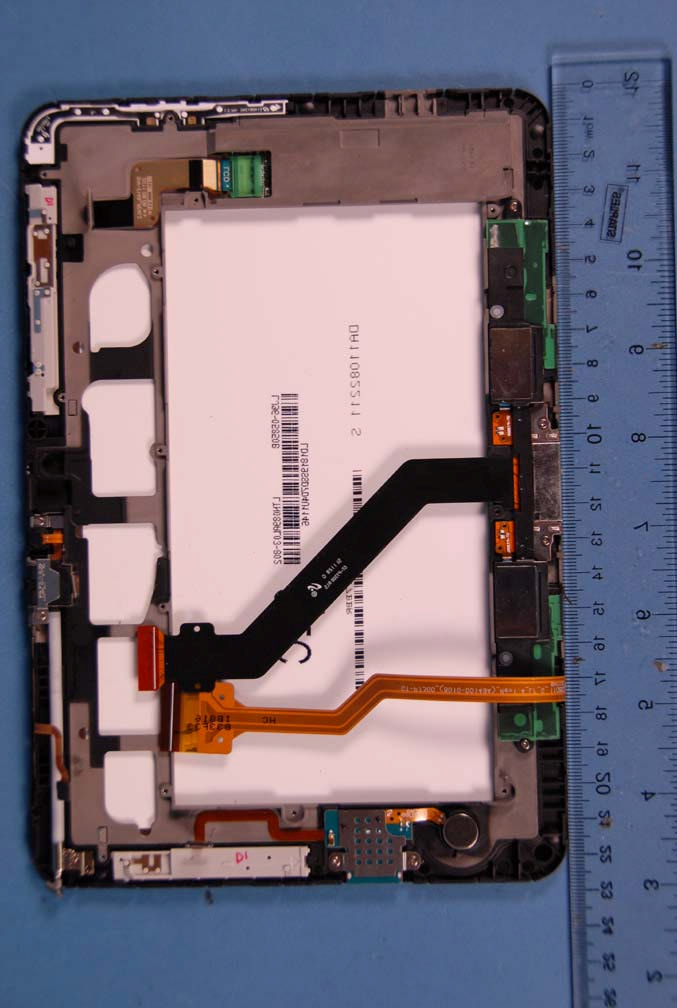

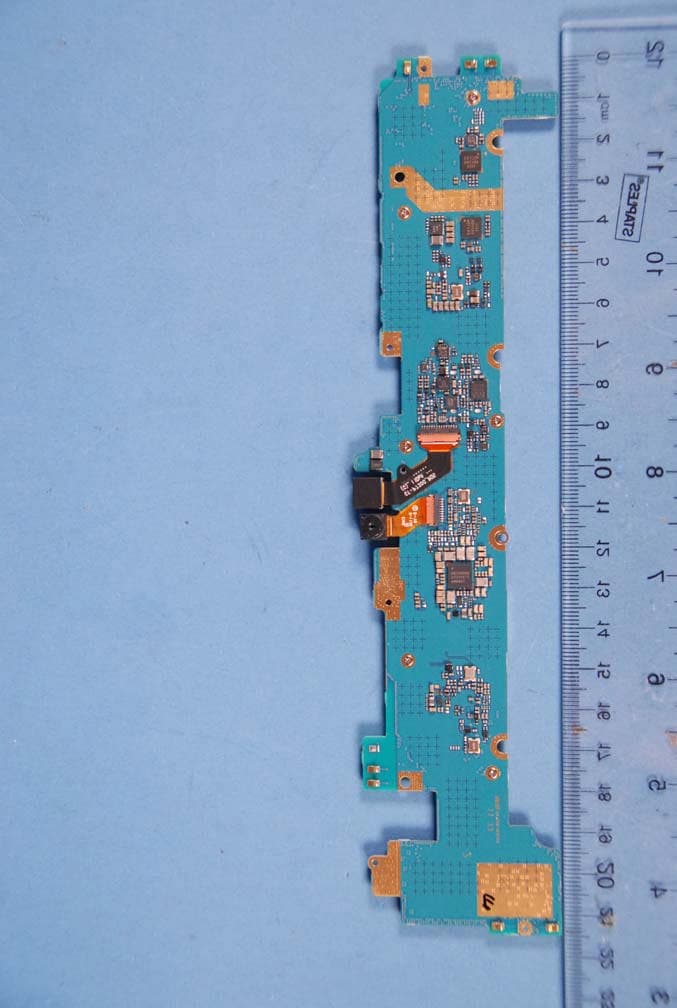

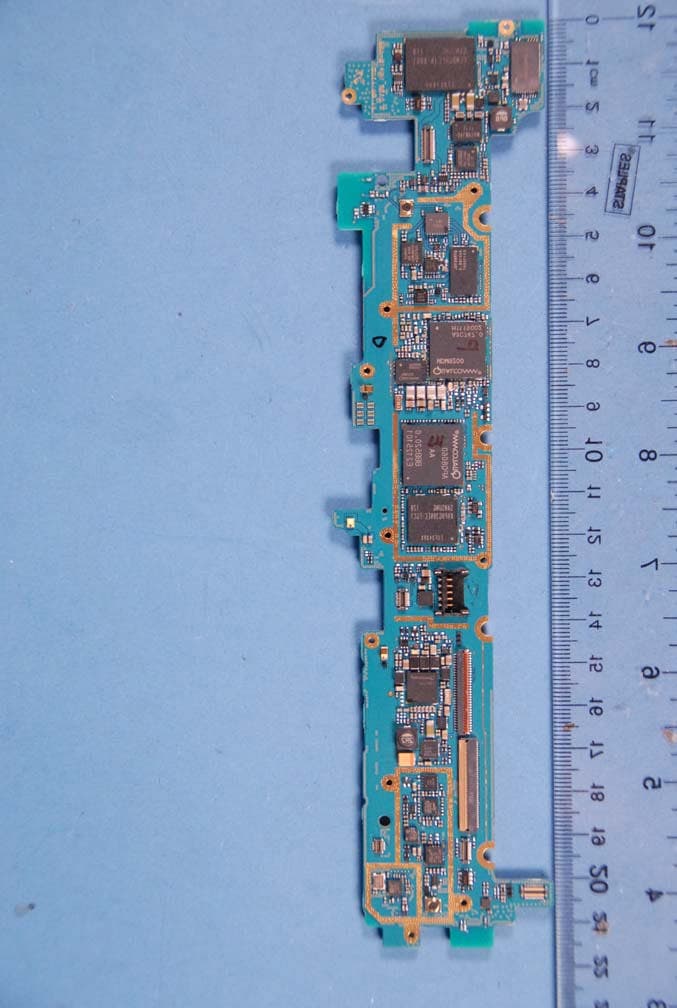

Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Internal Photos EUT Type: Portable Tablet Computer Page 1 of 10 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Internal Photos EUT Type: Portable Tablet Computer Page 2 of 10 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Internal Photos EUT Type: Portable Tablet Computer Page 3 of 10 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Internal Photos EUT Type: Portable Tablet Computer Page 4 of 10 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Internal Photos EUT Type: Portable Tablet Computer Page 5 of 10 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Internal Photos EUT Type: Portable Tablet Computer Page 6 of 10 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Internal Photos EUT Type: Portable Tablet Computer Page 7 of 10 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Internal Photos EUT Type: Portable Tablet Computer Page 8 of 10 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Internal Photos EUT Type: Portable Tablet Computer Page 9 of 10 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Internal Photos EUT Type: Portable Tablet Computer Page 10 of 10 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSHVE140S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 35 0Y1109081566.A3L 09/08/11 - 09/21/11 Portable Tablet Computer © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 09/08/11 - 09/21/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1109081566.A3L FCC ID: A3LSHVE140S APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Portable Tablet Computer Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] SHV-E140S, SHV-E140K Test Device Serial No.: Pre-Production [S/N: FI0233-B, FI-233-C, FI-233-F] 1 gm Body (W/kg) GSM/GPRS 19001850.20 - 1909.80 MHz30.21 0.78 2.4 GHz WLAN2412 - 2462 MHz14.79 0.12 5.8 GHz WLAN5745 - 5825 MHz11.92 0.64 5.2 GHz WLAN5180 - 5240 MHz11.890.30 5.3 GHz WLAN5260 - 5320 MHz11.890.44 5.5 GHz WLAN5500 - 5700 MHz11.421.01 Bluetooth2402 - 2480 MHz10.58N/A 0.91 W/kg Simultaneous SAR per draft KDB publication 690783 DR01 SAR Band & ModeTx Frequency Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations applicable and may not represent the highest output powers for all capabilities. All models are confirmed to be identical per the manufacturer. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LSHVE140S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 35 0Y1109081566.A3L 09/08/11 - 09/21/11 Portable Tablet Computer © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 FCC RF EXPOSURE LIMITS ........................................................................................................ 11 9 ANTENNA LOCATIONS AND KEY FEATURES .......................................................................... 12 10 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 19 11 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 21 12 SYSTEM VERIFICATION .............................................................................................................. 24 13 SAR DATA SUMMARY ................................................................................................................. 26 14 SIMULTANEOUS TRANSMISSION ANALYSIS ........................................................................... 29 15 EQUIPMENT LIST ......................................................................................................................... 30 16 MEASUREMENT UNCERTAINTIES ............................................................................................ 31 17 CONCLUSION ............................................................................................................................... 33 18 REFERENCES .............................................................................................................................. 34 FCC ID: A3LSHVE140S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 35 0Y1109081566.A3L 09/08/11 - 09/21/11 Portable Tablet Computer © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. [1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSHVE140S FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1109081568.A3L September 5-20, 2011 Portable Tablet Computer Page 1 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.2WN 08/15/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. September 5-20, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1109081568.A3L FCC ID: A3LSHVE140S APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SHV-E140S, SHV-E140K EUT Type: Portable Tablet Computer Max. RF Output Power: 11.14 mW (10.47 dBm) Conducted (b) 30.13 mW (14.79 dBm) Conducted (g) 18.66 mW (12.71 dBm) Conducted (n) - 2.4GHz 15.49 mW (11.9 dBm) Conducted (a) - 5.8GHz 15.1 mW (11.79 dBm) Conducted (n) - 5.8GHz Frequency Range: 2412 - 2462 MHz (DSSS/OFDM), 5745 – 5825 MHz (OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11a/b/g/n Reviewed by: FCC ID: A3LSHVE140S FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1109081568.A3L September 5-20, 2011 Portable Tablet Computer Page 2 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.2WN 08/15/2011 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION...........................................................................................................................4 1.1 SCOPE.........................................................................................................................................................................4 1.2 PCTEST TEST LOCATION......................................................................................................................................4 2.0 PRODUCT INFORMATION............................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................................5 2.2 EUT CAPABILITIES...................................................................................................................................................5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS...........................................................................................5 2.4 LABELING REQUIREMENTS..................................................................................................................................5 3.0 DESCRIPTION OF TEST...............................................................................................................6 3.1 EVALUATION PROCEDURE...................................................................................................................................6 3.2 CONDUCTED EMISSIONS......................................................................................................................................6 3.3 RADIATED EMISSIONS...........................................................................................................................................7 4.0 ANTENNA REQUIREMENTS.........................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA......................................................................................9 6.0 TEST RESULTS..........................................................................................................................10 6.1 SUMMARY................................................................................................................................................................10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N....................................................................................11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G............................................................................................20 6.4 OUTPUT POWER MEASUREMENT – 802.11N (2.4GHZ)..............................................................................21 6.5 OUTPUT POWER MEASUREMENT – 802.11A................................................................................................22 6.6 OUTPUT POWER MEASUREMENT – 802.11N (5.8GHZ)..............................................................................23 6.7 POWER SPECTRAL DENSITY (802.11A/B/G/N)..............................................................................................24 6.8 CONDUCTED EMISSIONS AT THE BAND EDGE............................................................................................33 6.9 CONDUCTED SPURIOUS EMISSIONS......................…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Test Set-Up Photos EUT Type: Portable Tablet Computer Page 1 of 3 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Test Set-Up Photos EUT Type: Portable Tablet Computer Page 2 of 3 © 2011 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSHVE140S Model: SHV-E140S Test Set-Up Photos EUT Type: Portable Tablet Computer Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSHVE140S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page i of iii 09/08/11 - 09/21/11 Portable Tablet Computer © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 A P P E N D I X D : S A R T E S T S E T U P P H O T O G R A P H S FCC ID: A3LSHVE140S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page ii of iii 09/08/11 - 09/21/11 Portable Tablet Computer © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 1: Back at 0.0 cm SAR Test Setup Photo 2: Back at 1.0 cm FCC ID: A3LSHVE140S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iii of iii 09/08/11 - 09/21/11 Portable Tablet Computer © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 3: Top at 0.0 cm SAR Test Setup Photo 4: Top at 0.5 cm FCC ID: A3LSHVE140S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page iv of iv 09/08/11 - 09/21/11 Portable Tablet Computer © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 5: Right at 0.0 cm
