A3LSHWM115SPCS GSM Phone with WLAN and Bluetooth

* Some of the contents of this manual may differ from your phone, depending on the software installed or your service provider. World Wide Web http://www.anycall.com SHW-M115S User’s Guide  Be aware of special regulations Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your phone is not water-resistant. Keep it dry. Sensible use Use only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the phone is switched on. Emergency calls Key in the emergency number for your present location, then press [ ]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteries Use only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous. Qualified service Only qualified service personnel may repair your phone. For more detailed safety information, see “Health and safety information” on page 20. Drive safely at all times Do not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless phones can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the phone near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless phones may be subject to interference, which could affect their performance. Failure to comply with the following precautions may be dangerous or illegal. Copyright information Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. At very high volumes, prolonged listening to a headset can damage your hearing. Important safety precautions • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions.  Contents Make sure you have each item • Phone • Adapter • Stereo headset • Battery • Battery travel holder • User’s manual You can obtain the following accessories for your phone from your local Samsung dealer. • Multi adapter • Travel charger • Car charger • PC data cable • Portable battery kit • Portable PC data cable • Music controller • Bluetooth mono/ stereop headset kit Unpack Unpack .............................................................. 3 Make sure you have each item Get started ....................................................... 4 First steps to operate your phone Solve problems .............................................. 8 Help and personal needs Health and safety information ............... 10  Power on or off Power on Do not turn on the phone when mobile phone use is prohibited. 1 Open the phone. 2 Press and hold [ ] to turn on the phone. 3 If necessary, enter the PIN and press [확인]. Power on 1 Open the phone. 2 Press and hold [ ]. Keys and display Key(s)Description SoftkeysPerform the function indicated on the bottom line of the display. Navigation keysIn Standby mode, access menu options directly. In Menu mode, scroll through the menu options. 확인 keyIn Idle mode, enters Menu mode. In Menu mode, selects the highlighted menu option. key Sends or answers a call. In Standby mode, retrieves the last number dialed, missed, or received. Install and charge the phone 1 Install the battery: 2 Plug the adapter into the phone. 3 Plug the adapter into a standard AC wall outlet. 4 When the phone is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet. 5 Remove the adapter from the phone. Low battery indicator When the battery is low: • a warning tone sounds, • the battery low message displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Get started First steps to operate your phone To remove the battery, slide the battery catch toward the top of the phone and hold it.  Get started Key(s)Description 취소 keyDeletes characters from the display. In Menu mode, returns to the previous menu level. key Ends a call. Hold down to switch the phone on and off. In Menu mode, cancels input and returns the phone to Idle mode. Numeric keysEnter numbers, letters, and some special characters. * /# keyEnter special characters. Use for some special functions. Key(s)Description Volume keys (on the left) Adjusts the phone volume. In Standby mode, with the phone open, adjusts the master volume. With the phone closed, hold down to turn on the display. In Menu mode, scrolls through the menu options. Camera keyIn Standby mode, with the phone open, turns on the camera. With the phone closed, hold down to turn on the camera. In Capture mode, takes a photo. MEMO  To save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional. When you switch on your Phone, the following messages may appear: “Insert USIM card” • Be sure that the USIM card is correctly installed. “Phone locked Enter password” • T he automatic locking function has been enabled. You must enter the Phone’s password before you can use the Phone. “Enter PIN1” • Y ou are using your Phone for the first time. You must enter the PIN1 supplied with the USIM card. • T he PIN1 Check feature is enabled. Every time the Phone is switched on, the PIN1 has to be entered. To disable this feature, use the PIN check menu. “Enter PUK” • T he PIN1 code has been entered incorr…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: December 28, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSHWM115S To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

From: DuckSu Kim Sent: Thursday, December 30, 2010 4:07 AM To: PCTEST TCB/CB; 함재준; 전자메일 Cc: 장우태; 장왈운; 이준환; 권기중; PCTEST - Channy Park; PCTEST - Mia Park; PCTEST - Greg Czumak; PCTEST - Randy Ortanez; PCTEST - Steve Liu Subject: Re: Questions Regarding FCC ID: A3LSHWM115S Page 1 of 3 12/30/2010 Dear PCTEST TCB, Please find revised EMC report and User manual. ERP/EIRP and RSE tests were proceeded 3 orthogonal plane. And this statement included on page7. Best Regards, Ducksu Kim. ------- Original Message ------- Sender : PCTEST TCB/CB<[email protected]> [email protected] Date : 2010-12-30 10:00 (GMT+09:00) Title : Questions Regarding FCC ID: A3LSHWM115S To: Mr. Geoffrey Ham / Samsung Electronics Co., Ltd. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: A3LSHWM115S Applicant: Samsung Electronics Co., Ltd. Correspondence Reference Number: A3L101451 Confirmation Number: 1Y1012171451-54 Date of Original Email: December 29, 2010 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. Please revise the PCE EMC report to include confirmation that, for radiated measurements, the EUT was placed in 3 orthogonal planes in an effort to maximize emissions. 2. Page 8/20 of the user’s manual lists the minimum separation distance required for body-worn RFx compliance as 5 mm (0.5 cm), but, according to the SAR report and SAR test set- up photos, body SAR testing was performed at 1.5 cm. Please revise the distance listed in the user’s manual to 1.5 cm. The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 2 of 3 12/30/2010 Page 3 of 3 12/30/2010

WHITE POLYESTER 50 SHW-M115S WHITE GH68-00000A 100205100205100205 12.0 39.0 MODEL: SHW-M115S RATED: 3.7 V ;1500 mA FCC ID: A3LSHWM115S MOBILE PHONE 5.0 The label is placed inside the battery compartment. SHW-M115S_MAIN LABEL

FCC ID: A3LSHWM115S Report Number: FH-274-S1 Page : 1 of 31 SAMSUNG Electronics C0. LTD EUT Type: Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN Issue Date : Dec.27, 2010 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SHW-M115S FCC ID (Requested): A3LSHWM115S Job No: FH-274 Report No: FH-274-S1 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By JR LEE - Test Engineer Authorized By JD JANG - Technical Manager FCC ID: A3LSHWM115S Report Number: FH-274-S1 Page : 2 of 31 SAMSUNG Electronics C0. LTD EUT Type: Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN Issue Date : Dec.27, 2010 Contents 1. GENERAL INFORMATION .............................................................................. 3 2. DESCRIPTION OF DEVICE ............................................................................ 3 3. DESCRIPTION OF TEST EQUIPMENT .......................................................... 4 3.1 SAR Measurement Setup ............................................................................................................... 4 3.2 E-field Probe ................................................................................................................................... 5 3.3 Phantom .......................................................................................................................................... 8 3.4 Brain Simulating Mixture Characterization .................................................................................. 10 3.5 Device Holder for Transmitters ...................................................................................................... 10 Figure 3.7 Simulated Tissue ...................................................................................... 10 Figure 3.8 Device Holder .......................................................................................... 10 3.6 Validation Dipole ........................................................................................................................... 11 3.7 Equipment Calibration ................................................................................................................... 12 4. SAR MEASUREMENT PROCEDURE ........................................................... 13 5. DESCRIPTION OF TEST POSITION ............................................................ 14 5.1 SAM Phantom Shape.................................................................................................................... 14 5.2 “cheek” Position ............................................................................................................................ 14 5.3 “tilted” Position .............................................................................................................................. 16 5.4 Body Holster/Belt Clip Configurations ........................................................................................... 17 6. MEASUREMENT UNCERTAINTY ................................................................. 19 7. SYSTEM VERIFICATION ............................................................................... 21 7.1 Tissue Verification ......................................................................................................................... 21 7.2 Test System Validation .................................................................................................................. 21 8. SAR MEASUREMENT RESULTS .................................................................. 22 8.1 GSM1900 Head SAR Results ....................................................................................................... 25 8.2 GPRS1900 Body SAR Results(Without Holster) ........................................................................... 26 8.3 WLAN Head SAR Results ............................................................................................................. 27 8.4 WLAN Body SAR Results(Without Holster) .................................................................................. 28 9. CONCLUSION ............................................................................................... 29 10. REFERENCES ............................................................................................. 30 APPENDIX A SAR Definition ........................................................................... 32 APPENDIX B Probe Calibration Process ........................................................ 33 APPENDIX C ANSI/IEEE C95.1 – 2005 RF EXPOSURE LIMITS .................. 34 APPENDIX D The Validation Measurements .................................................. 35 APPENDIX E Plots of The SAR Measurements .............................................. 38 APPENDIX F Probe Calibration ...................................................................... 53 APPENDIX G Calibration of The Validation Dipole ......................................... 65 FCC ID: A3LSHWM115S Report Number: FH-274-S1 Page : 3 of 31 SAMSUNG Electronics C0. LTD EUT Type: Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN Issue Date : Dec.27, 2010 1. GENERAL INFORMATION Test Dates : Dec.14, 2010 Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Address : 416 Maetan3-Dong, Suwon City, Korea Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Digital Transmission System (DTS) Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Test Sample : Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN Model Number : SHW-M115S Serial Number : Identical prototype (S/N : # FH-274-A) Tx Freq. Range : 1850.20 ~ 1909.80 MHz (GSM1900) 2412 ~ 2462 MHz (WLAN) Rx Freq. Range : 1930.20 ~ 1989.80 MHz (GSM1900) 2412 ~ 2462 MHz (WLAN) Antenna M…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SHW-M115S FCC ID(Requested) : A3LSHWM115S Report No : FH-274-R1 Job No : FH-274 Date issued : December 1 5, 2010 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By HK LEE – Test Engineer Authorized By WT JANG – Technical Manager Report Number : FH-274-R1 2 of 37 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Peak-Average Ratio .......................................................................................9 5.4. Occupied Bandwidth ....................................................................................10 5.5. Spurious and Harmonic Emission at Antenna Terminal................................10 5.5.1. Occupied Bandwidth Emission Limits ..............................................10 5.5.2. Conducted Spurious Emission .........................................................12 5.6. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Conducted Output Power.............................................................................14 6.2. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................15 6.3. GSM1900 Radiated Spurious & Harmonic measurement ............................16 6.4. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................17 6.5. Frequency Stability.......................................................................................18 6.5.1. GSM1900 Frequency Stability Table ................................................18 6.5.2. GSM1900 Frequency Stability Graph...............................................19 7. CONCLUSION.........................................................................................................21 8. TEST PLOTS...........................................................................................................22 Report Number : FH-274-R1 3 of 37 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECTRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID : A3LSHWM115S • Model : SHW-M115S • Quantity : Quantity production is planned • Emission Designators : 248KGXW(GSM1900) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 1.309 W EIRP GSM1900 (31.17 dBm) • FCC Classification(s) : PCS Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : 1900 GSM/GPRS Phone with Bluetooth and WLAN • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : December 8-9, 2010 • Place of Test : SAMSUNG Lab, • Test Report S/N : FH-274-R1 Report Number : FH-274-R1 4 of 37 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure2. Photograph of 3m Fully-Anechoic Chamber Figure1. Map of the Suwon City area. Report Number : FH-274-R1 5 of 37 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FH-274-R1 6 of 37 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum An…

Text truncated - open the document above for the full version.

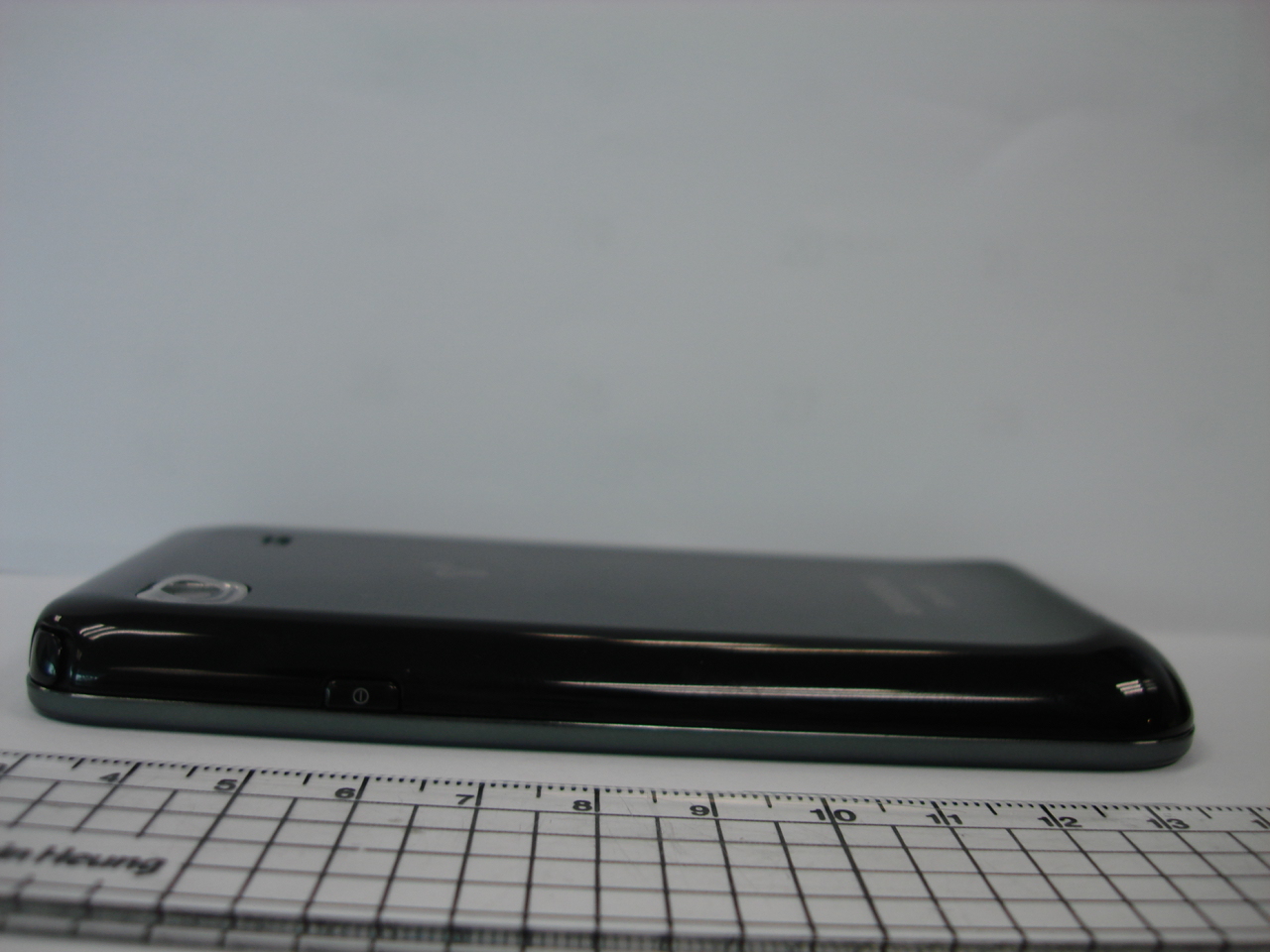

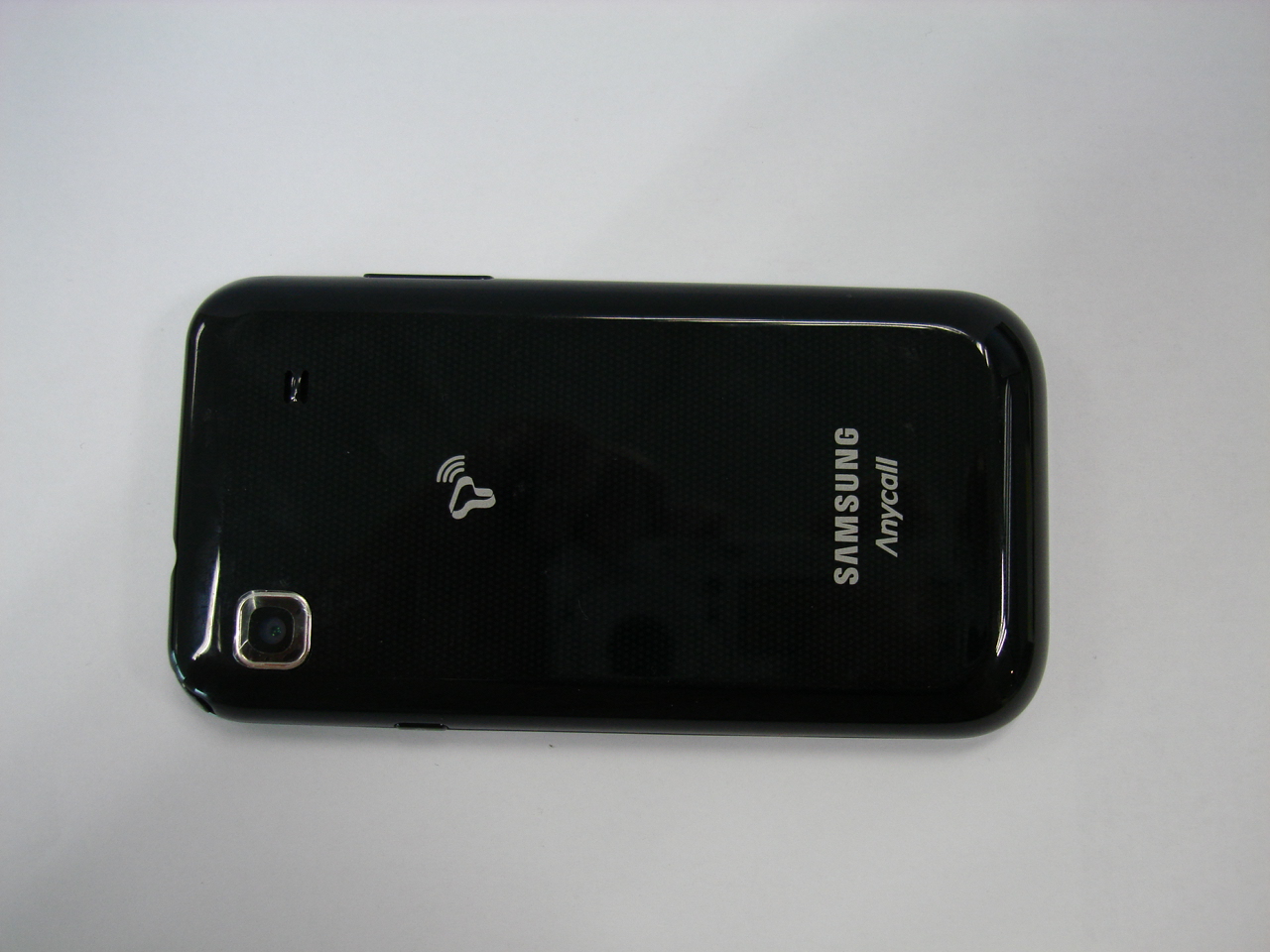

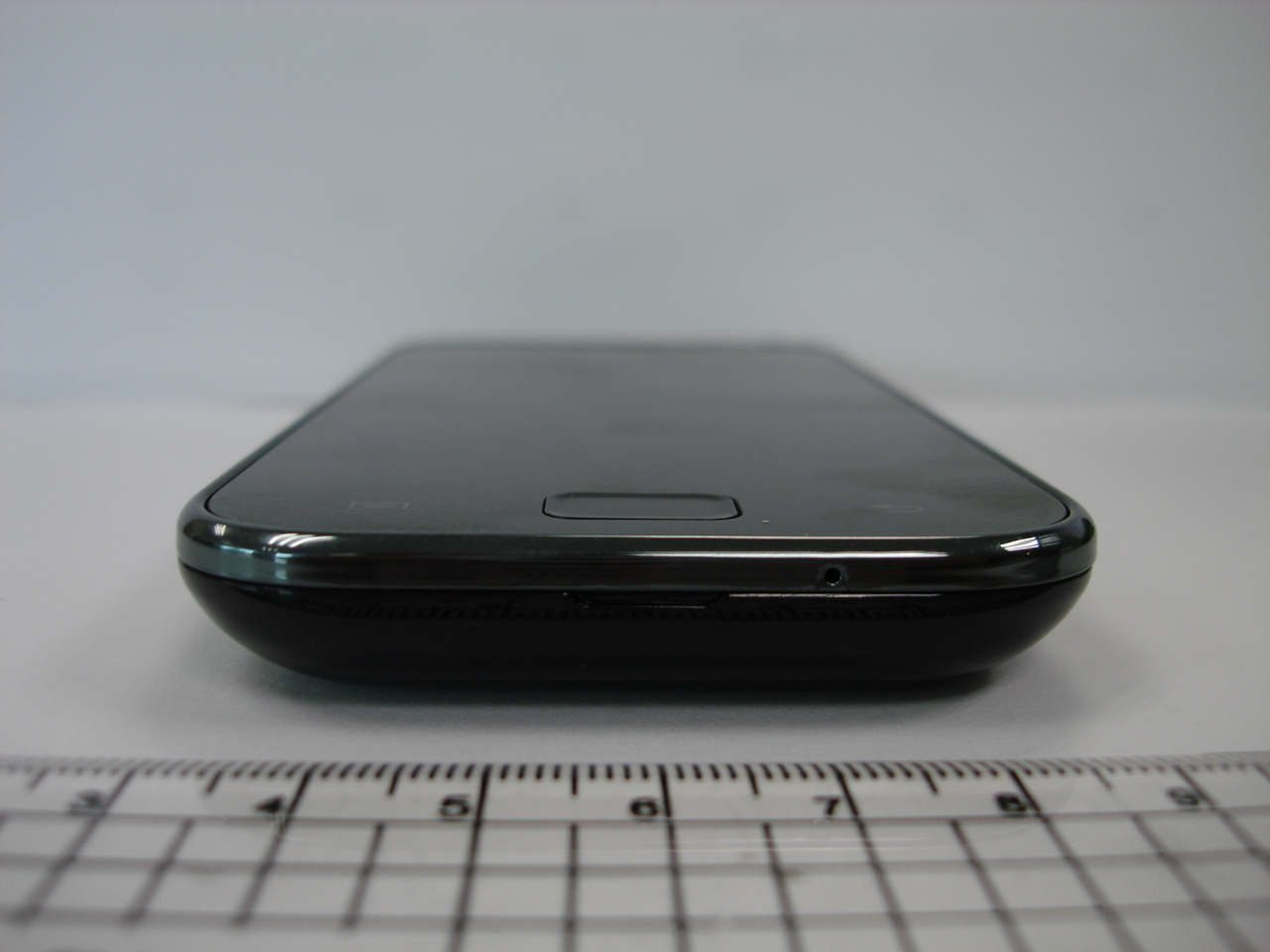

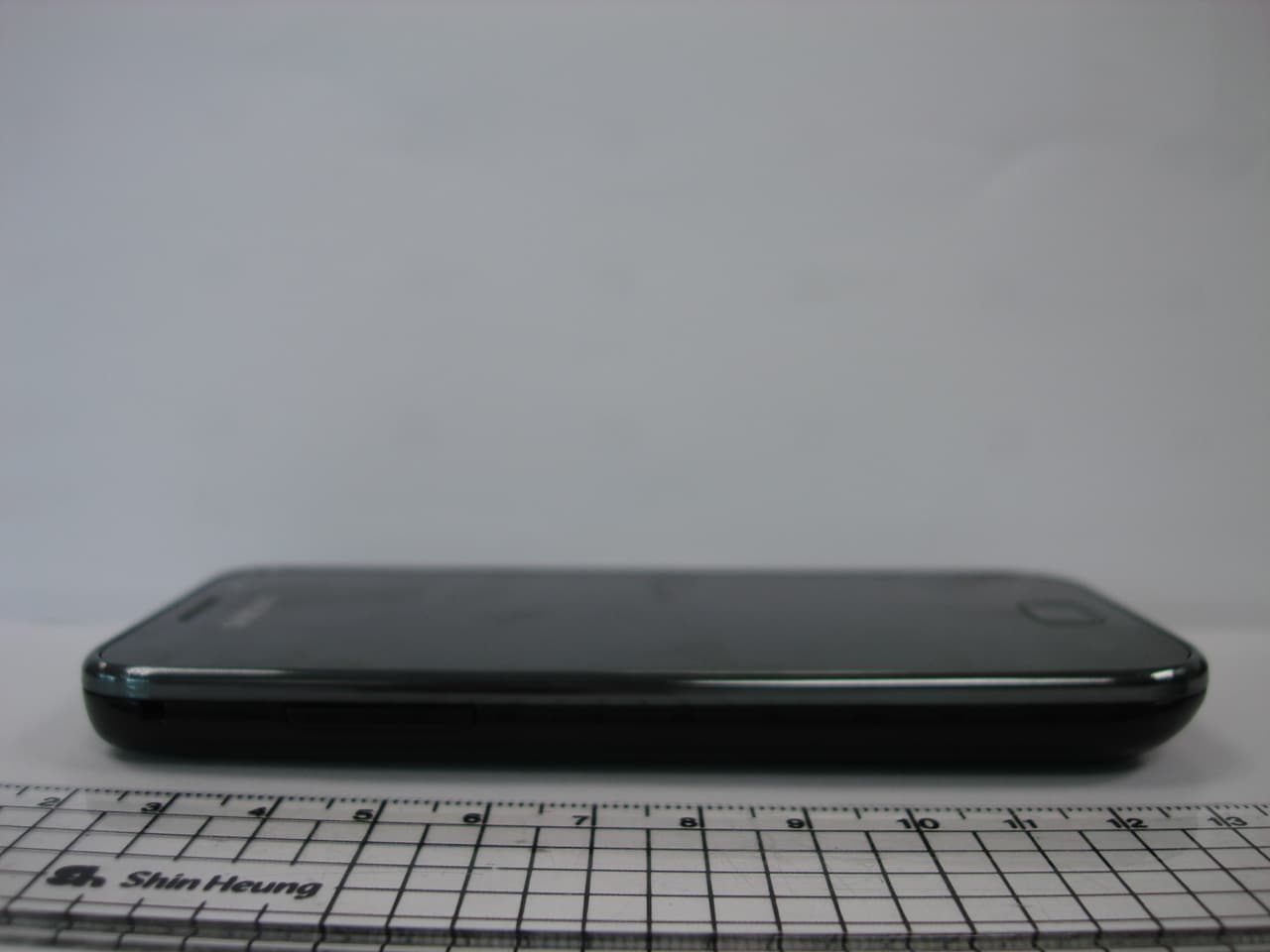

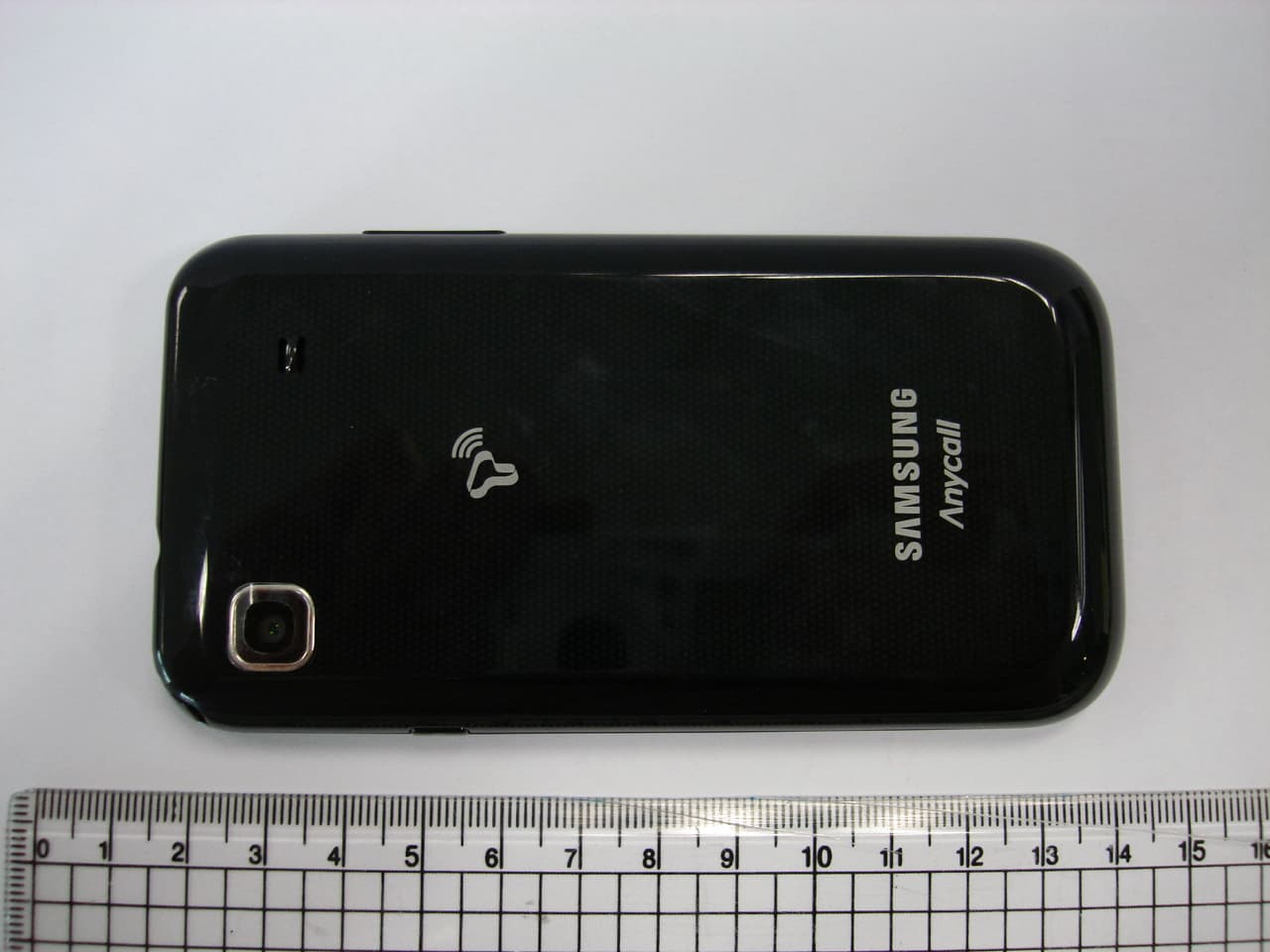

SAMSUNG FCC ID: A3LSHWM115S 1900 GSM/GPRS Phone with Bluetooth and WLAN

Test Setup Photographs © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSHWM115S Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSHWM115S Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN 1.5Cm © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSHWM115S Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSHWM115S Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSHWM115S Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSHWM115S Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSHWM115S Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSHWM115S Single-Band PCS GSM/GPRS Phone with Bluetooth and WLAN
