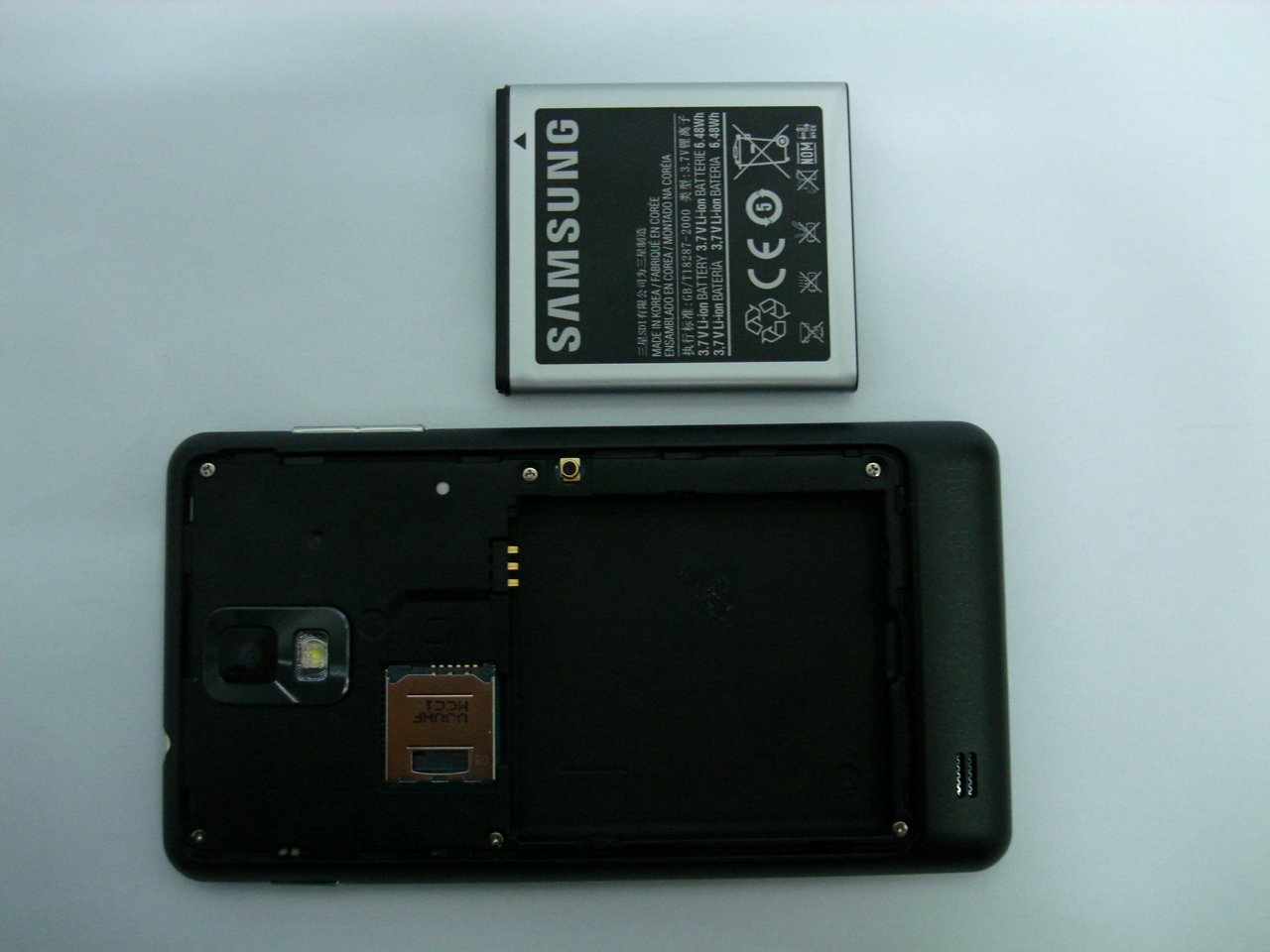

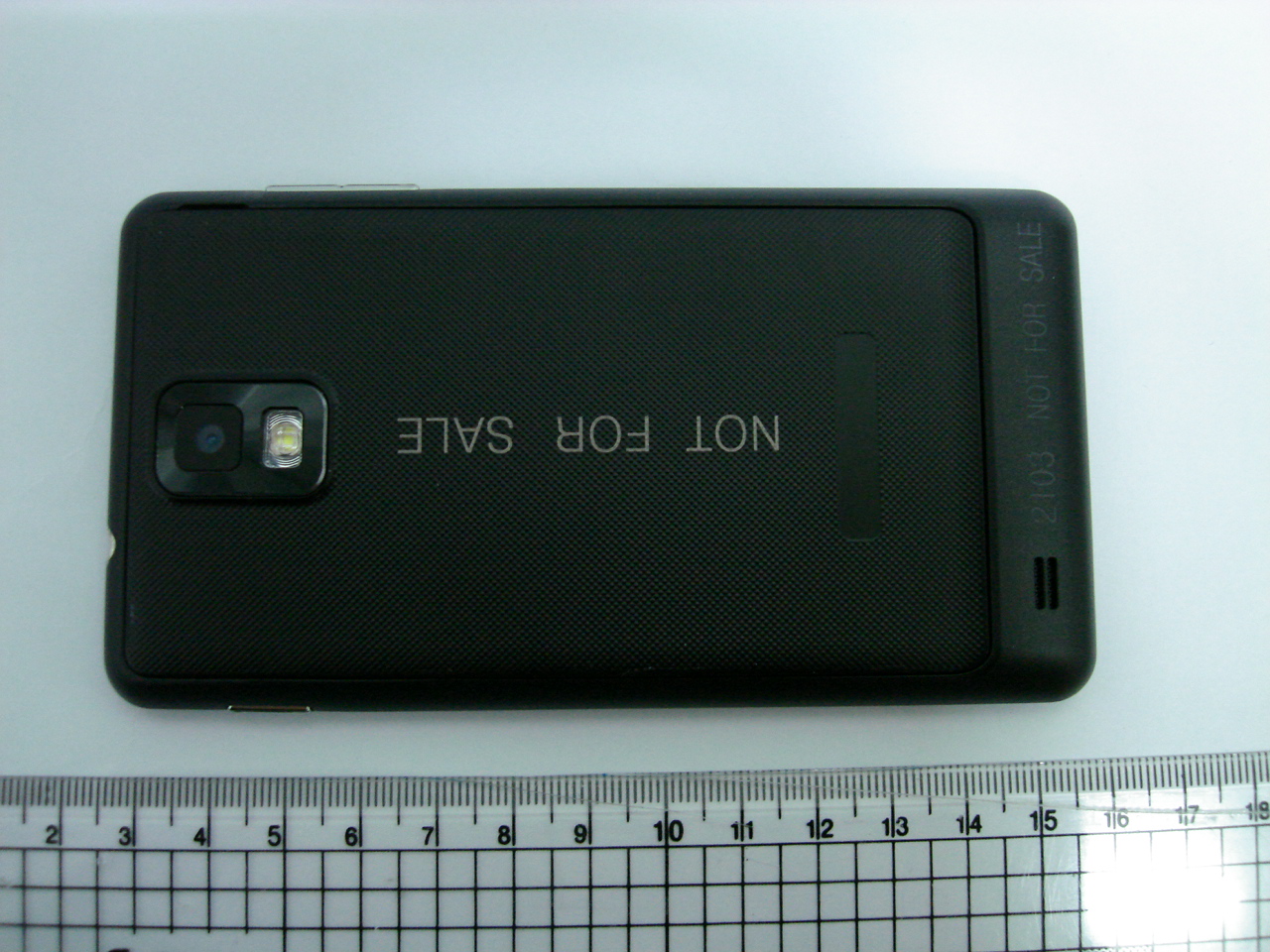

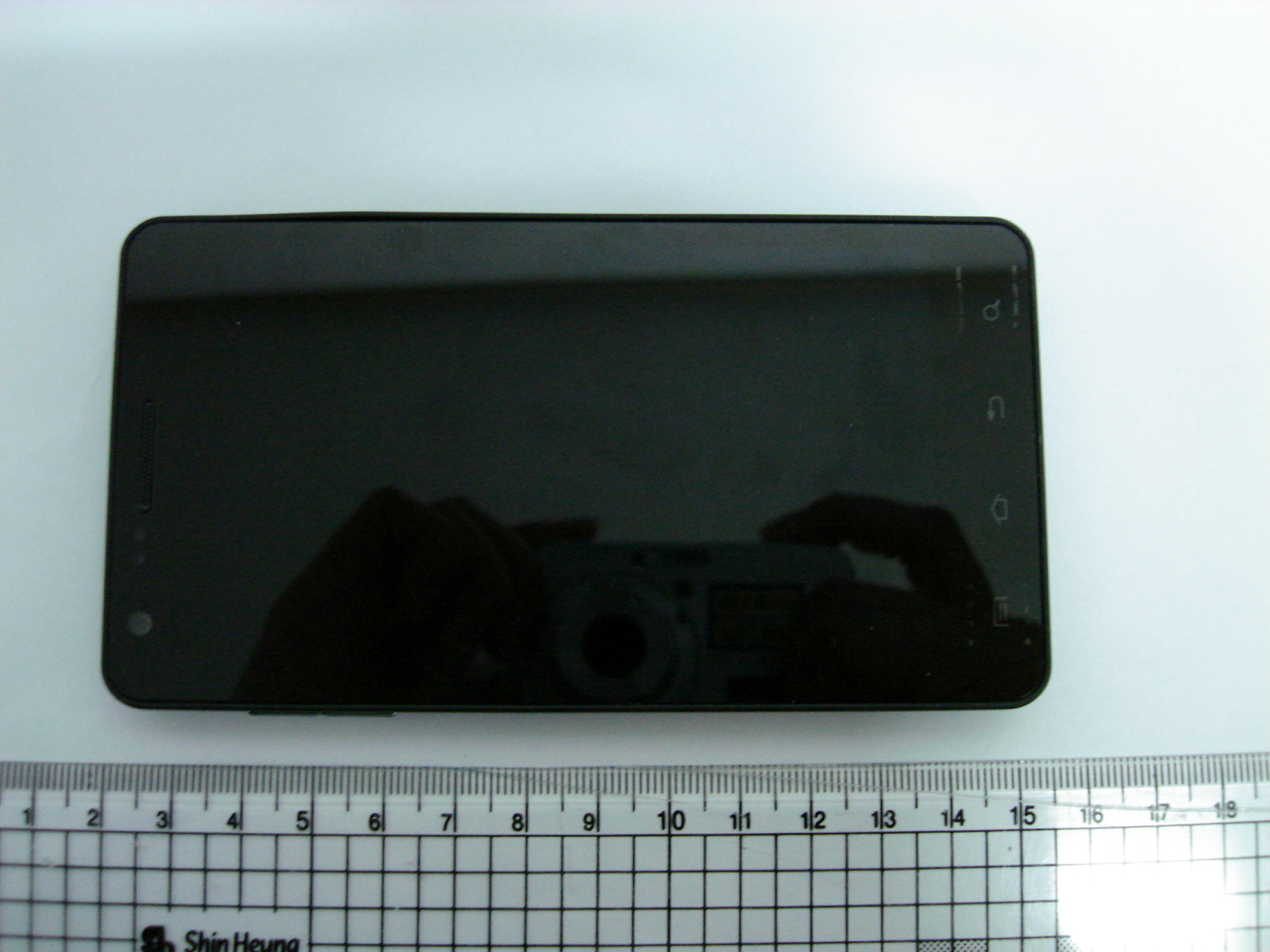

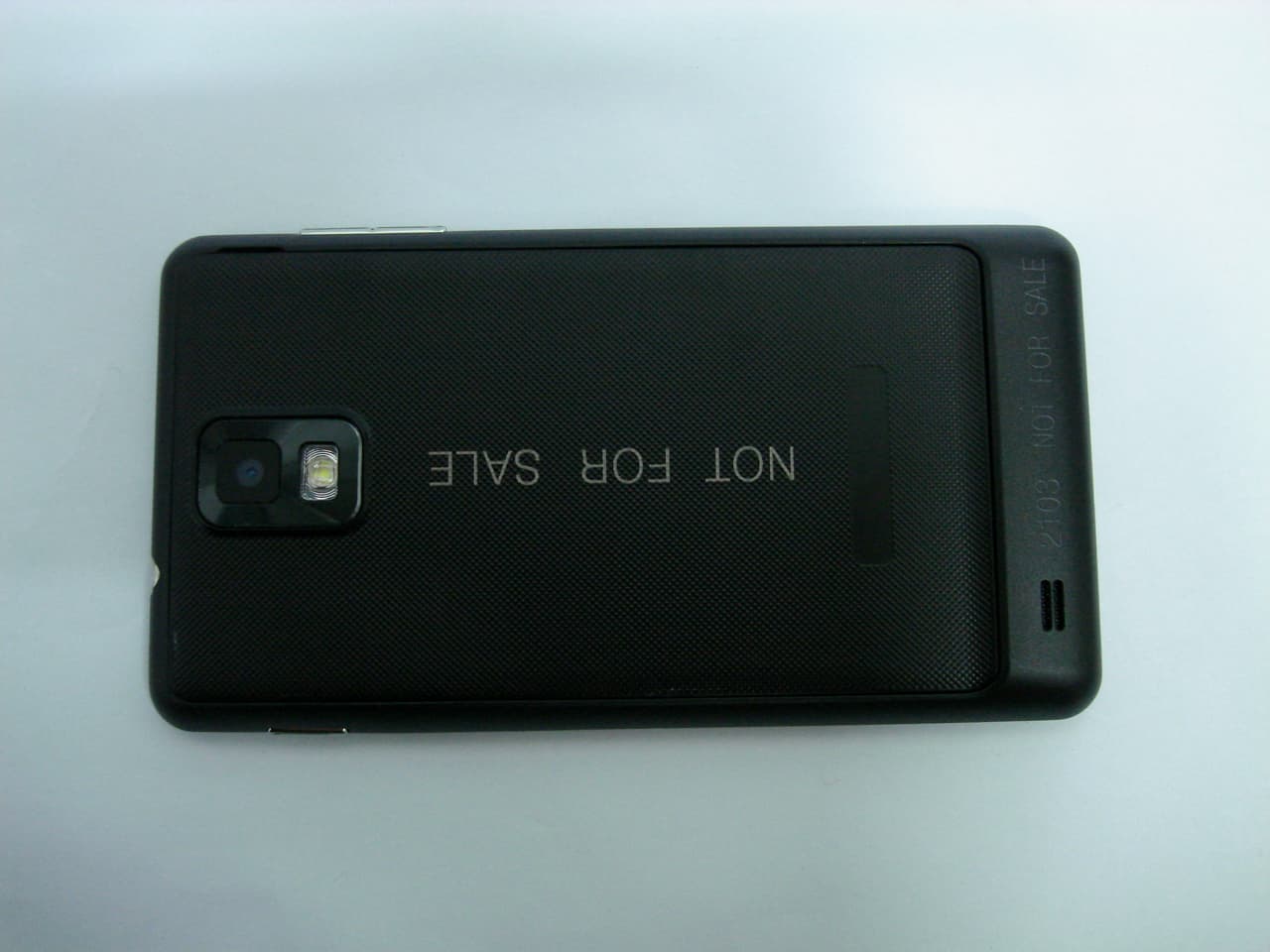

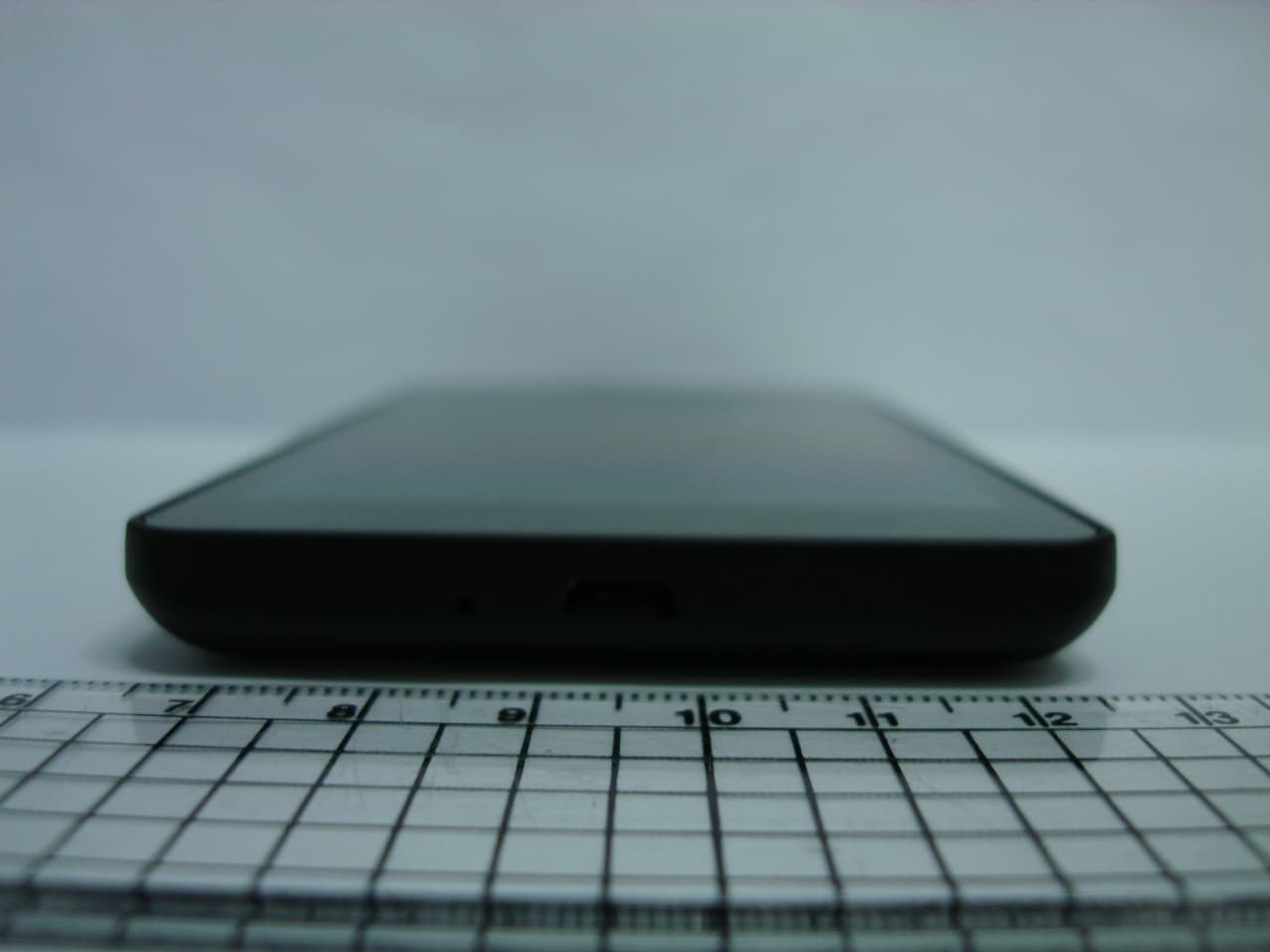

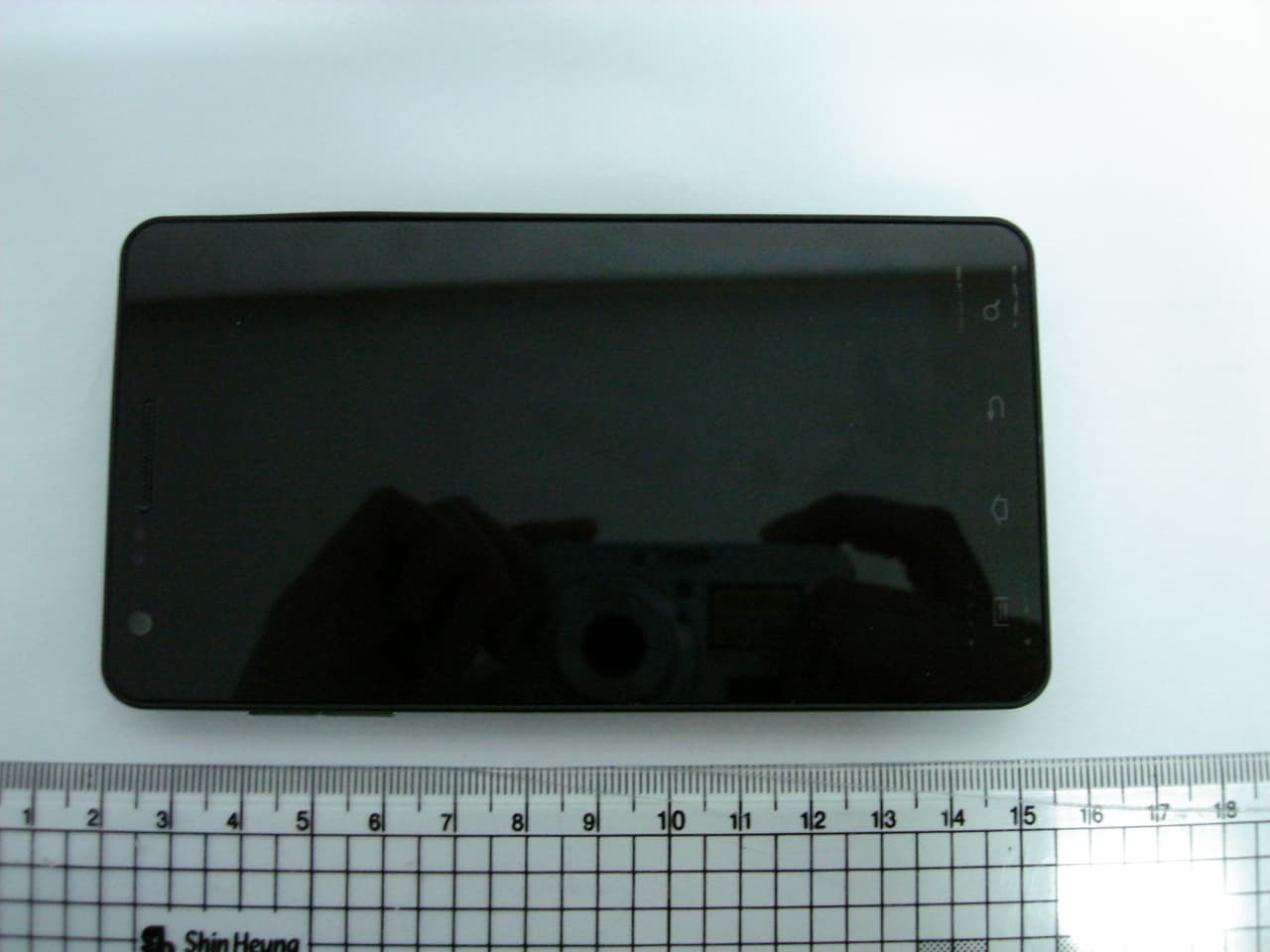

A3LSHWM250SPCS GSM Phone with WLAN and Bluetooth

9. User Manual * Some of the contents of this manual may differ from your phone, depending on the software installed or your service provider. World Wide Web http://www.samsungmobile.com Draft S User's Guide  Be aware of special regulations Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your phone is not water-resistant. Keep it dry. Sensible use Use only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the phone is switched on. Emergency calls Key in the emergency number for your present location, then press [ ]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteries Use only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous. Qualified service Only qualified service personnel may repair your phone. For more detailed safety information, see “Health and safety information” on page 20. Drive safely at all times Do not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless phones can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the phone near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless phones may be subject to interference, which could affect their performance. Failure to comply with the following precautions may be dangerous or illegal. Copyright information Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. At very high volumes, prolonged listening to a headset can damage your hearing. Important safety precautions • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions.  Contents Make sure you have each item • Phone • Adapter • Stereo headset • Battery • Battery travel holder • User’s manual Unpack Unpack .............................................................. 3 Make sure you have each item Get started ....................................................... 4 First steps to operate your phone Overview of menu functions .................... 7 To access Menu mode, press [메뉴] in Idle mode. Menu functions .............................................. 8 All menu options listed Solve problems ........................................... 18 Help and personal needs Health and safety information ............... 20  Power on or off Power on Do not turn on the phone when mobile phone use is prohibited. 1 Open the phone. 2 Press and hold [ ] to turn on the phone. 3 If necessary, enter the PIN and press [확인]. Power on 1 Open the phone. 2 Press and hold [ ]. Keys and display Key(s)Description SoftkeysPerform the function indicated on the bottom line of the display. Navigation keysIn Standby mode, access menu options directly. In Menu mode, scroll through the menu options. In Idle mode, enters Menu mode. In Menu mode, selects the highlighted menu option. key Sends or answers a call. In Standby mode, retrieves the last number dialed, missed, or received. Install and charge the phone 1 Install the battery: 2 Plug the adapter into the phone. 3 Plug the adapter into a standard AC wall outlet. 4 When the phone is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet. 5 Remove the adapter from the phone. Low battery indicator When the battery is low: • a warning tone sounds, • the battery low message displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Get started First steps to operate your phone To remove the battery, slide the battery catch toward the top of the phone and hold it. OK key  Get started Key(s)Description D eletes characters from the display. In Menu mode, returns to the previous menu level. key Ends a call. Hold down to switch the phone on and off. In Menu mode, cancels input and returns the phone to Idle mode. Numeric keysEnter numbers, letters, and some special characters. * /# keyEnter special characters. Use for some special functions. Key(s)Description Volume keys (on the left) Adjusts the phone volume. In Standby mode, with the phone open, adjusts the master volume. With the phone closed, hold down to turn on the display. In Menu mode, scrolls through the menu options. Camera keyIn Standby mode, with the phone open, turns on the camera. With the phone closed, hold down to turn on the camera. In Capture mode, takes a photo. 1 T Service 1 Global Roaming 2 M Help Desk 3 T Optional Service 4 NATE 5 W 6 MONETA 2 Sounds 1 Ring Tone Settings 2 Download Melody 3 Alert Tones 4 Key Tones/Others 5 Volume 6 Hourly Chime 3 Display 1 Wall Paper 2 Download Image 2 Main Menu Style 3 Font Type/Size 4 Dial Number Style 5 Lighting 4 Contents box 1 Melodies 2 Images 3 Photos/Movies 4 MMS Attached Files 5 mPlayon 6 june contents box 7 Key Jjang Album 8 Anycall.com Files 9 Memory 5 Exciting Anycall 1 Camera 2 MP3 3 VOD 4 Bluetooth 5 Game 6 Voice Functions 7 Anycall.com 8 Anycall SOS 6 Organizer 1 Wake-up/Alarms 2 Scheduler 3 School Timetable 4 Memo 5 Calculator 6 English Dictionary 7 Subway Show 8 Unit Converter 9 World Clock 0 Stopwatch 7 Messages 1 New Messages 2 Inbox 3 Outbox 4 Emoticons 5 Attached Files 6 Settings 7 Message Log 8 Spam Messa…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: May 9, 2011 Attestation Letter: FCC ID: A3LSHWM250S We, Samsung Electronics Co., Ltd., attest to the following information regarding the operation of the above mentioned device in the 5GHz U-NII Band. The SHW-M250S supports the following frequency ranges and is only client device in 5GHz bands WLAN: 5745 – 5805MHz UNII: 5180 – 5240MHz, 5260 – 5320MHz, 5500 – 5700MHz The following table lists the actual channel/frequency plan for the 5GHz operation in USA. This device only support Active scanning on non-DFS frequencies.. Channel Freq. (MHz) Scanning Channel Freq. (MHz) Scanning Channel Freq. (MHz) Scanning 36 5180 Active 64 5320 Passive 140 5700 Passive 40 5200 Active 100 5500 Passive 149 5745 Active 44 5220 Active 104 5520 Passive 153 5765 Active 48 5240 Active 108 5540 Passive 157 5785 Active 52 5260 Passive 112 5560 Passive 161 5805 Active 56 5280 Passive 116 5580 Passive 60 5300 Passive 136 5680 Passive Ad-hoc or peer-to-peer modes are not supported operating in the UNII bands. This NII transmitter is a client-only device without radar detection capability. The client software and associated drivers can not initiate any transmission on DFS frequencies, which includes transmissions for beacon, ad-hoc, and peer-to- peer modes. Operation as an access point on non-DFS legacy frequencies is also not supported. The software is locked by the module manufacturer such that there is no access and the settings can not be changed by the integrator of the module or the end user of the device. The User’s Manual submitted with this application is complete and contains all information pertaining to the devices capability. There is no Professional Installers manual available for this device as it is an end user item. Sincerely, Sang Kyung, Ra/General Manager American QA Lab SAMSUNG Electronics America INC. E-mail : [email protected] Telephone : 310-900-5250

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: March 9, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSHWM250S To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

2. Sample Label 5.0 11-01-28 11-01-28 11-01-28 41.5 46.5 SHW-M250S 1650 A3LSHWM250S 1. 2. 3. 3. Label Location 5.0 SHW-M250S 1650 A3LSHWM250S 1. 2. 3.

Reviewed by: FCC ID: A3LSHWM250S SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y110302421.A3L 03/07/11 - 03/14/11 1900 GSM/GPRS Phone with Bluetooth and WLAN Page 1 of 43 © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/07/11 - 03/14/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y110302421.A3L FCC ID: A3LSHWM250S APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 1900 GSM/GPRS Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] Model(s): SHW-M250S Tx Frequency: 1850.20 - 1909.80 MHz (GSM 1900) 2412 - 2462 MHz (2.4 GHz WLAN) 5180 - 5240 MHz (5.2 GHz WLAN) / 5260 - 5320 MHz (5.3 GHz WLAN) 5500 - 5620 MHz (5.5 GHz WLAN) / 5745 - 5805 MHz (5.8 GHz WLAN) Conducted Power: 29.25 dBm GSM 1900 17.20 dBm 2.4 GHz WLAN 12.34 dBm 5.2 GHz WLAN / 12.50 dBm 5.3 GHz WLAN 11.85 dBm 5.5 GHz WLAN / 12.00 dBm 5.8 GHz WLAN Max. SAR Measurement: 0.05 W/kg GSM 1900 Head SAR / 0.30 W/kg GSM 1900 Body SAR 0.01 W/kg 2.4 GHz WLAN Head SAR / 0.00 W/kg 2.4 GHz WLAN Body SAR 0.11 W/kg 5.2 GHz WLAN Head SAR / 0.07 W/kg 5.2 GHz WLAN Body SAR 0.16 W/kg 5.3 GHz WLAN Head SAR / 0.07 W/kg 5.3 GHz WLAN Body SAR 0.20 W/kg 5.5 GHz WLAN Head SAR / 0.05 W/kg 5.5 GHz WLAN Body SAR 0.06 W/kg 5.8 GHz WLAN Head SAR / 0.05 W/kg 5.8 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: FH-029-A] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LSHWM250S SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y110302421.A3L 03/07/11 - 03/14/11 1900 GSM/GPRS Phone with Bluetooth and WLAN Page 2 of 43 © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS........................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 17 13 SINGLE TX SAR CONSIDERATIONS .......................................................................................... 20 14 SYSTEM VERIFICATION.............................................................................................................. 21 15 SAR DATA SUMMARY ................................................................................................................. 24 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 30 17 EQUIPMENT LIST......................................................................................................................... 32 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 33 19 CONCLUSION............................................................................................................................... 35 20 REFERENCES .............................................................................................................................. 36 21 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 38 Reviewed by: FCC ID: A3LSHWM250S SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y110302421.A3L 03/07/11 - 03/14/11 1900 GSM/GPRS Phone with Bluetooth and WLAN Page 3 of 43 © 2011 PCTEST Engineering Laboratory, Inc. R…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSHWM250S FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103080449.A3L March 8 - 16, 2011 1900 GSM/GPRS Phone with BT, WLAN, and RFID Page 1 of 73 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.0UAN 03/16/11 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. March 8 - 16, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1103080449.A3L FCC ID: A3LSHWM250S APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SHW-M250S EUT Type: 1900 GSM/GPRS Phone with BT, WLAN, and RFID Max. RF Output Power: 17.14 mW (12.34 dBm) Conducted (802.11a UNII Band 1) 16.26 mW (12.11 dBm) Conducted (802.11a UNII Band 2) 15.31 mW (11.85 dBm) Conducted (802.11a UNII Band 3) 14.79 mW (11.7 dBm) Conducted (802.11n UNII Band 1) 17.78 mW (12.5 dBm) Conducted (802.11n UNII Band 2) 14.16 mW (11.51 dBm) Conducted (802.11n UNII Band 3) Frequency Range: 5180MHz – 5240MHz (UNII Band 1), 5260MHz – 5320MHz (UNII Band 2), 5500MHz – 5620MHz (UNII Band 3) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Specification(s): RSS-210 Issue 8 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 802.11a/n (UNII) Reviewed by: FCC ID: A3LSHWM250S FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103080449.A3L March 8 - 16, 2011 1900 GSM/GPRS Phone with BT, WLAN, and RFID Page 2 of 73 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.0UAN 03/16/11 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT .....................................................................................................11 6.3 UNII BAND 1 OUTPUT POWER MEASUREMENT – 802.11A/N ............................................................ 21 6.4 UNII BAND 2 OUTPUT POWER MEASUREMENT – 802.11A/N ............................................................ 22 6.5 UNII BAND 3 OUTPUT POWER MEASUREMENT – 802.11A/N ............................................................ 23 6.6 PEAK POWER SPECTRAL DENSITY.....................................................................................................24 6.7 PEAK EXCURSION RATIO ..................................................................................................................... 34 6.8 FREQUENCY STABILITY ........................................................................................................................ 44 6.9 RADIATED SPURIOUS EMISSION MEASUREMENTS...................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSHWM250S FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103080450.A3L March 3, 2011 1900 GSM/GPRS Phone with BT, WLAN, and RFID Page 1 of 25 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3DFS 3/3/08 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. March 3, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab. Columbia, MD, USA United States Test Report Serial No.: 0Y1103080450.A3L FCC ID: A3LSHWM250S COMPANY: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SHW-M250S EUT Type: 1900 GSM/GPRS Phone with BT, WLAN, and RFID Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5620 MHz (UNII-III Band) Output Power: 17.78mW (12.5dBm) Conducted (802.11n UNII Band II) 15.31mW (11.85dBm) Conducted (802.11a UNII Band III) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003 and FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 802.11a/n (DFS) Reviewed by: FCC ID: A3LSHWM250S FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103080450.A3L March 3, 2011 1900 GSM/GPRS Phone with BT, WLAN, and RFID Page 2 of 25 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3DFS 3/3/08 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE..................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ............................................................................................................... 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 MODIFICATIONS....................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST .........................................................6 3.1 APPLICABILITY ......................................................................................................................................... 6 3.2 REQUIREMENTS ...................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES ................................................................................................ 8 3.4 PARAMETERS OF DFS TEST SIGNALS ..................................................................................................8 3.5 PROCEDURE ............................................................................................................................................ 9 4.0 TEST EQUIPMENT................................................................................................................................11 4.1 ADDITIONAL EQUIPMENT ..................................................................................................................... 11 5.0 TEST PLOTS AND DATA UNII - II BAND .............................................................................................12 6.0 TEST PLOTS AND DATA UNII – III BAND............................................................................................17 7.0 CONCLUSION .......................................................................................................................................25 Reviewed by: FCC ID: A3LSHWM250S FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103080450.A3L March 3, 2011 1900 GSM/GPRS Phone with BT, WLAN, and RFID Page 3 of 25 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3DFS 3/3/08 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 18600 Broadwick St. Rancho Dominguez, CA 90220, United States TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 6660-B Dobbin Road, Columbia, MD 21045 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SHW-M250S FCC ID: A3LSHWM250S Test Device Serial No.: FI-029…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSHWM250S Model: SHW-M250S Test Set-Up Photos EUT Type: 1900 GSM/GPRS Phone with BT, WLAN, and RFID Page 1 of 3 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSHWM250S Model: SHW-M250S Test Set-Up Photos EUT Type: 1900 GSM/GPRS Phone with BT, WLAN, and RFID Page 2 of 3 © 2011 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSHWM250S Model: SHW-M250S Test Set-Up Photos EUT Type: 1900 GSM/GPRS Phone with BT, WLAN, and RFID Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSHWM250S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 38 of 43 0Y110302421.A3L 03/07/11 - 03/14/11 1900 GSM/GPRS Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 21 SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSHWM250S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 39 of 43 0Y110302421.A3L 03/07/11 - 03/14/11 1900 GSM/GPRS Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Figure 21-1 SAR Test Setup Photo 1 Figure 21-2 SAR Test Setup Photo 2 FCC ID: A3LSHWM250S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 40 of 43 0Y110302421.A3L 03/07/11 - 03/14/11 1900 GSM/GPRS Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Figure 21-3 SAR Test Setup Photo 3 Figure 21-4 SAR Test Setup Photo 4 FCC ID: A3LSHWM250S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 41 of 43 0Y110302421.A3L 03/07/11 - 03/14/11 1900 GSM/GPRS Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Figure 21-5 SAR Test Photo 5 – Back at 1.0 cm Figure 21-6 SAR Test Photo 6 – Front at 1.0 cm FCC ID: A3LSHWM250S SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 42 of 43 0Y110302421.A3L 03/07/11 - 03/14/11 1900 GSM/GPRS Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Figure 21-7 SAR Test Setup Photo 7 – Bot…

Text truncated - open the document above for the full version.
