BASIC User’s Guide BASIC User’s Guide This guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides informatio n about the installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries. 2 BASIC 1. IntroductionKey benefits 5 Features by models 8 Useful to know 11 About this user’s guide 12 Safety information 13 Machine overview 19 Control panel overview 23 Turning on the machine 25 Installing the driver locally 26 Reinstalling the driver 29 2. Menu Overview and Basic SetupMenu overview 31 Machine’s basic settings 34 Media and tray 36 Basic printing 48 3. MaintenanceOrdering supplies and accessories 55 Available consumables 56 Available accessories 58 Available maintenance parts 59 Storing the toner cartridge 60 Redistributing toner 62 Replacing the toner cartridge 64 Replacing the imaging unit 68 Installing accessories 71 Monitoring the supplies life 75 Setting the toner/imaging unit low alert 76 Cleaning the machine 77 Tips for moving & storing your machine 82 4. TroubleshootingTips for avoiding paper jams 84 Clearing paper jams 85 Understanding the status LED 98 Understanding display messages 101 3 BASIC 5. AppendixSpecifications 108 Regulatory information 116 Copyright 127 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5 • Features by models 8 • Useful to know 11 • About this user’s guide 12 • Safety information 13 • Machine overview 19 • Control panel overview 23 • Turning on the machine 25 • Installing the driver locally 26 • Reinstalling the driver 29 Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 51). • To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 211). • To save paper, you can print on both sides of the paper (double-sided printing) (see "Using advanced print features" on page 211). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. • We recommend using recycled paper for saving energy. Fast high resolution printing• You can print with a resolution of up to 1,200 x 1,200 dpi effective output (600 x 600 x 2 bit). • Fast, on-demand printing. - M332x series  For single-side printing, 33 ppm (A4) or 35 ppm (Letter). - M382x series  For single-side printing, 38 ppm (A4) or 40 ppm (Letter). - M402x series  For single-side printing, 40 ppm (A4) or 42 ppm (Letter). Key benefitsConvenience• You can print on the go from your smartphone or computer using Google Cloud Print™ enabled apps G (see "Google Cloud Print™" on page 189). • Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard G (see "Easy Capture Manager" on page 230). • Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Easy Printer Manager" on page 237 or "Using Samsung Printer Status" on page 240). • Samusng AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily than when you use the ordinary program (see "Samsung AnyWeb Print" on page 231). • Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows. • If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads. Wide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 110). • Print watermark: You can customize your documents with words, such as “ CONFIDENTIAL ” (see "Using advanced print features" on page 211). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 211). • You can print in various operating systems (see "System requirements" on page 112). • Your machine is equipped with a USB interface and/or a network interface. Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button- You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router). Key benefits• Using the USB cable or a network cable- You can connect and set various wireless network settings using a USB cable or a network cable. • Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 155. Features by modelsSome features and optional goods may not be available depending on model or country.Operating System(  : Included, Blank: Not available) Software You can install the printer driver and software when you insert the software CD into your CD-ROM drive.For windows, select the printer driver and software in the Select Software to Install window. Operating System M332x series M382x series M402x series Windows    Mac    Linux    Unix   (M382xND/M382xDW only)  Software M332x series M382x series M402x series SPL printer driver    PCL printer driver   (M382xND/M382xDW only)  Features by models(  : Included, Blank: Not available) PS printer driver a   (M382xND/M382xDW only)  XPS printer driver a    Samsung Easy Printer Manager Device Settings    Samsung Printer Status    Direct Printing Utility a    Samsung AnyWeb Print a    SyncThru™ Web Service   (M382xND/M382xDW only)  Syn…

Text truncated - open the document above for the full version.

Basic printing 51 2. Menu Overview and Basic Setup 11 Eco printing The Eco function reduces toner consumption and paper usage. The Eco function allows you to save print resources and lead you to eco-friendly printing.If you press the Eco button from the control panel, Eco mode is enabled. The default setting of Eco mode is double-sided printing (long edge), multiple pages per side (2-up), skip blank pages, and toner save. Some features may not be available depending on the model. • Double-sided printing ( long edge ) feature is only available for duplex models (see "Variety feature" on page 10). • Depending on the printer driver you use, Skip blank pages may not work properly. If Skip blank pages feature does not work properly, set the feature from the Easy Eco Driver (see "Easy Eco Driver" on page 232). Setting Eco mode on the control panel • For models that do not have the display screen on the control panel, this feature is not applicable. • The settings set from the machine’s driver override the settings on the control panel. • It may be necessary to press OK to navigate to lower-level menus for some models. 1 Select ( Menu ) > System Setup > Eco Setup on the control panel. 2 Select the option you want and press OK . • Default Mode: Select this to turn on or off the eco mode. - Off : Set the eco mode off. - On : Set the eco mode on. If you set the eco mode on with a password from the SyncThru™ Web Service ( Settings tab > Machine Settings > System > Eco Settings ) or 6DPVXQJ(DV\3ULQWHU0DQDJHU ( Device Settings > Eco ), the On force message appears. You have to enter the password to change the eco mode status. • Change Temp.: Follow the settings from Syncthru™ Web Service or 6DPVXQJ(DV\3ULQWHU0DQDJHU . Before you select this item, you must set the eco function in SyncThru™ Web Service ( Settings tab > Machine Settings > System > Eco Settings ) or 6DPVXQJ(DV\ 3ULQWHU0DQDJHU ( Device Settings > Eco ). - Default Eco : The machine is set to Default Eco mode. - Custom Eco : Change any necessary values. 3 Press OK to save the selection. Basic printing 52 2. Menu Overview and Basic Setup Setting eco mode on the driver To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 49). Open the Eco tab to set Eco mode. When you see the eco image ( ), that means the eco mode is currently enabled. Eco options• Printer Default: Follows the settings from the machine's control panel. • None: Disables Eco mode. • Eco Printing: Enables eco mode. Activate the various Eco items you want to use. • Password: If the administrator fixed to enable the Eco mode, you have to enter the password to change the status. Password button: You can set from SyncThru™ Web Service ( Settings tab > Machine Settings > System > Eco Settings ) or 6DPVXQJ(DV\3ULQWHU 0DQDJHU ( Device Settings > Eco ), the password button is activated. To change the print settings, click on this button, enter the password or need to contact the administrator. Result simulatorResult Simulator shows the results of reduced emission of carbon dioxide, used electricity, and the amount of saved paper in accordance with the settings you selected.• The results are calculated on the basis that the total number of printed paper is one hundred without a blank page when the Eco mode is disabled. • Refers to the calculation coefficient about CO2, energy, and paper from IEA , the index of Ministry of Internal Affairs and Communication of Japan and www.remanufacturing.org.uk. Each model has a different index. • The power consumption in printing mode refers to the average printing power consumption of this machine. • The actual amount displayed is only an estimate as the actual amount may differ depending on the operating system used, computing performance, application software, connection method, media type [thickness], media size, job complexity, etc. 12 Secure printing • This feature is not supported for M332xND/M382xD. • Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine. • You might not be able to print a complex document using the RAM disk. Install an optional memory to print a complex document. Basic printing 53 2. Menu Overview and Basic Setup When you use a printing device in an office, school or other public place, you can protect your personal documents or confidential information by using the secure printing feature.Starting secure printing from the SyncThru™ Web Service 1 Access a web browser, such as Internet Explorer, from Windows.Enter the machine IP address of your printer (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go . 2 Click Login on the upper right of SyncThru™ Web Service website. 3 Settings > Machine Settings > System > Ram Disk . 4 Enable Ram Disk . This features may not appear on the display depending on options or models. If so, it is not applicable to your machine. Printing secure documents from the control panel 1 Select ( Menu ) > Job Management > Stored Job on the printer’s control panel. 2 Select the document to print. 3 Enter the password that you set from the printer driver. 4 Print or delete the document. 3. MaintenanceThis chapter provides information about purchasin g supplies, accessories and maint enance parts available for your machine. • Ordering supplies and accessories 55 • Available consumables 56 • Available accessories 58 • Available maintenance parts 59 • Storing the toner cartridge 60 • Redistributing toner 62 • Replacing the toner cartridge 64 • Replacing the imaging unit 68 • Installing accessories 71 • Monitoring the supplies life 75 • Setting the toner/imaging unit low alert 76 • Cleaning the machine 77 • Tips for moving & storing your machine 82 55 3. Maintenance Ordering supplies and accessories Available accessories may differ from country to country. Contact your sales representatives to obtain the list…

Text truncated - open the document above for the full version.

Clearing paper jams 96 4. Troubleshooting 6 In the duplex unit area Click this link to open an ani mation about clearing a jam. 97 4. Troubleshooting If you do not see the paper in this area, stop and go to next step: Understanding the status LED 98 4. Troubleshooting Understanding the status LEDThe color of the LED indicates the machine's current status. • Some LEDs may not be available depending on model or country (see "Control panel overview" on page 23). • To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Understanding display messages" on page 101). • You also can resolve the error with the guideline from the computers’s Samsung Printing Status program window (see "Using Samsung Printer Status" on page 240). • If the problem persists, call a service representative. Understanding the status LED 99 4. Troubleshooting LED Status Description () Status Off The machine is off-line. Green Blinking When the backlight blinks, the machine is receiving or printing data. On • The machine is on-line and can be used. Red Blinking • A minor error has occurred and the machine is waiting for the error to be cleared. For models that supports display screen on the control panel, check the display message. When the problem is cleared, the machine resumes. • Small amount of toner is left in the cartridge. The estimated cartridge life a of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 62). b On • A toner cartridge has almost reached its estimated cartridge life a . It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 64). • The cover is opened. Close the cover. • There is no paper in the tray when receiving or printing data. Load paper in the tray. • The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 101). • A paper jam has occurred (see "Clearing paper jams" on page 85). • An imaging unit has almost reached it’s estimated cartridge life c . It is recommended to replace the toner cartridge. () WPS b Blue Blinking The machine is connecting to a wireless network. On The machine is connected to a wireless network G (see "Wireless network setup" on page 154). Off The machine is disconnected from a wireless network. () Power Blue On The machine is in power save mode. Off The machine is in ready mode or machine’s power is off. 100 4. Troubleshooting Eco Green On Eco mode is on (see "Eco printing" on page 51). LED Status Description a. Estimated cartridge life means the expected or estimated toner ca rtridge life, which indicates the average capacity of print- outs and is designed pursuant to IS O/IEC 19798. The number of pages may be affected by operating environment, percentage of image area, prin ting interval, graphics, media and media size. Some amo unt of toner may remain in th e cartridge even when red LED is on and the printer stops printing. b. Some LEDs may not be available depending on model or country (see "Control pa nel overview" on page 23). c. When the imaging unit has reached its end of life, the machine will stop printing. In this case, you can choose to stop or co ntinue printing from the SyncThru™Web Service ( Settings > Machine Settings > System > Setup > Supplies Management > Imaging Unit Stop ) or Samsung Easy Printer Manager ( Device Settings > System > Supplies Management > Imaging Unit Stop ). Turning off this option and continuing to print may damage the device’s system. Understanding display messages 101 4. Troubleshooting Understanding display messagesMessages appear on the control panel display to indicate the machine’s status or errors. Refer to the tables below to understand the messages’ and their meaning, and correct the problem, if necessary. • You can resolve the error with the guideline from the computers’s Printing Status program window (see "Using Samsung Printer Status" on page 240). • If a message is not in the table, reboot the power and try the printing job again. If the problem persists, call a service representative. • When you call for service, provide the service representative with the contents of display message. • Some messages may not appear on the display depending on the options or models. • [error number] indicates the error number. • [tray type] indicates the tray number. • [media type] indicates the media type. • [media size] indicates the media size. • [color] indicates the color of toner. 7 Paper Jam-related messages Message Meaning Suggested solutions Paper jam in exit area Paper has jammed in the exit area. Clear the jam (see "In exit area" on page 94). Paper jam inside of duplex Paper has jammed during duplex printing. This is applicable only to machines with this feature. Clear the jam (see "In the duplex unit area" on page 96). Paper jaminside machine Paper has jammed in inside the machine. Clear the jam (see "Inside the machine" on page 90). Paper jam in tray1 Paper has jammed in the tray. Clear the jam (see "In tray 1" on page 85). Paper jam in tray 2 Paper has jammed in the optional tray. Clear the jam (see "In optional tray" on page 86). Paper jam in MP tray Paper has jammed in the multi-purpose tray. Clear the jam (see "In the manual feeder/multi-purpose tray" on page 88). Understanding display messages 102 4. Troubleshooting 8 Toner-related messages Message Meaning Suggested solutions Install toner A toner cartridge is not installed. Reinstall the toner cartridge. A toner cartridge is not being detected Reinstall the toner cartridge two or three times to confirm it is seated properly. If the problem persists, contact the service representatives. Not removed protective film from toner. Remove the protective film from the toner cartridge. Not CompatibleToner cartridge The indicated toner cartridge is not suitable for your machine. Install the corresponding toner…

Text truncated - open the document above for the full version.

1 External View Photo1 . External View Photo ProXpressProXpress M4025DW ProXpress M402 5DW Print_Front ProXpress M402 5DW Print_Right ProXpress M40 25DW Print_Left ProXpress M402 5DW Print_Rear

Project No. : LBE20125898 Mono Laser Print : ProXpress M4025DW - 49/52- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View & Label location Project No. : LBE20125898 Mono Laser Print : ProXpress M4025DW - 52/52- This report must not be reproduced, except in full, without written permission from CS & Environment center. Inside View(LITEON SMPS) Label

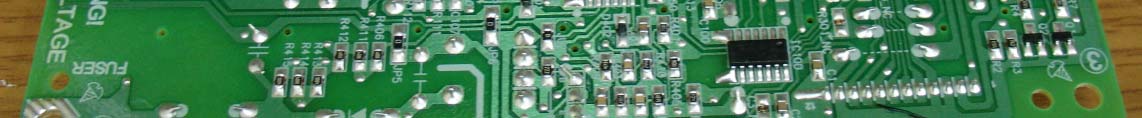

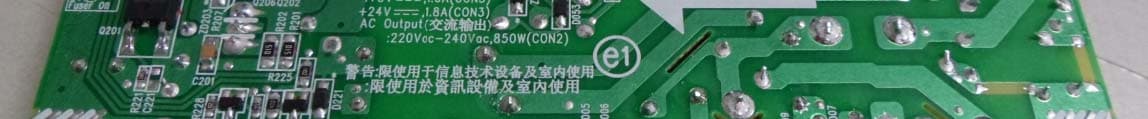

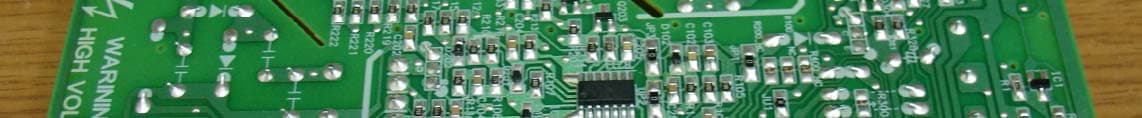

2 Internal View Photo2 . Internal View Photo ProXpress M4025D\ ProXpress ProXpress M402 5DW Internal_Front ProXpress M402 5DW Internal_Right ProXpress M402 5DW Internal_Left ProXpress M402 5 DW Internal_Rear 3 PBA Photo3 . PBA Photo ProXpressProXpress M4020 DW ProXpressProXpress M 402 5DW Main PBA_Top ProXpress M ProXpress 402 5DW Main PBA_Bottom ProXpressProXpress M402 5DW OPE PBA_Top ProXpress M4025DW DONG YANG SMPS PBA Top SMPS PBA_Top ProXpress M4025DW DONG YANG SMPS PBA Bottom SMPS PBA_ Bottom ProXpress M4025DW LITE ON SMPS PBA_Top PX M4020ND LITE ON Pro Xpress M4025DW LITE ON SMPS PBA Bottom SMPS PBA_Bottom ProXpress M4025DW DONG YANG HVPS PBA T HVPS PBA_T op ProXpress M4025DW DONG YANG HVPS PBA Bottom HVPS PBA_Bottom ProXpress M4025DW SUNG HO HVPS PBA T HVPS PBA_T op ProXpress M4025DW SUNG HO HVPS PBA Bottom HVPS PBA_Bottom

ProXpress M4025DW Technical Specification ItemSpecification and Description ProcessorA1500 (600 MHz) Standard System memory 128 MB DDR3 ( M33****, M38**** series) 256 MB DDR3 ( M40**** series) Option 512 MB DDR3 ( except M38**D series) ResolutionPseudo 1200 dpi Speed ProXpress M33**** series 33 ppm ProXpress M38**** series 38 ppm ProXpress M40**** series 40 ppm Paper Handling Paper Tray(standard) 250 Sheets SCF Tray(option) 520 Sheets MP Tray 1 Sheet ( M33**ND, M38**D series) MP Tray 50 Sheets ( M38**ND, M38**DW, M40**ND series) Power Rating 110VAC ~ 127VAC, 6.5A, 50/60 Hz Power Consumption Power save mode :0.9 Watt s 2.1 Watts ( WI - FI model) Stand by mode :60 Watts Printing simplex :600 Watts Printer Language SPL,PCL6,PS3,PCL5e, IBM Proprint, EPSON, KS, KSSM, PDFV1.7 InterfacesUSB2.0, N etwork , WI-FI OS compatibility Window XP (32/64 bit) / 2003 Server (32/64 bit) / Vista (32/64 bit) / 2008 server (32/64 bit) /7(32/64 bit) / 2008 Server R2 / 8 (32/64 bit) Linux : RedHat Enterprise Linux WS 4, 5, 6 (32/64 bit) / Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 (32/64 bit) / OpenSuSE 10.2, 10.3, 11.0, 11.1, 11.2, 11.3, 11.4 (32/64 bit) / Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit) / Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04, 10.10, 11.04 (32/64 bit) / SuSE Linux Enterprise Desktop 10, 11 (32/64 bit) / Debian 4.0, 5.0, 6.0 (32/64 bit) UNIX : Sun Solaris 9,10,11 ( x86, SPARC) / HP-UX 11.0, 11i v1, 11i v2, 11i v3 ( PA-RISC, Itanium) / IBM AIX 5.1, 5.2, 5.3, 5.4, 6.1, .7.1 ( PowerPC) Mac OS : X10.5~10.8 Citrix Presentation Server Windows Terminal Services Modes of Operation USB Printing, Network Printing , WI - FI Printing Intended Class for Emissions Class B ■ Type of Product : Mono LASER print ■ Variant Model ProXpress M3325ND / ProXpress M3320ND ProXpress M3825D / ProXpress M3820D ProXpress M3825ND / ProXpress M3820ND ProXpress M3825DW / ProXpress M3820DW ProXpress M4025ND / ProXpress M4020ND ■ Clock Frequency List Main Source Clock :12 MHz Video Clock : 23.689 MHz (33 ppm, 38 ppm) : 19.849 MHz (40 ppm) CPU Internal Clock :600 MHz DDR3 Clock :384 MHz USB Device Clock :12 MHz ETHERNET Clock :25 MHz ■ Factory Address SSDP SAMSUNG ELECTRONICS ( SHANDONG) DIGITALPRINTING CO.,LTD. #264209, Samsung Road,Weihi Hi-Tech IDZ Shandong Province CHINA. 신흥 Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China

-1/52- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20130348 Issue No. 0 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application January 11, 2013 EUT Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LSLM4025DW Kind of product Mono Laser Print Model No. ProXpress M4025DW Variant Model No. 3UR;SUHVV01'3UR;SUHVV01'G 3UR;SUHVV0'3UR;SUHVV0'G 3UR;SUHVV01'3UR;SUHVV01'G 3UR;SUHVV0':3UR;SUHVV0':G 3UR;SUHVV01'3UR;SUHVV01' G Manufacturer 1)SAMSUNG ELECTRONICS (SHANDONG) DIGITAL PRINTING CO.,LTD.(SSDP) #264209,Samsung Road,Weihi Hi-Tech IDZ Shandong Province CHINA. 2) SAMSUNG ELECTRONICS SUZHOU COMPUTER CO.,LTD.(SESC) NO. 318, Fangzhou Road, Suzhou Industrial Park Jiangsu Province,China. 3) Weihai Intops Electronics Co., Ltd. Keji Road 268-1,Weihai city,Shandong Province,China. 4) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China. Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 Test Period January 17, 2013 ~ January 31, 2013 Issue date February 7, 2013 Test result : Complied The equipment under test has found to be compliant with the applied standards. The result is not applied the uncertainty concept. This mean that the result is applied the original (standard) limit. (Refer to the attached test result for more detail.) Tested by : Sang Kyu Seo Reviewed by : Tae Young Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20125898 Mono Laser Print : ProXpress M4025DW - 2/52- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Report information 1.1 Revision history .................................................................. 3 page 1.2 Sample calculation............................................................... 3 page 2. Summary of test results 2.1 Emission............................................................................ 3 page 3. General Information 3.1 Test facility..........................................................................4 page 4. Test configuration 4.1 Test Peripherals...................................................................4 page 4.2 EUT operating mode............................................................ 5 page 4.3 Details of Sampling.............................................................. 5 page 4.4 Used cable description......................................................... 5 page 4.5 Test arrangement................................................................ 6 page 4.6 EUT Description ................................................................. 7 page 4.7 Clock Frequencies...............................................................8 page 4.8 Test configuration and condition............................................. 8 page 4.9 Measurement uncertainty......................................................9 page 5. Result of individual tests 5.1 Conducted disturbance.........................................................10 page 5.2 Radiated disturbance............................................................24 page Appendix – EUT photography.................................................49 page Project No. : LBE20125898 Mono Laser Print : ProXpress M4025DW - 3/52- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Report information 1.1 Revision history 1.2 Sample calculation 1.2.1 Conducted disturbance (at 10 MHz) ̾ Class B limit = 60 dBV (Quasi-peak limit) ̾ Level (50 dBV) = Meter Reading (40.2 dBV) + factor ( 9.8 dB, AMN factor 9.7 dB + Cable loss 0.1 dB) ̾ Margin (10 dB) = Limit (60 dBV) – Level (50 dBV) = 10 dB below limit 1.2.2 Radiated disturbance (at 100 MHz) ̾ Class B limit = 30 dBV/m at 10 m ̾ Level (20 dBV/m) = Meter Reading (40 dBV) + factor (- 20 dB (1/m), antenna factor + cable loss – amplifier gain) ̾ Margin (10 dB) = Limit (30 dBV/m) – Level (20 dBV/m) = 10 dB below limit 2. Summary of test results 2.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains Port) FCC Part 15 Subpart B / ANSI C63.4-2009 Complied Radiated Disturbance Complied No. Revised detailed information Issue 0 There are no revisions and this version is basic test report. Project No. : LBE20125898 Mono Laser Print : ProXpress M4025DW - 4/52- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3. General Information 3.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 4. Test Setup configuration 4.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Seq Description Model No. Serial No. Manufacturer Fcc ID / DoC A Mono Laser Print ProXpress M4025DW - Samsung EUT B PC NT-NC110P-PS S HR5793VBC00008B Sam…

Text truncated - open the document above for the full version.

Project No. : LBE20125898 Mono Laser Print : ProXpress M4025DW - 11/52- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.1.3 Photograph of Test Setup Front Rear Project No. : LBE20125898 Mono Laser Print : ProXpress M4025DW - 27/52- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.2.3 Photograph of Test Setup Front (Below 1GHz) Rear (Below 1GHz) Project No. : LBE20125898 Mono Laser Print : ProXpress M4025DW - 28/52- This report must not be reproduced, except in full, without written permission from CS & Environment center. Front (above 1GHz) Rear (above 1GHz)
