A3LSLS-BD104Q1WiMAX / TD-LTE Remote Radio Head

Ver. 2600-00ETB9GAA 2.0 310 Mobile WiMAX/TD-LTE RRH-2WB Installation Manual COPYRIGHT This manual is proprietary to SAMSUNG Electronics Co., Ltd. and is protected by copyright. No information contained herein may be copied, translated, transcribed or duplicated for any commercial purposes or disclosed to the third party in any form without the prior written consent of SAMSUNG Electronics Co., Ltd. TRADEMARKS Product names mentioned i this manual may be trademarks and/or registered trademarks of their respective companies. ©2012 SAMSUNG Electronics Co., Ltd. All rights reserved. This manual should be read and used as a guideline for properly installing and operating the product. This manual may be changed for the system improvement, standardization and other technical reasons without prior notice. Updated manuals are available at: https://systems.samsungwireless.com/ For questions on the manuals or their content, contact [email protected] 310 RRH-2WB (TD-LTE Fx) Installation Manual © SAMSUNG Electronics Co., Ltd. I INTRODUCTION Purpose This manual describes how to install the RRH-2WB of TD-LTE Flexible system (SLS- BD104) which is a multi-mode BS of Mobile WiMAX/TD-LTE, and how to connect cables. Document Content and Organization This document consists of 3 Chapters, 6 Annex and Abbreviation, which are summarized as follows: CHAPTER 1. Before Installation This chapter introduces the safety rules that must be understood for installing the RRH-2WB and describes the block diagram of the RRH-2WB. CHAPTER 2. Installing System This chapter describes the procedures to install the RRH-2WB. CHAPTER 3. Connecting Cables This chapter describes the procedures to connect the cables to the RRH-2WB installed. ANNEX A. Sector Antenna Installation This annex describes cautions and installation procedure of the sector antenna. ANNEX B. Installing Feeder Cable This annex describes cautions and allowed radius of curvature when installing feeder line. ANNEX C. Connector Assembly This annex describes the procedure of assembling connector. ANNEX D. Cleaning Optic Connector This annex describes the procedure of cleaning the optic connector and cleaning tool. 310 RRH-2WB (TD-LTE Fx) Installation Manual © SAMSUNG Electronics Co., Ltd. II ANNEX E. Pressure Terminal Assembly This annex describes the procedure of assembling the pressure terminal. ANNEX F. Standard Torque This annex describes the standard torque when assembling the fixing materials. ABBREVIATION Describes the acronyms used in this manual. Conventions The following types of paragraphs contain special information that must be carefully read and thoroughly understood. Such information may or may not be enclosed in a rectangular box, separating it from the main text, but is always preceded by an icon and/or a bold title. WARNING Provides information or instructions that the reader should follow in order to avoid personal injury or fatality. CAUTION Provides information or instructions that the reader should follow in order to avoid a service failure or damage to the system. CHECKPOINT Provides the operator with checkpoints for stable system operation. NOTE Indicates additional information as a reference. 310 RRH-2WB (TD-LTE Fx) Installation Manual © SAMSUNG Electronics Co., Ltd. III Revision History VERSION DATE OF ISSUE REMARKS 2.0 06. 2012. - ‘Humidity condition’ was changed. (1.2) - ‘Table 3.5’~‘Table 3.7’ were changed. - ‘Cable Connection of RET’ (3.5.2) was added. - DU configuration was changed. (Figure 3.2, Table 3.7) 1.0 04. 2012. First Version 310 RRH-2WB (TD-LTE Fx) Installation Manual © SAMSUNG Electronics Co., Ltd. IV SAFETY CONCERNS The purpose of the Safety Concerns section is to ensure the safety of users and prevent property damage. Please read this document carefully for proper use. Symbols Caution Indication of a general caution Restriction Indication for prohibiting an action for a product Instruction Indication for commanding a specifically required action 310 RRH-2WB (TD-LTE Fx) Installation Manual © SAMSUNG Electronics Co., Ltd. V Warning Power and Grounding Watches, Rings, and Other Metallic Accessories Do not wear accessories such as watches and rings in order to prevent electrical shock. Power Switch Off Make sure the power switch of power supplier is off when installing the system. Installing the system with power switch on may cause system damage or fatal human injury when cables are not correctly connected. Warning for Connecting the Ground Cable In cabling, the connection of cables without the connection to the ground cable may cause the damage of the equipment or the injury of the worker. Connect the ground cable first. Installation Warning for Laser Beam Running through Optical Cables In the system, the laser beam emitting light runs through the optical cable. The exposure of the laser beam on worker’s eye may cause serious injury so that it should be handled with care. Protection gloves and goggles Make sure that worker wears protection gloves and goggles to prevent damages from debris while drilling holes in a wall or ceiling. WARNING 310 RRH-2WB (TD-LTE Fx) Installation Manual © SAMSUNG Electronics Co., Ltd. VI Caution Power and Feeder line Cautions while Cleaning Power Supply While cleaning the power supply device, take caution that the device does not come in contact with alien bodies that may cause power failure. Handling the Power Cable - Handling the power cable incorrectly may damage the rack or cause an electric shock through the cable. Ensure the power switch on the rectifier or the system is turned off before handling the power cable. - The fixing materials for power cable must be tightly secured to prevent electrical accidents. Power cable In case of using AWG8 (6 mm 2 × 2C) power cable, it is applicable up to 70 m (299.66 ft). When the distance is 70 m (299.66 ft), followings should be considered. - Do not rapid ON/OFF (within one second): The voltage loss value caused by the cable resistance loss…

Text truncated - open the document above for the full version.

SAMSUNG Electronics Co., Ltd. Date: November 12, 2012 / FCC ID : A3LSLS-BD104Q1 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dear To whom it concerns : Samsung’s SLS-BD104Q1 WiMAX base station Remote Radio Head currently has been deployed on radio towers throughout the U.S in combination with the digital baseband unit (DU). The tower mounted remote radio heads have current FCC approval under the FCC ID : A3LSPI- 22132825WB. The Remote Radio Heads (RRH) (3 per tower) are controlled via F/O by a ground mounted DU system. The system is the Flexible Radio Access System (FRAS). The same RRH (identical hardware/firmware upgrade) has recently been tested and approved for 30 Watt TD- LTE and WiMAX operation under FCC ID: A3LSLS-BD104Q. However, these have not been deployed. Currently the RRH (again identical hardware/firmware upgrade) is being tested for 40 Watt TD-LTE and WiMAX operations (10Watts/port –4 RF Ports). The RRH’s are capable of this operation firmware upgrade via the DU without any hardware change made to the RRH unit. As the overall output rating of the RRH will be changing the plan is to obtain a new FCC ID for the 40 Watt operation as well as also covering the 30 Watt and 20 Watt operations. We, the undersigned, hereby authorize <PCTEST Engineering Laboratory, Inc.>, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by <PCTEST Engineering Laboratory, Inc>, on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing <PCTEST Engineering Laboratory, Inc.> as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Kee Sung Nam Director Samsung Electronics Co., LTD. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Request for Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date : November-15-2012 RE: Certification Application FCC ID: A3LSLS-BD104Q1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description Confidential 1 Block Diagram 2 Parts Lists and Tune-up Procedure 3 Schematics 4 Operational Description Short-Term Confidential 5 External Photos 6 Internal Photos 7 Test Setup Photos 8 User’s Manual We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG temporary confidentiality of commercially sensitive information prior to product release. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457 & 0.459, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : SAMSUNG Electronics Co., Ltd. Address: 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Kee Sung Nam / Director

RRH External Photos

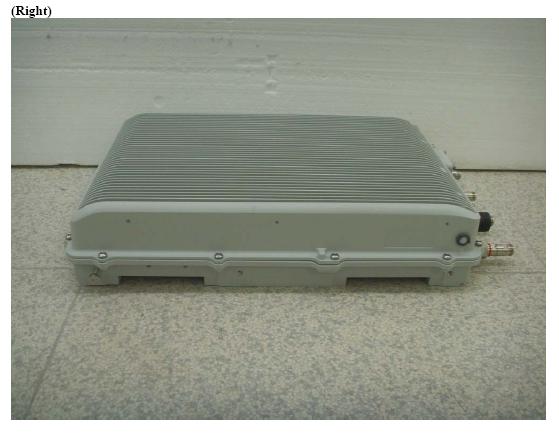

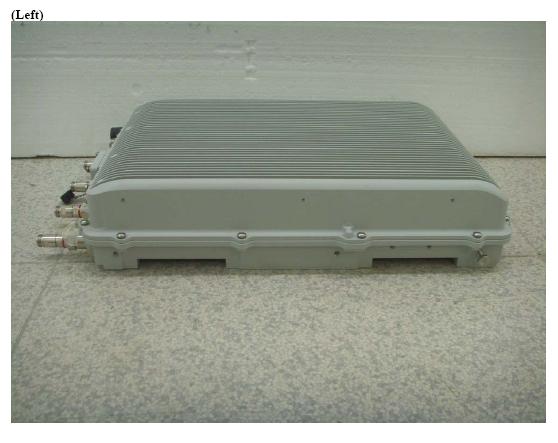

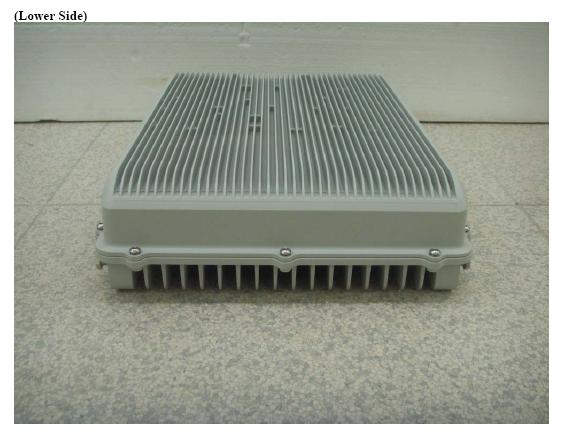

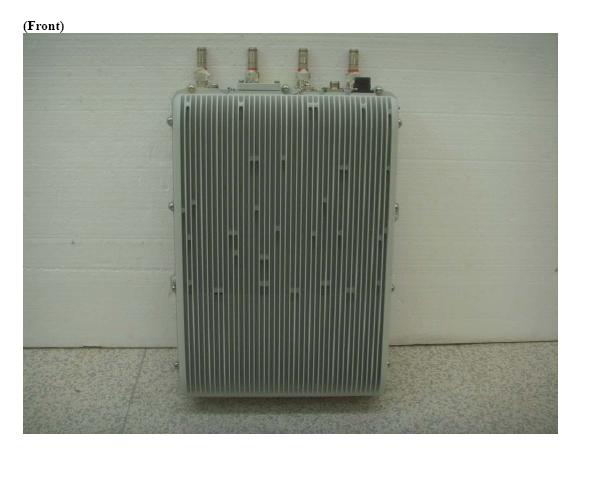

External Photos [Flexible RAS front] [Flexible RAS Back] [Left] [Right] [Bottom Side] [Top Side] Photo of the DU shelf boards equipped

ATTACHMENT A. - FCC ID LABEL INFORMATION AND LOCATION PHOTOS 1. FCC ID Label Information and Location Information The FCC Identifier Label will be displayed on the rear side of the DU (Digital Unit) shelf in accordance with the following format, displaying FCC ID: A3LSLS-BD104Q1. The adhesive label made by polyester shown shall be permanently affixed at a conspicuous location on the device. Figure 1. FCC ID LABEL Figure 2. Label Location Figure 2 DU shelf rear side Label Placement 2. FCC ID Label Information and Location Information The FCC Identifier Label will be displayed on the side of the RRH(Remote Radio Head) in accordance with the following format, displaying FCC ID: A3LSLS-BD104Q1. The adhesive label made by polyester shown shall be permanently affixed at a conspicuous location on the device. Figure 3. FCC ID LABEL Figure 4. Label Location

RRH Internal Photos (nRRH DTA Bottom)

MEI card Internal Photos [MEI TOP] [MEI BOTTOM] MRA-F Internal Photos [MRA-F41O TOP] [MRA-F41O BOTTOM] MRA-L Internal photos [MRA-L Top] [MRA-L Bottom] [LMM-AAS Daughter board Top] [LMM-AAS Daughter board Bottom] [MRA-L with the LMM-AAS daughter board equipped on the top of the MRA-L]

Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 1 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 09/28 - 11/06/2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab., Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1210191526.A3L FCC ID: A3LSLS-BD104Q1 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SLS-BD104Q1 EUT Type: Base Station FCC Classification: Licensed Non-Broadcast Transmitter (TNB) FCC Rule Part(s): §2; §27 Subpart M Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168, KDB 662911 Test Device Serial No.: identical prototype [S/N: N/A] Max. Summed Power (W) Max. Summed Power (dBm) WiMAX2506 - 268019M2G7WQPSK44.88146.52 WiMAX2506 - 268019M2W7W16QAM44.67546.50 WiMAX2506 - 268019M2W7W64QAM44.57246.49 TD-LTE2506 - 268018M0G7WQPSK21.98043.42 TD-LTE2506 - 268018M0W7W16QAM21.77943.38 TD-LTE2506 - 268018M0W7W64QAM21.87943.40 Mode Tx Frequency (MHz) Emission Designator Avg. Conducted Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 WiMAX/TD-LTE Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 2 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT..................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 EBS/BRS - FREQUENCY BLOCKS .................................................................................................... 6 3.3 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 6 3.5 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 7 3.6 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 TRANSMITTER CONDUCTED OUTPUT POWER ........................................................................... 12 6.3 MIXED MODE AND MIMO OPERATION........................................................................................... 14 6.4 WIMAX RADIATED MEASUREMENTS............................................................................................. 22 6.5 TD-LTE RADIATED MEASUREMENTS ............................................................................................ 25 6.6 WIMAX FREQUENCY STABILITY MEASUREMENTS..................................................................... 31 6.7 TD-LTE FREQUENCY STABILITY MEASUREMENTS..................................................................... 33 7.0 PLOT(S) OF EMISSIONS – WIMAX .............................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 129 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 16-QAM Modulation Plot 7-181. Conducted Spurious Plot (WiMAX Mode – Low Channel) Plot 7-182. Conducted Spurious Plot (WiMAX Mode – Low Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 130 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-183. Channel Edge Plot (WiMAX Mode – Low Channel) Plot 7-184. Lower Extended Channel Edge Plot (WiMAX Mode – Low Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 131 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-185. Upper Extended Channel Edge Plot (WiMAX Mode – Low Channel) Plot 7-186. Conducted Spurious Plot (WiMAX Mode – Mid Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 132 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-187. Conducted Spurious Plot (WiMAX Mode – Mid Channel) Plot 7-188. Channel Edge Plot (WiMAX Mode – Mid Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 133 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-189. Lower Extended Channel Edge Plot (WiMAX Mode – Mid Channel) Plot 7-190. Upper Extended Channel Edge Plot (WiMAX Mode – Mid Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 134 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-191. Lower Single Carrier Occupied Bandwidth Plot (WiMAX Mode – Mid Channel) Plot 7-192. Upper Single Carrier Occupied Bandwidth Plot (WiMAX Mode – Mid Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 135 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-193. Dual Carrier Occupied Bandwidth Plot (WiMAX Mode – Mid Channel) Plot 7-194. Conducted Spurious Plot (WiMAX Mode – High Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 136 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-195. Conducted Spurious Plot (WiMAX Mode – High Channel) Plot 7-196. Channel Edge Plot (WiMAX Mode – High Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 137 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-197. Lower Extended Channel Edge Plot (WiMAX Mode – High Channel) Plot 7-198. Upper Extended Channel Edge Plot (WiMAX Mode – High Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 138 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 64-QAM Modulation Plot 7-199. Conducted Spurious Plot (WiMAX Mode – Low Channel) Plot 7-200. Conducted Spurious Plot (WiMAX Mode – Low Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 139 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-201. Channel Edge Plot (WiMAX Mode – Low Channel) Plot 7-202. Lower Extended Channel Edge Plot (WiMAX Mode – Low Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 140 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-203. Upper Extended Channel Edge Plot (WiMAX Mode – Low Channel) Plot 7-204. Conducted Spurious Plot (WiMAX Mode – Mid Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 141 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-205. Conducted Spurious Plot (WiMAX Mode – Mid Channel) Plot 7-206. Channel Edge Plot (WiMAX Mode – Mid Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210191526.A3L 09/28 - 11/06/2012 Base Station Page 142 of 247 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Plot 7-207. Lower Extended Channel Edge Plot (WiMAX Mode – Mid Channel) Plot 7-208. Upper Extended Channel Edge Plot (WiMAX Mode – Mid Channel) Reviewed by: FCC ID: A3LSLS-BD104Q1 FCC Pt. 27 WiMAX / TD-LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y121019…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO. FCC ID: A3LSLS-BD104Q1 Model: SLS-BD104Q1 Test Set-Up Photos EUT Type: Base Station Page 1 of 2 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS SAMSUNG ELECTRONICS CO. FCC ID: A3LSLS-BD104Q1 Model: SLS-BD104Q1 Test Set-Up Photos EUT Type: Base Station Page 2 of 2 © 2012 PCTEST Engineering Laboratory Inc.
