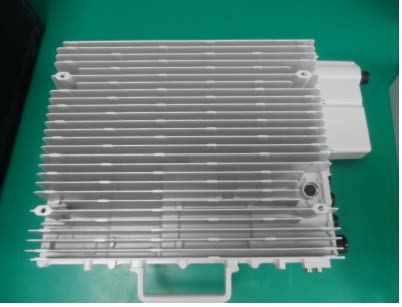

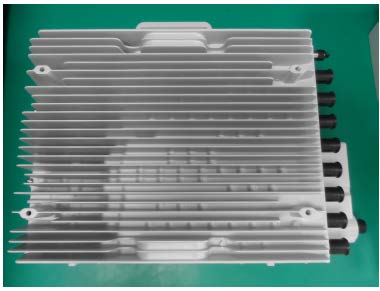

FCC ID : A3LSLS-BR02BQ HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 1/ 3 Front FCC ID : A3LSLS-BR02BQ HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 2/ 3 Top FCC ID : A3LSLS-BR02BQ HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr 3/ 3 Bottom

Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 2 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD Revision TEST REPORT NO.DATEDESCRIPTION HCT-R-1506-F038June 16, 2015- First Approval Report HCT-R-1506-F038-1June 17, 2015 Revised Typographical errors. HCT-R-1506-F038-2June 19, 2015- Additional Test Results HCT-R-1506-F038-3June 25, 2015 Revised MPE Test Results Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 3 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD C O N T E N T S 1. GENERAL INFORMATION..................................................................................................................... 5 1.1. Client Information.............................................................................................................................. 5 1.2. Product Information .......................................................................................................................... 5 1.3. Introduction of EUT ........................................................................................................................... 6 2. TEST SUMMARY ....................................................................................................................................... 7 2.1. Standards ........................................................................................................................................... 7 2.2. Mode of operation during the test ................................................................................................... 7 3. STANDARDS ENVIRONMENTAL TEST CONDITIONS .................................................................... 8 4. TEST EQUIPMENT ................................................................................................................................... 8 5. CONDUCTED OUTPUT POWER............................................................................................................ 9 5.1. Applicable Standard .......................................................................................................................... 9 5.2. Test Equipment List and Details ...................................................................................................... 9 5.3. Test Procedure................................................................................................................................... 9 5.4. Test Result ....................................................................................................................................... 10 6. OCCUPIED BANDWIDTH ....................................................................................................................110 6.1. Applicable Standard .......................................................................................................................110 6.2.Test Equipment List and Details ....................................................................................................110 6.3. Test Procedure................................................................................................................................110 6.4. Test Result ...................................................................................................................................... 111 7. SPURIOUS EMISSION AT ANTENNA TERMINAL ......................................................................... 208 7.1. Applicable Standard...................................................................................................................... 208 7.2. Test Equipment List and Details .................................................................................................. 208 7.3. Test Procedure............................................................................................................................... 208 7.4. Test Result ..................................................................................................................................... 209 8. RADIATED SPURIOUS EMISSION .................................................................................................... 574 8.1 Applicable Standard....................................................................................................................... 574 8.2 Test Equipment List and Details ................................................................................................... 574 8.3 Test Procedure................................................................................................................................ 575 8.4 Test Result ...................................................................................................................................... 576 9. FREQUECNY STABILITY.................................................................................................................... 577 9.1 Applicable Standard ....................................................................................................................... 577 9.2 Test Equipment List and Details ................................................................................................... 577 9.3 Test Procedure................................................................................................................................ 577 9.4. Test Result ..................................................................................................................................... 577 Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 4 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD 10. RF EXPOSURE STATEMENT............................................................................................................ 580 Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 5 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD 1. GENERAL INFORMATION 1.1. Client Information CompanySamsung Electronics Co., Ltd. Contact Point 416, Maeta…

Text truncated - open the document above for the full version.

Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 101 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (QPSK Middle Channel) (QPSK High Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 102 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (16QAM Low Channel) (16QAM Middle Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 103 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (16QAM High Channel) (64QAM Low Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 104 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (64QAM Middle Channel) (64QAM High Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 105 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD 5.7.29. Plot Data for Output Port 8 (Conducted Output Power) (QPSK Low Channel) (QPSK Middle Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 106 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (QPSK High Channel) (16QAM Low Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 107 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (16QAM Middle Channel) (16QAM High Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 108 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (64QAM Low Channel) (64QAM Middle Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 109 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (64QAM High Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 110 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD 6. OCCUPIED BANDWIDTH 6.1. Applicable Standard Requirements: CFR 47, Section 27.53(m)(6) Measurement procedure. Compliance with these rules is based on the use of measurement instrumentation employing a resolution bandwidth of 1 MHz or greater. However, in the 1 MHz bands immediately outside and adjacent to the frequency block a resolution bandwidth of at least one percent of the emission bandwidth of the fundamental emission of the transmitter may be employed. A narrower resolution bandwidth is permitted in all cases to improve measurement accuracy provided the measured power is integrated over the full required measurement bandwidth ( i.e. 1 MHz or 1 percent of emission bandwidth, as specified). The emission bandwidth is defined as the width of the signal between two points, one below the carrier center frequency and one above the carrier center frequency, outside of which all emissions are attenuated at least 26 dB below the transmitter power. With respect to television operations, measurements must be made of the separate visual and aural operating powers at sufficiently frequent intervals to ensure compliance with the rules. 6.2.Test Equipment List and Details ManufacturerModel / EquipmentSerial No. Calibration Interval Calibration Due AgilentN9020A /Signal AnalyzerMY51110068 Annual 07/21/2014 Agilent6674A / DC Power Supply3501A00901 Annual 07/24/2014 WEINSCHEL67-30-33 / AttenuatorCC7264 Annual 08/25/2014 WEINSCHEL67-30-33 / AttenuatorCC7265 Annual 08/26/2014 WEINSCHELAF9003-69-31 / Attenuator11787 Annual 10/24/2014 DYENTDFSS60 / DC Power Supply1003030-1 Annual 04/01/2014 6.3. Test Procedure The RF output of the transmitter was connected to the input of the spectrum analyzer through sufficient attenuation. The EUT was connected to a spectrum analyzer enabled with an occupied bandwidth function via its antenna port. Measurements were performed to determine the occupied bandwidth in accordance with FCC Part 2.1049. The occupied bandwidth was measured from the fundamental emission at the bottom, middle and top channels. The occupied bandwidth was measured using the built in occupied bandwidth function of the spectrum analyzer. It was set to measure the bandwidth where 99% of the signal power was contained. The Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 111 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD analyzer automatically configures the measurement bandwidths to make an accurate measurement based on the channel bandwidth and channel spacing of the EUT. 6.4. Test Result : PASS Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 112 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD LTE20M(6.67W) 6.4.1. Test Data at Output Port 1 Frequency (MHz) Occupied Bandwidth (MHz) QPSK16QAM64QAM 2506  2593  2680  6.4.2. Test Data at Output Port 5 Frequency (MHz) Occupied Bandwidth (MHz) QPSK16QAM64QAM 2506  2593  2680  Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 113 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD LTE20M(6.67W) 3 Carrier 6.5.1. Test Data at Output Port 1 Frequency (MHz) Occupied Bandwidth (MHz) QPSK16QAM64QAM 2526  2593  2660  6.5.2. Test Data at Output Port 5 Frequency (MHz) Occupied Bandwidth (MHz) QPSK16QAM64QAM 2526  2593  2660  Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 114 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD LTE20M(10W) 6.6.1. Test Data at Output Port 1 Frequency (MHz) Occupied Bandwidth (MHz) QPSK16QAM64QAM 2506  2593  2680  6.6.2. Test Data at Output Port 2 Frequency (MHz) Occupied Bandwidth (MHz) QPSK16QAM64QAM 2506  2593  2680  6.6.3. Test Data at Output Port 3 Frequency (MHz) Occupied Bandwidth (MHz) QPSK16QAM64QAM 2506  2593  2680  6.6.4. Test Data at Output Port 4 Frequency (MHz) Occupied Bandwidth (MHz) QPSK16QAM64QAM 2506  2593  2680  Report No.: HC…

Text truncated - open the document above for the full version.

Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 201 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (16QAM Middle Channel) (16QAM High Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 202 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (64QAM Low Channel) (64QAM Middle Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 203 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (64QAM High Channel) 6.7.28. Test Plot at Output Port 8 (QPSK Low Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 204 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (QPSK Middle Channel) (QPSK High Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 205 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (16QAM Low Channel) (16QAM Middle Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 206 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (16QAM High Channel) (64QAM Low Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 207 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (64QAM Middle Channel) (64QAM High Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 208 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD 7. SPURIOUS EMISSION AT ANTENNA TERMINAL 7.1. Applicable Standard CFR 47§2.1051, §27.53 The spectrum was to be investigated to the tenth harmonics of the highest fundamental frequency as specified in §2.1051 §27.53(m) For BRS and EBS stations, the power of any emissions outside the licensee's frequency bands of operation shall be attenuated below the transmitter power (P) measured in watts in accordance with the standards below. If a licensee has multiple contiguous channels, out-of-band emissions shall be measured from the upper and lower edges of the contiguous channels. (2) For digital base stations, the attenuation shall be not less than 43 + 10 log (P) dB, unless a documented interference complaint is received from an adjacent channel licensee with an overlapping Geographic Service Area. Mobile Satellite Service licensees operating on frequencies below 2495 MHz may also submit a documented interference complaint against BRS licensees operating on channel BRS No. 1 on the same terms and conditions as adjacent channel BRS or EBS licensees. Provided that a documented interference complaint cannot be mutually resolved between the parties prior to the applicable deadline, then the following additional attenuation requirements shall apply: 7.2. Test Equipment List and Details ManufacturerModel / EquipmentSerial No. Calibration Interval Calibration Due AgilentN9020A /Signal AnalyzerMY51110068 Annual 07/21/2014 Agilent6674A / DC Power Supply3501A00901 Annual 07/24/2014 WEINSCHEL67-30-33 / AttenuatorCC7264 Annual 08/25/2014 WEINSCHEL67-30-33 / AttenuatorCC7265 Annual 08/26/2014 WEINSCHELAF9003-69-31 / Attenuator11787 Annual 10/24/2014 DYENTDFSS60 / DC Power Supply1003030-1 Annual 04/01/2014 WAINWRIGHT INSTRUMENT WHK3.0/18G-10EF /HIGHPASS FILTE8 Annual 06/23/2014 7.3. Test Procedure The RF output of the transceiver was connected to a spectrum analyzer through appropriate attenuation. The resolution bandwidth of the spectrum analyzer was set at 1MHz. Sufficient scans were taken to show Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 209 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD any out of band emissions up to 10th harmonic. 7.4. Test Result : Pass Notes: Due to 8x8 MIMO operation, limit is -22.03dBm (-13dBm – 10*log(8)) per FCC KDB 662911D01v02r01. Above 3 GHz, in order to reduce the measurement instrumentation noise floor a high pass filter has been used to block the fundamental. Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 210 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD LTE20M(6.67W) 7.4.1. Test Data at Output Port 1 30 MHz ~ 1 GHz Frequency (MHz) Spurious emission (dBm) QPSK16QAM64QAM 2506  2593  2680  1 GHz ~ 26.5 GHz Frequency (MHz) Spurious emission (dBm) QPSK16QAM64QAM 2506  2593  2680  3 GHz ~ 26.5 GHz Frequency (MHz) Spurious emission (dBm) QPSK16QAM64QAM 2506  2593  2680  Frequency (MHz) Band edge (dBm) QPSK16QAM64QAM 2506  2680  Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 211 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD 7.4.2. Test Data at Output Port 5 30 MHz ~ 1 GHz Frequency (MHz) Spurious emission (dBm) QPSK16QAM64QAM 2506  2593  2680  1 GHz ~ 26.5 GHz Frequency (MHz) Spurious emission (dBm) QPSK16QAM64QAM 2506  2593  2680  3 GHz ~ 26.5 GHz Frequency (MHz) Spurious emission (dBm) QPSK16QAM64QAM 2506  2593  2680  Frequency (MHz) Band edge (dBm) QPSK16QAM64QAM 2506  2680  Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 212 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD LTE20M(6.67W) 3 Carrier 7.4.3. Test Data at Output Port 1 30 MHz ~ 1 GHz Frequency (MHz) Spurious emission (dBm) QPSK16QAM64QAM 2526  2593  2660  1 GHz ~ 26.5 GHz Frequency (MHz) Spurious emission (dBm) QPSK16QAM64QAM 2526  2593  2660  3 GHz ~ 26.5 GHz Frequency (MHz) Spurious emission (dBm) QPSK16QAM64QAM 2506  2593  2680  Frequency (MHz) Band edge (dBm) QPSK16QAM64QAM 2526  2660 …

Text truncated - open the document above for the full version.

Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 301 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (3 GHz ~ 26.5 GHz) (QPSK High Channel) (30 MHz ~ 1 GHz) (QPSK High Channel) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 302 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (1 GHz ~ 26.5 GHz) (3 GHz ~ 26.5 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 303 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (Band Edge High) (16QAM Low Channel) (30 MHz ~ 1 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 304 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (16QAM Low Channel) (1 GHz ~ 26.5 GHz) (3 GHz ~ 26.5 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 305 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (Band Edge Low) (16QAM Middle Channel) (30 MHz ~ 1 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 306 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (16QAM Middle Channel) (1 GHz ~ 26.5 GHz) (3 GHz ~ 26.5 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 307 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (16QAM High Channel) (30 MHz ~ 1 GHz) (16QAM High Channel) (1 GHz ~ 26.5 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 308 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (3 GHz ~ 26.5 GHz) (Band Edge High) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 309 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (64QAM Low Channel) (30 MHz ~ 1 GHz) (64QAM Low Channel) (1 GHz ~ 26.5 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 310 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (3 GHz ~ 26.5 GHz) (Band Edge Low) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 311 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (64QAM Middle Channel) (30 MHz ~ 1 GHz) (64QAM Middle Channel) (1 GHz ~ 26.5 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 312 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (3 GHz ~ 26.5 GHz) (64QAM High Channel) (30 MHz ~ 1 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 313 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (64QAM High Channel) (1 GHz ~ 26.5 GHz) (3 GHz ~ 26.5 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 314 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (Band Edge High) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 315 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD 7.4.27. Test Data at Output Port 2 (QPSK Low Channel) (30 MHz ~ 1 GHz) (QPSK Low Channel) (1 GHz ~ 26.5 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 316 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (3 GHz ~ 26.5 GHz) (Band Edge Low) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 317 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (QPSK Middle Channel) (30 MHz ~ 1 GHz) (QPSK Middle Channel) (1 GHz ~ 26.5 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 318 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (3 GHz ~ 26.5 GHz) (QPSK High Channel) (30 MHz ~ 1 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 319 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (QPSK High Channel) (1 GHz ~ 26.5 GHz) (3 GHz ~ 26.5 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02BQPage 320 of 581 F-01P-02-014 (Rev.00) FCC ID: A3L SLS-BR02BQ HCT CO., LTD (Band Edge High) (16QAM Low Channel) (30 MHz ~ 1 GHz) Report No.: HCT-R-1506-F038-3Model: SLS-BR02…
