A3LSM-R130Bluetooth Stereo Headset

129, Samsung‐Ro, Yeongtong‐Gu, Suw on‐City Gyeonggi‐Do, 443‐742, Korea July 31 , 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevan t provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make clai ms regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certifie d as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsung‐Ro, Yeongtong‐Gu, Suw on‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Chan Ho, Youn / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐ City Gyeonggi‐Do, 443‐742, Korea July 31, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LSM-R130 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Chan Ho, Youn / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

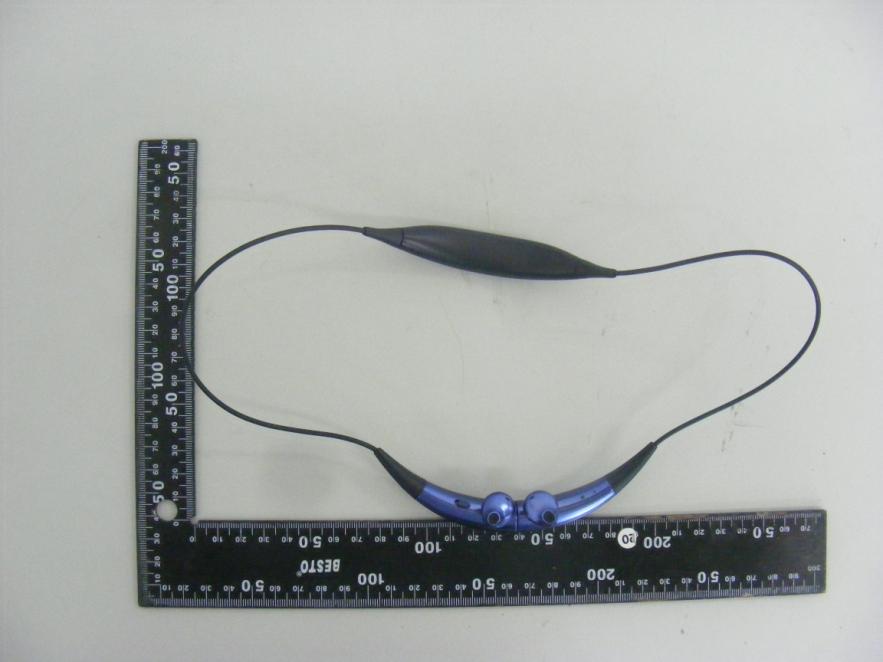

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT

LABEL INFO. MODEL: SM-R130 FCC ID: A3LSM-R130 IC: 649E-SMR130

Internal photos of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB Bottom view of Sub PCB Top view of Sub PCB Bottom view of Sub PCB Top view of Sub PCB Bottom view of Sub PCB View of Antenna BT Antenna

FCC ID : A3LSM-R130 According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, mm)] x [√f (GHz) ] ≤ 3.0 1. SAR test exclusion threshold Frequency : 2 480 ㎒ (min. separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = 3 x 5 / (√ 2.480 ) = 9.525 ㎽ Max. tune-up tolerance(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 4.000 9.525 Calculation value : 4.000 (㎽) / 5 (mm) x √ 2.480 = 1.260 So, Calculation value ≤ 3.0 2. Conclusion : No SAR is required.

Report Number: F690501/RF-RTL007842 Page : 2 of 70 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 7 3. 20㏈ Bandwidth and 99 % BW ------------------------------------------------------------------ 31 4. Maximum Peak Output Power ------------------------------------------------------------------- 43 5. Hopping Channel Separation --------------------------------------------------------------------- 45 6. Number of Hopping Frequency ------------------------------------------------------------------ 48 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 52 8. Transmitter AC Power Line Conducted Emission-------------------------------------------- 65 9. Antenna Requirement ------------------------------------------------------------------------------ 70 Report Number: F690501/RF-RTL007842 Page : 3 of 70 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : + 82 31 688 0901 Fax No. : + 82 31 688 0921 1.2. Details of Applicant Applicant : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person : Yoon, Hyo-Jung Phone No. : +82 31 301 5878 1.3. Description of EUT Kind of Product Bluetooth Stereo Headset Model Name SM-R130 Power Supply DC 3.7 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (BT) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels Antenna Type FPCB Antenna Type Antenna Gain -1.25㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels. Report Number: F690501/RF-RTL007842 Page : 4 of 70 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number: F690501/RF-RTL007842 Page : 5 of 70 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100272 Aug. 10, 2013 Annual Aug. 10, 2014 Signal Generator R&S SMJ 100A 100882 Jun. 25, 2014 Annual Jun. 25, 2015 Spectrum Analyzer Agilent N9030A US51350132 Oct. 08, 2013 Annual Oct. 08, 2014 Directional Coupler KRYTAR 152613 127447 Mar. 24, 2014 Annual Mar. 24, 2015 Bluetooth Tester TESCOM TC-3000C 3000C000142 Dec. 12, 2013 Annual Dec. 12, 2014 Blu…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Radiated Spurious Emission Test (Below 1GHz) B. Photo of Radiated Spurious Emission Test (Above 1GHz) C. Photo of AC Power Line Conducted Emission
