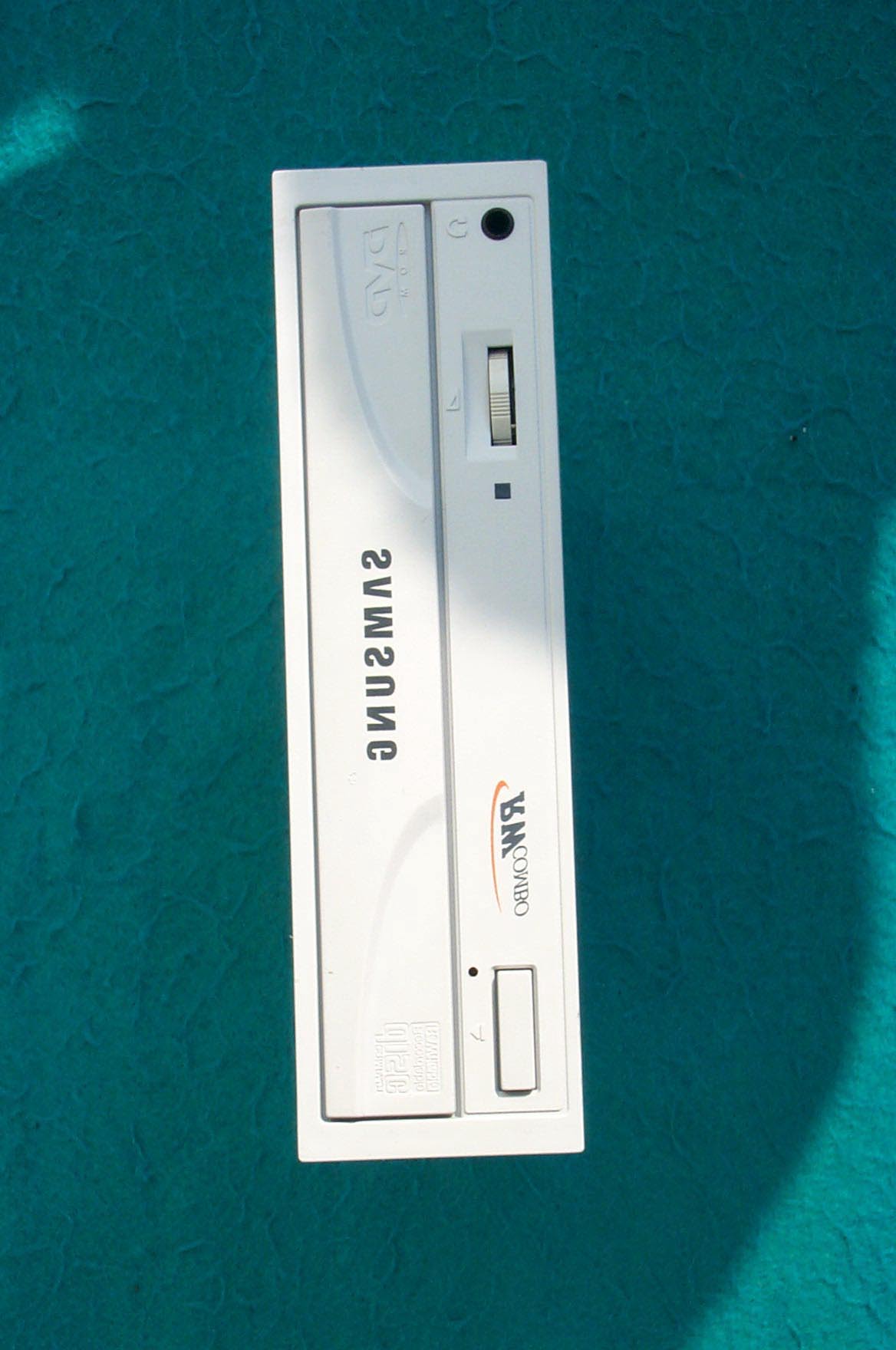

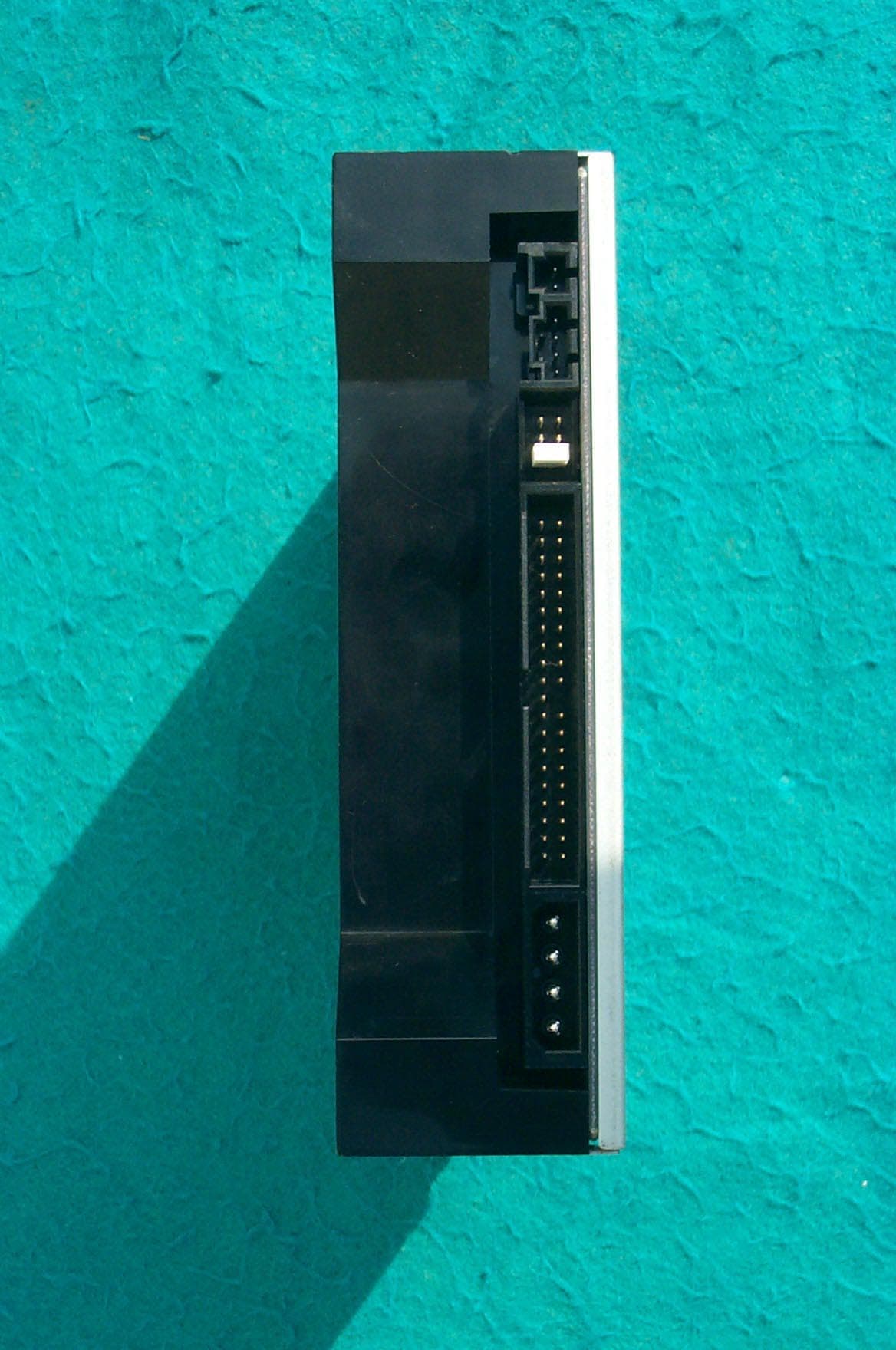

A3LSM308CD-RW/DVD Drive

User's Guide http://www.samsungelectronics.com CD-RW/DVD DRIVESM-308 Contents 3 Safety Precautions 2 The following diagrams illustrate the precautions to be taken when usingyour COMBO drive. You must not use the drive in any manner other than that specified in this guide. Avoid exposing your eyes or skin to direct or scattered radiation. CAUTION Do not attempt to repair the COMBO drive yourself. Contactyour dealer or local SAMSUNG representative for all repairs.If you make any adjustments or perform any operations otherthan those specified in this guide, you run the risk of exposure tohazardous radiation. WARRANTY Please refer to the Samsung limited warranty statements . Precautions 1. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. 2. Always check each disc for cracks before using it. If there are cracks on the surfaces, especially around the border of thecenter hole, we recommend that you make a copy of the discimmediately and then stop using it. If you continue using thedisc, it will probably develop more cracks and eventually causeirreparable damage. 3. Do not use poor quality discs:  From unknown sources  Without any copyright  Scratched or damaged in any way Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Your COMBO Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Upgrading the Firmware Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . .5System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Installing the COMBO Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Connecting the Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Installing the CD Record Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8Installing the Device Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8Setting Up the Device Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9Using the COMBO Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10Storing and Cleaning Your Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10Solving Recording Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Recommended Disc Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13Solving Technical Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 * All product names mentioned in this document are trademarks or registered trademarks of their respective owners. Installing the COMBO DriveUpgrading the Firmware Flash Memory 5 The product firmware can be upgraded by downloading the updated file from thefollowing Web site: http://www.samsungelectronics.com To install your COMBO drive in the PC, proceed as follows.1 Make sure that the PC is powered off and disconnected from any power source. 2 If necessary, attach a horizontal bracket to both sides ofthe drive. COMBO drive  Use of the brackets depends on your computermodel; you can purchase these accessoriesseparately from your computer dealer. 3 Remove the cover from a free expansion slot and installthe COMBO drive, as shown in the illustration.  If you have no free expansion slot, install the drive inplace of the diskette drive. Before you install the COMBO drive, we strongly recommend that youcheck that your setup meets the system requirements listed below.System Requirements Item Description Computer Intel Pentium II ( or higher), 32 MB of RAM (or higher) with an IDE interface Free expansion unit 5.25 inch Disc space 700 MB minimum Windows version Windows 95/98/2000 OSR2 (or higher) DVD Video playback PC with Windows 95/98/2000 OSR2 DVD-Video playback software and appropriate hardware (the Power DVD MPEG software is included in the COMBO drive package) Your Combo Drive 4 1234 56 1 23 4 5 1. Earphone connection terminal2. Volume control3. Indicator light (when it is green, a disc is being read or recorded)4. Disc compartment5. Emergency eject hole (if the compartment does not open when you press the Eject button, insert a pin or unfolded paper clip in thehole and push firmly) 6. Eject button1. Digital output terminal2. Sound output terminal3. Master/slave select terminal4. Interface terminal5. Power terminal 7 Connecting the Cables 6 1. Power cable 3. IDE cable 2. Master/slave select terminal 4. Audio cable 1 Connecting the power cableThe 4-pin power cable from the internal power unit of your computer must beconnected to the power terminal on the rear of the COMBO drive. 3 Connecting the IDE cableTwo configurations are possible. The COMBO drive is the only IDE device in addition to the hard disc. 4 Connecting the audio cable from a sound cardConnect the 4-pin audio cable between the sound output terminal on the COMBOdrive and the audio input terminal on the sound card. 2 Installing a jumper on the master/slave select terminalInstall the jumper in the correct position on the terminal:MA to use the device in the master modeSL to use the device in the slave modeCS to control the device via a CSEL host interface signal See Step 3 for further details. IDE port Mother board COMBO (SL) Hard disc (MA) Second IDE cable COMBO (MA) CD-ROM (SL) Hard disc (SL) Hard disc (MA) First IDE cable Mother board Install the jumper in the SL position (Slave).Connect the 40-pin flat IDE cable from the IDE port on the mother board, first tothe COMBO drive and then to the ha r d disc .  You already have an additional IDE device installed in your computer. Install the jumper in the MA position (Master).Connect the 40-pin flat IDE cable from a second IDE port on the motherboard directly to the COMBO drive or first to another additional IDE drive andth…

Text truncated - open the document above for the full version.
