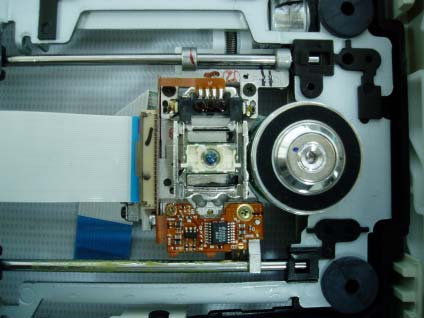

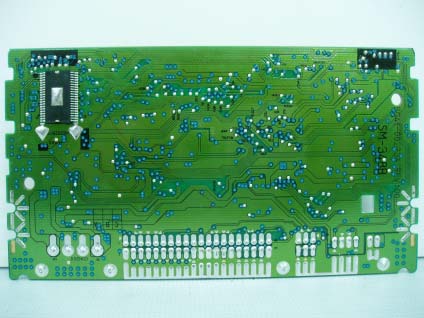

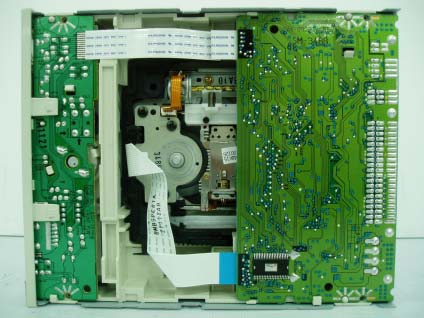

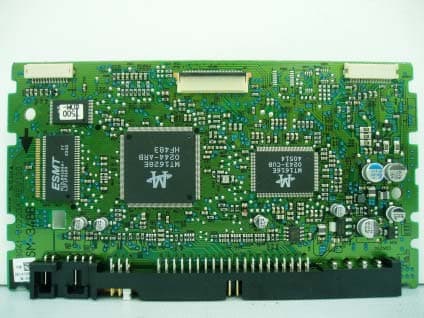

A3LSM340CD-RW/ DVD Drive

COMBO DRIVESM-340 User's Guide FCC Compliance This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmfulinterference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and,if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be deter-mined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures: Re-orient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.Consult the dealer or an experienced radio/TV technician for help. Contents 2 Safety Precautions 3 ENGLISH The following diagrams illustrate the precautions to be taken when usingyour COMBO drive. ✱ Changes or modifications not expressly approved by the party responsible forcompliance could void the user authority to operate the equipment. You must not use the drive in any manner other than that specified in this guide. Avoid exposing your eyes or skin to direct or scattered radiation. CAUTION Do not attempt to repair the COMBO drive yourself.Contact your dealer or local SAMSUNG representative for all repairs.If you make any adjustments or perform any operations other than thosespecified in this guide, you run the risk of exposure to hazardous radiation. WARRANTY Please refer to the Samsung limited warranty statements. PRECAUTIONS 1. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. 2. Always check each disc for cracks before using it. If there are cracks on the surfaces, especially around the border of the centerhole, we recommend that you make a copy of the disc immediatelyand then stop using it. If you continue using the disc, it will probablydevelop more cracks and eventually cause irreparable damage. 3. Do not use poor quality discs: From unknown sourcesWithout any copyrightScratched or damaged in any way Safety Precautions 3 Your COMBO Drive 4 Upgrading the Firmware Flash Memory 5 System Requirements 5 Installing the COMBO Drive 6 Connecting the Cables 6 Installing the CD Record Utility 9 Installing the Device Driver 9 Setting Up the Device Driver 10 Recommended Disc Types 10 Using the COMBO Drive 11 Storing and Cleaning Your Discs 11 Solving Recording Problems 12 Caution with errors 14 Term Description 15 Recommended Disc Type 15 General DMA Installation Guide 15 Solving Technical Problems 16 Technical Specifications 18 * All product names mentioned in this document are trademarks or registered trademarks of their respective owners. ENGLISH 5 Upgrading the Firmware Flash Memory Your COMBO Drive 4 1. Connector for stereo headphones with a 3.6 mm stereo mini-jack2. Headphone volume control3. Disc compartment (the compartment opens and closes automatically when you press the Eject button) 4. Emergency eject hole (if the compartment does not open when you press the Eject button, power off the computer, insert a pin orunfolded paper clip in the hole and push firmly) 5. Indicator light6. Eject button The product firmware can be upgraded by downloading the updated file from thefollowing Web site: http:// www.samsung-ODD.com www.samsungelectronics.com System Requirements Before you install the COMBO drive, we strongly recommend that you check thatyour setup meets the system requirements listed below.Item Description Computer Intel Pentium II 300MHz/Celeron 333A(or higher), 32 MB of RAM (or higher) with an IDE interface Free expansion unit 5.25 inch Disk space 700 MB minimum Windows version Windows 98/2000/ME/XP/NT4.0 (or higher) (For Windows NT, we recommend Service Pack2,and Version is over 4.00.1381) MS-DOS 5.0 or higher (For MS-DOS, The CD-R/CD-RW driver can only read a disc without premaster Software.) DVD Video playback PC with Windows 98/2000/ME/XP/NT4.0 DVD-Video playback software and appropriatehardware (the Power DVD MPEG software isincluded in the COMBO drive package) 1. Two-pin digital audio output terminal for use with a sound or MPEG card supporting digital audio features 2. Four-pin sound output terminal for use with a sound card (refer to the sound card documentation for further details) 3. Master/slave select terminal4. 40pin host E-IDE interface connector5. 4pin power terminal 12 3 456 1 23 4 5 DVD Region Protection Coding (RPC): The RPC feature is supported on DVD players and is used with DVD-video discs(such as movies). Currently, the motion picture industry has divided the world intodifferent regions or zones that correspond to the regional markets into which themotion picture industry releases movies. Simply put, RPC codes are placed on moviesmarketed throughout the world, based on the region of the world in which they arebeing sold. These RPC codes help control and prevent pirating of new movies intoother motion picture regions prior to their true release dates within those markets.The SM-340 COMBO drive supports RPC phase II. In the RPC-2 mode, the localcode can be changed by users.RPC-2 is selected by default for the SM-340 COMBO drive.You can change the region code up to five times via an MPEG application.Please contact your dealer or local SAMSUNG representative if you wish to changethe local code more than five times. ENGLISH 7 6 Installing the COMBO DriveConnecting the Cables To install your COMBO drive in the PC, proceed as follows.1 Make sure that the PC is powered off and disconnected from any power source. 1 Connecting the power cableThe 4-pin power cable from the internal power unit of your computer …

Text truncated - open the document above for the full version.

Report No.: EMC-FCC-0054 Page : 1 of 15 EMI TEST REPORT Test report No. : EMC- FCC- 0054 Type of equipment : CD-RW/DVD DRIVE Model No. : SM-340 FCC ID. : A3LSM340 Applicant : SAMSUNG ELECTRONICS CO., LTD. Test standards : FCC part 15 subpart B, Class B Test Procedure and Items : - AC Power Line Conducted Emissions Measurement: ANSI C63.4-1992 - Radiated Emissions Measurement : ANSI C63.4-1992 Test result : Complied The above equipment was tested by EMC compliance Testing Laboratory for compliance with the requirements of FCC Rules and Regulations. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of test: 2003.1.16~1.17 Issued date: 2003 . 1. 27 Tested by : Approved by: Kim, Jung-Soo Chung, Min-Seok 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0054 Page : 2 of 15 Contents 1. Client information 2. Laboratory information 3. Test system configuration 3.1 Operation environment 3.2 Measurement Uncertainty 3.3 Sample calculation 4. Descriptions of EUT 4.1 Product description 4.2 Peripherals 4.3 Used cables 4.4 Operating conditions 4.6 EUT test configuration 5. Summary of test results 5.1 Modification to the EUT 5.2 Standards & results 6. Test results 6.1 Conducted emission 6.1.1 Measurement procedure 6.1.2 Used equipments 6.1.3 Measurement uncertainty 6.1.4 Test data 6.2 Radiated emission 6.2.1 Measurement procedure 6.2.2 Used equipments 6.2.3 Measurement uncertainty 6.2.4 Test data 7. Test photographs Conducted emission Radiated emission 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0054 Page : 3 of 15 1. Client information Applicant: SAMSUNG ELECTRONICS CO., LTD. Address: 416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyungki-Do, Korea Telephone number: 82-31-200-4252 Facsimile number: 82-31-200-7890 Contact person: Hee-Sul Park Manufacture: SAMSUNG ELECTRONICS CO., LTD. Address: 416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyungki-Do, Korea Telephone number: 82-31-200-4252 Facsimile number: 82-31-200-7890 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0054 Page : 4 of 15 2. Laboratory information Address EMC compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone Number : 82 31 336 9919 Facsimile Number : 82 31 336 4767 FCC Filing No. : 793334 SITE MAP Yongin city EMC compliance 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0054 Page : 5 of 15 3. TEST SYSTEM CONFIGURATION 3.1 Operation Environment Temperature Humidity Pressure OATS : 5 °C 32 % 1014 hPa Shielded room : 19 °C 30 % 1011 hPa Test site These testing were performed following locations; Shielded room: Conducted emission, OATS (10m) : Radiated emission 3.2 Measurement Uncertainty All measurements involve certain levels of uncertainties, especially in field of EMI. The factors contributing to uncertainties are test receiver, Cable Loss, antenna factor calibration, Antenna directivity, antenna factor Variation with height, antenna phase center variation, antenna Frequency interpolation, measurement distance variation, Site imperfection, mismatching, and system repeatability. Based on NIS 80, 81, the measurement uncertainty level with a 95% confidence level was applied. 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0054 Page : 6 of 15 3.3 Sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss tr the measured reading. The sample calculation is as follows : FS = MR + LF + CL MR = Meter Reading LF = LISN Factor CL = Cable Loss If MR is 30dB, LISN Factor 1dB, CL 1dB The result (MR) is 30 + 1 + 1 = 32dBuV Radiated emission The field strength is calculated adding the antenna Factor, cable loss and, Antenna pad adding, subtracting the amplifier gain from the measured reading. The sample calculation is as follows : FS = MR + AF + CL + AT -AG MR = Meter Reading AF = Antenna Factor CL = Cable Loss AP = Antenna Pad AG=Amplifier Gain If MR is 30dB, AF 12dB, CL 5dB, AP 10dB, AG 35dB The result (MR) is 30 + 12 + 5 + 10 –35 = 22dBuV/m 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0054 Page : 7 of 15 4. Description of EUT 4.1 Product Description Manufactured by: SAMSUNG ELECTRONICS CO., LTD. Address: 416, Maetan-3Dong,Paldal-Gu, Suwon City, Kyungki-Do, Korea Type of equipment: CD-RW/DVD DRIVE Model: SM-340 Serial Number: N/A Features: - Data Buffer : 8MB - Required power : +5 VDC:2.0A(rms), +12 VDC:1.5A(rms) - Interface connector : ATAPI(E-IDE) - Access time: CD-RW: 130ms, DVD/CD: 130ms/110ms - Dimension : 148.2(W)X42(H)X184(D)mm (including bezel) 4.2 Peripherals Description Model / Part # Serial Number Manufacture PC EVO 6F28JYFZ7138 COMPAQ MONITOR PN17LT P225HVCT413264 SAMSUNG ELECTRONICS PRINTER EPSON STYLUS C60 DR5K014977 EPSON KEYBOARD KB-9963 B28AC0NGANB14DI COMPAQ MOUSE1 M-S69 F466B0MN3NG1C12 COMPAQ MOUSE2 OK-720 N/A A4 Tech HEADSET C-322 N/A LABTEC 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This…

Text truncated - open the document above for the full version.

Test setup photos Conducted emission Radiated emission
