A3LSM3PRC2.4 GHz Wireless USB Dongle

AA-SM3PWPB AA-SM3PWPS Rev 1.0 Samsung’s advanced PC technology expands your life to a new level of luxury and convenience Wireless Mouse Wireless Mouse User Guide 6 English English COMPONENTS Please ensure the following items are included in the box. Ú Actual Product shape and color may vary. SPECIFICATIONS t
Sensor type : Optical t
Connectivity type : 2.4GHz wireless t
Available range : Maximum 8M (26 feet) (Actual range may be aected by surrounding objects and battery capacity) t
Number of channels : 16 t
Dimensions : 102.5(L) x 59.0(W) x 33.5(H)mm t
Compatable OS : Windows 7 (32 Bits, 64 Bits) / Vista (32 Bits, 64 Bits) / XP SP3 t
Power source : 2 x Batteries (included) One Mouse One User’s guide One warrantycard One USB Receiver Two AAA size Batteries 7 English PART NAMES & FUNCTIONS Warning t
Do not touch leaking batteries directly. If liquid from the battery gets on skin or in eyes, t
flush out with water immediately and seek medical attention. t
Do not give batteries to young children, or store batteries where children may access them. t
Do not immerse batteries in water or otherwise get them wet. t
Battery overheating or leakage may cause product damage. t
Do not reverse the battery’s polarity ((+), (-) terminals). t
Do not modify, heat or recharge the batteries. t
Do not dispose of batteries or the product in a fire. ID Reset Button: When you want to reset ID, push the ID Reset button while the power of mouse is on. USB Receiver: Slightly push the USB receiver, then it will be attached by the power of magnet inside. Sensor Power On/Off Battery Cover To Switch DPI: Push mouse wheel button and right button simultaneously for 5 seconds then green LED will be twinkled to switch either to 1000 DPI or 1600 DPI * Note 1000 DPI is the factory default setting. - 1000dpi : green LED twinkle one time. - 1600dpi: green LED twinkle two times. LED indicator: Glows amber when the battery is low. The LED is turned off when the battery power is good. English 8 Regulatory Compliance Statements United States of America  Unintentional Emitter per FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference. If this equipment does cause harmful interference to radio or television reception, which can correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.   is connected. Consult the dealer or an experienced radio/TV technician for help.  If necessary, the user should consult the dealer or an experienced radio/television technician Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. Interference.” The correction will be the responsibility of the user. Use only shielded data cables with this system. CAUTION : English 9 WEEE Symbol Information Correct disposal of this product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. European Union  The following information is only applicable to systems labeled with the mark . European Directives Statement This Information Technology Equipment has been tested and found to comply with the following The equipment complies with the RF Exposure Requirement 1999/519/EC, Council Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0–300 GHz). This wireless device complies with the R&TTE Directive. European directives: EMC Directive 2004/108/EC  Low Voltage Directive 2006/95/EC  Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the national code or recycling program. CAUTION :  IC:649ESM3PWP  IC:649ESM3PRC  Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and (2)thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesired operationofthedevice.  LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradio exemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoit pasproduiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillage radioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement. G

Date: February 14, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: June 24, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSM3PRC To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos Short-Term 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

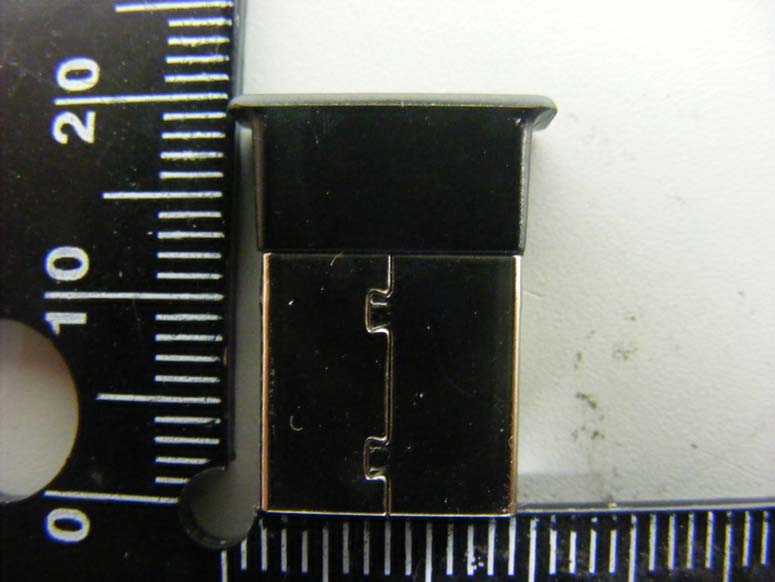

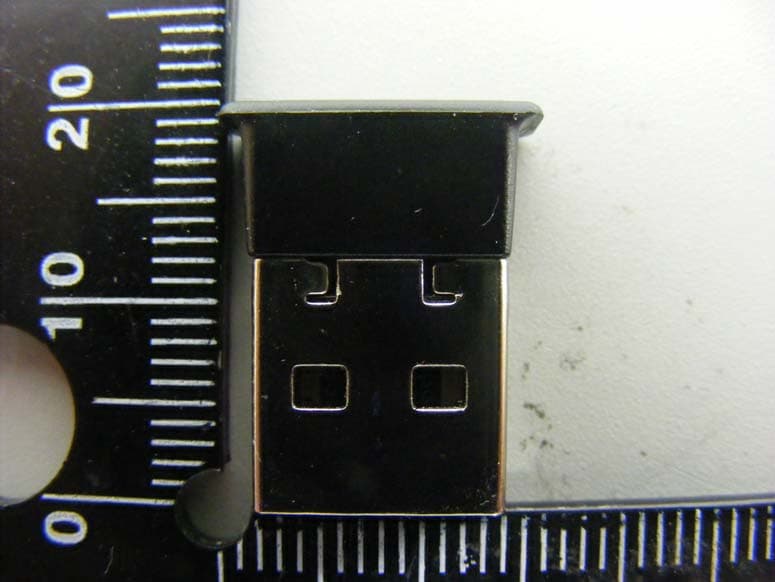

External photos of EUT Top view of EUT Bottom view of EUT Front view of EUT Rear view of EUT

FCC/IC Label 1. FCC Label 2. IC Label Location The EUT is too small to put label on the body. So, IC number and the other approval information will be included in the gift box. FCC: A3LSM3PRC

Internal photos of EUT Top view of PCB Bottom view of PCB

Report Number: F690501/RF-RTL004770 Page: 2 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee Table of contents 1. General information ----------------------------------------------------------------------- 3 2. Fundamental, Spurious emission and edge band radiated emission --------- 6 3. Receiver Radiated Spurious Emission------------------------------------------------ 13 4. Occupied Bandwidth ---------------------------------------------------------------------- 15 5. Transmitter AC Power Line Conducted Emission----------------------------------- 19 6. Receiver AC Power Line Conducted Emission-------------------------------------- 24 7. RF Exposure evaluation ------------------------------------------------------------------ 28 Report Number: F690501/RF-RTL004770 Page: 3 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1. General information 1.1 Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.kr.sgs.com/ee Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2 Details of applicant Applicant : SAMSUNG ELECTRONICS CO.,LTD. Address : 416, Maetan-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person : Lee, Sang Cheong Phone No. : +82 +10 8000 0700 1.3. Description of EUT Kind of Product 2.4 GHz Wireless USB dongle Model Name AA-SM3PRCV Serial Number N/A Power Supply DC 5 V (from PC USB port) Frequency Range 2 402 ~ 2 472 MHz Modulation Technique GFSK Number of Channels 16 Antenna Type Connector Type Antenna Gain 1.8 dBi H/W version Rev 1.0 S/W version Rev 1.0 1.4 Details of modification -N/A Report Number: F690501/RF-RTL004770 Page: 4 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.5. Test equipment list Equipment Manufacturer Model S/N Cal Due. Signal Generator R & S SMR40 100272 Jul. 15, 2011 Spectrum Analyzer R & S FSP40 100007 Jul. 15, 2011 Power Meter Agilent E4416A GB4129123 Mar. 30, 2012 Power Sensor Agilent E9327A US40441371 Mar. 30, 2012 Attenuator Agilent 8495B MY42140907 Apr. 01. 2012 High Pass Filter Wainwright WHK3.0/18G-10SS 344 Sep. 29, 2011 Preamplifier H.P. 8447F 2944A03909 Jul. 05, 2011 Preamplifier Agilent 8449B 3008A01932 Mar. 31, 2012 Test Receiver R & S ESU26 100109 Feb. 21, 2012 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 396 Jul. 22, 2011 Horn Antenna R & S HF 906 100326 Oct. 08, 2011 Antenna Master EMCO 1050 N.C.R N.C.R. Turn Table Daeil EMC DI-1500 N.C.R N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N.C.R N.C.R. Two-Line V-Network R & S ENV216 100190 Jan. 06, 2012 Test Receiver R & S ESHS10 863365/018 Jul. 13, 2011 Anechoic Chamber SY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N.C.R N.C.R Horn Antenna R & S BBHA9170 BBHA9170431 Mar. 17, 2012 1.6. Support equipment Equipment Manufacturer Type S/N Notebook PC LG IBM 2366 99-LZLR2 Report Number: F690501/RF-RTL004770 Page: 5 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.7. Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15, RSS-210,RSS-Gen Section in FCC 15 Section in RSS-210 RSS-Gen Test Item Result 15.209(a) 15.249(a) 15.249(d) 15.205 A2.9(a),(b) Fundamental, Spurious emission and edge band radiated emission Complied 15.109(a) RSS-Gen 6 Receiver Radiated Spurious Emission Complied - A8.1(1) Occupied Bandwidth Complied 15.207 RSS-Gen 7.2.2 Transmitter AC Power Line Conducted Emission Complied 15.107 RSS-Gen 7.2.2 Receiver AC Power Line Conducted Emission Complied 1.1307(b)(1) RSS-Gen 5.5/ RSS-102 Maximum Permissible Exposure (Exposure of Humans to RF Fields) Complied 1.8. Test report revision Revision Report number Description 0 F690501/RF-RTL004770 Initial Report Number: F690501/RF-RTL004770 Page: 6 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 2. Fundamental, Spurious emission and edge band radiated emission 2.1. Test setup The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 1 ㎓to 24 ㎓ Emissions. Report Number: F690501/RF-RTL004770 Page: 7 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)8-34, S…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Field Strength & Spurious Emission Test B. Photos of conducted power line test
