A3LSM408CD-RW/ DVD Drive

BG68-00350A Direct CD for Windows ® 95/98/2000 and N  ENGLISH  ESPAÑOL  DEUTSCH  FRANÇAIS http://www.samsungelectronics.com SM- 4 08 User's Guide COMBO DRIVESM-408 FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmfulinterference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and,if not installed and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is no guaranteethat interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, which can be deter-mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Re-orient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Contents 3 Safety Precautions 2 The following diagrams illustrate the precautions to be taken when usingyour COMBO drive. You must not use the drive in any manner other than that specified in this guide. Avoid exposing your eyes or skin to direct or scattered radiation. CAUTION Do not attempt to repair the COMBO drive yourself. Contactyour dealer or local SAMSUNG representative for all repairs.If you make any adjustments or perform any operations otherthan those specified in this guide, you run the risk of exposure tohazardous radiation. WARRANTY Please refer to the Samsung limited warranty statements . Precautions 1. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. 2. Always check each disc for cracks before using it. If there are cracks on the surfaces, especially around the border of thecenter hole, we recommend that you make a copy of the discimmediately and then stop using it. If you continue using thedisc, it will probably develop more cracks and eventually causeirreparable damage. 3. Do not use poor quality discs:  From unknown sources  Without any copyright  Scratched or damaged in any way Safety Precautions 2 Your COMBO Drive 4 Upgrading the Firmware Flash Memory 5 System Requirements 5 Installing the COMBO Drive 5 Connecting the Cables 6 Installing the CD Record Utility 8 Installing the Device Driver 8 Setting Up the Device Driver 9 Using the COMBO Drive 10 Storing and Cleaning Your Discs 10 Solving Recording Problems 11 Recommended Disc Types 13 Solving Technical Problems 14 Technical Specifications 15 * All product names mentioned in this document are trademarks or registered trademarks of their respective owners. Installing the COMBO DriveUpgrading the Firmware Flash Memory 5 The product firmware can be upgraded by downloading the updated file from thefollowing Web site: http://www.samsungelectronics.com To install your COMBO drive in the PC, proceed as follows.1 Make sure that the PC is powered off and disconnected from any power source. 2 If necessary, attach a horizontal bracket to both sides ofthe drive. COMBO drive  Use of the brackets depends on your computermodel; you can purchase these accessoriesseparately from your computer dealer. 3 Remove the cover from a free expansion slot and installthe COMBO drive, as shown in the illustration.  If you have no free expansion slot, install the drive inplace of the diskette drive. Before you install the COMBO drive, we strongly recommend that youcheck that your setup meets the system requirements listed below.System Requirements Item Description Computer Intel Pentium II 300MHz/Celeron 333A ( or higher), 32 MB of RAM (or higher) with an IDE interface Free expansion unit 5.25 inch Disk space 700 MB minimum Windows version Windows 95/98/2000/ME/NT4.0 OSR2 (or higher) (For Windows NT, we recommend Service Pack2,and Version is over 4.00.1381) MS-DOS 5.0 or higher (For MS-DOS, The CD-R/CD-RW driver can only read a disc without premaster Software.) DVD Video playback PC with Windows 95/98/2000/ME/NT4.0 OSR2 DVD-Video playback software and appropriate hardware (the Power DVD MPEG software is included in the COMBO drive package) Your Combo Drive 4 1 23 4 5 1. Earphone connection terminal2. Volume control3. Indicator light (when it is green, a disc is being read or recorded)4. Disc compartment5. Emergency eject hole (if the compartment does not open when you press the Eject button, insert a pin or unfolded paper clip in thehole and push firmly) 6. Eject button1. Digital output terminal2. Sound output terminal3. Master/slave select terminal4. Interface terminal5. Power terminal 7 Connecting the Cables 6 1. Power cable 3. IDE cable 2. Master/slave select terminal 4. Audio cable 1 Connecting the power cableThe 4-pin power cable from the internal power unit of your computer must beconnected to the power terminal on the rear of the COMBO drive. 3 Connecting the IDE cableTwo configurations are possible. The COMBO drive is the only IDE device in addition to the hard disc. 4 Connecting the audio cable from a sound cardConnect the 4-pin audio cable between the sound output terminal on the COMBOdrive and the audio input terminal on the sound card. 2 Installing a jumper on the master/slave select terminalInstall the jumper in the correct position on the terminal:MA to use the device in the master modeSL to use the device in the slave modeCS to control the device via a CSEL host interface signal See Step 3 for further details. IDE port Mother board COMBO (SL) Hard disc (MA) Second IDE cable COMBO (MA) CD-ROM (SL) Hard disc (SL) Hard disc (MA) First IDE cable Mother board Install the jumper in the SL position (Slave).Connect the 40-pin flat IDE cable from the IDE port on t…

Text truncated - open the document above for the full version.

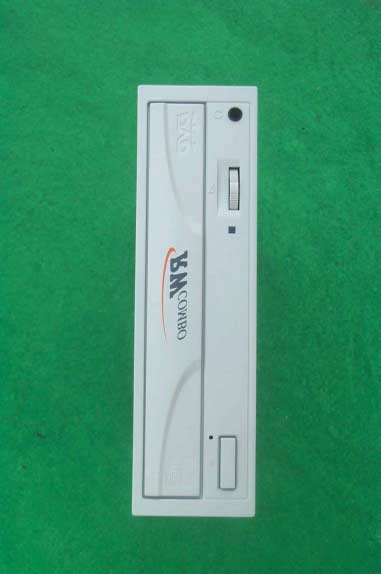

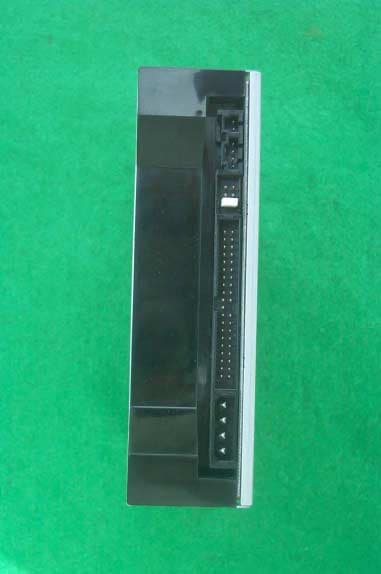

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01057 FCC ID : A3LSM408 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01057 FCC ID : A3LSM408

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01057 FCC ID : A3LSM408 FCC ID Label Sample

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01057 FCC ID : A3LSM408 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : A3LSM408 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 4 SKT SKTOS-01057 FCC ID : A3LSM408 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 4 SKT SKTOS-01057 FCC ID : A3LSM408 SK TECH CO., LTD. Page 3 of 4 SKT SKTOS-01057 FCC ID : A3LSM408 SK TECH CO., LTD. Page 4 of 4 SKT SKTOS-01057 FCC ID : A3LSM408

SK TECH CO., LTD. Page 1 of 14 SKT SKTOS-01057 FCC ID : A3LSM408 Certificate of Compliance Test Report No.: SKTOS-01057 NVLAP CODE : 200220-0 Applicant: SAMSUNG ELECTRONICS CO., LTD. Applicant Address: 416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyunggi-Do, Korea Product: CD-RW/DVD DRIVE FCC ID: A3LSM408 Model No.: SM-408 Receipt No.: SKE20010409-279 Date of receipt: Apr. 09, 2001 Date of Issue: Apr. 28, 2001 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:E.K.Seong Tested by:S.K.Lee /Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 14 SKT SKTOS-01057 FCC ID : A3LSM408 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. EMISSION Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 》 》》 》List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions ( CDRAND Mode) 13 Table 4 Test Data, Radiated Emissions ( DVD Mode) 13 Table 5 Test Data, Radiated Emissions (Re-write Mode) 13 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 14 SKT SKTOS-01057 FCC ID : A3LSM408 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 14 SKT SKTOS-01057 FCC ID : A3LSM408 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment ! Conducted Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 04.2001 Artificial Mains Network KNW-407 M63284 07.2001 EMI Receiver ESHS10 385871/002 11.2001 Artificial Mains Network ESH3-Z5 836679/018 11.2001 Conducted Cable N/A N/A 07.2001 ! Radiated Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 04.2001 Spectrum Analyzer R3361A 11730187 07.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 04.2001 Biconical Antenna BBA9106 N/A 04.2001 Open Site Cable N/A N/A 07.2001 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A 07.2001 Amp & Spectrum connection cable N/A N/A 07.2001 50Ω Switcher MP59B M93083 07.2001 2.3 Test Date Date of Application : Apr. 09, 2001 Date of Test : Apr. 10, 2001 ~ Apr. 27, 2001 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 14 SKT SKTOS-01057 FCC ID : A3LSM408 3. Description of the tested samples The EUT is CD-RW/DVD DRIVE. 3.1 Rating and Physical Characteristics ! Erasing disc types : DC-RW ! Disc diameter : 12cm or 8cm ! Data transfer rate CD – R : Max. 1200 KB/sec (8X) Max. 600 KB/sec (4X) CD – RW : Max. 600KB/sec (4X) Max. 1200KB/sec (8X) ! Access time (1/3 stroke) CD-RW : 120 ms DVD / CD : 130 ms / 110 ms ! Data buffer capacity : 2048 KB ! Laser : semiconductor laser ! Required power : +5 VDC : 2.5 A (max.), +12 VDC: 1.5 A (max.) ! Dimensions : 149(W) x 42 (H) x200(D) mm (including bezel) ! Net weight : 860 g (drive only) 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 14 SKT SKTOS-01057 FCC ID : A3LSM408 4. Measurement Conditions ! Operating voltage of the EUT is DC 5V supplied by the PC. ! PC input voltage is 120V, 60Hz. 4.1 Modes of Operation The EUT was in the following operation mode during all testing; The test is made on the Re-Write mode, CDRAND mode and DVD mode after the EUT setting on the PC. Check to normal operating condition. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID PC H.P. Brio BA600/550 SG1901646 DOC TFT LCD Monitor Comtec CT-151A N/A DOC Printer H.P 2225C 3245S12493 DS16XU2225C Keyboard W3 IGK-2000 100060126234 HQKBITS9001 Mouse 1 Logitech M-S48 LZA91450139 DZL211153 Mouse 2 Logitech M-BE55 LZE02551778 DOC Mouse 3 NITGen MFDP01-J N/A DOC Mouse 4 A4 Tech AM-5E 951237243 H8GAM555P Speaker FAN HI DIAN CMK600 N/A N/A Joystick Logitech J-ZA10 LZA01651409 DOC Mic LG Electronics N/A N/A N/A Earphone N/A N/A N/A N/A SK TECH CO., LTD. Page 7 of 14 SKT SKTOS-01057 FCC ID : A3LSM408 4.3 Type of Used Cables Description Length Type of shield Manufa…
