A3LSMA236MNGSM/WCDMA/LTE 5G NR Phone + BT/BLE, DTS/UNII a/b/g/n/ac and NFC

Package contents • Device • USB cable • Quick start guide • Ejection pin • USB power adaptor The items supplied with the device and their images may vary by region. Device layout To turn on the device, press and hold the Side key for a few seconds. Volume key Multipurpose jack (USB Type-C) Front camera Side key SIM card / Memory card tray Fingerprint recognition sensor Rear camera The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card • Nano-SIM cards are sold separately. • Support for single SIM and dual SIM models may vary by region. ► Single SIM models: Nano-SIM card 231 ► Dual SIM models: Nano-SIM card 1 Nano-SIM card 2 231 Safety information Read all safety information before using the device to ensure safe and proper use. You can view more safety information in the safety information menu of the Settings app. Warning Follow the warnings below to prevent incidents, such as fires or explosions, injuries, or damage to the device • Do not expose the device to physical impact or damage. • Use only Samsung-approved batteries, chargers, and cables specifically designed for your device. • Prevent the multipurpose jack and battery terminals from coming into contact with foreign materials such as metal, liquids, or dust. • If any part of the device, such as the glass or acrylic body, is broken, smokes, or emits a burning odor, stop using the device immediately. Use the device again only after it has been repaired at a Samsung Service Center. • Do not turn on or use the device when the battery compartment is exposed. • Do not disassemble or reuse the battery. • Do not allow children or animals to chew or suck the device. • The device can be used in locations with an ambient temperature of 0 °C to 35 °C. You can store the device at an ambient temperature of -20 °C to 50 °C. Using or storing the device outside of the recommended temperature ranges may damage the device or reduce the battery’s lifespan. • Do not use your device in a hot environment or near fire. • Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle. You can download and install the firmware update to upgrade your device’s software with the firmware over-the- air (FOTA) service. To check for the firmware update, launch the Settings app and tap Software update → Download and install. Specific Absorption Rate (SAR) certification information Your device conforms to U.S. Federal Communications Commission (FCC) standards that limit human exposure to radio frequency (RF) energy emitted by radio and telecommunications equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specific Absorption Rate, or SAR) of 1.6 W/kg. In normal use, the actual SAR is likely to be much lower, as the device has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automatically emitting lower levels when possible, your device reduces your overall exposure to RF energy. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guidelines. Some devices are required to receive approval from the FCC. If your device required FCC approval, you can view the FCC certification by opening Settings → About phone → Status or Status information. SAR information for this and other devices can be found on the FCC website at: www.fcc.gov/oet/ea/. Follow the instructions on the website to use the FCC ID to find SAR values for the device. SAR information for this device can also be found on Samsung’s website: www.samsung.com/sar. The device may be damaged if water or dust enters the device. Follow these tips carefully to maintain the water- and dust- resistant performance of the device. • Do not immerse the device in fresh water deeper than 1 m or keep it submerged for more than 30 minutes. • Do not expose the device to water moving with force. Do not suddenly apply water pressure to the device, such as when diving. • If the device is exposed to fresh water, dry it thoroughly with a clean, soft cloth. If the device is exposed to other liquids, such as salt water, swimming pool water, soapy water, oil, perfume, sunscreen, hand cleaner, or chemical products such as cosmetics, rinse it with fresh water and dry it thoroughly with a clean, soft cloth. If you do not follow these instructions, the device’s performance and appearance may be affected. • If the device has been immersed in water or the microphone or speaker is wet, sound may not be heard clearly during a call. • Your device has been tested in a controlled environment and certified to be water- and dust-resistant in specific situations (meets requirements of classification IP67 as described by the international standard IEC 60529-Degrees of Protection provided by Enclosures [IP Code]; test conditions: 15-35 °C, 86-106 kPa, fresh water, 1 metre, 30 minutes). Despite this classification, it is still possible for your device to be damaged in certain situations. If your device is frozen and unresponsive, press and hold the Side key and the Volume Down key simultaneously for more than 7 seconds to restart it. The actual available capacity of the internal memory is less than the specified capacity because the operating system and default apps occupy part of the memory. The available capacity may change when you upgrade the device. It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting. To prevent possible hearing damage when using a headset…

Text truncated - open the document above for the full version.

Date: November 19, 2021 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea To whom it may concern: I, the undersigned, hereby authorize UL Korea, Ltd. Suwon Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Korea, Ltd. Suwon Laboratory on our behalf s hall have the same effect as acts of our own. In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. l) the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: +1-973-808-6375 E-mail: [email protected]

June 15, 2022 Federal Comm unications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: Request for Confidentiality A3LSMA236MN To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0. 457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Parts List Tune-Up Procedure PED Above mentioned document contains detailed system and equipment desc ription are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s polic y, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the c ommission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: +1-973-808-6375 E-mail: [email protected]

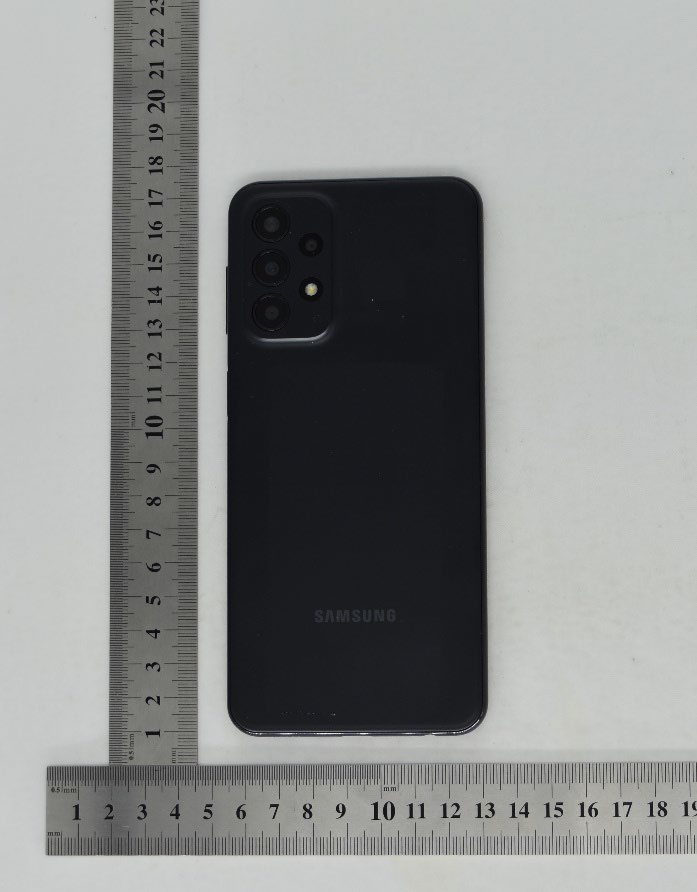

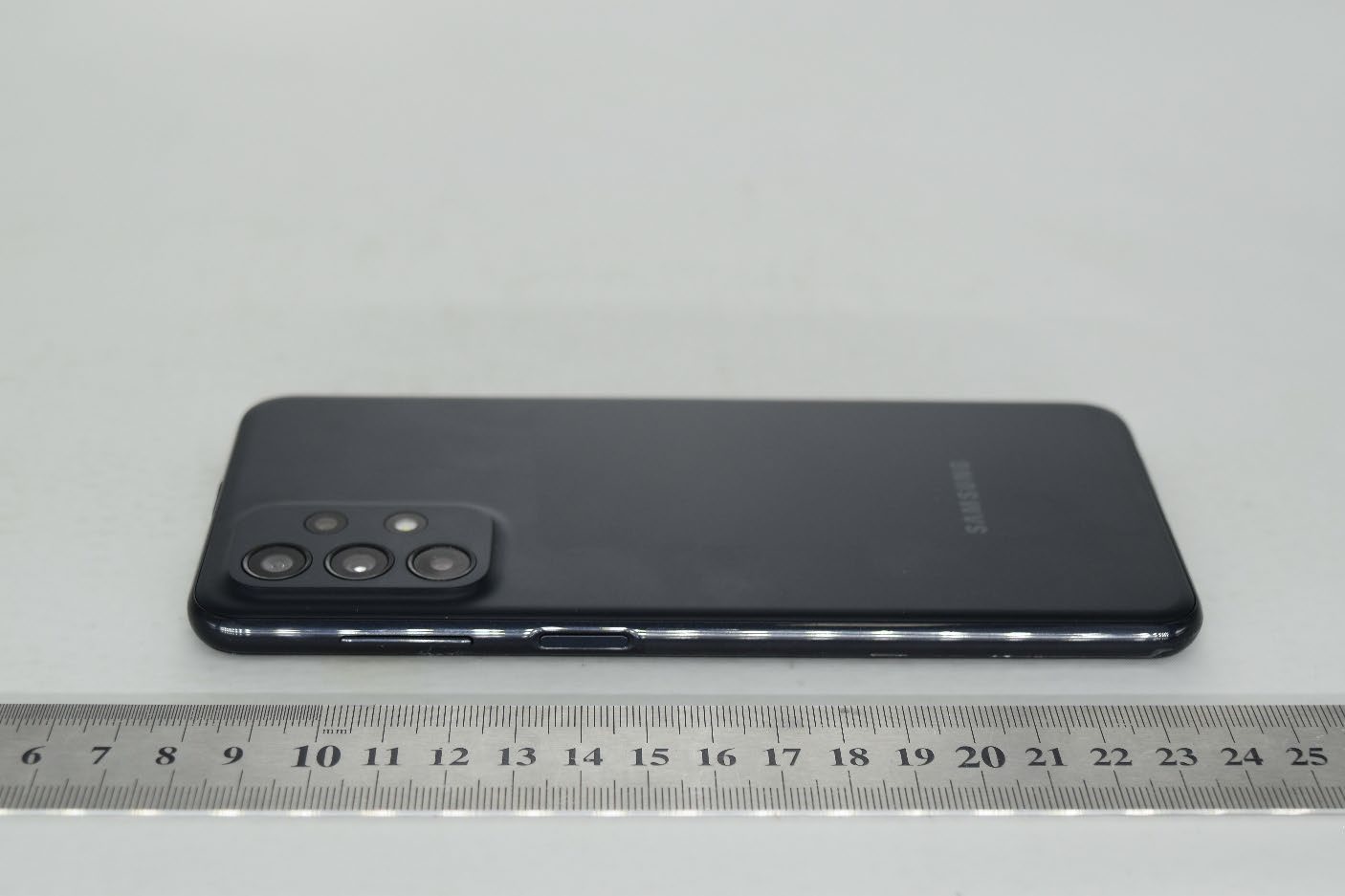

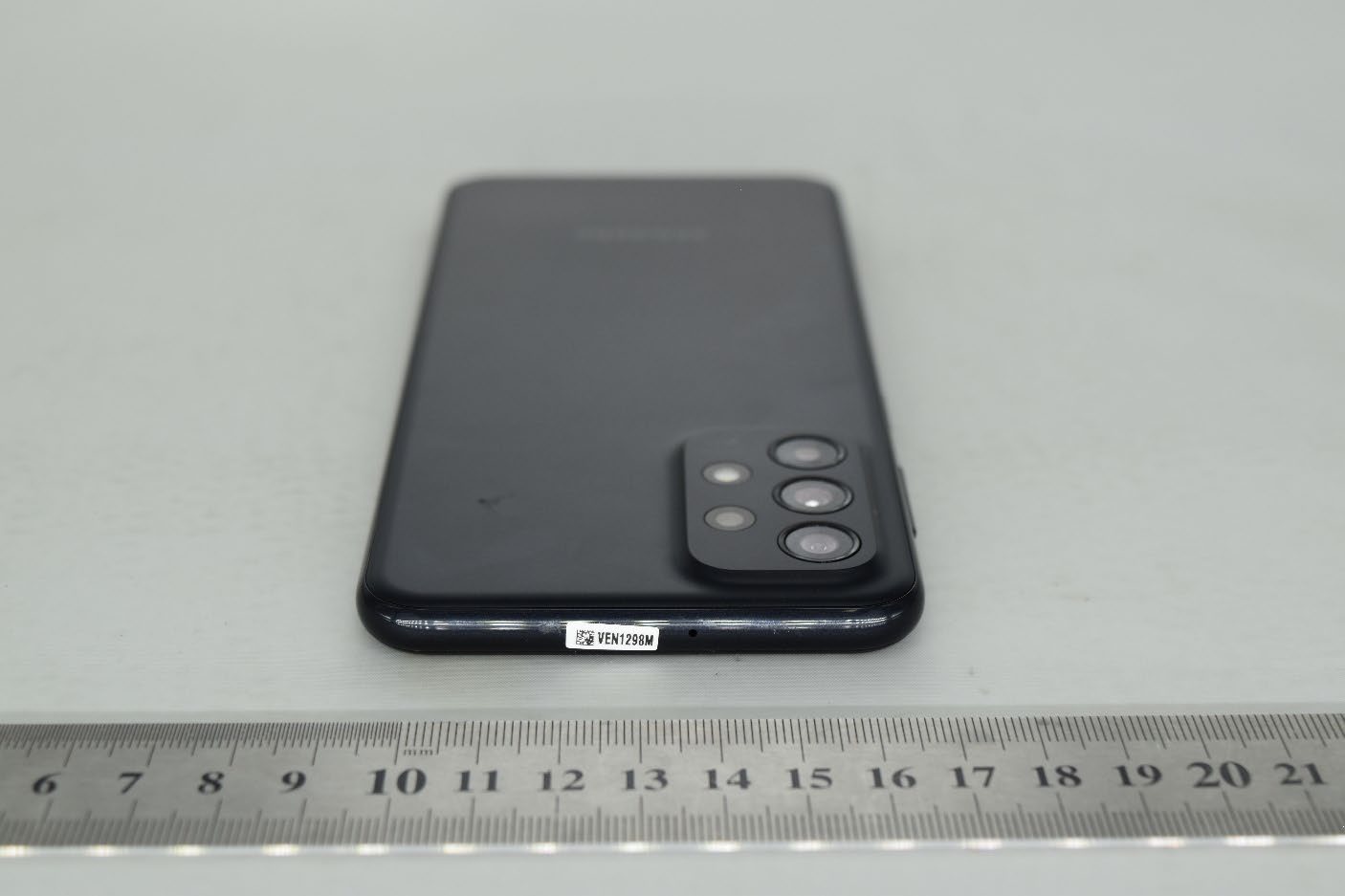

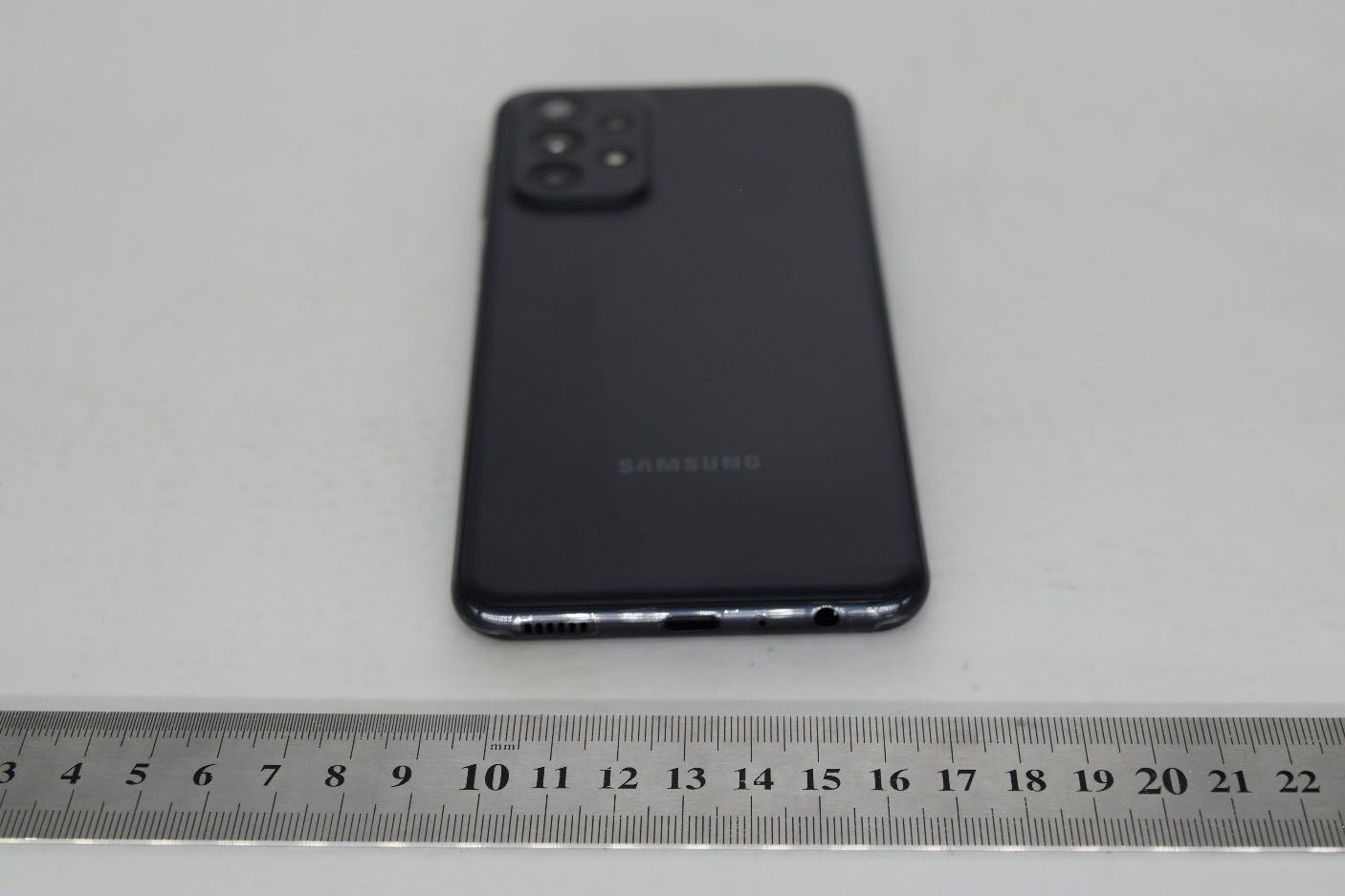

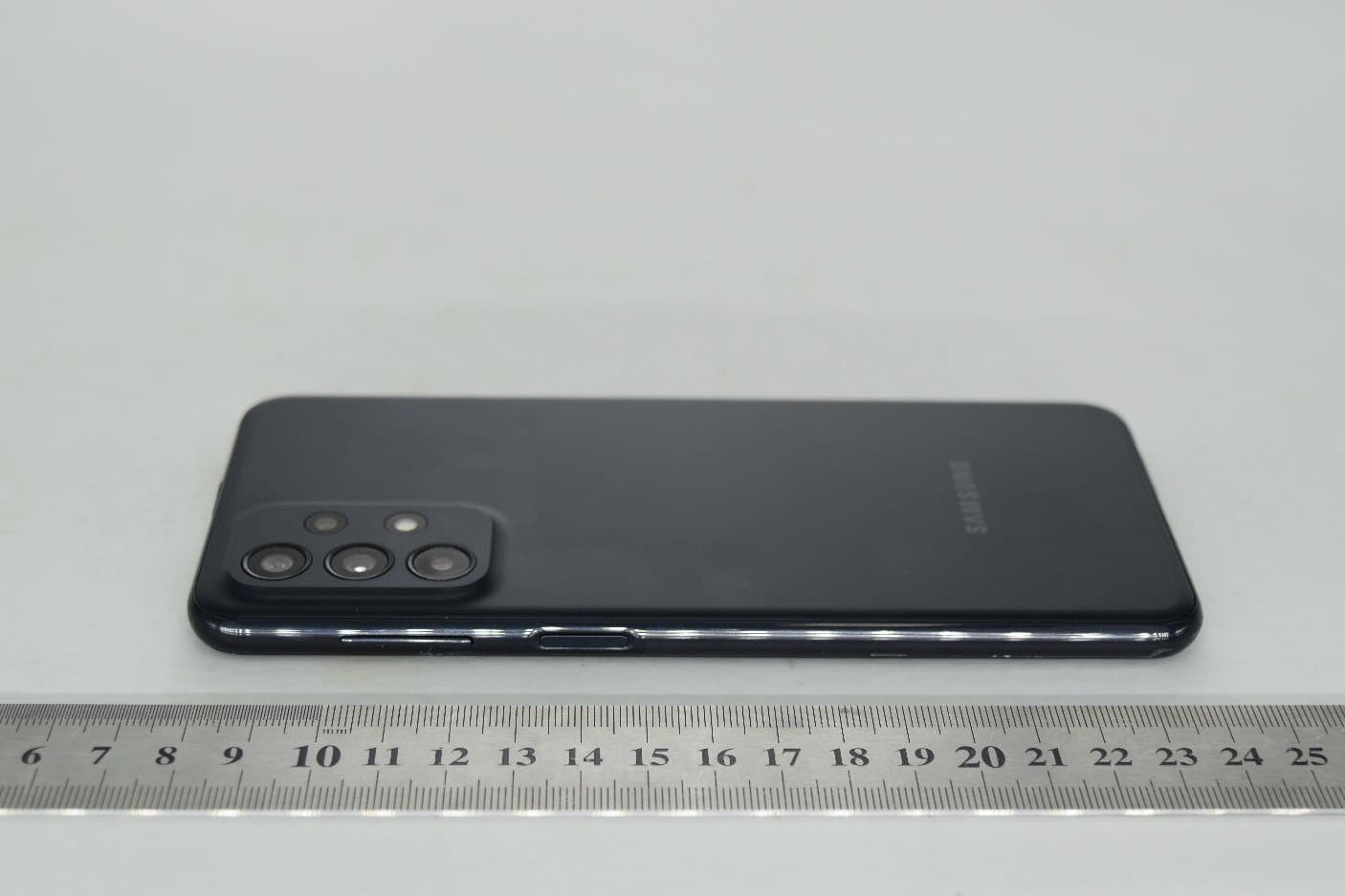

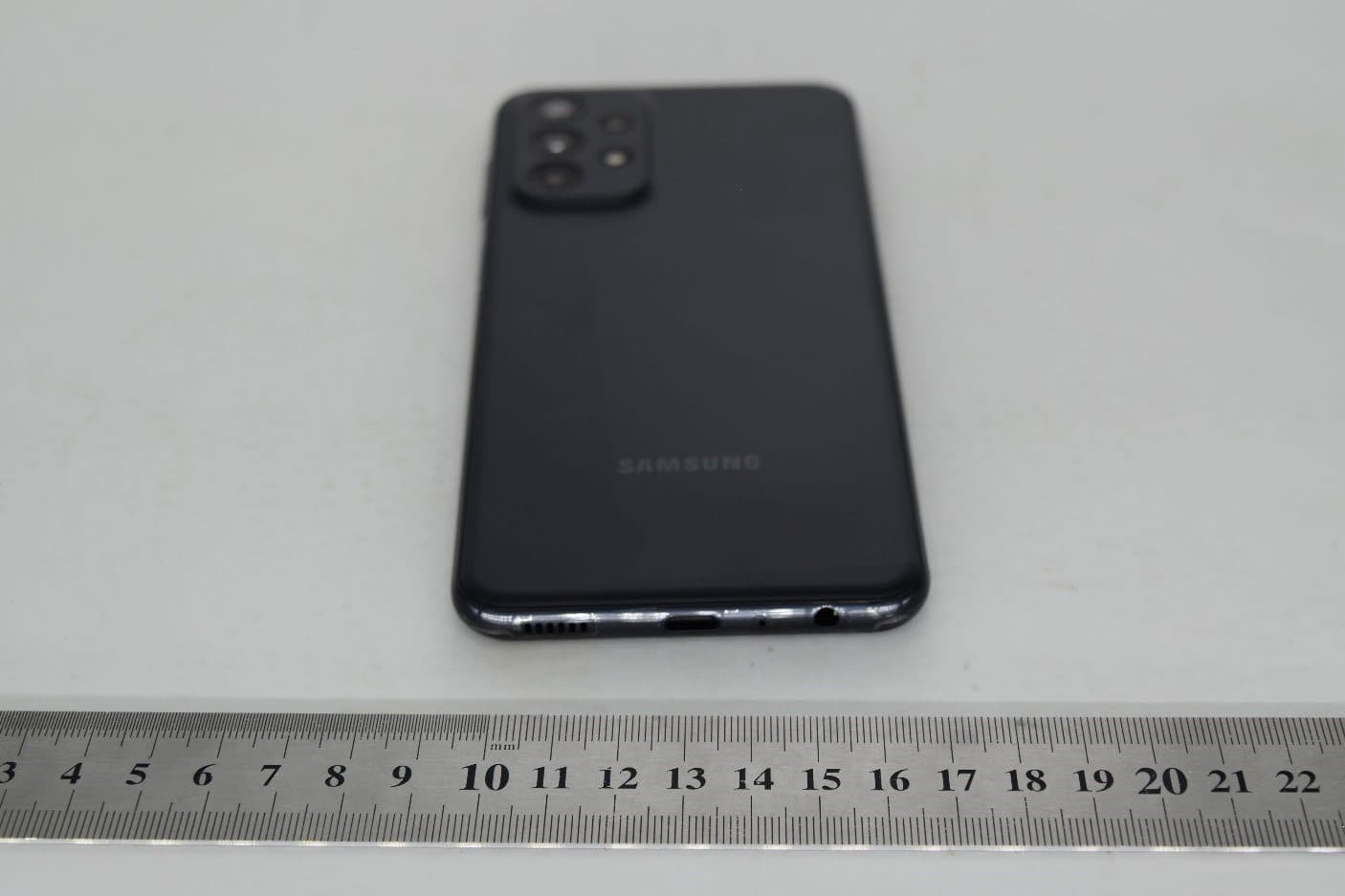

External Photo Applicant : SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI, GYEONGGI-DO, 16677, KOREA Model : SM-A236M/DSN, SM-A236M/DS FCC ID : A3LSMA236MN Date Of Issue: 2022-06-21 Prepared by: UL Korea, Ltd. 26th floor, 152, Teheran-ro, Gangnam-gu Seoul, 06236, Korea Suwon Test Site: UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 Testing Laboratory TL-637 FCC ID: A3LSMA236MN DATE: 2022-06-21 UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. External Photo FCC ID: A3LSMA236MN DATE: 2022-06-21 UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. FCC ID: A3LSMA236MN DATE: 2022-06-21 UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd.

Description of E-label on the A3LSMA236MN Date: 2022.06.17 FCC ID: A3LSMA236MN This model is applied E-label, please find description of E-label below. 1.FCC ID (E-label): Settings > About Phone > Status FCC certification FCC ID: A3LSMA236MN <Device Display Screen> 2.FCC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guide lines. This device has a FCC ID number A3LSMA236MN [Model Number: SM-A236M/DSN] and the specific SAR levels for this device can be found at the following. FCC website: www.fcc.gov/oet/ea/ The SAR information for this device can be found on Samsung’s website: www.samsung.com/sar

Internal Photo Applicant : SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI, GYEONGGI-DO, 16677, KOREA Model : SM-A236M/DSN, SM-A236M/N FCC ID : A3LSMA236MN Date Of Issue: 2022-06-21 Prepared by: UL Korea, Ltd. 26th floor, 152, Teheran-ro, Gangnam-gu Seoul, 06236, Korea Suwon Test Site: UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 Testing Laboratory TL-637 FCC ID: A3LSMA236MN DATE: 2022-06-21 UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. In ternal Photo FCC ID: A3LSMA236MN DATE: 2022-06-21 UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. FCC ID: A3LSMA236MN DATE: 2022-06-21 UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd.

Plot No. 1 Measurement Report for Device, Right Touch, GSM 850, UID 10024 DAC, Channel 251 (848.8MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Left Head, HSL CHEEK, 0.00 GSM 850 GSM, 10024-DAC 848.8, 251 9.19 0.982 41.7 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2043 HBBL-600-10000, 2022-Jun-13 EX3DV4 - SN3928, 2022-03-03 DAE4 Sn1494, 2021-07-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-14 2022-06-14 psSAR1g [W/kg] 0.270 0.289 psSAR10g [W/kg] 0.186 0.220 Power Drift [dB] -0.02 Plot No. 2 Measurement Report for Device, Rear, GSM 850, UID 10024 DAC, Channel 251 (848.8MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 15.00 GSM 850 GSM, 10024-DAC 848.8, 251 9.19 0.982 41.7 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2043 HBBL-600-10000, 2022-Jun-13 EX3DV4 - SN3928, 2022-03-03 DAE4 Sn1494, 2021-07-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-14 2022-06-14 psSAR1g [W/kg] 0.455 0.463 psSAR10g [W/kg] 0.290 0.271 Power Drift [dB] -0.03 Plot No. 3 Measurement Report for Device, Rear, GSM 850, UID 10024 DAC, Channel 251 (848.8MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 10.00 GSM 850 GSM, 10024-DAC 848.8, 251 9.19 0.982 41.7 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2043 HBBL-600-10000, 2022-Jun-13 EX3DV4 - SN3928, 2022-03-03 DAE4 Sn1494, 2021-07-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-13 2022-06-13 psSAR1g [W/kg] 1.04 1.06 psSAR10g [W/kg] 0.649 0.584 Power Drift [dB] -0.02 Plot No. 4 Measurement Report for Device, Left Touch, GSM 1900, UID 10027 DAC, Channel 661 (1880.0MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Left Head, HSL CHEEK, 0.00 PCS 1900 GSM, 10027-DAC 1880.0, 661 8.12 1.39 38.8 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2039 HBBL-600-10000, 2022-Jun-20 EX3DV4 - SN7545, 2021-08-26 DAE4 Sn1667, 2022-04-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 32.0 x 32.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-22 2022-06-22 psSAR1g [W/kg] 0.133 0.138 psSAR10g [W/kg] 0.078 0.087 Power Drift [dB] 0.05 Plot No. 5 Measurement Report for Device, Rear, GSM 1900, UID 10027 DAC, Channel 661 (1880.0MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 15.00 PCS 1900 GSM, 10027-DAC 1880.0, 661 8.12 1.39 38.8 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2039 HBBL-600-10000, 2022-Jun-20 EX3DV4 - SN7545, 2021-08-26 DAE4 Sn1667, 2022-04-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 32.0 x 32.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-22 2022-06-22 psSAR1g [W/kg] 0.209 0.213 psSAR10g [W/kg] 0.126 0.126 Power Drift [dB] -0.02 Plot No. 6 Measurement Report for Device, Rear, GSM 1900, UID 10027 DAC, Channel 661 (1880.0MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 10.00 PCS 1900 GSM, 10027-DAC 1880.0, 661 8.12 1.39 38.8 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2039 HBBL-600-10000, 2022-Jun-20 EX3DV4 - SN7545, 2021-08-26 DAE4 Sn1667, 2022-04-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 32.0 x 32.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-22 2022-06-22 psSAR1g [W/kg] 0.273 0.286 psSAR10g [W/kg] 0.161 0.163 Power Drift [dB] 0.01 Plot No. 7 Measurement Report for Device, Left Touch, WCDMA Band 2, UTRA/FDD, UID 10011 CAB, Channel 9400 (1880.0MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Left Head, HSL CHEEK, 0.00 Band 2, UTRA/FDD WCDMA, 10011-CAB 1880.0, 9400 8.12 1.42 39.1 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2039 HBBL-600-10000, 2022-Jun-13 EX3DV4 - SN7545, 2021-08-26 DAE4 Sn1667, 2022-04-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 32.0 x 32.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-14 2022-06-14 psSAR1g [W/kg] 0.166 0.170 psSAR10g [W/kg] 0.098 0.105 Power…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2022-06-20 20220620_SystemPerformanceCheck-D1900V2 SN 5d190 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1900 MHz; σ = 1.428 S/m; ε r = 39.156; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn912; Calibrated: 2021-11-22 - Probe: EX3DV4 - SN7376; ConvF(8.48, 8.48, 8.48) @ 1900 MHz; Calibrated: 2021-07-30 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: Twin-SAM V5.0 (20deg probe tilt); Type: QD 000 P40 CD; Serial: 1751 Head/1900 MHz, Pin=100 mW CW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 6.78 W/kg Head/1900 MHz, Pin=100 mW CW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 63.17 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 8.56 W/kg SAR(1 g) = 4.22 W/kg; SAR(10 g) = 2.13 W/kg Maximum value of SAR (measured) = 6.93 W/kg 0 dB = 6.93 W/kg = 8.41 dBW/kg Plot No. 2 Measurement Report for Device, UID 0 -, Channel 0 (750.0MHz-SN 1205) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 0-- 750.0,0 11.13 0.887 42.4 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2043 HBBL-600-10000, 2022-Jun-21 EX3DV4 - SN7330, 2022-01-28 DAE4 Sn1494, 2021-07-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-21 2022-06-21 psSAR1g [W/kg] 0.878 0.873 psSAR10g [W/kg] 0.587 0.583 Power Drift [dB] 0.00 Plot No. 3 Measurement Report for Device, UID 0 -, Channel 0 (1900.0MHz-5d190) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 0-- 1900.0, 0 8.12 1.44 39.2 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2039 HBBL-600-10000, 2022-Jun-13 EX3DV4 - SN7545, 2021-08-26 DAE4 Sn1667, 2022-04-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 32.0 x 32.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-13 2022-06-13 psSAR1g [W/kg] 4.17 4.25 psSAR10g [W/kg] 2.20 2.18 Power Drift [dB] -0.03 Plot No. 4 Measurement Report for Device, UID 0 -, Channel 0 (2450.0MHz-SN960) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 0-- 2450.0,0 7.56 1.87 39.8 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2039 HBBL-600-10000, 2022-Jun-20 EX3DV4 - SN7545, 2021-08-26 DAE4 Sn1667, 2022-04-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 10.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-20 2022-06-20 psSAR1g [W/kg] 5.40 5.52 psSAR10g [W/kg] 2.55 2.57 Power Drift [dB] 0.02 Plot No. 5 Measurement Report for Device, UID 0 -, Channel 0 (5800.0MHz-SN1209) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 0-- 5800.0,0 4.65 5.27 34.9 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2037 HBBL-600-10000, 2022-Jun-13 EX3DV4 - SN7313, 2022-03-02 DAE4 Sn1343, 2021-08-23 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 22.0 x 22.0 x 22.0 Grid Steps [mm] 10.0 x 10.0 4.0 x 4.0 x 1.4 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-13 2022-06-13 psSAR1g [W/kg] 7.66 8.36 psSAR10g [W/kg] 2.20 2.40 Power Drift [dB] -0.05 0.01 Plot No. 6 Measurement Report for Device, UID 0 -, Channel 0 (835.0MHz-SN4d194) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 0-- 835.0, 0 9.7 0.910 39.9 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2037 HBBL-600-10000, 2022-Jun-27 EX3DV4 - SN7313, 2022-03-02 DAE4 Sn1343, 2021-08-23 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-27 2022-06-27 psSAR1g [W/kg] 0.950 0.913 psSAR10g [W/kg] 0.627 0.597 Power Drift [dB] -0.11 Plot No. 7 Measurement Report for Device, UID 0 -, Channel 0 (2600.0MHz-SN1178) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL 0-- 2600.0,0 8.05 1.92 39.3 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2042 HBBL-600-10000, 2022-Jun-14 EX3DV4 - SN7645, 2022-04-29 DAE4 Sn1668, 2022-04-27 Scan Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 10.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan Date 2022-06-14 2022-06-14 psSAR1g [W/kg] 5.20 5.23 psSAR10g [W/kg] 2.34 2.35 Power Drift [dB] 0.02 Plot No. 8 Measurement Report for Device, UID 0 -…

Text truncated - open the document above for the full version.

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 MSL450V2 MSL750V2 MSL900V2 MSL1450V2 MSL1750V2 MSL1800V2 MSL1900V2 MSL1950V2 MSL2450V2 Test Frequency (MHz) 300 400, 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2100 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product MBBL130-250V3 MBBL1350-1850V3 MBBL1550-1950V3 MBBL1900-3800V3 MBBL3500-5800V5 Test Frequency (MHz) 130-250 1350-1800 1550-1850 1950-3800 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Measurement Certificate / Material Test Item NameHead Tissue Simulating Liquid (HBBL600-10000V6) Product No.SL AAH U16 BC (Batch: 181106-1) ManufacturerSPEAG Measurement Method TSL dielectric parameters measured using calibrated DAK probe. Target Parameters Target parameters as defined in the IEEE 1528 and IEC 62209 compliance standards. Test Condition Ambient Condition22ºC ; 30% humidity TSL Temperature22ºC Test Date OperatorCL Additional Information TSL Density TSL Heat-capacity Results MeasuredTargetDiff.to Target [%] f [MHz]e'e''sigmaepssigma D-epsD-sigma 80043.720.70.9241.70.904.82.5 82543.720.30.9341.60.915.12.6 83543.720.10.9441.50.915.23.1 85043.619.80.9441.50.925.12.6 90043.519.10.9641.50.974.8-1.0 140042.515.01.1740.61.184.7-0.8 145042.414.81.1940.51.204.7-0.8 160042.114.31.2740.31.284.4-1.1 162542.114.21.2940.31.304.5-0.7 164042.114.21.3040.31.314.6-0.5 165042.114.11.3040.21.314.6-1.0 170042.014.01.3340.21.344.6-0.9 175041.913.91.3540.11.374.5-1.5 180041.813.81.3840.01.404.5-1.4 181041.813.81.3940.01.404.5-0.7 182541.813.81.4040.01.404.50.0 185041.813.71.4140.01.404.50.7 190041.713.71.4440.01.404.32.9 195041.613.61.4840.01.404.05.7520036.515.64.5136.04.661.3-3.2 200041.613.61.5140.01.404.07.9525036.415.64.5635.94.711.2-3.0 205041.513.51.5439.91.444.06.6530036.315.74.6235.94.761.1-2.9 210041.513.51.5739.81.494.25.4550035.915.94.8535.64.960.8-2.3 215041.413.41.6139.71.534.25.0560035.815.94.9635.55.070.6-2.0 220041.313.41.6439.61.584.23.9570035.616.05.0835.45.170.5-1.7 225041.313.41.6839.61.624.43.6580035.416.15.2035.35.270.3-1.4 230041.213.41.7139.51.674.42.6600035.116.35.4335.15.480.0-0.9 235041.113.41.7539.41.714.42.3650034.216.76.0434.56.07-0.7-0.5 240041.113.41.7939.31.764.62.0700033.417.16.6633.96.65-1.50.1 245041.013.41.8339.21.804.61.7750032.517.47.2733.37.24-2.30.4 250040.913.41.8639.11.854.50.3800031.717.77.8832.77.84-3.10.5 255040.813.41.9039.11.914.4-0.5850030.918.08.4932.18.45-4.00.5 260040.813.51.9539.01.964.6-0.7900030.018.29.1031.59.08-4.80.3 350039.213.92.7137.92.913.4-6.9950029.218.49.7131.09.71-5.60.0 370038.914.12.8937.73.123.3-7.21000028.418.510.3230.410.36-6.4-0.4 7-Nov-18 -15.0 -10.0 -5.0 0.0 5.0 10.0 15.0 500150025003500450055006500750085009500 Dev. Permittivity % Frequency MHz -15.0 -10.0 -5.0 0.0 5.0 10.0 15.0 500150025003500450055006500750085009500 Dev. …

Text truncated - open the document above for the full version.
