A3LSMA415FNMobile Phone

User manual A3LSMA415FN Draft 6.1 2020-02-21 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “int roducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note —notes, usage tips, or additional information Refer to—pages with related information; for example:p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < >Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners: Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide Java™ is a trademark of Sun Microsystems, Inc. Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM or USIM card Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone. Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones. Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent ba…

Text truncated - open the document above for the full version.

Samsung Electronics Co., LTD. 12 9, Sa msu ng -ro , Yeongton g-gu Suwon-City, Gyeong gi-d o, 16677, Ko rea Date: Mar.2, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Label Statement FCC ID: A3LSMA415FN To Whom it Ma y Concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electr onic display to find the FCC ID per CFR 2. 935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug- ins. Per CFR 2.935(e), We, Samsung have programmed the e- label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for in spection at the time of import. Shou ld you have any questions or comments concern ing the abov e, please contact the undersigned. Sincerely, Jenni Chun General Manager Samsung Electronics CO. LTD TEL: +1-9 73-8 08-6 375 FAX: 1-973-8 08-6 361 E-mail: [email protected]

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: Mar. 2, 2020 FCC ID: A3LSMA415FN To whom it may concern: We, the undersigned, hereby authorize HCT Co., LTD to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by HCT Co., LTD on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Ms. Jenni Chun General Manager Samsung Electronics CO. LTD TEL: 1-973-808-6375 E-mail: [email protected]

DATE : Mar. 2, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: Request for Confidentiality A3LSMA415FN To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Ms. Jenni Chun GeGeneral Manager Samsung Electronics CO. LTD TEL: 1-973-808-6375 E-mail: [email protected]

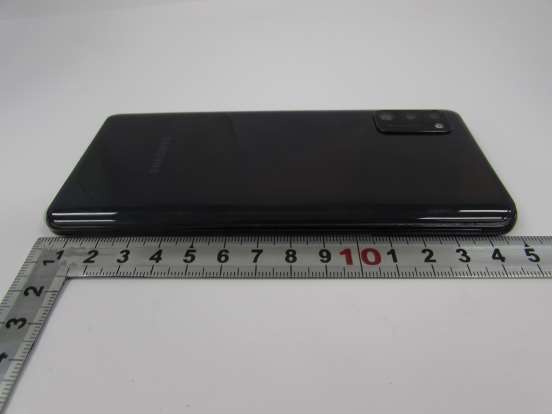

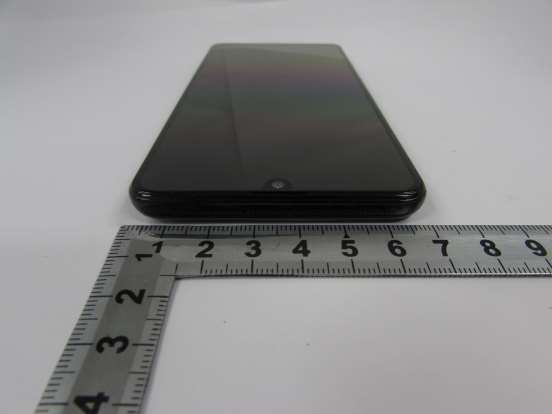

FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 1 / 7 HCT CO.,LTD. - EXTERNAL PHOTOGRAPHS FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 2 / 7 HCT CO.,LTD. 1. External Photo (Front view) FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 3 / 7 HCT CO.,LTD. 2. External Photo (Rear view) FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 4 / 7 HCT CO.,LTD. 3. External Photo (Left side view) FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 5 / 7 HCT CO.,LTD. 4. External Photo (Right side view) FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 6 / 7 HCT CO.,LTD. 5. External Photo (Top view) FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 7 / 7 HCT CO.,LTD. 6. External Photo (Bottom view)

A.Information to be displayed 1. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information On E-label In Manual FCC ID number Yes Yes DoC logo Not Applicable Not Applicable 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) - Yes Class A / B Digital Device user manual statements1 - Yes DoC declaration1 Not Applicable Not Applicable Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment1 - Yes Describe any other FCC regulatory - Yes Describe any other FCC regulatory information included in e-label 1 None Not Applicable If the e-label includes information typically included in the manual then the e-label shall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to 784748 D02 e labelling v01 section II D 3(b) I mages of the e-label screen are provided below: B. Access to the required information on the e-label 1. Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: From the home screen: a) Click on Settings Apps b) About phone c) Status No special access codes or permissions are required to go through the above steps beyond entering a userdefined password to protect against unauthorized access to the device. 2. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. 3. Users are provided specific instructions on how to access the information. The information is provided in User manual.

FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 1 / 19 HCT CO.,LTD. - INTERNAL PHOTOGRAPHS FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 2 / 19 HCT CO.,LTD. ■ Main / Bluetooth & WLAN Antenna Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 3 / 19 HCT CO.,LTD. 1. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 4 / 19 HCT CO.,LTD. 2. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 5 / 19 HCT CO.,LTD. 3. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 6 / 19 HCT CO.,LTD. 4. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 7 / 19 HCT CO.,LTD. 5. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 8 / 19 HCT CO.,LTD. 6. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 9 / 19 HCT CO.,LTD. 7. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 10 / 19 HCT CO.,LTD. 8. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 11 / 19 HCT CO.,LTD. 9. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 12 / 19 HCT CO.,LTD. 10. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 13 / 19 HCT CO.,LTD. 11. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 14 / 19 HCT CO.,LTD. 12. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 15 / 19 HCT CO.,LTD. 13. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 16 / 19 HCT CO.,LTD. 14. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 17 / 19 HCT CO.,LTD. 15. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 18 / 19 HCT CO.,LTD. 16. Internal Photo FCC ID: A3LSMA415FN F-TP22-03 (Rev.00) 19 / 19 HCT CO.,LTD. 17. Internal Photo

Report No.: HCT-RF-2003-FC004-R1 FCC ID:A3LSMA415FN F-TP22-03 (Rev.00) 2 / 32 HCT CO.,LTD. Version TEST REPORT NO. DATE DESCRIPTION HCT-RF-2003-FC004 March 03, 2020 - First Approval Report HCT-RF-2003-FC004-R1 March 09, 2020 - ON Page 12, Test Procedure revised. - ON Page 21, 20dB BW Retest Plot Added. This test results were applied only to the test methods required by the standard. This laboratory is not accredited for the test results marked *. The above Test Report is the accredited test result by KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (HCT Accreditation No.: KT197) Report No.: HCT-RF-2003-FC004-R1 FCC ID:A3LSMA415FN F-TP22-03 (Rev.00) 3 / 32 HCT CO.,LTD. Table of Contents 1. EUT DESCRIPTION ...................................................................................................................................... 4 2. TEST METHODOLOGY ................................................................................................................................ 5 EUT CONFIGURATION ............................................................................................................................. 5 EUT EXERCISE ......................................................................................................................................... 5 GENERAL TEST PROCEDURES ............................................................................................................. 5 DESCRIPTION OF TEST MODES ............................................................................................................ 5 3. INSTRUMENT CALIBRATION...................................................................................................................... 6 4. FACILITIES AND ACCREDITATIONS .......................................................................................................... 6 FACILITIES ................................................................................................................................................ 6 EQUIPMENT .............................................................................................................................................. 6 5. ANTENNA REQUIREMENTS ....................................................................................................................... 6 6. MEASUREMENT UNCERTAINTY ................................................................................................................ 7 7. DESCRIPTION OF TESTS ........................................................................................................................... 8 8. TEST SUMMARY ........................................................................................................................................ 16 9. TEST RESULT ............................................................................................................................................ 17 9.1. Operation within the band 13.110 MHz – 14.010 MHz .................................................................. 17 9.2. Radiated Emission 9 kHz – 30 MHz ............................................................................................... 19 9.3. Radiated Emission 30 MHz – 1000 MHz ........................................................................................ 20 9.4. 20 dB Bandwidth ............................................................................................................................. 21 9.5. Frequency Stability ......................................................................................................................... 22 9.6. POWERLINE CONDUCTE EMISSIONS .......................................................................................... 26 10. LIST OF TEST EQUIPMENT .................................................................................................................... 30 11. ANNEX A_ TEST SETUP PHOTO ................................. ........................................................................... 32 Report No.: HCT-RF-2003-FC004-R1 FCC ID:A3LSMA415FN F-TP22-03 (Rev.00) 4 / 32 HCT CO.,LTD. 1. EUT DESCRIPTION Model SM-A415F/DSN Additional Model - EUT Type Mobile Phone Power Supply DC 3.85 V Battery Information Model: EB-BA415ABY Type: Li-ion Battery Travel Adapter Information Model : EP-TA200 Manufacture: SOLUM Data Cable Information Model : EP-DR140ABE Manufacture: KSD Ear-jack Information Model : EHS61ASFBE Manufacture: FOSTER Frequency of Operation 13.56 MHz Transmit Power Without Tag: 10.73 dBuV/m @30 m With Tag: 10.54 dBuV/m @30 m Modulation Type ASK Date(s) of Tests February 01, 2020~ March 09, 2020 Report No.: HCT-RF-2003-FC004-R1 FCC ID:A3LSMA415FN F-TP22-03 (Rev.00) 5 / 32 HCT CO.,LTD. 2. TEST METHODOLOGY The measurement procedure described in the American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices (ANSI C63.10-2013) is used in the measurement of the test device. EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.225 under the FCC Rules Part 15 Subpart C . GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 6.2 of ANSI C63.10. (Version :2013) Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to dete…
