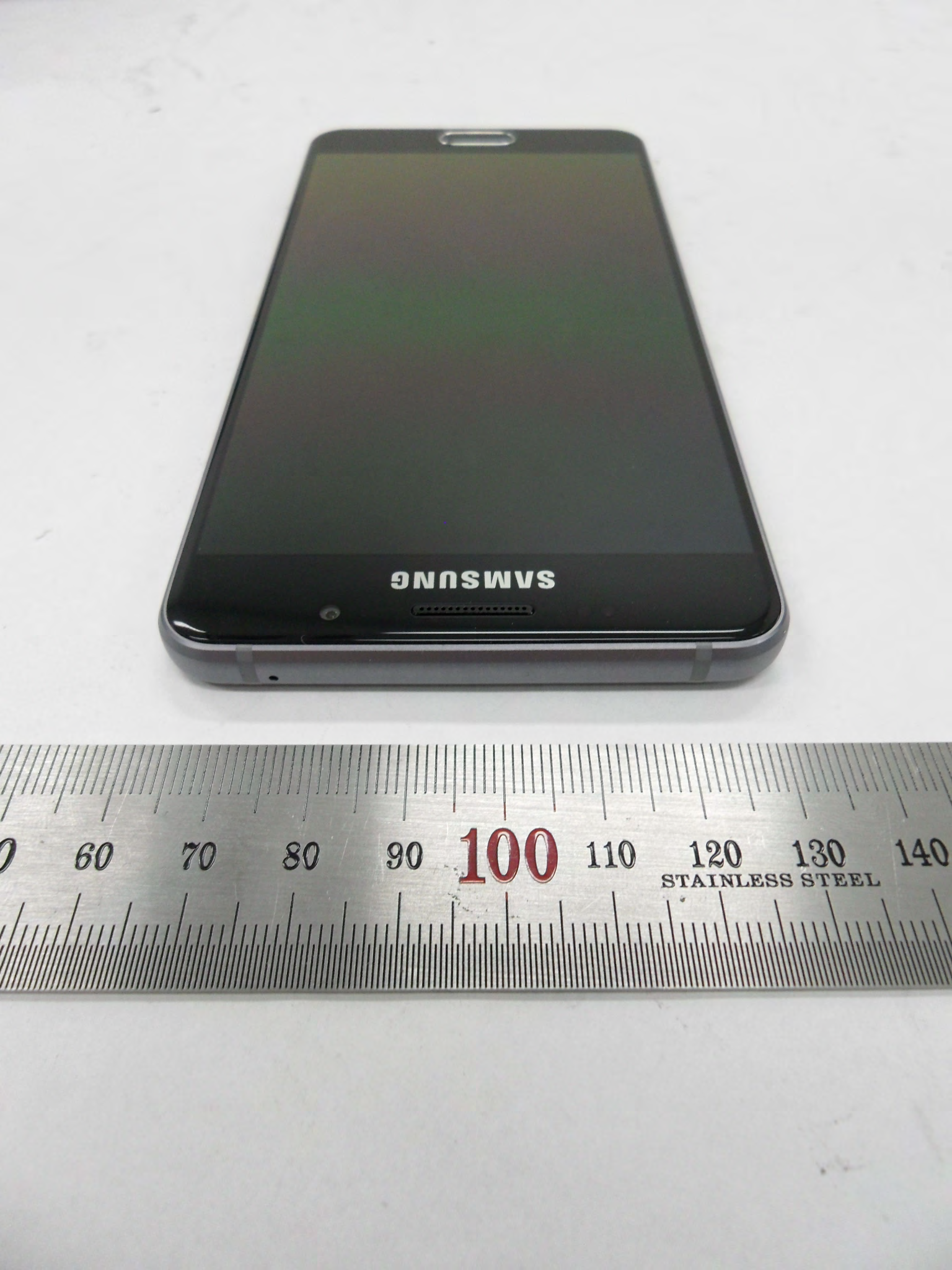

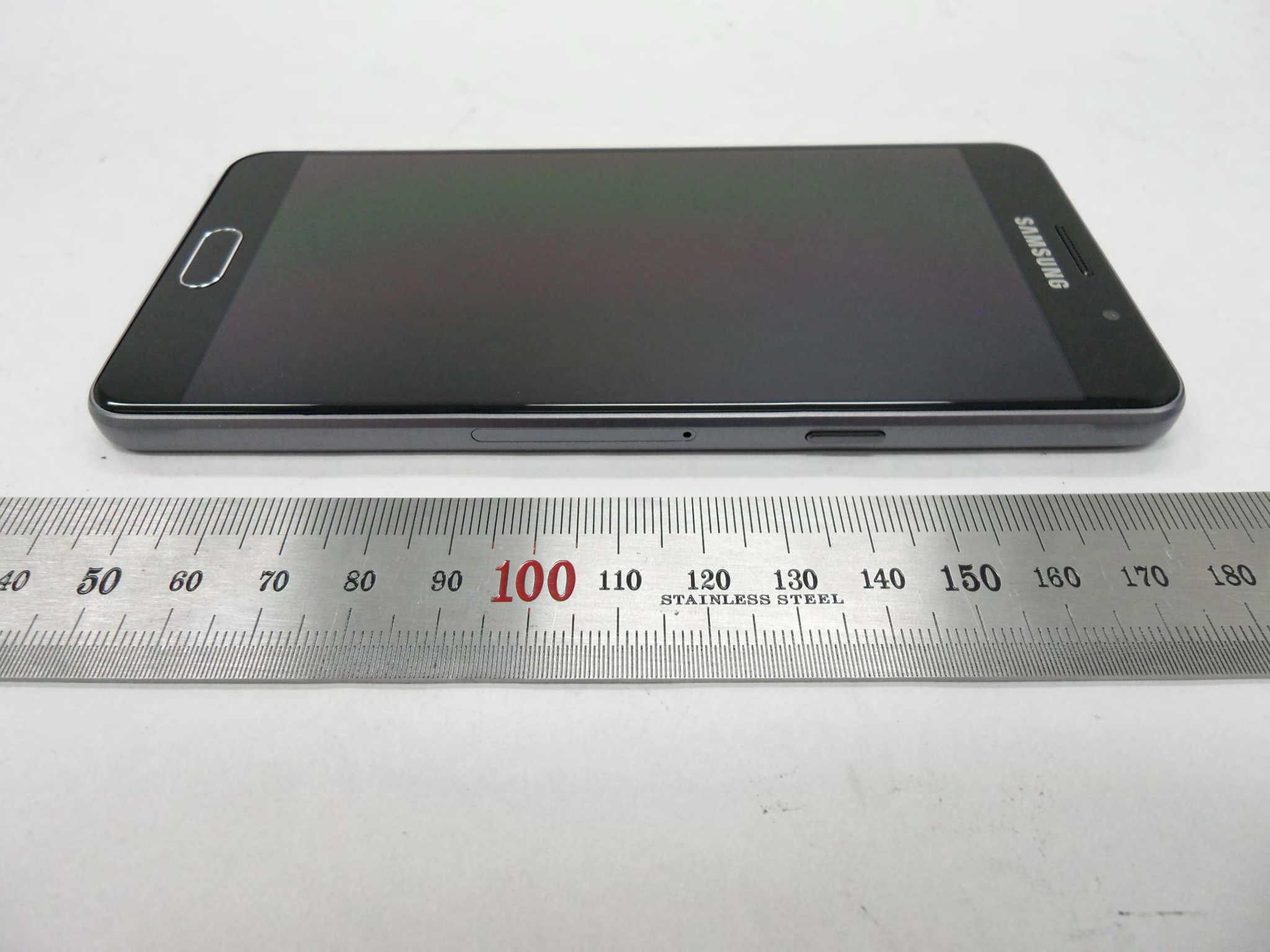

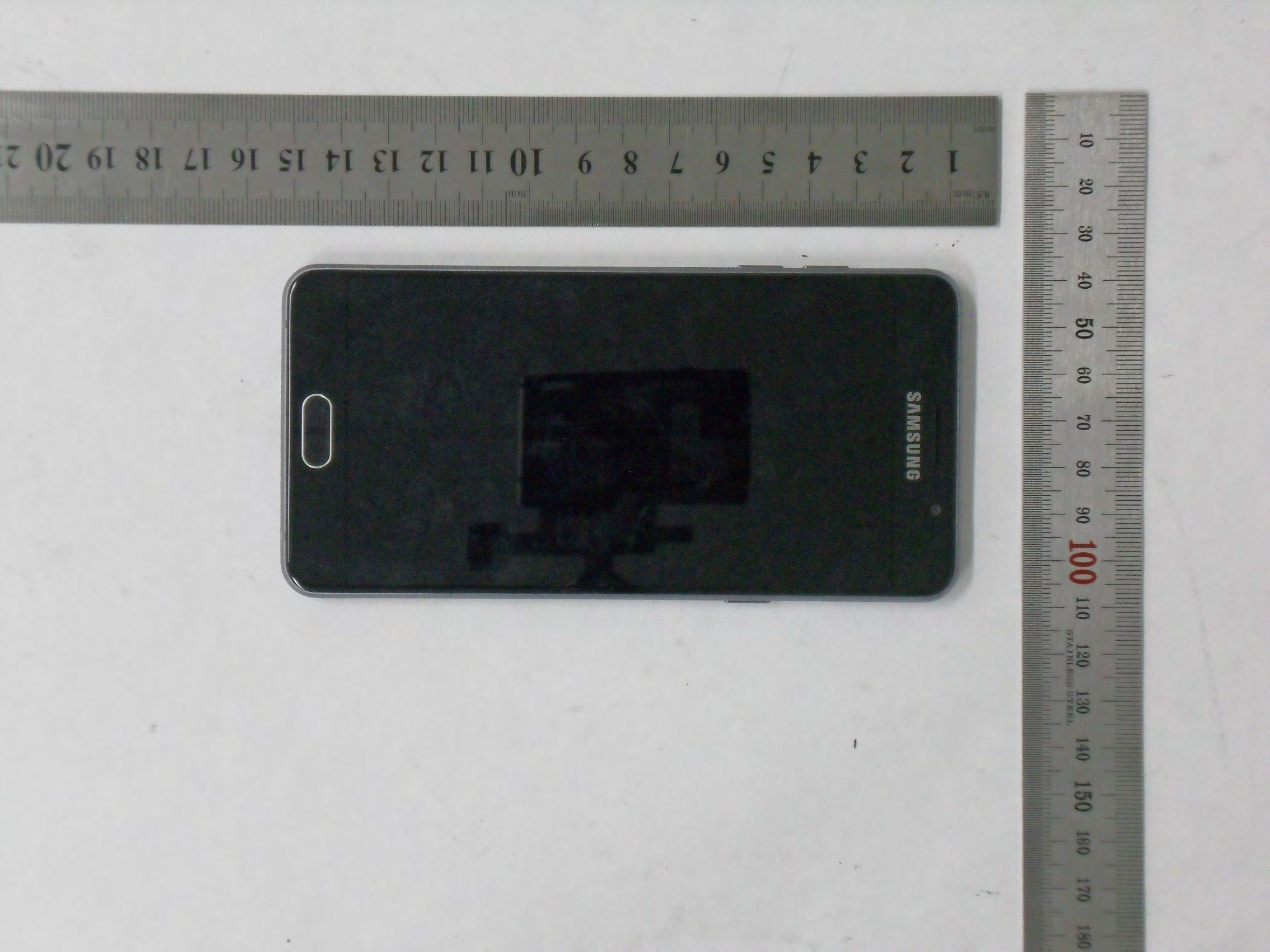

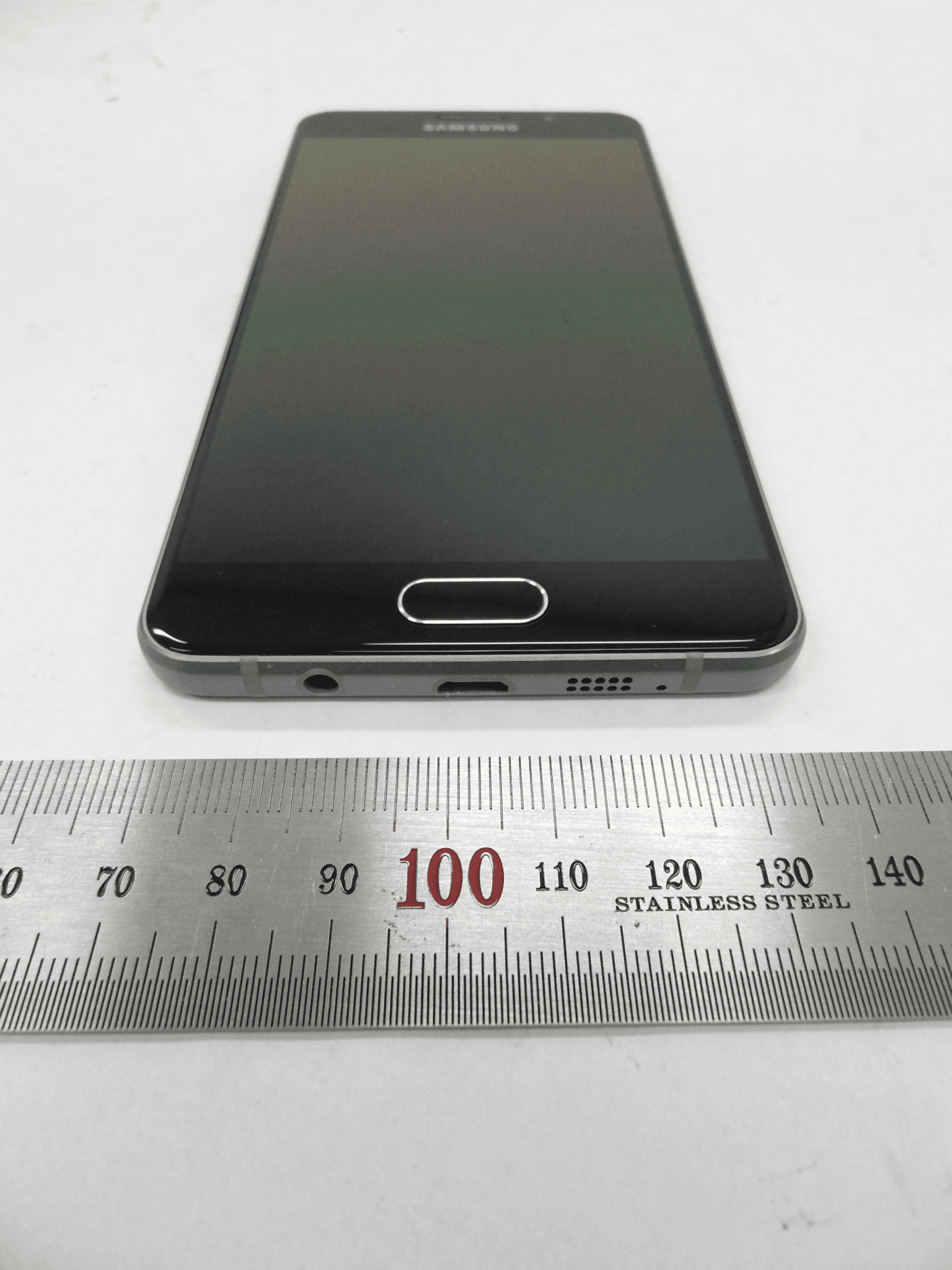

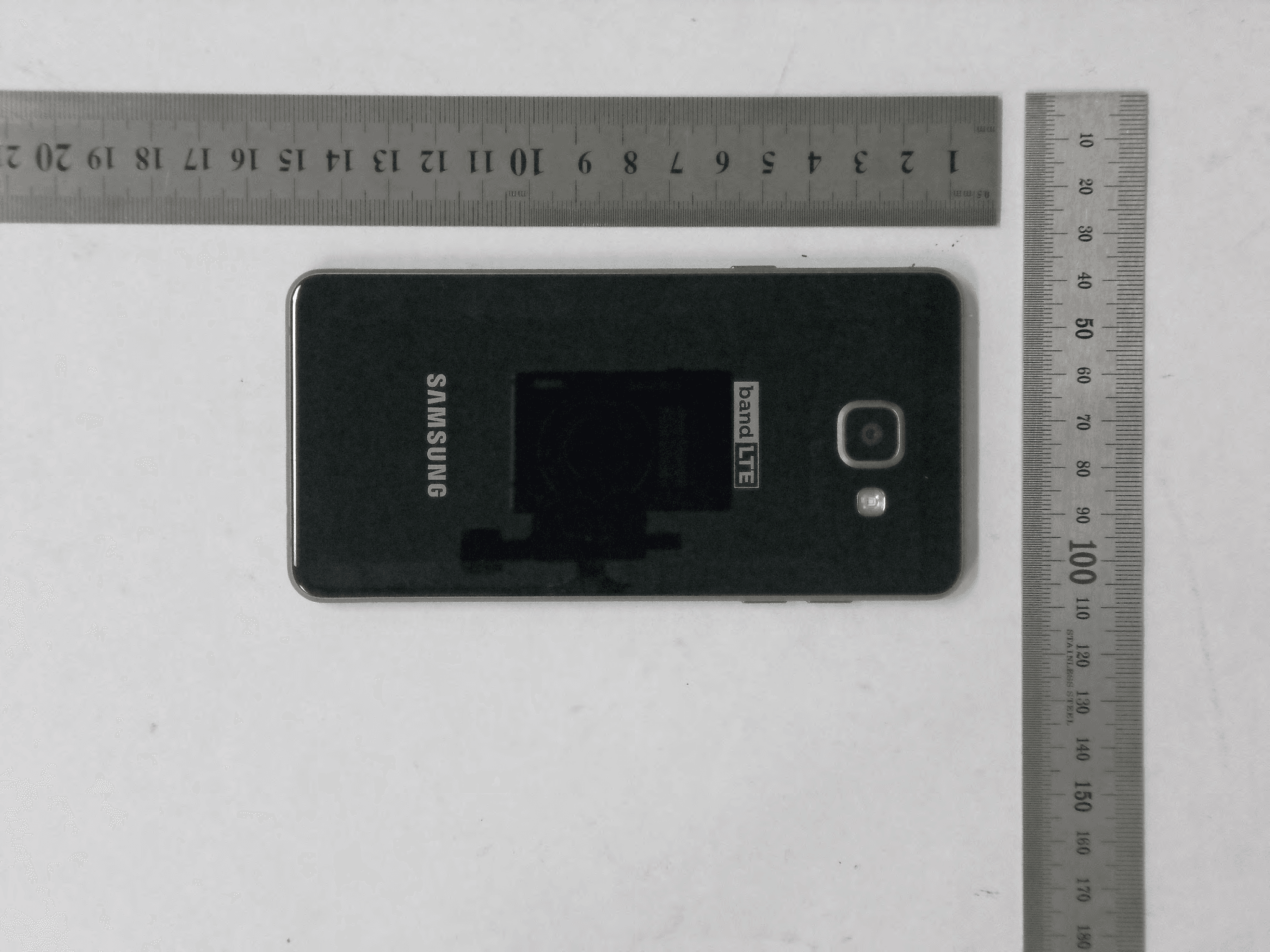

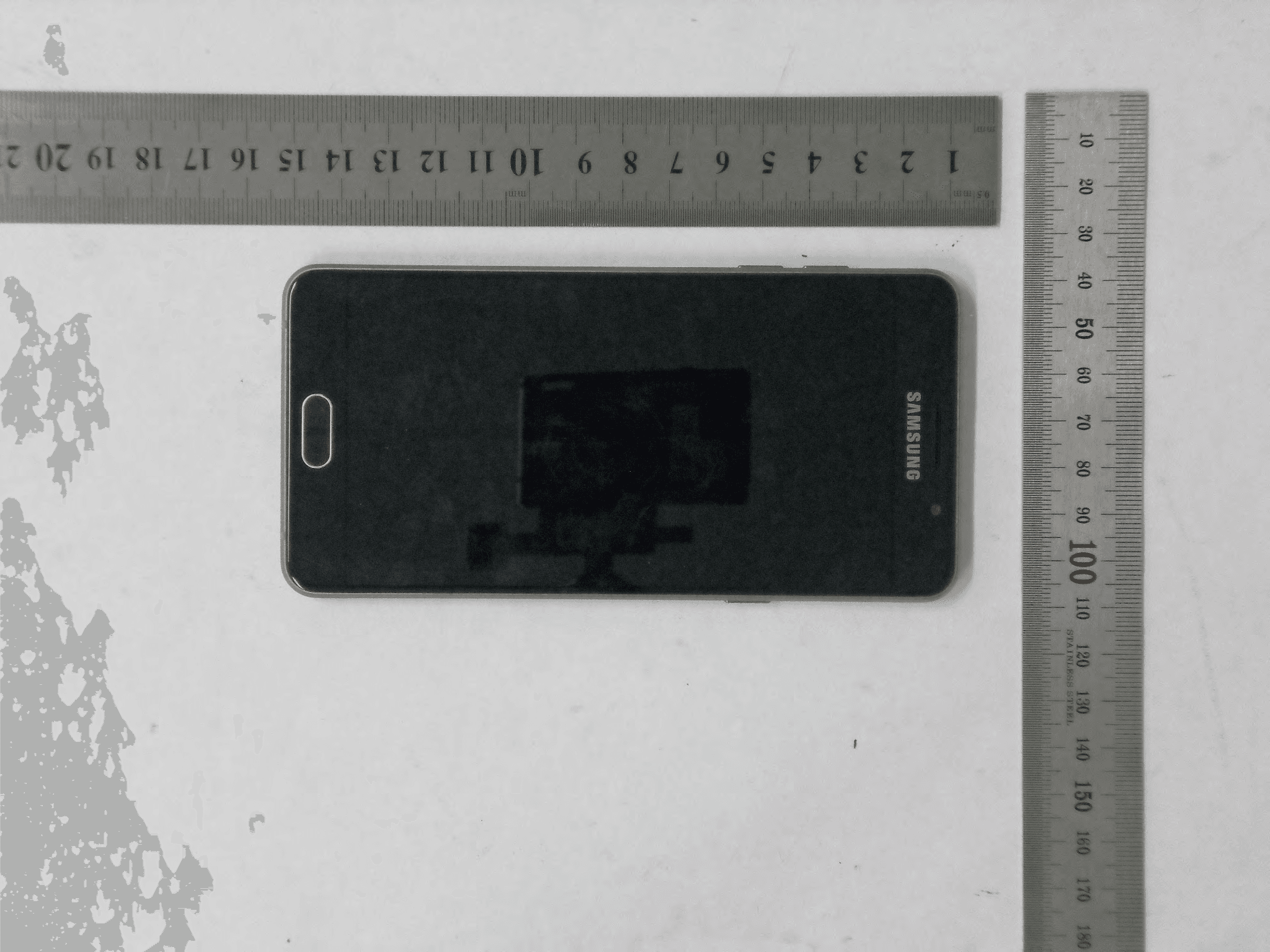

A3LSMA510FGSM/WCDMA/LTE Phone + BT/BLE, DTS b/g/n, ANT+ and NFC

대외비 User manual SM- A510F/DS,SM-A510F 대외비 using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note —notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. 대외비 contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing 대외비 Exc essive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or e xplosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions 대외비 Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-appr oved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or perm…

Text truncated - open the document above for the full version.

Date: August 5, 2015 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea To whom it may concern: I, the undersigned, hereby authorize UL Korea, Ltd. Suwon Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Korea, Ltd. Suwon Laboratory on our behalf shall have the same effect as acts of our own. In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. l) the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) This authorization is valid until further written notice from the applicant. Sincerely Yours CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

November 27, 2015 Federal Comm unications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMA510F To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.45 9 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

A. Information to be disp layed 1. The information that will be displa yed on the e-label and information that will re main in the user manual is sh own below: launaM nI lebal-E no noitamrofnI seY seY rebmun DI CCF elbacilppa toN elbacilppa toN ogol CoD 15 .19 statement (“This device complies with pa rt 15 of the FCC Rules. Oper ati on is subject to th e fo llowing two condit ions: (1) This device may no t cause harmfu l interference, and (2 ) this device must ac cept any in terference re ceived, in cluding interference that may ca use undesired op er ati on.”) - Yes Class A / B Digit al Device user man ual statemen ts 1 seY - DoC declarati on 1 elbacilppa toN elbacilppa toN Cautio n to the user that changes or modifications no t ex pressly approved by the par ty re sponsible for co mpliance could vo id the user's authority to op er ate the eq uip ment 1 - Yes Describe an y ot her FCC regulatory information incl ud ed in e-label 1 None Not ap plicable 1 If the e- label in cludes in formation typically included in the man ual then the e-label shall clearly diff erentiate between in formati on required to be on the device’s surfac e and in formation required to be in the manual – ref er to 784748 D02 e labelling v01 section II D 3(b) Imag es of the e-label screen are provided below: B. Access to th e required information on the e-label 1. Users are able to access th e in formation in no more than three steps in a device’s menu. The ac tual steps are: From the home screen : a) Click on App s b) Cl ick on Setti ngs c) Select about device No special ac ce ss codes or permissions are re quired to go thro ugh the ab ove steps be yond entering a user- defi ned password to protect against unauthorized ac cess to th e device. 2. The information is stored on the device, no special accessories or su pplemen tal plug-ins (e.g., a SIM/USIM card) are requ ired to acc ess the informatio n. 3. Users are provided specifi c inst ructions on how to access the in formation. The in for mation is provided in C. Labe Product s mar ke tin label or, label sh a the custo infor mat ling for Imp s utilizing e-l ng and sales. for devices i all be of a typ omer af ter pu tion may al te 1. The FCC I portation an label s are req For devices in protective pe intended to urchase. For d ernatively be ID and/or the d Purchasin quired to have impor ted in b bags, a label o su rvive nor devices impo provided on e DoC logo ( ng e a physica l l bulk and not l on the bags rmal shippin orted already the pac kage (if applicable label on the p packaged in is acceptabl g and handl i n in individua . It sh all cont ); and product at th ndividua lly, a e for this pur ng and must al packages re tain: e time of im p a removab le a rpose . Any re onl y be remo eady for sal e por tation, adhesive emovable oved by , the 2. Any other information re quired by specific rule to be provided on the su rface of the product unless su ch information is permitted to be included in the User’s manual or other packaging inserts. >> This model's FCC ID will be found on the package and manuals. D. Other considerations 1. The above infor mation must be programmed by th e responsible party an d the in formation must be secured in su ch a man ner th at third-parties cannot modify it. The FCC ID and other information are programmed by S/W team of Samsung and secured in such a manner that third-parties cannot modify it. 2. All the applicable regulatory informatio n required on the pack agin g or user instructions must be provided ac cording to the ru le s even if it is disp la yed elec tronically. For ex ample, hearing aid co mpatibility (HAC) ratings for th e phones as sp ec ified in 47 C.F.R. § 20.19. The other informati on can be fo und in th e us er manual.

TL-637 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/WCDMA/LTE Phone + BT/BLE, DTS/UNII a/b/g/n, NFC and ANT+ FCC ID: A3LSMA510F Model Name: SM-A510F/DS Report Number: 15K22047-S1V3 Issue Date: 12/4/2015 Prepared for SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI, GYEONGGI-DO, 443-742, KOREA Prepared by UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-823, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 Report No.: 15K22047-S1V3 Issue Date: 12/4/2015 Page 2 of 44 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd Revision History Rev. Date Revisions Revised By V1 11/26/2015 Initial Issue Justin Park V2 12/3/2015 Revised WCDMA Band II test distance and SAR data For Body-worn test. Justin Park V3 12/4/2015 Sec.6.3 Revised Max. tune-up tolerance limit of GSM850. Justin Park Report No.: 15K22047-S1V3 Issue Date: 12/4/2015 Page 3 of 44 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 10 6. Device Under Test (DUT) Information ...................................................................................... 11 6.1. DUT Description ...................................................................................................................... 11 6.2. Wireless Technologies ............................................................................................................. 11 6.3. Nominal and Maximum Output Power ...................................................................................... 12 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 14 7. RF Exposure Conditions (Test Configurations) ...................................................................... 15 8. Dielectric Property Measurements & System Check .............................................................. 16 8.1. Dielectric Property Measurements ........................................................................................... 16 8.2. System Check.......................................................................................................................... 19 9. Conducted Output Power Measurements ................................................................................ 21 9.1. GSM ........................................................................................................................................ 21 9.2. W-CDMA ................................................................................................................................. 23 9.3. LTE .......................................................................................................................................... 27 9.4. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 30 9.5. Wi-Fi 5GHz (U-NII Bands)........................................................................................................ 31 9.6. Bluetooth ................................................................................................................................. 32 10. Measured and Reported (Scaled) SAR Results ....................................................................... 33 10.1. GSM850 ............................................................................................................................... 35 10.2. GSM1900 ............................................................................................................................. 35 10.3. W-CDMA Band II .................................................................................................................. 36 10.4. W-CDMA Band V ................................................................................................................. 36 10.5. LTE Band 5 (10MHz Bandwidth) .......................................................................................... 37 10.6. Wi-Fi (DTS Band) ................................................................................................................. 38 10.7. Wi-Fi (U-NII Band) ................................................................................................................ 39 10.8. Bluetooth .............................................................................................................................. 40 Report No.: 15K22047-S1V3 Issue Date: 12/4/2015 Page 4 of 44 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd 11. SAR Measurement Variability ...................................................................................................…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-20 GSM 850_Head_1120 GPRS Retest Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.905 S/m; ε r = 40.643; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1468; Calibrated: 2015-09-15 - Probe: EX3DV4 - SN7376; ConvF(9.99, 9.99, 9.99); Calibrated: 2015-09-02; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1846 RHS/Touch_GPRS 2slots_ch 190/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm. Maximum value of SAR (measured) = 0.187 W/kg RHS/Touch_GPRS 2slots_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.058 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.208 W/kg SAR(1 g) = 0.172 W/kg; SAR(10 g) = 0.132 W/kg Maximum value of SAR (measured) = 0.192 W/kg 0 dB = 0.192 W/kg = -7.17 dBW/kg Plot No. 2 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-19 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.984 S/m; ε r = 53.814; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1468; Calibrated: 2015-09-15 - Probe: EX3DV4 - SN7376; ConvF(10.07, 10.07, 10.07); Calibrated: 2015-09-02; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: Triple Flat Phantom 5.1C; Type: QD 000 P51 CA; Serial: 1166 Front/GPRS 2 slots_ch 190/Area Scan (12x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.873 W/kg Front/GPRS 2 slots_ch 190/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.51 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.23 W/kg SAR(1 g) = 0.687 W/kg; SAR(10 g) = 0.385 W/kg Maximum value of SAR (measured) = 0.921 W/kg 0 dB = 0.921 W/kg = -0.36 dBW/kg Plot No. 3 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-11-21 GSM 1900_Head_1121 Frequency: 1880 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.408 S/m; ε r = 39.027; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(8.07, 8.07, 8.07); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM Phantom CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1855 RHS/Touch_GPRS 2 slots_ch 661/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0994 W/kg RHS/Touch_GPRS 2 slots_ch 661/Zoom Scan (5x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.914 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.126 W/kg SAR(1 g) = 0.079 W/kg; SAR(10 g) = 0.049 W/kg Maximum value of SAR (measured) = 0.103 W/kg 0 dB = 0.103 W/kg = -9.87 dBW/kg Plot No. 4 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-11-20 GSM1900_Body Frequency: 1909.8 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1910 MHz; σ = 1.593 S/m; ε r = 52.212; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(7.82, 7.82, 7.82); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI v6.0; Type: QDOVA003AA; Serial: TP:xxxx Edge 3/GPRS 2 slots_ch810/Area Scan (8x5x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.994 W/kg Edge 3/GPRS 2 slots_ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.85 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 0.767 W/kg; SAR(10 g) = 0.385 W/kg Maximum value of SAR (measured) = 0.958 W/kg 0 dB = 0.958 W/kg = -0.19 dBW/kg Plot No. 5 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-11-21 WCDMA Band 2_1121 Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.408 S/m; ε r = 39.027; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(8.07, 8.07, 8.07); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM Phantom CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1855 RHS/Touch_Rel.99 ch 9400/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.144 W/kg RHS/Touch_Rel.99 ch 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.749 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.193 W/kg SAR(1 g) = 0.119 W/kg; SAR(10 g) = 0.074 W/kg Maximum value of SAR (measured) = 0.156 W/kg 0 dB = 0.156 W/kg = -8.07 dBW/kg Plot No. 6 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-12-03 WCDMA Band 2 Frequency: 1907.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.557 S/m; ε r = 50.97; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: …

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-16 20151116_SystemPerformanceCheck-D5GHzV2 SN 1184 Frequency: 5600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5600 MHz; σ = 5.914 S/m; ε r = 48.33; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1447; Calibrated: 2015-09-23 - Probe: EX3DV4 - SN7314; ConvF(3.6, 3.6, 3.6); Calibrated: 2015-09-25; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v6.0; Type: QDOVA003AA; Serial: TP:2013 Body/5.6 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 19.7 W/kg Body/5.6 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 53.90 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 34.7 W/kg SAR(1 g) = 8.63 W/kg; SAR(10 g) = 2.4 W/kg Maximum value of SAR (measured) = 21.4 W/kg 0 dB = 21.4 W/kg = 13.30 dBW/kg Plot No. 2 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-16 20151116_SystemPerformanceCheck-D5GHzV2 SN 1184 Frequency: 5600 MHz; Duty Cycle: 1:1 Body/5.6 GHz, Pin=100mW /Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 14.3 W/kg Plot No. 3 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-18 20151118_SystemPerformanceCheck-D2450V2 SN 960 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.861 S/m; ε r = 37.778; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1447; Calibrated: 2015-09-23 - Probe: EX3DV4 - SN7314; ConvF(7.18, 7.18, 7.18); Calibrated: 2015-09-25; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Right); Type: QD000P40CD; Serial: TP:xxxx Head/Pin=100 mW 2 2/Area Scan (9x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.52 W/kg Head/Pin=100 mW 2 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.47 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 11.2 W/kg SAR(1 g) = 5.22 W/kg; SAR(10 g) = 2.41 W/kg Maximum value of SAR (measured) = 5.92 W/kg 0 dB = 5.92 W/kg = 7.72 dBW/kg Plot No. 4 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-18 20151118_SystemPerformanceCheck-D2450V2 SN 960 Frequency: 2450 MHz; Duty Cycle: 1:1 Head/Pin=100 mW 2 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 6.24 W/kg Plot No. 5 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-20 20151120_SystemPerformanceCheck-D835V2 SN 4d194 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.904 S/m; ε r = 40.661; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1468; Calibrated: 2015-09-15 - Probe: EX3DV4 - SN7376; ConvF(9.99, 9.99, 9.99); Calibrated: 2015-09-02; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1846 Head/Pin=100 mW/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.26 W/kg Head/Pin=100 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Referen…

Text truncated - open the document above for the full version.
