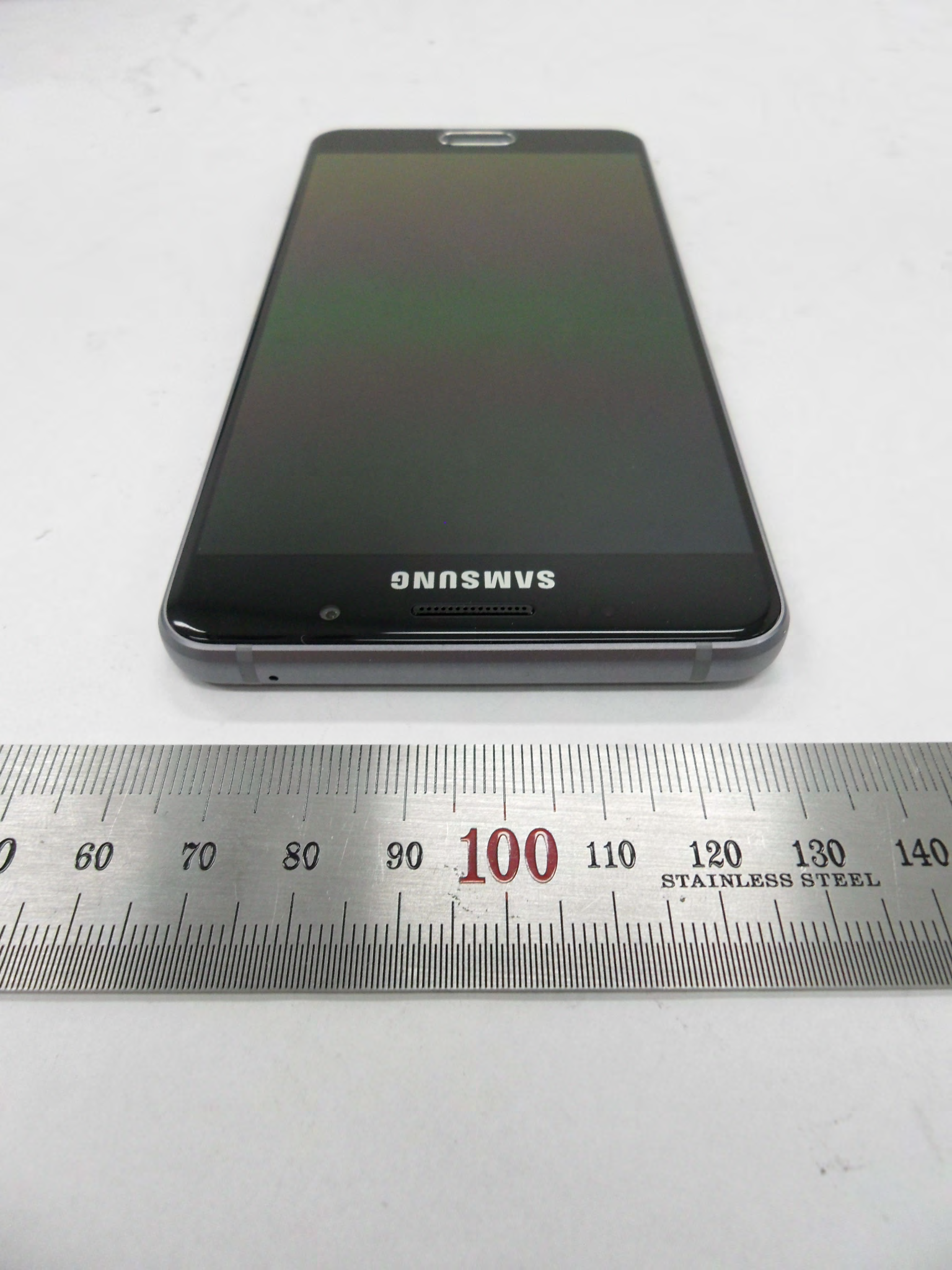

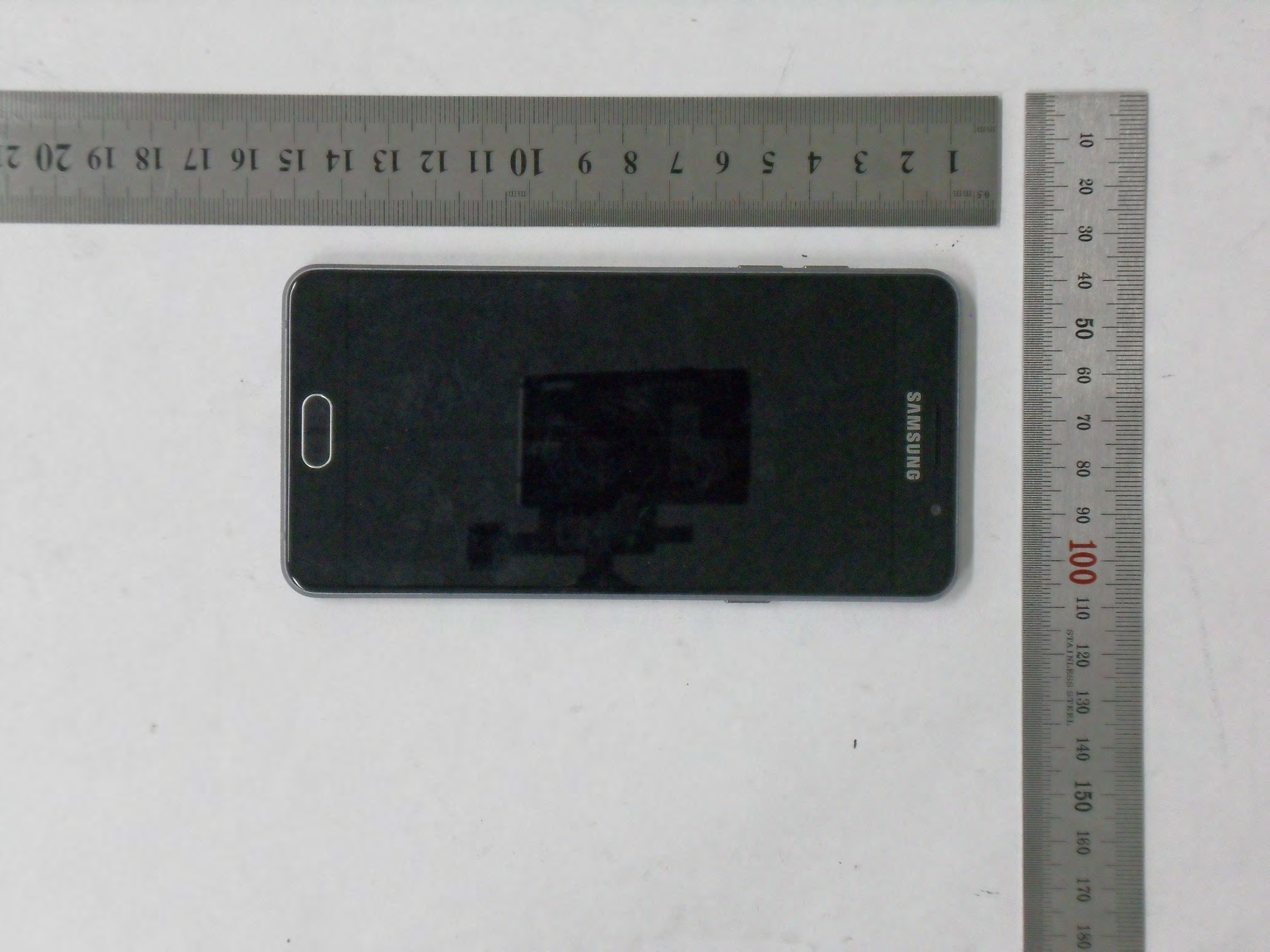

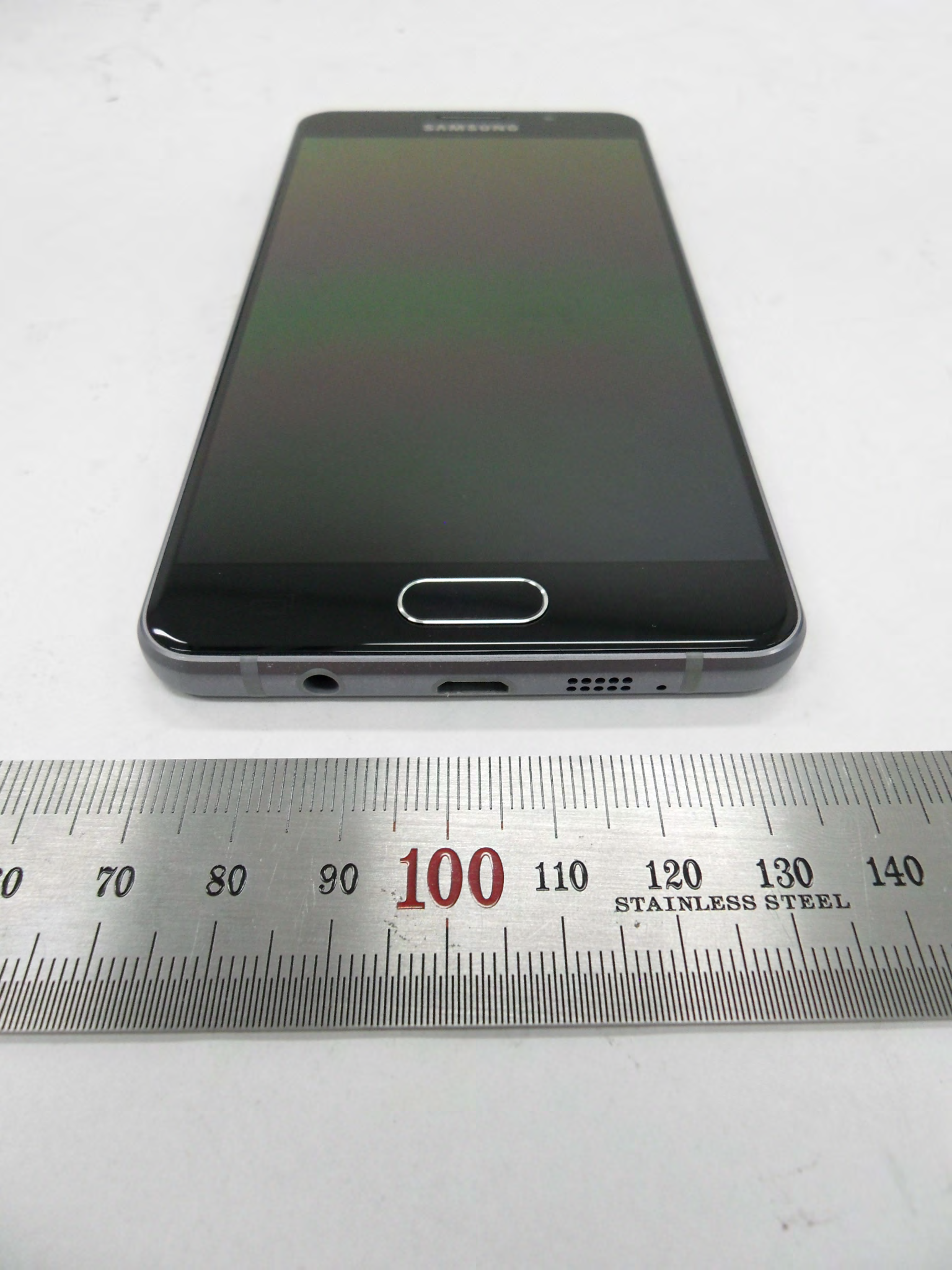

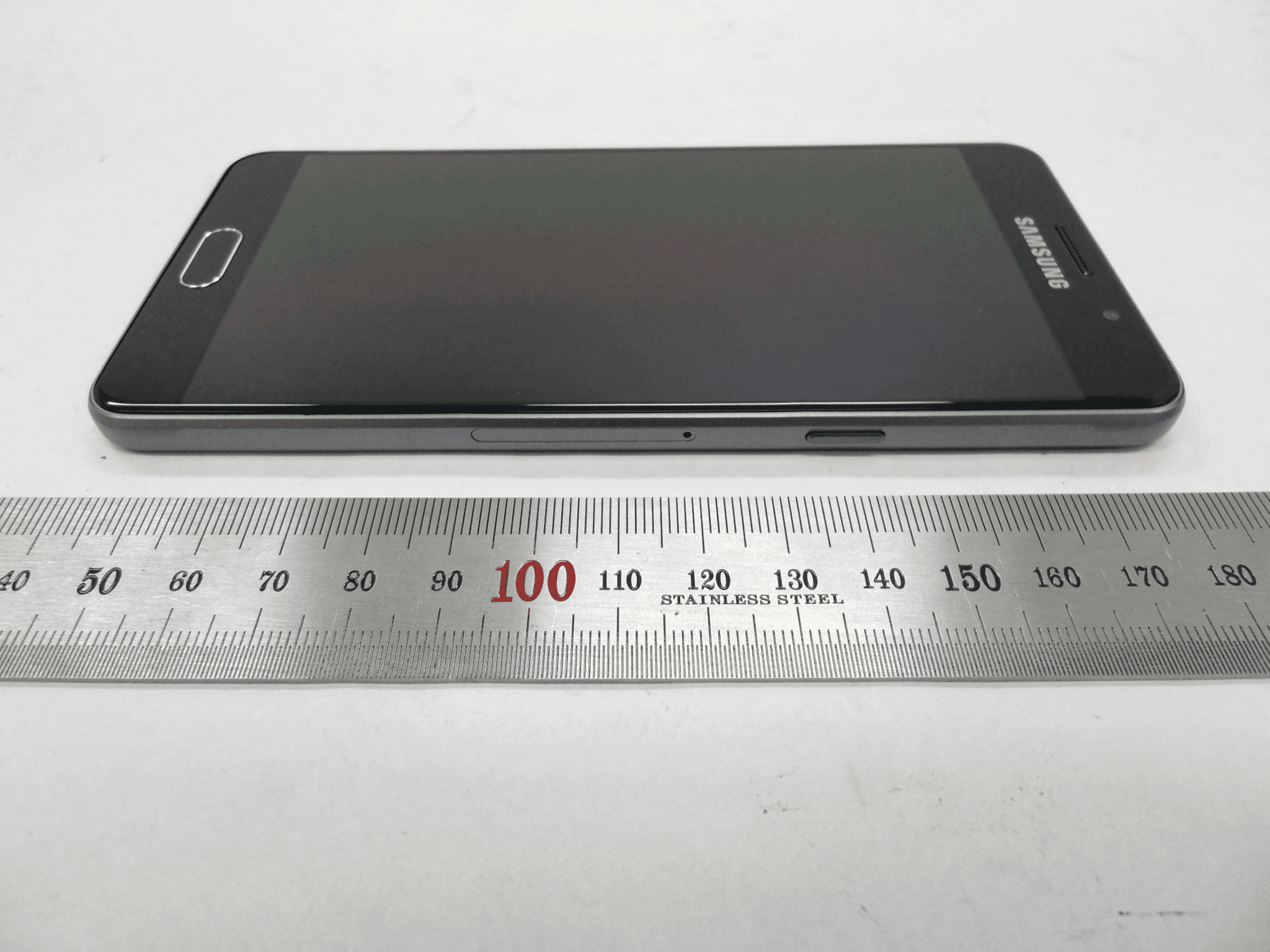

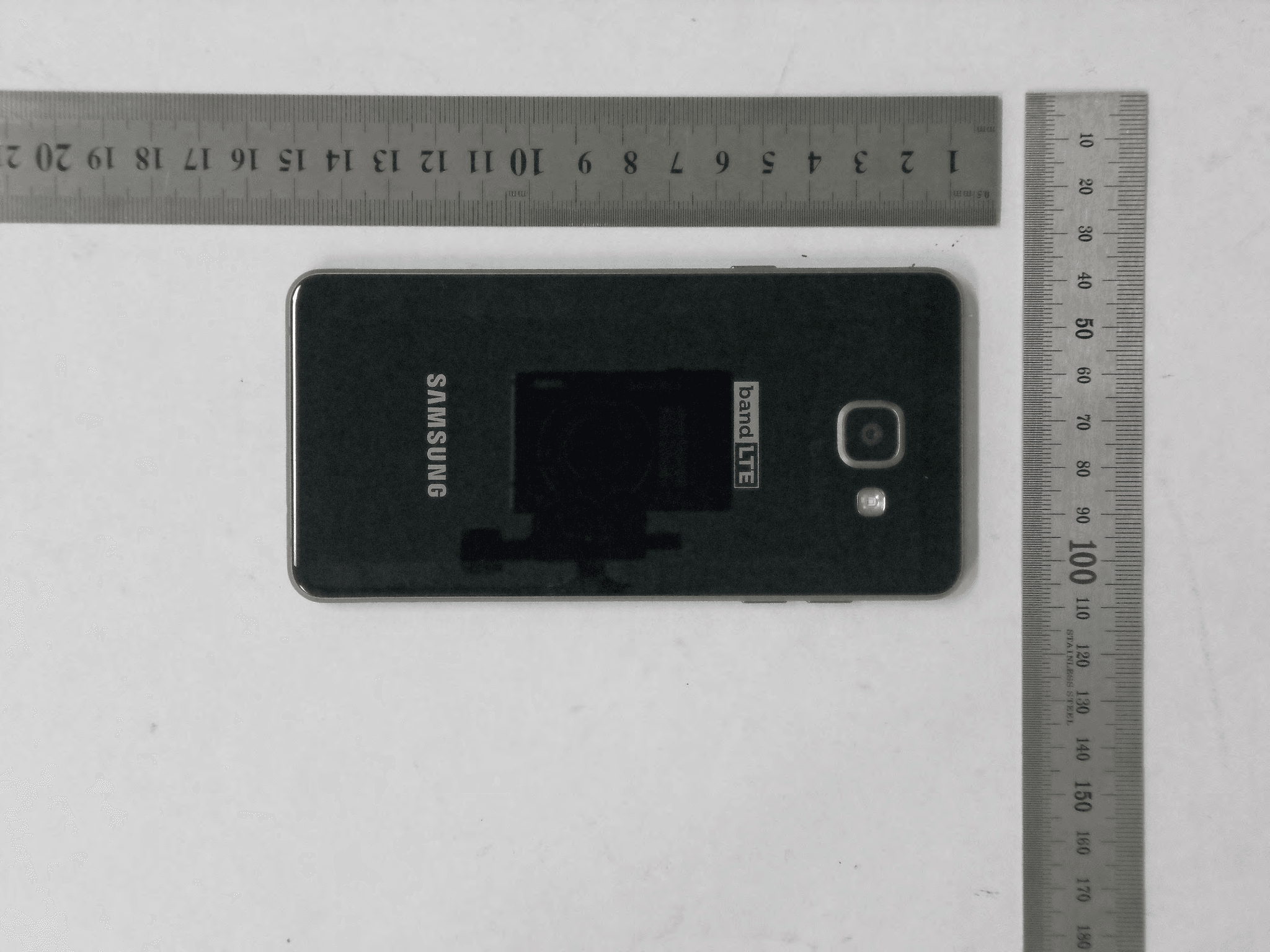

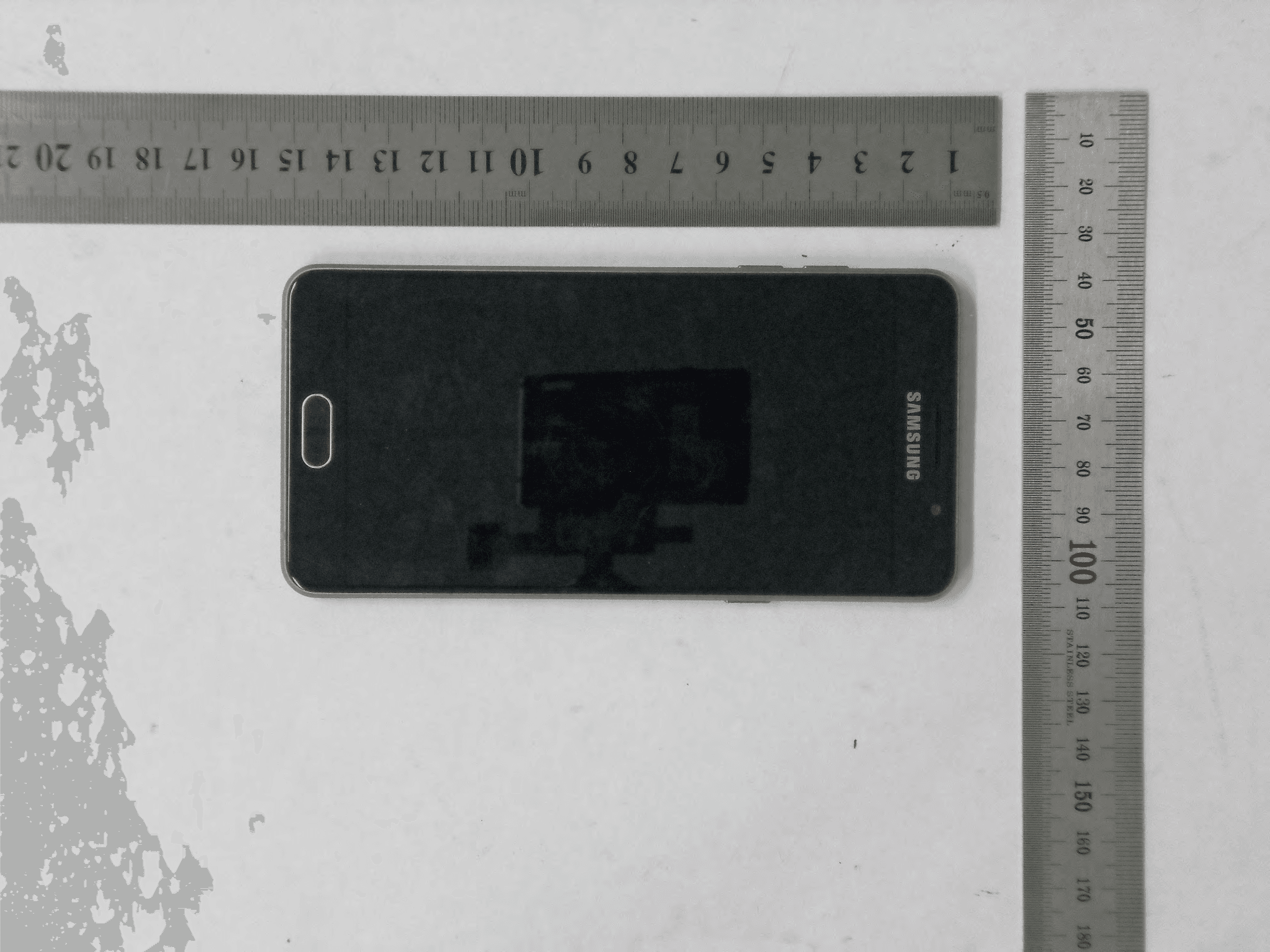

A3LSMA510KORGSM/WCDMA/LTE Phone + BT/BLE, DTS/UNII a/b/g/n, ANT+ and NFC

User manual SM-A510KOR Draft Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Copyright information ● Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. ● JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. ● Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. Drive safely at all times Do not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless phones can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the phone near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless phones may be subject to interference, which could affect their performance. Be aware of special regulations Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your phone is not water-resistant. Keep it dry. Sensible use Use only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the phone is switched on. Emergency calls Key in the emergency number for your present location, then press [ ]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteries Use only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous. Qualified service Only qualified service personnel may repair your phone. For more detailed safety information, see ¡°Health and safety information¡± on page 20. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufactureri’s instructions. Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audiosource and use only the minimum volume setting necessary to hear your conversation or music. Unpack Make sure you have each item • Phone • Adapter • Stereo headset • Battery • Battery travel holder • User’s manual Suitable Adapter or Charger, certified according to the relevant safety standard, will be provided for each country in use. You can obtain the following accessories for your phone from your local Samsung dealer. • Multi adapter • Travel charger • Car charger • PC data cable • Portable battery kit • Portable PC data cable • Music controller • Bluetooth mono/ stereop headset kit Get started First steps to operate your phone Install and charge the phone 1. Install the battery: To remove the battery, slide the battery catch toward the top of the phone and hold it. 2. Plug the adapter into the phone. 3. Plug the adapter into a standard AC wall outlet. 4. When the phone is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet. 5. Remove the adapter from the phone. Low battery indicator When the battery is low: • a warning tone sounds, • the battery low message displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Keys and display Buttons Function Power • Press and hold to turn the device on or off. • Press and hold for more than 7 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Menu • Tap to open a list of options available for the current screen. • Tap and hold on the Home screen to launch Google application. Home • Press to return to the Home screen. • Press twice to launch S Voice application. • Press and hold to open the list of recent applications. Back • Tap to return to the previous screen. Volume • Press to adjust the device volume. Overview of menu functions To access Menu mode, press [환경설정] in ldle mode. Phone Contacts Messages Internet Gallery Camera Music Video Email Clock DMB Memo Calculatro My Files Voice Recorder Smart Manager S Planner S Health S Voice Galaxy Apps Settings Samsung Pay youTube Play Store Chrome Maps Google Word Excel PowerPoint OneNote OneDrive T Service Tphone Tcontacts Mobile T world T membership T freemium plus T store T map T cloud MelOn B tv mobile Syrup Wallet OK Cashbag 11st Syrup Order Gifticon Syrup Table Call SVC Center Nate Cymera T guard Gmail Drive Play Movies & TV Hangouts Photos Solve problems Help and personal needs To save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional. When you switch on your phone, the following messages may appear: “Insert USIM card” • Be sure that the USIM card is correctly installed. “Phone locked Enter password” • The automatic locking function has been enabled. You must enter the phone¡ ̄s password before you can use the phone. “Enter PIN1” • You are using your phone for the first time. You must enter the PIN1 supplied with the USIM card. • The PIN1 Check feature is enabled. Every time the phone is switched on, the PIN1 has to be entered. To disable this feature, use the PIN check menu. “Enter PUK” • The PIN1 code has been entered incorrectly three times in succession, and the phone is now blocked. Enter the PUK1 supplied by your service provider. “No Service” “Network Failure,” or “Not Done” displays • The network connection has been lost. You may be in a weak signal area. Move and try again. • You are trying to access an option for which you have no subscription with your service provider. …

Text truncated - open the document above for the full version.

Date: August 5, 2015 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea To whom it may concern: I, the undersigned, hereby authorize UL Korea, Ltd. Suwon Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Korea, Ltd. Suwon Laboratory on our behalf shall have the same effect as acts of our own. In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. l) the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) This authorization is valid until further written notice from the applicant. Sincerely Yours CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

November 27, 2015 Federal Comm unications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMA510KOR To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.45 9 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

A. Information to be disp layed 1. The information that will be displa yed on the e-label and information that will re main in the user manual is sh own below: launaM nI lebal-E no noitamrofnI seY seY rebmun DI CCF elbacilppa toN elbacilppa toN ogol CoD 15 .19 statement (“This device complies with pa rt 15 of the FCC Rules. Oper ati on is subject to th e fo llowing two condit ions: (1) This device may no t cause harmfu l interference, and (2 ) this device must ac cept any in terference re ceived, in cluding interference that may ca use undesired op er ati on.”) - Yes Class A / B Digit al Device user man ual statemen ts 1 seY - DoC declarati on 1 elbacilppa toN elbacilppa toN Cautio n to the user that changes or modifications no t ex pressly approved by the par ty re sponsible for co mpliance could vo id the user's authority to op er ate the eq uip ment 1 - Yes Describe an y ot her FCC regulatory information incl ud ed in e-label 1 None Not ap plicable 1 If the e- label in cludes in formation typically included in the man ual then the e-label shall clearly diff erentiate between in formati on required to be on the device’s surfac e and in formation required to be in the manual – ref er to 784748 D02 e labelling v01 section II D 3(b) Imag es of the e-label screen are provided below: B. Access to th e required information on the e-label 1. Users are able to access th e in formation in no more than three steps in a device’s menu. The ac tual steps are: From the home screen : a) Click on App s b) Cl ick on Setti ngs c) Select about device No special ac ce ss codes or permissions are re quired to go thro ugh the ab ove steps be yond entering a user- defi ned password to protect against unauthorized ac cess to th e device. 2. The information is stored on the device, no special accessories or su pplemen tal plug-ins (e.g., a SIM/USIM card) are requ ired to acc ess the informatio n. 3. Users are provided specifi c inst ructions on how to access the in formation. The in for mation is provided in C. Labe Product s mar ke tin label or, label sh a the custo infor mat ling for Imp s utilizing e-l ng and sales. for devices i all be of a typ omer af ter pu tion may al te 1. The FCC I portation an label s are req For devices in protective pe intended to urchase. For d ernatively be ID and/or the d Purchasin quired to have impor ted in b bags, a label o su rvive nor devices impo provided on e DoC logo ( ng e a physica l l bulk and not l on the bags rmal shippin orted already the pac kage (if applicable label on the p packaged in is acceptabl g and handl i n in individua . It sh all cont ); and product at th ndividua lly, a e for this pur ng and must al packages re tain: e time of im p a removab le a rpose . Any re onl y be remo eady for sal e por tation, adhesive emovable oved by , the 2. Any other information re quired by specific rule to be provided on the su rface of the product unless su ch information is permitted to be included in the User’s manual or other packaging inserts. >> This model's FCC ID will be found on the package and manuals. D. Other considerations 1. The above infor mation must be programmed by th e responsible party an d the in formation must be secured in su ch a man ner th at third-parties cannot modify it. The FCC ID and other information are programmed by S/W team of Samsung and secured in such a manner that third-parties cannot modify it. 2. All the applicable regulatory informatio n required on the pack agin g or user instructions must be provided ac cording to the ru le s even if it is disp la yed elec tronically. For ex ample, hearing aid co mpatibility (HAC) ratings for th e phones as sp ec ified in 47 C.F.R. § 20.19. The other informati on can be fo und in th e us er manual.

TL-637 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/WCDMA/LTE Phone + BT/BLE, DTS/UNII a/b/g/n, NFC and ANT+ FCC ID: A3LSMA510KOR Model Name: SM-A510S, SM-A510K, SM-A510L Report Number: 15K22092-S1V2 Issue Date: 12/3/2015 Prepared for SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI, GYEONGGI-DO, 443-742, KOREA Prepared by UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-823, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 Report No.: 15K22092-S1V2 Issue Date: 12/3/2015 Page 2 of 47 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd Revision History Rev. Date Revisions Revised By V1 11/29/2015 Initial Issue Justin Park V2 12/3/2015 Revised Re-use SAR data of WCDMA Band II. Justin Park Report No.: 15K22092-S1V2 Issue Date: 12/3/2015 Page 3 of 47 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 10 6. Device Under Test (DUT) Information ...................................................................................... 11 6.1. DUT Description ...................................................................................................................... 11 6.2. Wireless Technologies ............................................................................................................. 11 6.3. Nominal and Maximum Output Power ...................................................................................... 12 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 14 7. RF Exposure Conditions (Test Configurations) ...................................................................... 15 8. Dielectric Property Measurements & System Check .............................................................. 16 8.1. Dielectric Property Measurements ........................................................................................... 16 8.2. System Check.......................................................................................................................... 21 9. Conducted Output Power Measurements ................................................................................ 24 9.1. GSM ........................................................................................................................................ 24 9.2. W-CDMA ................................................................................................................................. 25 9.3. LTE .......................................................................................................................................... 29 9.4. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 33 9.5. Wi-Fi 5GHz (U-NII Bands)........................................................................................................ 34 9.6. Bluetooth ................................................................................................................................. 35 10. Measured and Reported (Scaled) SAR Results ....................................................................... 36 10.1. GSM1900 ............................................................................................................................. 38 10.2. W-CDMA Band II .................................................................................................................. 39 10.3. W-CDMA Band V ................................................................................................................. 39 10.4. LTE Band 5 (10MHz Bandwidth) .......................................................................................... 40 10.5. LTE Band 17 (10MHz Bandwidth) ........................................................................................ 40 10.6. Wi-Fi (DTS Band) ................................................................................................................. 41 10.7. Wi-Fi (U-NII Band) ................................................................................................................ 42 10.8. Bluetooth .............................................................................................................................. 43 Report No.: 15K22092-S1V2 Issue Date: 12/3/2015 Page 4 of 47 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd 11. SAR Measurement Variability ................................................................................................... 44 12. Simultaneous Transmission SAR Analysis ..........................................................…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-11-12 GSM 1900_1112 Frequency: 1880 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.435 S/m; ε r = 39.436; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(8.07, 8.07, 8.07); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM Phantom CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1855 RHS/Touch_GPRS 3 slots_ch 661/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0830 W/kg RHS/Touch_GPRS 3 slots_ch 661/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.300 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.111 W/kg SAR(1 g) = 0.064 W/kg; SAR(10 g) = 0.037 W/kg Maximum value of SAR (measured) = 0.0863 W/kg 0 dB = 0.0863 W/kg = -10.64 dBW/kg Plot No. 2 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-11-11 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.556 S/m; ε r = 51.242; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(7.82, 7.82, 7.82); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI v6.0; Type: QDOVA003AA; Serial: TP:xxxx Rear/GPRS 3 slots_ch661/Area Scan (14x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.569 W/kg Rear/GPRS 3 slots_ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.56 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.921 W/kg SAR(1 g) = 0.520 W/kg; SAR(10 g) = 0.269 W/kg Maximum value of SAR (measured) = 0.711 W/kg 0 dB = 0.711 W/kg = -1.48 dBW/kg Plot No. 3 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-11-21 WCDMA Band 2_1121 Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.408 S/m; ε r = 39.027; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(8.07, 8.07, 8.07); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM Phantom CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1855 RHS/Touch_Rel.99 ch 9400/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.144 W/kg RHS/Touch_Rel.99 ch 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.749 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.193 W/kg SAR(1 g) = 0.119 W/kg; SAR(10 g) = 0.074 W/kg Maximum value of SAR (measured) = 0.156 W/kg 0 dB = 0.156 W/kg = -8.07 dBW/kg Plot No. 4 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-12-03 WCDMA Band 2 Frequency: 1907.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.557 S/m; ε r = 50.97; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(7.82, 7.82, 7.82); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI v6.0; Type: QDOVA003AA; Serial: TP:2001 Rear/RMC Rel.99 ch9538 10mm/Area Scan (13x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.986 W/kg Rear/RMC Rel.99 ch9538 10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.39 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.60 W/kg SAR(1 g) = 0.894 W/kg; SAR(10 g) = 0.455 W/kg Maximum value of SAR (measured) = 1.23 W/kg 0 dB = 1.23 W/kg = 0.90 dBW/kg Plot No. 5 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-18 WCDMA Band 5_1118 Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.885 S/m; ε r = 40.784; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1468; Calibrated: 2015-09-15 - Probe: EX3DV4 - SN7376; ConvF(9.99, 9.99, 9.99); Calibrated: 2015-09-02; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1846 RHS/Touch_RMC Rel .99_ch 4183/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.164 W/kg RHS/Touch_RMC Rel .99_ch 4183/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.81 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.176 W/kg SAR(1 g) = 0.147 W/kg; SAR(10 g) = 0.114 W/kg Maximum value of SAR (measured) = 0.163 W/kg 0 dB = 0.163 W/kg = -7.88 dBW/kg Plot No. 6 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-19 WCDMA Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.984 S/m; ε r = 53.814; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1468; Calibrated: 2015-09-15 - Probe: EX3DV4 - SN7376; ConvF(10.07, 10.07, 10.07); …

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-16 20151116_SystemPerformanceCheck-D5GHzV2 SN 1184 Frequency: 5600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5600 MHz; σ = 5.914 S/m; ε r = 48.33; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1447; Calibrated: 2015-09-23 - Probe: EX3DV4 - SN7314; ConvF(3.6, 3.6, 3.6); Calibrated: 2015-09-25; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v6.0; Type: QDOVA003AA; Serial: TP:2013 Body/5.6 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 19.7 W/kg Body/5.6 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 53.90 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 34.7 W/kg SAR(1 g) = 8.63 W/kg; SAR(10 g) = 2.4 W/kg Maximum value of SAR (measured) = 21.4 W/kg 0 dB = 21.4 W/kg = 13.30 dBW/kg Plot No. 2 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-16 20151116_SystemPerformanceCheck-D5GHzV2 SN 1184 Frequency: 5600 MHz; Duty Cycle: 1:1 Body/5.6 GHz, Pin=100mW /Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 14.3 W/kg Plot No. 3 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-18 20151118_SystemPerformanceCheck-D2450V2 SN 960 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.861 S/m; ε r = 37.778; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1447; Calibrated: 2015-09-23 - Probe: EX3DV4 - SN7314; ConvF(7.18, 7.18, 7.18); Calibrated: 2015-09-25; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Right); Type: QD000P40CD; Serial: TP:xxxx Head/Pin=100 mW 2 2/Area Scan (9x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.52 W/kg Head/Pin=100 mW 2 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.47 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 11.2 W/kg SAR(1 g) = 5.22 W/kg; SAR(10 g) = 2.41 W/kg Maximum value of SAR (measured) = 5.92 W/kg 0 dB = 5.92 W/kg = 7.72 dBW/kg Plot No. 4 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-18 20151118_SystemPerformanceCheck-D2450V2 SN 960 Frequency: 2450 MHz; Duty Cycle: 1:1 Head/Pin=100 mW 2 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 6.24 W/kg Plot No. 5 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-11-20 20151120_SystemPerformanceCheck-D835V2 SN 4d194 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.904 S/m; ε r = 40.661; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1468; Calibrated: 2015-09-15 - Probe: EX3DV4 - SN7376; ConvF(9.99, 9.99, 9.99); Calibrated: 2015-09-02; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Right); Type: QD000P40CD; Serial: TP:1846 Head/Pin=100 mW/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.26 W/kg Head/Pin=100 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Refer…

Text truncated - open the document above for the full version.
