A3LSMA526BGSM/WCDMA/LTE/5G Phablet with BT/BLE,DTS/UNII a/b/g/n/ac and NFC

FCC ID : A3LSMA526B MODEL : SM-A526B SM-A526B/DS Package content • Device • USB cable • Ejection pin • USB power adaptor • Quick start guide The items supplied with the device may vary by region. Accessing more information To view the full user manual on your device, launch the Settings app and tap User manual. Visit www.samsung.com to view device information, the user manual, and more. • The user manual may not be available depending on the web browser or service provider. • You may incur additional charges for accessing the Internet. To turn on the device, press and hold the Power key for a few seconds. Installing a nano-SIM card and a microSD card Insert the ejection pin into the hole next to the tray to loosen the tray. Gently press the card into the tray to secure it. • Use only a nano-SIM card. • Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device may be damaged. • If the card is not fixed firmly into the tray, the card may leave or fall out of the tray. Nano-SIM cards and microSD cards are sold separately. Charging the battery Before using the device for the first time, you must charge the battery. Use only USB Type-C cable supplied with the device. The device may be damaged if you use Micro USB cable. The charger should remain close to the electric socket and easily accessible while charging. Using the Home button When you turn on the screen, the Home button will appear at the bottom of the screen as a soft button. Correct disposal This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. This product is RoHS compliant. This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste. Safety information Read all safety information before using the device to ensure safe and proper use. Warning Follow the warning information provided below to prevent incidents such as fire or explosion • Do not expose the device to physical impact or damage. • Use manufacturer-approved batteries, chargers, accessories, and supplies. • Prevent the multipurpose jack and battery terminals from contacting conductive elements, such as metal or liquids. • If any part of the device, such as the glass or acrylic body, is broken, smokes, or emits a burning odor, stop using the device immediately. Use the device again only after it has been repaired at a Samsung Service Centre. • Do not turn on or use the device when the battery compartment is exposed. Follow the warnings below to prevent injury to people or damage to the device • Do not allow children or animals to chew or suck the device. • If the device has a camera flash or light, do not use it close to the eyes of people or animals. • The device can be used in locations with an ambient temperature of 0 °C to 35 °C. You can store the device at an ambient temperature of -20 °C to 50 °C. Using or storing the device outside of the recommended temperature ranges may damage the device or reduce the battery’s lifespan. • Do not use your device in a hot environment or near fire. • Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle. To prevent possible hearing damage when using a headset, do not listen to sound at high volume for long periods. You can view more safety information, including device and battery disposal instructions, in the safety information menu of the Settings app. • It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting. Specific Absorption Rate (SAR) certification information THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES Your mobile is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. The guidelines were developed by an independent scientific organigation (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement kn own as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2.0 W/kg. The highest SAR values under the ICNIRP guidelines for this device model are: SAR values for European countries: The SAR values below are only for devices developed for use in European countries. Maximum SAR for this model and conditions under which it was recorded Head SAR TBD W/kg Body-worn SAR TBD W/kg Body-worn SAR testing has been carried out at a separation distance of 0.5 cm. To meet RF exposure guidelines during body-worn operation, the device should be positioned at least this distance away from the body. For SAR values for all other countries: For SAR values specific to your model, visit www.samsung.com/sar and search for your region and device with the model number. The use of WLAN band is restricted to indoor use only. This restriction will be applied in all countries below. • T o transfer data of the previous device to a new device: Visit ww.samsung.com/smartswitch for more information. • If your device is frozen and unresponsive, press a nd hold the Power key and the Volume Down key simultaneously for more than 7 seconds to restart it. So me content may differ from your device depending on the region, service provider, or software version, and is subject to change without prior notice. C opyright © 2019 Samsung Electronics Specific Absorption Rate (SAR) Certification Information Your device is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for Radio Frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. T hese FCC RF exposure limits are derived from the recommendations of two expert organizations: the National Council on Rad…

Text truncated - open the document above for the full version.

www.samsung.com USER MANUAL SM-A526B SM-A526B/DS English. 02/2021. Rev.1.0 2 Table of Contents Basics 4 Read me first 7 Devic e overheating situations and solutions 10 Device layout and functions 14 Charging the battery 16 SIM or USIM card (nano-SIM card) 18 Memor y card (microSD card) 20 Turning the device on and off 21 Initial setup 21 Samsung ac count 22 Tr ansferring data from your previous device (Smart Switch) 24 Understanding the screen 32 Notification panel 33 Screen capture and screen record 35 Entering text Apps and features 37 Installing or uninstalling apps 38 Phone 41 C ontacts 43 Messages 44 Internet 45 Camera 59 Gallery 63 AR Zone 67 Bixby (Galaxy A52) 69 Bixby V ision 70 Bixby Routines 72 Multi windo w 74 Samsung Pay 76 Samsung Health 77 Samsung Notes 77 Samsung M embers 77 Galaxy Shop 78 Galax y Wearable 78 C alendar 79 Reminder 80 Radio 81 Voic e Recorder 82 My Files 82 Clock 82 C alculator 83 Game Launcher 84 Game Booster 85 Samsung Kids 85 SmartThings 86 Sharing content 87 Music Share 89 Smart View 89 Link to Windows 90 Samsung Global Goals 91 Google apps Table of Contents 3 119 Privacy 119 Location 119 G oogle 120 Accounts and backup 120 Samsung Cloud 121 Adv anced features 122 Motions and gestures 123 Dual M essenger 124 Digital Wellbeing and parental controls 124 Batt ery and device care 124 Optimising your devic e 125 Battery 125 S torage 125 M emory 126 Devic e protection 126 A pps 126 Gener al management 127 Accessibility 128 Sof tware update 128 About phone Appendix 129 Troubleshooting 134 Removing the battery Settings 92 Introduction 92 Samsung account 92 C onnections 93 Wi-Fi 95 Bluetooth 96 NFC and con tactless payments 97 Data saver 98 Mobile da ta only apps 98 Mobile Hotspot 99 More connection settings 100 Sounds and vibration 100 Sound qualit y and effects 101 Separ ate app sound 101 Notifica tions 102 Displa y 103 Motion smoothness 103 Changing the screen mode or adjusting the display colour 104 Wallpaper 104 Themes 104 Home screen 105 Lock scr een 105 Smart Lock 106 Alw ays On Display 107 Biometrics and secur ity 108 Fac e recognition 110 Finger print recognition 113 Samsung Pass 115 Secur e Folder 118 Secur e Wi-Fi (Galaxy A52) 4 Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • The device may require a connection to a Wi-Fi or mobile network when using some apps or features. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Basics 5 • Depending on the region or service provider, a screen protector is attached for protection during production and distribution. Damage to the attached screen protector is not covered by the warranty. • You can see the touchscreen clearly even in strong outdoor sunlight by automatically adjusting the contrast range based on the surrounding environment. Due to the nature of the product, displaying fixed graphics for extended periods may result in afterimages (screen burn-in) or ghosting. – It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods and turn off the touchscreen when not using the device. – You can set the touchscreen to turn off automatically when you are not using it. Launch the Settings app, tap Display → Screen timeout, and then select the length of time you want the device to wait before turning off the touchscreen. – To set the touchscreen to automatically adjust its brightness based on the surrounding environment, launch the Settings app, tap Display, and then tap the Adaptive brightness switch to activate it. • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, launch the Settings app and tap About phone → Status information. If your device does not have an FCC ID, it means that the device has not been authorised for sale in the U.S. or its territories and may only be brought to the U.S. for the owner’s personal use. • The use of mobile devices on aeroplanes or ships may be subject to federal and local guidelines and restrictions. Check with the appropriate authorities and always follow crew instructions rega…

Text truncated - open the document above for the full version.

Apps and features 90 Viewing data and notifications from your device on the computer Launch the Your Phone app on the computer and select a category you want. Your device Notifications Messages Photos Apps Calls Available features and menus may vary depending on the software version or model. Samsung Global Goals The Global Goals, which were established by the United Nations General Assembly in 2015, consist of goals that aim to create a sustainable society. These goals have the power to end poverty, fight inequality, and stop climate change. With Samsung Global Goals, learn more about the global goals and join the movement for a better future. Apps and features 91 Google apps Google provides entertainment, social network, and business apps. You may require a Google account to access some apps. To view more app information, access each app’s help menu. • Chrome: Search for information and browse webpages. • Gmail: Send or receive emails via the Google Mail service. • Maps: Find your location on the map, search the world map, and view location information for various places around you. • YT Music: Enjoy various music and videos provided by YouTube Music. You can also view the music collections stored on your device and play them. • Play Movies & TV: Purchase or rent videos, such as movies and TV programmes, from Play Store. • Drive: Store your content on the cloud, access it from anywhere, and share it with others. • YouTube: Watch or create videos and share them with others. • Photos: Search for, manage, and edit all your pictures and videos from various sources in one place. • Google: Search quickly for items on the Internet or your device. • Duo: Make a simple video call. • Messages: Send and receive messages on your device or computer, and share various content, such as images and videos. Some apps may not be available depending on the service provider or model. 92 Settings Introduction Customise device settings. Launch the Settings app. To search for settings by entering keywords, tap . Samsung account Sign in to your Samsung account and manage it. On the Settings screen, tap Samsung account. Connections Options Change settings for various connections, such as the Wi-Fi feature and Bluetooth. On the Settings screen, tap Connections. • Wi-Fi: Activate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or other network devices. Refer to Wi-Fi for more information. • Bluetooth: Use Bluetooth to exchange data or media files with other Bluetooth-enabled devices. Refer to Bluetooth for more information. • NFC and contactless payments: Set the device to allow you to read near field communication (NFC) tags that contain information about products. You can also use this feature to make payments and buy tickets for transportation or events after downloading the required apps. Refer to NFC and contactless payments for more information. • Flight mode: Set the device to disable all wireless functions on your device. You can use only non-network services. Follow the regulations provided by the airline and the instructions of aircraft personnel. In cases where it is allowed to use the device, always use it in flight mode. Settings 93 • Mobile networks: Configure your mobile network settings. • Data usage: Keep track of your data usage amount and customise the settings for the limitation. Set the device to automatically disable the mobile data connection when the amount of mobile data you have used reaches your specified limit. You can activate the data saver feature to prevent some apps running in the background from sending or receiving data. Refer to Data saver for more information. You can also select apps to always use the mobile data even when your device is connected to a Wi-Fi network. Refer to Mobile data only apps for more information. • SIM card manager (dual SIM models): Activate your SIM or USIM cards and customise the SIM card settings. Refer to SIM card manager (dual SIM models) for more information. • Mobile Hotspot and Tethering: Use the device as a mobile hotspot to share the device’s mobile data connection with other devices. For more information about the mobile hotspot, refer to Mobile Hotspot. You may incur additional charges when using this feature. • More connection settings: Customise settings to control other features. Refer to More connection settings for more information. Wi-Fi Activate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or other network devices. Connecting to a Wi-Fi network 1 On the Settings screen, tap Connections → Wi-Fi and tap the switch to activate it. 2 Select a network from the Wi-Fi networks list. Networks with a lock icon require a password. • Once the device connects to a Wi-Fi network, the device will reconnect to that network each time it is available without requiring a password. To prevent the device from connecting to the network automatically, tap next to the network and tap the Auto reconnect switch to deactivate it. • If you cannot connect to a Wi-Fi network properly, restart your device’s Wi-Fi feature or the wireless router. Settings 94 Viewing the Wi-Fi network quality information View the Wi-Fi network quality information, such as the speed and stability. On the Settings screen, tap Connections → Wi-Fi and tap the switch to activate it. The network quality information will appear under the Wi-Fi networks. If it does not appear, tap → Advanced and tap the Show network quality info switch to activate it. The quality information may not appear depending on the Wi-Fi network. Sharing Wi-Fi network passwords If you make a request to a person who is connected to a secured Wi-Fi network to share its password, you can connect to the network without entering the password. This feature is available between the devices which have contacts each other and the screen of the other device must be turned on. 1 On the Settings screen, tap Connections → Wi-Fi and tap the switch to activate it. 2 Select a netwo…

Text truncated - open the document above for the full version.

a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Date: November 19, 2020 UL Verification Services INC, 47173 Benicia St, Fremont CA 94538 United States of America To whom it may concern: I, the undersigned, hereby authorize UL Verification Services, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL V erification Services in US on our behalf shall have the same effect as acts of our own. In authorizing UL Verfication Services in US as our agent, we still recognize that we are responsible to: g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. l) the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: +1-973-808-6375 E-mail: [email protected]

Samsung Electronics Co., LTD. 129, Samsu ng -ro , Yeongtong-gu Suwon-City, Gyeonggi-do, 16677, Korea Date: Feb.1, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Label Statement FCC ID: A3LSMA526B To Whom it May Concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be re adily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find the FCC ID per CFR 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug- ins. Per CFR 2.935(e), We, Samsung have programmed the e- label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: 1-973-808-6375 E-mail: [email protected]

January 18, 2021 Federal Comm unications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: Request for Confidentiality A3LSMA526B To Whom It May Concern: Pursuant to the provisions of Sections 0. 457 and 0.459 of the Commission’s rules (47 CFR §§ 0. 457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure PED Above mentioned document contains detailed system and equipment description are cons idered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: +1-973-808-6375 E-mail: [email protected]

Description of E-label on the A3LSMA526B Jan. 18, 2021 FCC ID : A3LSMA526B This model is applied E-label, please find description of E-label below. 1. FCC ID(E-label) : Settings > About Phone > Status <Device Display Screen> 2. Instruction of E-label on the User manual (online manual) Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission(FCC). If your device is approved by the FCC, you can view the FCC ID or the device. To view the FCC ID, tap Settings > About phone > Status information 3. FCC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guidelines. Some devices are required to receive approval from the FCC. If your device required FCC approval, you can view the FCC certification by opening Settings → About phone → Status or Status information. FCC Certification FCC ID : A3LSMA526B

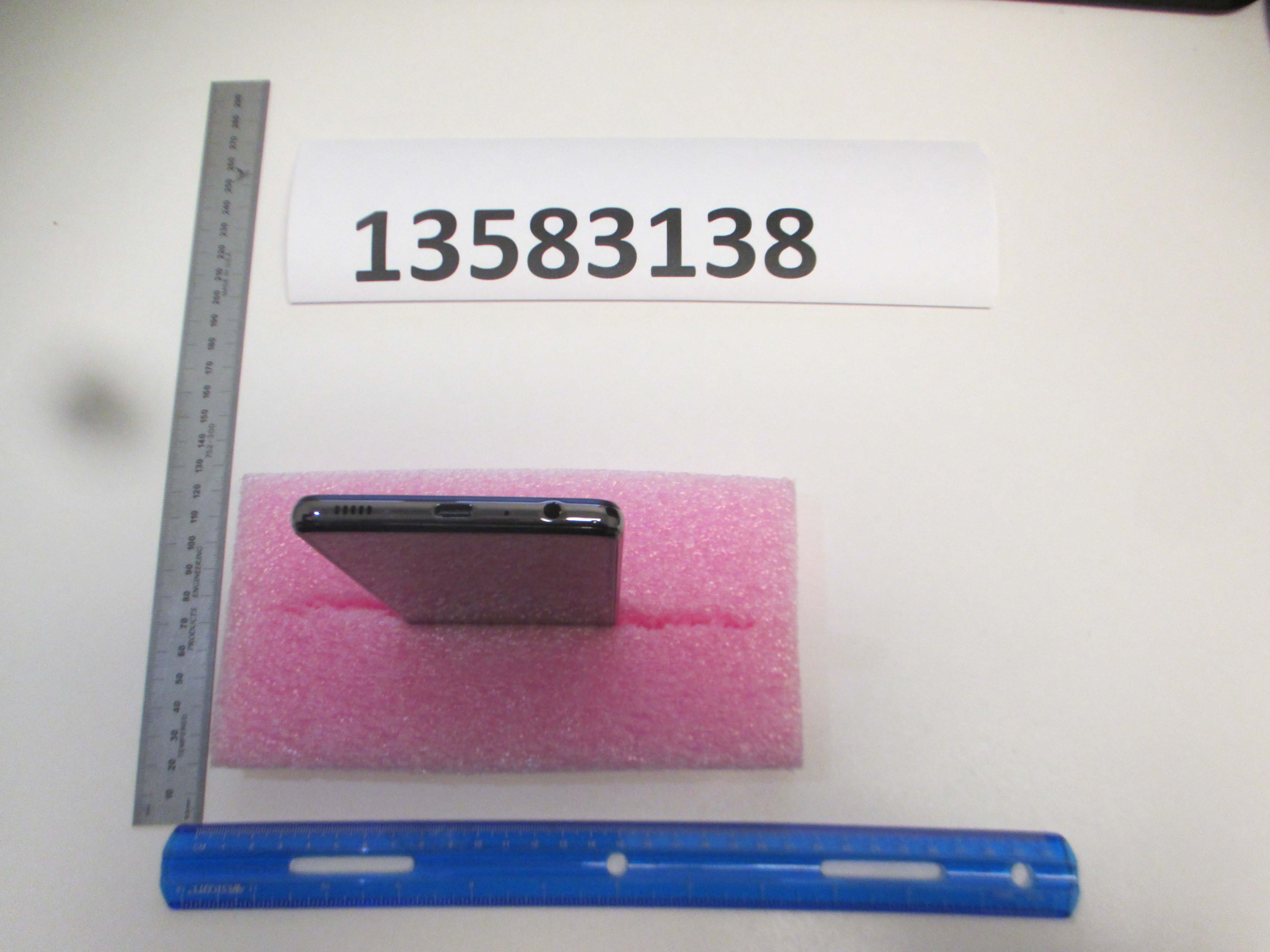

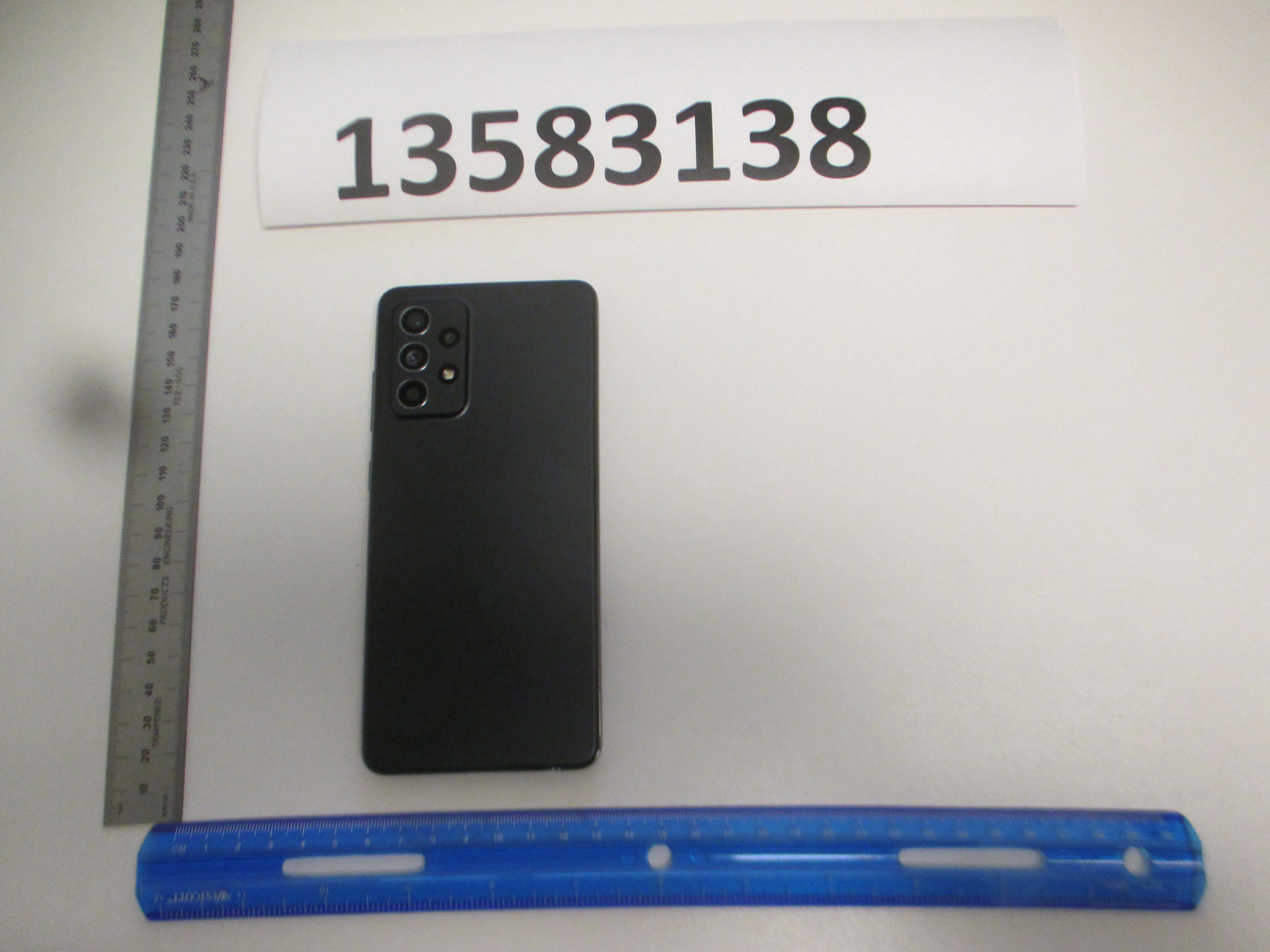

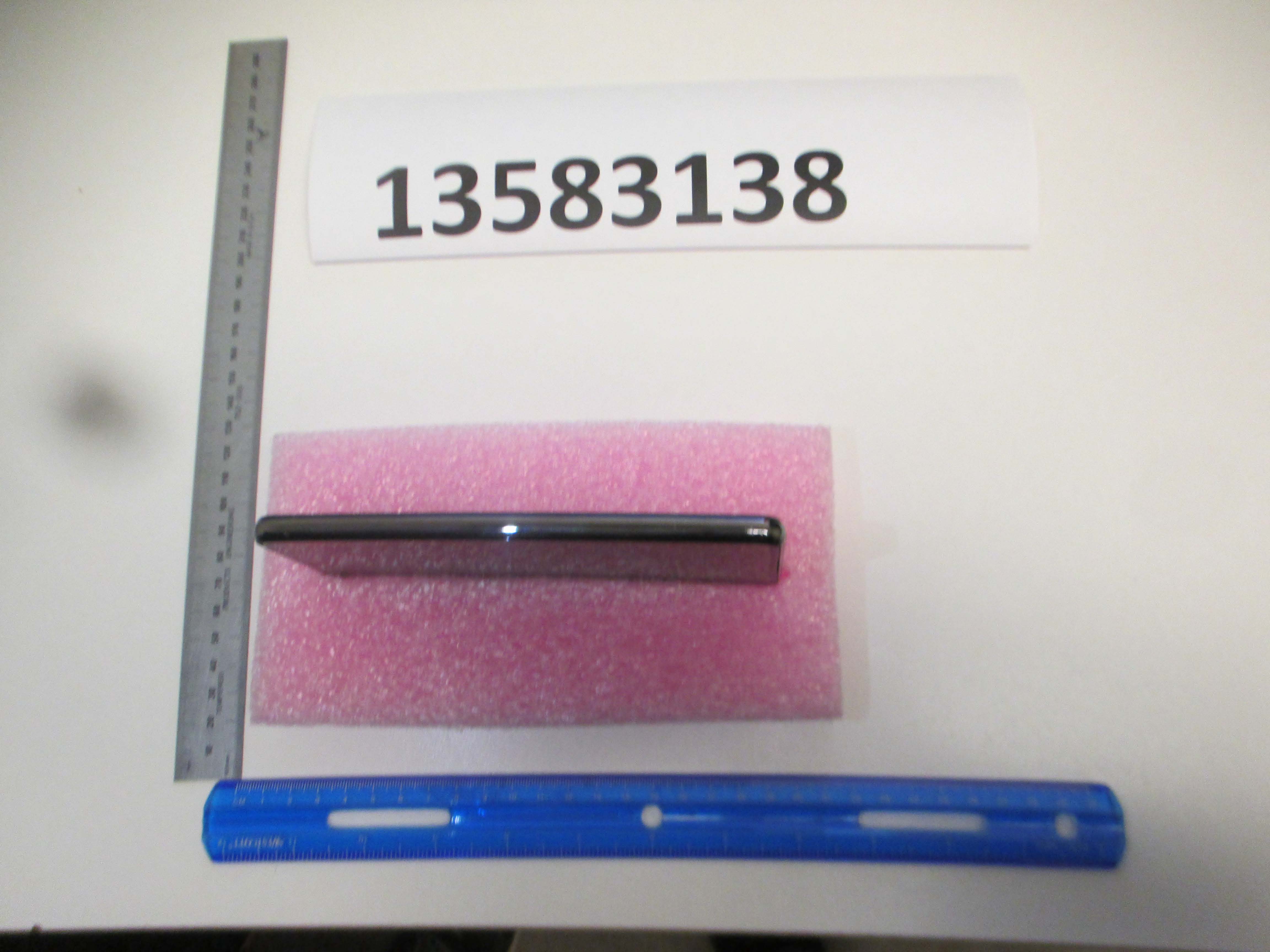

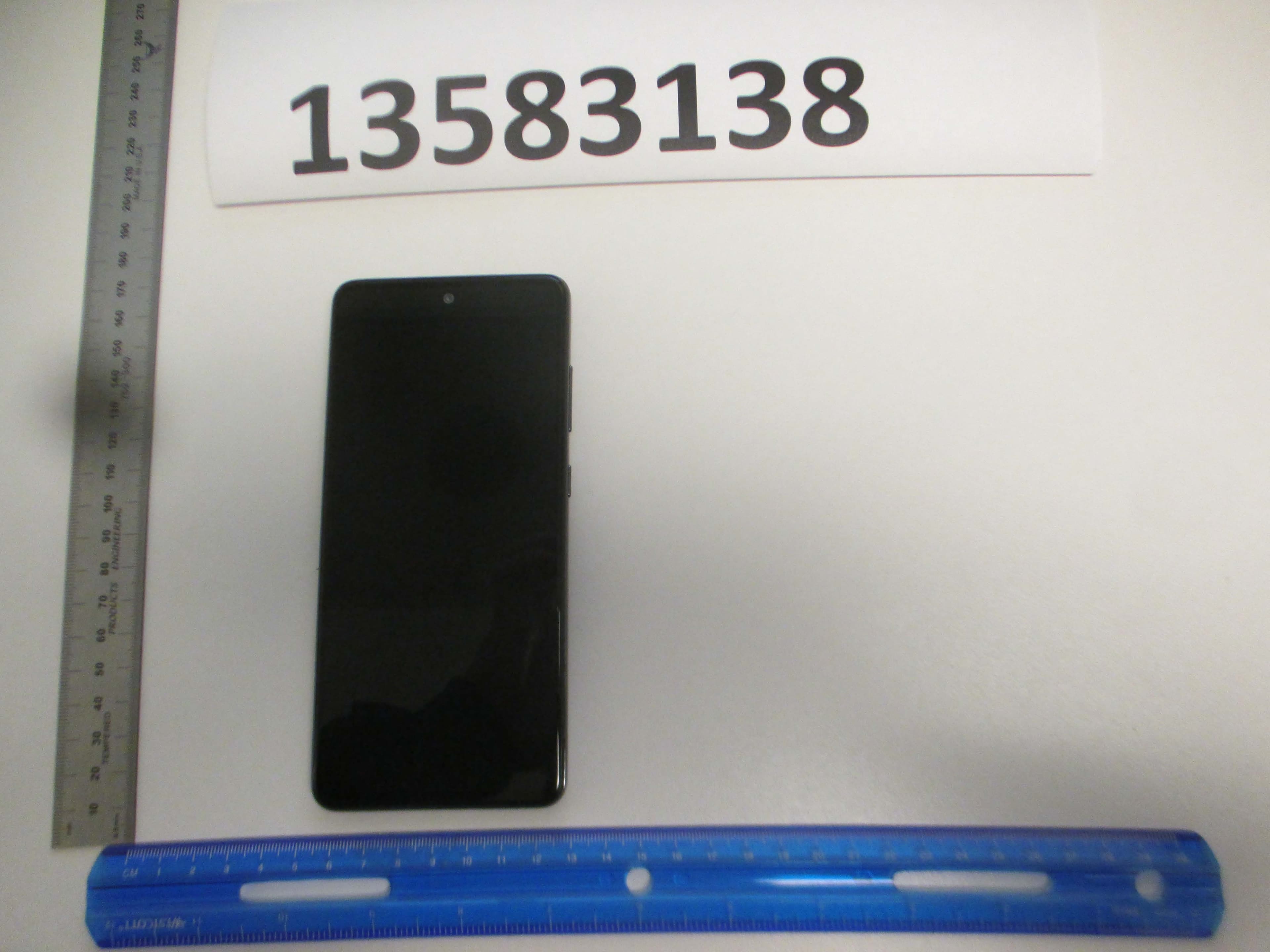

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT IEEE Std 1528-2013 For GSM/WCDMA/LTE/5G Phablet with BT/BLE,DTS/UNII a/b/g/n/ac and NFC FCC ID: A3LSMA526B Model Name: SM-A526B/DS, SM-A526B Report Number: 13583138-S1V4 Issue Date: 2/5/2021 Prepared for Samsung Electronics Co. Ltd 129 Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 16677, Korea Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 319-4000 FAX: (510) 661-0888 Report No.: 13583138-S1V4 Issue Date: 2/5/2021 Page 2 of 89 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By V1 1/25/2021 Initial Issue -- V2 2/1/2021 Section 1: Updated Highest SAR Values Section 6.2: Updated Duty Cycles Section 7: Updated Table Section 12.9: Updated Table Updated Appendix C Added Appendix G Coltyce Sanders V3 2/2/2021 Updated per TCB reviewer comments Coltyce Sanders V4 2/5/2021 Section 6.2: Removed BT HDR Coltyce Sanders Report No.: 13583138-S1V4 Issue Date: 2/5/2021 Page 3 of 89 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 6 2. Test Specification, Methods and Procedures ............................................................................ 7 3. Facilities and Accreditation ........................................................................................................ 8 4. SAR Measurement System & Test Equipment .......................................................................... 9 4.1. SAR Measurement System ........................................................................................................ 9 4.2. SAR Scan Procedures ............................................................................................................. 10 4.3. Test Equipment ........................................................................................................................ 12 5. Measurement Uncertainty ......................................................................................................... 13 6. Device Under Test (DUT) Information ...................................................................................... 14 6.1. DUT Description ...................................................................................................................... 14 6.2. Wireless Technologies ............................................................................................................. 15 6.3. General LTE SAR Test and Reporting Considerations ............................................................. 16 6.4. LTE (TDD) Considerations ....................................................................................................... 18 6.5. General NR(FR1) SAR Test and Reporting Considerations ..................................................... 19 6.6. Power Back-off Operation ........................................................................................................ 20 7. RF Exposure Conditions (Test Configurations) ...................................................................... 21 8. Dielectric Property Measurements & System Check .............................................................. 23 8.1. Dielectric Property Measurements ........................................................................................... 23 8.2. System Check.......................................................................................................................... 26 9. Conducted Output Power Measurements ................................................................................ 28 9.1. GSM ........................................................................................................................................ 28 9.2. W-CDMA ................................................................................................................................. 31 9.3. LTE .......................................................................................................................................... 36 9.4. LTE Down-Link Carrier Aggregation ........................................................................................ 50 9.5. 5G NR (FR1) ........................................................................................................................... 52 9.6. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 59 9.7. Wi-Fi 5GHz (U-NII Bands)........................................................................................................ 60 9.8. Bluetooth ................................................................................................................................. 64 10. Measured and Reported (Scaled) SAR Results…

Text truncated - open the document above for the full version.
