A3LSMA725FMobile Phone

www.samsung.com USER MANUAL English. 02/2021. Rev.1.0 SM-A525F SM-A525F/DS SM-A526B SM-A526B/DS SM-A725F SM-A725F/DS 2 Table of Contents Basics 4 Read me first 7 Device o verheating situations and solutions 10 Device layout and functions 14 Charging the battery 16 SIM or USIM card (nano-SIM card) 18 Memory car d (microSD card) 20 Turning the device on and off 21 Initial setup 21 Samsung acc ount 22 Transf erring data from your previous device (Smart Switch) 24 Understanding the screen 32 Notification panel 33 Screen capture and screen record 35 Entering text Apps and features 37 Installing or uninstalling apps 38 Phone 41 Con tacts 43 Messages 44 Internet 45 Camera 59 Gallery 63 AR Zone 67 Bixby (Galaxy A52) 69 Bixby Vision 70 Bixby Routines 72 Multi window 74 Samsung Pay 76 Samsung Health 77 Samsung Notes 77 Samsung Members 77 Galaxy Shop 78 Galaxy W earable 78 Calendar 79 Reminder 80 Radio 81 Voice R ecorder 82 My Files 82 Clock 82 Calcula tor 83 Game Launcher 84 Game Booster 85 Samsung Kids 85 SmartThings 86 Sharing content 87 Music Share 89 Smart View 89 Link to Windows 90 Samsung Global Goals 91 Google apps Table of Contents 3 119 Privacy 119 Location 119 Google 120 Accounts and backup 120 Samsung Cloud 121 Advanc ed features 122 Motions and gestures 123 Dual Messenger 124 Digital W ellbeing and parental controls 124 Batter y and device care 124 Optimising your device 125 Battery 125 St orage 125 Memor y 126 Device pr otection 126 Apps 126 General managemen t 127 Accessibility 128 Soft ware update 128 About phone Appendix 129 Troubleshooting 134 Removing the battery Settings 92 Introduction 92 Samsung account 92 Connec tions 93 Wi-Fi 95 Bluetooth 96 NFC and contac tless payments 97 Data saver 98 Mobile data only apps 98 Mobile Hotspot 99 More connection settings 100 Sounds and vibration 100 Sound quality and eff ects 101 Separa te app sound 101 Notifications 102 Display 103 Motion smoothness 103 Changing the screen mode or adjusting the display colour 104 Wallpaper 104 Themes 104 Home screen 105 Lock screen 105 Smart Lock 106 Alwa ys On Display 107 Biometrics and securit y 108 Face r ecognition 110 Fingerpr int recognition 113 Samsung Pass 115 Secure F older 118 Secure W i-Fi (Galaxy A52) 4 Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • The device may require a connection to a Wi-Fi or mobile network when using some apps or features. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Basics 5 • Depending on the region or service provider, a screen protector is attached for protection during production and distribution. Damage to the attached screen protector is not covered by the warranty. • You can see the touchscreen clearly even in strong outdoor sunlight by automatically adjusting the contrast range based on the surrounding environment. Due to the nature of the product, displaying fixed graphics for extended periods may result in afterimages (screen burn-in) or ghosting. – It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods and turn off the touchscreen when not using the device. – You can set the touchscreen to turn off automatically when you are not using it. Launch the Settings app, tap Display → Screen timeout, and then select the length of time you want the device to wait before turning off the touchscreen. – To set the touchscreen to automatically adjust its brightness based on the surrounding environment, launch the Settings app, tap Display, and then tap the Adaptive brightness switch to activate it. • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, launch the Settings app and tap About phone → Status information. If your device does not have an FCC ID, it means that the device has not been authorised for sale in the U.S. or its territories and may only be brought to the U.S. for the owner’s personal use. • The use of mobile devices on aeroplanes or ships may be subject to federal and local guidelines and restrictions. Check with the appropriate authorities and alway…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: Jan. 11, 2021 FCC ID: A3LSMA725F To whom it may concern: We, the undersigned, hereby authorize HCT Co., LTD to act on our behalf in all ma tters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by HCT Co., LTD on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Ms. Jenni Chun General Manager Samsung Electronics CO. LTD TEL: 1-973-808-6375 E-mail: [email protected]

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 E-label Attestation Letter - FCC ID : A3LSMA725F - Model : SM-A725F/DS, SM-A725F To Whom It May Concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find FCC ID per CFR 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung Electronics Co., Ltd., have programmed the e-label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Ms. Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics Co., Ltd. TEL : +1-973-808-6375 E-mail : [email protected]

Jan. 11, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: A3LSMA725F Request for Confidentiality To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Ms. Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 E-mail: [email protected]

Date: JAN ,15 2021 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Office of Engineering and Technology HAC Attestation - FCC ID: A3LSMA725F To whom it may concern: Samsung Electronics Co. Ltd., hereby declares that the MIF values detailed below are based on worst case operating modes for all air interfaces for which the HAC rating is provided based on the current methodology for determining MIF values. Reference Test report Number(s): HCT-SR-2101-FC006 SPEAG test files UID Communication System Name MIF (dB) 10021-DAC GSM-FDD (TDMA, GMSK) 3.63 10460-AAA UMTS-FDD (WCDMA,AMR) -25.43 10170-CAE LTE-FDD (SC-FDMA, 1 RB, 20 MHz, 16QAM) -9.76 10182-CAE LTE-FDD (SC-FDMA, 1 RB, 15 MHz, 16QAM) -9.76 10176-CAG LTE-FDD (SC-FDMA, 1 RB, 10 MHz, 16QAM) -9.76 10173-CAG LTE-TDD (SC-FDMA, 1 RB, 10 MHz, 16QAM) -1.44 10061-CAB IEEE 802.11b WiFi 2.4 GHz (DSSS, 11 Mbps) -2.02 10077-CAB IEEE 802.11g WiFi 2.4 GHz (DSSS/OFDM, 54 Mbps) 0.12 10591-AAB IEEE 802.11n (HT Mixed, 20MHz, MCS0, 90pc duty cycle) -5.59 10069-CAC IEEE 802.11a/n WiFi 5 GHz (OFDM, 54 Mbps) -3.15 10616-AAB IEEE 802.11ac WiFi (40MHz, MCS0, 90pc duty cycle) -5.57 10030-CAA IEEE 802.15.1 Bluetooth (GFSK, DH1) 1.02 Sincerely, Ms. Jenni Chun General Manager Samsung Electronics CO. LTD TEL: 1-973-808-6375 E-mail: [email protected]

FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 1 / 7 HCT CO.,LTD. - EXTERNAL PHOTOGRAPHS FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 2 / 7 HCT CO.,LTD. 1. External Photo (Front view) FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 3 / 7 HCT CO.,LTD. 2. External Photo (Rear view) FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 4 / 7 HCT CO.,LTD. 3. External Photo (Left side view) FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 5 / 7 HCT CO.,LTD. 4. External Photo (Right side view) FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 6 / 7 HCT CO.,LTD. 5. External Photo (Top view) FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 7 / 7 HCT CO.,LTD. 6. External Photo (Bottom view)

Description of E-label on the A3LSMA725F Jan. 09, 2021 FCC ID : A3LSMA725F This model is applied E-label, please find description of E-label below. Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission(FCC). If your device is approved by the FCC, you can view the FCC ID or the device. To view the FCC ID, tap Settings > About phone > Status information <Device Display Screen> FCC Certification FCC ID : A3LSMA725F

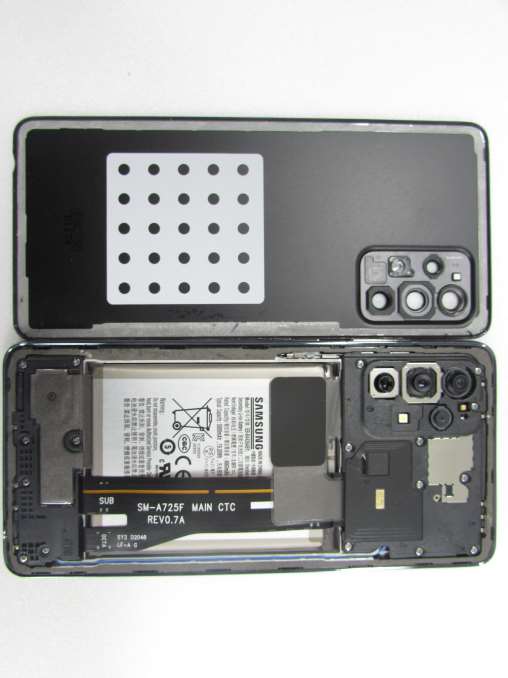

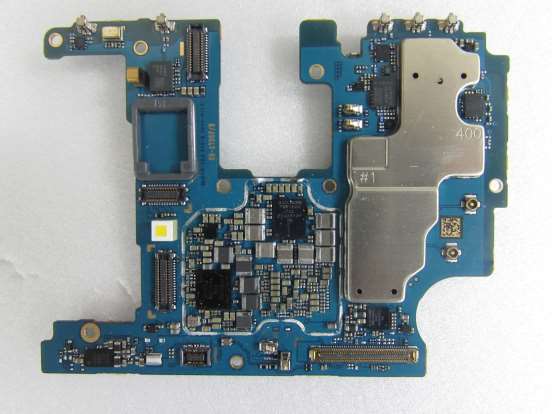

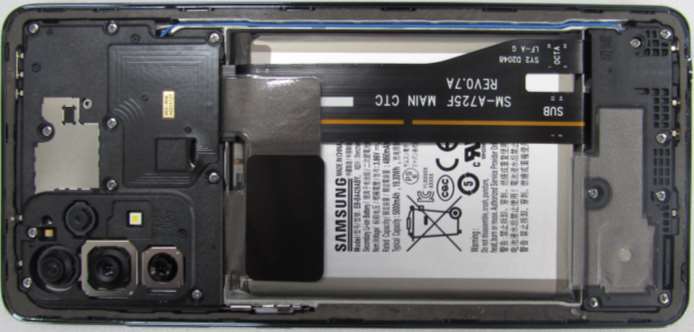

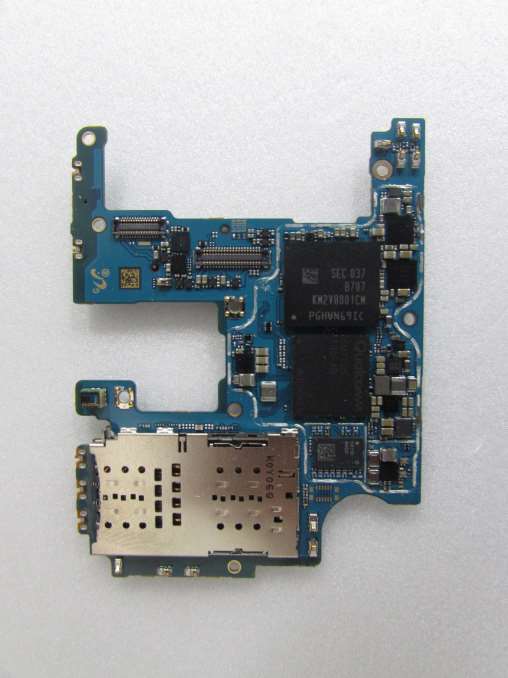

FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 1 / 23 HCT CO.,LTD. - INTERNAL PHOTOGRAPHS FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 2 / 23 HCT CO.,LTD. ■ Main / Bluetooth & WLAN Antenna Internal Photo Sub ANT 2(Metal) 2G : 1900 (Rx) 3G : 2, 4 (Rx) 4G : 2, 4, 41, 66(Rx) WiFi2.4G, BT Sub ANT 3(Metal) WiFi5G Main ANT 2(Metal) 2G : 1900 (Tx) 3G : 2, 4 (Tx) 4G : 2, 4, 41, 66 (Tx) Main ANT 1(Metal) 2G : 850 (Tx) 3G : 5 (Tx) 4G : 5, 12, 17, 26 (Tx) Sub ANT 1(Metal) 2G : 850 (Rx) 3G : 5 (Rx) 4G : 5, 12, 17, 26 (Rx) NFC ANT FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 3 / 23 HCT CO.,LTD. 1. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 4 / 23 HCT CO.,LTD. 2. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 5 / 23 HCT CO.,LTD. 3. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 6 / 23 HCT CO.,LTD. 4. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 7 / 23 HCT CO.,LTD. 5. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 8 / 23 HCT CO.,LTD. 6. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 9 / 23 HCT CO.,LTD. 7. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 10 / 23 HCT CO.,LTD. 8. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 11 / 23 HCT CO.,LTD. 9. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 12 / 23 HCT CO.,LTD. 10. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 13 / 23 HCT CO.,LTD. 11. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 14 / 23 HCT CO.,LTD. 12. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 15 / 23 HCT CO.,LTD. 13. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 16 / 23 HCT CO.,LTD. 14. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 17 / 23 HCT CO.,LTD. 15. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 18 / 23 HCT CO.,LTD. 16. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 19 / 23 HCT CO.,LTD. 17. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 20 / 23 HCT CO.,LTD. 18. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 21 / 23 HCT CO.,LTD. 19. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 22 / 23 HCT CO.,LTD. 20. Internal Photo FCC ID: A3LSMA725F F-TP22-03 (Rev.00) 23 / 23 HCT CO.,LTD. 21. Internal Photo

F-TP22-03 (Rev.00) Page 1 of 115 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 SAR TEST REPORT Applicant Name: SAMSUNG Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu, Suwon-Si, Gyeonggi-do, 16677 Rep. of Korea Date of Issue: Jan. 18, 2021 Test Report No.: HCT-SR-2101-FC010 Test Site: HCT CO., LTD. FCC ID: Equipment Type: Mobile Phone Application Type Certification FCC Rule Part(s): CFR §2.1093 Model Name: SM-A725F/DS Additional Model Name: SM-A725F Date of Test: Dec. 14. 2020 ~ Jan. 18. 2021 This device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in FCC KDB procedures and had been tested in accordance with the measurement procedures specified in FCC KDB procedures. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By Bong-kyun, Park Test Engineer SAR Team Certification Division Reviewed By Yun-jeang, Heo Technical Manager SAR Team Certification Division This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. A3LSMA725F FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) Page 2 of 115 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 Jan. 18, 2021 Initial Release This test results were applied only to the test methods required by the standard. The above Test Report is not related to the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) Page 3 of 115 Table of Contents 1. Test Regulations ...........................................................................................................................................4 2. Test Location .................................................................................................................................................5 3. Information of the EUT .................................................................................................................................5 4. Device Under Test Description ....................................................................................................................7 5. Introduction ................................................................................................................................................ 19 6. Description of test equipment .................................................................................................................. 20 7. SAR Measurement Procedure .................................................................................................................. 21 8. Description of Test Position ..................................................................................................................... 23 9. RF Exposure Limits ................................................................................................................................... 27 10. FCC SAR General Measurement Procedures ....................................................................................... 28 11. Output Power Specifications .................................................................................................................. 35 12. System Verification ................................................................................................................................. 64 13. SAR Test Data Summary ......................................................................................................................... 68 14. Simultaneous SAR Analysis ................................................................................................................... 85 15. SAR Measurement Variability and Uncertainty .................................................................................. 108 16. Measurement Uncertainty ..................................................................................................................... 109 17. SAR Test Equipment .............................................................................................................................. 110 18. Conclusion .............................................................................................................................................. 112 19. References .............................................................................................................................................. 113 Appendix Appendix A. DUT Ant. Information & Test SETUP PHOTO Appendix B. SAR Test Plots Appendix C. Dipole Verification Plots Appendix D. SAR Tissue Characterization Appendix E. SAR System Validation Appendix F. Probe Calibration Data Appendix G. Dipole Calibration Data Appendix H. Power reduction verification Appendix I. DLCA Power Measurement FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) Page 4 of 115 1. Test Regulations The tests documented in this report were performed in accordance with FCC CFR § 2.1093, IEEE 1528-2013, ANSI C63.26-2015 the following FCC Published RF exposure KDB procedures: - FCC KDB Publication 941225 D01 3G SAR Procedures v03r01 - FCC KDB Publication 941225 D06 Hot Spot SAR v02r01 - FCC KDB Publication 941225 D05 SAR for LTE Devices v02r05 - FCC KDB Publication 941225 D05A LTE Rel.10 KDB Inquiry sheet v01r02 - FCC KDB Publication 248227 D01 802.11 Wi-Fi SAR v02r02 - FCC KDB Publication 447498 D01 General SAR Guidance v06 - FCC KDB Publication 648474 D04 Hand…

Text truncated - open the document above for the full version.

FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 1 / 216 HCT CO.,LTD. Appendix B. – SAR Test Plots FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 2 / 216 HCT CO.,LTD. Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 22.3 °C Ambient Temperature: 22.4 °C Test Date: 12/30/2020 Plot No.: 1 DUT: SM-A725F/DS; Type: Bar; Communication System: UID 0, GSM850 GPRS 4TX (0); Frequency: 836.6 MHz;Duty Cycle: 1:2.07491 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.94 S/m; ε r = 41.733; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: ET3DV6 - SN1630; ConvF(6.96, 6.96, 6.96) @ 836.6 MHz; Calibrated: 2020-02-26  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn869; Calibrated: 2020-09-28  Phantom: SAM_Right_20170913  Measurement SW: DASY52, Version 52.10 (4) GSM850 Head Right Touch 4TX 190ch/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.270 W/kg GSM850 Head Right Touch 4TX 190ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.857 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.258 W/kg SAR(1 g) = 0.239 W/kg; SAR(10 g) = 0.193 W/kg Maximum value of SAR (measured) = 0.242 W/kg 0 dB = 0.270 W/kg = -5.69 dBW/kg FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 3 / 216 HCT CO.,LTD. Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 22.3 °C Ambient Temperature: 22.4 °C Test Date: 12/30/2020 Plot No.: 2 DUT: SM-A725F/DS; Type: Bar; Communication System: UID 0, GSM 1900 2TX (0); Frequency: 1880 MHz;Duty Cycle: 1:4.14954 Medium parameters used: f = 1880 MHz; σ = 1.425 S/m; ε r = 38.828; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: ET3DV6 - SN1630; ConvF(5.63, 5.63, 5.63) @ 1880 MHz; Calibrated: 2020-02-26  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn869; Calibrated: 2020-09-28  Phantom: SAM_Left_20170913  Measurement SW: DASY52, Version 52.10 (4) GSM1900 Head Left Touch 2Tx 661ch/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0929 W/kg GSM1900 Head Left Touch 2Tx 661ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.815 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.0880 W/kg SAR(1 g) = 0.078 W/kg; SAR(10 g) = 0.054 W/kg Maximum value of SAR (measured) = 0.0853 W/kg 0 dB = 0.0929 W/kg = -10.32 dBW/kg FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 4 / 216 HCT CO.,LTD. Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 22.0 °C Ambient Temperature: 22.1 °C Test Date: 12/24/2020 Plot No.: 3 DUT: SM-A725F/DS; Type: Bar; Communication System: UID 0, WCDMA850 (0); Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.928 S/m; ε r = 41.771; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: ET3DV6 - SN1630; ConvF(6.96, 6.96, 6.96) @ 826.4 MHz; Calibrated: 2020-02-26  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn869; Calibrated: 2020-09-28  Phantom: SAM_Right_20170913  Measurement SW: DASY52, Version 52.10 (4) WCDMA 5 Head Right Touch 4132ch/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.180 W/kg WCDMA 5 Head Right Touch 4132ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.781 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.171 W/kg SAR(1 g) = 0.164 W/kg; SAR(10 g) = 0.140 W/kg Maximum value of SAR (measured) = 0.169 W/kg 0 dB = 0.180 W/kg = -7.46 dBW/kg FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 5 / 216 HCT CO.,LTD. Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 21.4 °C Ambient Temperature: 21.5 °C Test Date: 12/23/2020 Plot No.: 4 DUT: SM-A725F/DS; Type: Bar; Communication System: UID 0, WCDMA IV (0); Frequency: 1732.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1732.4 MHz; σ = 1.329 S/m; ε r = 39.946; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: ET3DV6 - SN1630; ConvF(5.91, 5.91, 5.91) @ 1732.4 MHz; Calibrated: 2020-02-26  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn869; Calibrated: 2020-09-28  Phantom: SAM_Left_20170913  Measurement SW: DASY52, Version 52.10 (4) WCDMA 4 Head Left Touch 1412ch/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.218 W/kg WCDMA 4 Head Left Touch 1412ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.581 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.206 W/kg SAR(1 g) = 0.190 W/kg; SAR(10 g) = 0.140 W/kg Maximum value of SAR (measured) = 0.203 W/kg 0 dB = 0.218 W/kg = -6.62 dBW/kg FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 6 / 216 HCT CO.,LTD. Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 22.1 °C Ambient Temperature: 22.2 °C Test Date: 12/22/2020 Plot No.: 5 DUT: SM-A725F/DS; Type: Bar; Communication System: UID 0, WCDMA1900 (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.415 S/m; ε r = 38.944; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: ET3DV6 - SN1630; ConvF(5.63, 5.63, 5.63) @ 1880 MHz; Calibrated: 2020-02-26  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn869; Calibrated: 2020-09-28  Phantom: SAM_Left_20170913  Measurement SW: DASY52, Version 52.10 (4) WCDMA 2 Head Left Touch 9400ch/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.166 W/kg WCDMA 2 Head Left Touch 9400ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.488 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.168 W/kg SAR(1 g) = 0.150 W/kg; S…

Text truncated - open the document above for the full version.

FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 123 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 124 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 125 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 126 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 127 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 128 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 129 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 130 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 131 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 132 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 133 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 134 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 135 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 136 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 137 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 138 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 139 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 140 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 141 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 142 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 143 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 144 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 145 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 146 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 147 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 148 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 149 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 150 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 151 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 152 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 153 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 154 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 155 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 156 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 157 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 158 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 159 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 160 / 216 HCT CO.,LTD. FCC ID: A3LSMA725F Report No: HCT-SR-2101-FC010 F-TP22-03 (Rev.00) 161 / 216…
