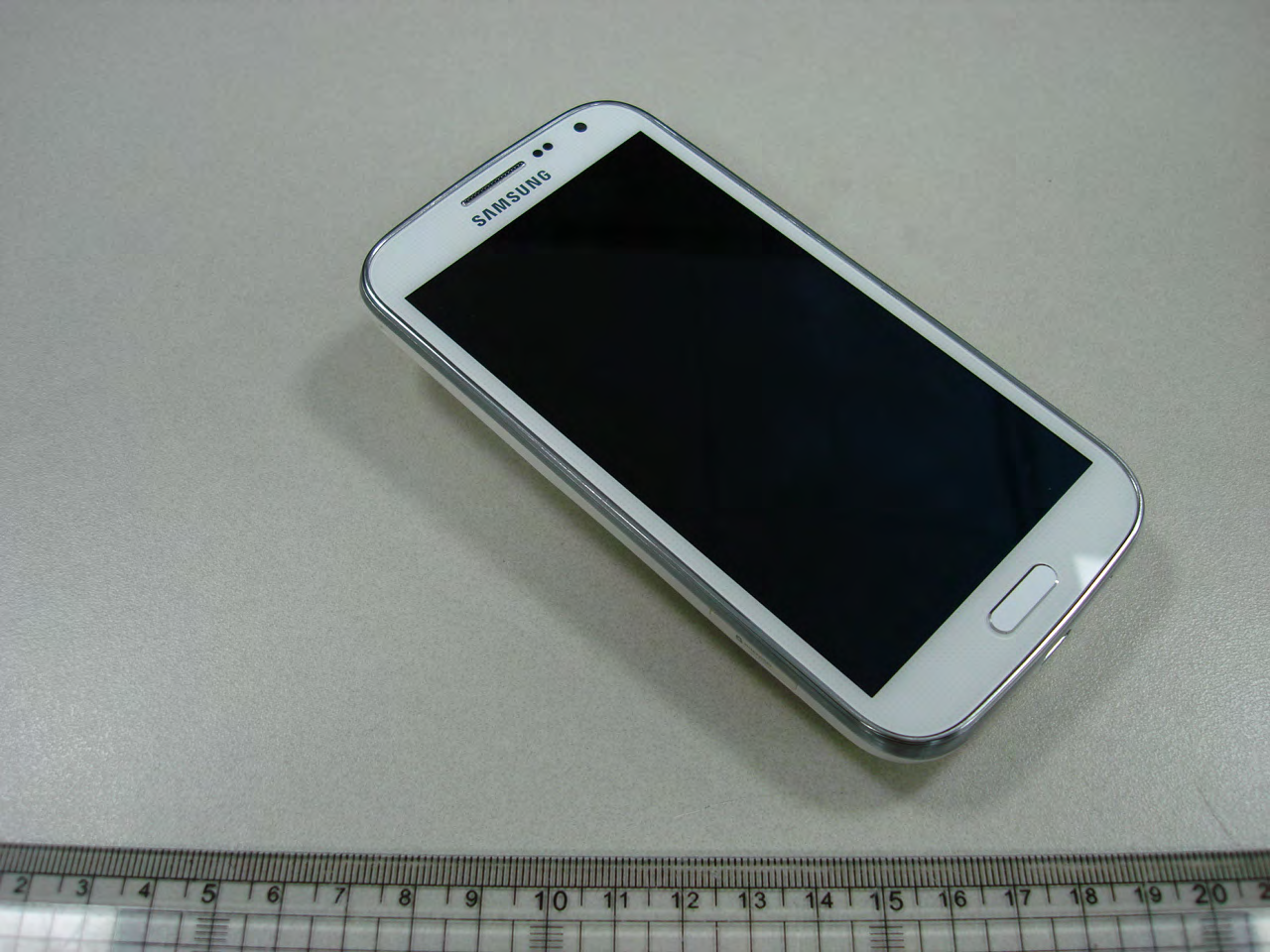

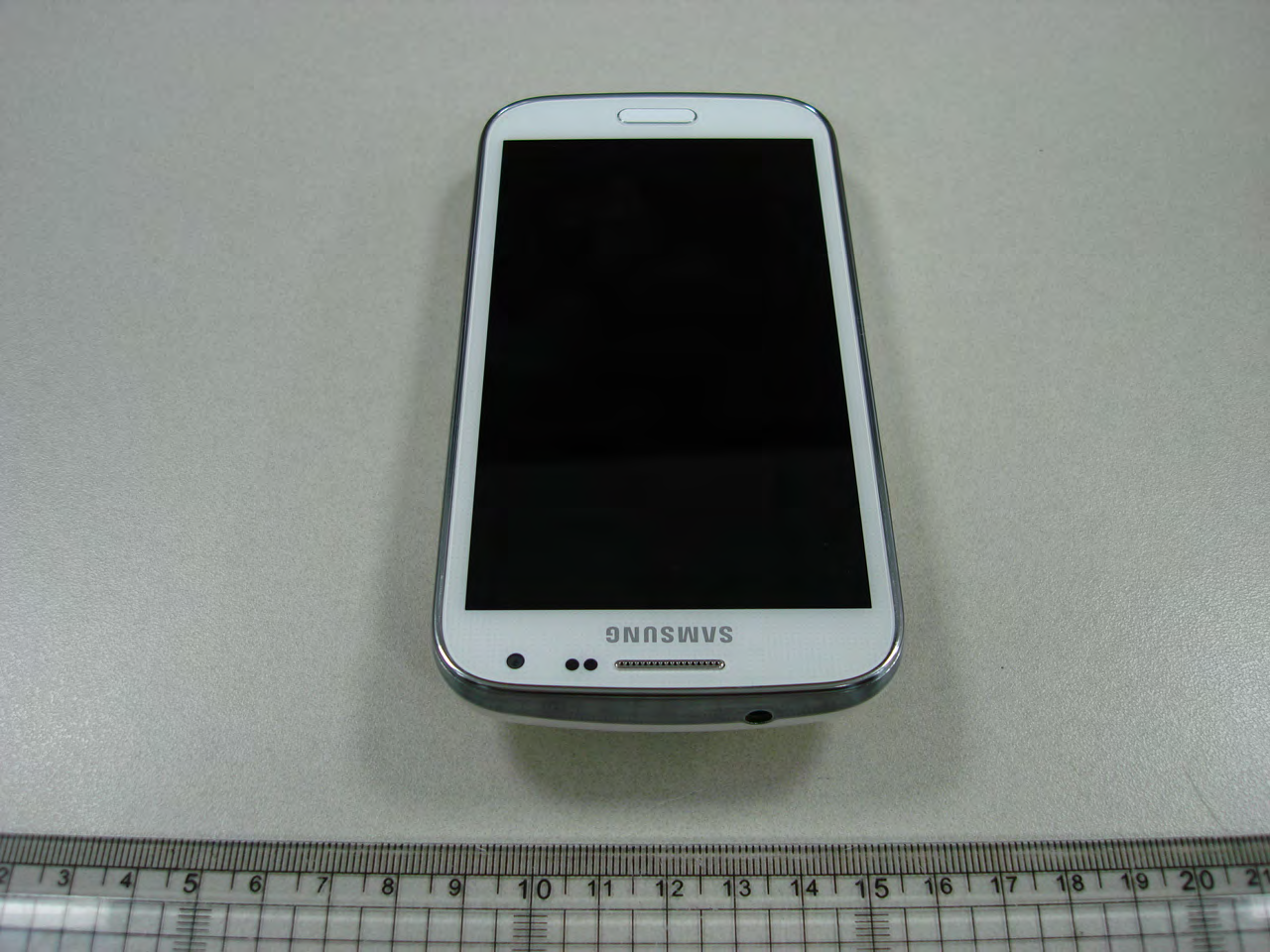

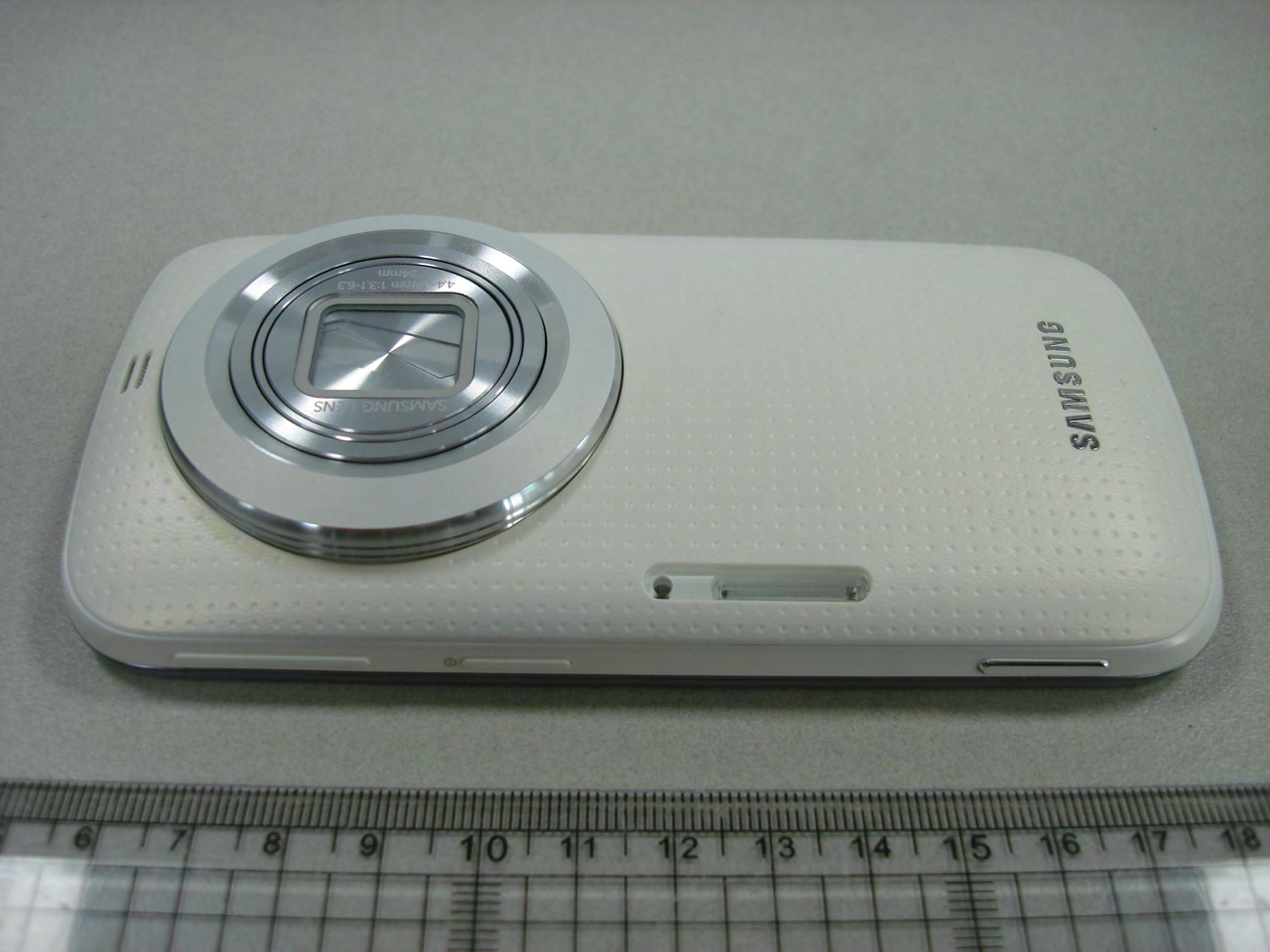

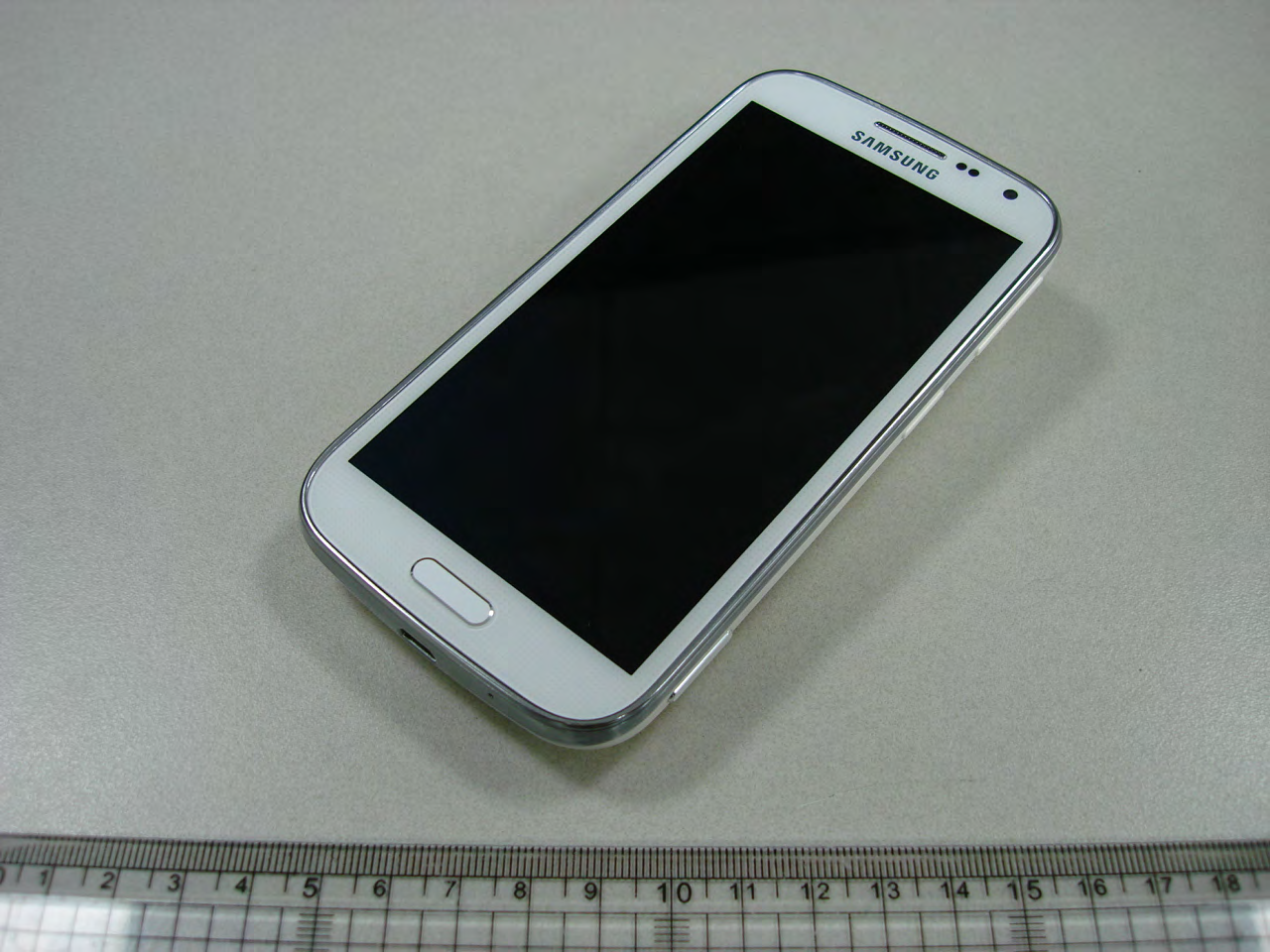

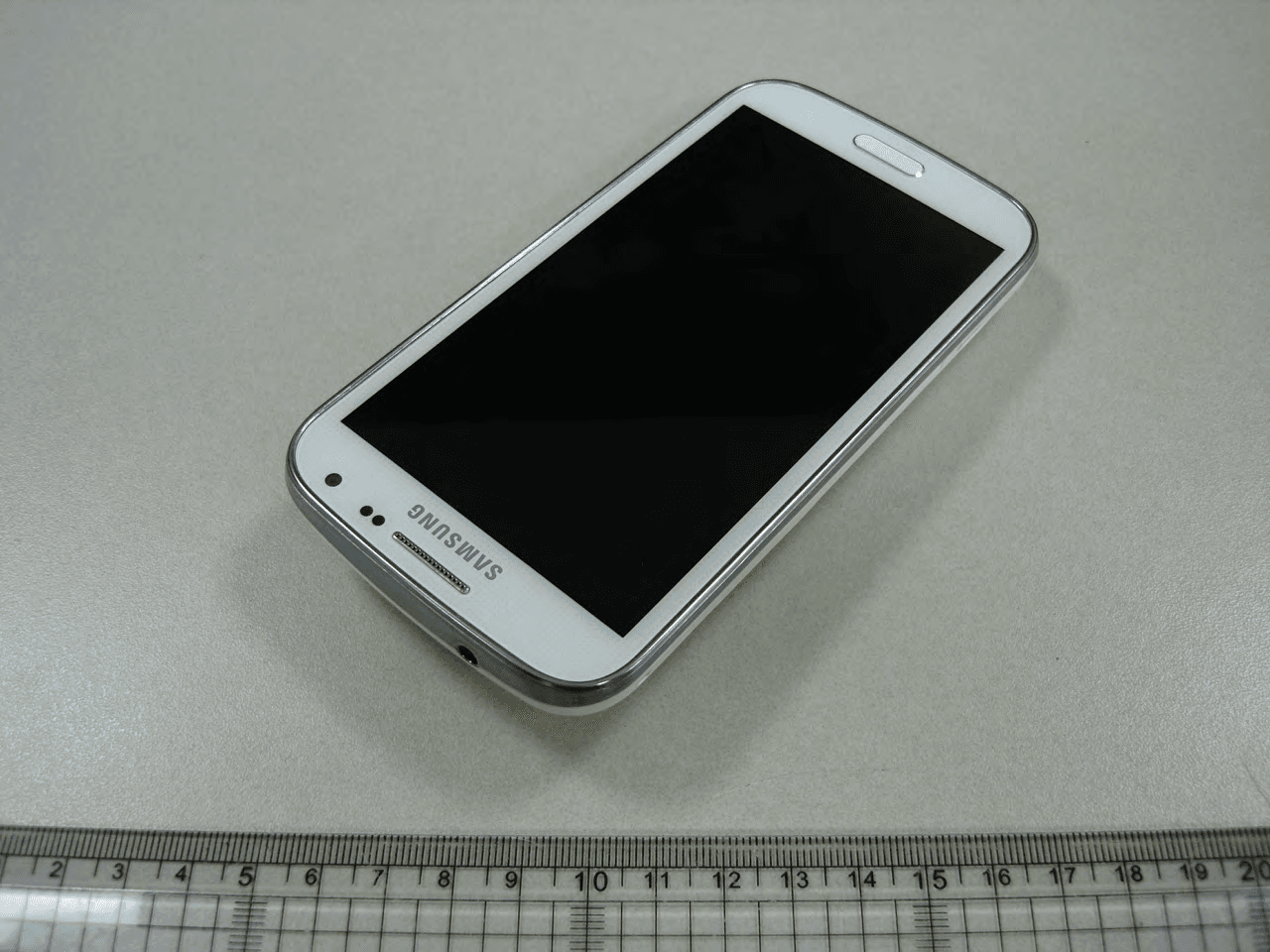

A3LSMC115GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n & NFC

User manual SM-C115 This device is capable of operating in Wi-Fi mode in the 2.4 and 5 GHz bands. The FCC requires that devices operating within 5.15-5.25 GHz may only be used indoors, not outside, in order to avoid interference with MobileSatellite Services (MSS). Therefore, do not use this device outside as a Wi-Fi hotspot or in Wi-Fi Direct mode outside when using the 5.15- 5.25 GHz frequencies. Draft 6.1 2012-09-08 Only for Approval 2 Table of Contents Read me first Getting started 8 Device layout 9 Buttons 10 Package contents 11 Installing the SIM or USIM card and battery 14 Charging the ba ttery 17 Inserting a memory card 19 Attaching a hand strap 19 Turning the devic e on and off 20 Holding the device 20 Locking and unlocking the device Basics 21 Using the touch screen 24 Indicator icons 25 Notifications and quick setting panels 29 Home and Apps screens 33 Opening apps 33 Installing or uninstalling apps 35 Entering text 37 Using the pow er saving feature 39 Acc essing help information Personalising 40 Switching to easy mode 40 Managing the Home and A pps screens 43 Changing the screen lock method 44 Setting wallpaper 44 Changing ringt ones 45 Setting up acc ounts 45 Moving contacts from other devices to your device Network connectivity 48 Connecting to a mobile network 48 Connecting to a Wi-Fi network 50 Using Smart network switch 50 Tethering devices and using mobile hotspots Phone 53 Making calls 56 Receiving calls 57 During a call Table of Contents 3 Studio 106 Using Photo studio 107 Using Collage studio 108 Using Shot & more 109 Using Video clip studio 110 Using Video trimmer Internet & SNS 111 Internet 112 Chrome 113 Hangouts 113 ChatON Voice features 115 S Voice 117 Voice Recorder 119 Voice S earch Multimedia 120 Music 123 Video 125 YouTube 126 Flipboard 126 Google+ 126 Photos 127 Play Games 127 Play M usic 127 Play Newsstand Motions & usability features 59 Control motions 62 Toolbox 63 Increasing t ouch screen sensitivity Contacts 64 Adding contacts 65 Managing contacts Messages & email 68 Messages 71 Email 73 Google Mail Camera 75 Launching Camera 81 Using the camera studio widget 82 Separating the exposure area and the focus area 83 Using the shooting mode 93 Configuring settings 101 Configuring gener al settings Gallery 102 Viewing content on the device 104 Acc essing additional options 104 Tagging fac es 105 Using Tag buddy Table of Contents 4 Device & data manager 158 Upgrading the device 159 Transferring files between the device and a computer 160 Backing up and restoring data 161 Perf orming a data reset Settings 162 About Settings 162 QUICK SETTINGS 162 NETWORK CONNECTIONS 167 CONNECT AND SHARE 168 SOUND AND DISPLAY 172 PERSONALISATION 173 MOTION 174 USER AND BACKUP 175 SYSTEM 182 APPLICATIONS 189 Google Settings Accessibility 190 Accessibility 191 Using the Home button to open accessibility menus 191 TalkBack 202 Changing the fon t size 203 Magnifying the screen 203 Setting notification reminders 203 Turning off all sounds 204 Customising caption settings Safety 128 Emergency mode 130 Sending help messages 131 Sever e weather notification (Geo News) Utilities 133 S Finder 134 S Planner 137 Calculator 137 Clock 139 Driv e 139 Dropbo x 140 Google 141 Maps 141 Memo 142 My Files 144 Tor ch Connecting with other devices 145 NFC 147 Bluetooth 150 S Beam 151 Quick connec t 155 Screen mir roring 157 Using the mobile printing feature Table of Contents 5 205 Adjusting the sound balance 205 Using mono audio 205 Using auto haptic 206 Using the assistive menus 208 Using the smart scroll feature 208 Setting tap and hold delay options 209 Using interaction control mode 209 Answer ing or ending calls 210 Using single tap mode 210 Configuring accessibility settings 211 Using other useful features Troubleshooting 6 Read me first This device provides mobile communication and media services using Samsung’s latest standards and technological expertise. This user manual and the information available at www.samsung.com contain details about the device’s functions and features. • Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, or device’s software. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Read me first 7 Instructional icons Warning: situations that…

Text truncated - open the document above for the full version.

Camera 76 Holding the camera correctly Make sure not to block the screen, lens, flash, or microphone. Make sure not to expose the lens to direct sunlight. This may discolour the image sensor, or cause it to malfunction. Half-pressing the Shutter button Press the Shutter button halfway down to adjust the focus. The camera adjusts the focus, exposure, and white balance automatically, and the focus frame turns green. The focus frame turns red if not focused. Camera 77 Learning the preview screen Change the shooting mode. Start taking a video. GPS tagging indicator icon Change the camera settings. Take a photo. View photos and videos you have taken. Switch between the front and rear camera. Display current camera settings. Change the flash setting. Display current mode. Learning icons The icons displayed on the preview screen provide information about current shooting options and settings. The icons listed in the table below are the most common. IconMeaning Shutter speed Aperture value Exposure value ISO sensitivity Timer Flash Macro Metering Camera 78 IconMeaning White balance Continuous shooting Bracket mode Voice control Geotagging Remote viewfinder Photo Suggest Taking photos Half-press the Shutter button to focus on the subject. When the subject is in focus, the focus frame turns green. Press the Shutter button to take the photo. Or, tap the image on the preview screen where the camera should focus. When the subject is in focus, the focus frame turns green. Tap to take the photo. Camera 79 Taking videos Tap to take a video. To stop recording, tap . While recording, tap where you want to focus to change the focus. • To change the focus while taking a video, tap where you want to focus. To focus on the centre of the screen, tap . • To capture an image from the video while recording, tap . • You can record up to 10 minutes of 1080p video at 60 fps. You can record up to 25 minutes of video at lower settings. • When using a memory card with a slow writing speed, the device may not be able to save the video properly. It may stop recording, or recorded video frames may become corrupted. • Memory cards with slow writing speeds do not support high-resolution video. To record high-resolution video, use memory cards with faster writing speeds (micro SDHC Class10 or higher). • The video frame size may appear smaller depending on video resolution and frame rate. • If you set the optical image stabiliser(OIS) option, the optical image stabiliser(OIS) sound may be recorded. • If the zoom function is activated when taking videos, the camera may record the noise of the zoom operating. To decrease zoom noise, activate the quiet zoom feature. • If you change the shooting angle of the camera suddenly while taking a video, the camera may not be able to record images accurately. • If you tap the screen to change the focus manually while taking a video, the touch sound may be recorded. • To capture an image from the video while recording, tap . You can take up to six photos. Camera 80 Viewing photos and videos To view taken photos or videos, tap the gallery icon. Scroll left or right to view the next or previous image. Zooming in and out Use one of the following methods: • Use the Volume button to zoom in or out. • Spread two fingers apart on the screen to zoom in, and pinch to zoom out. • The zoom in/out effect is available when using the zoom feature while shooting video. • The zoom function is not available while shooting a video using the Multi motion feature. • When using the zoom function, the lens moves back and forth to adjust the focus before it sets the precise zoom ratio that you intend to use. • To maintain a natural view angle, the zoom ratio increases in larger increments as it gets higher. Camera 81 Using the camera studio widget You can access various camera-related apps in the Camera Studio widget. On the Home screen, scroll left to view the widget. Edit app shortcuts. Camera 82 Separating the exposure area and the focus area If bright light affects the contrast or the subject is outside the auto focus area, use this feature to achieve an appropriate exposure. You can separate the exposure and focus areas and select the exposure level you want for the subject. 1 Tap the area to focus. will appear at the top right of the focus frame. 2 Drag to the exposure area. When you touch , the exposure area will be separated from the focus area. Tap and hold each area to lock the focus or exposure setting. Drag the areas together to merge the focus and exposure areas. Before separatingAfter separating Camera 83 Using the shooting mode Various shooting modes are available with the camera. You can use then to customise your photos and videos. On the Apps screen, tap Camera → MODE. Tap Manage mode to select the shooting modes to appear on the mode selection screen. • Auto: Use this to allow the camera to evaluate the surroundings and determine the ideal mode for the photo. • Program: Use this to allow the camera to automatically adjust the shutter speed and aperture value so that an optimal exposure value can be achieved. • Manual: Use this to adjust the shutter speed and aperture value manually. • Pro suggest: Take photos with one of the automatically suggested smart modes or by applying pre-defined settings.. • Beauty face: Take a photo with lightened faces for gentler images. • Continuous shot: Take a series of photos of moving subjects. • Kids shot: Play a funny sound to get a kid’s attention when shooting. • Selfie alarm: Detect a face in a preset area and to take multiple photos automatically. You can then select the best photo. • Landscape: Take photos of blue skies and landscapes with richer colours. • Dawn: Take photos of the dawn sky in subtle colours. • Snow: Take brighter photos of snow scenery. • Macro: Take photos of very close subjects. • Food: Take photos of food in more colourful tones. • Party/Indoor: Take crisp indoor photos. • Action freeze: Take photos of subjects moving at high speed. …

Text truncated - open the document above for the full version.

Connecting with other devices 151 Quick connect About Quick connect Use this feature to easily search and connect to nearby devices. You can use the device as a remote control by connecting it to a TV. You can also conveniently share content stored on your device with computers. • Connection methods may vary depending on the type of connected devices or the shared content. • Device name may vary depending on the Bluetooth devices to pair with. For example, the device name can be shown as BT MAC. Before using this feature • Ensure that devices to be connected support the Quick connect feature and that their screens are turned on. • Ensure that Wi-Fi Direct or the Bluetooth feature is activated on devices that do not support the Quick connect feature. Connecting to other devices 1 Open the notifications panel and tap Quick connect. When the panel opens, the Bluetooth feature is activated automatically and the device searches for nearby devices. 2 Select a device to connect to. The next steps may vary depending on the connected device. Follow the on-screen instructions to complete the connection between the devices. To allow nearby devices to search for your device and connect to it, tap → Always ready to connect , and then drag the Always ready to connect switch to the right. Connecting with other devices 152 Re-searching for devices If the desired device does not appear in the list, search for the device. Tap and select the device from the list of detected devices. Disconnecting devices To deactivate the Quick connect feature, tap at the top of the screen. Alternatively, tap . Sharing content Share content with the connected devices. 1 Open the notifications panel and tap Quick connect. 2 Select a device from the list of detected devices. 3 Select a media category. 4 Select the content to share and tap Done. Your device sends the content to the connected device. Connecting to a TV Connect the device to a TV and control the TV by using the device as a remote control. Before using this feature • Ensure that the TV is turned on. • Ensure that your device and the TV are connected to the same network. • Ensure that the TV is registered to the WatchON feature. • Install the WatchON app on the device. You can download the app from Samsung Apps or Play Store. Connecting with other devices 153 1 Open the notifications panel and tap Quick connect. 2 Tap Control from the list of detected devices. When the device is connected to the TV, a remote control layout appears on the screen. When you connect the device to a TV for the first time, tap Set up Remote control. Then, follow the on-screen instructions to complete connecting the devices. 3 Control the connected TV using the remote control. Joining Group Play Share content with other devices by using the Group Play feature. Before using this feature • Search for or join a created session or create a new session. • Install the Group Play app on both devices. You can download the app from Samsung Apps or Play Store. 1 Open the notifications panel and tap Quick connect. 2 Tap Join from the list of detected devices. Only devices that support Group Play sessions appear on the list. 3 Select a Group Play session to join. 4 Follow the on-screen instructions to complete the connection between the devices. Connecting with other devices 154 Exploring computers Launch the Samsung Link app to use content saved on remotely connected computers. To use this feature, sign in to your Samsung account. Before using this feature • Ensure that all devices using this feature are connected to the same network. • Ensure that all computers that the device will connect to are registered with the Samsung Link app. • Ensure that the Samsung Link app is installed on both devices. You can download the app from Samsung Apps or Play Store. 1 Open the notifications panel and tap Quick connect. 2 Tap Connect from the list of detected devices. Only available computers appear on the list. 3 Select a computer to connect to. 4 Follow the on-screen instructions to complete the connection between the devices. Connecting with other devices 155 Screen mirroring About Screen mirroring Use this feature to connect your device to a large screen with an AllShare Cast dongle or HomeSync and then share your contents. You can also use this feature with other devices that support the Wi-Fi Miracast feature. Screen Mirroring -enabled devices (AllShare Cast dongle, HomeSync, and Wi-Fi Miracast devices) • This feature may not be available depending on the region or service provider. • Miracast-enabled devices that do not support High-bandwidth Digital Content Protection (HDCP 2.X) may not be compatible with this feature. • Some files may be buffered during playback, depending on the network connection. • To save energy, deactivate this feature when not in use. • If you specify a Wi-Fi frequency, AllShare Cast dongles or HomeSync may not be discovered or connected. • If you play videos or games on a TV, select an appropriate TV mode to get the best experience. Connecting with other devices 156 Before using this feature • Ensure that the screen mirroring-enabled device is connected to the TV using an HDMI cable. • Ensure that the TV is turned on. Viewing content on a TV Before you connect a TV to your device, connect the TV and the screen mirroring-enabled device. To set up the connection, refer to the device’s user manual. The following actions are an example of viewing content on a TV connected via an AllShare Cast dongle. 1 On the TV, select a connection mode, such as HDMI mode, to connect an external device. 2 On the Apps screen, tap Settings → Screen mirroring. The detected devices are listed. 3 Select a device to connect to. Your device’s screen appears on the TV screen. If you connect the device for the first time, tap and hold the dongle’s name on the list and enter the PIN shown on the TV screen. 4 Open or play a file, and then control the display with the keys on your device. Stopping viewing th…

Text truncated - open the document above for the full version.

 April 1  4             !" # $  $ %   &" SMC115  ' () &%  "  *    )+ ,  $  - -. $)  / 0 11-2-.324#  5)     4)) )$  4 5 )   $    $ +    $ %-     ! ! !!! "! # $!%& #'$, Product Equality Declaration  6 ,        %  # +  +   + +% $     +  $)# +  -')+     $ ,    5)) $    + % 4 5,  +   $, 5 ) -  &    ,      2+    * 7 68 $ )  /+ %2    +%4))  55     1-9 ) +     1-24)   5)    , $      $  )   5 $ 4% ) : ,-(#  5)   5 ) 8  $ %#  )$  4 5)    ( ')  *+!# ,!!# $ # &-!$  &    5)    + 2 &$     +    5$ ,4+  5  $       ) $   4,$ + ,4 )5  $ # +   ) :  -  ;5        5<% 50*32=>  5    5?  -@' '?@".8998 6A".8998 ?8 "B  5-

129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Date : October 22 nd , 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), RA Head of QA Lab (General Manager) Samsung Electronics America, Inc 19 Chapin Rd, Bldg D Pine Brook, NJ 07058

Label and Location Model: SM-C115 FCC ID: A3LSMC115 Label: Location: Top Back of device Bottom Label is placed inside of the battery compartment. ￿ ￿ Label

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea April 1, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMC115 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

FCC 47 CFR Parts 1 & 2 Published RF Exposure KDB Procedures IEEE Standard 1528-2013 SAR EVALUATION REPORT For GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n & NFC Model: SM-C115, SM-C111 FCC ID: A3LSMC115 Report Number: 14U17033-7C Issue Date: 4/10/2014 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO, 443-742, South Korea Prepared by UL Verification Services Inc. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: 1 (510) 771-1000 FAX: 1 (510) 661-0888 Report No.: 14U17033-7C Issue Date: 4/10/2014 FCC ID: A3LSMC115 Page 2 of 50 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: 1 (510) 771-1000 FAX: 1 (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 3/27/2014 Initial Issue -- A 4/4/2014 1. Updated Title Page to include the new model number 2. Updated Section 7.1 to clarify the Device Under Test’s description Nathan Sousa B 4/9/2014 Remove Section 7.1 DUT description Devin Chang C 4/10/2014 Updated Section 4.1 Nathan Sousa Report No.: 14U17033-7C Issue Date: 4/10/2014 FCC ID: A3LSMC115 Page 3 of 50 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: 1 (510) 771-1000 FAX: 1 (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................. 6 2. Test Methodology ........................................................................................................................... 7 3. Facilities and Accreditation ........................................................................................................... 7 4. Calibration and Uncertainty ........................................................................................................... 8 4.1. Measuring Instrument Calibration .............................................................................................. 8 4.2. Measurement Uncertainty .......................................................................................................... 8 5. Measurement System Description and Setup ............................................................................... 9 6. SAR Measurement Procedure ...................................................................................................... 10 6.1. Normal SAR Measurement Procedure ..................................................................................... 10 6.2. Volume Scan Procedures ........................................................................................................ 12 7. Device Under Test ......................................................................................................................... 13 7.1. General Information ................................................................................................................. 13 7.2. Wireless Technologies ............................................................................................................. 14 7.3. RF Output Power Tolerance .................................................................................................... 15 7.4. Simultaneous Transmission Condition ..................................................................................... 16 7.5. General LTE SAR Test and Reporting Considerations ............................................................. 17 8. RF Exposure Conditions .............................................................................................................. 18 8.1. Head Exposure Conditions ...................................................................................................... 18 8.2. Body-worn Accessory Exposure Conditions ............................................................................. 18 8.3. Hotspot Exposure Conditions and Wi-Fi Direct ........................................................................ 18 9. RF Output Power Measurement ................................................................................................... 19 9.1. GSM ........................................................................................................................................ 19 9.2. W-CDMA ................................................................................................................................. 20 9.3. LTE Band ................................................................................................................................. 24 9.4. Wi-Fi (2.4 GHz Band) ............................................................................................................... 29 9.5. Wi-Fi (5 GHz Bands) ............................................................................................................... 30 9.6. Bluetooth ................................................................................................................................. 32 10. Tissue Dielectric Properties ......................................................................................................... 33 10.1. Composition of Ingredients for the Tissue Material Used in the SAR Tests .......................... 34 10.2. Tissue Dielectric Parameter Check Results .......................................................................... 35 11. System Performance Check ......................................................................................................... 37 11.1. System Performance Check Measurement Conditions ......................................................... 37 Report No.: 14U17033-7C Issue Date: 4/10/2014 FCC ID: A3LSMC115 Page 4 …

Text truncated - open the document above for the full version.
