A3LSMF946JPNGSM/WCDMA/LTE 5G NR Phone + BT/BLE, DTS/UNII a/b/g/n/ac/ax, NFC, WPT and UWB

Quick Reference Guide (Terms an d Conditions) SC-55D, SCG22 Read this document before operating the mobile device, accessories, or software (defined collectively and individually as the “Product”) and keep it for future reference. This document contains important Terms and Conditions. Electronic acceptance, opening the packaging, use, or retention of the Product constitutes acceptance of these Terms and Conditions. Visit www.samsung.com/us to view device information, the user manual, and more. You may incur additional charges for accessing the Internet. Device Layout To turn on the device, pr ess and hold th e Side key for a few seconds. The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card Nano- SIM cards are sold separately. Contact us Questions? Visit us.community.samsung.com Get Support Call 1.800.SAMSUNG Service locations Find a service location near you at Samsung.com/us/support/service/locations Switching made simple Whether you are coming from an iOS or Android platform, you can easily transfer your data with Smart Switch. Back up your old phone Back up your old phone using your favorite back-up app. Samsung Smart Switch 1. From your new Galaxy device, tap Settings > Accounts and backup > Smart Switch. 2. Tap Receive data. 3. Select your old device type. 4. Tap Cable (Android) or Wireless (Android and iOS) and follow the prompts to connect your phones. Customize Tap Settings to personalize your phone. Flight mode This disables all wireless functions on your devic e. You can use only non- network services On the setting screen, tap Flight mode. NOTE: The use of Ultra-Wideband (UWB) transmitters is prohibited when aboard an aeroplane or ship. UWB Operation in airplane mode: The use of Ultra-wideband (UWB) is prohibited aboard aircraft, ships and satellites and must be turned off by use of Airplane mode. The use of other features of this mobile devices on an aircraft or a ship may be subject to federal and local guidelines and restrictions. Airplane mode will disable all network connectivity. Check with appropriate authorities and always follow crew instructions regarding when and how you may use your device. Important l egal information Arbitration Agreement - This Product is subject to a binding ar bitration agreement between you and SAMSUNG ELECTRONICS AMERICA, INC. (“Samsung”). You can opt out of t he agreement within 30 calendar days of the first consumer purchase by emailing [email protected] or calling 1-800-SAMSUNG (726-7864) and providing the applicable information. The full Arbitration Agreement, Standard One-year Limited Warranty, End User License Agreem ent (EULA), and Health & Safety Information for your device are available online: •English: www.samsung.com/us/Legal/Phone-HSGuide •S panish: www.samsung.com/us/Legal/Phone-HSGuide-SP This information can also be found on the device in the “About device” or “About phone” or “About tablet” section, for example: •Settings > About phone or About device or About tablet > Legal information > Samsung legal •Or,Search “Legal” If your device required Federal Communications Commission (FCC) appr oval, you can view the FCC certification by opening Settings > About phone or About device or About tablet> Status information. Health and Safety WARNING! To avoid electri c shock and damage to your device, do not charge device while it is wet or in an area where it co uld get wet. Do not handle device, c harger or cords with wet hands while charging. Maint aining dust and water resistance The device is not impervious to dust and water damage in any situation. It is important that all c ompartments are closed tightly. Follow these tips carefully to prevent damage to the device and maintain dust and water resistance performance: •Water resistant based on IP68 rating, which tests submersion in fresh water deeper than 1.5 meters or keep it submerged for more than 30 minutes. If device is exposed to fresh water, dry it thoroughly with a clean, soft cloth; if exposed to liquid other than fresh water, rinse with fresh water and dry as directed. •Any device which uses accessible compar tments or por ts that can be opened should have these se aled or closed tightly to prevent liquid from entering th e system. •If the device has been immersed i n water or the microphone or speaker is wet, sound may not be heard clearly during a call. After wiping the device with a dry cloth, dry it thoroughly before using it. •Do not expose the device to water at high pressure. •If the device is dropped or receives an impact, the water and dust resistant features of the device may be damaged. Note: Liquid other than fresh water may enter the device fa ster. Failure to rinse the device in fresh water and dry it as instructed may cause the device to suffer from operability or cosmetic issues. Samsung Knox Samsung Knox is Samsung’s security platf orm. Additional licensing fees may be required for enterprise use. For more information about Knox, pl ease refer to: www.samsung.com/us/knox Specific Absorption Rate (SAR) certification information For information about SAR, visit : •https://www.fcc.gov/general/radio-frequency-safety-0 •www.fcc.gov/encyclopedia/ speci fic -absorption-rate-sar-cellular-telephones •www.samsung.com/sar Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5cm separation between the device and the user's body. Samsung Wireless Power Sharing feature allows device -to -device charging without the need for a charger. If your device supports the wireless power sharing function, this equipment should be operated with a minimum distance of 20 cm between the device and your body. Note: Foldable devices can be stored in an environment with ambient temperatures of -10°C / 14.0°F to 50°C / 122°F safely; prolonged exposure to temperatures outside these recommended temperatures can po…

Text truncated - open the document above for the full version.

CFR 47 §2.911 (d)(5) Attestation Date: 06-20-2023 FCC ID: A3LSMF946JPN FRN : 0027908797 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA 1.Samsung Electronics Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Samsung Electronics Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Ms. Jenni Chun Job Title: General Manager Regulatory & Environmental Affairs Company Name: Samsung Electronics Co., Ltd.

47 CFR §2.911 (d)(7) Agent Designation Attestation Date: 06-20-2023 FCC ID: A3LSMF946JPN To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Samsung Electronics Co., Ltd. (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The a pplicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. U. S. Agent Information: Contact Person : Ms. Jenni Chun Company Name : Samsung Electronics Co., Ltd. Company Address : 19 Chapin Rd., Building D, Pine Brook, NJ 07058 Email : [email protected] FRN : 0027908797 Sincerely yours, Name: Ms. Jenni Chun Job Title: Head of Regulatory & Environmental Affairs Company Name: Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeontong-gu, Suwon-si, Gyeonggi-do, 16677, Korea MPR Attestation letter for LTE -FCC ID : A3LSMF946JPN -Model : SC-55D, SCG22 To Whom it May Concern We attest the following regarding FCC ID A3LSMF946JPN 1.MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. 2.A-MPR was disabled for all SAR test samples for SAR testing purposes only. 3.We confirm the specific MPR targets and tolerances shown in the SAR Report. All deviations in the power measurements from the specific MPR targets shown in the SAR Report are expected and within factory tolerances. 4.LTE Release 16 implementation is limited. The uplink does not support enhanced SC-F DMA. Features such as CoMP, HetNet, Relay, SON, cross carrier scheduling, eICIC, enhanced downlink MIMO, MBMS, M2M/D2 are also not supported. SVLTE is not supported as described in the operational description. 5.This device complies with FCC Part 27.75(a)(1) requirements: Mobile and portable stations that operate on any portion of frequencies in the paired 1755-1780 MHz and 2155-2180 MHz band must be capable of operating on all frequencies in the paired 1710-1780 MHz and 2110-2180 MHz band, using the same air interfaces that the equipment utilizes on any frequencies in the paired 1710 -1780 MHz and 2110-2180 MHz band. 6.This device complies with FCC Part 27.77 requirements: Mobile and portable stations in the 1695-1710 MHz and 1755-1780 MHz bands may operate only when under the control of a base station. Base stations that enable mobile or portable equipment to operate in the 1695-1710 MHz and 1755-1780 MHz band are subject to prior coordination requirements. Should you have any questions or com ments concerning the above, please contact the undersigned. Sincerely, Ms. Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics Co., Ltd. TEL : +1-973- 808- 6375 E- mail : [email protected]

Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeontong-gu, Suwon-si, Gyeonggi-do, 16677, Korea MPR Attestation letter for UMTS -FCC ID : A3LSMF946JPN -Model : SC-55D, SCG22 To Whom it May Concern We attest the following regarding FCC ID A3LSMF946JPN 1. MPR is permanently implemented for HSDPA, HSUPA, and DC-HSDPA mode. 2. It is expected by the manufacturer that MPR for some HSPA subtests may be up to 2dB more than specified by 3GPP, but also as low as 0dB according to the chipset implementation in this model. 3. We confirm the specific MPR targets and tolerances shown in the SAR Report. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: +1-973-808-6375 E-mail: [email protected]

Qualcomm Smart transmit Part 2 (Test under Dynamic Transmission condition) test case reduction This model (FCC ID : A3LSMF946JPN ) has support to Qualcomm Smart Transmit feature with algorithms to control and manage transmitting power in real time. The feature was validated as Part.0, Part.1 and Part.2 according to the Qualcomm guide. For Part.2 validation test, Chipset and EFS version used in this model validated full test of Part 2 through first filing. Therefore, This model(multiple model) applied to Part 2 test case reduction according to Section K in Qualcomm document 80-W2112-5. First filing information is below; FCC ID A3 LSMF731U Chipset Same chipset used in this device EFS version V20

June 20, 2023 Federal Comm unications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: Request for Confidentiality A3LSMF946JPN To Whom It May Concern: Pursuant to the provisions of Sections 0. 457 and 0.459 of the Commission’s rules (47 CFR §§ 0. 457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Parts List Tune-Up Procedure PED Above mentioned document contains detailed system and equipment description are cons idered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachm ents until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: +1-973-808-6375 E-mail: [email protected]

Date: June 20, 2023 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea To whom it may concern: I, the undersigned, hereby authorize UL Korea, Ltd. Suwon Laboratory, to ac t on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Korea, Ltd. Suwon Laboratory on our behalf shall have the same effect as acts of our own. In authorizing UL Korea as our agent, we still recogniz e that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. l) the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: +1-973-808-6375 E-mail: [email protected]

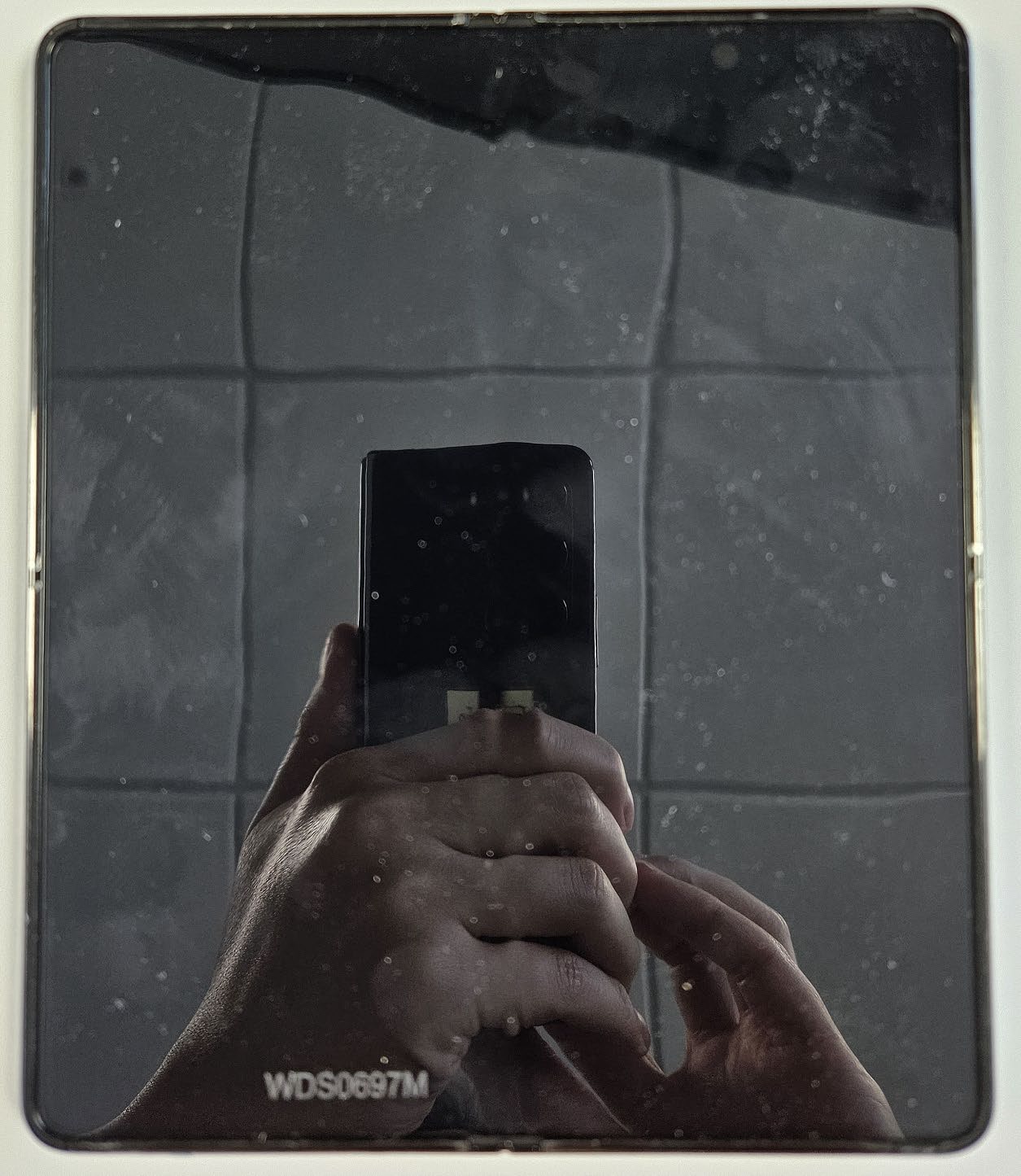

A3LSMF946JPN External Photos Model Name : SC-55D, SCG22 1.Folder close Front Back To p Bottom Right Left 2. Folder open Front Back To p Bottom Right Left

Description of E-label on the A3LSMF946JPN Date: Jun 22, 2023 FCC ID: A3LSMF946JPN This model is applied E-label, please find description of E-label below. 1.FCC ID (E-label): Settings > About Phone > Status Information <Device Display Screen> 2.FCC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guide lines. This device has a FCC ID number A3LSMF946JPN [Model Number: SC-55D, SCG22] and the specific SAR levels for this device can be found at the following. FC C website: www.fcc.gov/oet/ea/ The SAR information for this device can be found on Samsung ’s website: www.samsung.com/sar

Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 16677, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 E-label Attestation Letter - FCC ID : A3LSMF946JPN - Model : SC-55D, SCG22 To Whom It May Concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find FCC ID per CFR 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung Electronics Co., Ltd., have programmed the e-label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Ms. Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics Co., Ltd. TEL : +1-973-808-6375 E-mail : [email protected]

Internal Photo Applicant : SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI, GYEONGGI-DO, 16677, KOREA Model : SC-55D, SCG22 FCC ID : A3LSMF946U Date Of Issue: 2023-07-06 Prepared by: UL Korea, Ltd. 26th floor, 152, Teheran-ro, Gangnam-gu Seoul, 06236, Korea Suwon Test Site: UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 Testing Laboratory TL-637 DATE: 2023-07-06 FCC ID: A3LSMF946JPN UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. I nternal Photo DATE: 2023-07-06 FCC ID: A3LSMF946JPN UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. DATE: 2023-07-06 FCC ID: A3LSMF946JPN UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. DATE: 2023-07-06 FCC ID: A3LSMF946JPN UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. DATE: 2023-07-06 FCC ID: A3LSMF946JPN UL Korea, Ltd. Suwon Laboratory FORM ID: FCC_15B(04) 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 UL Korea, Ltd. Confidential This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd.

Plot No. 1 UL Korea, Ltd. Suwon Laboratory SAR#6 Date/Time:2023-07-04 Measurement Report for SM-F946D, CHEEK, GSM 850, GPRS-FDD (TDMA, GMSK, TN 0-1), Channel 190 (836.6 MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity RightHead, HSL CHEEK, 0.00 GSM 850 GSM, 10024- DAC 836.6, 190 9.95 0.939 41.7 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2043 HBBL-600-10000, 2023-Jul-03 EX3DV4 - SN3871, 2022-09-26 DAE4 Sn1671, 2023-05-25 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.120 0.124 psSAR10g [W/Kg] 0.082 0.093 Power Drift [dB] -0.03 M2/M1 [%] 94.3 Dist 3dB Peak [mm] > 15.0 Plot No. 2 UL Korea, Ltd. Suwon Laboratory SAR#6 Date/Time:2023-07-04 Measurement Report for SM-F946D, BACK, GSM 850, GPRS-FDD (TDMA, GMSK, TN 0-1), Channel 190 (836.6 MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 10.00 GSM 850 GSM, 10024- DAC 836.6, 190 9.95 0.939 41.7 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2043 HBBL-600-10000, 2023-Jul-03 EX3DV4 - SN3871, 2022-09-26 DAE4 Sn1671, 2023-05-25 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.442 0.451 psSAR10g [W/Kg] 0.281 0.261 Power Drift [dB] 0.04 M2/M1 [%] 83.5 Dist 3dB Peak [mm] 13.0 Plot No. 3 UL Korea, Ltd. Suwon Laboratory SAR#9 Date/Time:2023-06-19 Measurement Report for SM-F946D, BACK, GSM 850, GPRS-FDD (TDMA, GMSK, TN 0-1), Channel 190 (836.6 MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 10.00 GSM 850 GSM, 10024- DAC 836.6, 190 9.95 0.910 41.5 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2037 HBBL-600-10000, 2023-Jun-19 EX3DV4 - SN3871, 2022-09-26 DAE4 Sn1670, 2023-05-24 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.123 0.121 psSAR10g [W/Kg] 0.079 0.071 Power Drift [dB] -0.02 M2/M1 [%] 85.2 Dist 3dB Peak [mm] 14.0 Plot No. 4 UL Korea, Ltd. Suwon Laboratory SAR#7 Date/Time:2023-06-25 Measurement Report for SM-F946D, CHEEK, PCS 1900, GPRS-FDD (TDMA, GMSK, TN 0-1-2), Channel 661 (1880.0 MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity RightHead, HSL CHEEK, 0.00 PCS 1900 GSM, 10027- DAC 1880.0, 661 7.4 1.41 38.8 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2039 HBBL-600-10000, 2023-Jun-24 EX3DV4 - SN7313, 2023-03-24 DAE4 Sn1447, 2023-03-22 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 32.0 x 32.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.050 0.060 psSAR10g [W/Kg] 0.026 0.031 Power Drift [dB] 0.13 M2/M1 [%] 83.9 Dist 3dB Peak [mm] 8.2 Plot No. 5 UL Korea, Ltd. Suwon Laboratory SAR#7 Date/Time:2023-06-25 Measurement Report for SM-F946D, EDGE BOTTOM, PCS 1900, GPRS-FDD (TDMA, GMSK, TN 0-1-2-3), Channel 512 (1850.3 MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL EDGE BOTTOM, 10.00 PCS 1900 GSM, 10028- DAC 1880.0, 661 7.4 1.41 38.8 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2039 HBBL-600-10000, 2023-Jun-24 EX3DV4 - SN7313, 2023-03-24 DAE4 Sn1447, 2023-03-22 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 55.0 x 120.0 32.0 x 32.0 x 30.0 Grid Steps [mm] 13.76 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.357 0.441 psSAR10g [W/Kg] 0.197 0.224 Power Drift [dB] -0.16 M2/M1 [%] 82.6 Dist 3dB Peak [mm] 9.6 Plot No. 6 UL Korea, Ltd. Suwon Laboratory SAR#6 Date/Time:2023-07-03 Measurement Report for SM-F946D, BACK, Band 5, UMTS-FDD (WCDMA), Channel 4183 (836.6 MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL Permittivity Flat, HSL BACK, 10.00 Band 5 WCDMA, 10011- CAC 836.6, 4183 9.95 0.939 41.7 Hardware Setup Phantom TSL, Measured Date Probe, Calibration Date DAE, Calibration Date Twin-SAM V8.0 (30deg probe tilt) - 2043 HBBL-600-10000, 2023-Jul-03 EX3DV4 - SN3871, 2022-09-26 DAE4 Sn1671, 2023-05-25 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.416 0.432 psSAR10g [W/Kg] 0.267 0.251 Power Drift [dB] -0.01 M2/M1 [%] 83.3 Dist 3dB Peak [mm] 12.8 Plot No. 7 UL Korea, Ltd. Suwon Laboratory SAR#9 Date/Time:2023-06-21 Measurement Report for SM-F946D, CHEEK, Band 5, UMTS-FDD (WCDMA), Channel 4183 (836.6 MHz) Exposure Conditions Phantom Section, TSL Position, Test Distance [mm] Band Group, UID Frequency [MHz], Channel Number Conversion Factor TSL Conductivity [S/m] TSL P…
