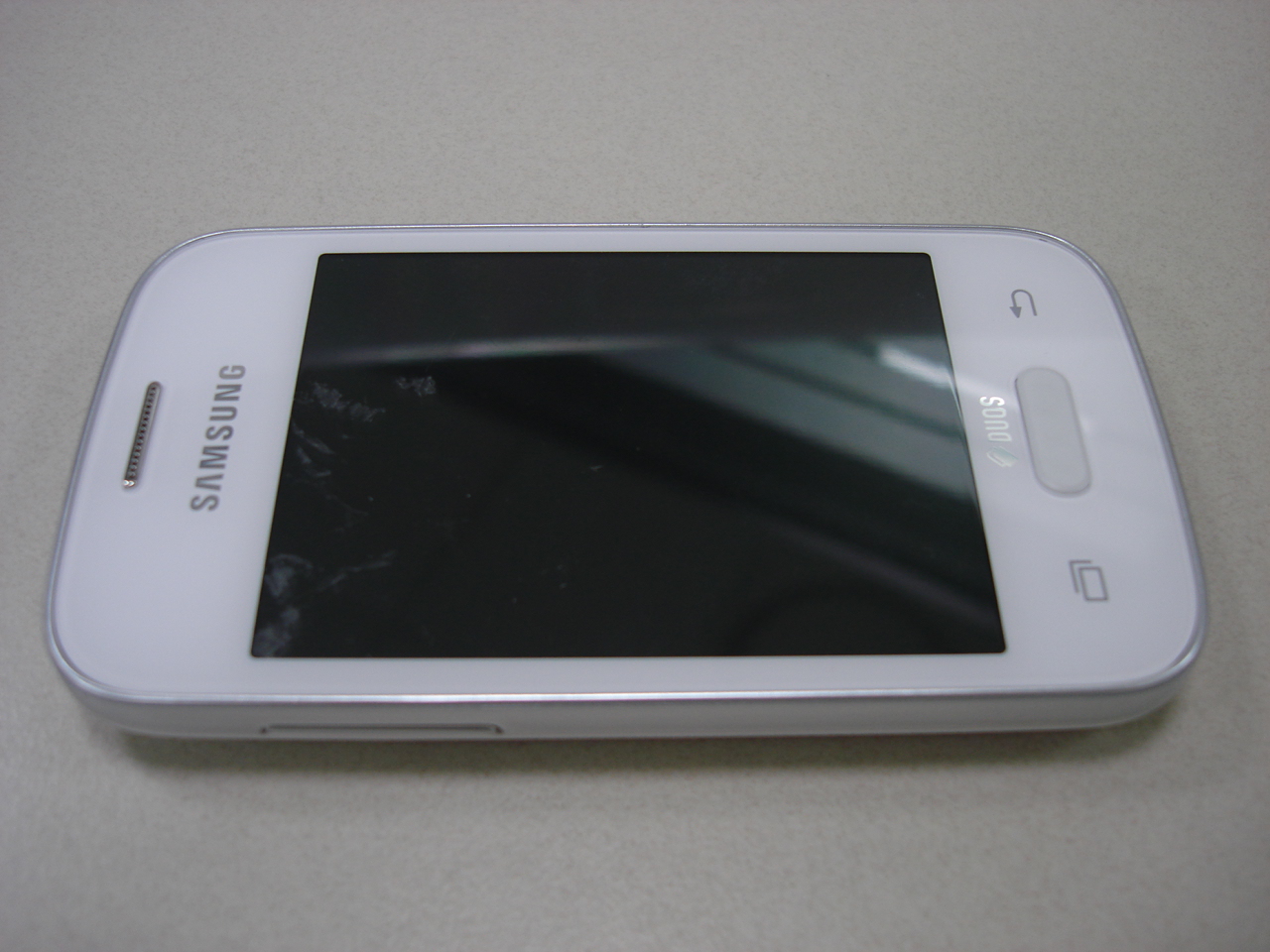

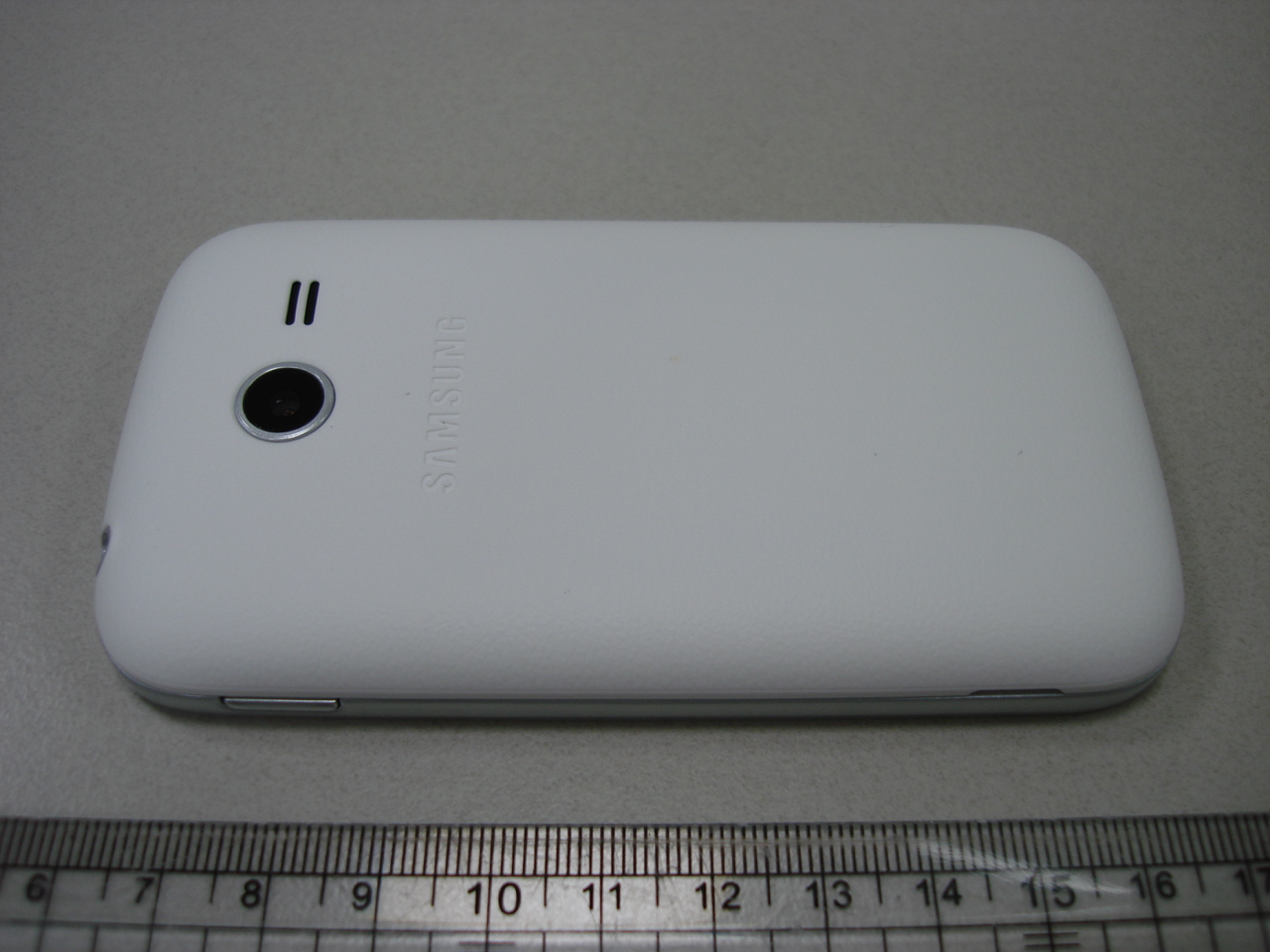

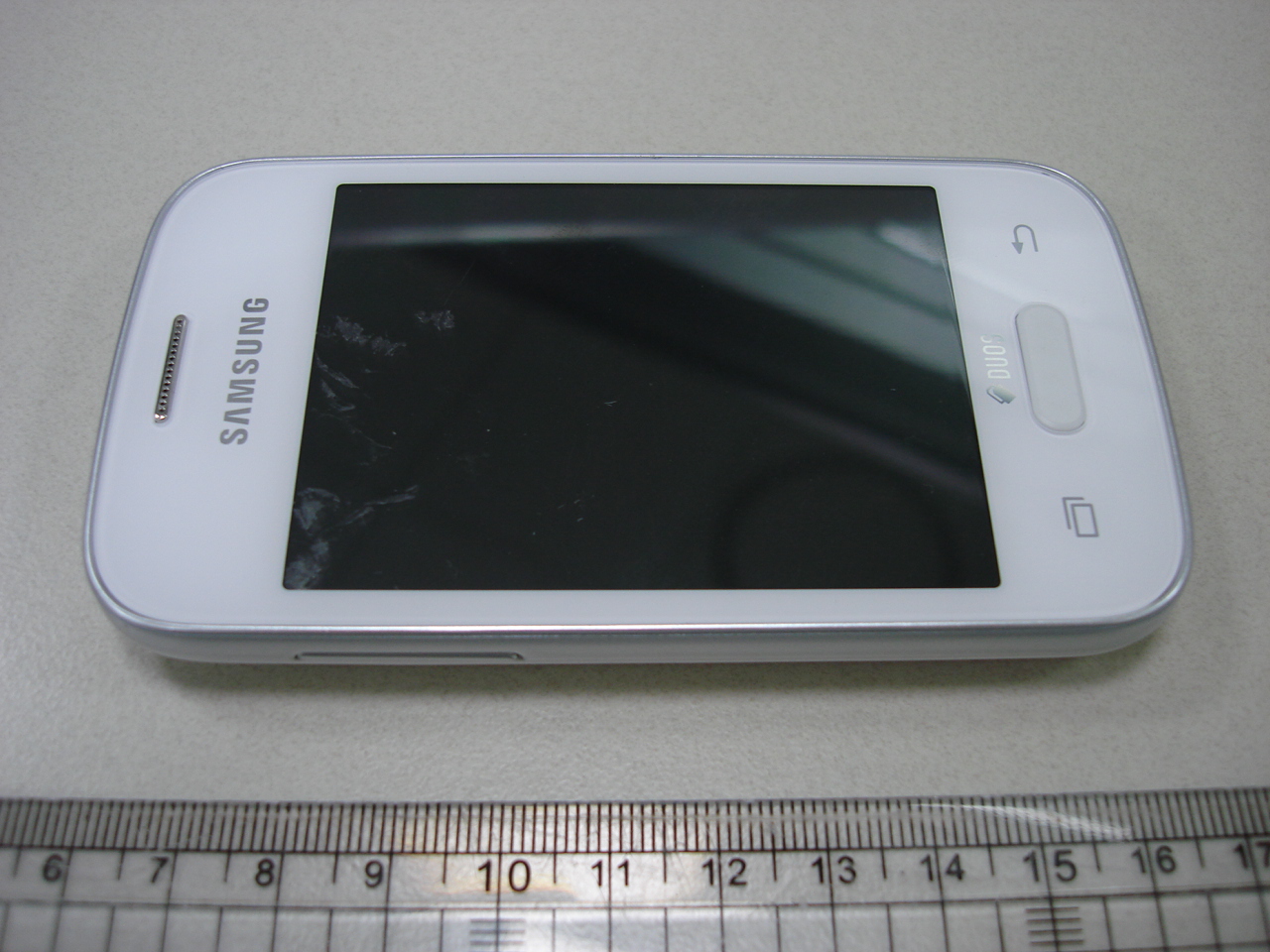

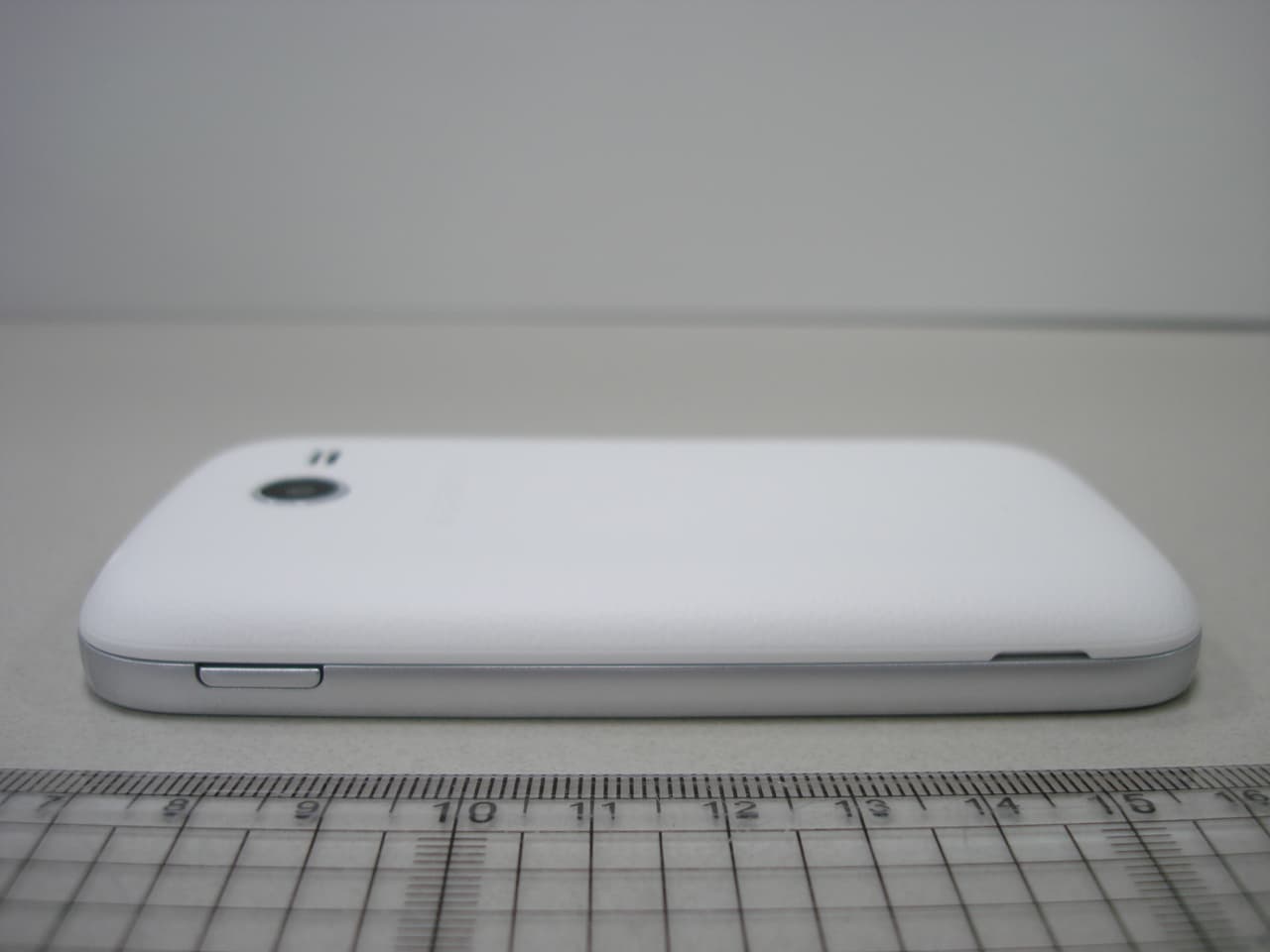

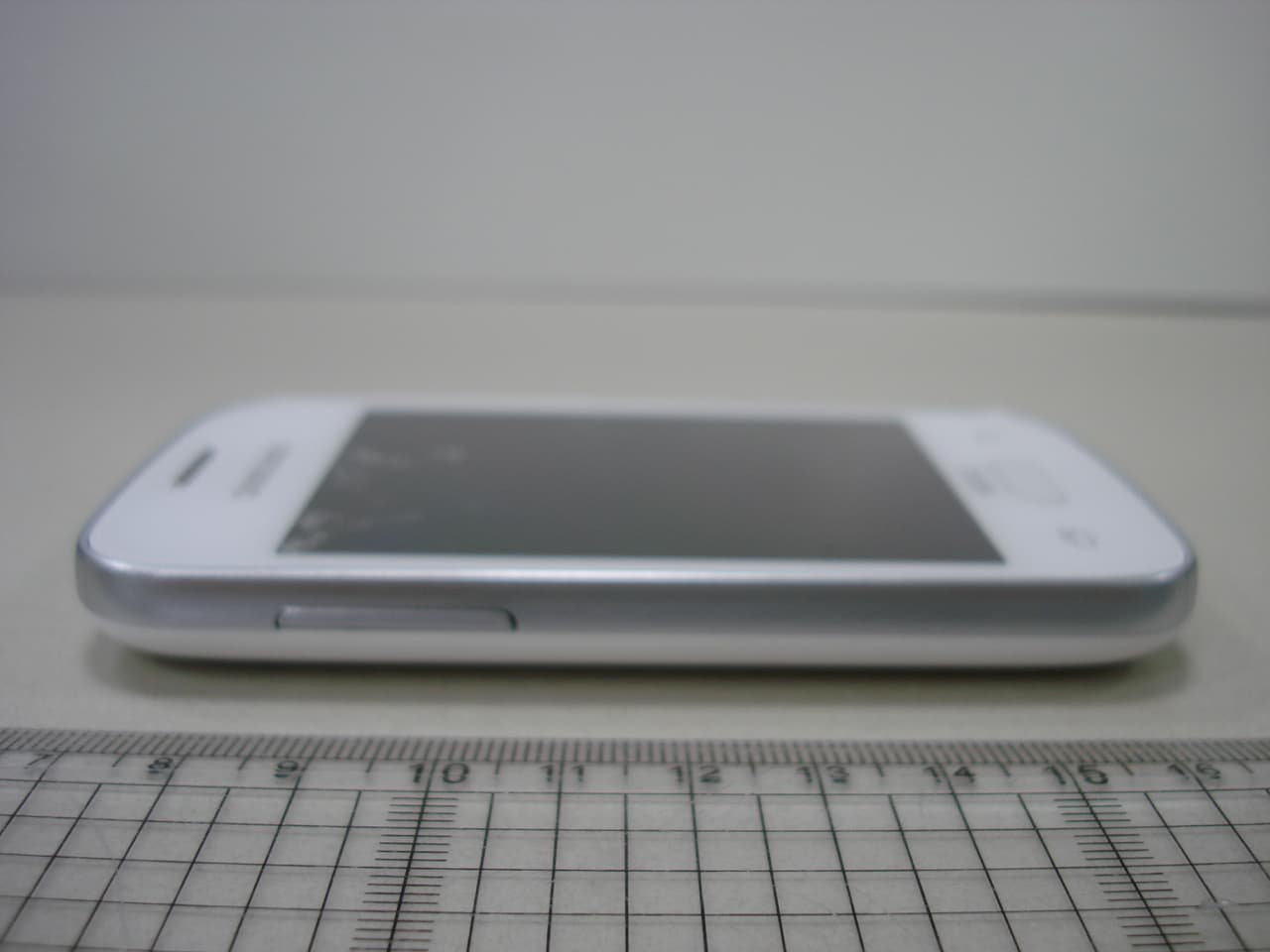

A3LSMG110BMobile phone

User manual SM-G110B/DS Draft 6.1 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent batt…

Text truncated - open the document above for the full version.

May 12, 2014 Fe deral Communications Commiss ion 74 35 O akland Mills Road Columbia MD 21046 Subject: Attestation Letter of WLAN channels FCC ID: A3LSMG110B The WLAN channels in USA Mode Channel Frequency (MHz) Ad-Hoc support or AP mode 802.11b/g/n 1-11 2412-2462 Yes (AP support as wireless hot spot when configured with WWAN module) 12, 13 2467-2472 Channels not supported on US. a. The device only uses Ch. 1-11 and FCC TX power table by S/W in Production. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 973-808-6362 FAX: 973-808-6361 E-mail: [email protected]

 May 12  4             !" # $  $ %   &" SMG110B  ' () &%  "  *    )+ ,  $  -  -. $)  / 0 11-2-.324#  5)   4)) ) $  4 5 )   $    $ +    $ %-     ! ! !!! "! # $!%& #'$  6 ,        %  # +  +   + +% $     +  $)# +  -')+     $ ,    5)) $    + % 4 5,  +   $, 5 ) -  &    ,      2+    * 7 68 $ )  /+ %2    +%4))  55     1-9 ) +     1-24)   5)    , $      $  )   5 $ 4% ) : ,-(#  5)   5 ) 8  $ %#  )$  4 5)    ( ')  *+!# ,!!# $ # &-!$  &    5)    + 2 &$     +    5$ ,4+  5  $       ) $   4,$ + ,4 )5  $ # +   ) :  -  ;5        5<% 50*32=>  5    5?  -@' '?@".8998 6A".8998 ?8 "B  5-

Label and Location Model: SM-G110B/DS FCC ID: A3LSMG110B Label: Location: Top Back of device Bottom Label is placed inside of the battery compartment. Label

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea May 12, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG110B LGentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

FCC 47 CFR Parts 1 & 2 Published RF Exposure KDB Procedures IEEE Std 1528-2013 SAR EVALUATION REPORT For GSM/WCDMA Phone + Bluetooth & WLAN 2.4GHz b/g/n Model: SM-G110B/DS and SM-G110B FCC ID: A3LSMG110B Report Number: 14I17675-S5B Issue Date: 06/02/2014 Prepared for SAMSUNG ELECTRONICS CO. LTD. 416 MAETAN 3-DONG, WEONGTONG-GU SUWON CITY, GYEONGGI-DO, SOUTH KOREA, 443-742 Prepared by UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 14I17675-S5B Issue Date: 06/02/2014 FCC ID: A3LSMG110B Page 2 of 34 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 05/07/2014 Initial Issue -- A 05/29/2014 Sec 4.1.: Updated Calibration Due Dates for E-Field Probes and Dipoles. Sec 7.1.: Updated SIM Information. Sec 7.3., 9.4., 12.5. : Updated Bluetooth Output Power. Sec 7.4.: Removed 5GHz WLAN from Head Item No.1. Sec 9.2.: Updated HSUPA Output Power. Sec 13.1.: Updated WCDMA Band V Highest Measured SAR Configuration. Sec 14.1., 14.2., 14.3. : Updated SAR results. Coltyce Sanders B 06/02/2014 Sec 7.2.: Removed HSPA+ from WCDMA Technologies Sec 12.2.: Updated Tune-up Limit and Measured Power for GSM 1900 VoIP Rear and Front Test Positions. Sec 13.1.: Updated Highest SAR Configuration for 850MHz Band Coltyce Sanders Report No.: 14I17675-S5B Issue Date: 06/02/2014 FCC ID: A3LSMG110B Page 3 of 34 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................. 5 2. Test Methodology ........................................................................................................................... 6 3. Facilities and Accreditation ........................................................................................................... 6 4. Calibration and Uncertainty ........................................................................................................... 7 4.1. Measuring Instrument Calibration .............................................................................................. 7 4.2. Measurement Uncertainty .......................................................................................................... 7 5. Measurement System Description and Setup ............................................................................... 8 6. SAR Measurement Procedure ........................................................................................................ 9 6.1. Normal SAR Measurement Procedure ....................................................................................... 9 6.2. Volume Scan Procedures ........................................................................................................ 11 7. Device Under Test ......................................................................................................................... 12 7.1. General Information ................................................................................................................. 12 7.2. Wireless Technologies ............................................................................................................. 12 7.3. RF Output Power Tolerance .................................................................................................... 13 7.4. Simultaneous Transmission Condition ..................................................................................... 13 8. RF Exposure Conditions .............................................................................................................. 14 8.1. Head Exposure Conditions ...................................................................................................... 14 8.2. Body-worn Accessory Exposure Conditions ............................................................................. 14 8.3. Hotspot Exposure Conditions and Wi-Fi Direct ........................................................................ 14 9. RF Output Power Measurement ................................................................................................... 16 9.1. GSM ........................................................................................................................................ 16 9.2. W-CDMA ................................................................................................................................. 17 9.3. Wi-Fi (2.4 GHz Band) .............................................................................................................. 19 9.4. Bluetooth ................................................................................................................................. 19 10. Tissue Dielectric Properties ......................................................................................................... 20 10.1. Composition of Ingredients for the Tissue Material Used in the SAR Tests .......................... 21 10.2. Tissue Dielectric Parameter Check Results .......................................................................... 22 11. System Performance Check ......................................................................................................... 24 11.1. System Performance Check Measurement Conditions ......................................................... 24 11.2. Reference SAR Values for System Performance Check....................................................... 25 11.3. System Performance Check Results ...........…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/30/2014 20140430_SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 1.017 S/m; ε r = 54.27; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3871; ConvF(9.72, 9.72, 9.72); Calibrated: 12/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-B v5.0; Type: QDOVA002AA; Serial: TP:1195 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 33.951 V/m; Power Drift = 0.02 dB Fast SAR: SAR(1 g) = 0.997 W/kg; SAR(10 g) = 0.668 W/kg Maximum value of SAR (interpolated) = 1.18 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.951 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.46 W/kg SAR(1 g) = 0.977 W/kg; SAR(10 g) = 0.644 W/kg Maximum value of SAR (measured) = 1.19 W/kg 0 dB = 1.19 W/kg = 0.76 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/30/2014 20140430_SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.15 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/29/2014 20140429_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.46 S/m; ε r = 39.181; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3871; ConvF(8.5, 8.5, 8.5); Calibrated: 12/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 62.949 V/m; Power Drift = -0.01 dB Fast SAR: SAR(1 g) = 4.29 W/kg; SAR(10 g) = 2.2 W/kg Maximum value of SAR (interpolated) = 5.67 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.949 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 7.74 W/kg SAR(1 g) = 4.2 W/kg; SAR(10 g) = 2.19 W/kg Maximum value of SAR (measured) = 5.69 W/kg 0 dB = 5.69 W/kg = 7.55 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/29/2014 20140429_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.60 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 5/1/2014 20140501_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.981 S/m; ε r = 51.394; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3871; ConvF(7.16, 7.16, 7.16); Calibrated: 12/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/Pin=100 mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Reference Value = 58.871 V/m; Power Drift = 0.02 dB Fast SAR: SAR(1 g) = 5.17 W/kg; SAR(10 g) = 2.23 W/kg Maximum value of SAR (interpolated) = 7.56 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.871 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 10.8 W/kg SAR(1 g) = 5.22 W/kg; SAR(10 g) = 2.42 W/kg Maximum value of SAR (measured) = 7.39 W/kg 0 dB = 7.39 W/kg = 8.69 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 5/1/2014 20140501_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 6.81 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab 2 Date: 4/29/2014 20140429_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.4 S/m; ε r = 40; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1359; Calibrated: 2/17/2014 - Probe: EX3DV3 - SN3531; ConvF(8.58, 8.58, 8.58); Calibrated: 11/21/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: QD000P40CA; Serial: 1185 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 53.002 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 3.97 W/kg; SAR(10 g) = 2.03 W/kg Maximum value of SAR (interpolated) = 5.45 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.002 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 7.06 W/kg SAR(1 g) = 3.84 W/kg; SAR(10 g) = 2.02 W/kg Maximum value of SAR (measured) = 5.19 W/kg 0 dB = 5.19 W/kg = 7.15 dBW/k…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C BLUETOOTH LOW ENERGY CERTIFICATION TEST REPORT FOR GSM/WCDMA Phone + Bluetooth & WLAN 2.4GHz b/g/n MODEL NUMBER: SM-G110B/DS, SM-G110B FCC ID: A3LSMG110B REPORT NUMBER: 14I17675-3 REVISION B ISSUE DATE: MAY 28, 2014 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 14I17675-3B DATE: May 28, 2014 FCC ID: A3LSMG110B Page 2 of 55 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 5/5/14 Initial Issue P. Zhang A 5/23/14 Updated AC line conducted P. Zhang B 5/28/14 Updated statement P. Zhang REPORT NO: 14I17675-3B DATE: May 28, 2014 FCC ID: A3LSMG110B Page 3 of 55 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. EQUIPMENT UNDER TEST ............................................................................................... 6 5.1. DESCRIPTION OF EUT .............................................................................................. 6 5.2. MAXIMUM OUTPUT POWER...................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................10 7. SUMMARY ........................................................................................................................11 8. ANTENNA PORT TEST RESULTS ...................................................................................11 8.1. 6 dB BANDWIDTH ......................................................................................................12 8.2. 99% BANDWIDTH ......................................................................................................15 8.3. OUTPUT POWER.......................................................................................................18 8.4. AVERAGE POWER ....................................................................................................21 8.5. POWER SPECTRAL DENSITY ..................................................................................22 8.6. CONDUCTED SPURIOUS EMISSIONS .....................................................................25 9. RADIATED TEST RESULTS .............................................................................................29 9.1. LIMITS AND PROCEDURE ........................................................................................29 9.2. TRANSMITTER ABOVE 1 GHz ..................................................................................30 WORST-CASE BELOW 1 GHz .............................................................................................43 10. AC POWER LINE CONDUCTED EMISSIONS ..............................................................46 11. SETUP PHOTOS ...........................................................................................................51 REPORT NO: 14I17675-3B DATE: May 28, 2014 FCC ID: A3LSMG110B Page 4 of 55 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA EUT DESCRIPTION: GSM/WCDMA Phone + Bluetooth & WLAN 2.4GHz b/g/n MODEL: SM-G110B/DS, SM-G110B SERIAL NUMBER: FL-165-A (Conducted), FL-165-C (Radiated) DATE TESTED: APRIL 29 – MAY 5, 2014 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR GSM/WCDMA Phone + Bluetooth & WLAN 2.4GHz b/g/n MODEL NUMBER: SM-G110B/DS, SM-G110B FCC ID: A3LSMG110B REPORT NUMBER: 14I17675-4 REVISION B ISSUE DATE: MAY 28, 2014 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 14I17675-4B DATE: May 28, 2014 FCC ID: A3LSMG110B Page 2 of 106 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 5/5/14 Initial Issue P. Zhang A 5/23/14 Updated statement P. Zhang B 5/28/14 Updated statement P. Zhang REPORT NO: 14I17675-4B DATE: May 28, 2014 FCC ID: A3LSMG110B Page 3 of 106 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. SAMPLE CALCULATION ............................................................................................ 6 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 6 5. EQUIPMENT UNDER TEST ............................................................................................... 7 5.1. DESCRIPTION OF EUT ....................................................…

Text truncated - open the document above for the full version.
