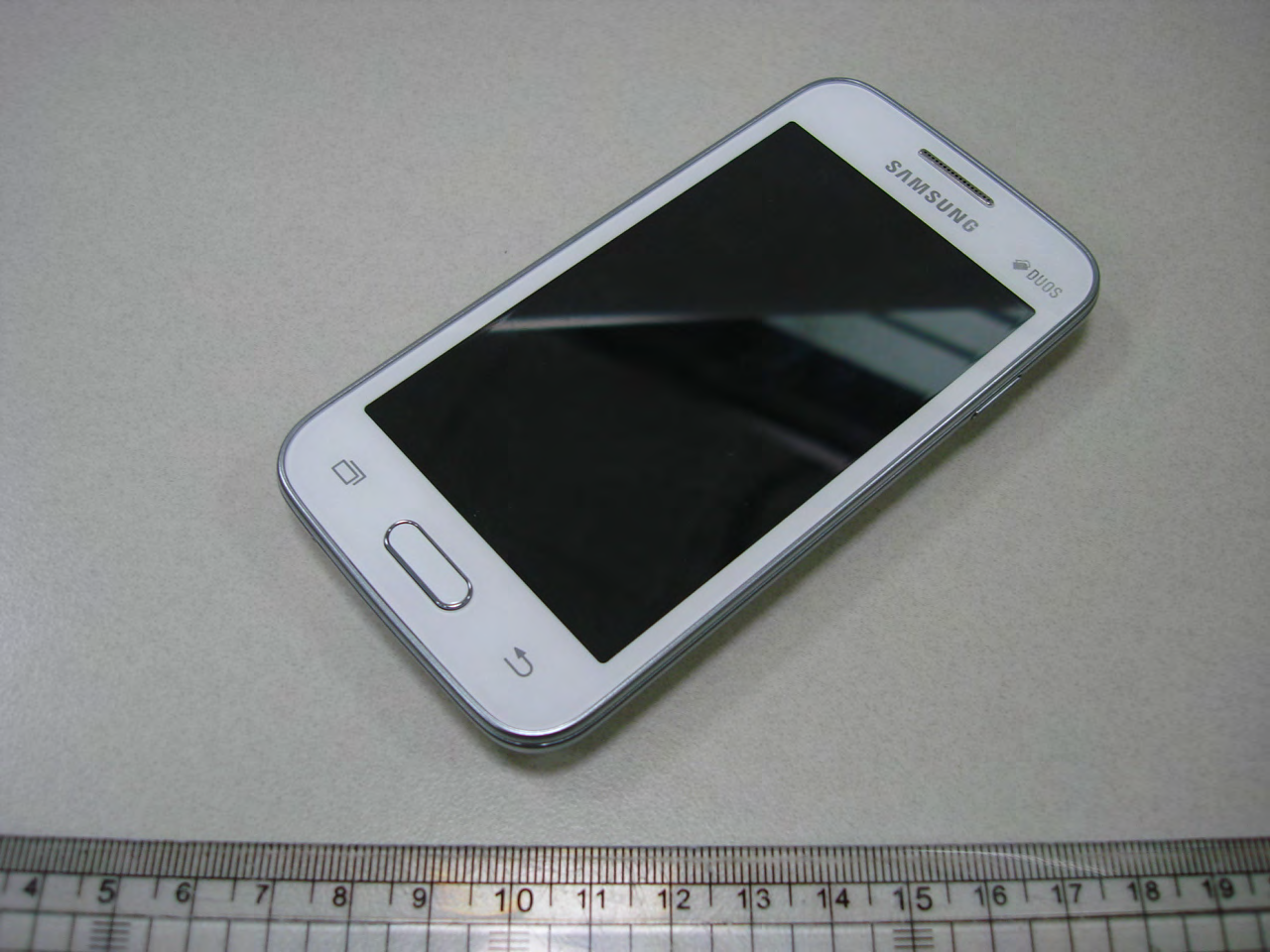

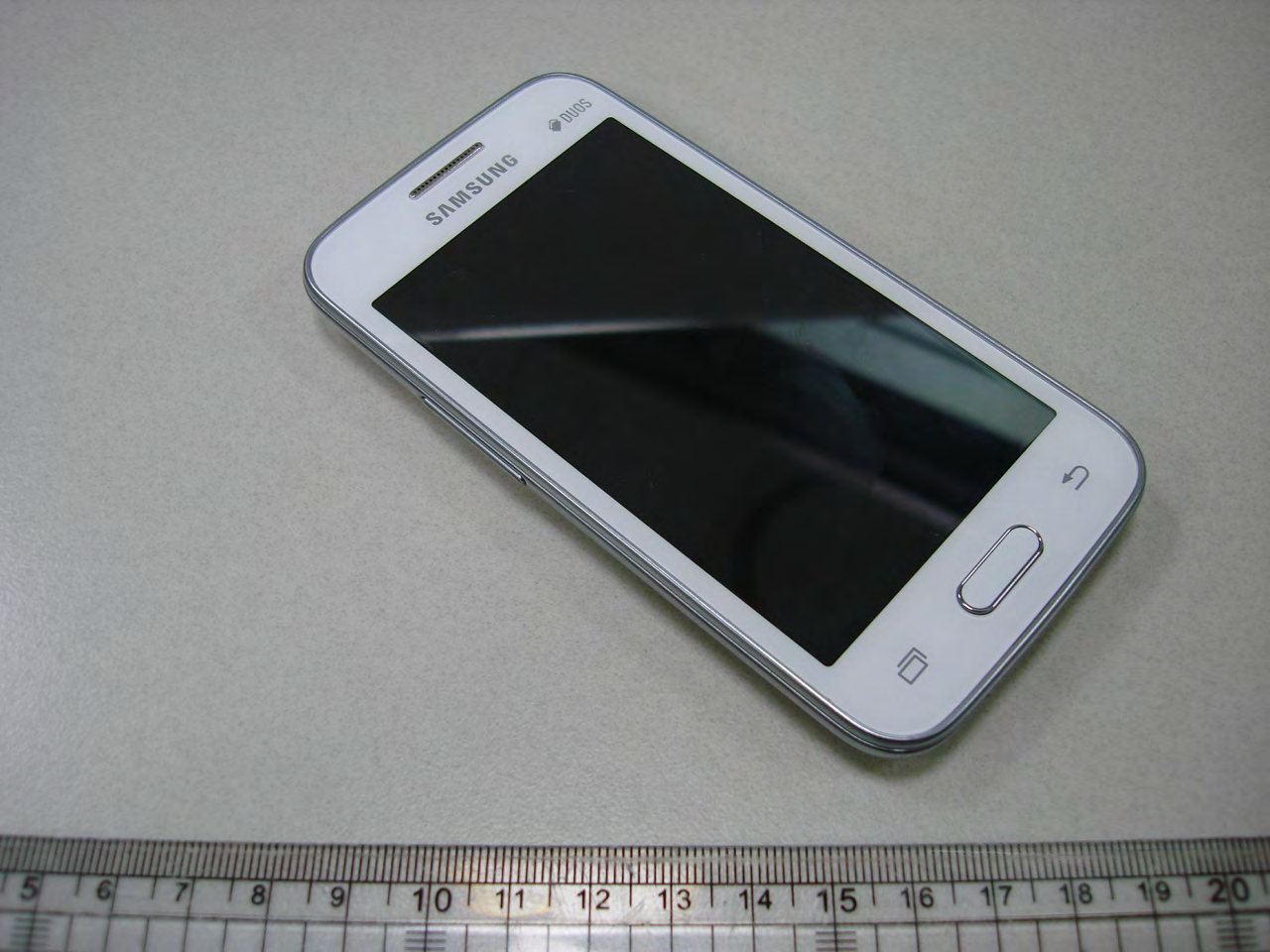

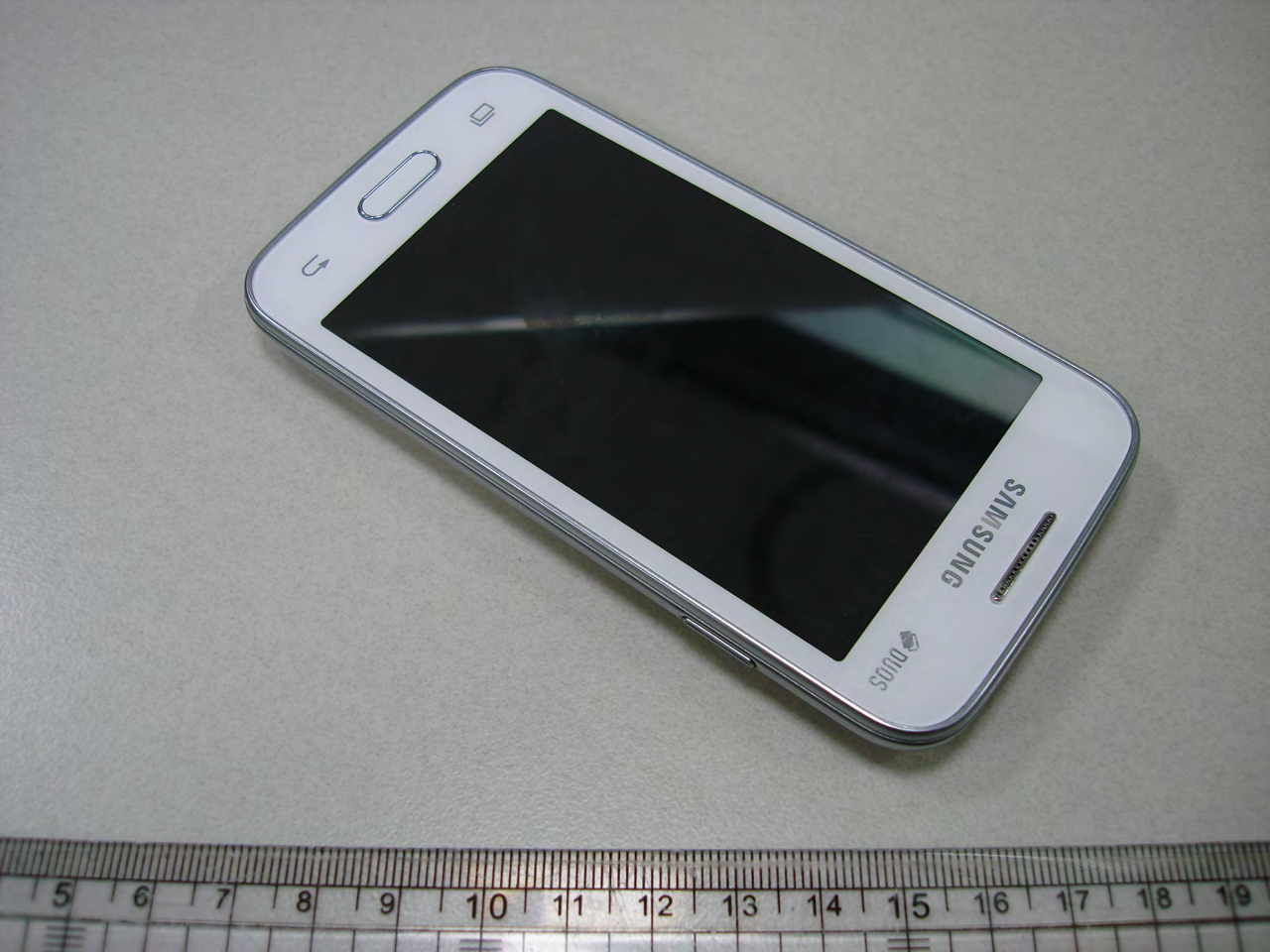

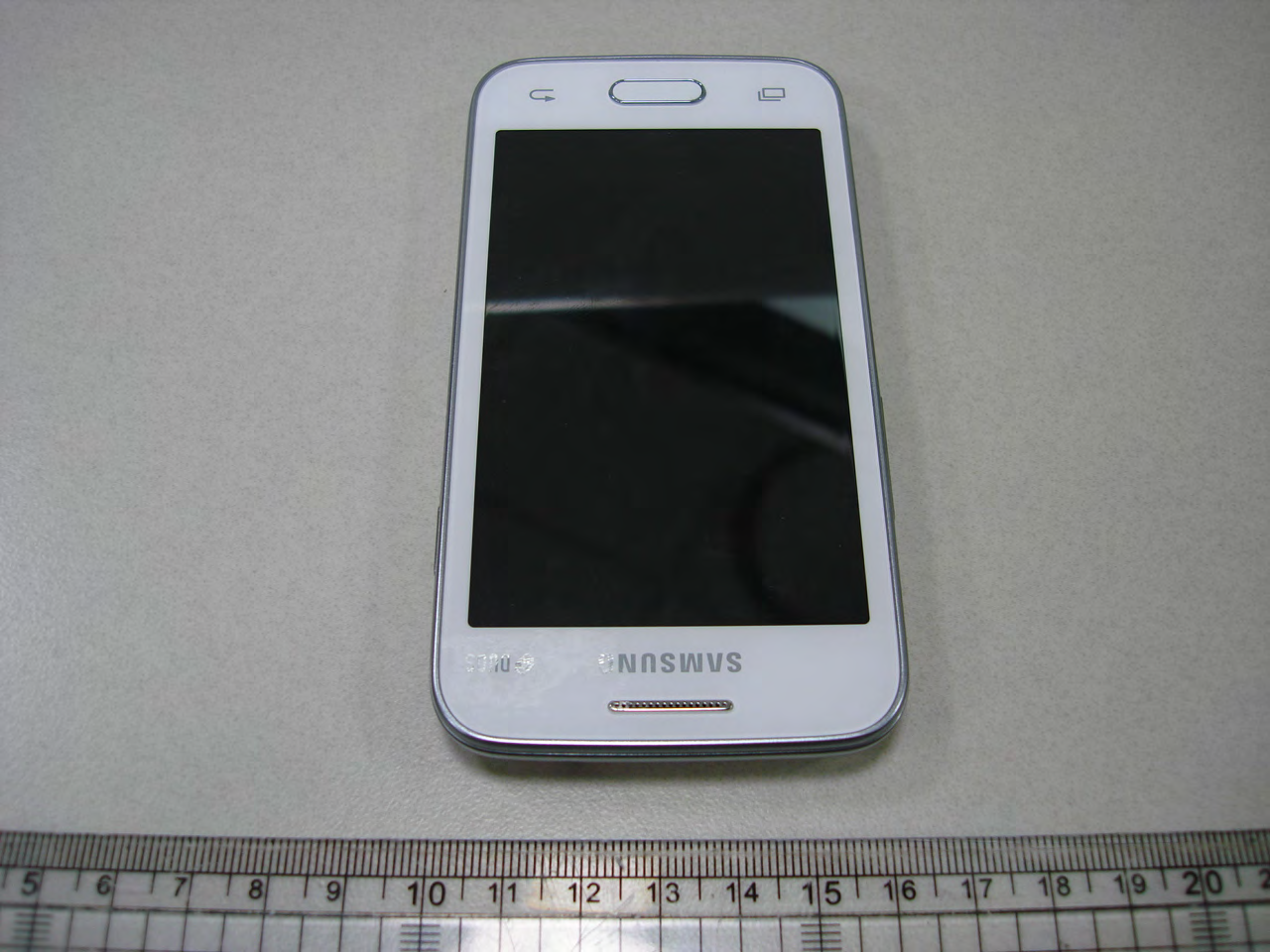

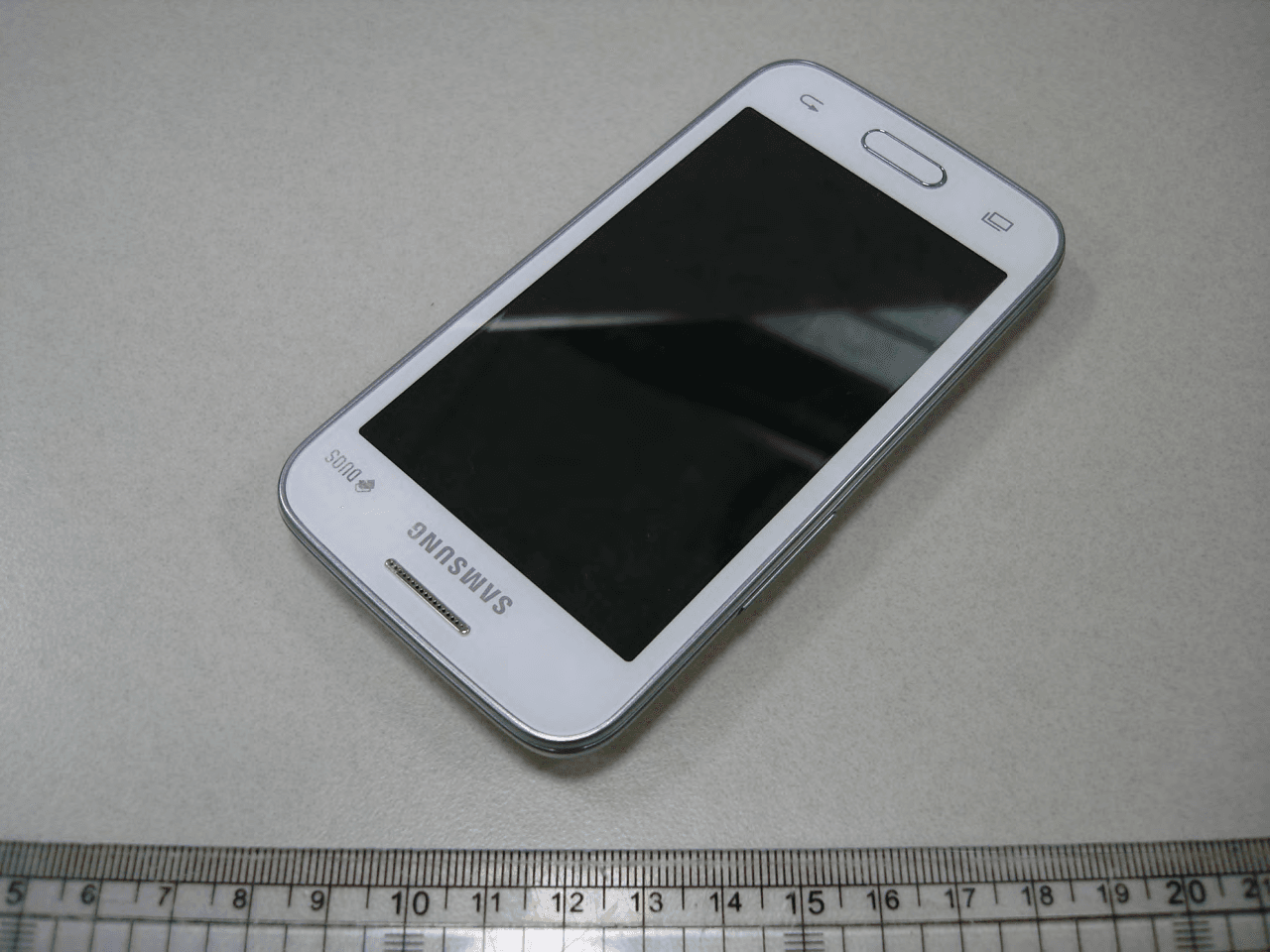

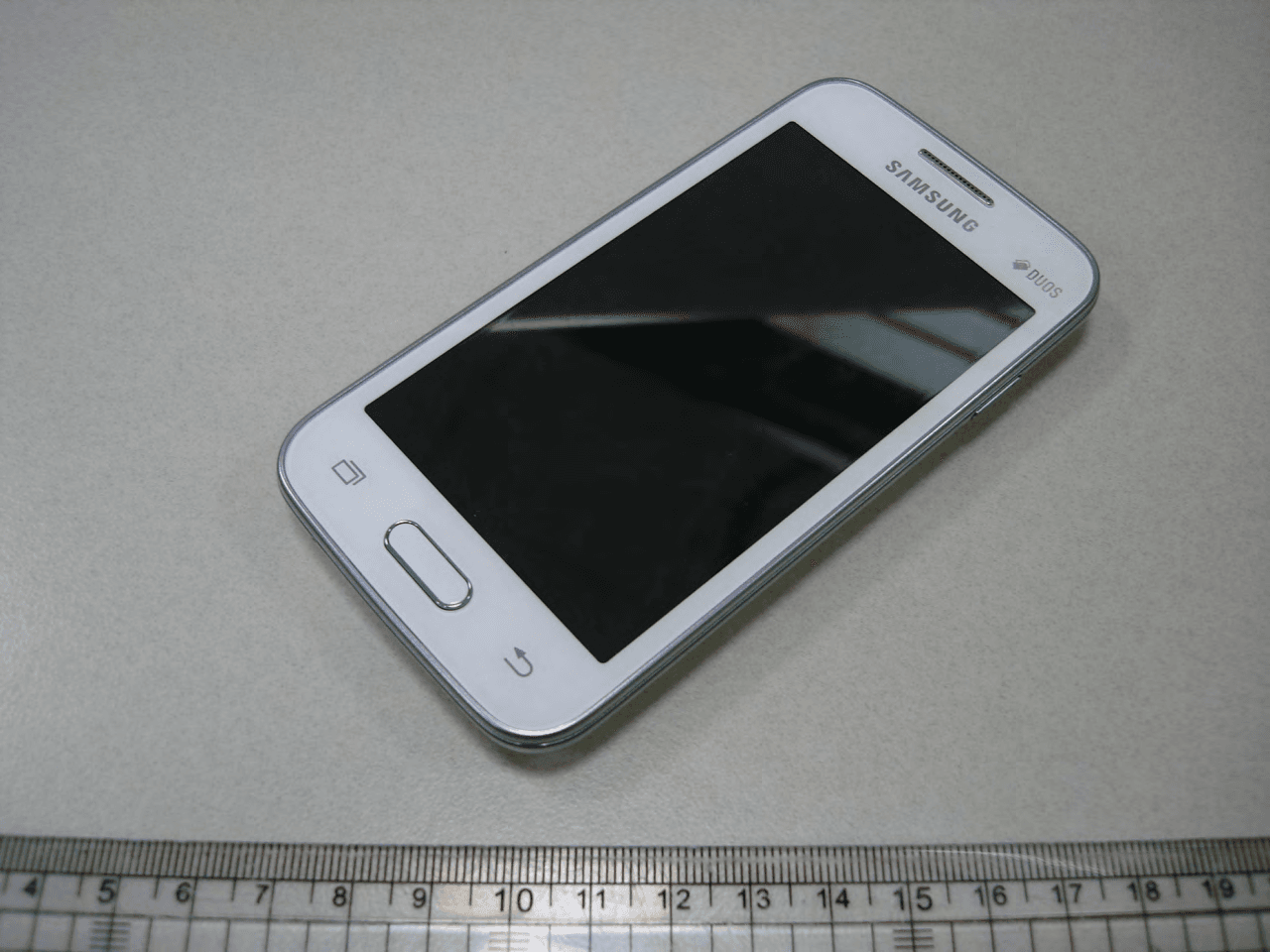

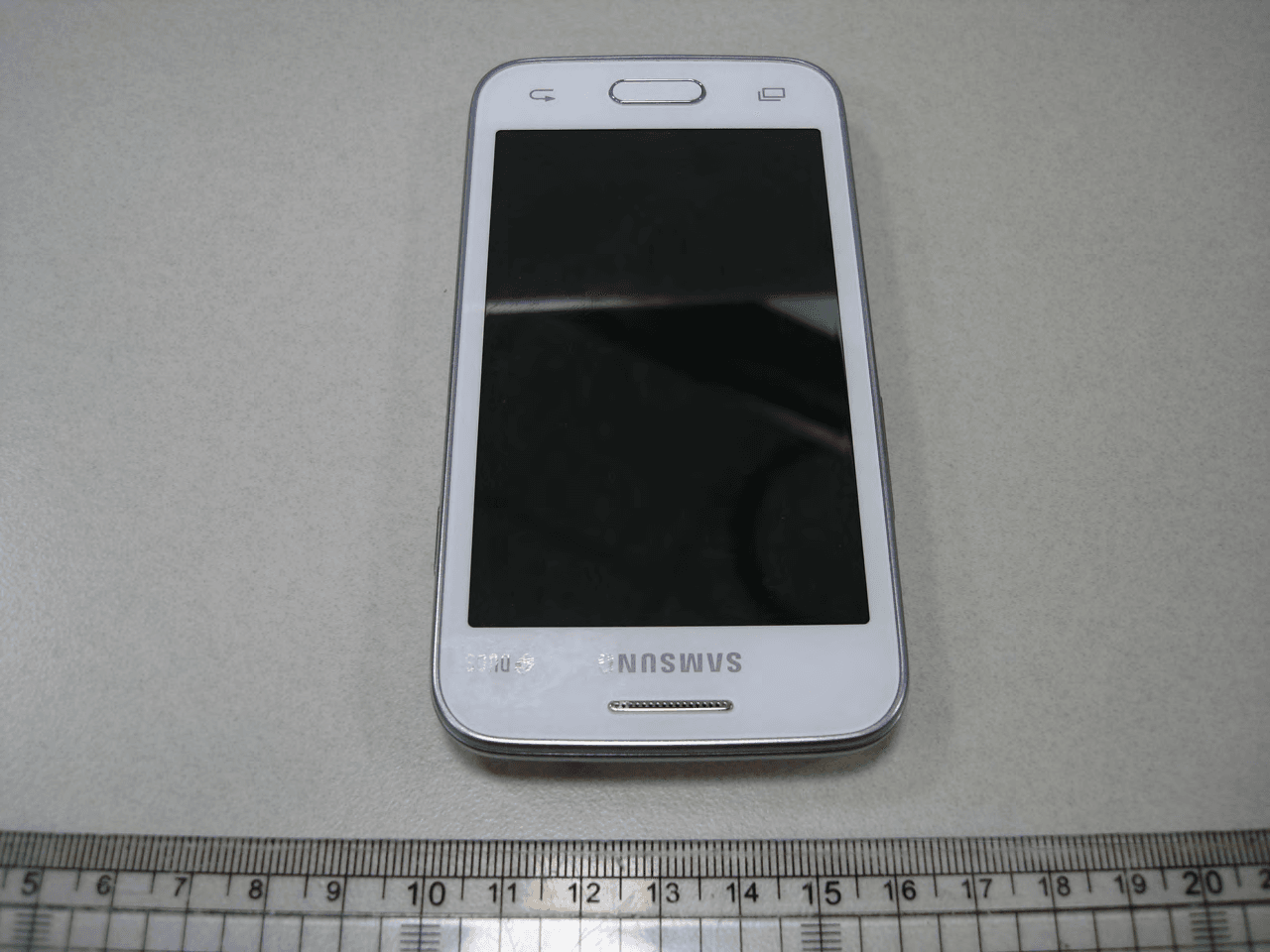

A3LSMG316MLMulti-band GSM/WCDMA Phone with WLAN and Bluetooth

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 7, 2015 FCC ID: A3LSMG316ML To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea December. 24, 2014 Federal Communication s Commissio n 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L SMG316ML Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 7, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMG316ML To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location Samsung Phone Model: SM-G316ML/DS FCC ID: A3LSMG316ML Label: Location: Top Back plate of device Bottom Label is placed inside of the battery compartment. Label

FCC ID:A3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 36 0Y1412092250.A3L 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/09/14 - 12/12/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1412092250.A3L FCC ID: A3LSMG316ML APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-G316ML/DS 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCEGSM/GPRS/EDGE Rx Only 850824.20 - 848.80 MHz0.410.661.03 PCEUMTS 850826.40 - 846.60 MHz0.300.490.49 PCEGSM/GPRS/EDGE Rx Only 1900 1850.20 - 1909.80 MHz0.180.660.57 PCEUMTS 19001852.4 - 1907.6 MHz0.411.031.03 DTS2.4 GHz WLAN2412 - 2462 MHz0.490.170.17 DSS/DTSBluetooth2402 - 2480 MHz 0.901.201.20 N/A SAR Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 36 0Y1412092250.A3L 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 8 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 9 4 DEFINITION OF REFERENCE POINTS ...................................................................................... 10 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 11 6 RF EXPOSURE LIMITS ................................................................................................................ 14 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 15 8 RF CONDUCTED POWERS ......................................................................................................... 18 9 SYSTEM VERIFICATION .............................................................................................................. 21 10 SAR DATA SUMMARY ................................................................................................................. 23 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 28 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 31 13 EQUIPMENT LIST ......................................................................................................................... 32 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 33 15 CONCLUSION ............................................................................................................................... 34 16 REFERENCES .............................................................................................................................. 35 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID:A3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 36 0Y1412092250.A3L 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE Rx Only 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE Rx Only 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz 2.4 GHz WLANData2412 - 2462 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Voice (dBm) 1 TX Slot 1 TX Slots 2 TX Slots 3 TX Slots 4 TX Slots Maximum33.0 33.0 31.5 29.5 27.5 Nominal32.5 32.5 31.0 29.0 27.0 Maximum29.7 29.7 27.5 26.0 24.5 Nominal29.2 29.2 27.0 25.5 24.0 Burst Average GMSK (dBm) GSM/GPRS 850 Mode / Band GSM/GPRS 1900 3GPP RMC Rel 99 3GPP HSDPA Rel 5 3GPP HSUPA Rel 6 Maximum23.0 22.0 21…

Text truncated - open the document above for the full version.

Test Report Number: FCL-008-L1-1 Page 1 of 65 Issue 1 Issue Date: 2014/07/XX 129 Samsung-ro, Yeongtong-gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82-31-8062-4278 Fax: 82-31-279-9985 FCC TEST REPORT Manufacturer: SAMSUNG Electronics Co., Ltd. Model: SM-G316ML/DS FCC ID: A3LSMG316ML Application Type: Certification EUT Type: Portable Handset All measurements reported here are in accordance with FCC Rules, 47CFR Part2, Part22, and Part24. Prepared By ........................ Date .............................. Jooha Bek Test Engineer Checked By ........................ Date .............................. YG Choi Deputy Technical Manager Authorized By ........................ Date .............................. WT Jang Technical Manager Copyright SAMSUNG Electronics QA Laboratory Korea 2014 Test Report Number: FCL-008-L1-1 Page 2 of 65 Issue 1 Issue Date: 2014/07/XX Table of Contents §2.1033 General Information .............................................................................................. 3 1. INTRODUCTION ........................................................................................................... 4 1.1. General ................................................................................................................. 4 2. PRODUCT INFORMATION ........................................................................................... 4 2.1. Equipment Description .......................................................................................... 4 2.2. Device Capabilities ............................................................................................... 4 3. DESCRIPTION OF TESTS ............................................................................................ 5 3.1. Evaluation Procedure ............................................................................................ 5 3.2. Radiated Measurements ....................................................................................... 5 3.3. EMI Suppression Device(s)/Modifications ............................................................. 5 4. TEST EQUIPMENT LIST ............................................................................................... 6 5. SAMPLE CALCULATIONS ........................................................................................... 7 6. TEST RESULTS ............................................................................................................ 8 6.1. Summary .............................................................................................................. 8 6.2. Occupied Bandwidth ............................................................................................. 9 6.3. Spurious and Harmonic Emissions at Antenna Terminal ..................................... 12 6.4. Band Edge Emissions at Antenna Terminal ........................................................ 38 6.5. Peak-Average Ratio ............................................................................................ 48 6.6. Frequency Stability / Temperature Variation ....................................................... 50 6.7. Radiated Power (ERP/EIRP)............................................................................... 54 6.8. Radiated Spurious Emissions Measurements ..................................................... 57 7. CONCLUSION ............................................................................................................. 65 Test Report Number: FCL-008-L1-1 Page 3 of 65 Issue 1 Issue Date: 2014/07/XX §2.1033 General Information APPLICANT: Samsung Electronics Co., Ltd. APPLICANT ADDRESS: 129 Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742, Korea TEST SITE: Samsung Electronics Co., Ltd. TEST SITE ADDRESS: 129 Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742, Korea FCC RULE PART(S): §2, §22(H), §24(E), TEST PROCEDURE(S): ANSI/TIA603-C-2004, KDB971168 v02r02 BASE MODEL: SM-G316ML/DS FCC ID: A3LSMG316ML FCC CLASSIFICATION: PCS Licensed Transmitter Held to Ear (PCE) MODE: GSM / WCDMA EMISSION DESIGNATOR: 248KGXW (GSM850) 248KGXW (GSM1900) 4M11F9W (WCDMA850) 4M12F9W (WCDMA1900) TX FREQUENCY RANGE 824.2 – 848.8MHz (GSM850) 1850.2 – 1909.8MHz (GSM1900) 826.4 – 846.6MHz (WCDMA850) 1852.4 – 1907.6MHz (WCDMA1900) RX FREQUENCY RANGE 869.2 – 893.8MHz (GSM850) 1930.2 – 1989.8MHz (GSM1900) 871.4 – 891.6MHz (WCDMA850) 1932.4 – 1987.6MHz (WCDMA1900) MAX POWER RATING: 0.515 W ERP GSM850 (27.12 dBm) 0.505 W EIRP GSM1900 (27.03 dBm) 0.068 W ERP WCDMA850 (18.31 dBm) 0.126 W ERP WCDMA1900 (20.99 dBm) TEST DEVICE SERIAL NO.: FCL-008-A DATE(S) OF TEST: December 15 – 22, 2014 Test Report Number: FCL-008-L1-1 Page 4 of 65 Issue 1 Issue Date: 2014/07/XX 1. INTRODUCTION 1.1. General These measurement tests were conducted at SAMSUNG ELECTRONICS CO., LTD. (SUWON). The site address is 129 Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742, Korea. 2. PRODUCT INFORMATION 2.1. Equipment Description The Equipment Under Test (EUT) is the Samsung Portable Handset FCC ID: A3LSMG316ML. The test data contained in this report pertains only to the emissions due to the EUT’s 2G/3G licensed transmitters. 2.2. Device Capabilities This device contains the following capabilities: 850/1900 GSM/GPRS/EDGE(Rx only), 850/1900 WCDMA/HSPA, 802.11b/g/n WLAN, Bluetooth (1x, EDR, LE). – End of this page – Test Report Number: FCL-008-L1-1 Page 5 of 65 Issue 1 Issue Date: 2014/07/XX 3. DESCRIPTION OF TESTS 3.1. Evaluation Procedure The measurement procedures described in the "Land Mobile FM or PM -Communications Equipment- Measurements and Performance Standards" (ANSI/TIA-603-C-2004) and "Measurement Guidance for Certification of Licensed Digital Transmitters" (KDB 971168 v02r02) were used in the measurement of the Samsung Portable Handset FCC ID: A3LSMG316ML. 3.2. Radiated Measurements The radiated and spurious measurements were made at the full anechoic chamber. The equipment under test was placed on the Turn Device at the s…

Text truncated - open the document above for the full version.

FCC IDA3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 8 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDA3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 8 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 1: Right Cheek SAR Test Setup Photo 2: Right Tilt FCC IDA3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 8 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 3: Left Cheek SAR Test Setup Photo 4: Left Tilt FCC IDA3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 8 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 5: Back Side at 10 mm SAR Test Setup Photo 6: Front Side at 10 mm FCC IDA3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 8 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 7: Left Edge at 10 mm SAR Test Setup Photo 8: Right Edge at 10 mm FCC IDA3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 6 of 8 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 9: Top Edge at 10 mm SAR Test Setup Photo 10: Bottom Edge at 10 mm FCC IDA3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 7 of 8 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 11: Horizontal and Vertical Reference Lines FCC IDA3LSMG316ML SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 8 of 8 12/09/14 - 12/12/14 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 850/1900 GSM/GPRS/EDGE (Rx Only) 850/1900 UMTS Tx/Rx Ant Top Left Bottom 2.4 GHz WIFI and BT Tx/Rx Ant 62.7 mm 121.2 mm Right Front of Device GPS Rx only Ant Figure 1-1 DUT Antenna Locations
