A3LSMG3508IGSM Phone + Bluetooth & WLAN 2.4GHz b/g/n, NFC

User manual SM-G3508I Draft 6.1 2013-08-23 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or perma…

Text truncated - open the document above for the full version.

November 27, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3L SMG3508I To Whom It May Concern: Pursuant t o the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 973-808-6362 FAX: 973-808-6361 E-mail: [email protected]

129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Date : October 22 nd , 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), RA Head of QA Lab (General Manager) Samsung Electronics America, Inc 19 Chapin Rd, Bldg D Pine Brook, NJ 07058

Label and Location Model: SM-G3508I FCC ID: A3L SMG3508I Label: Location: Top Back of device Bottom Label is placed inside of the battery compartment. . Label

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea November 27, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG3508I Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

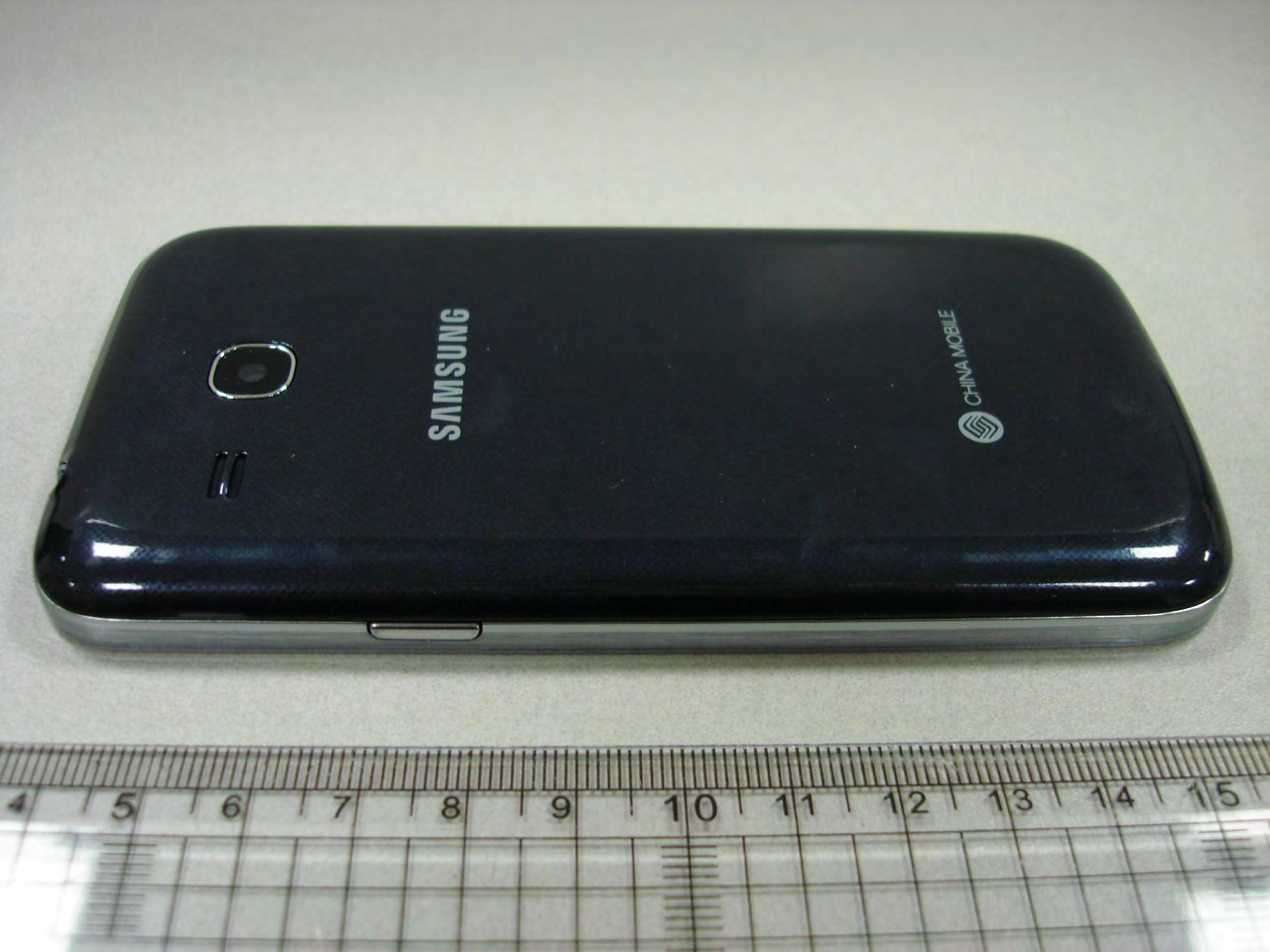

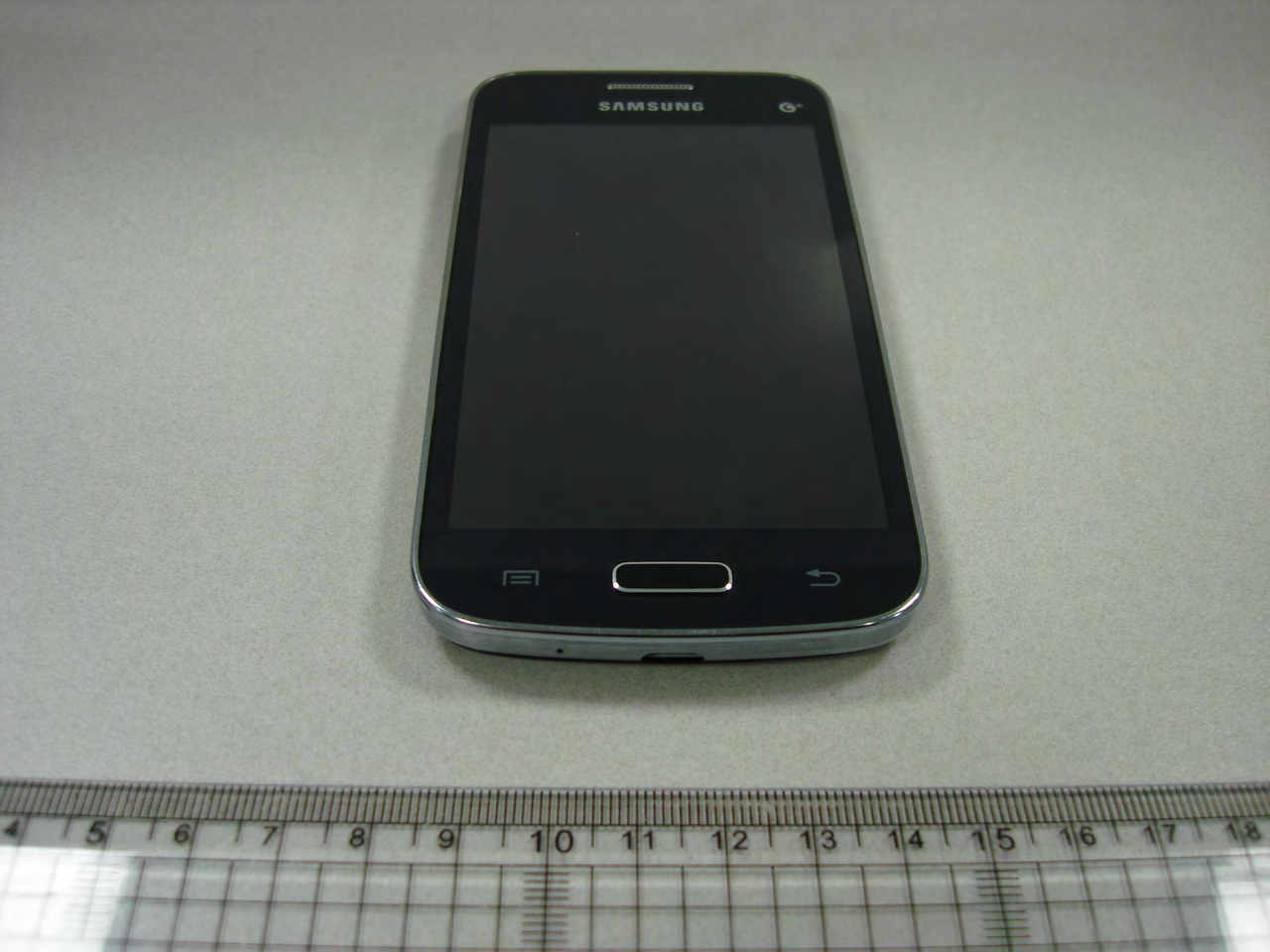

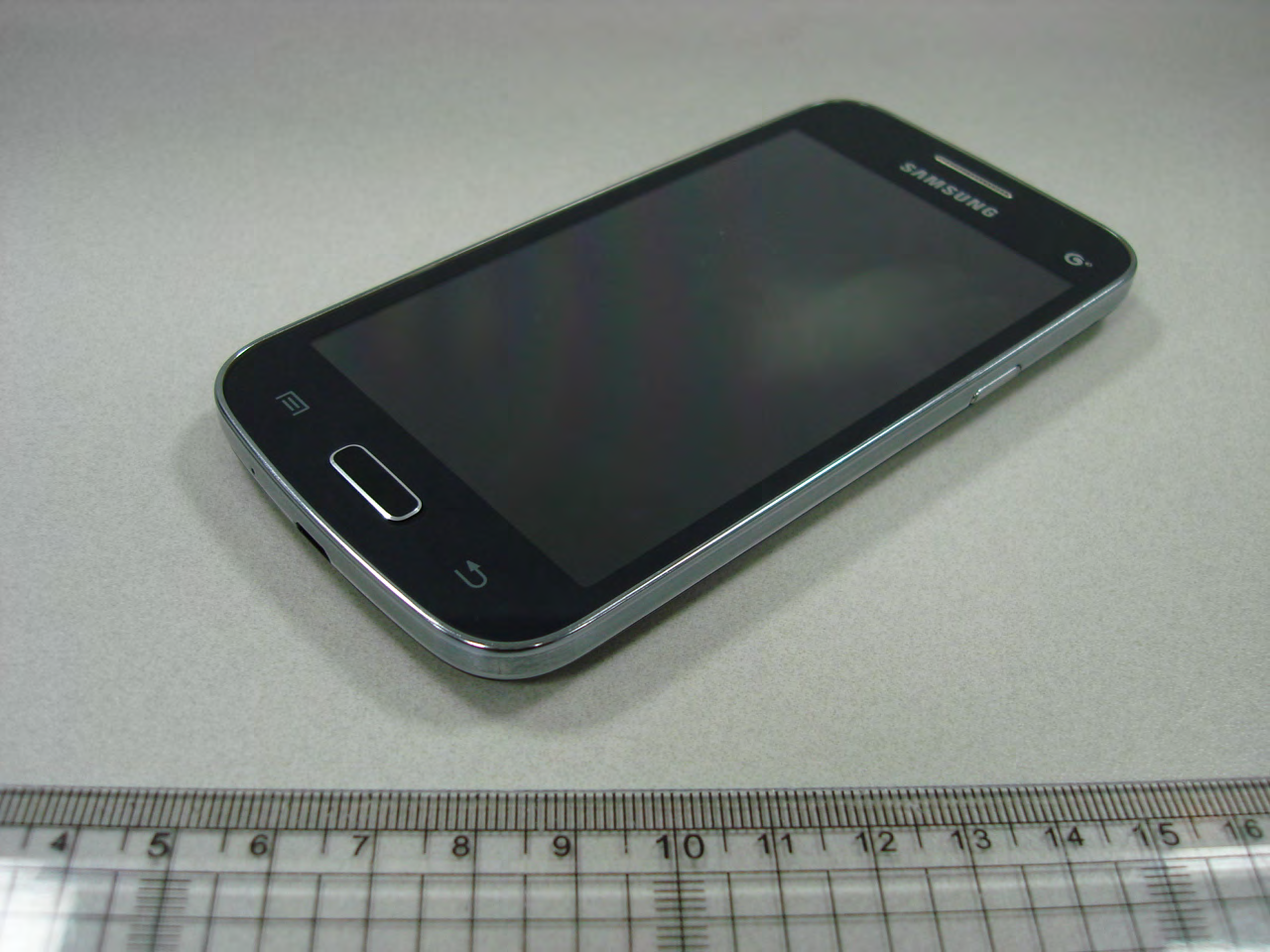

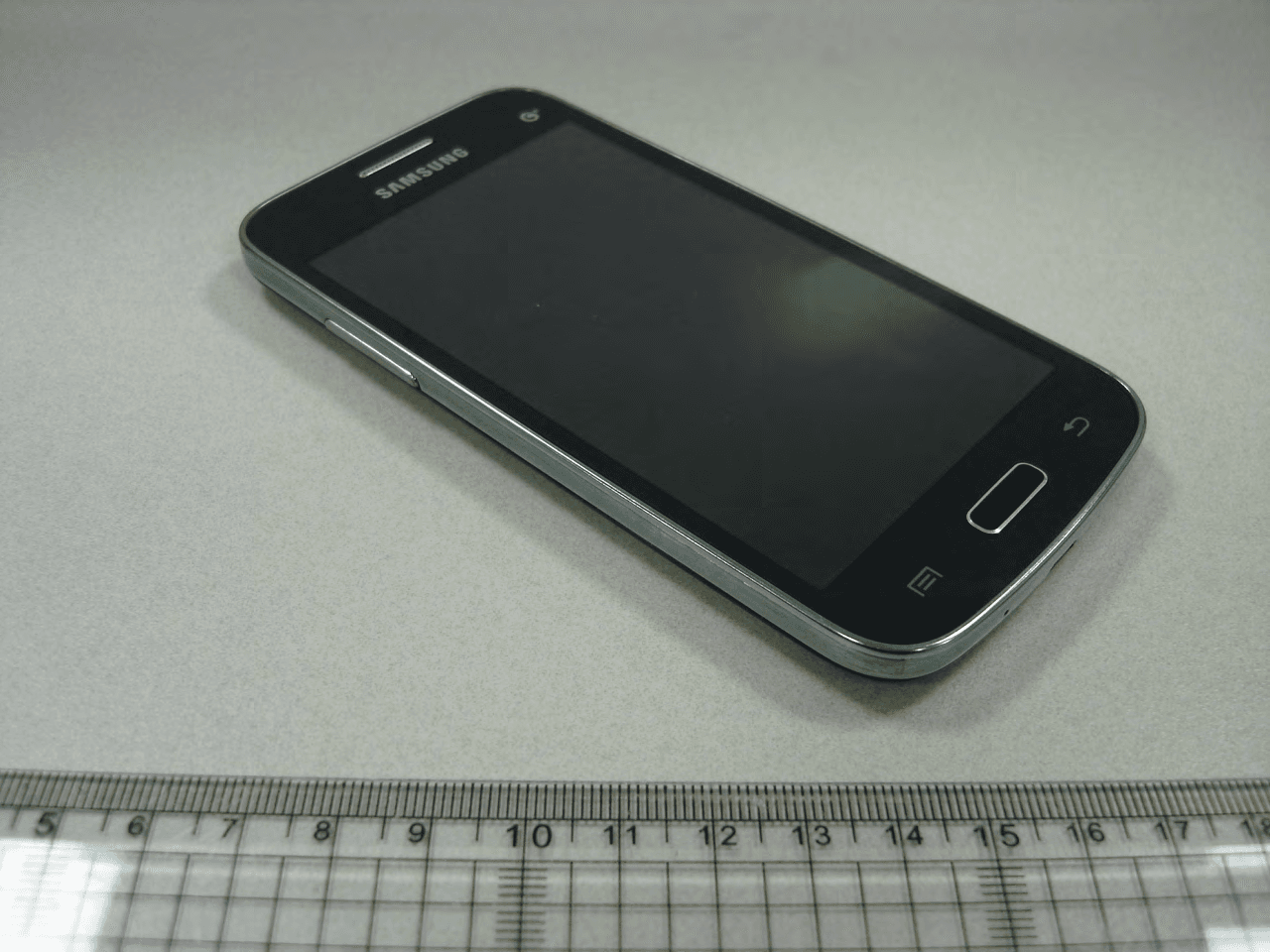

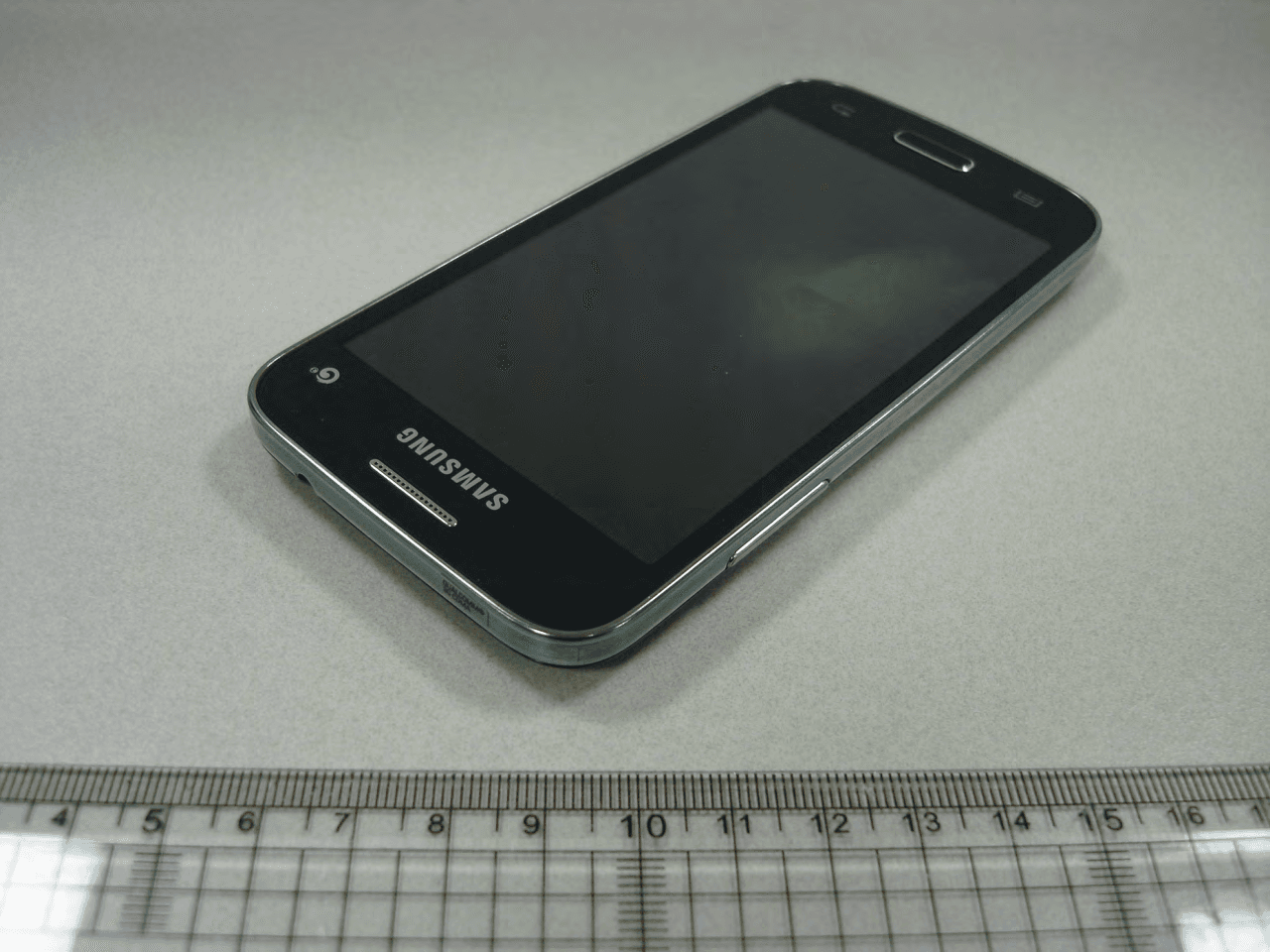

Project: 13I16428 DUT and SAR Set-up Photos Overall Dimensions Earpiece 135 mm 109 mm 130 mm 66 mm Project: 13I16428 Front View of the DUT Rear View of the DUT Project: 13I16428 Setup Photos Handset Vertical and Horizontal Reference Lines Horizontal Line Vertical Center Line Project: 13I16428 Head Exposure Conditions Left Touch Left Tilt (15°) Project: 13I16428 Right Touch Right Tilt (15°) Project: 13I16428 Body-worn Accessory & Hotspot mode Exposure Conditions Rear Front Project: 13I16428 Hotspot Exposure Conditions Edge 1 Edge 2 Project: 13I16428 Edge 3 Edge 4 Project: 13I16428 Antenna Locations & Separation Distances Edge 2 (Right) Edge 4 (Left) 3 mm 0.1 mm 26 mm Edge 1 (Top) Edge 3 (Bottom)  Front 47 mm 120 mm  Main Antenna (GSM1900 Tx/Rx)  BT/Wi-Fi Antenna 24 mm 4 mm  121 mm Front Edge 4 (Left) Rear Edge 2 (Right) 0 mm 6 mm 0.5 mm 7 mm

FCC 47 CFR Parts 1 & 2 Published RF Exposure KDB Procedures IEEE Std 1528-2013 SAR EVALUATION REPORT For GSM1900 Phone with Wi-Fi/BT Model: SM-G3508I FCC ID: A3LSMG3508I Report Number: 13I16428-5 Issue Date: 11/18/2013 Prepared for Samsung Electronics Co., Ltd. 416, Maetan 3-Dong, Yeongtong-Gu Suwon-City, GyeonGggi-Do 443-742, South Korea Prepared by UL Verification Services Inc. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 13I16428-5 Issue Date: 11/18/2013 FCC ID: A3LSMG3508I Page 2 of 27 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 11/18/2013 Initial Issue -- Report No.: 13I16428-5 Issue Date: 11/18/2013 FCC ID: A3LSMG3508I Page 3 of 27 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................. 5 2. Test Methodology ........................................................................................................................... 6 3. Facilities and Accreditation ........................................................................................................... 6 4. Calibration and Uncertainty ........................................................................................................... 7 4.1. Measuring Instrument Calibration .............................................................................................. 7 4.2. Measurement Uncertainty .......................................................................................................... 7 5. Measurement System Description and Setup ............................................................................... 8 6. SAR Measurement Procedure ........................................................................................................ 9 6.1. Normal SAR Measurement Procedure ....................................................................................... 9 6.2. Volume Scan Procedures ........................................................................................................ 11 7. Device Under Test ......................................................................................................................... 12 7.1. General Information ................................................................................................................. 12 7.2. Wireless Technologies ............................................................................................................. 12 7.3. Output Power Tune-up Tolerance ............................................................................................ 13 7.4. Simultaneous Transmission Condition ..................................................................................... 13 8. RF Exposure Conditions .............................................................................................................. 14 8.1. Head Exposure Conditions ...................................................................................................... 14 8.2. Body-worn Accessory Exposure Conditions ............................................................................. 14 8.3. Hotspot Exposure Conditions ................................................................................................... 14 9. RF Output Power Measurement ................................................................................................... 15 9.1. GSM ........................................................................................................................................ 15 9.2. Wi-Fi (2.4 GHz Band) ............................................................................................................... 16 9.3. Bluetooth ................................................................................................................................. 16 10. Tissue Dielectric Properties ..................................................................................................... 17 10.1. Composition of Ingredients for the Tissue Material Used in the SAR Tests .......................... 18 10.2. Tissue Dielectric Parameter Check Results .......................................................................... 19 11. System Performance Check ..................................................................................................... 20 11.1. System Performance Check Measurement Conditions ......................................................... 20 11.2. Reference SAR Values for System Performance Check....................................................... 20 11.3. System Performance Check Results .................................................................................... 21 12. SAR Test Results ...................................................................................................................... 22 Report No.: 13I16428-5 Issue Date: 11/18/2013 FCC ID: A3LSMG3508I Page 4 of 27 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 12.1. GSM1900 ............................................................................................................................. 22 12.2. Wi-Fi (2.4 GHz Band) ................................................................................................…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT FOR GSM1900 Phone + Bluetooth & WLAN 2.4GHz b/g/n + NFC MODEL NUMBER: SM-G3508I FCC ID: A3LSMG3508I REPORT NUMBER: 13I16428-2, Revision A ISSUE DATE: December 5, 2013 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 13I16428-2A DATE: December 5, 2013 FCC ID: A3LSMG3508I Page 2 of 86 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 11/15/13 Initial Issue P. Kim A 12/5/13 Updated statement in section 8.4 P. Kim REPORT NO: 13I16428-2A DATE: December 5, 2013 FCC ID: A3LSMG3508I Page 3 of 86 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION .................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 6 4.2. SAMPLE CALCULATION ............................................................................................... 6 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT ................................................................................................. 7 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 7 5.4. SOFTWARE AND FIRMWARE ...................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE ............................................................ 8 5.6. DESCRIPTION OF TEST SETUP .................................................................................. 9 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11 7. SUMMARY TABLE ............................................................................................................. 12 8. ANTENNA PORT TEST RESULTS .................................................................................... 13 8.1. 20 dB AND 99% BANDWIDTH ..................................................................................... 13 8.1.1. BASIC DATA RATE GFSK MODULATION ........................................................... 13 8.1.1. ENHANCED DATA RATE 8PSK MODULATION .................................................. 13 8.2. HOPPING FREQUENCY SEPARATION ..................................................................... 22 8.3. NUMBER OF HOPPING CHANNELS .......................................................................... 24 8.4. AVERAGE TIME OF OCCUPANCY ............................................................................. 27 8.5. OUTPUT POWER ........................................................................................................ 31 8.5.1. BASIC DATA RATE GFSK MODULATION ........................................................... 31 8.5.2. ENHANCED DATA RATE 8PSK MODULATION .................................................. 31 8.6. AVERAGE POWER ...................................................................................................... 36 8.6.1. BASIC DATA RATE GFSK MODULATION ........................................................... 36 8.6.2. ENHANCED DATA RATE 8PSK MODULATION .................................................. 36 8.7. CONDUCTED SPURIOUS EMISSIONS ...................................................................... 37 8.7.1. BASIC DATA RATE GFSK MODULATION ........................................................... 38 8.7.1. ENHANCED DATA RATE 8PSK MODULATION .................................................. 42 9. RADIATED TEST RESULTS .............................................................................................. 45 9.1. LIMITS AND PROCEDURE ......................................................................................... 45 REPORT NO: 13I16428-2A DATE: December 5, 2013 FCC ID: A3LSMG3508I Page 4 of 86 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 9.2. TRANSMITTER ABOVE 1 GHz ................................................................................... 46 9.2.1. BASIC DATA RATE GFSK MODULATION ........................................................... 46 9.2.2. ENHANCED DATA RATE 8PSK MODULATION .................................................. 60 9.3. WORST-CASE BELOW 1 GHz .................................................................................... 74 10. AC POWER LINE CONDUCTED EMISSIONS ............................................................... 77 11. SETUP PHOTOS ................…

Text truncated - open the document above for the full version.

REPORT NO: 13I16428-2A DATE: December 5, 2013 FCC ID: A3LSMG3508I Page 81 of 86 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 13I16428-2A DATE: December 5, 2013 FCC ID: A3LSMG3508I Page 82 of 86 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (BELOW 1 GHz) RADIATED FRONT PHOTO (BELOW 1 GHz) RADIATED BACK PHOTO (BELOW 1 GHz) REPORT NO: 13I16428-2A DATE: December 5, 2013 FCC ID: A3LSMG3508I Page 83 of 86 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) RADIATED FRONT PHOTO (ABOVE 1 GHz) RADIATED BACK PHOTO (ABOVE 1 GHz) REPORT NO: 13I16428-2A DATE: December 5, 2013 FCC ID: A3LSMG3508I Page 84 of 86 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS FRONT PHOTO Y-AXIS FRONT PHOTO REPORT NO: 13I16428-2A DATE: December 5, 2013 FCC ID: A3LSMG3508I Page 85 of 86 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Z-AXIS FRONT PHOTO REPORT NO: 13I16428-2A DATE: December 5, 2013 FCC ID: A3LSMG3508I Page 86 of 86 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO
