A3LSMG3586V

Samsung Electronics Co Ltd

GSM/WCDMA/LTE Phone + Bluetooth, WLAN 2.4GHz b/g/n & NFC

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Apr 21, 2014
Application Purpose: Original Equipment
Date of Application: Apr 20, 2014
Equipment Note: GSM/WCDMA/LTE Phone + Bluetooth, WLAN 2.4GHz b/g/n & NFC
Frequency Range: 2496.00000000 - 2690.00000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

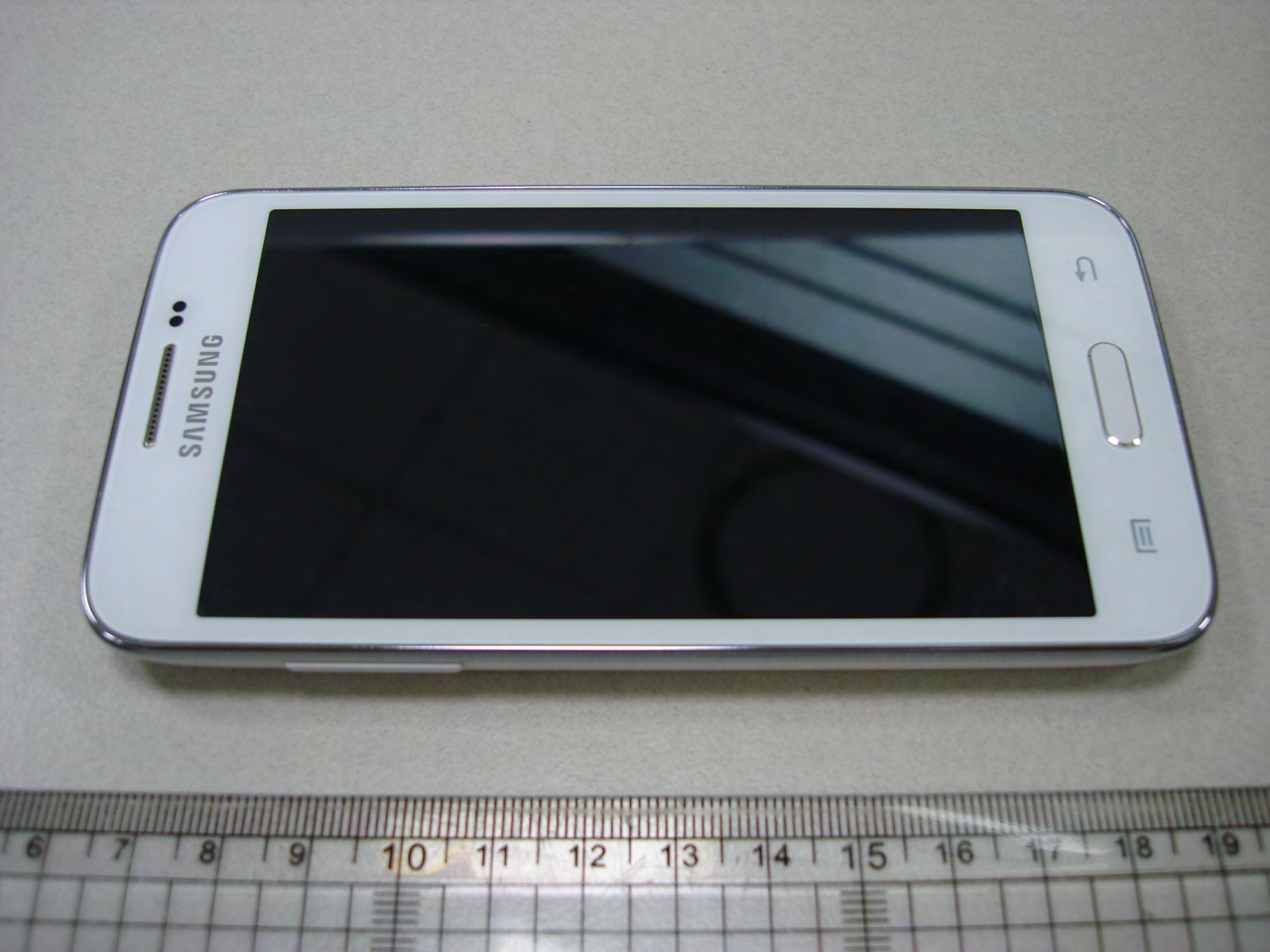

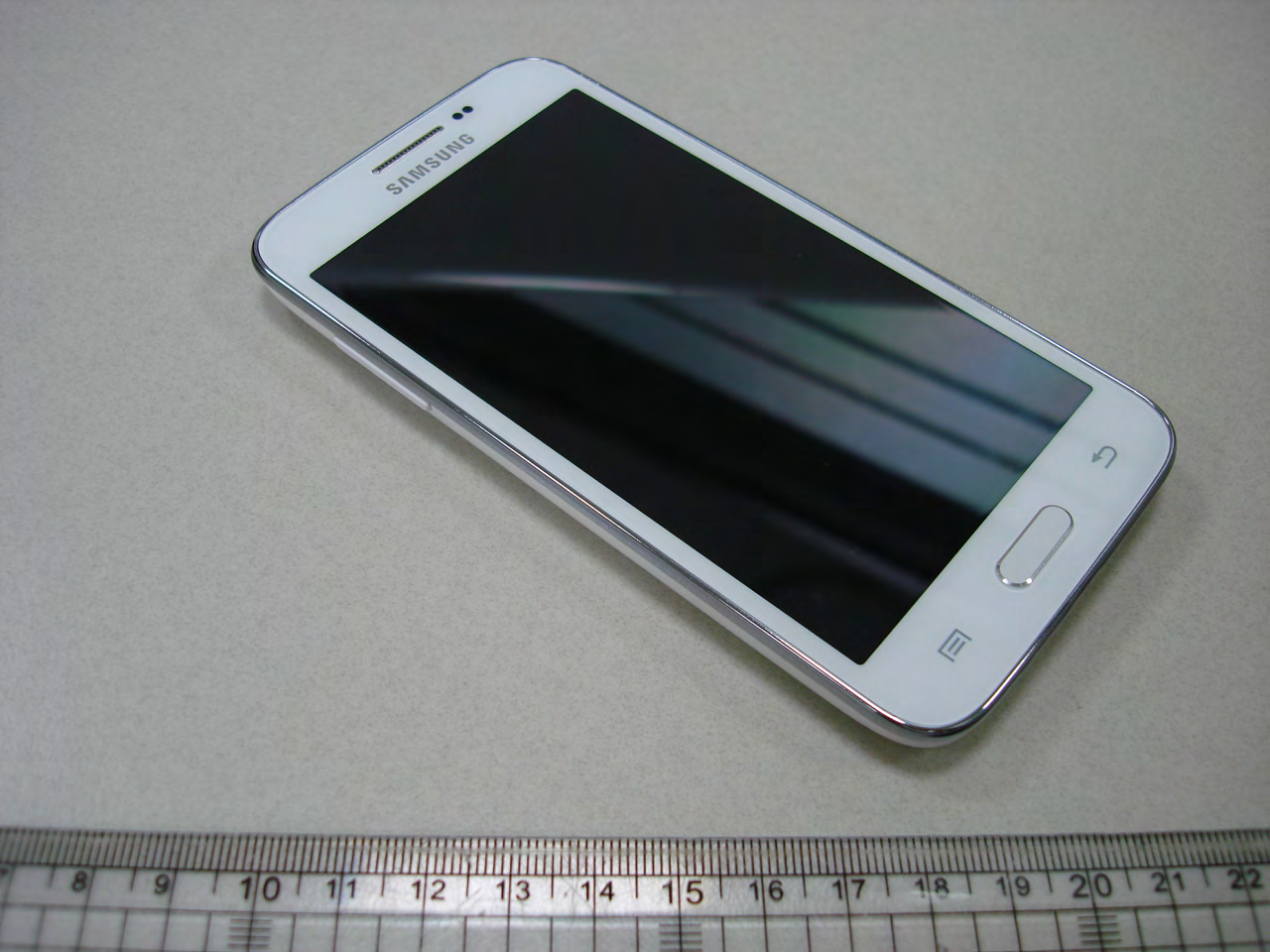

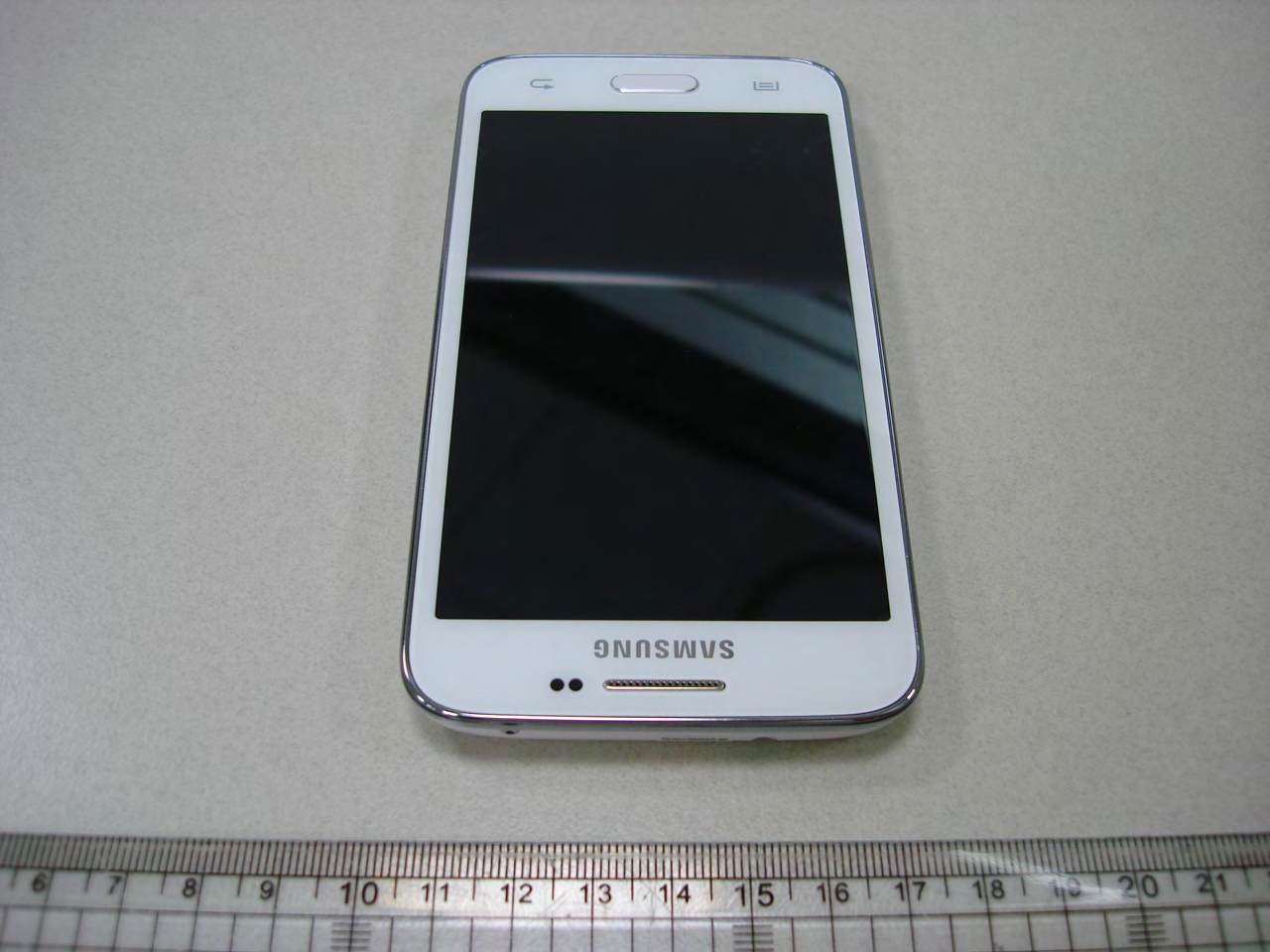

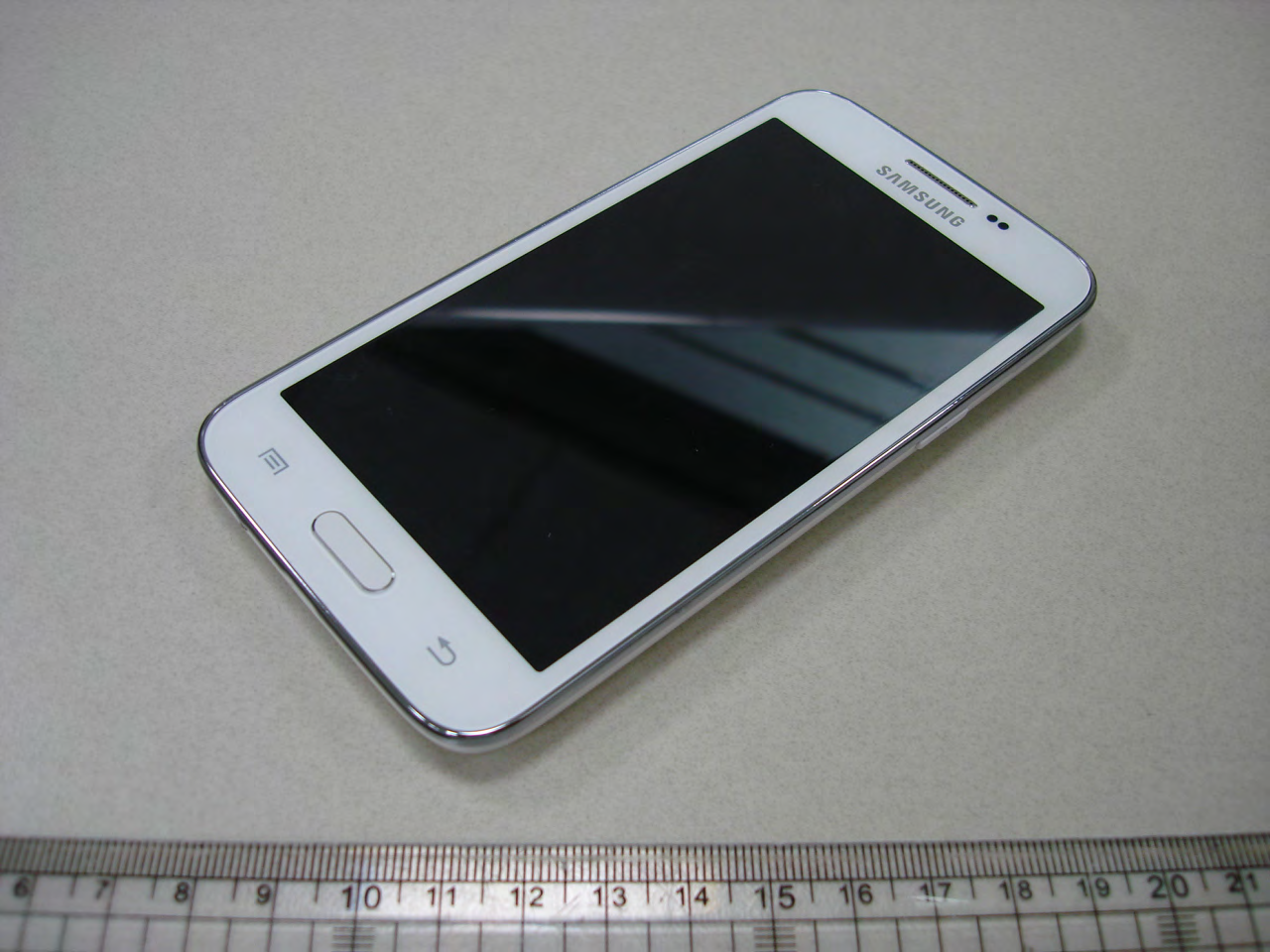

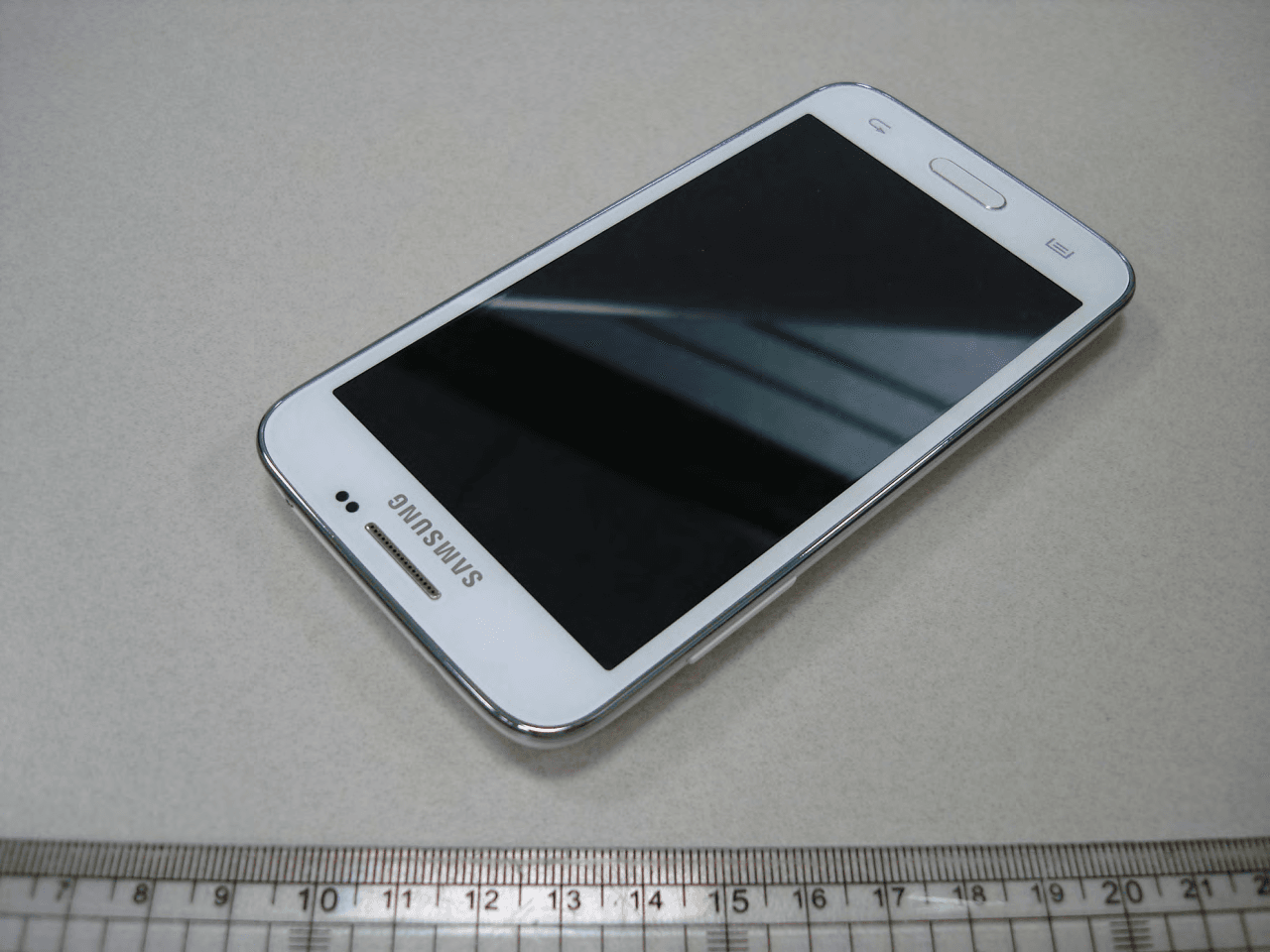

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
9	27	2.50 GHz - 2.69 GHz	118.00 mW	8M93G7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power is erp for operations below 1GHz, eirp for operations above 1GHz. This device supports LTE bandwidths of 5MHz, 10MHz 15MHz and 20MHz in Band 41 (Part 27). SAR compliance for body-worn accessory operation is based on a separation distance of 1.0 cm between the unit and the body of the user. Belt clips, holsters and other body-worn accessories may not contain metallic components. End-users must be informed of the body worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values for head, body-worn, hot-spot and simultaneous transmission exposure conditions are 1.19 W/Kg, 0.65 W/Kg, 0.65 W/Kg and 1.28 W/Kg respectively. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.
