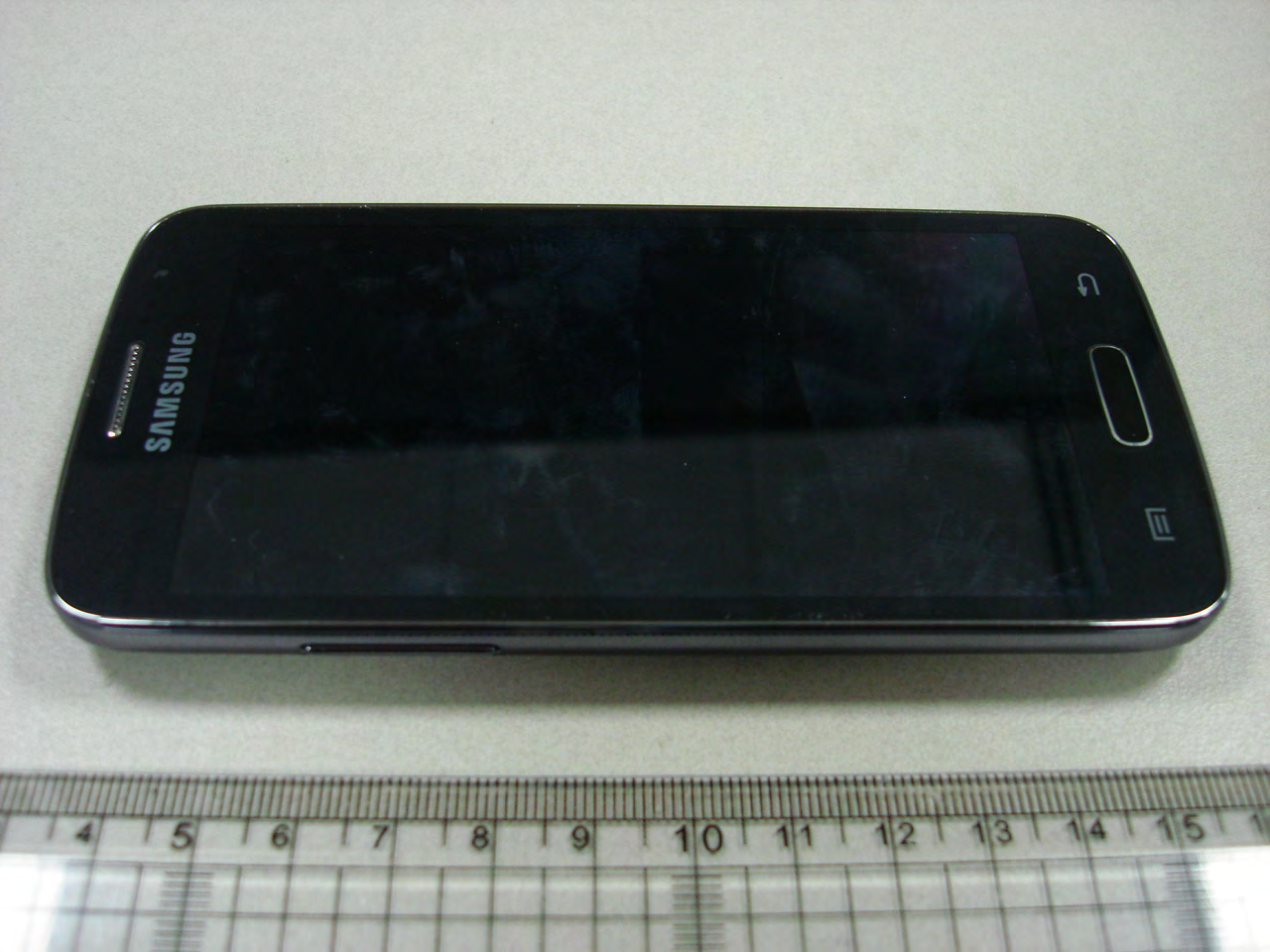

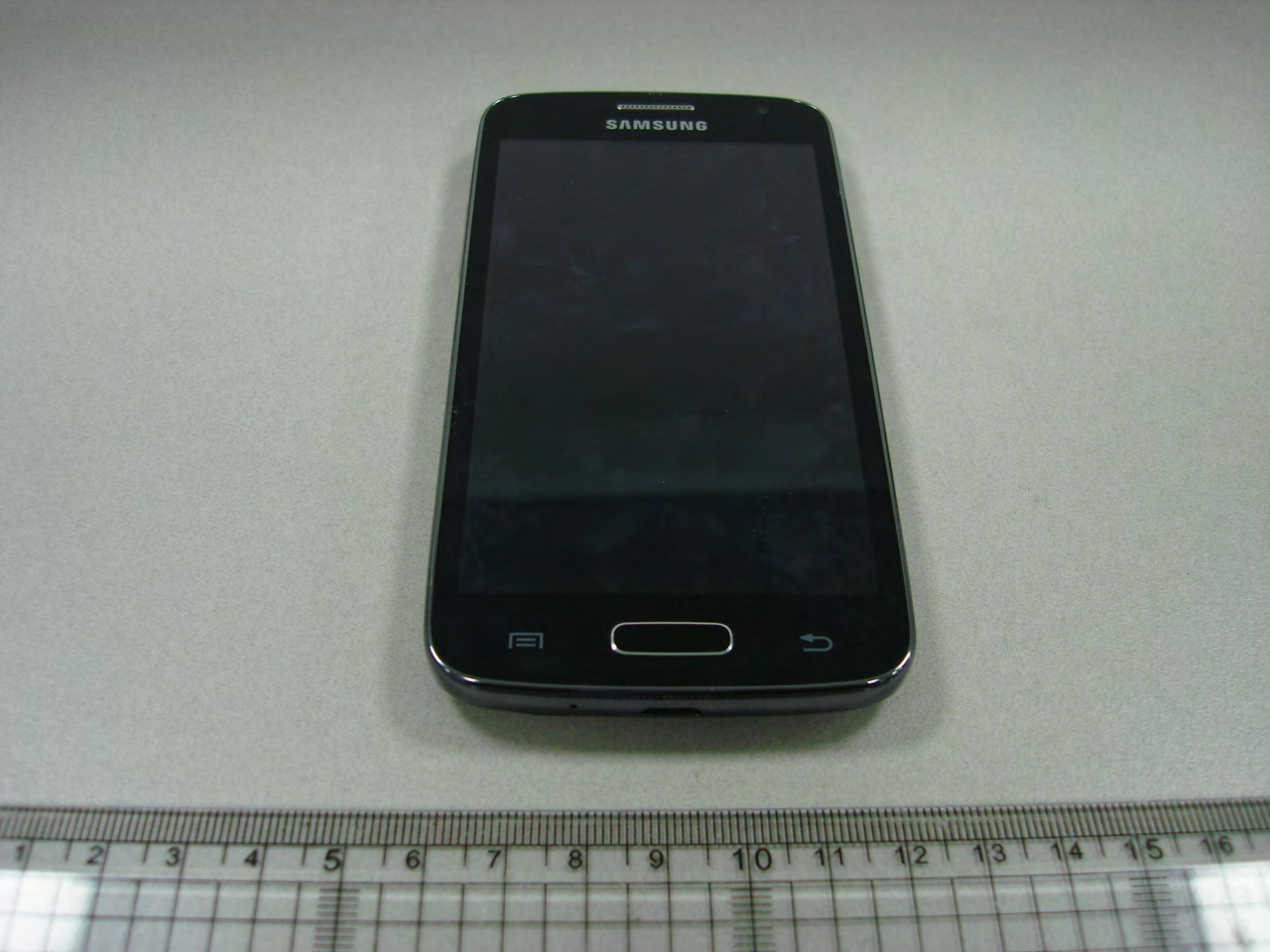

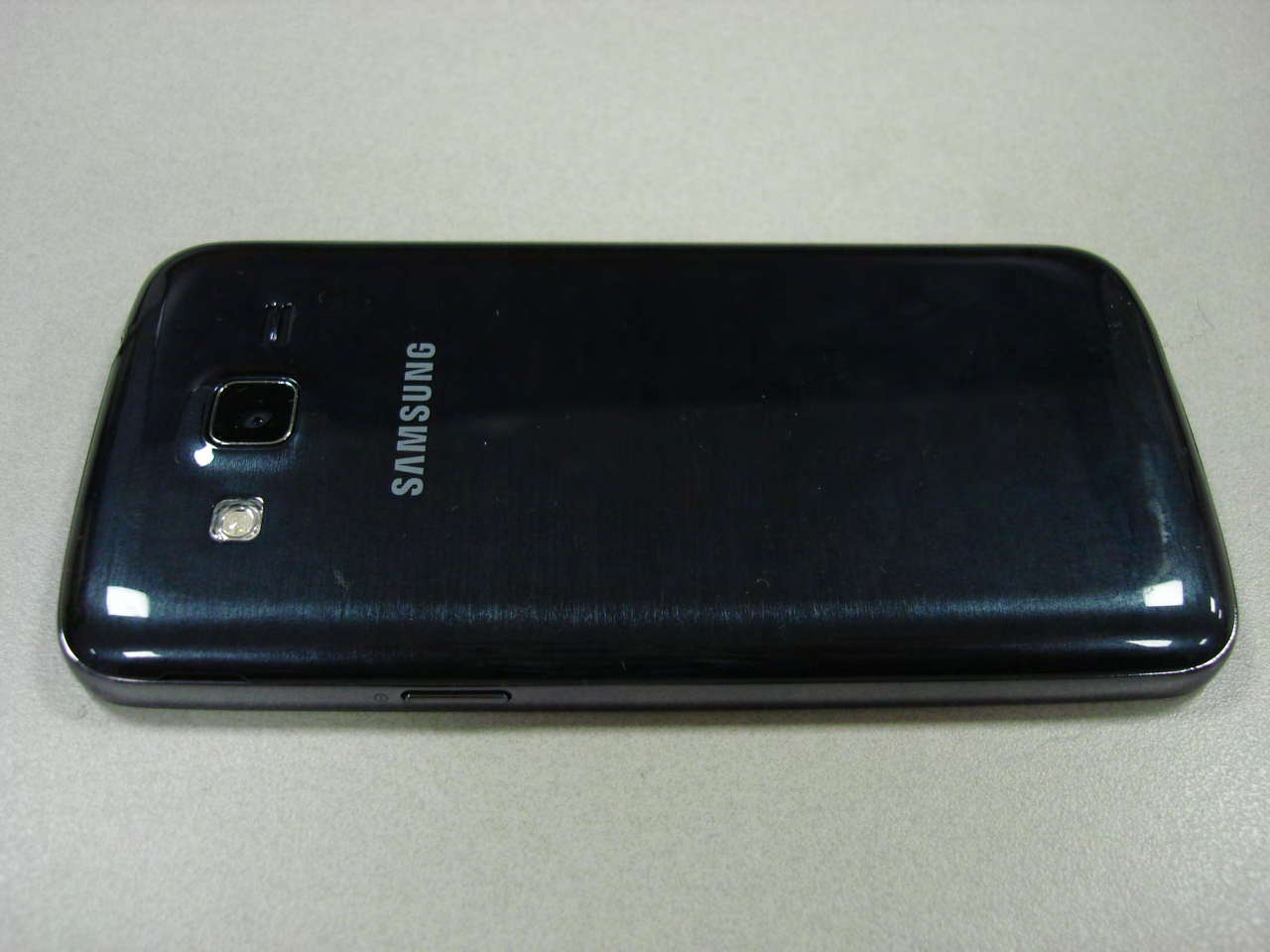

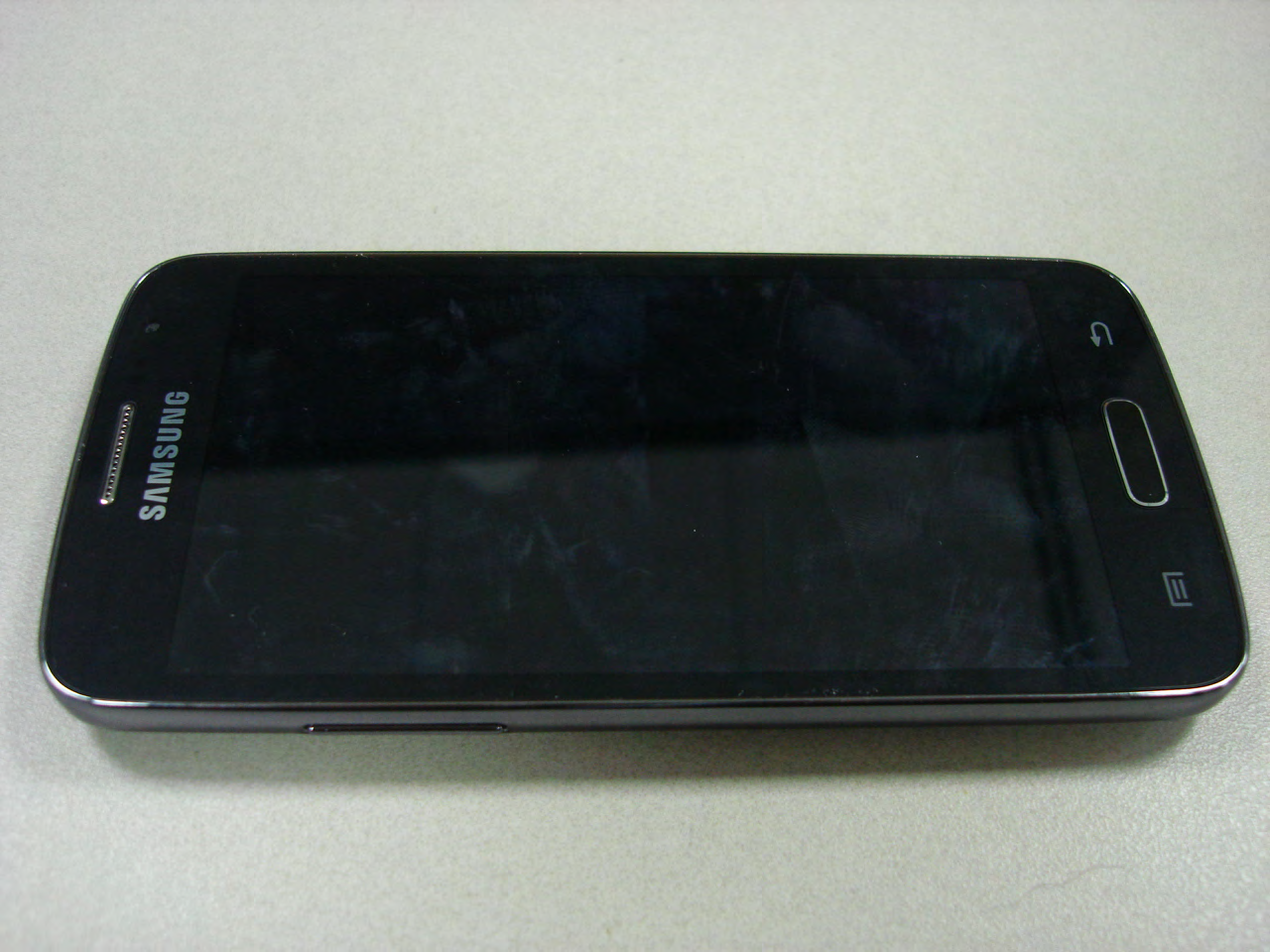

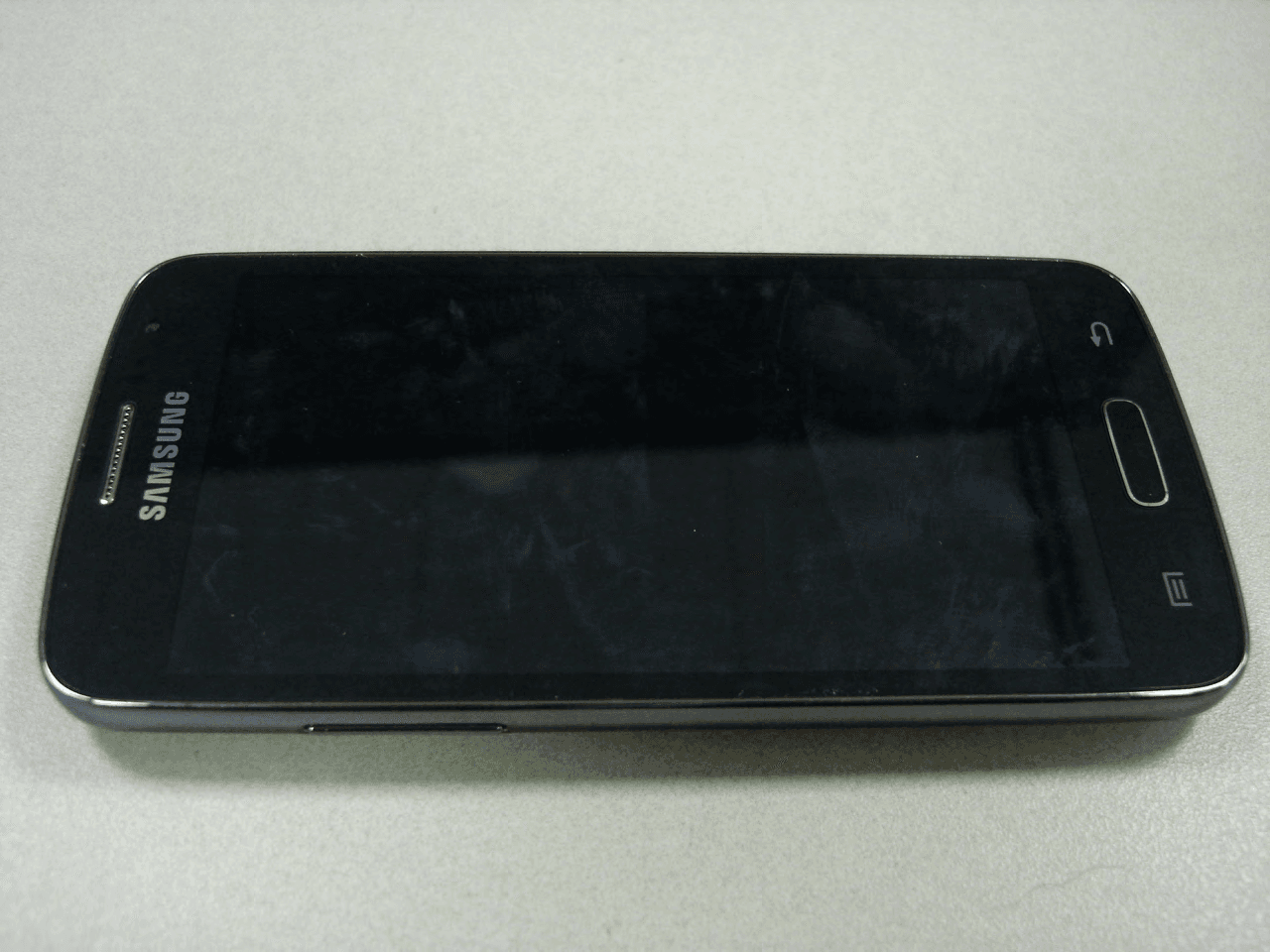

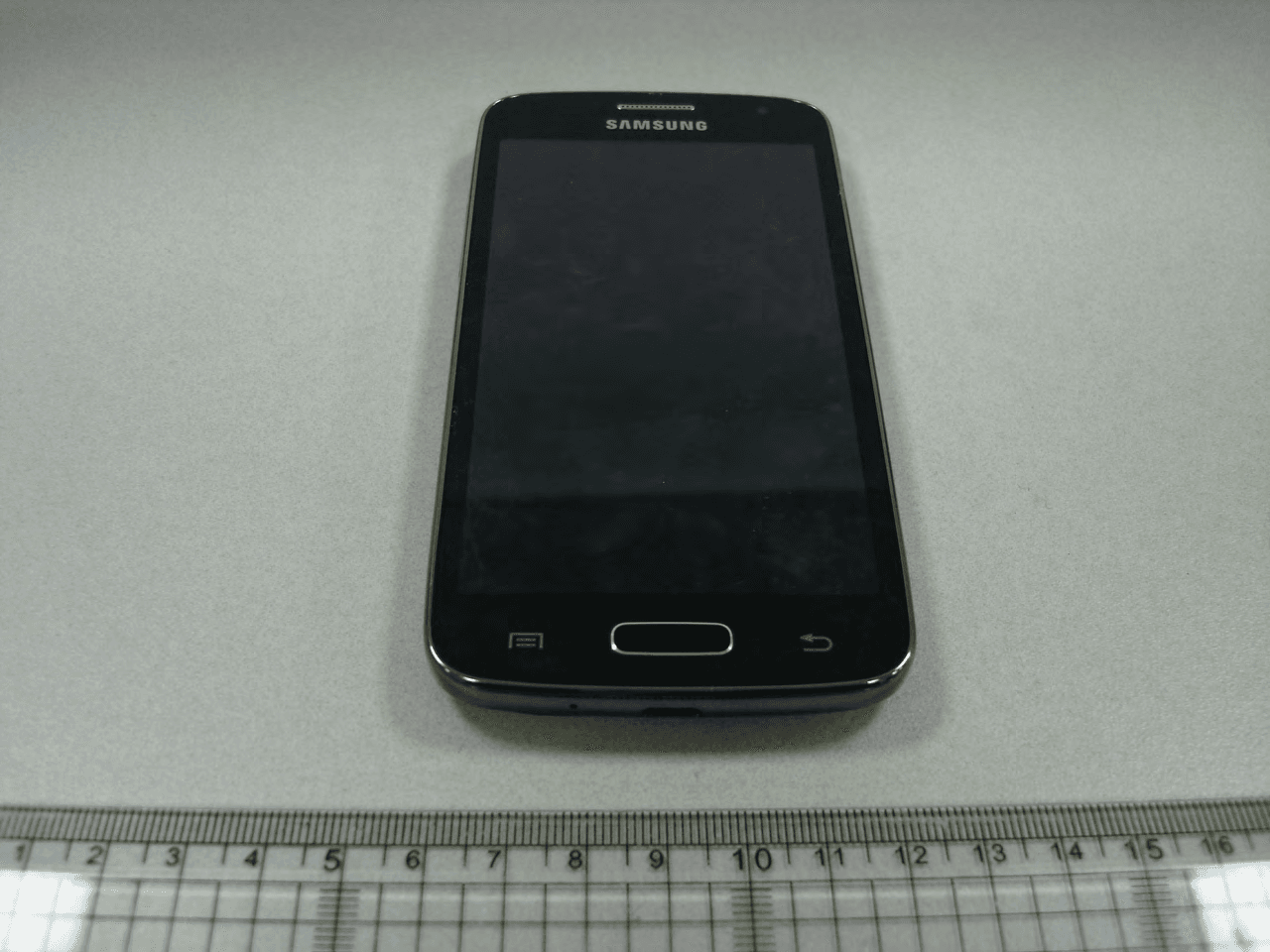

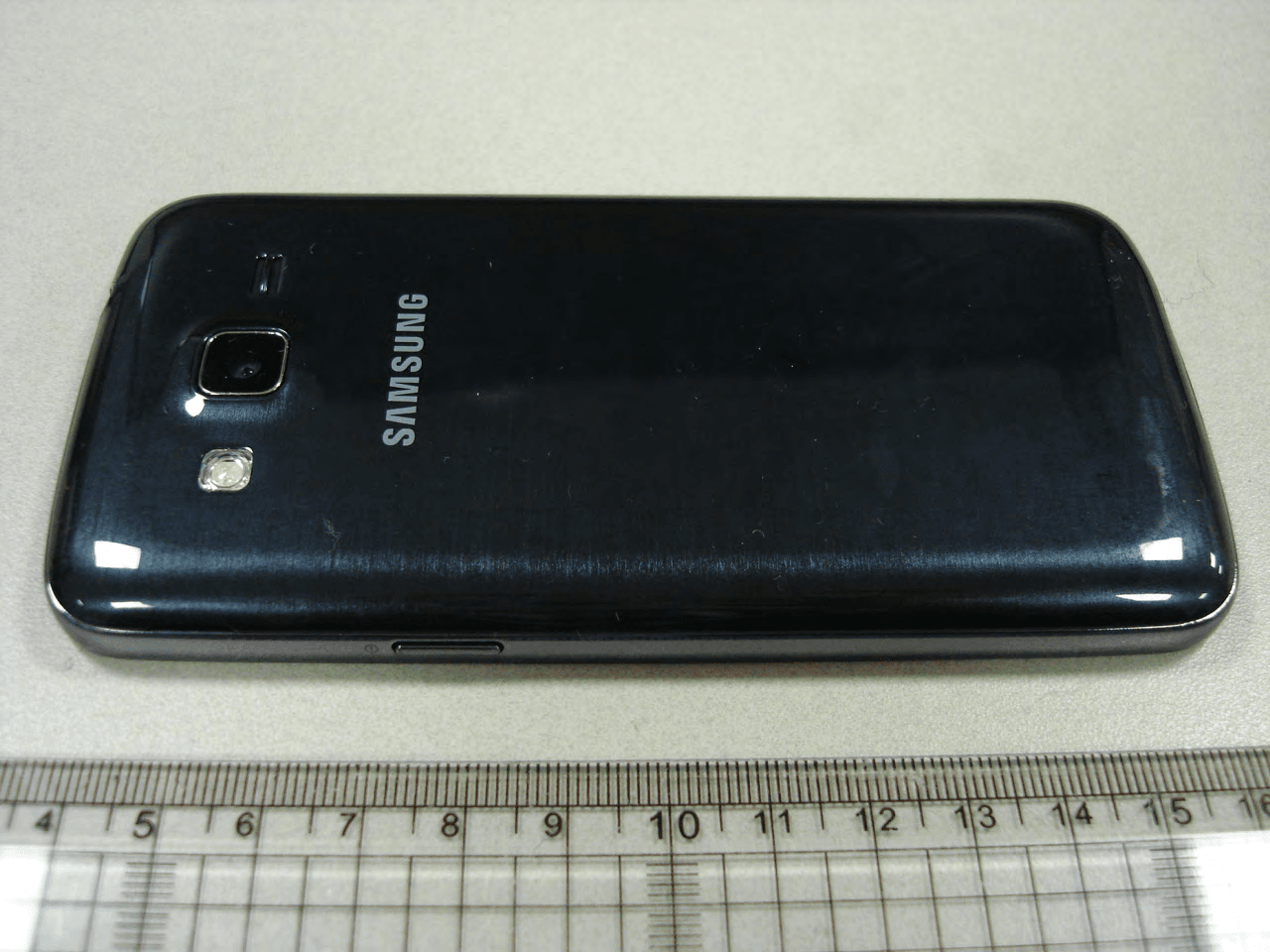

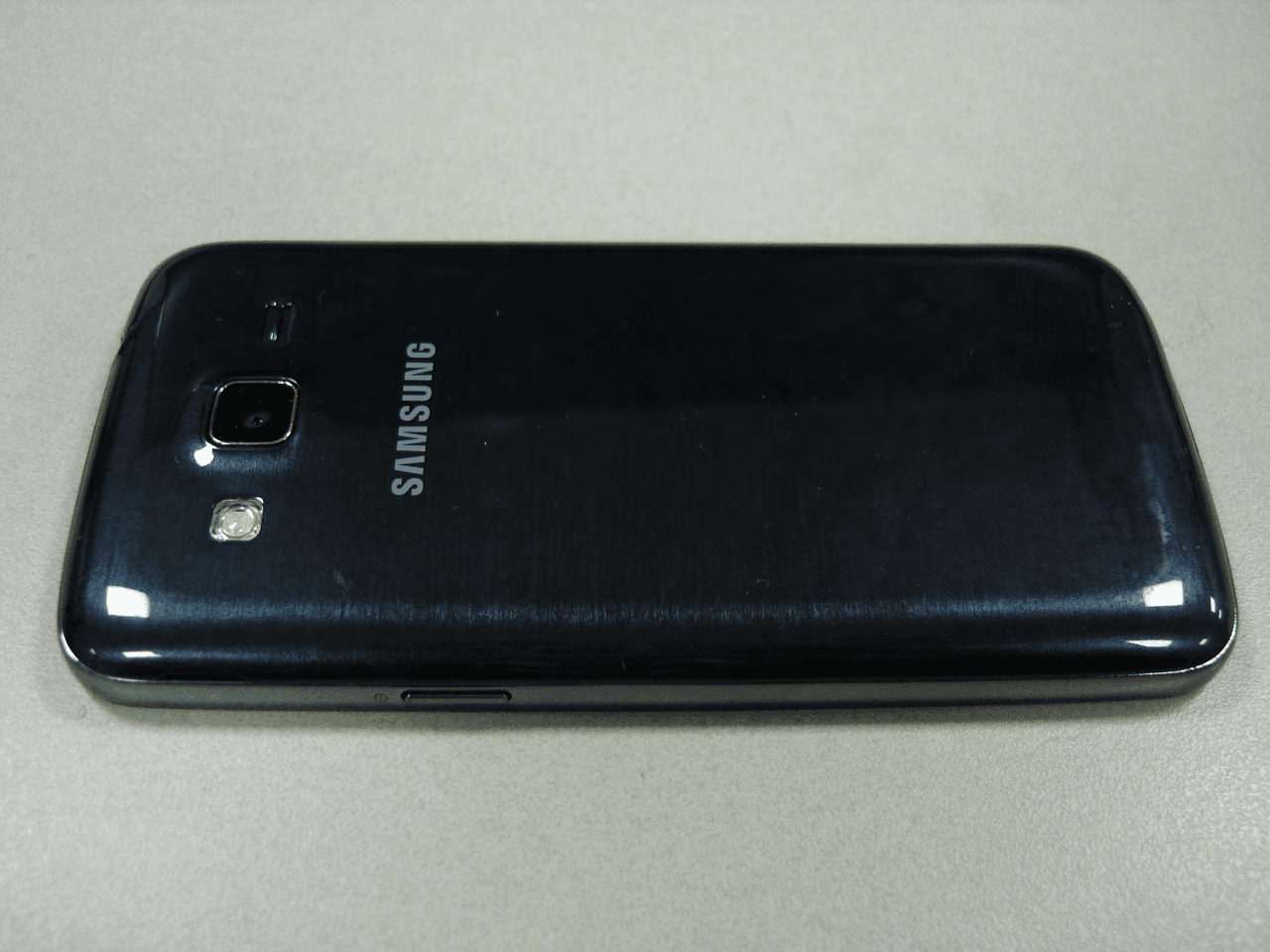

A3LSMG3812BMobile phone

User manual SM-G3812B Draft 6.1 2012-07-20 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or perma…

Text truncated - open the document above for the full version.

January 6, 2014 Federal C omm unications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Attestation Letter of WLAN channels FCC ID: A3LSMG3812B The WLAN cha nnels in USA Mode Channel Frequency (MHz) Ad-Hoc support or AP mode 802.11b/g/n 1-11 2412-2462 Yes (AP support as wireless hot spot when configured with WWAN module) 12, 13 2467-2472 Channels not supported on US. a. The device only uses Ch. 1-11 and FCC TX power table by default. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 973-808-6362 FAX: 973-808-6361 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea January 6, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG3812B Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

 January6  4              !" # $  $ %   &" SMG3812B  ' () &%  "  *    )+ ,  $  - -. $)  / 0 11-2-.324#  5)   4)) )$  4 5 )   $    $ +    $ %-     ! ! !!! "! # $!%& #'$  6 ,        %  # +  +   + +% $     +  $)# +  -')+     $ ,    5)) $    + % 4 5,  +   $, 5 ) -  &    ,      2+    * 7 68 $ )  /+ %2    +%4))  55     1-9 ) +     1-24)   5)    , $      $  )   5 $ 4% ) : ,-(#  5)   5 ) 8  $ %#  )$  4 5)    ( ')  *+!# ,!!# $ # &-!$  &    5)    + 2 &$     +    5$ ,4+  5  $       ) $   4,$ + ,4 )5  $ # +   ) :  -  ;5        5<% 50*32=>  5    5?  -@' '?@".8998 6A".8998 ?8 "B  5-

129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Date : October 22 nd , 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), RA Head of QA Lab (General Manager) Samsung Electronics America, Inc 19 Chapin Rd, Bldg D Pine Brook, NJ 07058

Label and Location Samsung Phone Model: SM-G3812B FCC ID: A3LSMG3812B Label: Location: Top Back of SM-G3812B Bo ttom Label is placed inside of the battery compartment.

FCC 47 CFR Parts 1 & 2 Published RF Exposure KDB Procedures IEEE Std 1528-2013 SAR EVALUATION REPORT For GSM/WCDMA Phone + Bluetooth & WLAN 2.4GHz b/g/n Model: SM-G3812B FCC ID: A3LSMG3812B Report Number: 13I16708-5B Issue Date: 1/14/2014 Prepared for Samsung Electronics Co., Ltd. 416, Maetan 3-Dong, Yeongtong-Gu Suwon-City, GyeonGggi-Do 443-742, South Korea Prepared by UL Verification Services Inc. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 13I16708-5B Issue Date: 1/14/2014 FCC ID: A3LSMG3812B Page 2 of 33 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 1/9/2014 Initial Issue -- A 1/13/2014 1. Section 4.1.: Corrected Measuring Instrument Calibration typo. 2. Section 7.3.: Updated tune-up limit for GSM850 4 time slot. 3. Section 9.2.: Updated W-CDMA Band V HSDPA output power. 4. Section 9.1.: Corrected GSM1900 note. Devin Chang B 1/14/2014 1. Section 7.3.: Updated W-CDMA Band V output power tune-up tolerance. Devin Chang Report No.: 13I16708-5B Issue Date: 1/14/2014 FCC ID: A3LSMG3812B Page 3 of 33 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................. 5 2. Test Methodology ........................................................................................................................... 6 3. Facilities and Accreditation ........................................................................................................... 6 4. Calibration and Uncertainty ........................................................................................................... 7 4.1. Measuring Instrument Calibration .............................................................................................. 7 4.2. Measurement Uncertainty .......................................................................................................... 7 5. Measurement System Description and Setup ............................................................................... 8 6. SAR Measurement Procedure ........................................................................................................ 9 6.1. Normal SAR Measurement Procedure ....................................................................................... 9 6.2. Volume Scan Procedures ........................................................................................................ 11 7. Device Under Test ......................................................................................................................... 12 7.1. General Information ................................................................................................................. 12 7.2. Wireless Technologies ............................................................................................................. 12 7.3. Output Power Tune-up Tolerance ............................................................................................ 13 7.4. Simultaneous Transmission Condition ..................................................................................... 13 8. RF Exposure Conditions .............................................................................................................. 14 8.1. Head Exposure Conditions ...................................................................................................... 14 8.2. Body-worn Accessory & Hotspot Exposure Conditions ............................................................ 14 9. RF Output Power Measurement ................................................................................................... 15 9.1. GSM ........................................................................................................................................ 15 9.2. W-CDMA ................................................................................................................................. 16 9.3. Wi-Fi (2.4 GHz Band) ............................................................................................................... 20 9.4. Bluetooth ................................................................................................................................. 20 10. Tissue Dielectric Properties ..................................................................................................... 21 10.1. Composition of Ingredients for the Tissue Material Used in the SAR Tests .......................... 22 10.2. Tissue Dielectric Parameter Check Results .......................................................................... 23 11. System Performance Check ..................................................................................................... 24 11.1. System Performance Check Measurement Conditions ......................................................... 24 11.2. Reference SAR Values for System Performance Check....................................................... 24 11.3. System Performance Check Results .................................................................................... 25 12. SAR Test Results ...................................................................................................................... 26 Report No.: 13I16708-5B Issue Date: 1/14/2014 FCC ID: A3LSMG3812B Page 4 of 33 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report …

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR GSM and WCDMA Phone with 2.4 GHz b/g/n and Bluetooth MODEL NUMBER: SM-G3812B FCC ID: A3LSMG3812B REPORT NUMBER: 13I16708-2 REV A ISSUE DATE: January 15, 2014 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 13I16708-2A DATE: January 15. 2014 FCC ID: A3LSMG3812B Page 2 of 124 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 1/8/14 Initial Issue P. Kim A 1/15 Updated summary table P. Kim REPORT NO: 13I16708-2A DATE: January 15. 2014 FCC ID: A3LSMG3812B Page 3 of 124 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION .................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 6 4.2. SAMPLE CALCULATION ............................................................................................... 6 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT ................................................................................................. 7 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 7 5.4. WORST-CASE CONFIGURATION AND MODE ............................................................ 8 5.5. DESCRIPTION OF TEST SETUP .................................................................................. 9 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11 7. MEASUREMENT METHODS .............................................................................................. 12 8. SUMMARY TABLE ............................................................................................................. 13 9. ANTENNA PORT TEST RESULTS .................................................................................... 14 9.1. 6 dB BANDWIDTH ....................................................................................................... 14 9.1.1. 802.11b MODE IN THE 2.4 GHz BAND ................................................................ 15 9.1.2. 802.11g MODE IN THE 2.4 GHz BAND ................................................................ 15 9.1.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND ...................................................... 15 9.2. 99% BANDWIDTH ........................................................................................................ 19 9.2.1. 802.11b MODE IN THE 2.4 GHz BAND ................................................................ 19 9.2.2. 802.11g MODE IN THE 2.4 GHz BAND ................................................................ 19 9.2.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND ...................................................... 19 9.3. AVERAGE POWER ...................................................................................................... 23 9.3.1. 802.11b MODE IN THE 2.4 GHz BAND ................................................................ 24 9.3.2. 802.11g MODE IN THE 2.4 GHz BAND ................................................................ 24 9.3.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND ...................................................... 24 9.4. OUTPUT POWER ........................................................................................................ 25 9.4.1. 802.11b MODE IN THE 2.4 GHz BAND ................................................................ 26 9.4.2. 802.11g MODE IN THE 2.4 GHz BAND ................................................................ 26 9.4.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND ...................................................... 27 9.5. PSD .............................................................................................................................. 31 9.5.1. 802.11b MODE IN THE 2.4 GHz BAND ................................................................ 31 REPORT NO: 13I16708-2A DATE: January 15. 2014 FCC ID: A3LSMG3812B Page 4 of 124 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 9.5.2. 802.11g MODE IN THE 2.4 GHz BAND ................................................................ 31 9.5.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND ...................................................... 31 9.6. OUT-OF-BAND EMISSIONS ........................................................................................ 35 9.6.1. 802.11b MODE IN THE 2.4 GHz BAND ........................…

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C BLUETOOTH LOW ENERGY CERTIFICATION TEST REPORT FOR GSM and WCDMA Phone with 2.4 GHz b/g/n and Bluetooth MODEL NUMBER: SM-G3812B FCC ID: A3LSMG3812B REPORT NUMBER: 13I16708-3, Revision A ISSUE DATE: January 10, 2014 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 13I16708-3A DATE: January 10. 2014 FCC ID: A3LSMG3812B Page 2 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 1/7/14 Initial Issue P. Kim A 1/10/14 Updated antenna information P. Kim REPORT NO: 13I16708-3A DATE: January 10. 2014 FCC ID: A3LSMG3812B Page 3 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 5 4.2. SAMPLE CALCULATION ............................................................................................... 5 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................. 6 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 6 5.4. WORST-CASE CONFIGURATION AND MODE ............................................................ 7 5.5. DESCRIPTION OF TEST SETUP .................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 10 7. SUMMARY .......................................................................................................................... 11 8. ANTENNA PORT TEST RESULTS .................................................................................... 11 8.1. 6 dB BANDWIDTH ....................................................................................................... 12 8.2. 99% BANDWIDTH ........................................................................................................ 15 8.3. OUTPUT POWER ........................................................................................................ 18 8.4. AVERAGE POWER ...................................................................................................... 21 8.5. POWER SPECTRAL DENSITY ................................................................................... 22 8.6. CONDUCTED SPURIOUS EMISSIONS ...................................................................... 25 9. RADIATED TEST RESULTS .............................................................................................. 29 9.1. LIMITS AND PROCEDURE ......................................................................................... 29 9.2. TRANSMITTER ABOVE 1 GHz ................................................................................... 30 10. AC POWER LINE CONDUCTED EMISSIONS ............................................................... 47 11. SETUP PHOTOS ............................................................................................................. 51 REPORT NO: 13I16708-3A DATE: January 10. 2014 FCC ID: A3LSMG3812B Page 4 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Samsung EUT DESCRIPTION: GSM and WCDMA Phone with 2.4 GHz b/g/n and Bluetooth MODEL: SM-G3812B SERIAL NUMBER: FK-389-E DATE TESTED: January 3,2014 – January 7, 2014 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations an…

Text truncated - open the document above for the full version.
