A3LSMG530BTGSM/WCDMA Phone + Bluetooth and WLAN 2.4GHz b/g/n

User manual SM-G530BT Draft 6.1 201[-0_-X` Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note —notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step ; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or…

Text truncated - open the document above for the full version.

September 11, 2014 Federal Comm unications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMG 530BT To Whom It May Con cern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: July 23, 2014 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; a) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; b) make claims regarding certification only in respect of the scope for which certification has been granted; c) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; d) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; e) use certification only to indicate the products are certified as being in conformity with specified standards; f) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; g) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; h) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; i) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; j) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Label a nd Location Model: SM-G530BT FCC ID: A3LSMG530BT Label: Location: Top Back of device Bottom Label is placed inside of t he battery compartment. Label MODELO : SM-G530BT TELEFONE CELULAR MÓVEL INDÚSTRIA BRASILEIRA ANATEL : ALIMENTAÇÃO : 3,8 V ;1500 mA SSN : -G530BTGSMH FCC ID : A3LSMG530BT

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea September 11, 2014 Federal Communica tion s Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG 530BT Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is install ed when the unit is shipped from the factory, the battery is never installed prior to sale, s o the user must remove the cover in order to install the battery and operate the device. A t this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/WCDMA Phone + Bluetooth and WLAN 2.4GHz b/g/n Model: SM-G530BT FCC ID: A3LSMG530BT Report Number: 14I18664-S1 Issue Date: 9/12/2014 Prepared for Samsung Electronics Co., Ltd. 416, Maetan 3-Dong, Yeongtong-Gu Suwon-City, GyeonGggi-Do 443-742, South Korea Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 14I18664-S1 Issue Date: 09/12/2014 Page 2 of 34 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. REVISION HISTORY Rev. Issue Date Revisions Revised By -- 09/12/2014 Initial Issue -- Report No.: 14I18664-S1 Issue Date: 09/12/2014 Page 3 of 34 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedure ................................................................................................................. 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 11 6. Device Under Test (DUT) Information ...................................................................................... 12 6.1. DUT Description ...................................................................................................................... 12 6.2. Wireless Technologies ............................................................................................................. 13 6.3. Nominal and Maximum Output Power ...................................................................................... 14 6.4. Simultaneous Transmission Condition ..................................................................................... 15 7. RF Exposure Conditions (Test Configurations) ...................................................................... 16 7.1. Head ........................................................................................................................................ 16 7.2. Body-worn Accessory .............................................................................................................. 16 7.3. Wireless Router (Hotspot) ........................................................................................................ 16 8. Conducted Output Power Measurements ................................................................................ 17 8.1. GSM850 and GSM1900 ........................................................................................................... 17 8.2. W-CDMA Band V and II ........................................................................................................... 19 8.3. Wi-Fi (2.4 GHz Band) ............................................................................................................... 23 8.4. Bluetooth ................................................................................................................................. 23 9. Dielectric Property Measurements ........................................................................................... 24 9.1. Tissue Dielectric Parameters ................................................................................................... 24 9.2. Dielectric Property Measurements Results .............................................................................. 25 10. System Check ............................................................................................................................ 26 10.1. Reference Target SAR Values ............................................................................................. 26 10.2. System Check Results ......................................................................................................... 26 11. Measured and Reported (Scaled) SAR Results ....................................................................... 27 11.1. GSM850 ............................................................................................................................... 28 11.2. GSM1900 ............................................................................................................................. 28 11.3. W-CDMA Band V ................................................................................................................. 29 11.4. W-CDMA Band II .................................................................................................................. 29 Report No.: 14I18664-S1 Issue Date: 09/12/2014 Page 4 of 34 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 11.5. Wi-Fi (DTS Band) ................................................................................................................. 29 11.6. Bluetooth .............................................................................................................................. 30 11.6.1. Standalone SAR Test Exclusion Considerations .…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 9/3/2014 20140902 SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.043 S/m; ε r = 52.437; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3902; ConvF(7.35, 7.35, 7.35); Calibrated: 5/19/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/Pin=100 mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Reference Value = 61.236 V/m; Power Drift = 0.14 dB Fast SAR: SAR(1 g) = 5.39 W/kg; SAR(10 g) = 2.35 W/kg Maximum value of SAR (interpolated) = 7.90 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.236 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 11.3 W/kg SAR(1 g) = 5.45 W/kg; SAR(10 g) = 2.52 W/kg Maximum value of SAR (measured) = 7.78 W/kg 0 dB = 7.78 W/kg = 8.91 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 9/3/2014 20140902 SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.47 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date: 9/2/2014 20140902_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.933 S/m; ε r = 41.986; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(9.94, 9.94, 9.94); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: TWIN SAM v5.0; Type: QD000P40CD; Serial: TP:1829 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 34.45 V/m; Power Drift = 0.01 dB Fast SAR: SAR(1 g) = 1.05 W/kg; SAR(10 g) = 0.712 W/kg Maximum value of SAR (interpolated) = 1.24 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.45 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 1.03 W/kg; SAR(10 g) = 0.679 W/kg Maximum value of SAR (measured) = 1.25 W/kg 0 dB = 1.25 W/kg = 0.97 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date: 9/2/2014 20140902_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.07 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date: 9/3/2014 20140903_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.409 S/m; ε r = 39.284; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(8.55, 8.55, 8.55); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: TWIN SAM v5.0; Type: QD000P40CD; Serial: TP:1829 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 47.46 V/m; Power Drift = 0.17 dB Fast SAR: SAR(1 g) = 3.84 W/kg; SAR(10 g) = 2.03 W/kg Maximum value of SAR (interpolated) = 5.12 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 47.46 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 7.18 W/kg SAR(1 g) = 3.83 W/kg; SAR(10 g) = 1.98 W/kg Maximum value of SAR (measured) = 5.21 W/kg 0 dB = 5.21 W/kg = 7.17 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date: 9/3/2014 20140903_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.16 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 8/28/2014 11:08:27 PM 20140828_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.875 S/m; ε r = 37.795; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(7.45, 7.45, 7.45); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: TWIN SAM v5.0; Type: QD000P40CD; Serial: TP:1829 Head/Pin=100 mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Reference Value = 47.84 V/m; Power Drift = 0.09 dB Fast SAR: SAR(1 g) = 5.59 W/kg; SAR(10 g) = 2.45 W/kg Maximum value of SAR (interpolated) = 8.16 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 47.84 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 11.4 W/kg SAR(1 g) = 5.26 W/kg; SAR(10 g) = 2.38 W/kg Maximum value of SAR (measured) = 7.56 W/kg 0 dB = 7.56 W/kg = 8.79 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 8/28/2014 11:25:28 PM 20140828_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Meas…

Text truncated - open the document above for the full version.

FCC CFR47 PART 24 SUBPART E FCC CFR47 PART 22 SUBPART H CERTIFICATION TEST REPORT FOR GSM/WCDMA Phone + Bluetooth and WLAN 2.4GHz b/g/n MODEL NUMBER: SM-G530BT FCC ID: A3LSMG530BT REPORT NUMBER: 14I18664-E1 ISSUE DATE: September 5, 2014 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 14I18664-E1 DATE: September 5, 2014 MODEL NUMER: SM-G530BT FCC ID: A3LSMG530BT Page 2 of 70 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 9/5/14 Initial issue P. Zhang REPORT NO: 14I18664-E1 DATE: September 5, 2014 MODEL NUMER: SM-G530BT FCC ID: A3LSMG530BT Page 3 of 70 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ............................................................................. 5 2. TEST METHODOLOGY ................................................................................................. 6 3. FACILITIES AND ACCREDITATION ............................................................................. 6 4. CALIBRATION AND UNCERTAINTY ............................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. SAMPLE CALCULATION ............................................................................................ 6 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST .......................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 8 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 9 5.4. DESCRIPTION OF TEST SETUP ...............................................................................10 6. TEST AND MEASUREMENT EQUIPMENT ..................................................................13 7. Summary Table ............................................................................................................14 8. RF POWER OUTPUT VERIFICATION ..........................................................................15 8.1. GSM/GPRS/EDGE .....................................................................................................15 8.1.1. GSM OUTPUT POWER RESULT ........................................................................16 8.2. UMTS REL 99 .............................................................................................................17 8.2.1. UMTS REL 99 OUTPUT POWER RESULT .........................................................17 8.3. UMTS HSDPA ............................................................................................................18 8.3.1. UMTS HSDPA OUTPUT POWER RESULT.........................................................18 8.3.2. UMTS HSUPA .....................................................................................................20 8.3.3. UMTS HSUPA OUTPUT POWER RESULT.........................................................21 9. PEAK TO AVERAGE RATIO ........................................................................................23 9.1. CONDUCTED PEAK TO AVERAGE RESULT ............................................................23 10. LIMITS AND CONDUCTED RESULTS .........................................................................26 10.1. OCCUPIED BANDWIDTH .......................................................................................26 10.1.1. OCCUPIED BANDWIDTH RESULTS ...............................................................27 10.1.2. OCCUPIED BANDWIDTH PLOTS ...................................................................29 10.2. BAND EDGE EMISSIONS ......................................................................................34 REPORT NO: 14I18664-E1 DATE: September 5, 2014 MODEL NUMER: SM-G530BT FCC ID: A3LSMG530BT Page 4 of 70 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 10.2.1. BAND EDGE PLOTS .......................................................................................35 10.3. OUT OF BAND EMISSIONS ...................................................................................40 10.3.1. OUT OF BAND EMISSIONS RESULT .............................................................41 10.3.2. OUT OF BAND EMISSIONS PLOTS................................................................43 10.4. FREQUENCY STABILITY .......................................................................................46 10.4.1. FREQUENCY STABILITY RESULTS ...............................................................47 11. RADIATED TEST RESULTS ........................................................................................49 11.1. RADIATED POWER (ERP & EIRP) .........................................................................49 11.1.1. ERP/EIRP Results ............................................................................................49 1…

Text truncated - open the document above for the full version.

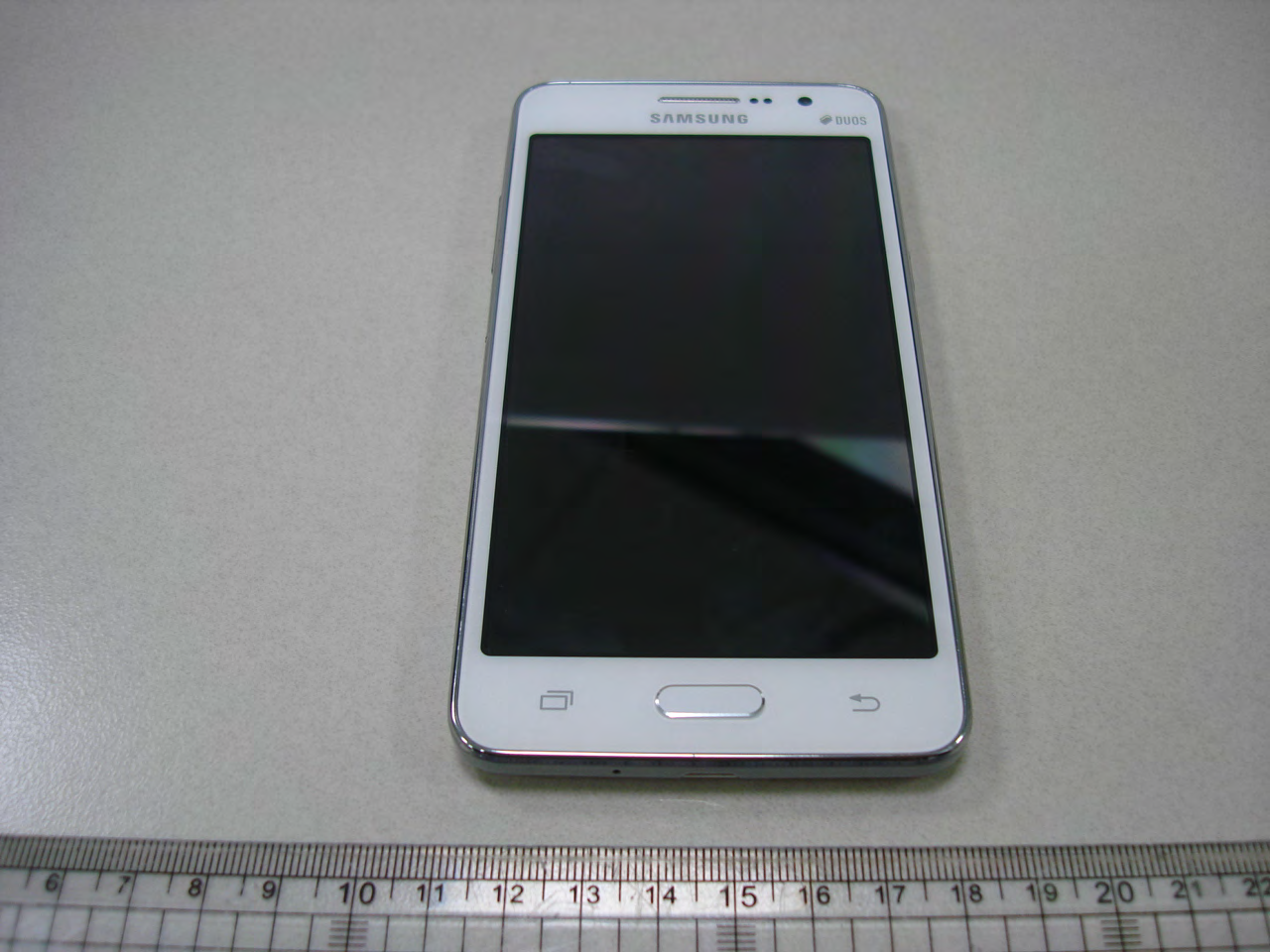

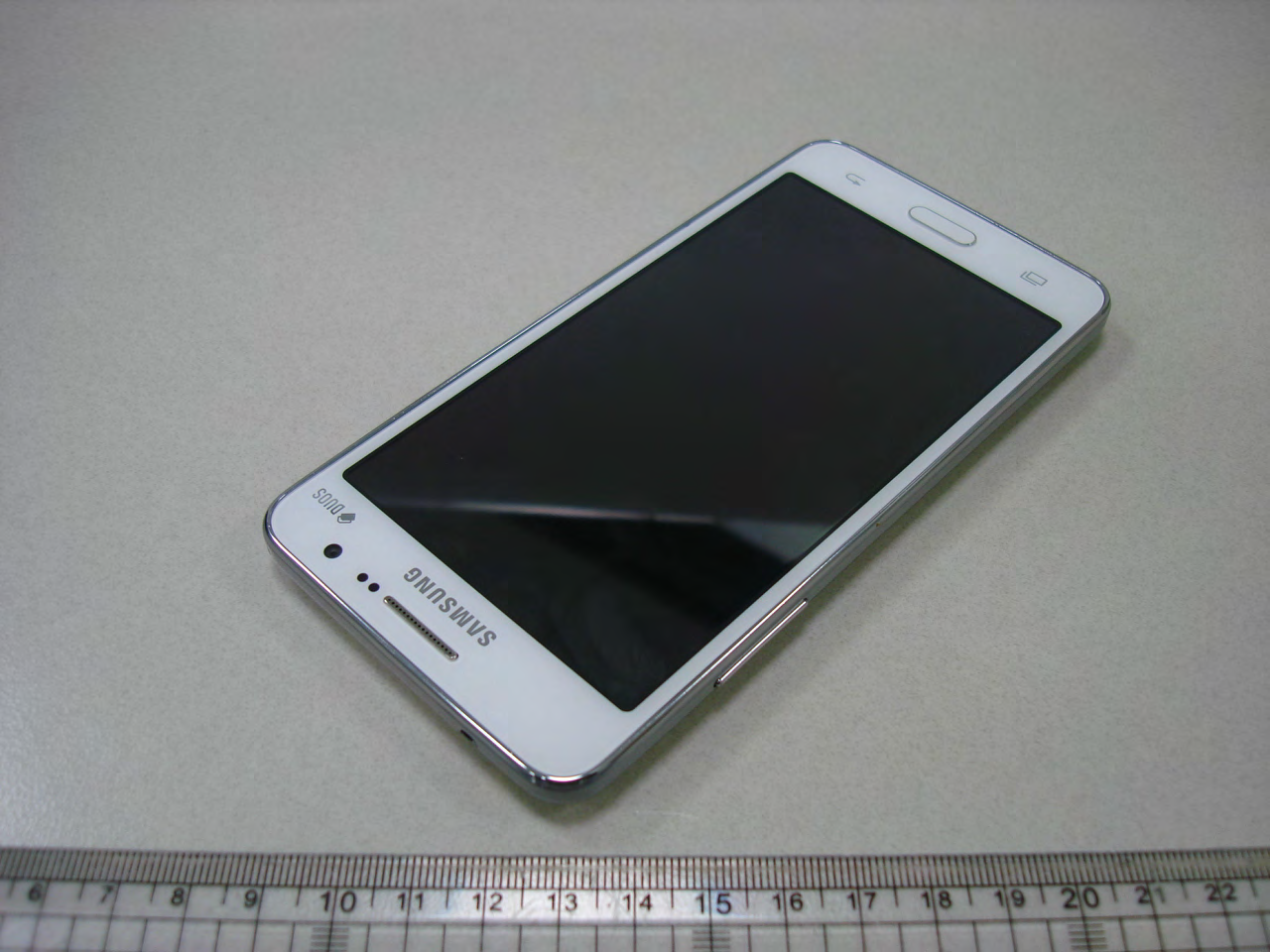

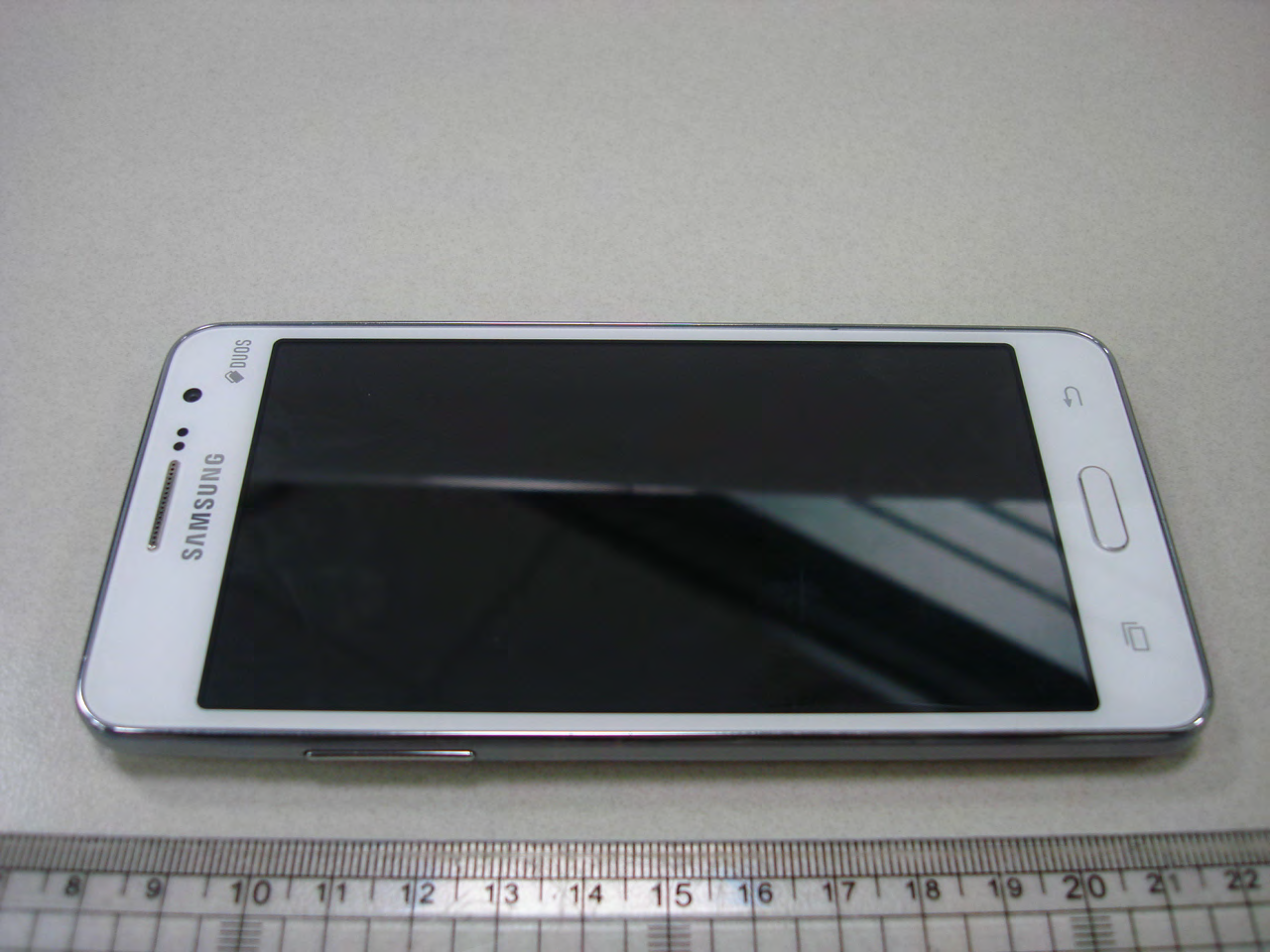

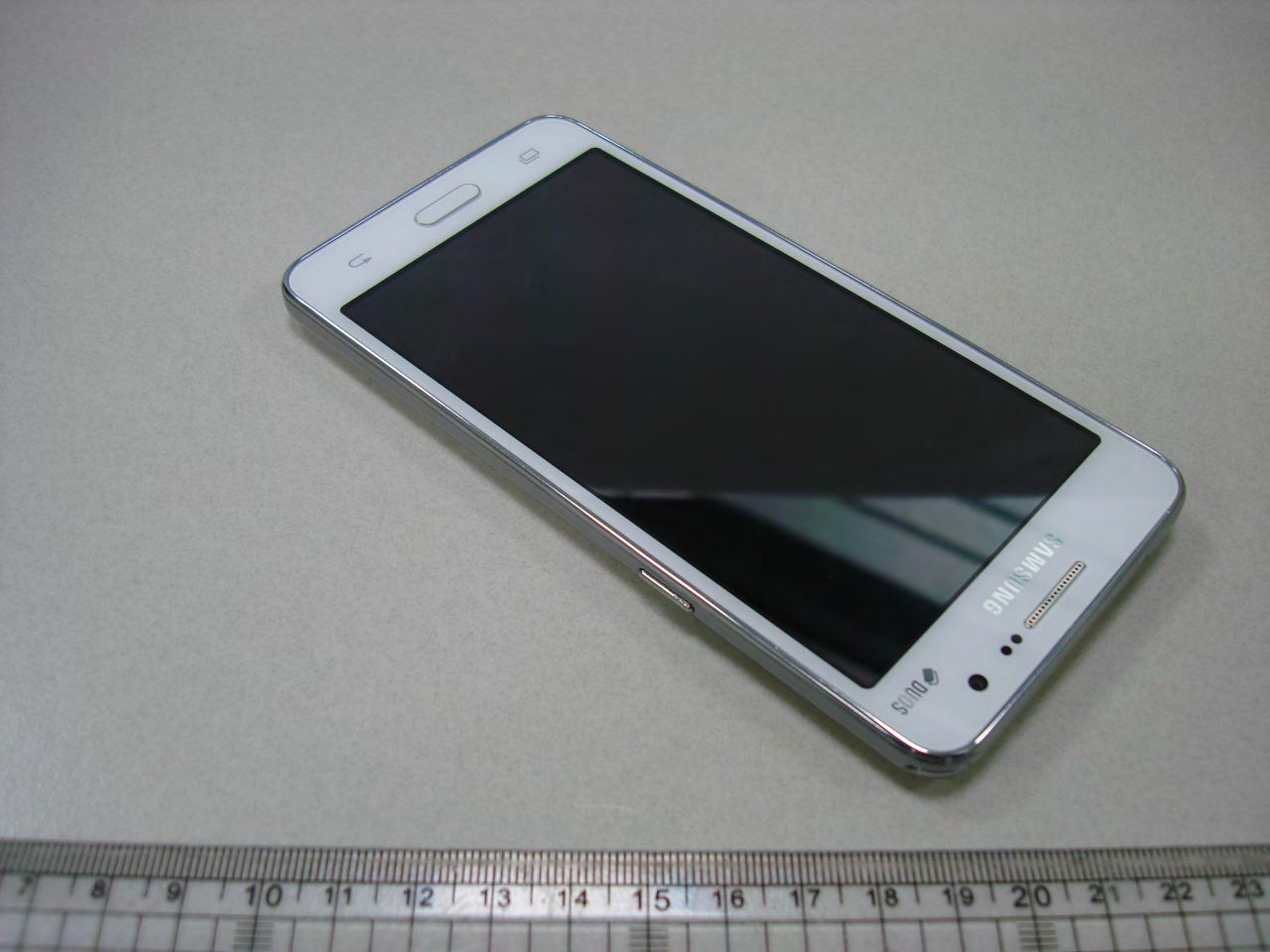

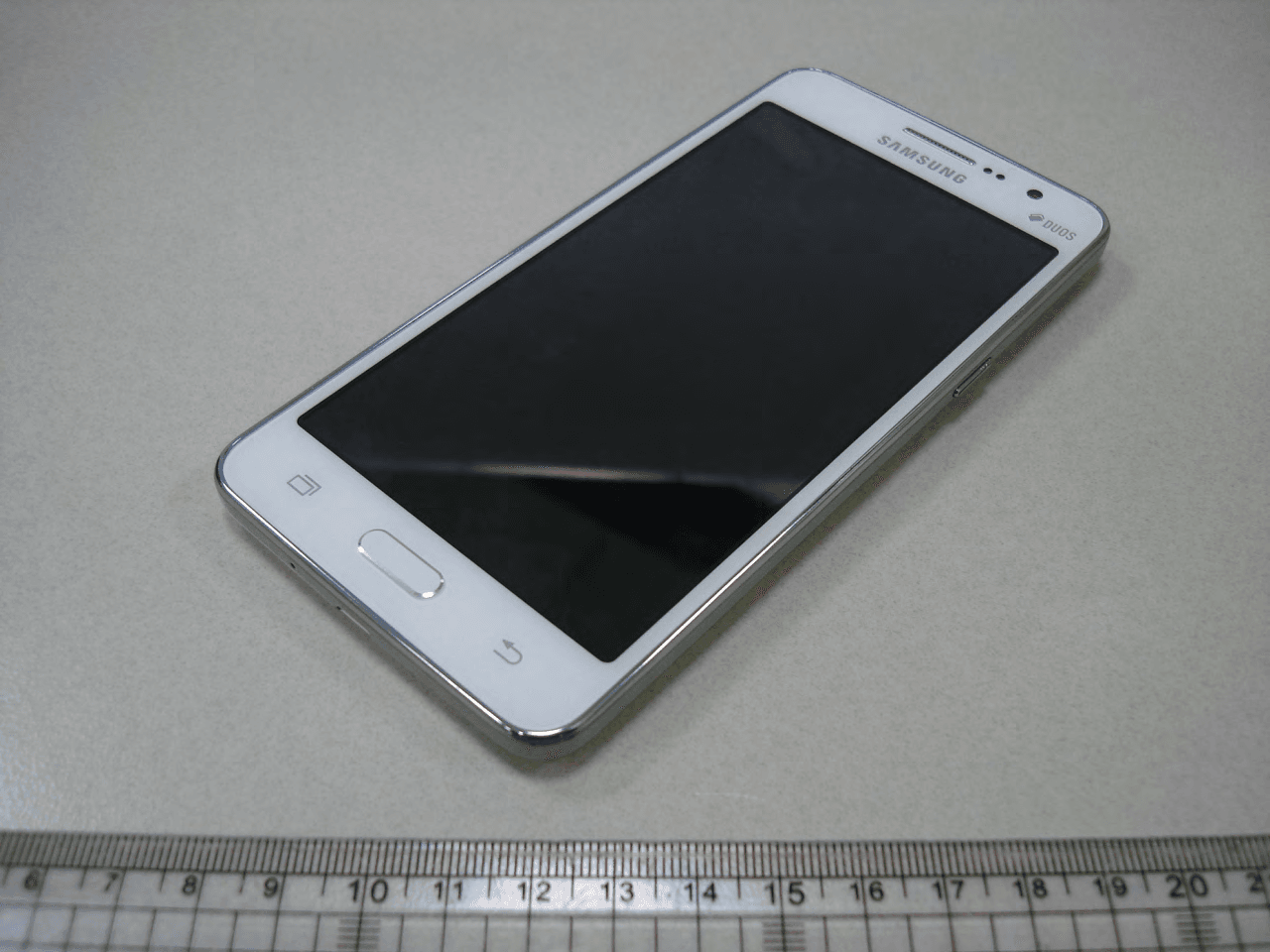

Project No.: 14I18664 DUT and SAR Set-up Photos Overall Dimensi…

Text truncated - open the document above for the full version.
