A3LSMG780G1GSM/WCDMA/LTE Phone + BT/BLE, DTS/UNII a/b/g/n/ac/ax, NFC and WPT

Quick Reference Guide (Terms and Conditions) SM-G780G/DSM SM-G780G/DS SM-G780G Read this document before operating the mobile device, accessories, or software (defined collectively and individually as the “Product”) and keep it for future reference. This document contains important Terms and Conditions. Electronic acceptance, opening the packaging, use, or retention of the Product constitutes acceptance of these Terms and Conditions. Visit www.samsung.com/us to view device information, the user manual, and more. You may incur additional charges for accessing the Internet. DRAFT Device Layout To turn on the device, press and hold the Side key for a few seconds. The charger should remain close to the electric socket and easily acc essible while charging. Installing a nano-SIM card Nano-SI M cards are sold separately. Contact us Questions? Visit us.community.samsung.com Get Support Call 1.800.SAMSUNG Service locations Find a service location near you at Samsung.com/us/support/service/locations Switching made simple Whether you are coming from an iOS or Android platform, you can easily transfer your data with Smart Switch. Back up your old phone Back up your old phone using your favorite back-up app. Samsung Smart Switch 1. From your new Galaxy device, tap Settings > Accounts and backup > Smart Switch. 2. Tap Receive data. 3. Select your old device type. 4. Tap Cable (Android) or Wireless (Android and iOS) and follow the prompts to connect your phones. Customize Tap Settings to personalize your phone. Flight mode This disables all wireless functions on your device. You can use only non- network services On the setting screen, tap Flight mode. NOTE: The use of mobile devices on an aircraft or a ship may be subject to federal and local guidelines and restrictions. Check with appropriate author and always follow crew instructions regarding when and how you may use your device. Important legal information Arbitration Agreement - This Product is subject to a binding arbitration agreement between you and SAMSUNG ELECTRONICS AMERICA, INC. (“Samsung”). You can opt out of the agreement within 30 calendar days of the first consumer purchase by emailing [email protected] or calling 1-800-SAMSUNG (726-7864) and providing the applicable information. The full Arbitration Agreement, Standard One-year Limited Warranty, End User License Agreement (EULA), and Health & Safety Information for your device are available online: Phone • English: www.samsung.com/us/Legal/Phone-HSGuide • Spanish: www.samsung.com/us/Legal/Phone-HSGuide-SP This information can also be found on the device in the “About device” or “About phone” or “About tablet” section, for example: • Settings > About phone or About device or About tablet > Legal information > Samsung legal • Or,Search “Legal” If your device required Federal Communications Commission (FCC) approval, you can view the FCC certification by opening Settings > About phone or About device or About tablet> Status. Health and Safety WARNING! To avoid electri c shock and damage to your device, do not charge device whil e it is wet or in an area where it could get wet. Do not handle device, charger or cords with wet hands whil e charging. Maintaining dust and water resistance The device is not impervious to dust and water damage in any situation. It is important that all compartments are closed tightly. Follow these tip s carefully to prevent damage to the device and maintain dust and water resistance performance: • Water re sistant based on IP68 rating, which tests submersion in fre sh water deeper than 1.5 meters or keep it submerged for more than 30 minutes. If device is exposed to fresh water, dry it thoroughly with a clean, soft cloth; if exposed to liquid other than fre sh water, rinse with fresh water and dry as directed. • Any device which uses accessible compar tments or por ts that can be opened should have th ese sealed or closed tightly to prevent liquid from entering th e system. • If th e device has been immersed in water or th e microphone or speaker is wet, sound may not be heard clearly during a call. After wipi ng th e device with a dry cloth, dry it thoroughly before using it. • Do not expose th e device to water at high pressure. • If th e device is dropped or receives an impact, th e water and dust resistant features of th e device may be damaged. Note: Liquid other than fre sh water may enter th e device fa ster. Failure to rinse th e device in fre sh water and dry it as instructed may cause th e device to suffer from operability or cosmetic issues. Samsung Knox Samsung Knox is Samsung’s security platform. Additional licensing fees may be required for enterprise use. For more information about Knox, please refer to: www.samsung.com/us/knox Specific Absorption Rate (SAR) certification information For information about SAR, visit : • https://www.fcc.gov/general/radio-frequency-safety-0 • www.fcc.gov/encyclopedia/ specific-absorption-rate-sar-cellular-telephones • www.samsung.com/sar Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5cm separation between the device and the user's body. Samsung Wireless Power Sharing feature allows device -to -device charging without the need for a charger. If your device supports the wireless power sharing function, this equipment should be operated with a minimum distance of 20 cm between the device and your body. Note: Foldable devices can be stored in an environment with ambient temperatures of -10°C / 14.0°F to 50°C / 122°F safely; prolonged exposure to temperatures outside these recommended temperatures can pose a high risk of damage to the device. Samsung mobile products and recycling WARNING! Never dispose of batteries in a fire because th ey may explode. Do not disassemble, crush, puncture, heat, burn or reuse. F or battery and cell phone recycling, go to call2recy cle. org or call 1-800-822-8837. F or mor…

Text truncated - open the document above for the full version.

Date: November 19, 2020 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea To whom it may concern: I, the undersigned, hereby authorize UL Korea, Ltd. Suwon Laboratory, to ac t on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Korea, Ltd. Suwon Laboratory on our behalf shall have the same effect as acts of our own. In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. l) the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: +1-973-808-6375 E-mail: [email protected]

August 12, 2021 Federal Comm unications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: Request for Confidentiality A3LSMG780G1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0. 457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are cons idered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: +1-973-808-6375 E-mail: [email protected]

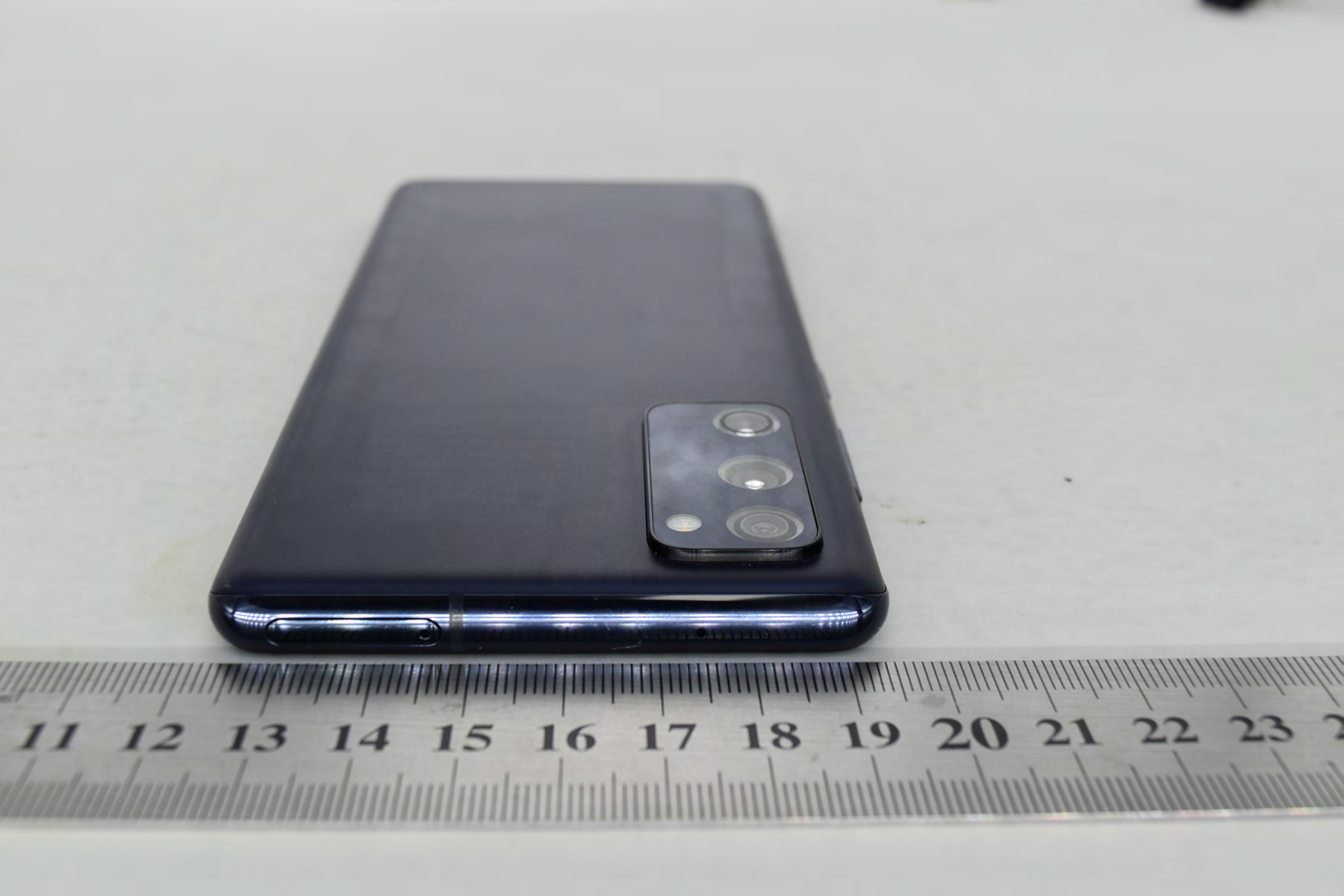

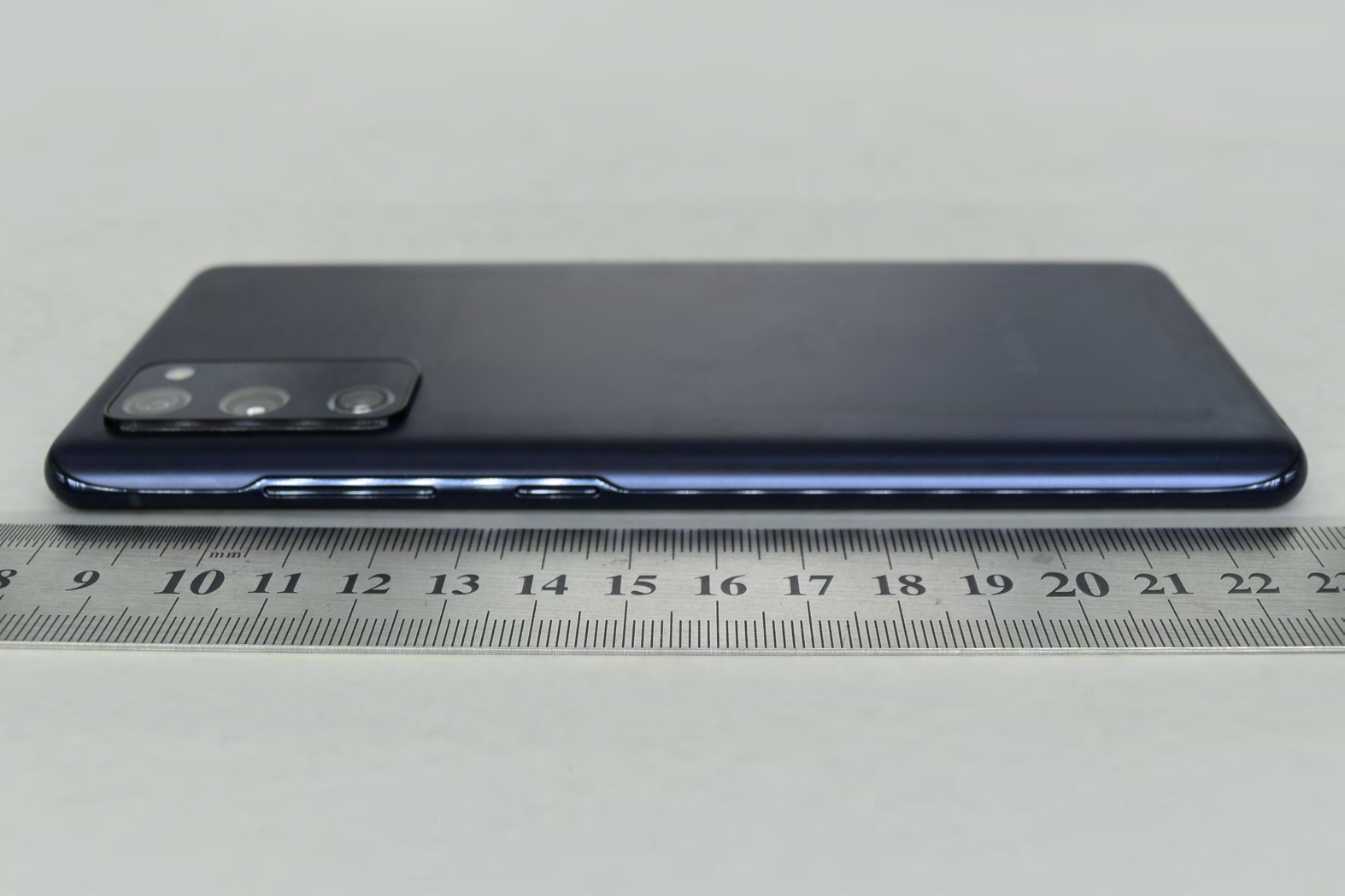

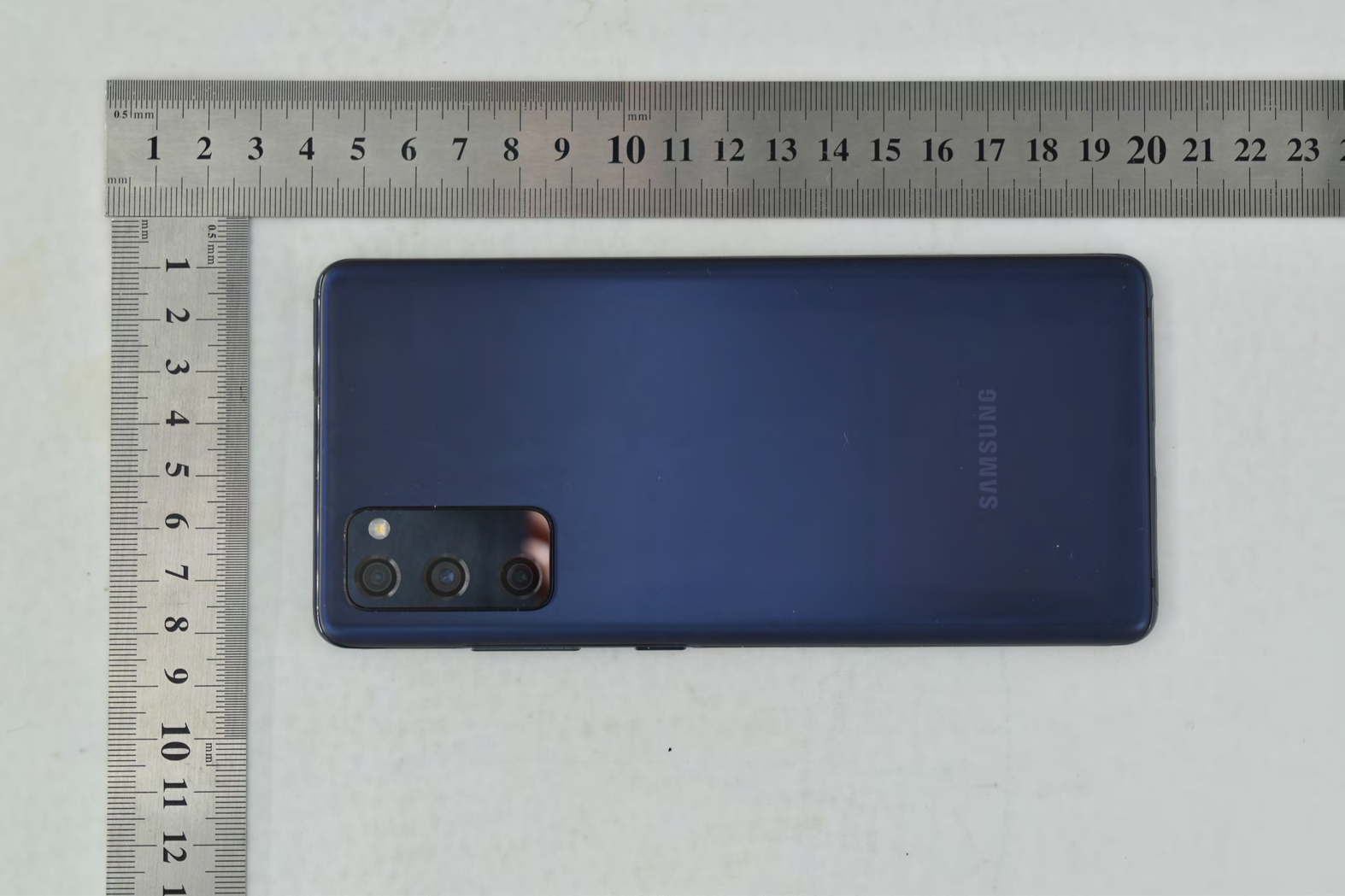

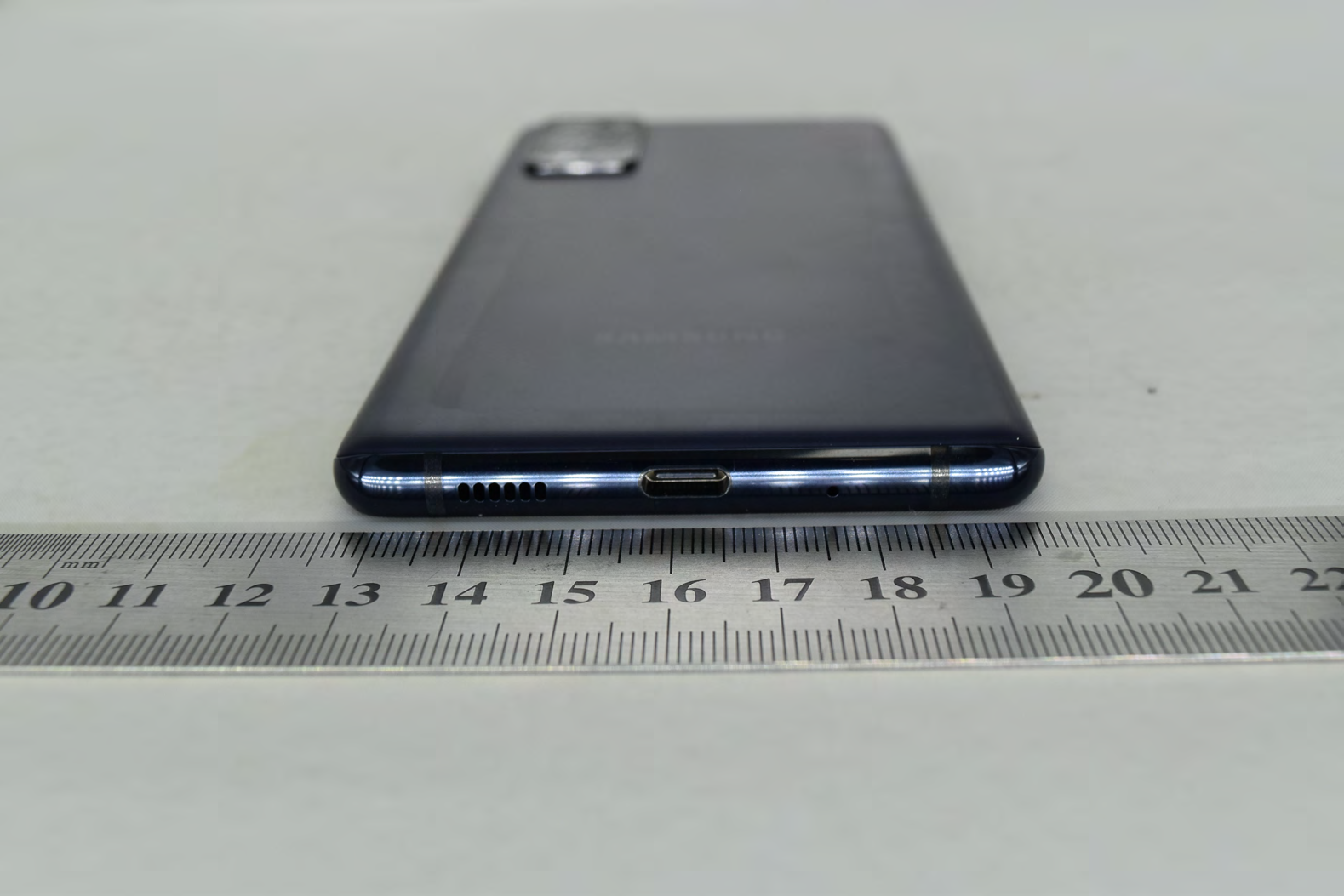

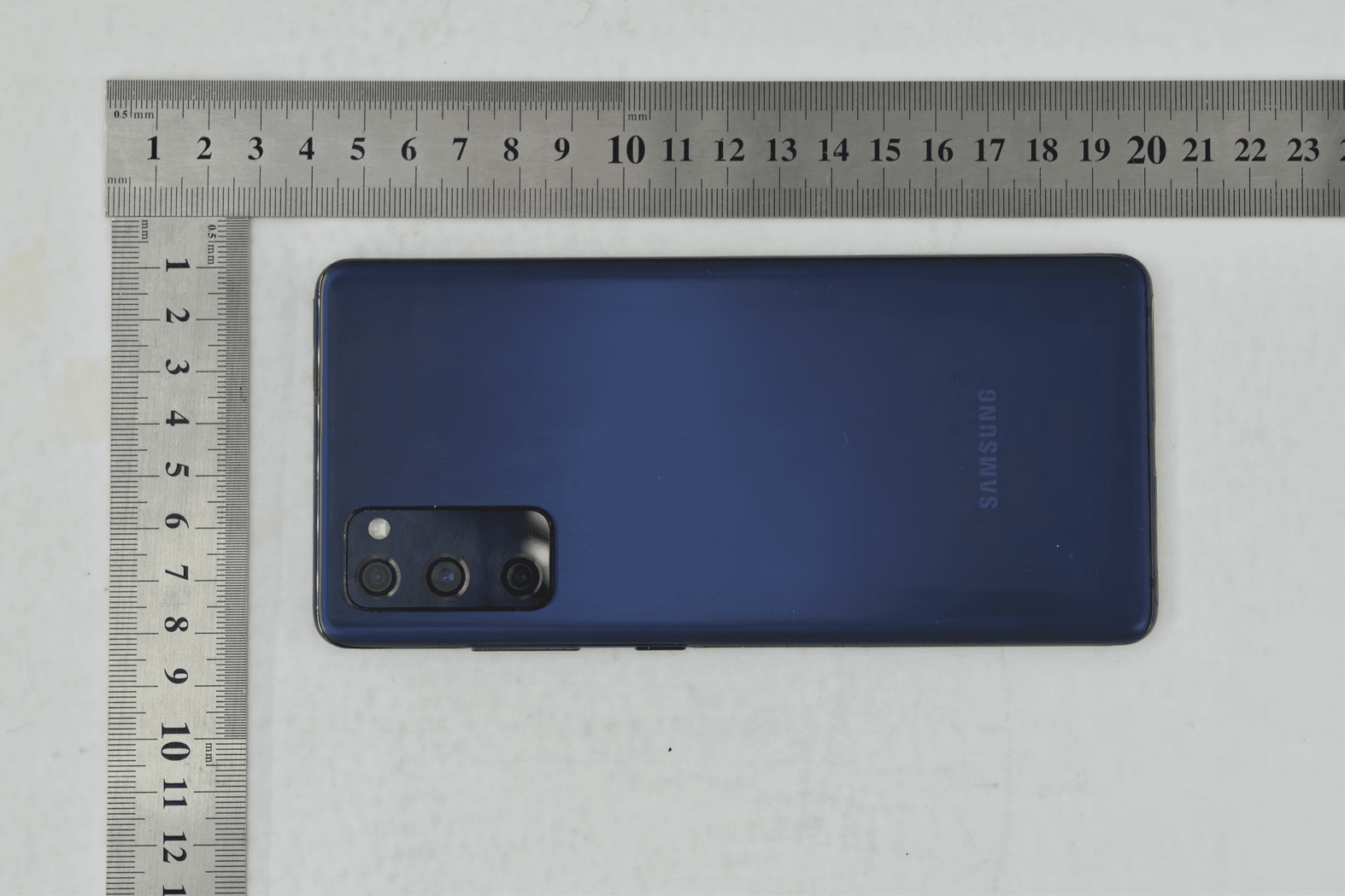

FCC ID : A3LSMG780G1 External photo 1/6 FCC ID : A3LSMG780G1 External photo 2 /6 FCC ID : A3LSMG780G1 External photo 3 /6 FCC ID : A3LSMG780G1 External photo 4 /6 FCC ID : A3LSMG780G1 External photo 5 /6 FCC ID : A3LSMG780G1 External photo 6 /6

Samsung Electronics Co., LTD. 129, Samsu ng -ro , Yeongtong-gu Suwon-City, Gyeonggi-do, 16677, Korea Date: Feb.1, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Label Statement FCC ID: A3LSMG780G1 To Whom it Ma y Concern We hereby provide th e following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find the FCC ID per CFR 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug- ins. Per CFR 2.935(e), We, Samsung have programmed the e- label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Ms. Jenni Chun General Manager Samsung Electronics America, Inc. TEL: 1-973-808-6375 E-mail: [email protected]

A.Information to be displayed 1. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information On E-label In Manual FCC ID number Yes No DoC logo Not Applicable Not Applicable 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) - Yes Class A / B Digital Device user manual statements1 - Yes DoC declaration1 Not Applicable Not Applicable Caution to the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment1 - Yes Describe any other FCC regulatory - Yes Describe any other FCC regulatory information included in e-label 1 None Not Applicable If the e-label includes information typically included in the manual then the e-label s hall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to 784748 D02 e labelling v02r01. Images of the e-label screen are provided below: B.Access to the required information on the e-label 1.Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: F rom the home screen: a)Click on Settings Apps b)About phone c)Status No special access codes or permissions are required to go through the above steps beyond entering a userdefined password to protect against unauthorized access to the device. 2. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. 3.Users are provided specific instructions on how to access the information. The information is provided in User manual.

FCC ID : A3LSMG780G1 Internal photo 1/11 FCC ID : A3LSMG780G1 Internal photo 2/11 FCC ID : A3LSMG780G1 Internal photo 3/11 FCC ID : A3LSMG780G1 Internal photo 4/11 FCC ID : A3LSMG780G1 Internal photo 5/11 FCC ID : A3LSMG780G1 Internal photo 6/11 FCC ID : A3LSMG780G1 Internal photo 7/11 FCC ID : A3LSMG780G1 Internal photo 8/11 FCC ID : A3LSMG780G1 Internal photo 9/11 FCC ID : A3LSMG780G1 Internal photo 10/11 FCC ID : A3LSMG780G1 Internal photo 11/11

Plot No. 1 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/5/2021 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.929 S/m; ε r = 41.354; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Electronics: DAE4 Sn1343; Calibrated: 8/25/2020 - Probe: EX3DV4 - SN3871; ConvF(9.83, 9.83, 9.83) @ 836.6 MHz; Calibrated: 8/28/2020 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0; Type: QD000P40CD; Serial: 1751 RHS/Touch GPRS 3 slots ch.190/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm RHS/Touch GPRS 3 slots ch.190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.54 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.191 W/kg SAR(1 g) = 0.154 W/kg; SAR(10 g) = 0.120 W/kg Maximum value of SAR (measured) = 0.178 W/kg 0 dB = 0.178 W/kg = -7.50 dBW/kg Plot No. 2 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/5/2021 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.929 S/m; ε r = 41.354; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Electronics: DAE4 Sn1343; Calibrated: 8/25/2020 - Probe: EX3DV4 - SN3871; ConvF(9.83, 9.83, 9.83) @ 836.6 MHz; Calibrated: 8/28/2020 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0; Type: QD000P40CD; Serial: 1751 Rear/GPRS 3 slots ch.190/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.281 W/kg Rear/GPRS 3 slots ch.190/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.93 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.340 W/kg SAR(1 g) = 0.212 W/kg; SAR(10 g) = 0.133 W/kg Maximum value of SAR (measured) = 0.294 W/kg 0 dB = 0.294 W/kg = -5.32 dBW/kg Plot No. 3 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/13/2021 GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.937 S/m; ε r = 40.736; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Electronics: DAE4 Sn1494; Calibrated: 7/27/2021 - Probe: EX3DV4 - SN7376; ConvF(9.97, 9.97, 9.97) @ 836.6 MHz; Calibrated: 7/31/2020 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0; Type: QD000P40CD; Serial: 1751 Rear/GPRS 3 slots ch.190/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.798 W/kg Rear/GPRS 3 slots ch.190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.63 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.913 W/kg SAR(1 g) = 0.541 W/kg; SAR(10 g) = 0.316 W/kg Maximum value of SAR (measured) = 0.766 W/kg 0 dB = 0.766 W/kg = -1.16 dBW/kg Plot No. 4 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/5/2021 GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1880 MHz; σ = 1.402 S/m; ε r = 39.331; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Electronics: DAE4 Sn614; Calibrated: 3/5/2021 - Probe: EX3DV4 - SN7645; ConvF(8.9, 8.9, 8.9) @ 1880 MHz; Calibrated: 4/15/2021 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: Twin-SAM V5.0 (Right); Type: QD 000 P40 CD; Serial: 1855 LHS/Touch GPRS 3 slots ch.661/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0857 W/kg LHS/Touch GPRS 3 slots ch.661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.471 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.116 W/kg SAR(1 g) = 0.073 W/kg; SAR(10 g) = 0.046 W/kg Maximum value of SAR (measured) = 0.0987 W/kg 0 dB = 0.0987 W/kg = -10.06 dBW/kg Plot No. 5 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/5/2021 GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1880 MHz; σ = 1.402 S/m; ε r = 39.331; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Electronics: DAE4 Sn614; Calibrated: 3/5/2021 - Probe: EX3DV4 - SN7645; ConvF(8.9, 8.9, 8.9) @ 1880 MHz; Calibrated: 4/15/2021 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: Twin-SAM V5.0 (Right); Type: QD 000 P40 CD; Serial: 1855 Rear/GPRS 3 slots ch.661/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.351 W/kg Rear/GPRS 3 slots ch.661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.06 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.434 W/kg SAR(1 g) = 0.260 W/kg; SAR(10 g) = 0.152 W/kg Maximum value of SAR (measured) = 0.369 W/kg 0 dB = 0.369 W/kg = -4.33 dBW/kg Plot No. 6 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/13/2021 GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1880 MHz; σ = 1.387 S/m; ε r = 39.18; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Electronics: DAE4 Sn614; Calibrated: 3/5/2021 - Probe: EX3DV4 - SN7645; ConvF(8.9, 8.9, 8.9) @ 1880 MHz…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/11/2021 20210811_SystemPerformanceCheck-D5GHzV2 SN 1209 Frequency: 5600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 5600 MHz; σ = 5.168 S/m; ε r = 35.431; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1468; Calibrated: 8/25/2020 - Probe: EX3DV4 - SN7314; ConvF(4.75, 4.75, 4.75) @ 5600 MHz; Calibrated: 5/31/2021 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0_Front; Type: QD000P40CD; Serial: TP:1877 Head/5.6GHz/Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 21.7 W/kg Head/5.6GHz/Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 73.01 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 39.8 W/kg SAR(1 g) = 8.81 W/kg; SAR(10 g) = 2.5 W/kg Maximum value of SAR (measured) = 21.1 W/kg 0 dB = 21.1 W/kg = 13.24 dBW/kg Plot No. 2 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/11/2021 20210811_SystemPerformanceCheck-D5GHzV2 SN 1209 Frequency: 5600 MHz; Duty Cycle: 1:1 Head/5.6GHz/Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 15.2 W/kg Plot No. 3 Test Laboratory: The name of your organization Date: 8/13/2021 20210813_SystemPerformanceCheck-D1750V2 SN 1125 Frequency: 1750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1750 MHz; σ = 1.338 S/m; ε r = 39.795; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn614; Calibrated: 3/5/2021 - Probe: EX3DV4 - SN7645; ConvF(9.3, 9.3, 9.3) @ 1750 MHz; Calibrated: 4/15/2021 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: Twin-SAM V5.0 (Right); Type: QD 000 P40 CD; Serial: 1855 Head/1750MHz/Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.14 W/kg Head/1750MHz/Pin=100mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.69 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 6.17 W/kg SAR(1 g) = 3.37 W/kg; SAR(10 g) = 1.8 W/kg Maximum value of SAR (measured) = 5.19 W/kg 0 dB = 5.19 W/kg = 7.15 dBW/kg Plot No. 4 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/13/2021 20210813_SystemPerformanceCheck-D1750V2 SN 1125 Frequency: 1750 MHz; Duty Cycle: 1:1 Head/1750MHz/Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.43 W/kg Plot No. 5 Test Laboratory: The name of your organization Date: 8/13/2021 20210813_SystemPerformanceCheck-D1900V2 SN 5d199 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1900 MHz; σ = 1.394 S/m; ε r = 39.059; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn614; Calibrated: 3/5/2021 - Probe: EX3DV4 - SN7645; ConvF(8.9, 8.9, 8.9) @ 1900 MHz; Calibrated: 4/15/2021 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: Twin-SAM V5.0 (Right); Type: QD 000 P40 CD; Serial: 1855 Head/1900MHz/Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.85 W/kg Head/1900MHz/Pin=100mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 60.29 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 7.14 W/kg SAR(1 g) = 3.87 W/kg; SAR(10 g) = 2.02 W/kg Maximum value of SAR (measured) = 6.01 W/kg 0 dB = 6.01 W/kg = 7.79 dBW/kg Plot No. 6 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/13/2021 20210813_SystemPerformanceCheck-D1900V2 SN 5d199 Frequency: 1900 MHz; Duty Cycle: 1:1 Head/1900MHz/Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.05 W/kg Plot No. 7 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/2/2021 20210802_SystemPerformancecheck D2600V2_SN1097 Frequency: 2600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 2600 MHz; σ = 1.919 S/m; ε r = 38.367; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1591; Calibrated: 3/26/2021 - Probe: EX3DV4 - SN7545; ConvF(7.11, 7.11, 7.11) @ 2600 MHz; Calibrated: 11/23/2020 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM Phantom CRP v5.0(Left); Type: QD000P40CD; Serial: TP:1991 Head/2600MHz/Pin=100mW/Area Scan (6x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.25 W/kg Head/2600MHz/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 64.93 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 12.1 W/kg SAR(1 g) = 5.59 W/kg; SAR(10 g) = 2.49 W/kg Maximum value of SAR (measured) = 8.05 W/kg 0 dB = 8.05 W/kg = 9.06 dBW/kg Plot No. 8 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/2/2021 20210802_SystemPerformancecheck D2600V2_SN1097 Frequency: 2600 MHz; Duty Cycle: 1:1 Head/2600MHz/Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 8.74 W/kg Plot No. 9 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 8/5/2021 20210805_SystemPerformancecheck D2450V2_SN960 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 2450 MHz; σ…

Text truncated - open the document above for the full version.

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 MSL450V2 MSL750V2 MSL900V2 MSL1450V2 MSL1750V2 MSL1800V2 MSL1900V2 MSL1950V2 MSL2450V2 Test Frequency (MHz) 300 400, 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2100 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product MBBL130-250V3 MBBL1350-1850V3 MBBL1550-1950V3 MBBL1900-3800V3 MBBL3500-5800V5 Test Frequency (MHz) 130-250 1350-1800 1550-1850 1950-3800 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil

Justification for Extended SAR Dipole Calibrations Instead of the typical annual calibration recommended by measurement standards, longer calibration intervals of up to three years may be considered when it is demonstrated that the SAR target, impedance and return loss of a dipole have remain stable according to the following requirements KDB 865664 D01v01r04 requirements a ) return loss : < - 20 dB, within 20% of previous measurement b ) impedance : within 5 Ω from previous measurement Dipole Antenna Head/Body Date of Measurement Return Loss (dB) Δ % Impedance (Ω) Δ Ω D750V2-SN : 1122 Head 2020-02-24 -27.59 2.03 54.00 -3.19 2021-08-12 -28.15 50.81 c ) extrapolated peak SAR : within 10% of that reported in the calibration data Dipole Antenna Head/Body Date of Measurement extrapolated peak SAR (W/kg) Δ % D750V2-SN : 1122 Head 2020-02-24 8.54 0.23 2021-08-13 8.60 Justification for Extended SAR Dipole Calibrations Instead of the typical annual calibration recommended by measurement standards, longer calibration intervals of up to three years may be considered when it is demonstrated that the SAR target, impedance and return loss of a dipole have remain stable according to the following requirements KDB 865664 D01v01r04 requirements a ) return loss : < - 20 dB, within 20% of previous measurement b ) impedance : within 5 Ω from previous measurement Dipole Antenna Head/Body Date of Measurement Return Loss (dB) Δ % Impedance (Ω) Δ Ω D835V2-SN : 4d 194 Head 2020-03-20 -31.82 4.24 51.50 -0.06 2021-03-16 -33.16 51.44 c ) extrapolated peak SAR : within 10% of that reported in the calibration data Dipole Antenna Head/Body Date of Measurement extrapolated peak SAR (W/kg) Δ % D835V2-SN : 4d 194 Head 2020-03-20 9.76 1.13 2021-03-16 9.9 Justification for Extended SAR Dipole Calibrations Instead of the typical annual calibration recommended by measurement standards, longer calibration intervals of…

Text truncated - open the document above for the full version.
