A3LSMG986B

Samsung Electronics Co Ltd

GSM/WCDMA/LTE Phone + BT/BLE, DTS/UNII a/b/g/n/ac/ax, ANT+, NFC and WPT

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jan 27, 2020
Application Purpose: Original Equipment
Date of Application: Dec 17, 2019
Equipment Note: GSM/WCDMA/LTE Phone + BT/BLE, DTS/UNII a/b/g/n/ac/ax, ANT+, NFC and WPT
Frequency Range: 1715.00000000 - 1775.00000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

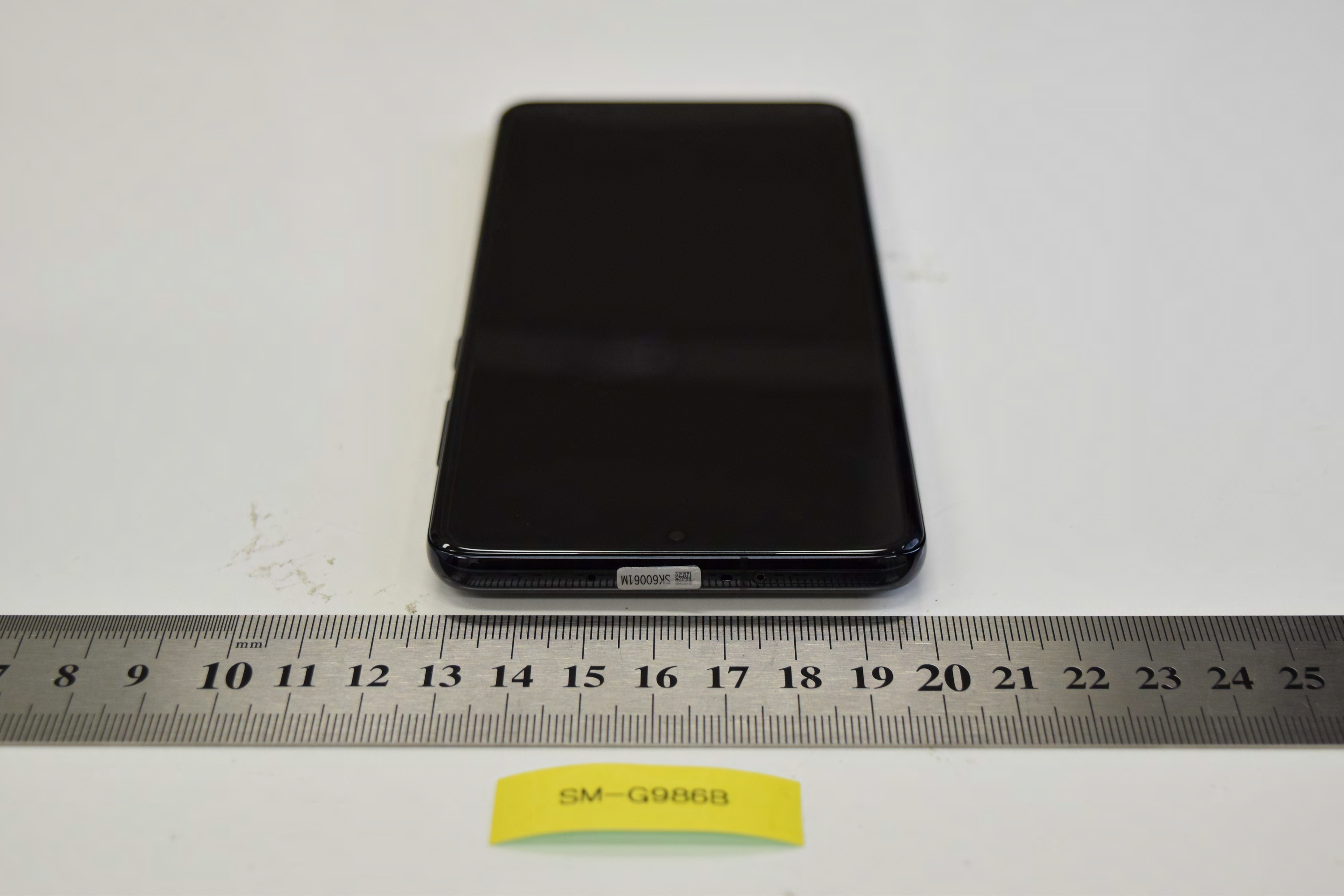

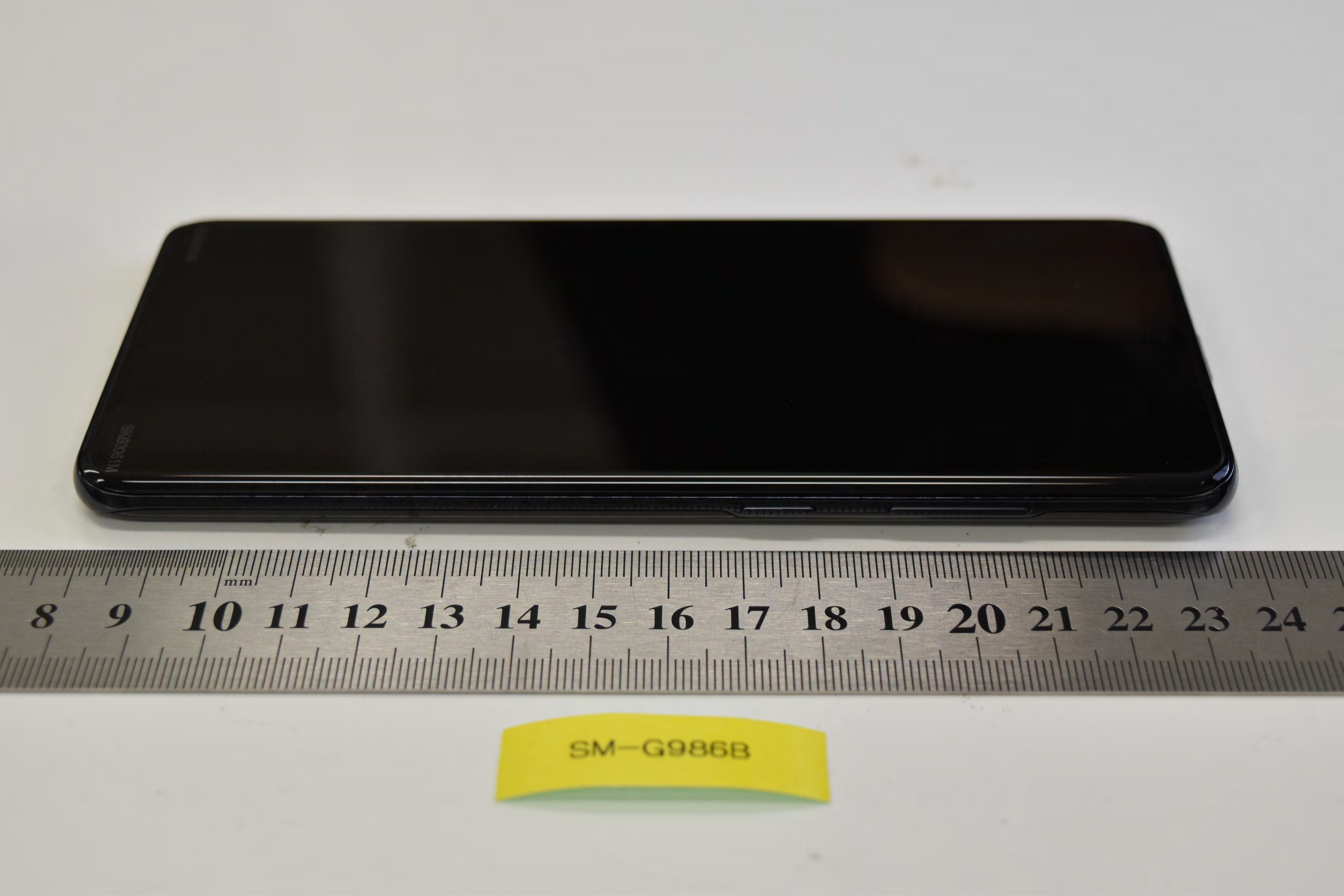

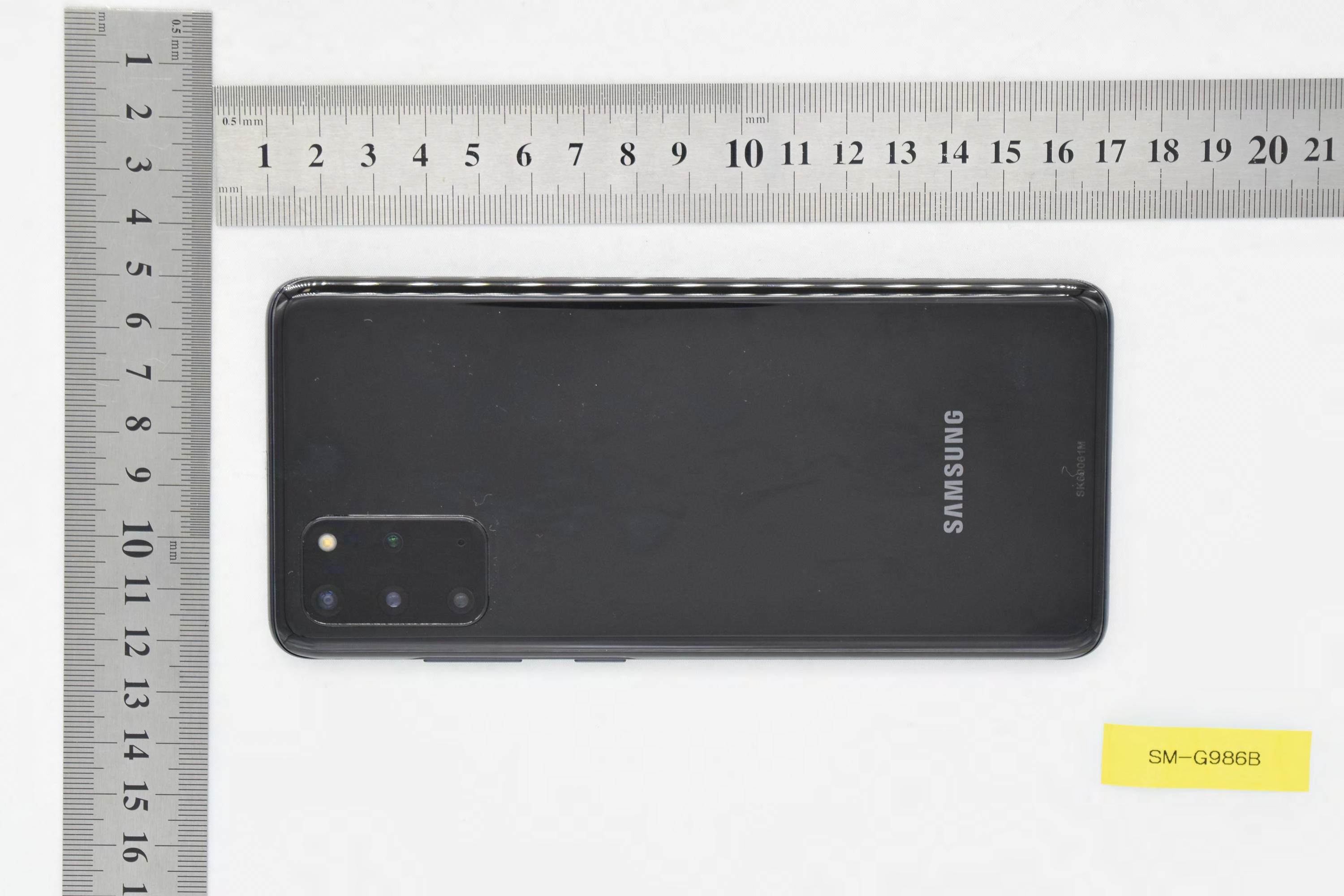

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
33	27	1.72 GHz - 1.77 GHz	248.00 mW	8M97G7W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for operations below 1 GHz and EIRP for operations above 1 GHz. This device supports LTE bandwidths of: 1.4/3/5/10/15/20MHz in Bands 2, 4, 25, 66; 1.4/3/5/10 MHz modes in Bands 5, 12; 5/10MHz in Bands 13, 17; 1.4/3/5/10/15MHz in Band 26; 5/10/15/ 20MHz in Band 41. This device contains functions that are not operational in U.S. and its Territories; filings under this FCC ID are approved only for US operations. SAR compliance for body-worn accessory operation is based on a separation distance of 1.5 cm between the unit and the body of the user. Belt clips, holsters and other body-worn accessories may not contain metallic components. End-users must be informed of the body worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body worn accessory, wireless Router(hot-spot), product specific(phablet-10g) and simultaneous transmission((1g and phablet-10g) are 0.25 W/Kg, 0.89 W/Kg, 1.35 W/Kg, 2.95W/Kg(10g) and 1.59 W/Kg(1g) / 3.30 W/Kg(10g) respectively.
