Quick Reference Guide (Terms and Conditions) SM-G998B SM-G998B/DS Read this document before operating the mobile device, accessories, or software (defined collectively and individually as the “Product”) and keep it for future reference. This document contains important Terms and Conditions. Electronic acceptance, opening the packaging, use, or retention of the Product constitutes acceptance of these Terms and Conditions. Visit www.samsung.com/us to view device information, the user manual, and more. You may incur additional charges for accessing the Internet. Basics Read me first Please read this manual before using the device to ensure safe and proper use. r
Descriptions are based on the device’s default settings. r S
ome content may differ from your device depending on the region, service provider, model specifications, or device’s software. r C
ontent (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. r
Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. r
Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. r S
oftware, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. r
You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. r
Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. r
Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. r %FQFOEJOH
PO
UIF
SFHJPO
PS
NPEFM
TPNF
EFWJDFT
BSF
SFRVJSFE
UP
SFDFJWF
BQQSPWBM
GSPN
UIF
'FEFSBM
$PNNVOJDBUJPOT
$PNNJTTJPO
'$$
*G
ZPVS
EFWJDF
JT
BQQSPWFE
CZ
UIF
'$$ r Supprted features may differ
PS
MBCFMMFE
EJGGFSFOUMZ
EFQFOEJOH
PO
XIFUIFS
ZPVS EFWJDF
JT
B
TJOHMF
PS
EVBM
4*.
.PEFM
ZPV
DBO
WJFX
UIF
'$$
*%
PG
UIF
EFWJDF
5P
WJFX
UIF
'$$
*%
UBQ
4FUUJOHT
About Phone

Status Information Device Layout To turn on the device, pr ess and hold th e Side key for a few seconds. The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card Nano- SIM cards are sold separately. Contact us Questions? Visit us.community.samsung.com Get Support Call 1.800.SAMSUNG Service locations Find a service location near you at Samsung.com/us/support/service/locations Switching made simple Whether you are coming from an iOS or Android platform, you can easily transfer your data with Smart Switch. Back up your old phone Back up your old phone using your favorite back-up app. Samsung Smart Switch 1. From your new Galaxy device, tap Settings > Accounts and backup > Smart Switch. 2. Tap Receive data. 3. Select your old device type. 4. Tap Cable (Android) or Wireless (Android and iOS) and follow the prompts to connect your phones. Customize Tap Settings to personalize your phone. Flight mode This disables all wireless functions on your device. You can use only non-network services. On the Settings screen, tap Flight mode. NOTE: The use of mobile devices on an aircraft or a ship may be subject to federal and local guidelines and restrictions. Check with appropriate author and always follow crew instructions regarding when and how you may use your device. UWB Operation in airplane mode: UWB function is disabled when a phone get into the airplane mode. Important l egal information Arbitration Agreement - This Product is subject to a binding arbi tration agreement between you and SAMSUNG ELECTRONICS AMERICA, INC. (“Samsung”). You can opt out of t he agreement within 30 calendar days of the first consumer purchase by emailing [email protected] or calling 1-800-SAMSUNG (726-7864) and providing the applicable information. The full Arbitration Agreement, Standard One-year Limited Warranty, End User License Agreement (EULA), and Health & Safety Inform ation for your device are available online: •English: www.samsung.com/us/Legal/Phone-HSGuide •Spanish: www.samsung.com/us/Legal/Phone-HSGuide-SP This information can also be found on the device in the “About device” or “About phone” or “About tablet” section, for example: •Settings > About phone or About device or About tablet > Legal information > Samsung legal •Or,Search “Legal” If your device required Federal Communications Commission (FCC) appr oval, you can view the FCC certification by opening Settings > About phone or About device or About tablet> Status Information. Health and Safety WARNING! To avoid electri c shock and damage to your device, do not charge device while it is wet or in an area where it co uld get wet. Do not handle device, c harger or cords with wet hands while charging. Maint aining dust and water resistance The device is not impervious to dust and water damage in any situation. It is important that all c ompartments are closed tightly. Follow these tips carefully to prevent damage to the device and maintain dust and water resistance performance: • Water resistant based on IP68 rating, which tests submersion in fresh water deeper than 1.5…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 02, 2020 FCC ID: A3LSMG998B To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory LLC, to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, LLC on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 16677, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 E-label Attestation Letter - FCC ID : A3LSMG998B - Model : SM-G998B/DS, SM-G998B To Whom It May Concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find FCC ID per CFR 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung Electronics Co., Ltd., have programmed the e-label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-8 08-6 375

Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeontong-gu, Suwon-si, Gyeonggi-do, 16677, Korea MPR Attestation letter for LTE - FCC ID : A3LSMG998B - Model code : SM-G998B/DS, SM-G998B To Whom it May Concern We attest the following regarding FCC ID A3LSMG998B. 1.MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. 2.A-MPR was disabled for all SAR test samples for SAR testing purposes only. 3.We confirm the specific MPR targets and tolerances shown in the SAR Report. All deviations in the power measurements from the specific MPR targets shown in the SAR Report are expected and within factory tolerances. 4.LTE Release 14 implementation is limited. The uplink does not support enhanced SC-FDMA. Features such as CoMP, HetNet, Relay, SON, cross carrier scheduling, eICIC, enhanced downlink MIMO, MBMS, M2M/D2 are also not supported. SVLTE is not supported as described in the operational description. 5.This device complies with FCC Part 27.75(a)(1) requirements: Mobile and portable stations that operate on any portion of frequencies in the paired 1755-1780 MHz and 2155-2180 MHz band must be capable of operating on all frequencies in the paired 1710-1780 MHz and 2110-2180 MHz band, using the same air interfaces that the equipment utilizes on any frequencies in the paired 1710-1780 MHz and 2110-2180 MHz band. 6.This device complies with FCC Part 27.77 requirements: Mobile and portable stations in the 1695-1710 MHz and 1755-1780 MHz bands may operate only when under the control of a base station. Base stations that enable mobile or portable equipment to operate in the 1695-1710 MHz and 1755-1780 MHz band are subject to prior coordination requirements. 7. Power Class 2 operations for LTE B41 are limited to Frame Configurations 1-5 as described in 3GPP TS 36.212 Table 4.2-2. This device will never operate with Frame Configuration 0 or 6 when operating as Power Class 2. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pi ne Brook, NJ 07058 Tel: 1-973 -808-6 375

SAMS UNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 02, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:Request of Confidentiality for FCC ID: A3LSMG998B To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily re leased to th e public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 day s after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information pri or to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

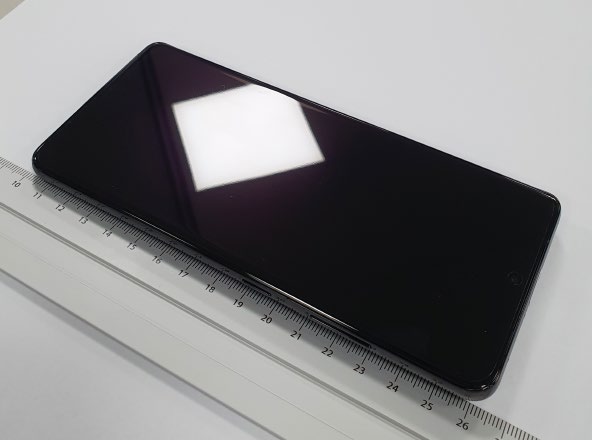

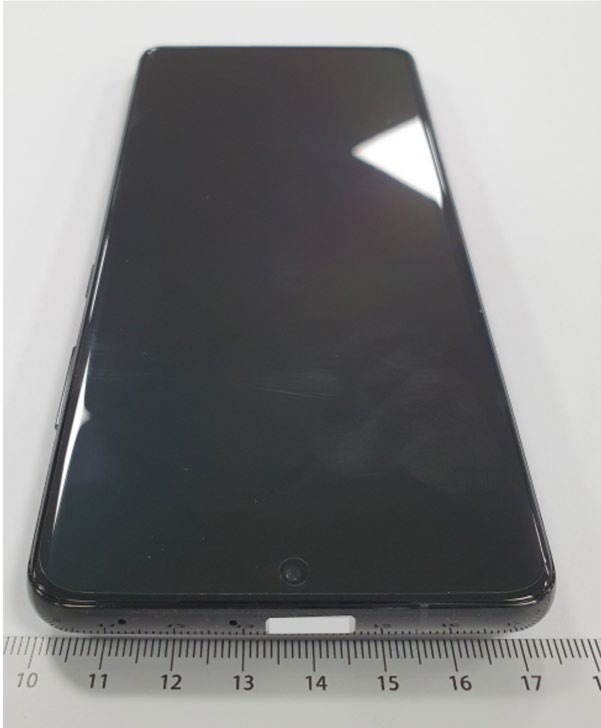

FCC ID: A3LSMG998B External Photographs FCC ID: A3LSMG998B External Photographs FCC ID: A3LSMG998B External Photographs FCC ID: A3LSMG998B External Photographs FCC ID: A3LSMG998B External Photographs FCC ID: A3LSMG998B External Photographs FCC ID: A3LSMG998B External Photographs FCC ID: A3LSMG998B External Photographs

Description of E-label on the A3LSMG998B Date: 2020.12.17 FCC ID: A3LSMG998B This model is applied E-label, please find description of E-label below. 1. FCC ID (E-label): Settings > About Phone > Status Information FCC certification FCC ID: A3LSMG998B <Device Display Screen> 2.F CC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guide lines. This device has a FCC ID number A3LSMG998B [Model Number: SM-G998B, SM-G998B/DS] and the specific SAR levels for this device can be found at the following. FCC website: www.fcc.gov/oet/ea/ T he SAR information for this device can be found on Samsung’s website: www.samsung.com/sar 3.Insturction of E-label on the User manual (online manual)

FCC ID: A3LSMG998B Internal Photographs FCC ID: A3LSMG998B Internal Photographs FCC ID: A3LSMG998B Internal Photographs FCC ID: A3LSMG998B Internal Photographs FCC ID: A3LSMG998B Internal Photographs FCC ID: A3LSMG998B Internal Photographs

A40 PCTEST DUT: A3LSMG998B; Type: Portable Handset; Serial: 0562M Communication System: UID 0, NR Band n5; Frequency: 836.5 MHz; Duty Cycle: 1:1 Medium: 835 Body; Medium parameters used (interpolated): f = 836.5 MHz; σ = 0.95 S/m; ε r = 53.898; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 11/05/2020; Ambient Temp: 23.5°C; Tissue Temp: 23.1°C Probe: EX3DV4 - SN7570; ConvF(9.83, 9.83, 9.83) @ 836.5 MHz; Calibrated: 12/11/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1368; Calibrated: 3/12/2020 Phantom: Right Back Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1692 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: NR Band n5, Body SAR, Back Side, 20 MHz Bandwidth, DFT-s-OFDM QPSK, Ch. 167300, 50 RB, 28 RB Offset Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.782 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.121 W/kg SAR(1 g) = 0.068 W/kg A41 PCTEST DUT: A3LSMG998B; Type: Portable Handset; Serial: 0562M Communication System: UID 0, NR Band n5; Frequency: 836.5 MHz; Duty Cycle: 1:1 Medium: 835 Body; Medium parameters used (interpolated): f = 836.5 MHz; σ = 0.95 S/m; ε r = 53.898; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 11/05/2020; Ambient Temp: 23.5°C; Tissue Temp: 23.1°C Probe: EX3DV4 - SN7570; ConvF(9.83, 9.83, 9.83) @ 836.5 MHz; Calibrated: 12/11/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1368; Calibrated: 3/12/2020 Phantom: Right Back Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1692 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: NR Band n5, Body SAR, Back Side, 20 MHz Bandwidth, DFT-s-OFDM QPSK, Ch. 167300, 50 RB, 28 RB Offset Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.40 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.279 W/kg SAR(1 g) = 0.154 W/kg A42 PCTEST DUT: A3LSMG998B; Type: Portable Handset; Serial: 1615M Communication System: UID 0, NR Band n66; Frequency: 1745 MHz; Duty Cycle: 1:1 Medium: 1750 Body; Medium parameters used: f = 1745 MHz; σ = 1.506 S/m; ε r = 51.052; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 11/19/2020; Ambient Temp: 22.0°C; Tissue Temp: 23.3°C Probe: EX3DV4 - SN7357; ConvF(8.17, 8.17, 8.17) @ 1745 MHz; Calibrated: 4/21/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1407; Calibrated: 4/15/2020 Phantom: Twin-SAM V5.0 Right 30; Type: QD 000 P40 CD; Serial: 1759 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: NR Band n66, Body SAR, Back Side, 20 MHz Bandwidth, DFT-s-OFDM QPSK, Ch. 349000, 1 RB, 53 RB Offset Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.47 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.921 W/kg SAR(1 g) = 0.576 W/kg A43 PCTEST DUT: A3LSMG998B; Type: Portable Handset; Serial: 1615M Communication System: UID 0, NR Band n66; Frequency: 1745 MHz, Duty Cycle: 1:1 Medium: 1750 Body; Medium parameters used: f = 1770 MHz; σ = 1.528 S/m; ε r = 50.797; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 12/02/2020; Ambient Temp: 24.2°C; Tissue Temp: 23.4°C Probe: EX3DV4 - SN7357; ConvF(8.17, 8.17, 8.17) @ 1770 MHz; Calibrated: 4/21/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1407; Calibrated: 4/15/2020 Phantom: Twin-SAM V5.0 Right 30; Type: QD 000 P40 CD; Serial: 1759 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: NR Band n66, Body SAR, Bottom Edge, 20 MHz Bandwidth, DFT-s-OFDM QPSK, Ch. 354000, 1 RB, 53 RB Offset Area Scan (10x7x1): Measurement grid: dx=5mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.75 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.82 W/kg SAR(1 g) = 1.05 W/kg A44 PCTEST DUT: A3LSMG998B; Type: Portable Handset; Serial: 1590M Communication System: UID 0, IEEE 802.11g; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: 2450 Body; Medium parameters used (interpolated): f = 2437 MHz; σ = 2.018 S/m; ε r = 52.496; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 11/21/2020; Ambient Temp: 22.6°C; Tissue Temp: 22.0°C Probe: EX3DV4 - SN7409; ConvF(7.24, 7.24, 7.24) @ 2437 MHz; Calibrated: 6/23/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1334; Calibrated: 6/18/2020 Phantom: LeftTwin-SAM V5.0; Type: QD 000 P40 CD; Serial: TP1375 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: IEEE 802.11g, MIMO, 20 MHz Bandwidth, Body SAR, Ch 6, 6 Mbps, Back Side Area Scan (11x17x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.608 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.326 W/kg SAR(1 g) = 0.162 W/kg A45 PCTEST DUT: A3LSMG998B; Type: Portable Handset; Serial: 1615M Communication System: UID 0, 802.11b; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: 2450 Body; Medium parameters used (interpolated): f = 2462 MHz; σ = 2.033 S/m; ε r = 51.008; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 11/16/2020; Ambient Temp: 22.9°C; Tissue Temp: 23.4°C Probe: EX3DV4 - SN7308; ConvF(7.41, 7.41, 7.41) @ 2462 MHz; Calibrated: 7/31/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1450; Calibrated: 8/11/2020 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1792 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Mode: IEEE 802.11b, Antenna 1, 22 MHz Bandwidth, Body SAR, Ch 11, 1 Mbps, Back Side Area Scan (11x17x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5m…

Text truncated - open the document above for the full version.

Object: Date Issued: Page 1 of 4 D1900V2 – SN: 5d148 02/21/2020 Certification of Calibration Object D1900V2 – SN: 5d148 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Extension Calibration date: 2/21/2020 Description: SAR Validation Dipole at 1900 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Test Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Control Company 4040Therm./Clock/Humidity Monitor 6/29/2019 Biennial 6/29/2021 192291470 Control Company 4352Ultra Long Stem Thermometer 8/2/2018 Biennial 8/2/2020 181334684 Amplifier Research 15S1G6 Amplifier CBTN/A CBT433971 Narda 4772-3 Attenuator (3dB) CBTN/A CBT9406 Keysight Technologies 85033E Standard Mechanical Calibration Kit (DC to 9GHz, 3.5mm) 7/2/2019 Annual 7/2/2020 MY53401181 Rohde & Schwarz ZNLE6 Vector Network Analyzer 10/11/2019 Annual 10/11/2020 101307 Mini-Circuits BW-N20W5+ DC to 18 GHz Precision Fixed 20 dB Attenuator CBTN/A CBTN/A SPEAG DAKS-3.5 Portable DAK 9/10/2019 Annual 9/10/2020 1045 Anritsu MA2411B Pulse Power Sensor 8/14/2019 Annual 8/14/2020 1315051 Anritsu MA2411B Pulse Power Sensor 8/8/2019 Annual 8/8/2020 1339008 Anritsu ML2495A Power Meter 12/17/2019 Annual 12/17/2020 941001 Agilent N5182A MXG Vector Signal Generator 8/19/2019 Annual 8/19/2020 MY47420837 Seekonk NC-100 Torque Wrench 5/9/2018 Biennial 5/9/2020 22217 MiniCircuits ZHDC-16-63-S+Bidirectional Coupler CBTN/ACBTN/A MiniCircuits VLF-6000+ Low Pass Filter CBTN/ACBTN/A SPEAG EX3DV4 SAR Probe 9/19/2019 Annual 9/19/2020 7551 SPEAG EX3DV4 SAR Probe 7/16/2019 Annual 7/16/2020 7410 SPEAG DAE4 Dasy Data Acquisition Electronics 9/17/2019 Annual 9/17/2020 1333 SPEAG DAE4 Dasy Data Acquisition Electronics 7/11/2019 Annual 7/11/2020 1322 PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com Object: Date Issued: Page 2 of 4 D1900V2 – SN: 5d148 02/21/2020 DIPOLE CALIBRATION EXTENSION Per KDB 865664 D01, calibration intervals of up to three years may be considered for reference dipoles when it is demonstrated that the SAR target, impedance and return loss of a dipole have remained stable according to the following requirements: 1. The measured SAR does not deviate more than 10% from the target on the calibration certificate. 2. The return-loss does not deviate more than 20% from the previous measurement and meets the required 20dB minimum return-loss requirement. 3. The measurement of real or imaginary parts of impedance does not deviate more than 5Ω from the previous measurement. The following dipole was checked to pass the above 3 requirements to have 2-year calibration period from the calibration date: Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Head (1g) W/kg @ 20.0 dBm Measured Head SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Head (10g) W/kg @ 20.0 dBm Measured Head SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Head (Ohm) Real Measured Impedance Head (Ohm) Real Difference (Ohm) Real Certificate Impedance Head (Ohm) Imaginary Measured Impedance Head (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Head (dB) Measured Return Loss Head (dB) Deviation (%) PASS/FAIL 2/21/20192/21/20201.173.914.156.14%2.042.134.41%51.853.71.96.82.74.1-23.2-27.1-16.70%PASS Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Body (1g) W/kg @ 20.0 dBm Measured Body SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Body (10g) W/kg @ 20.0 dBm Measured Body SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Body (Ohm) Real Measured I mpedance Body (Ohm) Real Difference (Ohm) Real Certificate Impedance Body (Ohm) Imaginary Measured Impedance Body (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Body (dB) Measured Return Loss Body (dB) Deviation (%) PASS/FAIL 2/21/20192/21/20201.173.914.063.84%2.052.081.46%48.450.92.57.85.42.4-21.9-25.3-15.60%PASS Object: Date Issued: Page 3 of 4 D1900V2 – SN: 5d148 02/21/2020 Impedance & Return-Loss Measurement Plot for Head TSL Object: Date Issued: Page 4 of 4 D1900V2 – SN: 5d148 02/21/2020 Impedance & Return-Loss Measurement Plot for Body TSL Object: Date Issued: Page 1 of 4 D2450V2 – SN: 981 08/09/2019 Certification of Calibration Object D2450V2 – SN: 981 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Calibration date: 08/09/2019 Description: SAR Validation Dipole at 2450 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Test Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Agilent 8753ES S-Parameter Network Analyzer 10/2/2018 Annual 10/2/2019 US39170118 Agilent N5182A MXG Vector Signal Generator 6/27/2019 Annual 6/27/2020 US46240505 Amplifier Research 15S1G6 Amplifier CBTN/A CBT343972 Anritsu ML2495A Power Meter 10/21/2018 Annual 10/21/2019 941001 Anritsu MA2411B Pulse Power Sensor 10/30/2018 Annual 10/30/2019 1207470 Anritsu MA2411B Pulse Power Sensor 11/20/2018 Annual 11/20/2019 1339007 Control Company 4040Temperature / Humidity Monitor 2/28/2018 Biennial 2/28/2020 150761911 Control Company 4352Ultra Long Stem Thermometer 2/28/2018 Biennial 2/28/2020 170330160 Keysight 772D Dual Directional Coupler CBTN/A CBT MY52180215 Keysight Technologies 85033E Standard Mechanical Calibration Kit (DC to 9GHz, 3.5mm) 7/2/2019 Annual 7/2/2020 MY53401181 Mini-Circuits BW-N20W5+ DC to 18 GHz Precision Fixed 20 dB Attenuator CBTN/A CBTN/A Mini-Circuits NLP-2950+ Low Pass Filter DC to 2700 MHz CBTN/A CBTN/A Narda 4772-3 Attenuator (3dB) CBTN/A CBT9406 Pasternack PE2209-10 Bidirectional Coupler CBTN/A CBTN/A Pasternack NC-100 Torque …

Text truncated - open the document above for the full version.

FCC ID:A3LSMG998B SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 179 1M2009280154-01-R2.A3L 10/21/20 – 12/09/20 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testin g: Samsun g Electronics Co., Ltd. 10/21/20 - 12/09/20 129, Samsun g-ro, Maetan dong, Test Site/Location: Yeon gtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA G yeonggi-do, 16677, Korea Document Serial No.: 1M2009280154-01-R2. A3L FCC ID: A3LSMG998B APPLICANT: SAMSUNG ELECTRONICS CO., LTD. DUT T ype: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: SM-G998B/DS Additional Model(s) SM-G998B *SAR values represent RF exposure during MIMO operations. Note: This revised Test Report (S/N: 1M2009280154-01-R2.A3L) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Head (W/kg) 1g Body-Worn (W/kg) 1g Hotspot (W/kg) 10g Phablet (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.160.270.60N/A PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz< 0.10.230.811.58 PCEUMTS 850826.40 - 846.60 MHz0.150.260.56N/A PCEUMTS 17501712.4 - 1752.6 MHz< 0.10.581.062.08 PCEUMTS 19001852.4 - 1907.6 MHz< 0.10.471.171.88 PCELTE Band 12699.7 - 715.3 MHz0.110.190.30N/A PCELTE Band 17706.5 - 713.5 MHzN/AN/AN/AN/A PCELTE Band 13779.5 - 784.5 MHz0.130.220.48N/A PCELTE Band 26 (Cell)814.7 - 848.3 MHz0.130.240.53N/A PCELTE Band 5 (Cell)824.7 - 848.3 MHzN/AN/A0.19N/A PCELTE Band 66 (AWS)1710.7 - 1779.3 MHz0.150.721.121.98 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHzN/AN/AN/AN/A PCELTE Band 25 (PCS)1850.7 - 1914.3 MHz0.120.501.342.65 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHzN/AN/AN/AN/A PCELTE Band 412498.5 - 2687.5 MHz< 0.10.420.912.47 PCENR Band n5 (Cell)826.5 - 846.5 MHz< 0.1< 0.10.17N/A PCENR Band n66 (AWS)1712.5 - 1777.5 MHz0.110.581.092.79 DTS2.4 GHz WLAN2412 - 2472 MHz0.240.180.56N/A NIIU-NII-15180 - 5240 MHzN/AN/AN/AN/A NIIU-NII-2A5260 - 5320 MHz0.12*0.40*N/A1.07* NIIU-NII-2C5500 - 5720 MHz0.21*0.48*N/A0.63* NIIU-NII-35745 - 5825 MHz0.24*0.36*0.58*N/A DSS/DTSBluetooth2402 - 2480 MHz0.16< 0.10.18N/A 0.731.391.593.86 Equipment Class SAR Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com SAR EVALUATION REPORT FCC ID:A3LSMG998B SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 179 1M2009280154-01-R2.A3L 10/21/20 – 12/09/20 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without …

Text truncated - open the document above for the full version.
