A3LSMG998JPNPortable Handset

Quick Reference Guide (Terms and Conditions) SC-52B Read this document before operating the mobile device, accessories, or software (defined collectively and individually as the “Product”) and keep it for future reference. This document contains important Terms and Conditions. Electronic acceptance, opening the packaging, use, or retention of the Product constitutes acceptance of these Terms and Conditions. Visit www.samsung.com/us to view device information, the user manual, and more. You may incur additional charges for accessing the Internet. Basics Read me first Please read this manual before using the device to ensure safe and proper use. r
Descriptions are based on the device’s default settings. r S
ome content may differ from your device depending on the region, service provider, model specifications, or device’s software. r C
ontent (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. r
Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. r
Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. r S
oftware, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. r
You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. r
Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. r
Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. r %FQFOEJOH
PO
UIF
SFHJPO
PS
NPEFM
TPNF
EFWJDFT
BSF
SFRVJSFE
UP
SFDFJWF
BQQSPWBM
GSPN
UIF
'FEFSBM
$PNNVOJDBUJPOT
$PNNJTTJPO
'$$
*G
ZPVS
EFWJDF
JT
BQQSPWFE
CZ
UIF
'$$ r Supprted features may differ
PS
MBCFMMFE
EJGGFSFOUMZ
EFQFOEJOH
PO
XIFUIFS
ZPVS EFWJDF
JT
B
TJOHMF
PS
EVBM
4*.
.PEFM
ZPV
DBO
WJFX
UIF
'$$
*%
PG
UIF
EFWJDF
5P
WJFX
UIF
'$$
*%
UBQ
4FUUJOHT
About Phone

Status Information Device Layout To turn on the device, pr ess and hold th e Side key for a few seconds. The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card Nano- SIM cards are sold separately. Contact us Questions? Visit us.community.samsung.com Get Support Call 1.800.SAMSUNG Service locations Find a service location near you at Samsung.com/us/support/service/locations Switching made simple Whether you are coming from an iOS or Android platform, you can easily transfer your data with Smart Switch. Back up your old phone Back up your old phone using your favorite back-up app. Samsung Smart Switch 1. From your new Galaxy device, tap Settings > Accounts and backup > Smart Switch. 2. Tap Receive data. 3. Select your old device type. 4. Tap Cable (Android) or Wireless (Android and iOS) and follow the prompts to connect your phones. Customize Tap Settings to personalize your phone. Flight mode This disables all wireless functions on your device. You can use only non-network services. On the Settings screen, tap Flight mode. NOTE: The use of mobile devices on an aircraft or a ship may be subject to federal and local guidelines and restrictions. Check with appropriate author and always follow crew instructions regarding when and how you may use your device. UWB Operation in airplane mode: UWB function is disabled when a phone get into the airplane mode. Important l egal information Arbitration Agreement - This Product is subject to a binding arbi tration agreement between you and SAMSUNG ELECTRONICS AMERICA, INC. (“Samsung”). You can opt out of t he agreement within 30 calendar days of the first consumer purchase by emailing [email protected] or calling 1-800-SAMSUNG (726-7864) and providing the applicable information. The full Arbitration Agreement, Standard One-year Limited Warranty, End User License Agreement (EULA), and Health & Safety Inform ation for your device are available online: •English: www.samsung.com/us/Legal/Phone-HSGuide •Spanish: www.samsung.com/us/Legal/Phone-HSGuide-SP This information can also be found on the device in the “About device” or “About phone” or “About tablet” section, for example: •Settings > About phone or About device or About tablet > Legal information > Samsung legal •Or,Search “Legal” If your device required Federal Communications Commission (FCC) appr oval, you can view the FCC certification by opening Settings > About phone or About device or About tablet> Status Information. Health and Safety WARNING! To avoid electri c shock and damage to your device, do not charge device while it is wet or in an area where it co uld get wet. Do not handle device, c harger or cords with wet hands while charging. Maint aining dust and water resistance The device is not impervious to dust and water damage in any situation. It is important that all c ompartments are closed tightly. Follow these tips carefully to prevent damage to the device and maintain dust and water resistance performance: • Water resistant based on IP68 rating, which tests submersion in fresh water deeper than 1.5 meters or kee…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 29, 2021 FCC ID: A3LSMG998JPN To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory LLC, to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, LLC on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea 2021.01.28 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMG998JPN To whom i t may concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At t he time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find the FCC ID per CRF 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug -ins. Per CFR 2.935(e), We, Samsung have programmed the e-label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should y ou have any questions or comments concerning the above, please contact the undersigned. Sincer ely Yours, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

Date: 2021.01.28 PCTEST TCB/CB Div. of PCTEST Engineering Lab., LLC 7 185 Oakland Mills Road Columbia, MD 21046 Samsung Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon-City, Gyeonggi-do, 16677, Korea Subject: Samsung Electronics Co., Ltd. FCC ID : A3LSMG998JPN To Whom it May Concern We attest the following regarding FCC ID: A3LSMG998JPN Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, 1.MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. 2.A-MPR was disabled f or all SAR test samples for SAR testing purposes only. 3.We confirm the specific MPR targets and tolerances shown in the SAR Report. 4.LTE Rel. 14 implementation is limited. The uplink does not support carrier aggregation nor enhanced SC-FDMA. Features such as CoMP, HetNet, Relay, SON, cross carrier scheduling, Uplink MIMO, M2M/D2 are also not supported. SVLTE is not supported as described in the operational description. Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

SAMS UNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 29, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:Request of Confidentiality for FCC ID: A3LSMG998JPN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily re leased to th e public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information pri or to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 Fax : 1-973-808-6361 E-mail: [email protected]

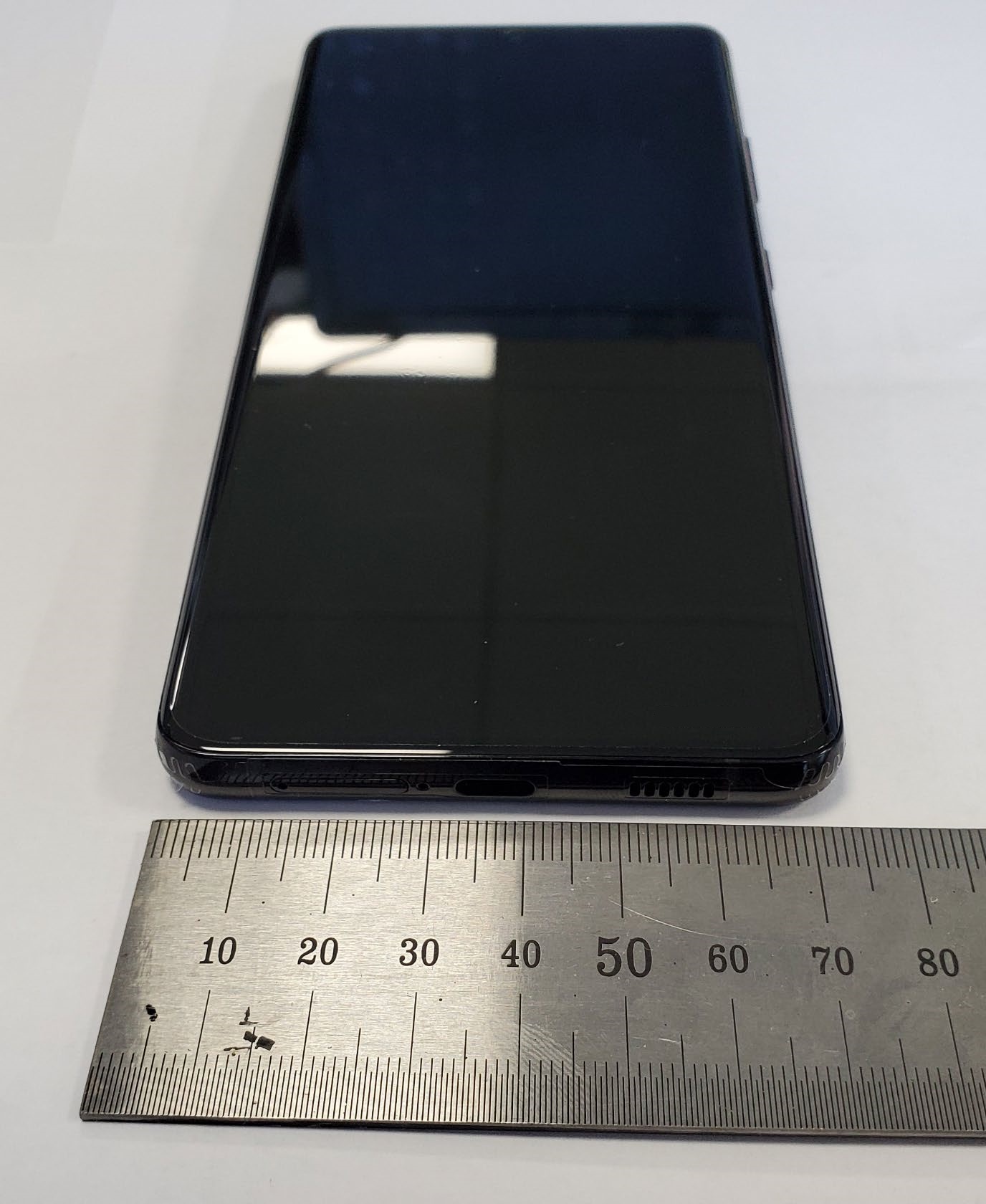

FCC ID: A3LSMG998JPN FCC ID: A3LSMG998JPN FCC ID: A3LSMG998JPN FCC ID: A3LSMG998JPN FCC ID: A3LSMG998JPN FCC ID: A3LSMG998JPN

Description of E-label on the A3LSMG998JPN Date: 2021.01.28 FCC ID: A3LSMG998JPN This model is applied E-label, please find description of E-label below. 1. FCC ID (E-label): Settings > About Phone > Status Information FCC certification FCC ID: A3LSMG998JPN <Devic e Display Screen> 2.FCC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guide lines. This device has a FCC ID number A3LSMG998JPN [Model Number: SC-52B] and the specific SAR levels for this device can be found at the following. FCC website: www.fcc.gov/oet/ea/ The SAR information for this device can be found on Samsung’s w ebsite: www.samsung.com/sar

FCC ID: A3LSMG998JPN FCC ID: A3LSMG998JPN FCC ID: A3LSMG998JPN FCC ID: A3LSMG998JPN FCC ID: A3LSMG998JPN

FCC ID: A3LSMG998JPN PART 0 SAR CHAR REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 11 1M2101110003-17.A3L 01/17/21 - 01/25/21 Portable Handset © 2021 PCTEST REV 1.0 06/01/2019 © 2020 PCTEST. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com PART 0 SAR CHAR REPORT Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 01/17/21 - 01/25/21 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 16677, Korea Document Serial No.: 1M2101110003-17.A3L FCC ID: A3LSMG998JPN APPLICANT: SAMSUNG ELECTRONICS CO., LTD Report Type: DUT Type: Part 0 SAR Characterization Portable Handset Model(s): SC-52B I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. FCC ID: A3LSMG998JPN PART 0 SAR CHAR REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 11 1M2101110003-17.A3L 01/17/21 - 01/25/21 Portable Handset © 2021 PCTEST REV 1.0 06/01/2019 © 2020 PCTEST. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST 3 1.1 Device Overview 3 1.2 Time-Averaging for SAR and Power Density 4 1.3 Nomenclature for Part 0 Report 4 1.4 Bibliography 4 2 SAR AND POWER DENSITY MEASUREMENTS 5 2.1 SAR Definition 5 2.2 SAR Measurement Procedure 5 3 SAR CHARACTERIZATION 7 3.1 DSI and SAR Determination 7 3.2 SAR Design Target 7 3.3 SAR Char 8 4 EQUIPMENT LIST 10 5 MEASUREMENT UNCERTAINTIES 11 APPENDIX A: SAR TEST RESULTS FOR P Limit CALCULATIONS 1 FCC ID: A3LSMG998JPN PART 0 SAR CHAR REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 11 1M2101110003-17.A3L 01/17/21 - 01/25/21 Portable Handset © 2021 PCTEST REV 1.0 06/01/2019 © 2020 PCTEST. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1 DEVICE UNDER TEST 1.1 Device Overview 2 This device uses the Qualcomm ® Smart Transmit feature to control and manage transmitting power in real time and to ensure the time-averaged RF exposure is in compliance with the FCC requirement at all times for 2G/3G/4G WWAN operations. Additionally, this device supports WLAN/BT/NFC technologies, but the output power of these modems is not controlled by the Smart Transmit algorithm. GSM/GPRS/EDGE 850 Voice/Data 824.20 - 848.80 MHz GSM/GPRS/EDGE 1900 Voice/Data 1850.20 - 1909.80 MHz UMTS 850 Voice/Data 826.40 - 846.60 MHz LTE Band 12 Voice/Data 699.7 - 715.3 MHz LTE Band 13 Voice/Data 779.5 - 784.5 MHz LTE Band 5 (Cell) Voice/Data 824.7 - 848.3 MHz LTE Band 4 (AWS) Voice/Data 1710.7 - 1754.3 MHz LTE Band 41 Voice/Data 2498.5 - 2687.5 MHz 2.4 GHz WLAN Voice/Data 2412 - 2472 MHz U-NII-1 Voice/Data 5180 - 5240 MHz U-NII-2A Voice/Data 5260 - 5320 MHz U-NII-2C Voice/Data 5500 - 5720 MHz U-NII-3 Voice/Data 5745 - 5825 MHz Bluetooth Data 2402 - 2480 MHz NFC Data 13.56 MHz WPT N/A 110 kHz - 148 kHz Band & Mode Operating Modes Tx Frequency FCC ID: A3LSMG998JPN PART 0 SAR CHAR REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 11 1M2101110003-17.A3L 01/17/21 - 01/25/21 Portable Handset © 2021 PCTEST REV 1.0 06/01/2019 © 2020 PCTEST. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 2.1 Time-Averaging for SAR and Power Density This device is enabled with Qualcomm ® Smart Transmit algorithm to control and manage transmitting power in real time and to ensure that the time-averaged RF exposure from 2G/3G/4G WWAN is in compliance with FCC requirements. This Part 0 report shows SAR characterization of WWAN radios for 2G/3G/4G. Characterization is achieved by determining P Limit for 2G/3G/4G that corresponds to the exposure design targets after accounting for all device design related uncertainties. The SAR characterization is denoted as SAR Char in this report. Section 1.3 includes a nomenclature of the specific terms used in this report. The compliance test under the static transmission scenario and simultaneous transmission analysis are reported in Part 1 report. 2.2 Nomenclature for Part 0 Report Technology Term Description 2G/3G/4G P limit P…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG998JPN SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 71 1M2101110003-01.A3L 01/17/21 - 01/25/21 Portable Handset © 2021 PCTEST. REV 21.4 M 09/11/2019 © 2021 PCTEST. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 01/17/21 - 01/25/21 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 16677, Korea Document Serial No.: 1M2101110003-01.A3L F C C I D : A3LS MG998JPN A P P L I C A N T : SAMS UN G ELE CT RONI CS CO., LT D. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: SC-52B Note: * SAR values represent RF exposure during MIMO operations. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.9 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Head (W/kg) 1g Body-Worn (W/kg) 1g Hotspot (W/kg) 10g Phablet (W/kg) PCE GSM/GPRS/EDGE 850 824.20 - 848.80 MHz < 0.1 0.18 0.40 N/A PCE GSM/GPRS/EDGE 1900 1850.20 - 1909.80 MHz < 0.1 0.28 0.90 1.20 PCE UMTS 850 826.40 - 846.60 MHz 0.14 0.24 0.53 N/A PCE LTE Band 12 699.7 - 715.3 MHz < 0.1 0.12 0.24 N/A PCE LTE Band 13 779.5 - 784.5 MHz 0.12 0.18 0.31 N/A PCE LTE Band 5 (Cell) 824.7 - 848.3 MHz 0.15 0.25 0.54 N/A PCE LTE Band 4 (AWS) 1710.7 - 1754.3 MHz 0.11 0.59 0.77 2.53 PCE LTE Band 41 2498.5 - 2687.5 MHz < 0.1 0.34 0.43 1.88 DTS 2.4 GHz WLAN 2412 - 2472 MHz 0.21 < 0.1 0.20 N/A NII U-NII-1 5180 - 5240 MHz N/A N/A N/A N/A NII U-NII-2A 5260 - 5320 MHz 0.27* 0.70* N/A 2.06* NII U-NII-2C 5500 - 5720 MHz < 0.1* 0.52* N/A 1.19* NII U-NII-3 5745 - 5825 MHz < 0.1* 0.58* 0.87* N/A DSS/DTS Bluetooth 2402 - 2480 MHz 0.14 < 0.1 0.19 N/A 0.65 1.40 1.59 3.51 Equipment Class SAR Simultaneous SAR per KDB 690783 D01v01r03: Band & Mode Tx Frequency PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com SAR EVALUATION REPORT FCC ID: A3LSMG998JPN SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 71 1M2101110003-01.A3L 01/17/21 - 01/25/21 Portable Handset © 2021 PCTEST. REV 21.4 M 09/11/2019 © 2021 PCTEST. All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST .................................................................................................................................3 2 LTE INFORMATION ................................................................................................................................... 14 3 INTRODUCTION ........................................................................................................................................ 15 4 DOSIMETRIC ASSESSMENT ................................................................................................................... 16 5 DEFINITION OF REFERENCE POINTS.................................................................................................... 17 6 TEST CONFIGURATION POSITIONS....................................................................................................... 18 7 RF EXPOSURE LIMITS ............................................................................................................................. 22 8 FCC MEASUREMENT PROCEDURES ..................................................................................................... 23 9 RF CONDUCTED POWERS ...................................................................................................................... 28 10 SYSTEM VERIFICATION ........................................................................................................................... 42 11 SAR DATA SUMMARY .............................................................................................................................. 46 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ...................................................................... 60 13 SAR MEASUREMENT VARIABILITY ........................................................................................................ 66 14 EQUIPMENT LIST ...................................................................................................................................... 67 15 MEASUREMENT UNCERTAINTIES................…

Text truncated - open the document above for the full version.

B15 PCTEST DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d149 Communication System: UID 0, CW; Frequency: 1900 MHz; Duty Cycle: 1:1 Medium: 1900 Body Medium parameters used: f = 1900 MHz; σ = 1.538 S/m; ε r = 53.024; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 01/24/2021; Ambient Temp: 22.1°C; Tissue Temp: 22.6°C Probe: EX3DV4 - SN7410; ConvF(7.76, 7.76, 7.76) @ 1900 MHz; Calibrated: 7/20/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/15/2020 Phantom: SAM Left; Type: QD000P40CC; Serial: TP: 1375 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) 1900 MHz System Verification at 20.0 dBm (100 mW) Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 7.14 W/kg SAR(1 g) = 3.87 W/kg; SAR(10 g) = 1.98 W/kg Deviation(1 g) = -1.78%; Deviation(10 g) = -4.35% 0 dB = 5.95 W/kg = 7.75 dBW/kg B16 PCTEST DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 719 Communication System: UID 0, CW; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: 2450 Body Medium parameters used: f = 2450 MHz; σ = 2.041 S/m; ε r = 52.916; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 01/18/2021; Ambient Temp: 23.2°C; Tissue Temp: 22.3°C Probe: EX3DV4 - SN7409; ConvF(7.24, 7.24, 7.24) @ 2450 MHz; Calibrated: 6/23/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1334; Calibrated: 6/18/2020 Phantom: LeftTwin-SAM V5.0; Type: QD 000 P40 CD; Serial: TP1375 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) 2450 MHz System Verification at 20.0 dBm (100 mW) Area Scan (8x9x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 10.2 W/kg SAR(1 g) = 4.9 W/kg Deviation(1 g) = -3.35% 0 dB = 8.25 W/kg = 9.16 dBW/kg B17 PCTEST DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 797 Communication System: UID 0, CW; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: 2450 Body Medium parameters used: f = 2450 MHz; σ = 2.015 S/m; ε r = 51.918; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 01/21/2021; Ambient Temp: 23.9°C; Tissue Temp: 22.7°C Probe: EX3DV4 - SN7308; ConvF(7.41, 7.41, 7.41) @ 2450 MHz; Calibrated: 7/31/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1450; Calibrated: 8/11/2020 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1792 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) 2450 MHz System Verification at 20.0 dBm (100 mW) Area Scan (8x9x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 10.9 W/kg SAR(1 g) = 5.1 W/kg Deviation(1 g) = 3.24% 0 dB = 8.58 W/kg = 9.33 dBW/kg B18 PCTEST DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 797 Communication System: UID 0, CW; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: 2450 Body Medium parameters used: f = 2450 MHz; σ = 2.036 S/m; ε r = 51.167; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 01/24/2021; Ambient Temp: 23.1°C; Tissue Temp: 23.1°C Probe: EX3DV4 - SN7308; ConvF(7.41, 7.41, 7.41) @ 2450 MHz; Calibrated: 7/31/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1450; Calibrated: 8/11/2020 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1792 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) 2450 MHz System Verification at 20.0 dBm (100 mW) Area Scan (8x9x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 10.6 W/kg SAR(10 g) = 2.38 W/kg Deviation(10 g) = 1.71% 0 dB = 8.48 W/kg = 9.28 dBW/kg B19 PCTEST DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 719 Communication System: UID 0, CW; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: 2450 Body Medium parameters used: f = 2450 MHz; σ = 2.043 S/m; ε r = 50.856; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 01/25/2021; Ambient Temp: 21.0°C; Tissue Temp: 22.7°C Probe: EX3DV4 - SN7409; ConvF(7.24, 7.24, 7.24) @ 2450 MHz; Calibrated: 6/23/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1334; Calibrated: 6/18/2020 Phantom: LeftTwin-SAM V5.0; Type: QD 000 P40 CD; Serial: TP1375 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) 2450 MHz System Verification at 20.0 dBm (100 mW) Area Scan (8x9x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 11.1 W/kg SAR(1 g) = 5.23 W/kg Deviation(1 g) = 3.16% 0 dB = 8.88 W/kg = 9.48 dBW/kg B20 PCTEST DUT: Dipole 2600 MHz; Type: D2600V2; Serial: 1064 Communication System: UID 0, CW; Frequency: 2600 MHz; Duty Cycle: 1:1 Medium: 2450 Body Medium parameters used: f = 2600 MHz; σ = 2.228 S/m; ε r = 51.353; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.0 cm Test Date: 01/21/2021; Ambient Temp: 23.9°C; Tissue Temp: 22.7°C Probe: EX3DV4 - SN7308; ConvF(7.37, 7.37, 7.37) @ 2600 MHz; Calibrated: 7/31/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1450; Calibrated: 8/11/2020 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1792 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) 2600 MHz System Verification at 20.0 dBm (100 mW) Area Scan (8x9x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 12.2 W/kg SAR(1 g) = 5.47 W/kg Deviation(1 g) = -1.62% 0 dB = 9.60 W/kg = 9.82 dBW/kg B21 PCTEST DUT: Dipole 2600 MHz; Type: D2600V2; Serial: 1064 Communication System: UID 0, CW; Frequency: 2600 MHz; Duty …

Text truncated - open the document above for the full version.
