A3LSMM022GMobile Phone

www.samsung.com USER MANUAL SM-M022G/ DS English. 11/2020. Rev.1.0 2 Table of Contents Basics 4 Read me first 6 Device over heating situations and solutions 9 Device layout and functions 13 Charging the battery 15 SIM or USIM card (nano-SIM card) 17 Memory card (microSD car d) 19 Turning the device on and off 20 Initial setup 20 Samsung account 21 Transferr ing data from your previous device (Smart Switch) 23 Understanding the screen 30 Notification panel 32 Entering text Apps and features 34 Installing or uninstalling apps 35 Phone 38 Contacts 40 Messages 41 Inter net 42 Camera 50 Gallery 54 Multi window 55 Samsung Notes 56 Samsung Members 56 Calendar 57 Reminder 58 Radio 59 Voice Recorder 59 My Files 59 Clock 59 Calculator 60 Game Launcher 61 Game Booster 62 Sharing content 63 Samsung Global Goals 64 Google apps Table of Contents 3 87 Digital Wellbeing and parental controls 88 Device care 88 Optimising your device 88 Battery 89 Storage 89 Memory 89 Security 90 Ultra data saving 90 Apps 90 General management 91 Accessibilit y 92 Software update 92 About phone Appendix 93 Troubleshooting 98 Removing the batter y Settings 65 Introduction 65 Connections 66 Wi-Fi 68 Bluetooth 69 NFC and payment (NFC-enabled models) 71 Data saver 71 Mobile data only apps 71 Mobile Hotspot 72 More connection settings 73 Sounds and vibration 74 Sound quality and effects 74 Notifications 75 Display 75 Wallpaper 76 Themes 76 Lock screen 77 Smart Lock 77 Biometrics and security 78 Face recognition 80 Fingerprint r ecognition 82 Privac y 83 Location 83 Accounts and back up 84 Samsung Cloud 85 Google 85 Advanced fea tures 86 Motions and gestures 86 Dual Messenger 4 Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • The device may require a connection to a Wi-Fi or mobile network when using some apps or features. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Basics 5 • Depending on the region or service provider, a screen protector is attached for protection during production and distribution. Damage to the attached screen protector is not covered by the warranty. • You can see the touchscreen clearly even in strong outdoor sunlight by automatically adjusting the contrast range based on the surrounding environment. Due to the nature of the product, displaying fixed graphics for extended periods may result in afterimages (screen burn-in) or ghosting. – It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods and turn off the touchscreen when not using the device. – You can set the touchscreen to turn off automatically when you are not using it. Launch the Settings app, tap Display → Screen timeout, and then select the length of time you want the device to wait before turning off the touchscreen. – To set the touchscreen to automatically adjust its brightness based on the surrounding environment, launch the Settings app, tap Display, and then tap the Adaptive brightness switch to activate it. • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, launch the Settings app and tap About phone → Status. If your device does not have an FCC ID, it means that the device has not been authorised for sale in the U.S. or its territories and may only be brought to the U.S. for the owner’s personal use. • The use of mobile devices on aeroplanes or ships may be subject to federal and local guidelines and restrictions. Check with the appropriate authorities and always follow crew instructions regarding when and how you may use your device. • Depending on the region, you can view the regulatory information on the device. To view the information, launch the Settings app and tap About phone → Regulatory information . Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Notice: notes, usage tips, or additional information Basics 6 Device overheating situations and solutions When the device heats up while charging the battery While …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. 19 Chapin Rd. Building D Pine Brook, NJ 07058 Date: Mar.16, 2020 FCC ID: A3LSMM022G To Whom it May Concern We attest the following regarding FCC ID: A3LSMM022G 1. MPR is permanently implemented for HSDPA, DC-HSDPA and HSUPA. 2. < Maximum power mode: WCDMA B5 HSUPA modes > HSUPA: Subtest 2/3: mostly higher than the tune up power with 3GPP MPR 3. The HSPA transmitter power will not exceed the R99 maximum transmit Power in this device. 4. We confirm the specific MPR Targets and tolerances shown in the SAR report. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, ---------------------------------------------------- Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : March 12, 2021 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID: A3LSMM022G We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE : March 12, 2021 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT: Request for Confidentiality for FCC ID : A3LSMM022G We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List 4 Schematics 5 Tune-up Procedure 6 Antenna Specification SHORT-TERM CONFIDENTIAL (180 DAYS) 7 External Photos 8 Internal Photos 9 Test-Setup Photos 10 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 1 / 7 HCT CO.,LTD. - EXTERNAL PHOTOGRAPHS FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 2 / 7 HCT CO.,LTD. 1. External Photo (Front view) FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 3 / 7 HCT CO.,LTD. 2. External Photo (Rear view) FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 4 / 7 HCT CO.,LTD. 3. External Photo (Left side view) FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 5 / 7 HCT CO.,LTD. 4. External Photo (Right side view) FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 6 / 7 HCT CO.,LTD. 5. External Photo (Top view) FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 7 / 7 HCT CO.,LTD. 6. External Photo (Bottom view)

Description of E-label on the A3LSMM022G Mar. 12, 2021 FCC ID: A3LSMM022G This model is applied E-label, please find description of E-label below. 1. FCC ID(E-label): Settings > About phone > Status FCC Certification FCC ID: A3LSMM022G <Device Display Screen> 2. Instruction of E-label on the User manual (online manual) 3. FCC ID on the Quick Start Guide SAR information on this and other model phones can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. Please use the phone FCC ID number for search, A3LSMM022G. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for a typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-cellular-telephones Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. • Be careful not to forget your unlock codes for the screen lock, accounts, and other security features. If you forget an unlock code, you will not be able to use the device if you do not reset it. Samsung is not responsible for any data loss or inconvenience caused by forgotten unlock codes. • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, tap Settings About QIPOF






• Depending on the region, you can view the regulatory information on the device. To view the information, tap Settings → About phone → Legal information.

Samsung Electronics Co., LTD. 12 9, Sa msu ng -ro , Yeongton g-gu Suwon-City, Gyeong gi-d o, 16677, Ko rea Date: Mar.12, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Label Statement FCC ID: A3LSMM022G To Whom it Ma y Concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electr onic display to find the FCC ID per CFR 2. 935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug- ins. Per CFR 2.935(e), We, Samsung have programmed the e- label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for in spection at the time of import. Shou ld you have any questions or comments concern ing the abov e, please contact the undersig ned. Sincerely, ---------------------------------------------------- Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

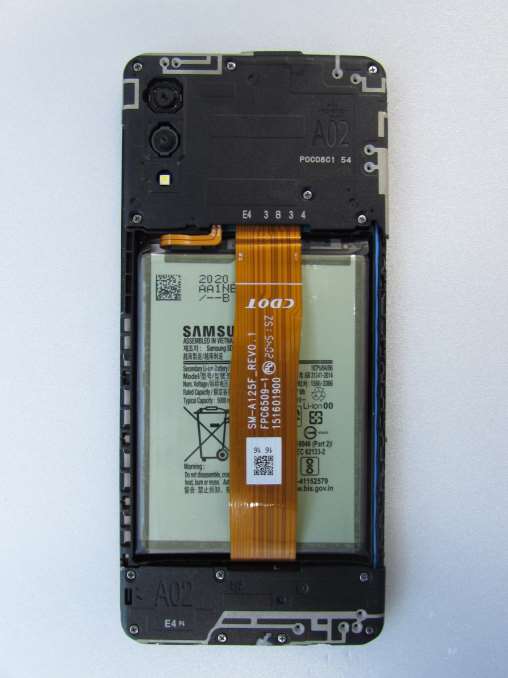

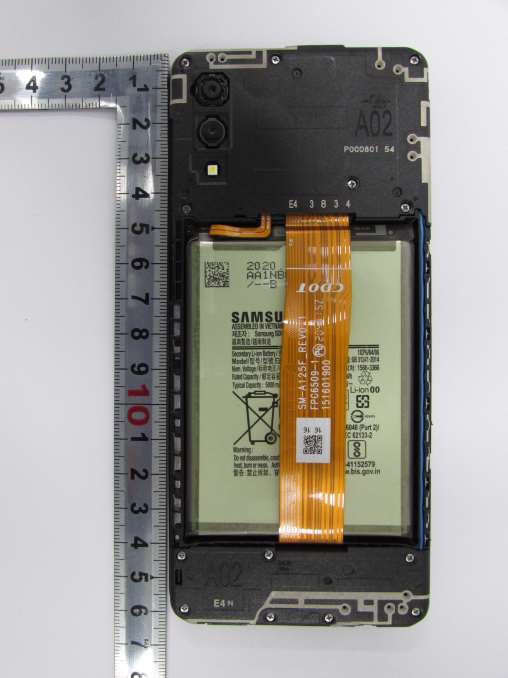

FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 1 / 15 HCT CO.,LTD. - INTERNAL PHOTOGRAPHS FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 2 / 15 HCT CO.,LTD. ■ Main / Bluetooth & WLAN Antenna Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 3 / 15 HCT CO.,LTD. 1. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 4 / 15 HCT CO.,LTD. 2. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 5 / 15 HCT CO.,LTD. 3. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 6 / 15 HCT CO.,LTD. 4. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 7 / 15 HCT CO.,LTD. 5. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 8 / 15 HCT CO.,LTD. 6. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 9 / 15 HCT CO.,LTD. 7. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 10 / 15 HCT CO.,LTD. 8. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 11 / 15 HCT CO.,LTD. 9. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 12 / 15 HCT CO.,LTD. 10. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 13 / 15 HCT CO.,LTD. 11. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 14 / 15 HCT CO.,LTD. 12. Internal Photo FCC ID: A3LSMM022G Report No. HCT-SR-2103-FC001 F-TP22-03 (Rev.00) 15 / 15 HCT CO.,LTD. 13. Internal Photo

F-TP22-03 (Rev.00) 1174 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 SAR TEST REPORT Applicant Name: SAMSUNG Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu, Suwon-Si, Gyeonggi-do, 16677 Rep. of Korea Date of Issue: Mar. 19, 2021 Test Report No.: HCT-SR-2103-FC001-R1 Test Site: HCT CO., LTD. FCC ID: Equipment Type: Mobile Phone Application Type Certification FCC Rule Part(s): CFR §2.1093 Model Name: SM-M022G/DS Date of Test: Feb. 22. 2021~ Mar. 15. 2021 This device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in FCC KDB procedures and had been tested in accordance with the measurement procedures specified in FCC KDB procedures. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By Jung-Hun, Park Test Engineer SAR Team Certification Division Reviewed By Yun-jeang, Heo Technical Manager SAR Team Certification Division This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. A3LSMM022G FCC ID: A3LSMM022G Report No: HCT-SR-2103-FC001-R1 F-TP22-03 (Rev.00) 2174 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 Mar. 17, 2021 Initial Release 1 Mar. 19, 2021 Revied page 9 This test results were applied only to the test methods required by the standard. The above Test Report is not related to the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. FCC ID: A3LSMM022G Report No: HCT-SR-2103-FC001-R1 F-TP22-03 (Rev.00) 3174 Table of Contents 1. Test Regulations ...........................................................................................................................................4 2. Test Location .................................................................................................................................................5 3. Information of the EUT .................................................................................................................................5 4. Device Under Test Description ....................................................................................................................7 5. Introduction ................................................................................................................................................ 14 6. Description of test equipment .................................................................................................................. 15 7. SAR Measurement Procedure .................................................................................................................. 16 8. Description of Test Position ..................................................................................................................... 18 9. RF Exposure Limits ................................................................................................................................... 23 10. FCC SAR General Measurement Procedures ....................................................................................... 24 11. Output Power Specifications .................................................................................................................. 31 12. System Verification ................................................................................................................................. 49 13. SAR Test Data Summary ......................................................................................................................... 51 14. Simultaneous SAR Analysis ................................................................................................................... 63 15. SAR Measurement Variability and Uncertainty .................................................................................... 65 16. SAR Test Equipment ............................................................................................................................... 67 17. Conclusion ............................................................................................................................................... 68 18. References ............................................................................................................................................... 69 Appendix A. – SAR Test Plots ...................................................................................................................... 71 Appendix B. – Dipole Verification Plots ...................................................................................................... 94 Appendix C. – SAR Tissue Characterization ............................................................................................ 102 Appendix D. – SAR Tissue Characterization ............................................................................................ 103 Appendix E. – Probe Calibration Data ....................................................................................................... 104 Appendix F. – Dipole Calibration Data ....................................................................................................... 149 Appendix G. – Power reduction verification ............................................................................................. 169 FCC ID: A3LSMM022G Report No: HCT-SR-2103-FC001-R1 F-TP22-03 (Rev.00) 4174 1. Test Regulations The tests documented in this report were performed in accordance with FCC CFR § 2.1093,…

Text truncated - open the document above for the full version.

FCC ID: A3LSMM022G Report No: HCT-SR-2103-FC001-R1 F-TP22-03 (Rev.00) 71174 Appendix A. – SAR Test Plots FCC ID: A3LSMM022G Report No: HCT-SR-2103-FC001-R1 F-TP22-03 (Rev.00) 72174 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 22.2°C Ambient Temperature: 22.4°C Test Date: 02/22/2021 Plot No.: 1 DUT: SM-M022GDS; Type: Bar; Communication System: UID 0, GSM 850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.891 S/m; ε r = 41.875; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: • Probe: EX3DV4 - SN3903; ConvF(9.61, 9.61, 9.61) @ 836.6 MHz; Calibrated: 2020-03-25 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn869; Calibrated: 2020-09-28 • Phantom: SAM_Right • Measurement SW: DASY52, Version 52.10 (4) GSM850 Head Right Touch 190ch/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.213 W/kg GSM850 Head Right Touch 190ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.754 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.232 W/kg SAR(1 g) = 0.178 W/kg; SAR(10 g) = 0.134 W/kg Maximum value of SAR (measured) = 0.213 W/kg 0 dB = 0.213 W/kg = -6.72 dBW/kg FCC ID: A3LSMM022G Report No: HCT-SR-2103-FC001-R1 F-TP22-03 (Rev.00) 73174 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 22.2°C Ambient Temperature: 22.4°C Test Date: 02/22/2021 Plot No.: 2 DUT: SM-M022GDS; Type: Bar; Communication System: UID 0, UMTS850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.891 S/m; ε r = 41.875; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: • Probe: EX3DV4 - SN3903; ConvF(9.61, 9.61, 9.61) @ 836.6 MHz; Calibrated: 2020-03-25 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn869; Calibrated: 2020-09-28 • Phantom: SAM_Right • Measurement SW: DASY52, Version 52.10 (4) UMTS5 Head Right Touch 4183ch/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.263 W/kg UMTS5 Head Right Touch 4183ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.453 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.287 W/kg SAR(1 g) = 0.223 W/kg; SAR(10 g) = 0.169 W/kg Maximum value of SAR (measured) = 0.265 W/kg 0 dB = 0.265 W/kg = -5.77 dBW/kg FCC ID: A3LSMM022G Report No: HCT-SR-2103-FC001-R1 F-TP22-03 (Rev.00) 74174 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 20.9°C Ambient Temperature: 21.1°C Test Date: 03/02/2021 Plot No.: 3 DUT: SM-M022GDS; Type: Bar; Communication System: UID 0, LTE Band 5 (0); Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.5 MHz; σ = 0.89 S/m; ε r = 41.894; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: • Probe: EX3DV4 - SN3903; ConvF(9.61, 9.61, 9.61) @ 836.5 MHz; Calibrated: 2020-03-25 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn869; Calibrated: 2020-09-28 • Phantom: SAM_Right • Measurement SW: DASY52, Version 52.10 (4) LTE 5 Head Right Touch QPSK 10MHz 1RB 24offset 20525ch/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.272 W/kg LTE 5 Head Right Touch QPSK 10MHz 1RB 24offset 20525ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.620 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.295 W/kg SAR(1 g) = 0.227 W/kg; SAR(10 g) = 0.170 W/kg Maximum value of SAR (measured) = 0.271 W/kg 0 dB = 0.271 W/kg = -5.67 dBW/kg FCC ID: A3LSMM022G Report No: HCT-SR-2103-FC001-R1 F-TP22-03 (Rev.00) 75174 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 18.2°C Ambient Temperature: 18.4°C Test Date: 03/03/2021 Plot No.: 4 DUT: SM-M022GDS; Type: Bar; Communication System: UID 0, LTE Band 41 (FCC) (0); Frequency: 2593 MHz;Duty Cycle: 1:1.58052 Medium parameters used (interpolated): f = 2593 MHz; σ = 1.994 S/m; ε r = 40.216; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: • Probe: EX3DV4 - SN3903; ConvF(7.49, 7.49, 7.49) @ 2593 MHz; Calibrated: 20-03-25 • Sensor-Surface: 1.4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn869; Calibrated: 20-09-28 • Phantom: Twin-SAM V8.0 (Left) • Measurement SW: DASY52, Version 52.10 (4) LTE Band 41 Head Right Touch QPSK 20MHz 1RB 49offset 40620ch/Area Scan (10x16x1): Measurement grid: dx=12mm, dy=12mm Maximu…

Text truncated - open the document above for the full version.
