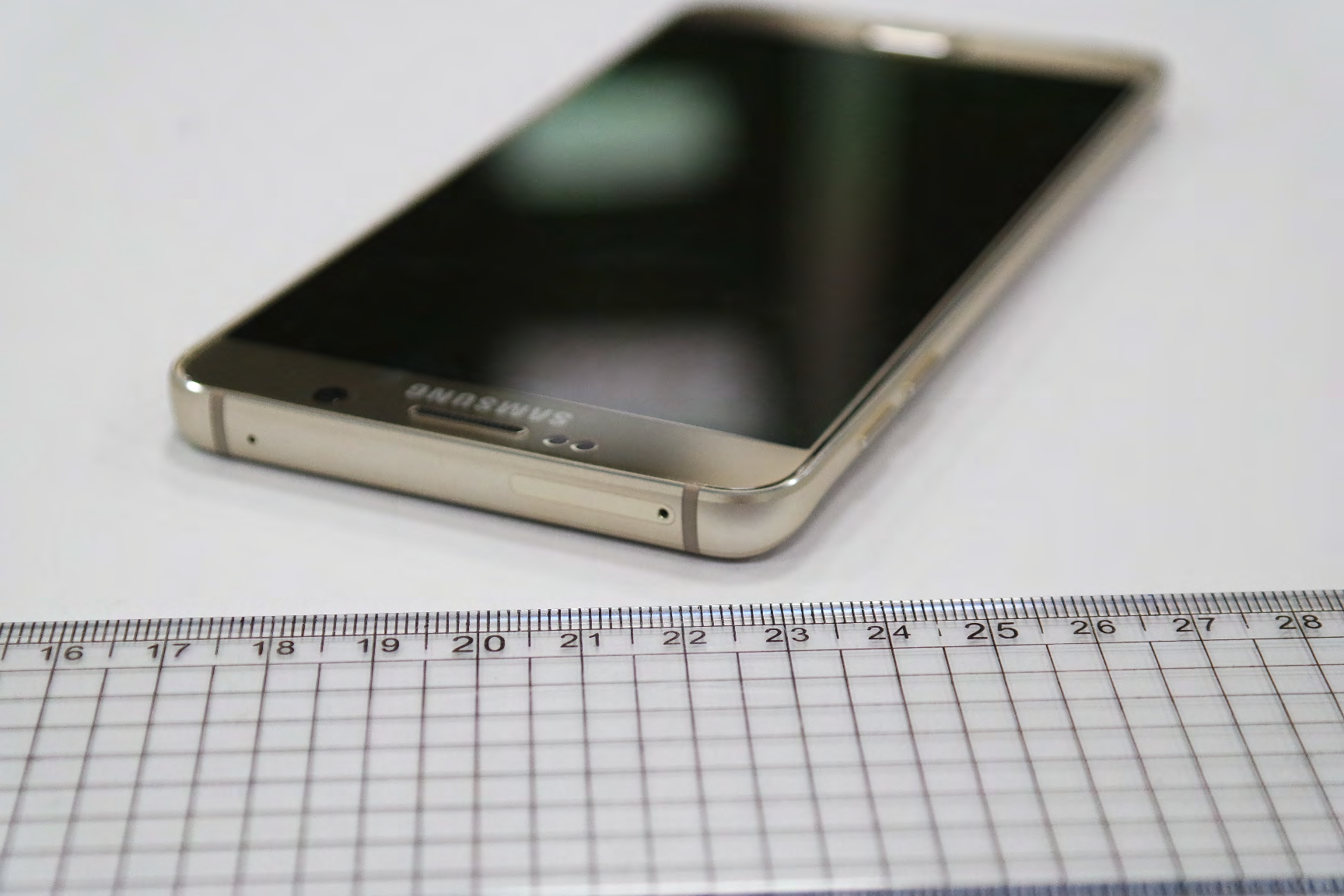

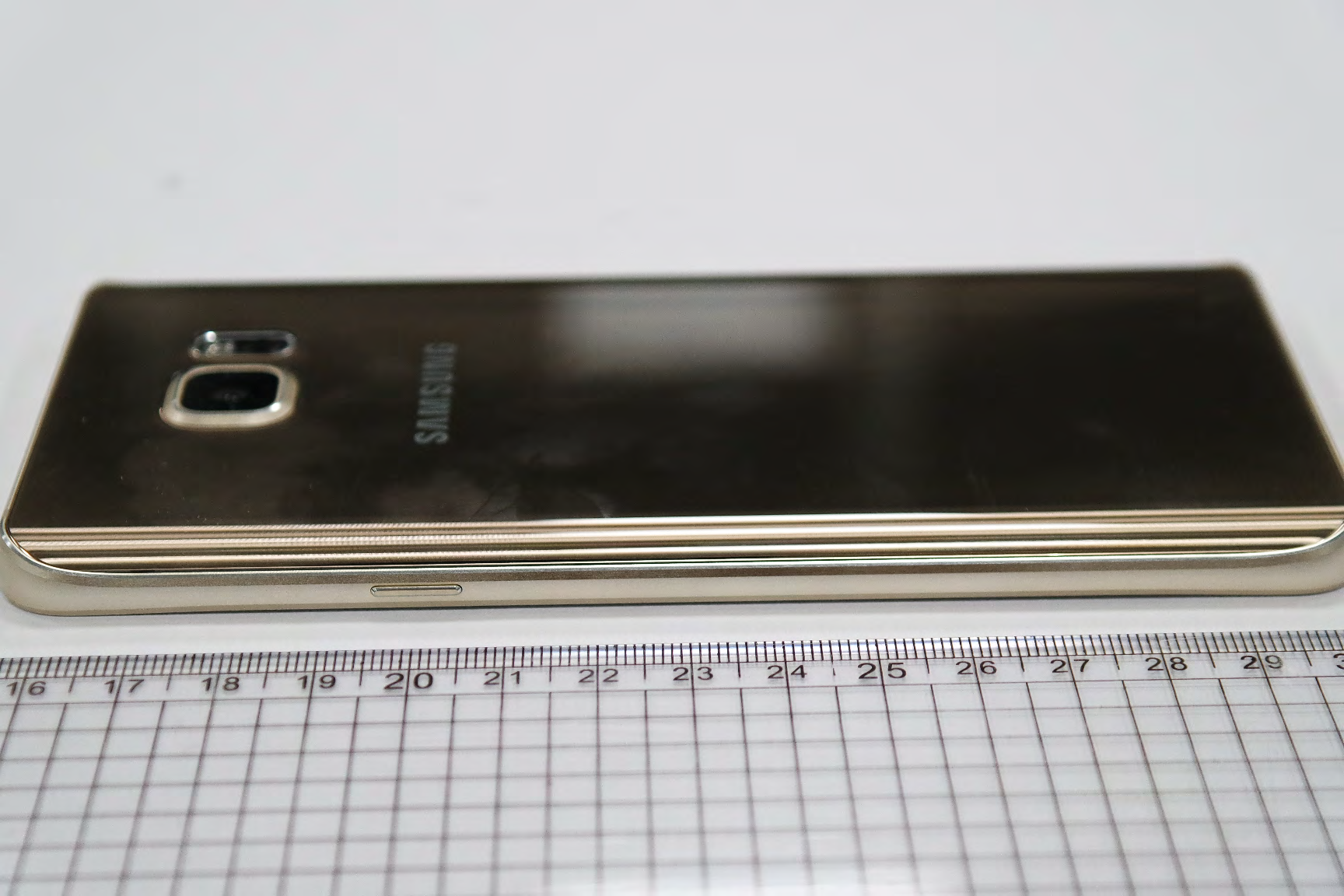

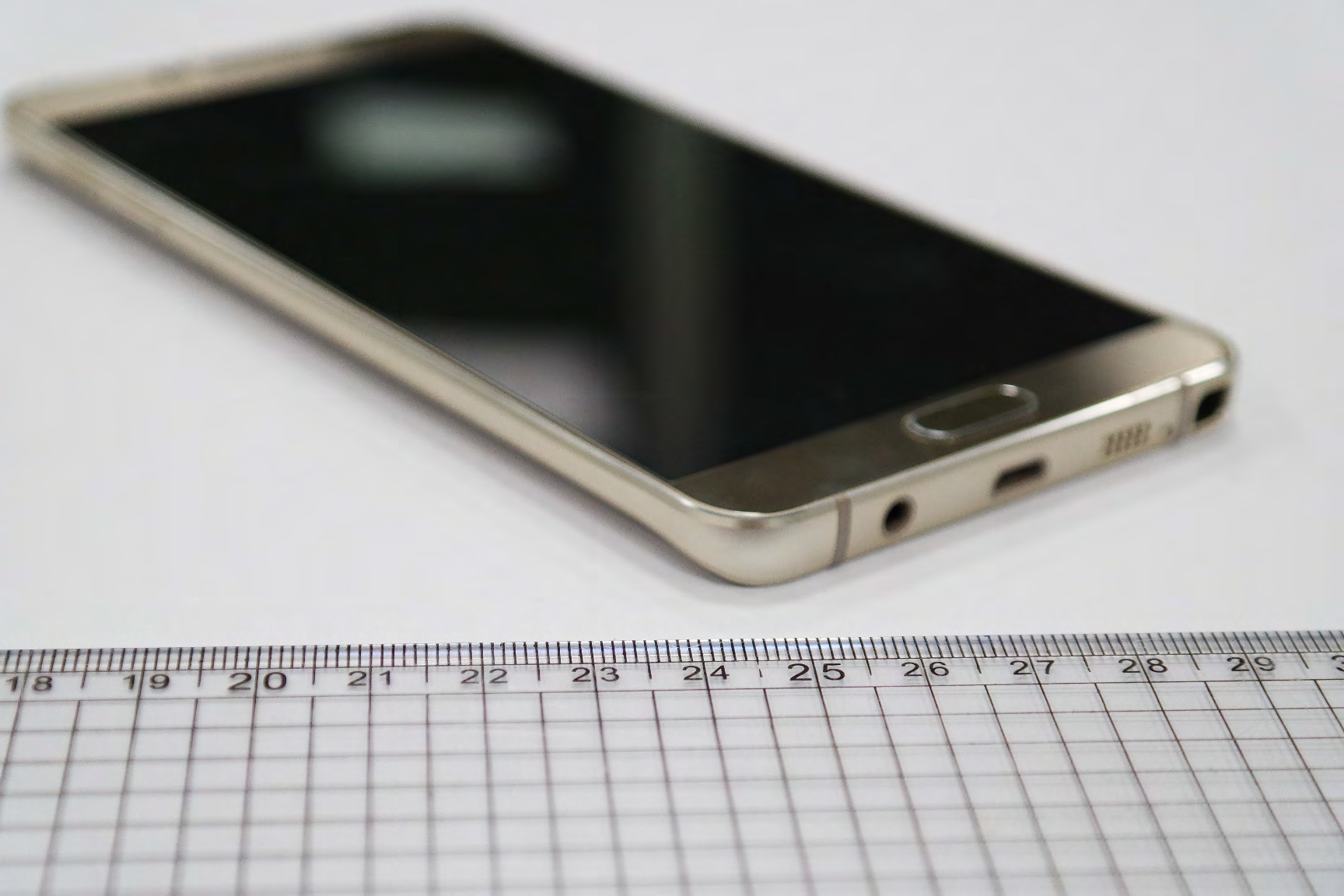

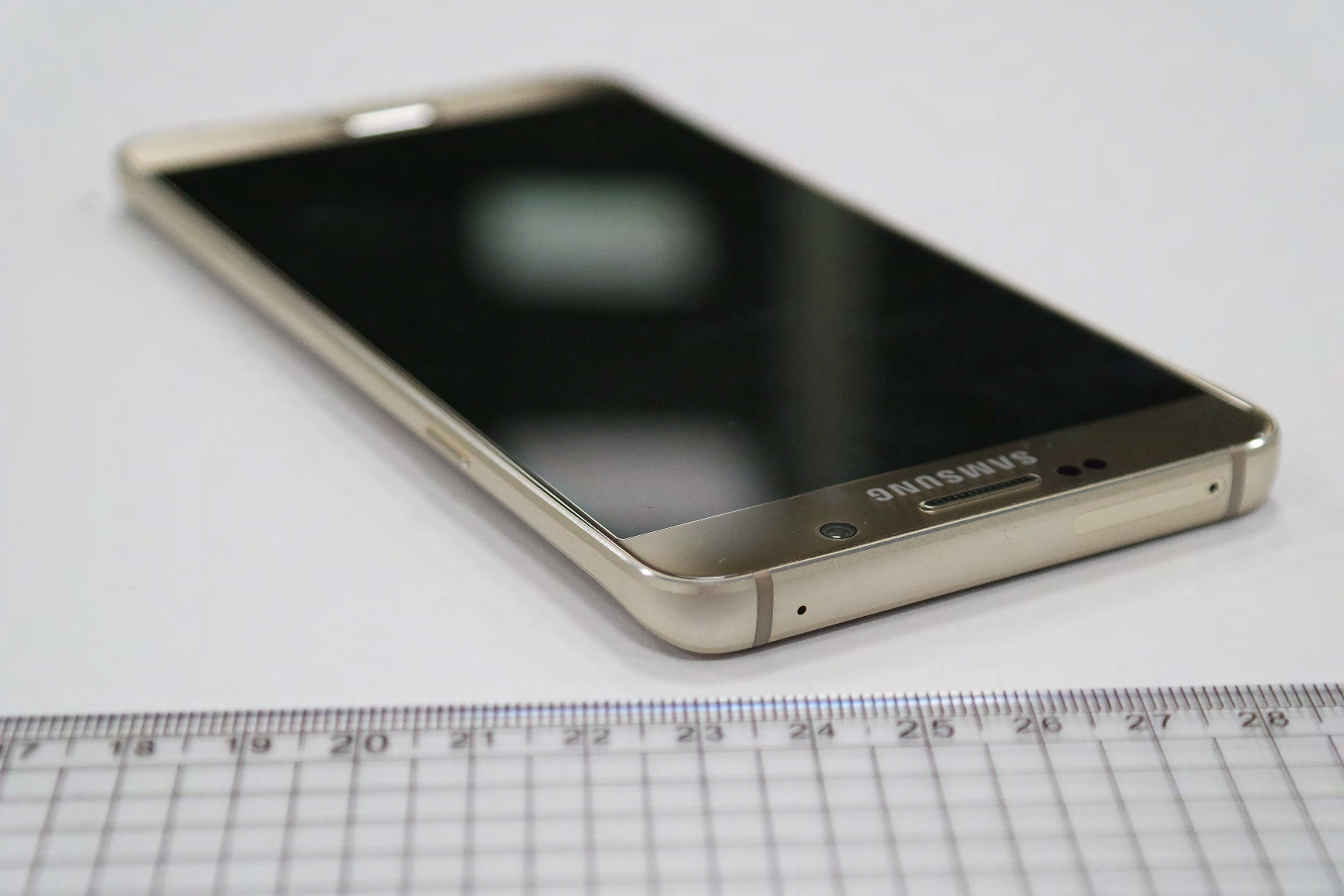

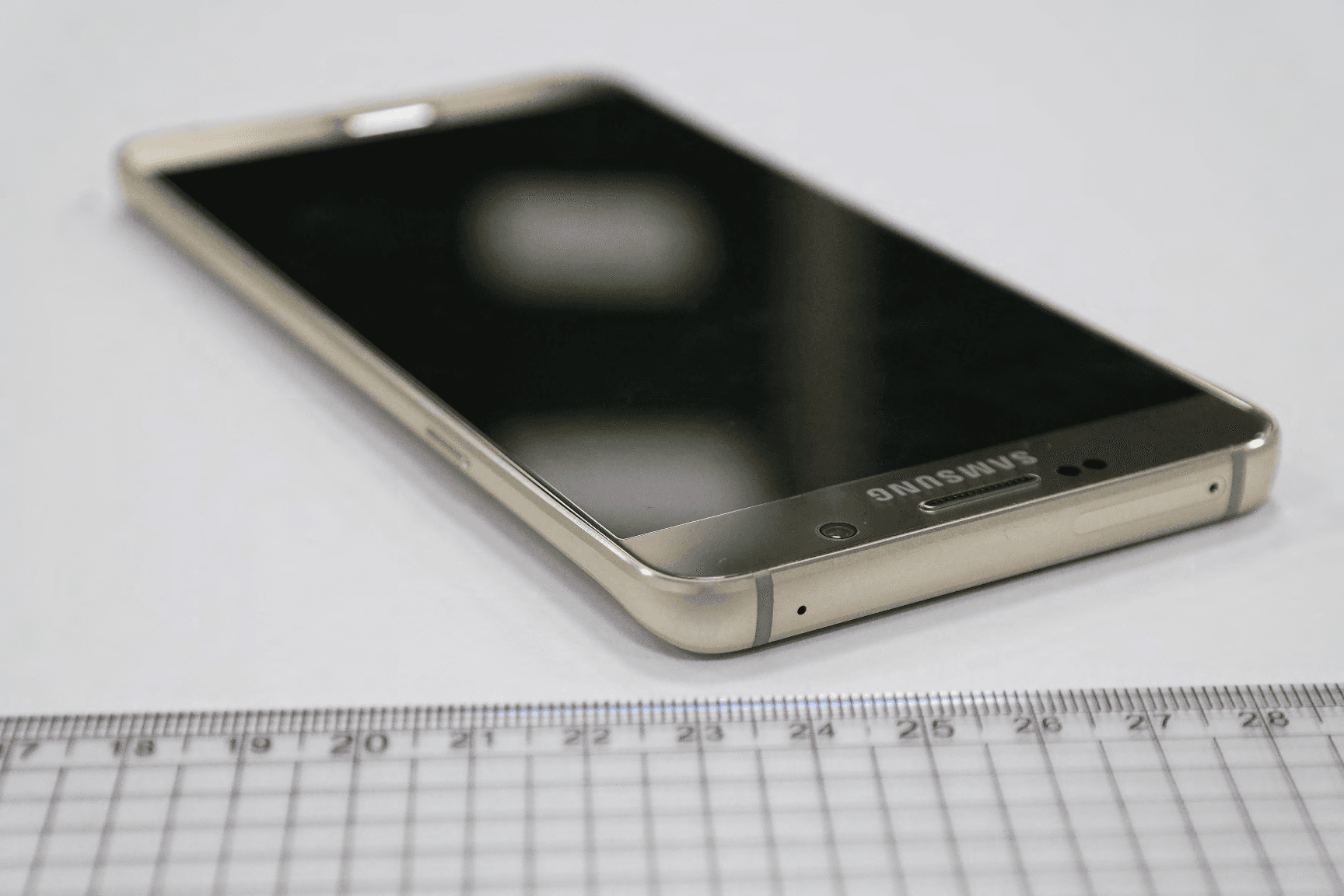

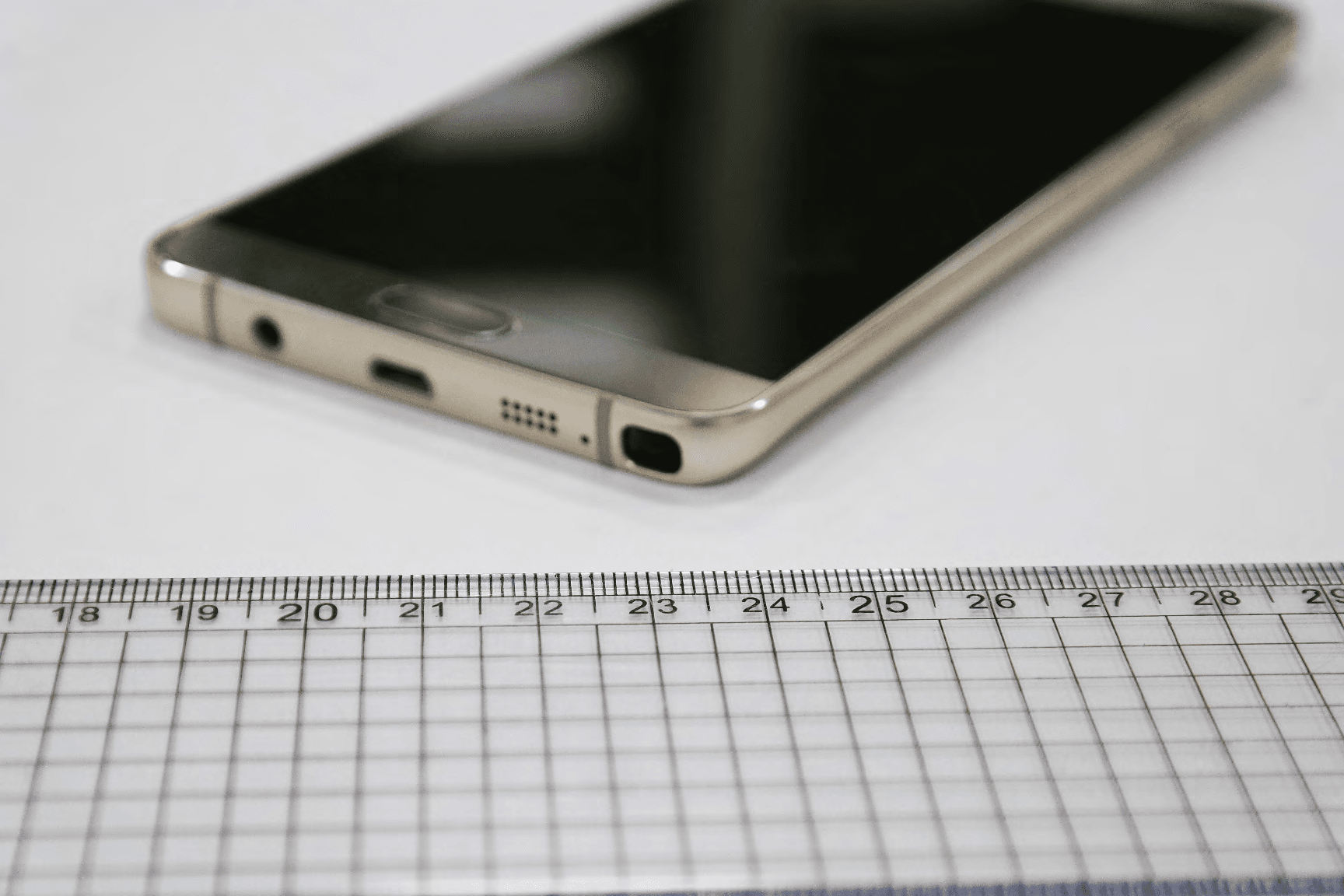

A3LSMN920FMulti-band GSM/EDGE/UMTS/LTE Phone with WLAN, Bluetooth, RFID, and ANT+

www.samsung.com User Manual English (EU). 01/2015. Rev.1.0 'UaIW 0anXaO 7KH 0anXaO LV SUHOLPLnaU\ and VRPH IHaWXUHV dLVFXVVHd Pa\ nRW EH aSSOLFaEOH RU FRPSOHWH and aUH nRW ILnaO LH 0RdHO 1aPHV and ,WHPV VXFK aV EaWWHU\ 6,0 &aUd 6RIWNH\ dLVFXVVLRn HWF SM-N920F DRAFT, Not FINAL 2 Table of Contents Basics 4 Read me first 5 Package contents 6 Device layout 8 SIM or USIM card 11 Battery 15 Turning the device on and off 16 Touchscreen 19 Home screen 25 Lock screen 27 Notification panel 30 Entering text 33 Screen capture 33 Opening apps 34 Multi window 38 Device and data management 44 Connecting to a TV 46 Emergency mode Settings 47 Introduction 47 Wi-Fi 49 Bluetooth 51 Tethering and Mobile hotspot 52 Flight mode 52 Data usage 53 Mobile networks 53 More 58 Sound and notification 58 Display 59 Motions & gestures 59 Applications 60 Wallpaper 60 Themes 60 Lock screen & security 65 Privacy & safety 68 Easy mode 68 Accessibility 69 Accounts 70 Backup and reset 70 Language and input 71 Battery 71 Storage 72 Date and time 72 User manual 72 About device Applications 73 Installing or uninstalling apps 74 Phone 77 Contacts 79 Messages 80 Internet 81 Email DRAFT, Not FINAL Table of Contents 3 82 Camera 98 Gallery 99 Smart Manager 100 S Planner 102 S Health 105 S Voice 106 Music 107 Video 107 Voice Recorder 110 My Files 110 Memo 111 Clock 112 Calculator 113 Google apps 115 Microsoft apps Appendix 116 Accessibility 131 Troubleshooting 136 Removing the battery (non-removable type) DRAFT, Not FINAL 4 Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. DRAFT, Not FINAL Basics 5 • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, tap Apps → Settings → About device. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Notice: notes, usage tips, or additional information Package contents Check the product box for the following items: • Device • Quick start guide • The items supplied with the device and any available accessories may vary depending on the region or service provider. • The supplied items are designed only for this device and may not be compatible with other devices. • Appearances and specifications are subject to change without prior notice. • You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. • Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty. • Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. DRAFT, Not FINAL Basics 6 Device layout Microphone Microphone Loud speaker Back key Multipurpose jack Front camera Speaker Power key Touchscreen Recents key Headset jack Home key (Fingerprint recognition sensor) LED indicator Proximity/Light sensor SIM card tray Main antenna Infrared port Flash Volume key NFC antenna/Wireless charging coil Rear camera Microphone GPS antenna DRAFT, Not FINAL Basics 7 • Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. • Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction. • Do not allow water to contact the touchscreen. The touchscreen may malfunction in humid conditions or when exposed to water. Keys KeyFunction Power • Press and hold to turn the device on or off. • Press to turn on or lock the screen. Recents • Tap to open the list of recent apps. • Tap and hold to launch the split screen view. Home • Press to turn on the screen while the screen is locked. • Press to return to the Home screen. • Press and hold to launch Google. Back • Tap to return to the previous screen. Volume • Press to adjust t…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 26, 2015 FCC ID: A3LSMN920F To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea June 25, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per 2.925(d). The FCC ID will be readily legible without the aid of magnification according to 2.925(a). The literature in the package describes how to access the electronic display to find the FCC ID per 2.925(e) and FCC KDB 784748. The user will be able to access this information within a maximum of 3 steps. We, Samsung have programmed the e-label and it is not able to be modified by any third party. The FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, SUBJECT : Label Statement FCC ID : A3LSMN920F We hereby provide the following attestations according to CFR 2.925 and FCC KDB 784748 D02: CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 26, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMN920F To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

Description of E-label on the A3LSMN920F June 25, 2015 FCC ID: A3LSMN920F This model is applied E-label, please find description of E-label below. 1. FCC ID(E-label): Apps > Settings > About device FCC Certification FCC ID: A3LSMN920F <Device Display Screen> 2. Instruction of E-label on the User manual (online manual) 3. FCC ID on the Quick Start Guide SAR information on this and other model phones can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. Please use the phone FCC ID number for search, A3LSMN920F. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for a typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-cellular-telephones

FCC ID: A3LSMN920F SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 67 0Y1506041016.A3L 06/03/15 - 06/11/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.0 M 06/12/2015 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/03/15 - 06/11/15 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1506041016.A3L FCC ID: A3LSMN920F APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-N920F 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) 10 gm Extremity (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.160.470.51< 0.1 PCEUMTS 850826.40 - 846.60 MHz0.160.480.48< 0.1 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz< 0.10.570.70< 0.1 PCEUMTS 19001852.4 - 1907.6 MHz< 0.10.770.77< 0.1 PCELTE Band 12699.7 - 715.3 MHz< 0.1< 0.1< 0.1< 0.1 PCELTE Band 17706.5 - 713.5 MHz0.000.000.00 PCELTE Band 26 (Cell)814.7 - 848.3 MHz0.150.460.46< 0.1 PCELTE Band 5 (Cell)824.7 - 848.3 MHz0.160.730.73 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHz0.121.011.01< 0.1 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHz< 0.10.811.05< 0.1 DTS2.4 GHz WLAN2412-2472 MHz0.65< 0.1< 0.1< 0.1 NIIU-NII-15180 - 5240 MHz< 0.1< 0.1-1.00< 0.1 NIIU-NII-2A5260 - 5320 MHz0.720.12-1.000.28 NIIU-NII-2C5500 - 5720 MHz0.70< 0.1-1.000.34 NIIU-NII-35745 - 5825 MHz0.54< 0.1< 0.1< 0.1 DSS/DTSBluetooth2402 - 2480 MHz 1.531.281.150.59 Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: SAR N/A This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMN920F SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 67 0Y1506041016.A3L 06/03/15 - 06/11/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.0 M 06/12/2015 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................9 3 INTRODUCTION ........................................................................................................................... 10 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 11 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 13 7 RF EXPOSURE LIMITS ................................................................................................................ 16 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 17 9 RF CONDUCTED POWERS ......................................................................................................... 23 10 SYSTEM VERIFICATION .............................................................................................................. 41 11 SAR DATA SUMMARY ................................................................................................................. 44 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 55 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 61 14 EQUIPMENT LIST ......................................................................................................................... 62 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 63 16 CONCLUSION ............................................................................................................................... 65 17 REFERENCES .............................................................................................................................. 66 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: DUT ANTENNA DIAGRAM & SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMN920F SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 67 0Y1506041016.A3L 06/03/15 - 06/11/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.0 M 06/12/2015 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Ban…

Text truncated - open the document above for the full version.

FCC ID: A3LSMN920F FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 36 0Y1506041022.A3L 6/4 - 6/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.7 06/01/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 6/4 - 6/30/2015 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1506041022.A3L FCC ID: A3LSMN920F APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model: SM-N920F EUT Type: Portable Handset Max. RF Output Power: 3.802 mW (5.80 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r03, KDB 648474 D03 v01r02 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r03. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: A3LSMN920F FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 36 0Y1506041022.A3L 6/4 - 6/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.7 06/01/2015 T A B L E O F C O N T E N T S FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 3.4 ENVIRONMENTAL CONDITIONS ................................................................................................................. 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – BLUETOOTH (LE) ......................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – BLUETOOTH (LE) .......................................................................... 14 6.4 POWER SPECTRAL DENSITY – BLUETOOTH (LE) .................................................................................. 17 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 20 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 22 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 27 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 32 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 34 7.0 CONCLUSION .......................................................................................................................................36 FCC ID: A3LSMN920F FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT…

Text truncated - open the document above for the full version.

FCC ID: A3LSMN920F FCC Pt. 15.247 802.11b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 90 0Y1506041019.A3L-R1 6/4 - 6/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.7 06/01/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 6/4 - 6/30/2015 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1506041019.A3L-R1 FCC ID: A3LSMN920F APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SM-N920F EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r03, KDB 662911 v02r01, KDB 648474 D03 v01r02 802.11b2412 - 247256.10517.49108.89320.3755.33517.43115.61120.63 802.11g2412 - 247224.15513.83120.22620.8025.11914.00117.49020.70 802.11n2412 - 247219.01112.79104.47220.1918.49312.6797.49919.8937.50315.74201.97123.05 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Max. Power (mW) ANT1ANT2MIMO N/A Max. Power (dBm) Mode Tx Frequency (MHz) Avg ConductedPeak ConductedAvg ConductedPeak ConductedAvg ConductedPeak Conducted Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r03. Test results reported herein relate only to the item(s) tested. This revised Test Report (S/N: 0Y1506041019.A3L-R1) supersedes and replaces the previously issued test report (S/N: 0Y1506041019.A3L) on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Warning – Copyrighted Material PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.247 WLAN 802.11b/g/n FCC ID: A3LSMN920F FCC Pt. 15.247 802.11b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 90 0Y1506041019.A3L-R1 6/4 - 6/30/2015 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. V 2.7 06/01/2015 T A B L E O F C O N T E N T S FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ........................................................................................................................................ 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ........................................................................................................................ 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 6 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 6 3.0 DESCRIPTION OF TEST ........................................................................................................................... 7 3.1 EVALUATION PROCEDURE ......................................................................................................................... 7 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 7 3.3 RADIATED EMISSIONS ................................................................................................................................ 8 3.4 ENVIRONMENTAL CONDITIONS ................................................................................................................. 8 4.0 ANTENNA REQUIREMENTS..................................................................................................................... 9 5.0 TEST EQUIPMENT CALIBRATION DATA ..............................................................................................10 6.0 TEST RESULTS .......................................................................................................................................11 6.1 SUMMARY ................................................................................................................................................... 11 6.2 6DB BANDWIDTH MEASUREMENT ........................................................................................................... 12 6.3 OUTPUT POWER MEASUREMENT ........................................................................................................... 23 6.4 POWER SPECTRAL DENSITY ................................................................................................................... 26 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE .........................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMN920F SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 10 06/03/15 - 06/11/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.0 M 06/12/2015 APPENDIX F: DUT ANTENNA DIAGRAM & S AR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMN920F SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 10 06/03/15 - 06/11/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.0 M 06/12/2015 Note: Exact antenna dimensions and separation distances are shown in the Technical Descriptions in the FCC Filing. FRONT VIEW ①WLAN Ant. 1 (Tx/Rx) 2.4 GHz WIFI & BT 5 GHz WIFI ANT+ ②WLAN Ant. 2 (Tx/Rx) 2.4 GHz & 5GHz WIFI ③Main Ant. 1 (Tx/Rx ) GSM/GPRS/EDGE 850/1900 MHz UMTS B2/5 LTE 12/17/5/26/4/2 ④Sub Ant. 2 (Rx Only) GPS UMTS B2 LTE B4/2 ⑤Main Ant 2 (Tx/Rx) Non-US Bands ⑥Sub Ant. 1 (Rx Only) UMTS B5 LTE 12/17/5/26 152 mm 76 mm TOP LEFT BOTTOM RIGHT ① ② ③ ④ ⑤ ⑥ Figure F-1 DUT Antenna Locations FRONT VIEW NFC Antenna MST Antenna TOP BOTTOM RIGHT LEFT 152 mm 76 mm Figure F-2 NFC Antenna Locations FCC ID: A3LSMN920F SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 10 06/03/15 - 06/11/15 Portable Handset © 2015 PCTEST Engineering Laboratory, Inc. REV 16.0 M 06/12/2015 SAR Test Setup Photo 1 - Right Cheek SAR Test Setup Photo 2– Right Tilt FCC ID: A3LSMN920F SAR EVALUATION REPORT Reviewed by: Quality Manager Test…

Text truncated - open the document above for the full version.
