A3LSMN980FMobile Phone

www.samsung.com USER MANUAL English. 08/2020. Rev.1.0 C1 C1/DS C1_5G C1_5G/DS C2 C2/DS C2_5G C2_5G/DS 2 Table of Contents Key features Basics 5 Read me first 8 Device overheating situations and solutions 11 Device layout and functions 16 Charging the battery 20 Nano-SIM card and eSIM 22 Memory card (microSD card) (C2_5G, C2) 24 Turning the device on and off 25 Initial setup 26 Samsung account 27 Transferring data from your previous device (Smart Switch) 29 Understanding the screen 37 Notification panel 40 Screen capture and screen rec ord 41 Entering tex t Apps and features 44 Installing or uninstalling apps 45 S Pen 59 Phone 62 Contacts 64 Messages 65 Internet 66 Camera 81 Gallery 85 AR Zone 89 Bixby 91 Bixby Vision 92 Bixby Routines 94 Multi window 96 Samsung Daily 97 Samsung Pay 99 Samsung Health 100 Samsung Notes 103 Samsung Members 103 Samsung Galaxy 104 PENUP 104 Galaxy Wearable 104 Calendar 105 Reminder 106 Voice Recorder 107 My Files 107 Clock 107 Calculator 108 Game Launcher 109 Game Booster 110 Samsung Kids 110 SmartThings 111 Sharing content 113 Music Share 114 Smart View Table of Contents 3 148 Privacy 149 Location 149 Accounts and backup 150 Samsung Cloud 151 Google 151 Advanced featur es 152 Motions and gestures 153 Dual Messenger 153 Digital Wellbeing and parental controls 154 Device care 154 Optimising your device 154 Battery 155 Storage 155 Memory 155 Security 156 Apps 156 General management 157 Accessibility 157 Software upda te 158 Tips and user manual 158 About phone Appendix 159 Accessibility 176 Troubleshooting 181 Removing the battery 115 Samsung DeX 120 Link to Windows 121 Samsung Global Goals 121 Google apps Settings 122 Introduction 122 Connections 123 Wi-Fi 125 Bluetooth 126 NFC and payment 127 Data saver 128 Mobile data only apps 128 Mobile Hotspot 129 More connection settings 130 Sounds and vibration 130 Sound quality and effects 131 Separate app sound 131 Notifications 132 Display 133 Motion smoothness (C2_5G, C2) 133 Changing the screen mode or adjusting the display colour 134 Wallpaper 134 Themes 135 Lock screen 135 Smart Lock 136 Always On Display 137 Biometrics and security 138 Face recognition 140 Fingerprint rec ognition 143 Samsung Pass 145 Secure Folder 147 Secure Wi-Fi 4 Key features Key features S pen Use a variety of features with the more precise S pen. Refer to S Pen for more information. Samsung Notes Enjoy more convenient note writing and editing. Refer to Samsung Notes for more information. Camera Take high-resolution, high-quality photos or videos. You can also take professional-level videos in pro video mode. Refer to Camera for more information. xCloud Enjoy high-quality gaming on your mobile device with the xCloud service. Samsung DeX Experience multitasking on a large screen with the Samsung DeX wireless connection. Refer to Samsung DeX for more information. Link to Windows Connect your smartphone to a computer and get a seamless experience. Refer to Link to Windows for more information. 5 Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • The device may require a connection to a Wi-Fi or mobile network when using some apps or features. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Basics 6 • Depending on the region or service provider, a screen protector is attached for protection during production and distribution. Damage to the attached screen protector is not covered by the warranty. • You can see the touchscreen clearly even in strong outdoor sunlight by automatically adjusting the contrast range based on the surrounding environment. Due to the nature of the product, displaying fixed graphics for extended periods may result in afterimages (screen burn-in) or ghosting. – It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods and turn off the touchscreen when not using the device. – You can set the touchscreen to turn off automatically when you are not using it. Launch the Settings app, tap Display → Screen timeout, and then select the length of time you want the device to wait before turning off the touchscreen. – To set the touchscreen to automatically adjust its brightness based on the surrounding environ…

Text truncated - open the document above for the full version.

SM-N980F/DS SM-N980F Package content • Device • USB cable • Ejection pin • USB power adaptor • Quick start guide •The items supplied with the device may vary by region. • Visit www.samsung.com to view device information, the user manual, and more. You may incur additional charges for accessing the Internet. To tur n on the device, press and hold the Side key for a few seconds. The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card Insert the ejection pin into the hole next to the tray to loosen the tray. Gently press the card into the tray to secure it. Nano-SIM cards are sold separately. Correct disposal This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste. Safety information Read all safety information before using the device to ensure safe and proper use. You can view more safety information in the safety information menu of the Settings app. Warning Follow the warnings below to prevent incidents, such as fires or explosions, injuries, or damage to the device • Do not expose the device to physical impact or damage. • Use only Samsung-approved batteries, chargers, and cables specifically designed for your device. • Prevent the multipurpose jack and battery terminals from coming into contact with foreign materials such as metal, liquids, or dust. • If any part of the device, such as the glass or acrylic body, is broken, smokes, or emits a burning odor, stop using the device immediately. Use the device again only after it has been repaired at a Samsung Service Centre. • Do not turn on or use the device when the battery compartment is exposed. • Do not disassemble or reuse the battery. • Do not allow children or animals to chew or suck the device. • The device can be used in locations with an ambient temperature of 0 °C to 35 °C. You can store the device at an ambient temperature of -20 °C to 50 °C. Using or storing the device outside of the recommended temperature ranges may damage the device or reduce the battery’s lifespan. • Do not use your device in a hot environment or near fire. • Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle. Specific Absorption Rate (SAR) certification information THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES Your mobi le is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. The guidelines were developed by an independent scientific organisation (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2.0 W/kg. The highest SAR values under the ICNIRP guidelines for this device model are: SAR values for European countries: The SAR values below are only for devices developed for use in European countries. Maximum SAR for this model and conditions under which it was recorded Head SAR X.XXX W/kg Body-worn SAR X.XXX W/kg Body-worn SAR testing has been carried out at a separation distance of 0.5 cm. To meet RF exposure guidelines during body-worn operation, the device should be positioned at least this distance away from the body. For SAR values for all other countries: For SAR values specific to your model, visit www.samsung.com/sar and search for your region and device with the model number. The us e of WLAN band is restricted to indoor use only. This restriction will be applied in all countries below. If your device is frozen and unresponsive, press and hold the Side key and the Volume Down key simultaneously for more than 7 seconds to restart it. • For i nformation on Samsung’s environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit samsung.com/uk/aboutsamsung/samsungelec tronics/corporatecitizenship/data_corner.html • It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods. Doing so may result in afterimages (screen burn-in) or ghosting. To prevent possible hearing damage when using a headset, do not listen to sound at high volume for long periods. Declara tion of Conformity Samsung declares that this device complies with the essential requirements and relevant provisions of Directive 2014/53/EU. Go to www.samsung.com/mobile_doc to view the Declaration of Conformity. Some con tent may differ from your device depending on the region, service provider, or software version, and is subject to change without prior notice. Copyright © 2020 Samsung Electronics Co., Ltd. Specific Absorption Rate (SAR) Certification Information Your device is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for Radio Frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. The se FCC RF exposure limits are derived from the recommendations of two expert organizations: the National Council on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy. The RF exposure limit set by the FCC for wireless mobile devices employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC SAR limit incorp…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: June 23, 2020 FCC ID: A3LSMN980F To whom it may concern: We, the undersigned, hereby authorize HCT Co., LTD to act on our behalf in all ma tters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by HCT Co., LTD on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Ms. Jenni Chun General Manager Samsung Electronics CO. LTD TEL: 1-973-808-6375 E-mail: [email protected]

June 23, 20 20 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: A3LSMN980F Request for Confidentiality To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Ms. Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics CO. LTD TEL: +1-973-808-6375 E-mail: [email protected]

Date: June 25, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Office of Engineering and Technology HAC Attestation - FCC ID: A3LSMN980F To whom it may concern: Samsung Electronics Co. Ltd., hereby declares that the MIF values detailed below are based on worst case operating modes for all air interfaces for which the HAC rating is provided based on the current methodology for determining MIF values. Reference Test report Number(s): SPEAG test files UID Communication System Name MIF (dB) 10021-DAC GSM-FDD (TDMA, GMSK) 3.63 10460-AAA UMTS-FDD (WCDMA,AMR) -25.43 10170-CAE LTE-FDD (SC-FDMA, 1 RB, 20 MHz, 16QAM) -9.76 10182-CAE LTE-FDD (SC-FDMA, 1 RB, 15 MHz, 16QAM) -9.76 10176-CAG LTE-FDD (SC-FDMA, 1 RB, 10 MHz, 16QAM) -9.76 10173-CAG LTE-TDD (SC-FDMA, 1 RB, 10 MHz, 16QAM) -1.44 10061-CAB IEEE 802.11b WiFi 2.4 GHz (DSSS, 11 Mbps) -2.02 10077-CAB IEEE 802.11g WiFi 2.4 GHz (DSSS/OFDM, 54 Mbps) 0.12 10591-AAB IEEE 802.11n (HT Mixed, 20MHz, MCS0, 90pc duty cycle) -5.59 10069-CAC IEEE 802.11a/n WiFi 5 GHz (OFDM, 54 Mbps) -3.15 10616-AAB IEEE 802.11ac WiFi (40MHz, MCS0, 90pc duty cycle) -5.57 10671-AAA IEEE 802.11ax (20MHz, MCS0, 90pc duty cycle) -5.58 10030-CAA IEEE 802.15.1 Bluetooth (GFSK, DH1) 1.02 Sincerely, ---------------------------------------------------- Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

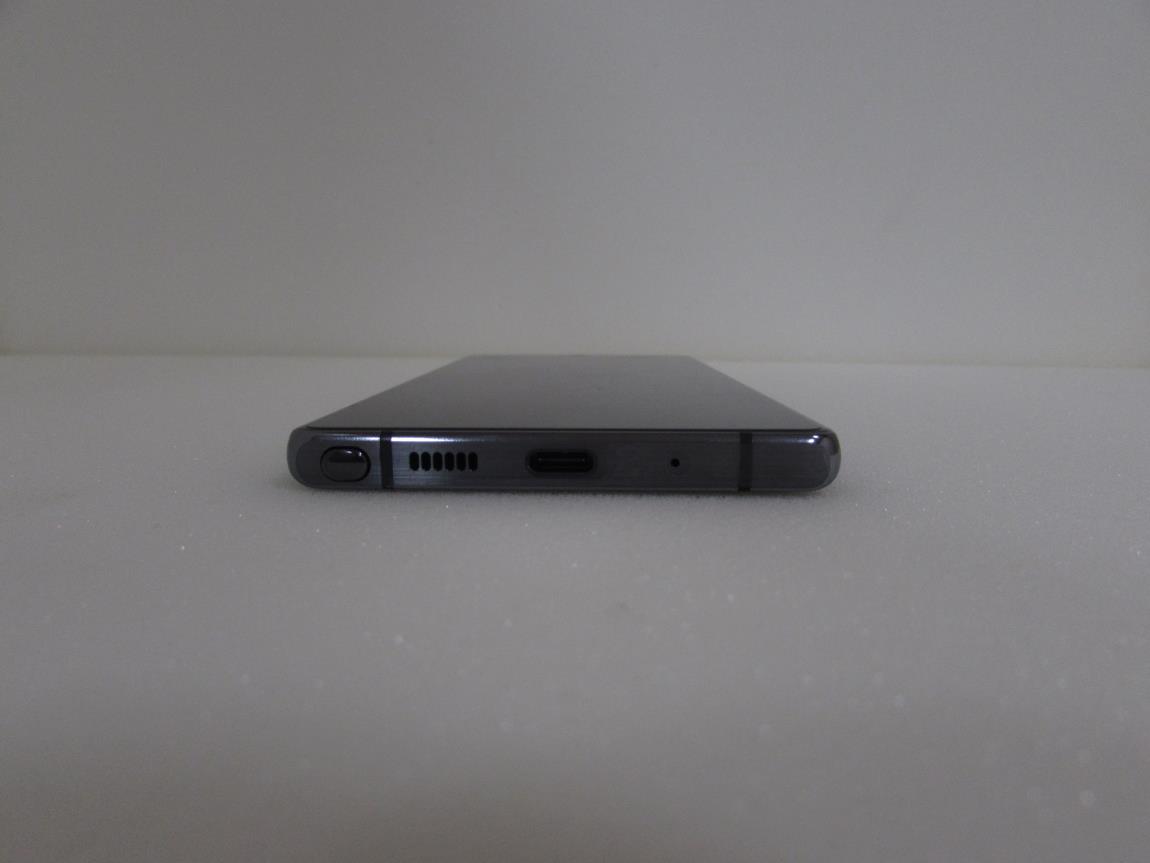

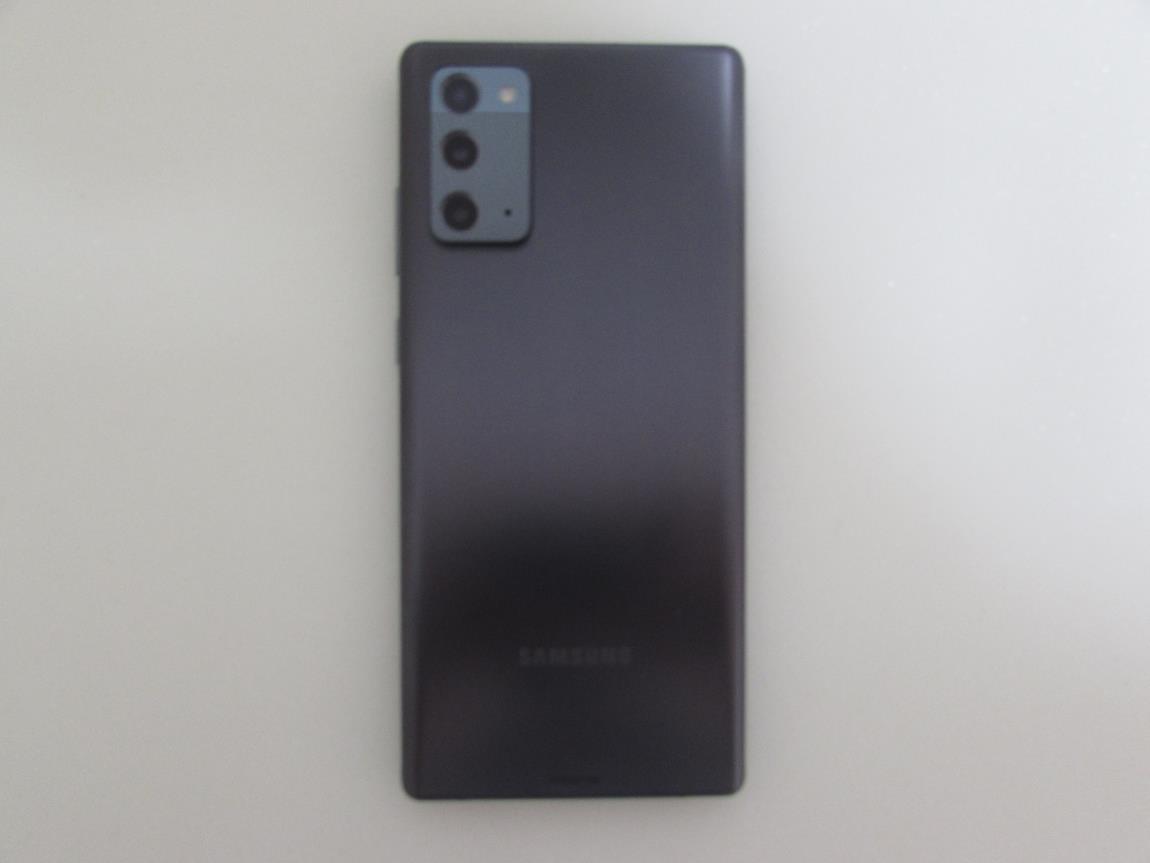

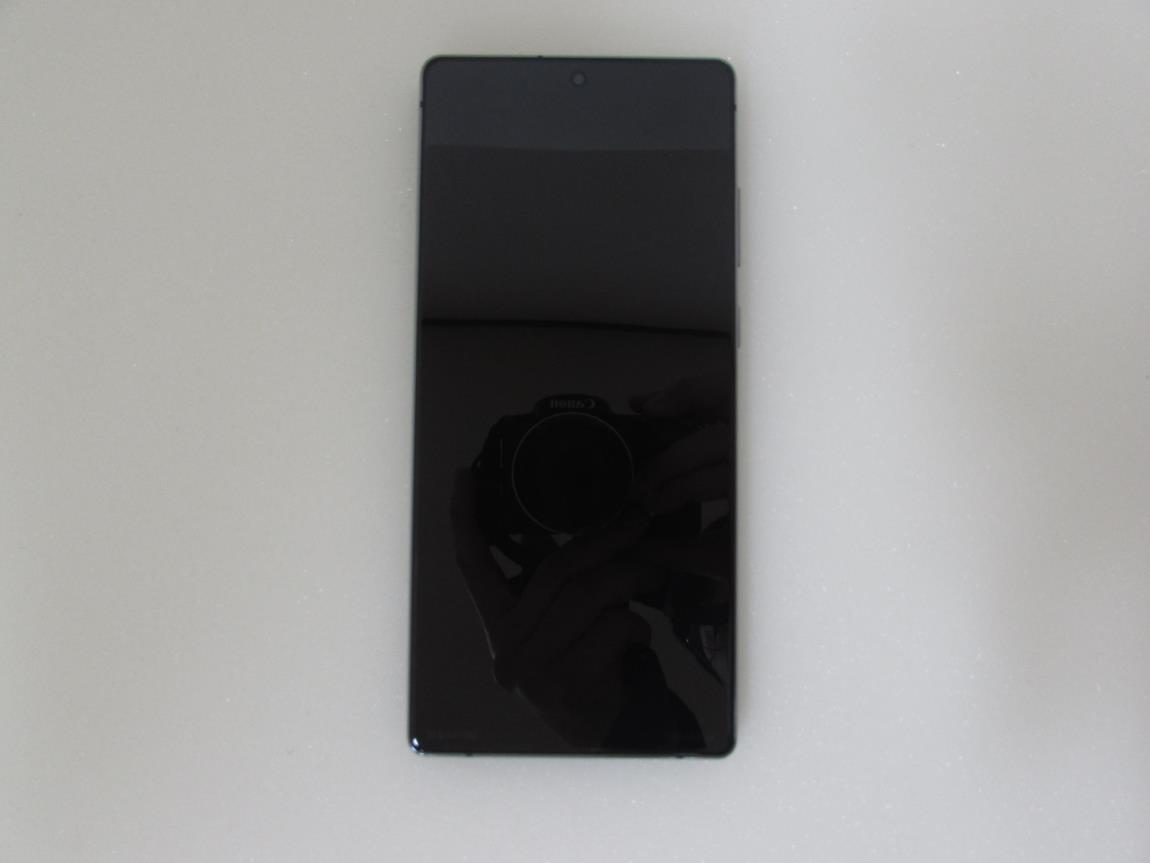

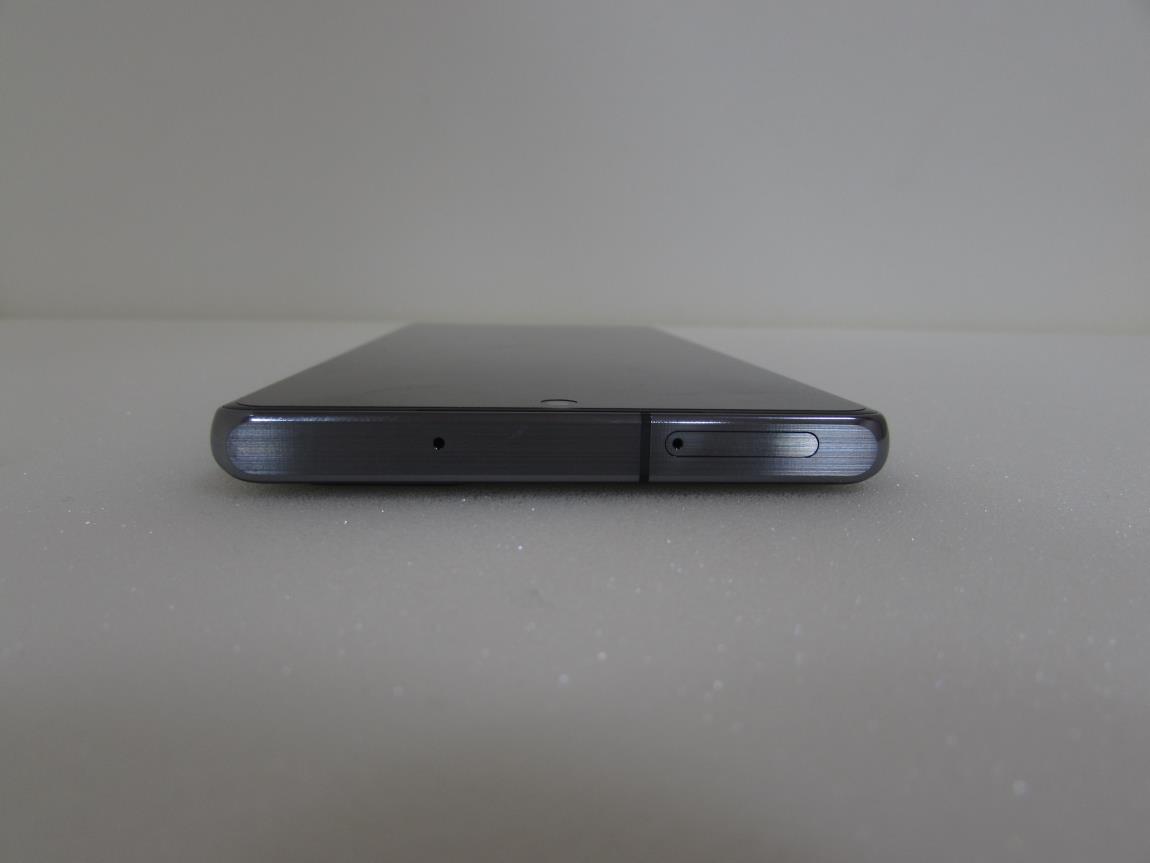

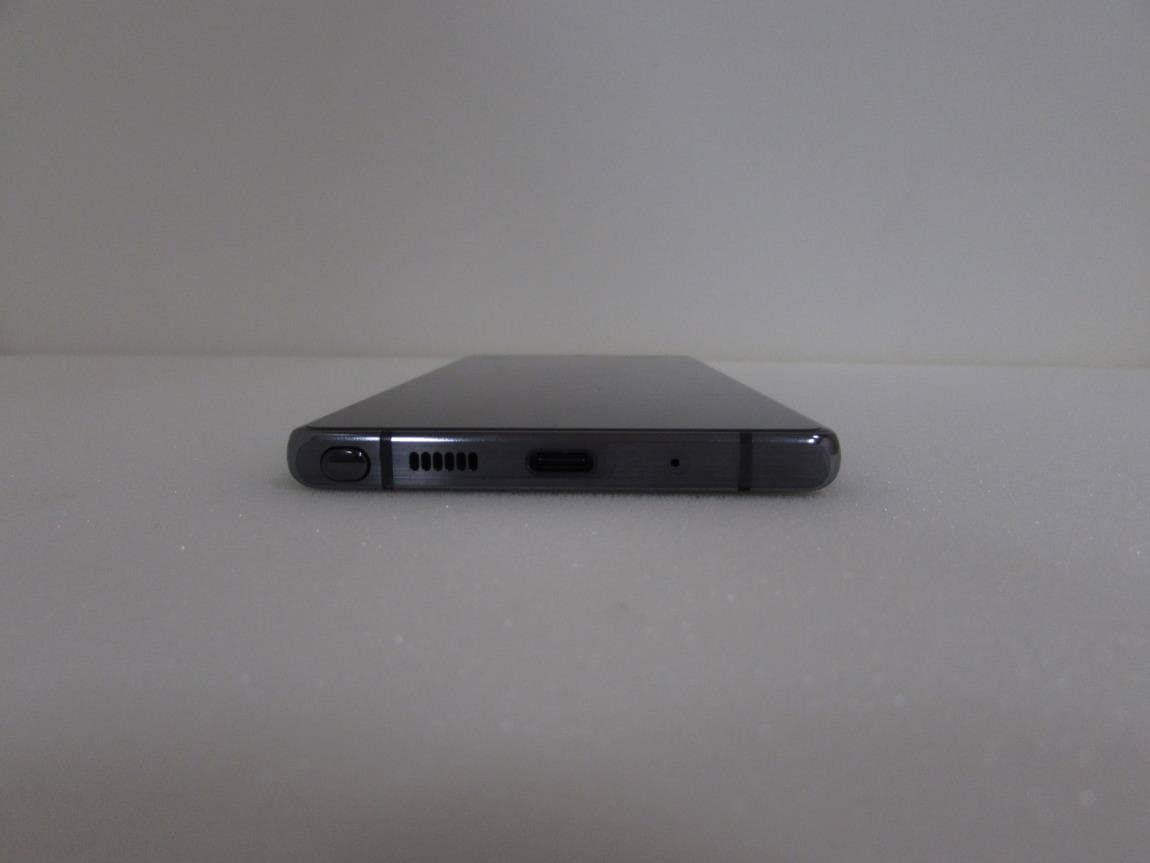

FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 1 / 7 HCT CO.,LTD. EXTERNAL PHOTOGRAPHS FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 2 / 7 HCT CO.,LTD. 1. External Photo (Front view) FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 3 / 7 HCT CO.,LTD. 2. External Photo (Rear view) FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 4 / 7 HCT CO.,LTD. 3. External Photo (Left side view) FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 5 / 7 HCT CO.,LTD. 4. External Photo (Right side view) FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 6 / 7 HCT CO.,LTD. 5. External Photo (Top view) FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 7 / 7 HCT CO.,LTD. 6. External Photo (Bottom view)

SAMSUNG CONFIDENTIAL Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 16677, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 E-label Attestation Letter - FCC ID : A3LSMN980F - Model : SM-N980F/DS, SM-N980F To Whom It May Concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find FCC ID per CFR 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung Electronics Co., Ltd., have programmed the e-label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Ms. Jenni Chun General Manager Regulatory & Environmental Affairs Samsung Electronics Co., Ltd. TEL : +1-973-808-6375 E-mail : [email protected]

SAMSUNG CONFIDENTIAL Description of E-label and Location - FCC ID : A3LSMN980F - Model : SM-N980F/DS, SM-N980F This model is applied E-label, please find description of E-label below. 1. FCC ID(E-label): Setting -> About Phone -> Status FCC certification FCC ID: A3LSMN980F <Device Display Screen> 2. Instruction of E-label on the User manual (online manual) 3. FCC ID on the Quick Start Guide SAR information on this and other model phones can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. Please use the phone FCC ID number for search, A3LSMN980F. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for a typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-cellular-telephones.

FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 1 / 15 HCT CO.,LTD. - INTERNAL PHOTOGRAPHS FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 2 / 15 HCT CO.,LTD. ■ Main / Bluetooth & WLAN Antenna Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 3 / 15 HCT CO.,LTD. 1. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 4 / 15 HCT CO.,LTD. 2. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 5 / 15 HCT CO.,LTD. 3. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 6 / 15 HCT CO.,LTD. 4. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 7 / 15 HCT CO.,LTD. 5. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 8 / 15 HCT CO.,LTD. 6. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 9 / 15 HCT CO.,LTD. 7. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 10 / 15 HCT CO.,LTD. 8. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 11 / 15 HCT CO.,LTD. 9. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 12 / 15 HCT CO.,LTD. 10. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 13 / 15 HCT CO.,LTD. 11. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 14 / 15 HCT CO.,LTD. 12. Internal Photo FCC ID: A3LSMN980F F-TP22-03 (Rev.00) 15 / 15 HCT CO.,LTD. 13. Internal Photo

FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023-R1 F-TP22-03 (Rev.00) Page 275 of 360 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 21.5 °C Ambient Temperature: 21.7 °C Test Date: 06/16/2020 Plot No.: 9 DUT: SM-N980FDS; Type: Bar Communication System: UID 0, LTE Band 13 (0); Frequency: 782 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 782 MHz; σ = 0.927 S/m; ε r = 41.563; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7370; ConvF(10.27, 10.27, 10.27) @ 782 MHz; Calibrated: 2019-08-29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn868; Calibrated: 9/4/2019  Phantom: SAM with CRP v5.0_2020_06_09  Measurement SW: DASY52, Version 52.10 (4); LTE band 13 Head Left Touch QPSK 10MHz 1RB 49offset 23230ch/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.114 W/kg LTE band 13 Head Left Touch QPSK 10MHz 1RB 49offset 23230ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.773 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.122 W/kg SAR(1 g) = 0.094 W/kg; SAR(10 g) = 0.073 W/kg Maximum value of SAR (measured) = 0.112 W/kg 0 dB = 0.112 W/kg = -9.51 dBW/kg FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023-R1 F-TP22-03 (Rev.00) Page 276 of 360 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 20.8 °C Ambient Temperature: 21.1 °C Test Date: 06/11/2020 Plot No.: 10 DUT: SM-N980FDS; Type: Bar Communication System: UID 0, LTE Band 25 (0); Frequency: 1882.5 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1882.5 MHz; σ = 1.385 S/m; ε r = 39.22; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN3797; ConvF(7.75, 7.75, 7.75) @ 1882.5 MHz; Calibrated: 2019-11-28  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn446; Calibrated: 7/18/2019  Phantom: SAM_Left_20170913  Measurement SW: DASY52, Version 52.10 (4); LTE Band 25 Head Right Touch QPSK 20MHz 1RB 0offset 26365ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.161 W/kg LTE Band 25 Head Right Touch QPSK 20MHz 1RB 0offset 26365ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.882 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.183 W/kg SAR(1 g) = 0.115 W/kg; SAR(10 g) = 0.069 W/kg Maximum value of SAR (measured) = 0.154 W/kg 0 dB = 0.154 W/kg = -8.12 dBW/kg FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023-R1 F-TP22-03 (Rev.00) Page 277 of 360 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 20.5 °C Ambient Temperature: 20.7 °C Test Date: 06/10/2020 Plot No.: 11 DUT: SM-N980FDS; Type: Bar Communication System: UID 0, LTE Band 26 (0); Frequency: 831.5 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 831.5 MHz; σ = 0.939 S/m; ε r = 42.575; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7370; ConvF(9.88, 9.88, 9.88) @ 831.5 MHz; Calibrated: 2019-08-29  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn868; Calibrated: 9/4/2019  Phantom: SAM with CRP v5.0_2020_06_09  Measurement SW: DASY52, Version 52.10 (4); LTE band 26 Head Left Touch QPSK 15MHz 1RB 0offset 26865ch/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.176 W/kg LTE band 26 Head Left Touch QPSK 15MHz 1RB 0offset 26865ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.048 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 0.194 W/kg SAR(1 g) = 0.145 W/kg; SAR(10 g) = 0.109 W/kg Maximum value of SAR (measured) = 0.177 W/kg 0 dB = 0.177 W/kg = -7.52 dBW/kg FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023-R1 F-TP22-03 (Rev.00) Page 278 of 360 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 20.4 °C Ambient Temperature: 20.7 °C Test Date: 06/16/2020 Plot No.: 12 DUT: SM-N980FDS; Type: Bar Communication System: UID 0, LTE Band41 (0); Frequency: 2593 MHz;Duty Cycle: 1:1.58016 Medium parameters used (interpolated): f = 2593 MHz; σ = 1.951 S/m; ε r = 37.894; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration:  Probe: EX3DV4 - SN3903; ConvF(7.49, 7.49, 7.49); Calibrated: 2020-03-25;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn869; Calibrated: 2019-09-19  Phantom: Twin-SAM V4.0(Left-Left)  Measurement SW: DASY52, Version 52.10 (4); SM-N980FDS/LTE Band 41 Head Left Tilt QPSK 20MHz 1RB 0offset 40620ch/Area Scan (9x17x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0916 W/kg SM-N980FDS/LTE Band 41 Head Left Tilt QPSK 20MHz 1RB 0offset 40620ch/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.150 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.118 W/kg SAR(1 g) = 0.061 W/kg; SAR(10 g) = 0.030 W/kg Maximum value of SAR (measured) = 0.0948 W/kg 0 dB = 0.0916 W/kg = -10.38 dBW/kg FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023-R1 F-TP22-03 (Rev.00) Page 279 of 360 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 19.5 °C Ambient Temperature: 19.7 °C Test Date: 06/12/2020 Plot No.: 13 DUT: SM-N980FDS; Type: Bar Communication System: UID 0, LTE 66 (0); Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1745 MHz; σ = 1.318 S/m; ε r = 39.901; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN3797; ConvF(8.14, 8.14, 8.14) @ 1745 MHz; Calibrated: 2019-11-28  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn446; Calibrated: 7/18/2019  Phantom: SAM_Left_20170913  Measurement SW: DASY52, Version 52.10 (4); LTE Band 66 Head Right Touch QPSK 20MHz 1RB 99offset 132322ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.171 W/kg LTE Band 66 Head Right Touch QPSK …

Text truncated - open the document above for the full version.

FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 1 / 217 HCT CO.,LTD. Attachment 5. – Probe Calibration Data FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 2 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 3 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 4 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 5 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 6 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 7 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 8 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 9 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 10 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 11 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 12 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 13 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 14 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 15 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 16 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 17 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 18 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 19 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 20 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 21 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 22 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 23 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 24 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 25 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 26 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 27 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 28 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 29 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 30 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 31 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 32 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 33 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 34 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 35 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 36 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 37 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 38 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 39 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 40 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 41 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report No: HCT-SR-2006-FC023 F-TP22-03 (Rev.00) 42 / 217 HCT CO.,LTD. FCC ID: A3LSMN980F Report …

Text truncated - open the document above for the full version.
