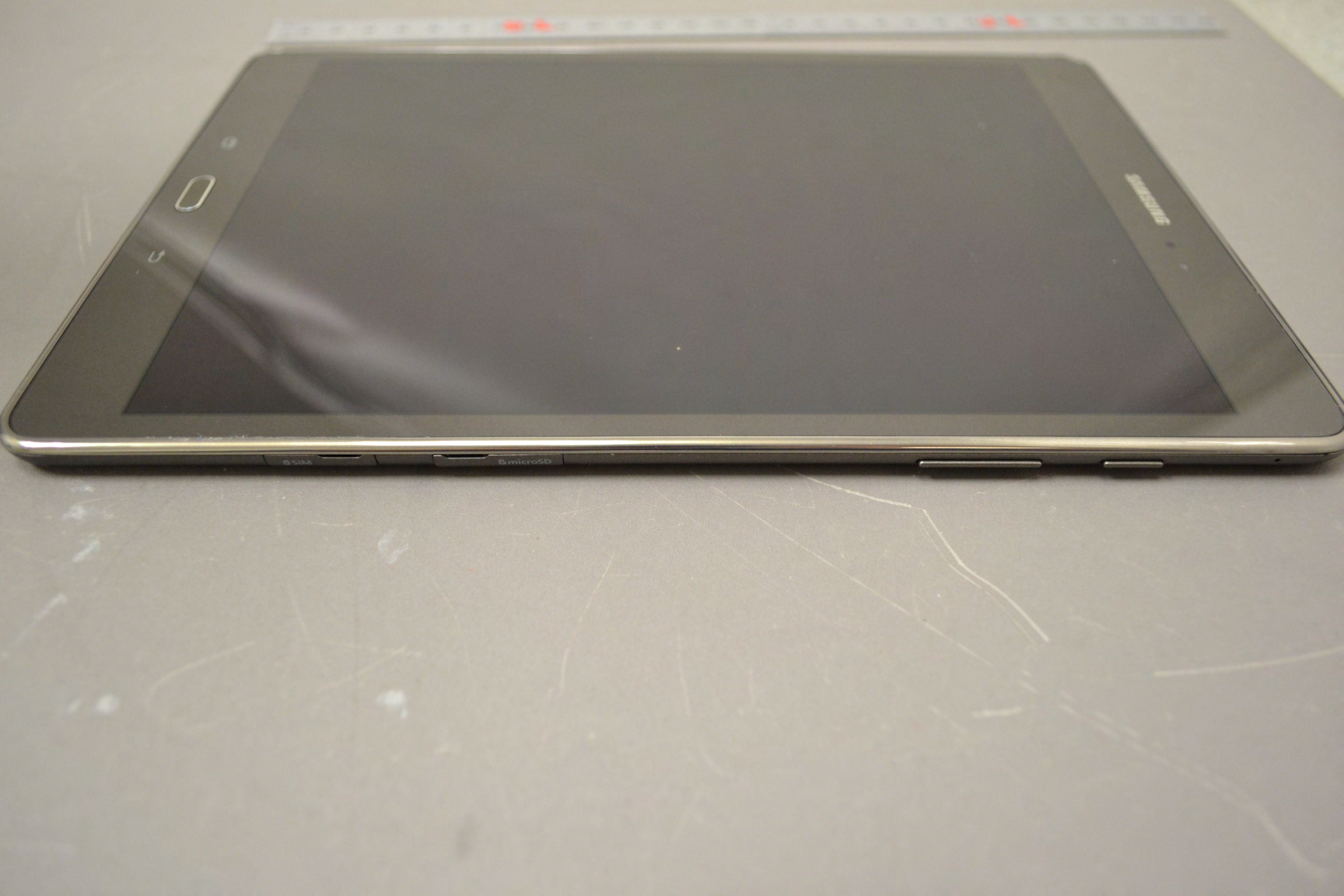

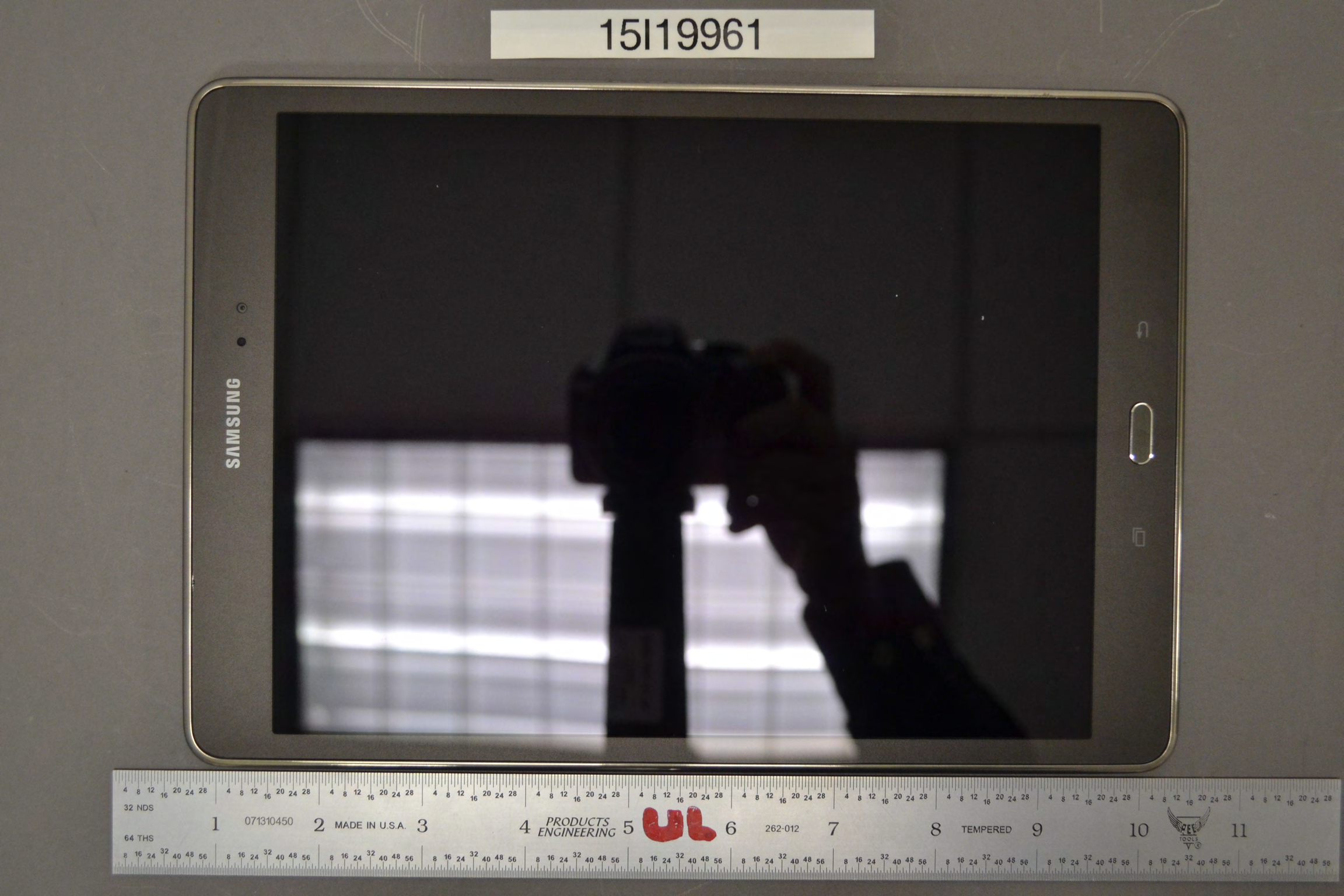

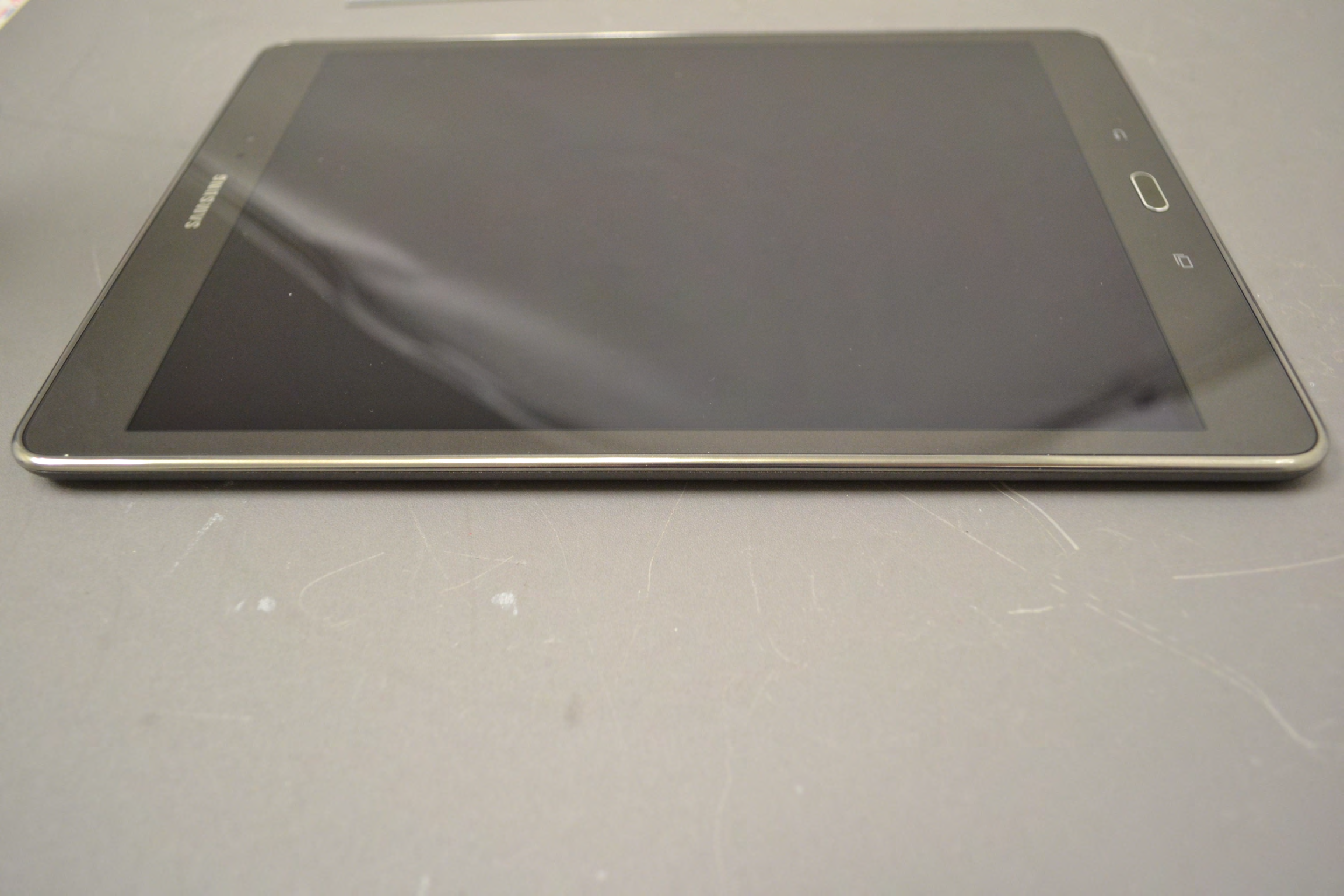

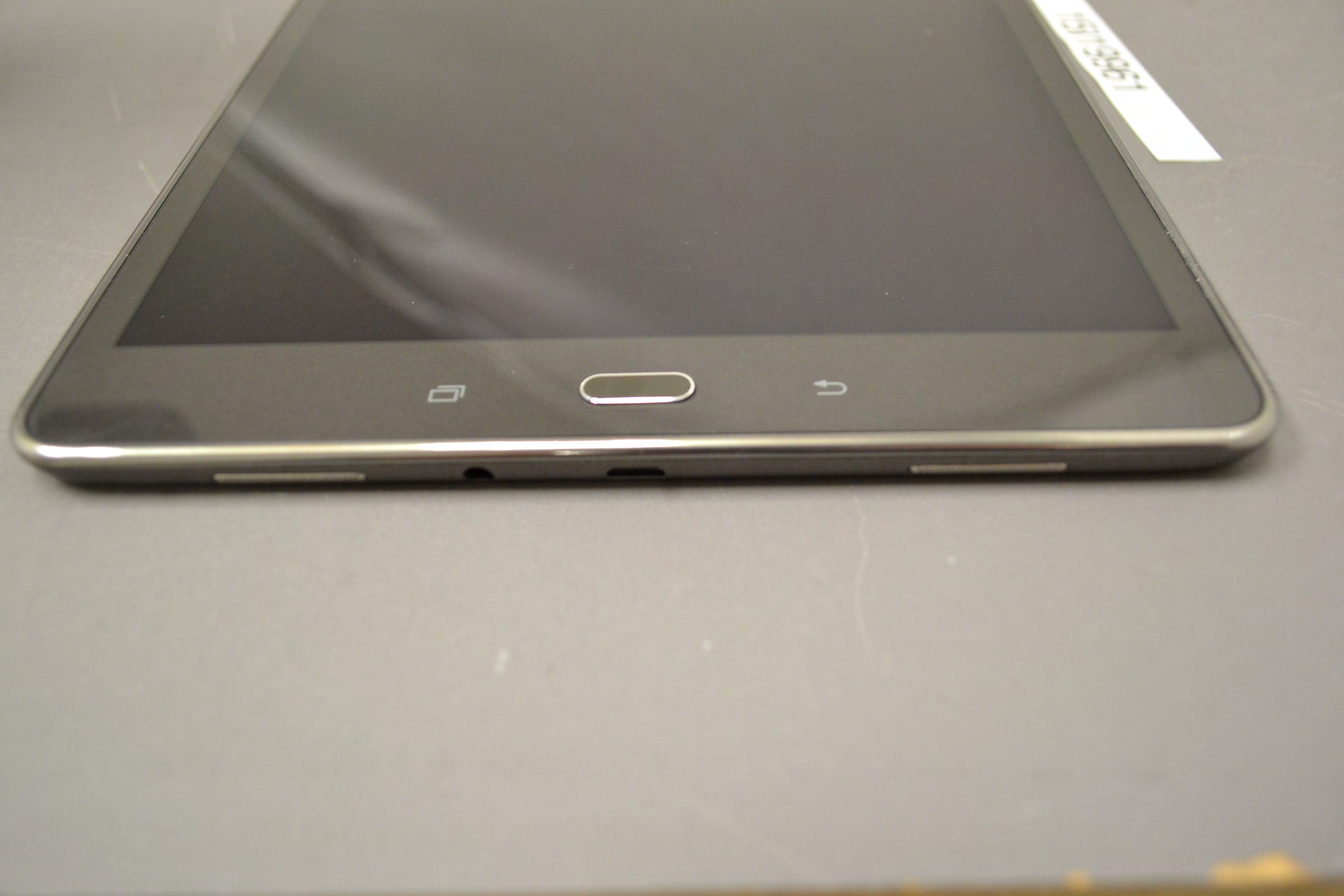

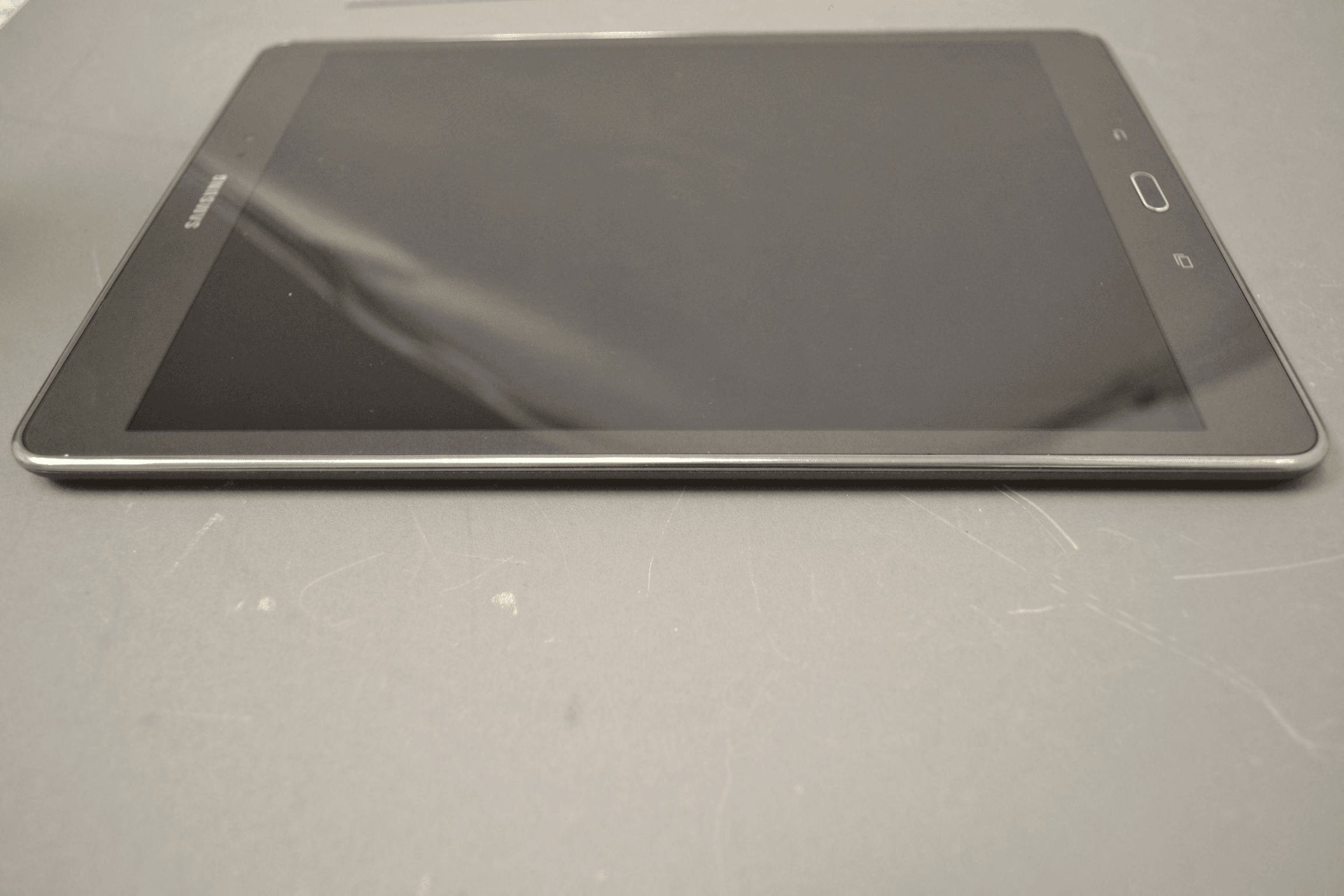

A3LSMP555GSM/WCDMA/LTE Tablet with Bluetooth, DTS/UNII a/b/g/n and ANT+

www.samsung.com User Manual SM-T555 English (EU). 03/2015. Rev.1.0 SM-P555 2 Table of Contents Read me first Getting started 6 Package contents 7 Device layout 9 Using the SIM or USIM card and battery 12 Using a memory card 14 Turning the device on and off 15 Locking and unlocking the screen Basics 16 Using the touch screen 19 Home screen layout 23 Notifications panel 25 Opening apps 25 Installing or uninstalling apps 27 Entering text 29 Screen capture 29 My Files 30 Power saving feature Network connectivity 31 Mobile data 31 Wi-Fi 32 Mobile hotspot and tethering Motions & usability features 34 Motions and gestures 35 Multi window Personalising 40 Managing the Home and Apps screens 41 Setting wallpaper and ringtones 42 Changing the screen lock method 43 Private mode 45 Setting up accounts Phone 46 Making calls 47 Receiving calls 48 Options during calls Table of Contents 3 Connecting with other devices 70 Bluetooth 72 Wi-Fi Direct 74 Quick Connect 75 SideSync 3.0 82 Screen Mirroring 84 Mobile printing Device & data manager 85 Transferring data from your previous device 87 Using the device as a removable disk for data transfer 87 Updating the device 88 Backing up and restoring data 89 Performing a data reset Settings 90 About Settings 90 Connections 93 Device 95 Personal 99 System Appendix 103 Troubleshooting 108 Removing the battery (non-removable type) Contacts 49 Adding contacts 50 Importing and exporting contacts 50 Searching for contacts Messages & email 51 Messages 52 Email Camera 54 Basic shooting 55 Shooting modes 57 Camera settings Gallery 58 Viewing content on the device Useful apps and features 59 S Finder 59 S Planner 61 Internet 62 Music 63 Video 64 Clock 65 Calculator 65 Memo 66 Smart Manager 67 Google apps 4 Read me first Please read this manual before using the device to ensure safe and proper use. r
Descriptions are based on the device’s default settings. r
Some content may differ from your device depending on the region, service provider, or device’s software. r
Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. r
Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. r
Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. r
Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. r
You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. r
Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. r
Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Read me first 5 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information 6 Getting started Package contents Check the product box for the following items: r
Device r
Quick start guide r
The items supplied with the device and any available accessories may vary depending on the region or service provider. r
The supplied items are designed only for this device and may not be compatible with other devices. r
Appearances and specifications are subject to change without prior notice. r
You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. r
Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty. r
Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. Getting started 7 Device layout Touch screen Light sensor Recent apps button Home button Back button Headset jack Volume button Power button Microphone Front camera Multipurpose jack Memory card slot SIM card slot Speaker Speaker Rear camera GPS antenna Push clip Push clip Getting started 8 r
Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. r
Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction. r
Do not allow water to contact the touch screen. The touch screen may malfunction in humid conditions or when exposed to water. Buttons ButtonFunction Power r
Press and hold to turn the device on or off. r
Press to turn on or lock the screen. Recent apps r
Tap to open the list of recent apps. r
Tap and hold to launch the split screen view. Home r
Press to turn on the screen while the screen is locked. r
Press to return to the Home screen. r
Press and hold to launch Google. Back r
Tap to return to the previous screen. Volume r
Press to adjust the device volume. Getting started 9 Using the SIM or USIM card and battery Installing the SIM or USIM card Insert the S…

Text truncated - open the document above for the full version.

Date: Feb. 18, 2015 UL Verification Services 47173 Benicia Street Fremont, CA 94538 Samsung Elec tron ics Co., LT D. 129, Samsung-ro, Yeongtong- gu Su won- City, Gyeon ggi-do, 443-742, Kor ea Subject: Samsung Electronics Co. , Ltd. FCC ID: A3L SMP555 To Whom it May Concern We attest the following regarding FCC ID: A3L SMP555 1. MPR is per ma nently implement ed f or all cha nnel BWs, modulations, f reque ncy bands and RB sizes. 2. A- MPR w as d isabled for all SAR test samples f or SAR test ing p urposes only. 3. We con firm the specific MPR ta rg ets and to lerances sho wn in the SAR Report. Should you have any questions or comments concerning the above, please contact the und ersi gned. Sincerely, Seung-yeop YU Engineer Samsung Electronics CO. LTD TEL: +82 -10-4807-4505 E-m ail: [email protected]

Device Information per KDB 941225 pub (12/15/2010) 1) 2) LowMidHigh 824.7MHz(20407)836.5MHz(20525)848.3MHz(20643) 825.5MHz(20415)836.5MHz(20525)847.5MHz(20635) 826.5MHz(20425)836.5MHz(20525)846.5MHz(20625) 829.0MHz(20450)836.5MHz(20525)844.0MHz(20600) 4)(a) 5) 6) 7) 8) RF Output Power 33.00dBm 30.00dBm 22.50dBm 21.50dBm 9.5dBm 14.00dBm 11) 12) 13) 14) 15) SAR Test Plan SAR test data, preliminary See SAR Report See SAR Report See SAR Report Yes Describe Power Reduction (LTE Modes) See SAR Report Yes Yes No Body Hotspot GSM/WCDMA/LTE share the same antenna Body Hotspot Body Hotspot Yes Body Hotspot No 9-10) (b) QPSK, 16QAM Hotspot with LTE+WIFI Hotspot with LTE+WIFI active with 1XVoice sessions? 1900 MHz WCDMA 1 Tx antenna for GSM/UMTS/LTE Yes Body Hotspot LTE Band 5 and BW 1.4MHz Non-LTE US Wireless Operating Modes/Band Modulations Supported in UL UE Category LTE Transmitter and Antenna Implementation Description of LTE Tx and Ant. Implementation LTE Band 5 and BW 5MHz LTE Band 5 and BW 3MHz RF Exposure Configurations KDB 941225 Pub LTE Information Body Hotspot FCC ID Form Factor Frequency Range of each LTE transmission band Channel Bandwidths LTE Band 5 and BW 10MHz A-MPR (Additional MPR) disabled for SAR Testing? 1900MHz GSM 2.4GHz Bluetooth Simultaneous Tx Conditions (Voice and Data Configurations) 2.4GHz WI-FI 4 LTE Voice available? 850 MHz GSM 850 MHz WCDMA Conducted power Table provided for 1RB (low and high offset), 50% RB (centered), 100% RB A3LSMP555 BAND5 : 1.4MHz, 3MHz, 5.0MHz, 10MHz BAND5 : Tx (824 ~ 849MHz) Tablet KDB 941225 Section Power Reduction used for SAR Compliance? Channel Numbers and Frequencies (MHz) 3) LTE MPR Permanently implemented per 3GPP TS 36.101 section 6.2.3~6.2.5? (manufacturer attestation to be provided)

February 23, 201 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMP555 To Whom It May Con cern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Sensor triggering document UNII Device SW Security Statement Above ment ioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: July 23, 2014 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; a) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; b) make claims regarding certification only in respect of the scope for which certification has been granted; c) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; d) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; e) use certification only to indicate the products are certified as being in conformity with specified standards; f) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; g) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; h) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; i) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; j) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

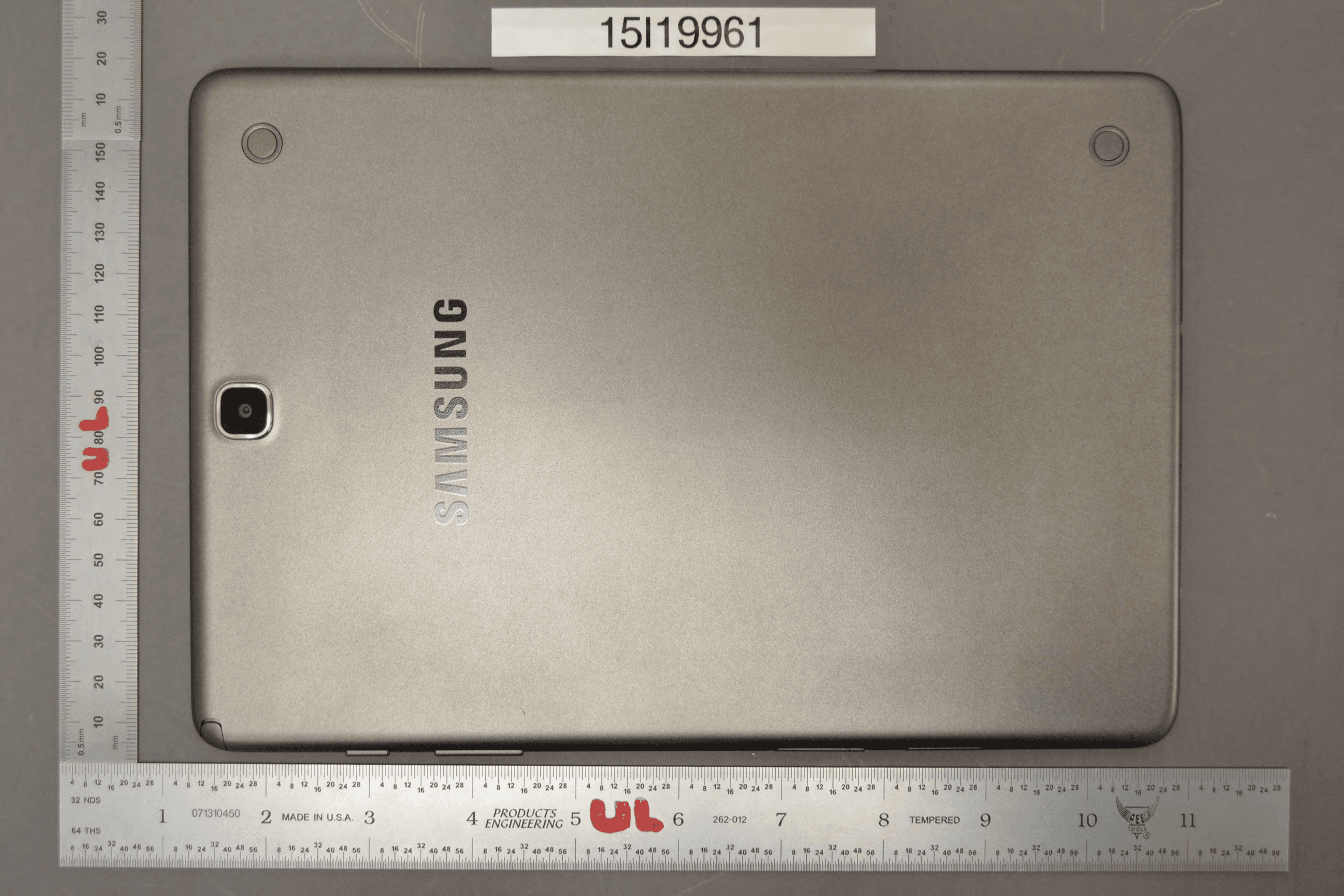

Label: Location: Top Back of EUT Bottom Tablet : FCC ID is printed on bottom of the device The FCC ID label is located in the back cover. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. SM-P555 FCC ID:A3LSMP555 SAMSUNG, YATELEY, GU46 6GG. UK MADE IN VIETNAM BY SAMSUNG IMEI:333333/44/000666/1 S/N:4A67LP85K5Q

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea February 23, 2015 Federal Communica tion s Commissio n 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMP555 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located on the rear of the device with the battery installed. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/WCDMA/LTE Tablet + Bluetooth, DTS/UNII a/b/g/n & ANT+ FCC ID: A3LSMP555 Model Name: SM-P555 Report Number: 15I19961-S1A Issue Date: 3/10/2015 Prepared for SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15I19961-S1A Issue Date: 3/10/2015 Page 2 of 56 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By -- 3/3/2015 Initial Issue -- A 3/10/2015 Updated Section 6.2 Coltyce Sanders Report No.: 15I19961-S1A Issue Date: 3/10/2015 Page 3 of 56 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 11 6. Device Under Test (DUT) Information ...................................................................................... 12 6.1. DUT Description ...................................................................................................................... 12 6.2. Wireless Technologies ............................................................................................................. 12 6.3. Nominal and Maximum Output Power ...................................................................................... 13 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 14 6.5. Power Reduction by Proximity Sensing ................................................................................... 15 6.5.1. Proximity Sensor Triggering Distance (KDB 616217 §6.2) ................................................ 15 6.5.2. Proximity Sensor Triggering Distance Measurement Results ............................................ 16 6.5.3. Proximity Sensor Coverage (KDB 616217 §6.3) ............................................................... 21 6.5.4. Proximity Sensor Tilt Angle Assessment (KDB 616217 §6.4) ............................................ 21 6.5.5. Resulting test positions for SAR measurements ............................................................... 21 7. RF Exposure Conditions (Test Configurations) ...................................................................... 22 7.1. Standalone SAR Test Exclusion Considerations ...................................................................... 22 7.2. Required Test Configurations .................................................................................................. 24 8. Dielectric Property Measurements & System Check .............................................................. 25 8.1. Dielectric Property Measurements ........................................................................................... 25 8.2. System Check.......................................................................................................................... 28 9. Conducted Output Power Measurements ................................................................................ 31 9.1. GSM ........................................................................................................................................ 31 9.2. W-CDMA ................................................................................................................................. 33 9.3. LTE .......................................................................................................................................... 38 9.4. Wi-Fi 2.4GHz ........................................................................................................................... 40 9.5. Wi-Fi 5GHz .............................................................................................................................. 41 9.6. Bluetooth ................................................................................................................................. 42 10. Measured and Reported (Scaled) SAR Results ....................................................................... 43 Report No.: 15I19961-S1A Issue Date: 3/10/2015 Page 4 of 56 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 10.1. GSM850 ............................................................................................................................... 45 10.2. GSM1900 ............................................................................................................................. 45 10.3. W-CDMA Band V ................................................................................................................. 45 10…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 2/5/2015 12:55:59 AM GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.984 S/m; ε r = 53.366; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3749; ConvF(8.61, 8.61, 8.61); Calibrated: 1/26/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1213 Edge 2/GPRS 3 slot_ch 190/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.384 W/kg Edge 2/GPRS 3 slot_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.65 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.719 W/kg SAR(1 g) = 0.405 W/kg; SAR(10 g) = 0.237 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.536 W/kg 0 dB = 0.536 W/kg = -2.71 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 2/11/2015 10:15:07 AM GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.502 S/m; ε r = 51.43; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1377; Calibrated: 8/27/2014 - Probe: EX3DV4 - SN3929; ConvF(7.25, 7.25, 7.25); Calibrated: 5/9/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-B V5.0; Type: QDOVA001BB; Serial: S/n:1216 Rear/GPRS 1 Slots ch 661/Area Scan (9x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.732 W/kg Rear/GPRS 1 Slots ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.60 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.604 W/kg; SAR(10 g) = 0.249 W/kg Maximum value of SAR (measured) = 0.934 W/kg 0 dB = 0.934 W/kg = -0.30 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 2/5/2015 8:50:20 AM W-CDMA Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.984 S/m; ε r = 53.366; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3749; ConvF(8.61, 8.61, 8.61); Calibrated: 1/26/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1213 Edge 2/Rel.99 RMC 12.2 kbps_ch 4183/Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.380 W/kg Edge 2/Rel.99 RMC 12.2 kbps_ch 4183/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.15 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.572 W/kg SAR(1 g) = 0.311 W/kg; SAR(10 g) = 0.176 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.424 W/kg 0 dB = 0.424 W/kg = -3.73 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 2/6/2015 4:09:18 PM WCDMA Band II Frequency: 1852.4 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.446 S/m; ε r = 52.23; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1377; Calibrated: 8/27/2014 - Probe: EX3DV4 - SN3929; ConvF(7.25, 7.25, 7.25); Calibrated: 5/9/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-B V5.0; Type: QDOVA001BB; Serial: S/n:1216 Rear/Rel 99 RMC_ch 9262 w/ Pwr Back Off/Area Scan (9x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.781 W/kg Rear/Rel 99 RMC_ch 9262 w/ Pwr Back Off/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.70 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 2.40 W/kg SAR(1 g) = 0.991 W/kg; SAR(10 g) = 0.412 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.46 W/kg 0 dB = 1.46 W/kg = 1.64 dBW/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 2/11/2015 10:42:39 AM LTE Band 5 Frequency: 836.5 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.5 MHz; σ = 1.002 S/m; ε r = 53.42; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3749; ConvF(8.61, 8.61, 8.61); Calibrated: 1/26/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1213 Edge 2/QPSK RB 1/0 ch 20525/Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.392 W/kg Edge 2/QPSK RB 1/0 ch 20525/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 2/2/2015 9:31:21 AM 20140202_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.032 S/m; ε r = 50.614; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN3902; ConvF(7.35, 7.35, 7.35); Calibrated: 5/19/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-B v5.0; Type: QDOVA002AA; Serial: TP:1195 Body/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.02 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.770 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 11.3 W/kg SAR(1 g) = 5.38 W/kg; SAR(10 g) = 2.46 W/kg Maximum value of SAR (measured) = 7.67 W/kg 0 dB = 7.67 W/kg = 8.85 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 2/2/2015 9:54:47 AM 20140202_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.40 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 2/9/2015 11:01:38 AM 20150209_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5800 MHz; σ = 6.181 S/m; ε r = 46.273; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN3902; ConvF(4.11, 4.11, 4.11); Calibrated: 5/19/2014; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/5.8 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 19.0 W/kg Body/5.8 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 48.967 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 33.7 W/kg SAR(1 g) = 7.39 W/kg; SAR(10 g) = 2.08 W/kg Maximum value of SAR (measured) = 18.4 W/kg 0 dB = 18.4 W/kg = 12.65 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 2/9/2015 11:22:37 AM 20150209_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5800 MHz; Duty Cycle: 1:1 Body/5.8 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 12.7 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 2/16/2015 9:50:17 AM 20150216_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5800 MHz; σ = 6.085 S/m; ε r = 48.029; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN3902; ConvF(4.11, 4.11, 4.11); Calibrated: 5/19/2014; - Se…
